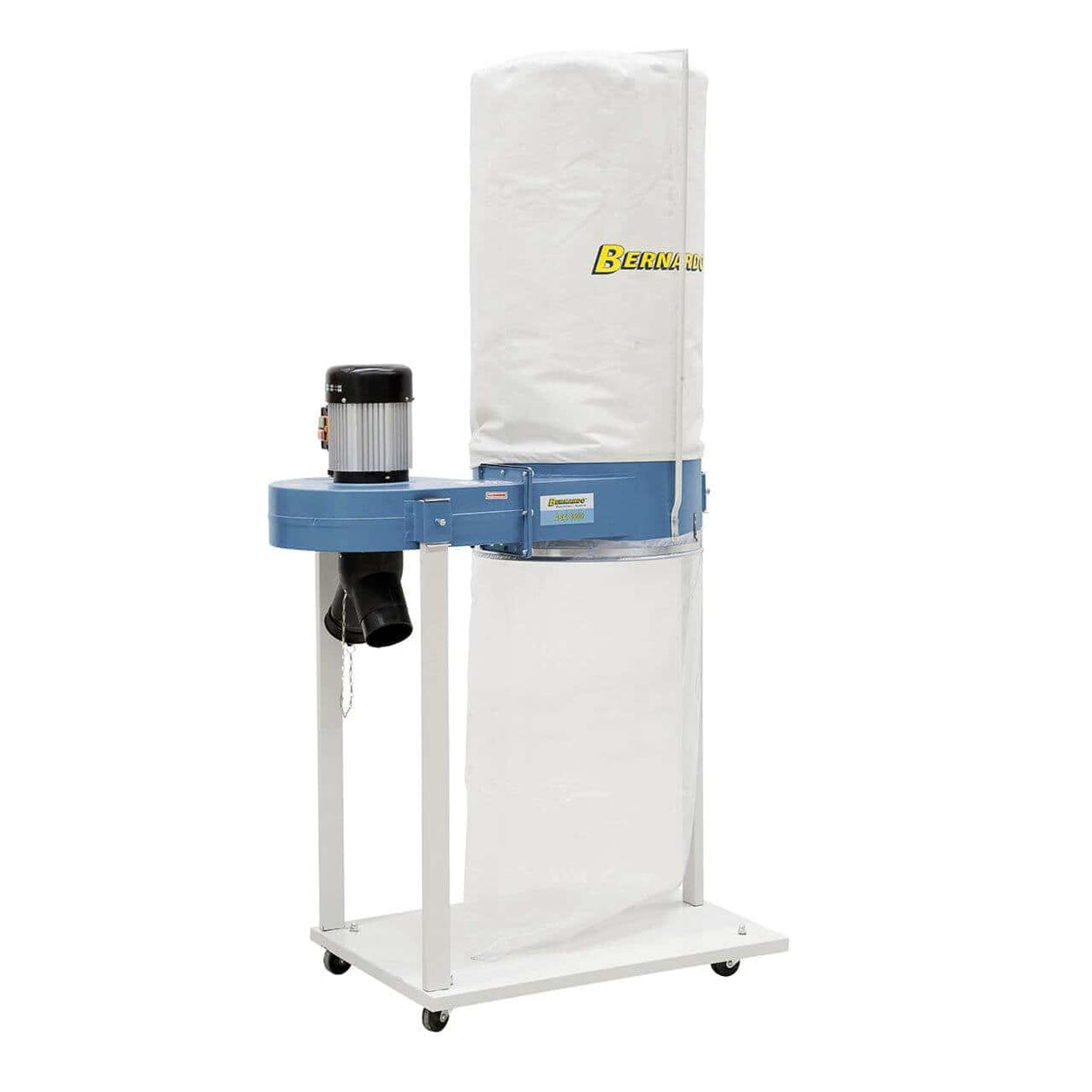

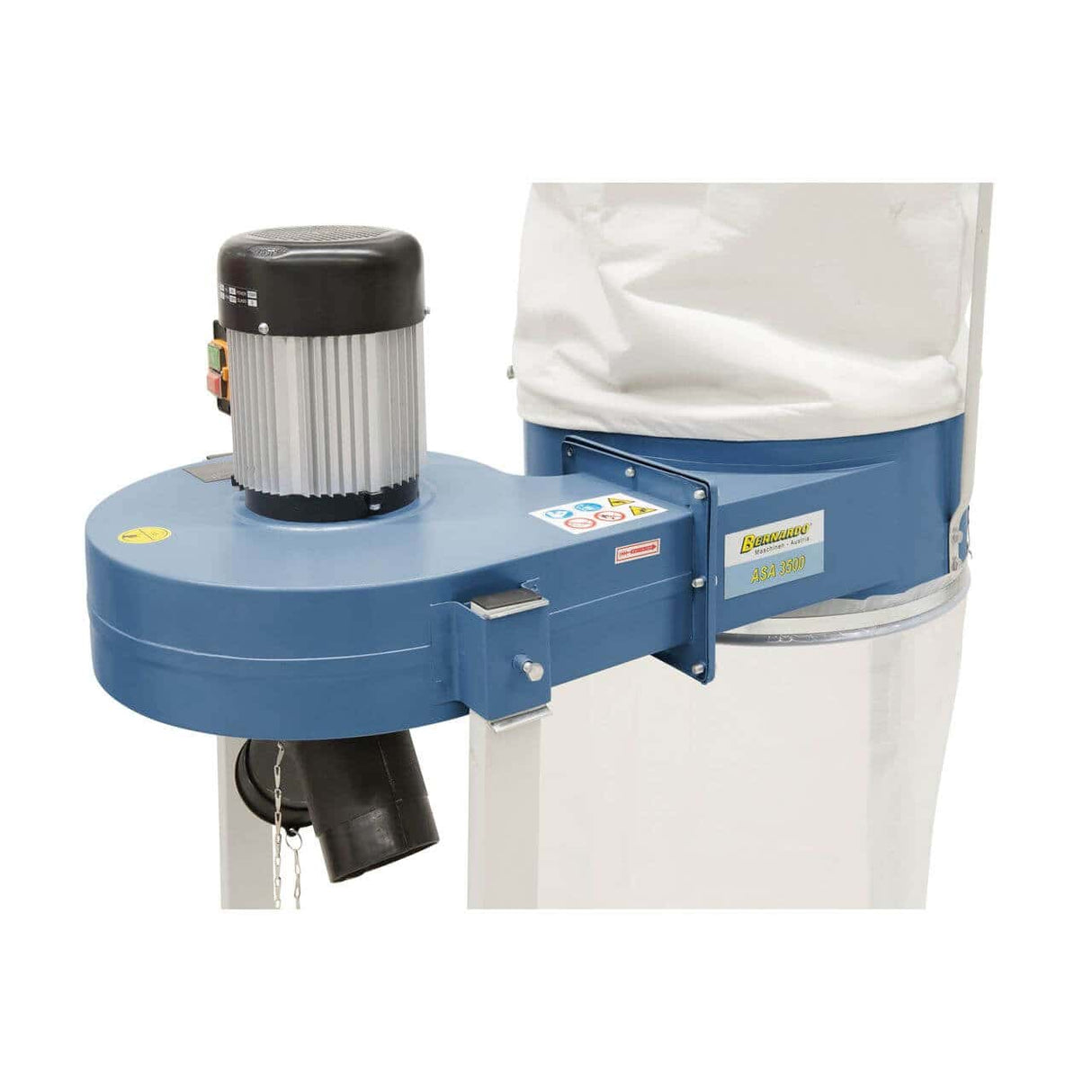

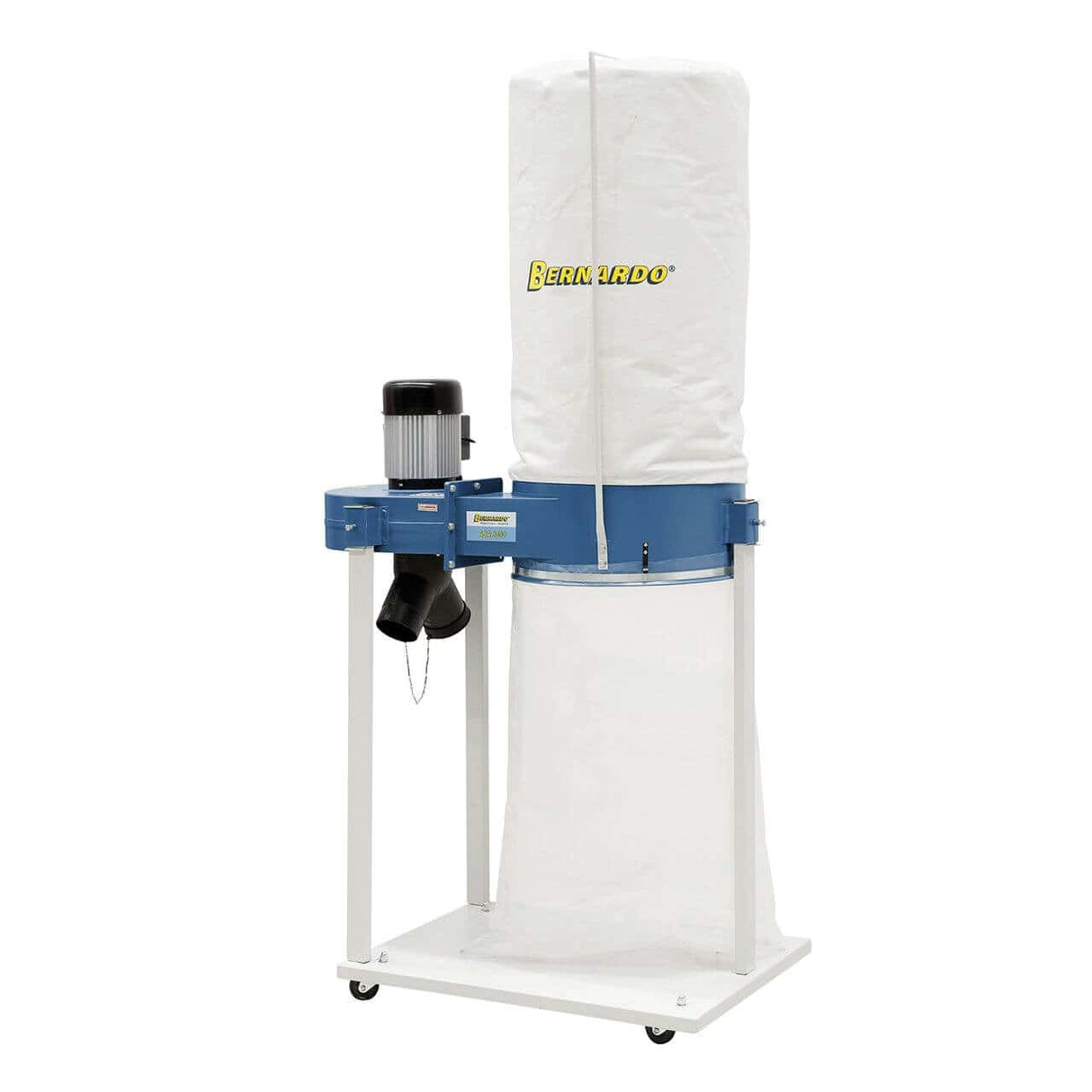

Bernardo ASA 3500 – Extraction system 2530 m³/h with 165 L bag
The Bernardo ASA 3500 extraction system is designed for joineries and workshops looking for a compact yet powerful system. With an air flow rate of 2530 m³/h and a maximum vacuum of 1800 Pa, it ensures constant and effective extraction. It features a 165-liter chip collection bag and a 1.45 m² filter bag to capture even the finest particles. Thanks to the Y-adapter (1 x 130 mm / 2 x 100 mm), up to two machines can be connected simultaneously, increasing productivity. The 1.5 kW (2.0 HP) S1 and 2.1 kW (2.8 HP) S6 40% motor guarantees reliability and long-lasting performance. With an integrated mobility device, compact dimensions, and low weight (37 kg), it is easily movable and suitable for professional and semi-professional workshops.
Key Specifications
Air flow rate: 2530 m³/h
Maximum vacuum: 1800 Pa
165 L chip bag

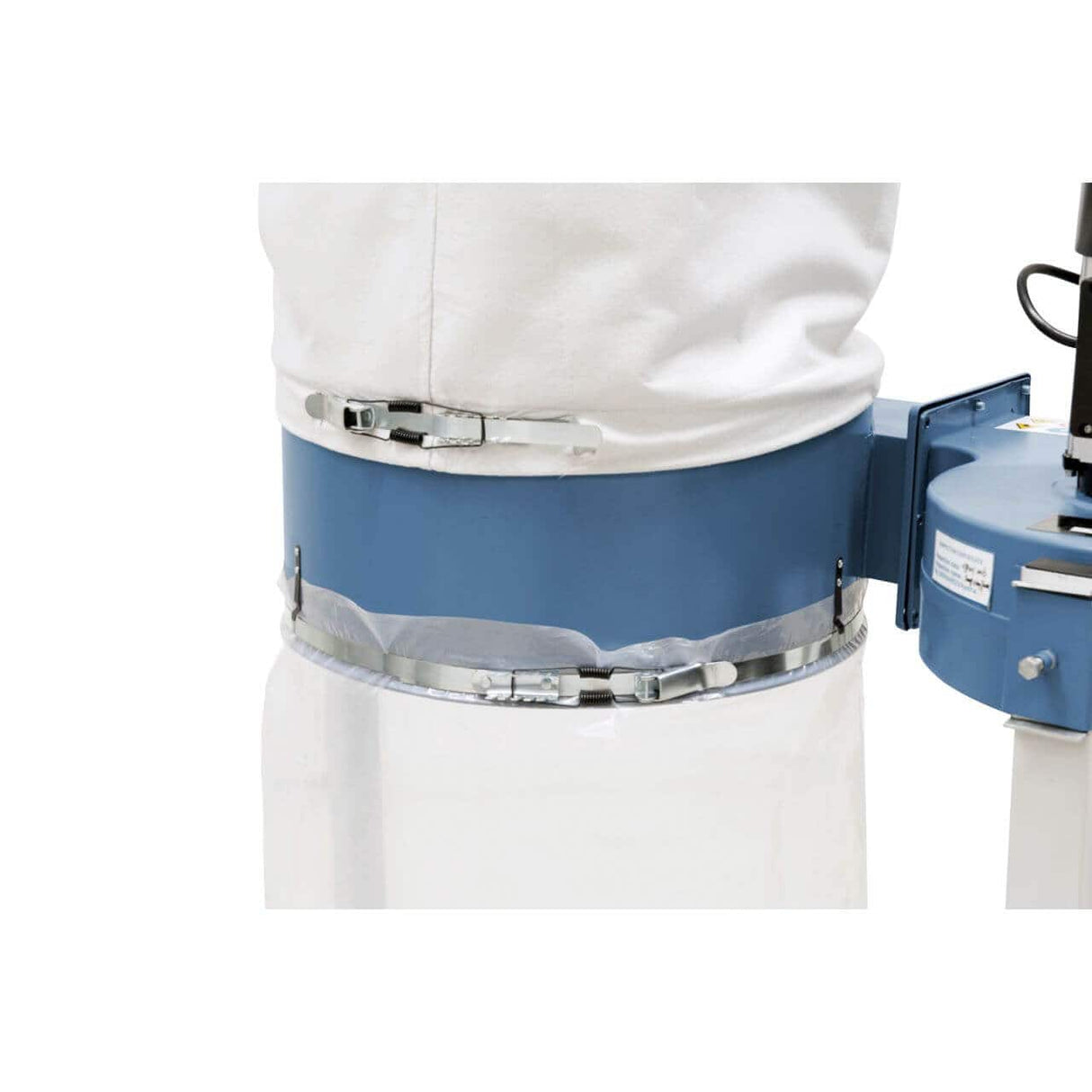

Filter bag with 1.45 m² surface area

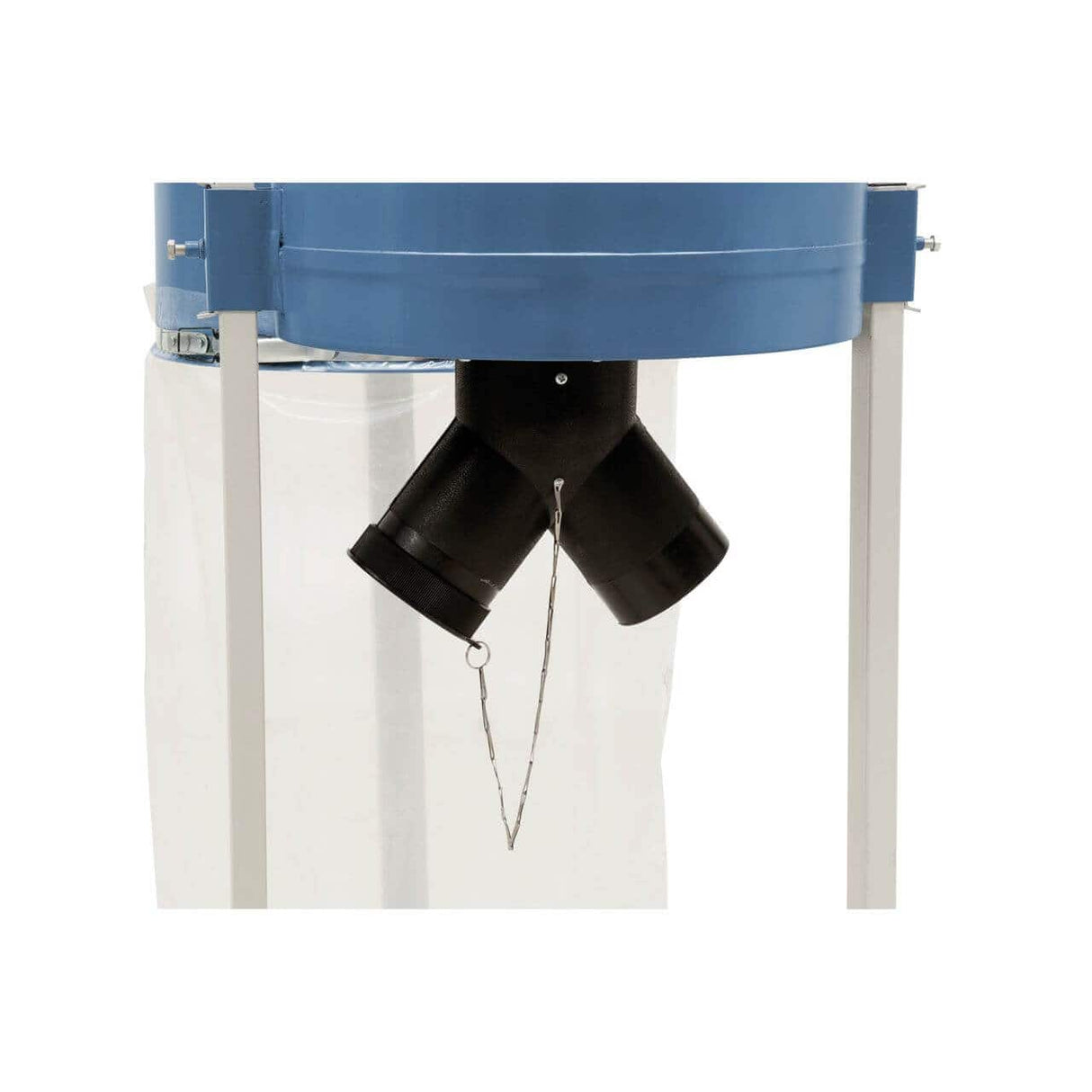

Y-adapter (1 x 130 mm / 2 x 100 mm) included

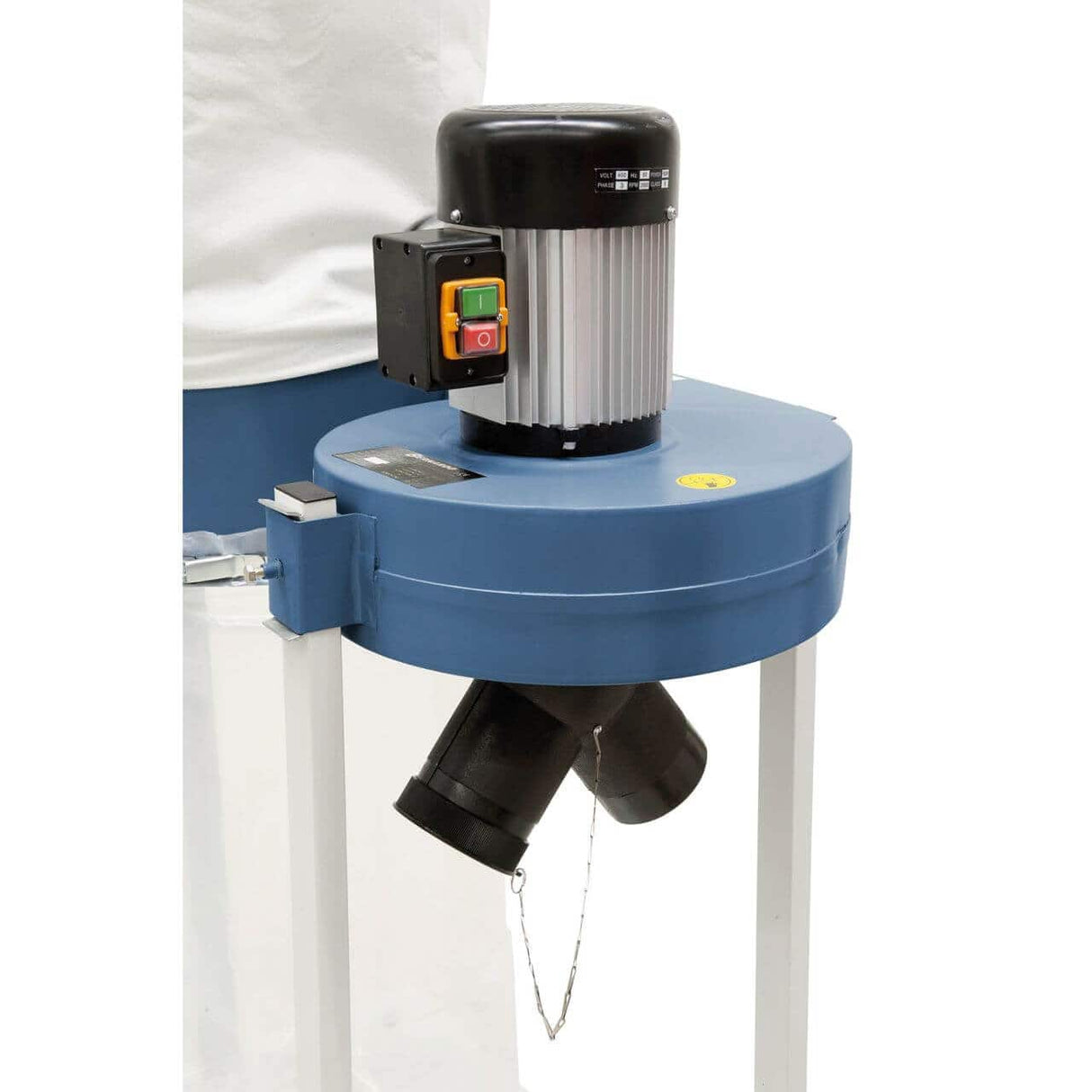

1.5 kW (2.0 HP) – S1 motor
S6 40% output power: 2.1 kW (2.8 HP)
Sound pressure: 87 dB
Dimensions: 1000 x 600 x 1950 mm
Weight: 37 kg
Mobility device for portability
Technical Data:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | ASA 3500 |
| Air flow rate | 2530 m³/h |
| Filter surface | 1.45 m² |
| Max. vacuum | 1800 Pa |
| Extraction connection | 1 x Ø 130 mm / 2 x Ø 100 mm |
| Chip bag capacity | 165 liters |
| Min. rotation speed | 2950 rpm |
| Sound pressure | 87 dB |
| Motor input power (S1 100%) | 1.5 kW (2.0 HP) |
| Motor output power (S6 40%) | 2.1 kW (2.8 HP) |
| Voltage | 230 V / 400 V |
| Machine dimensions (L x W x H) | 1000 x 600 x 1950 mm |
| Weight | 37 kg |
Package Contents:
Bernardo ASA 3500 Extraction System
165 L chip bag
1.45 m² filter bag
Y-adapter (1 x 130 mm / 2 x 100 mm)
Mobility device
User Manual
Logistics
Bernardo Shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Frequently Asked Questions
The ASA series — what distinguishes it from the DC series in the Bernardo extractor range?
The ASA series is a compact extraction system with a large bag (165 L): a monolithic structure that is easy to move, installation without fixed ducting, suitable for workshops with a flexible layout. The DC series is modular and integrates into centralized extraction systems with fixed ducting. For workshops with machines that frequently change position or for multi-site use: ASA. For fixed systems with multiple machines permanently connected: DC.
The flow rate of 2530 m³/h — how many machines can it handle simultaneously?
Sized for artisan joineries — up to 3 machines connected with appropriate ducting. The actual flow rate depends on the length and diameter of the ducting — every meter of pipe and every bend reduces the effective flow rate. As a reference: a 100 mm pipe 5 m long with 2 bends reduces the flow rate by 15–25%. Coordinate sizing with Krollit before installation. Customer support in Italian available.
Spare parts and assistance available?
Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
