Bernardo DC 800 Dust Extractor
Bernardo DC 800 Dust Extractor is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description

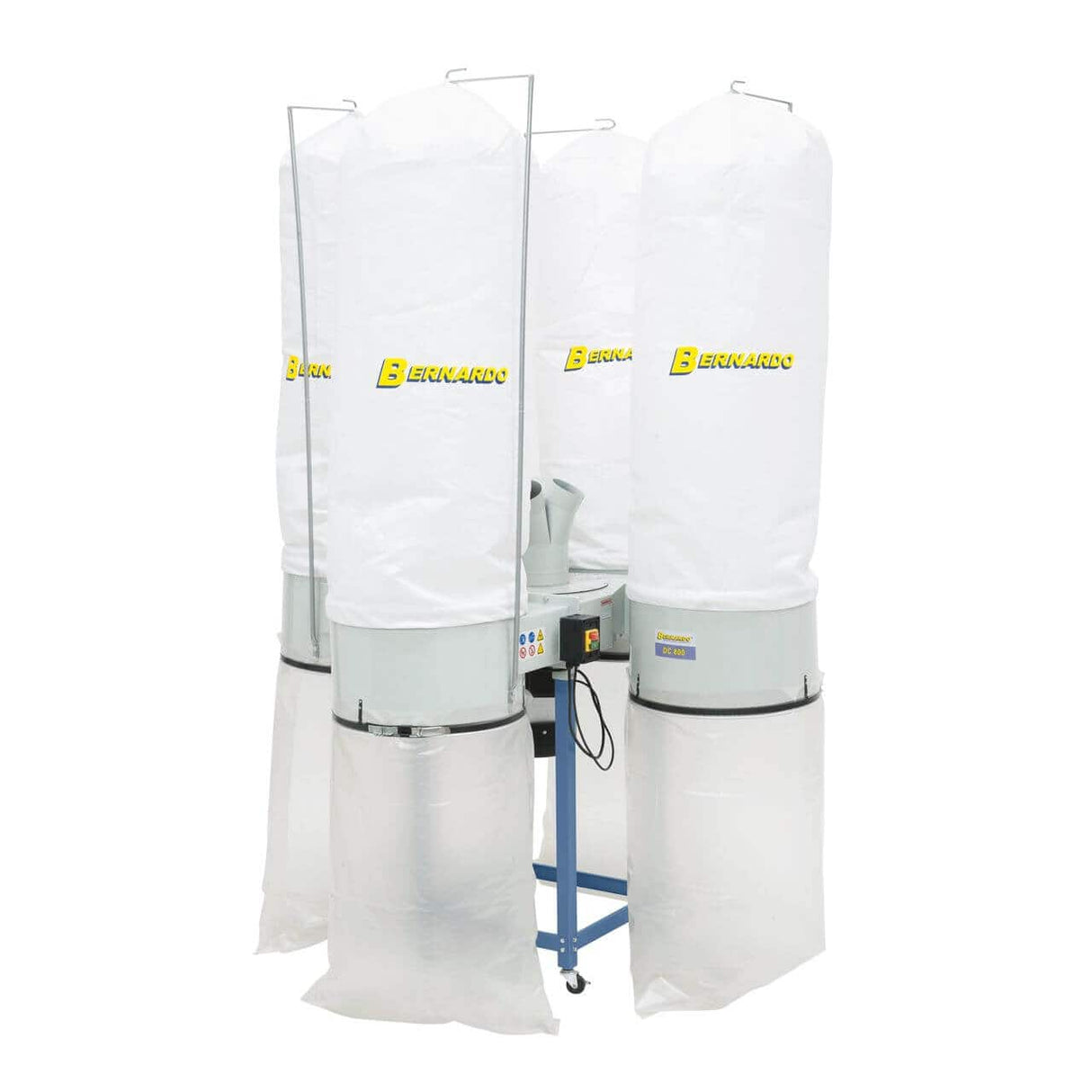

Bernardo DC 800 – 6800 m³/h Dust Collector with 4 x 210 L Bags
The Bernardo DC 800 dust collector is designed for joineries and workshops requiring a powerful, high-capacity system. With an air flow of 6800 m³/h and a maximum vacuum pressure of 2340 Pa, it guarantees consistent extraction even for the most demanding tasks. It features four 210-liter chip collection bags (totaling 840 L) and four filter bags offering a total filter surface area of 8 m². The included adapter allows for either a 180 mm connection or four 100 mm connections, ensuring great flexibility. Equipped with a 5.2 kW (7.0 HP) S1 and 7.0 kW (9.5 HP) S6 40% three-phase motor, it is robust, efficient, and operates at a low noise level (80 dB). A professional system for those seeking maximum performance and reliability.
Key Specifications
Four 210 L chip collection bags (total 840 L)
Four filter bags with a total surface area of 8.0 m²
Air flow: 6800 m³/h
Max. vacuum pressure: 2340 Pa

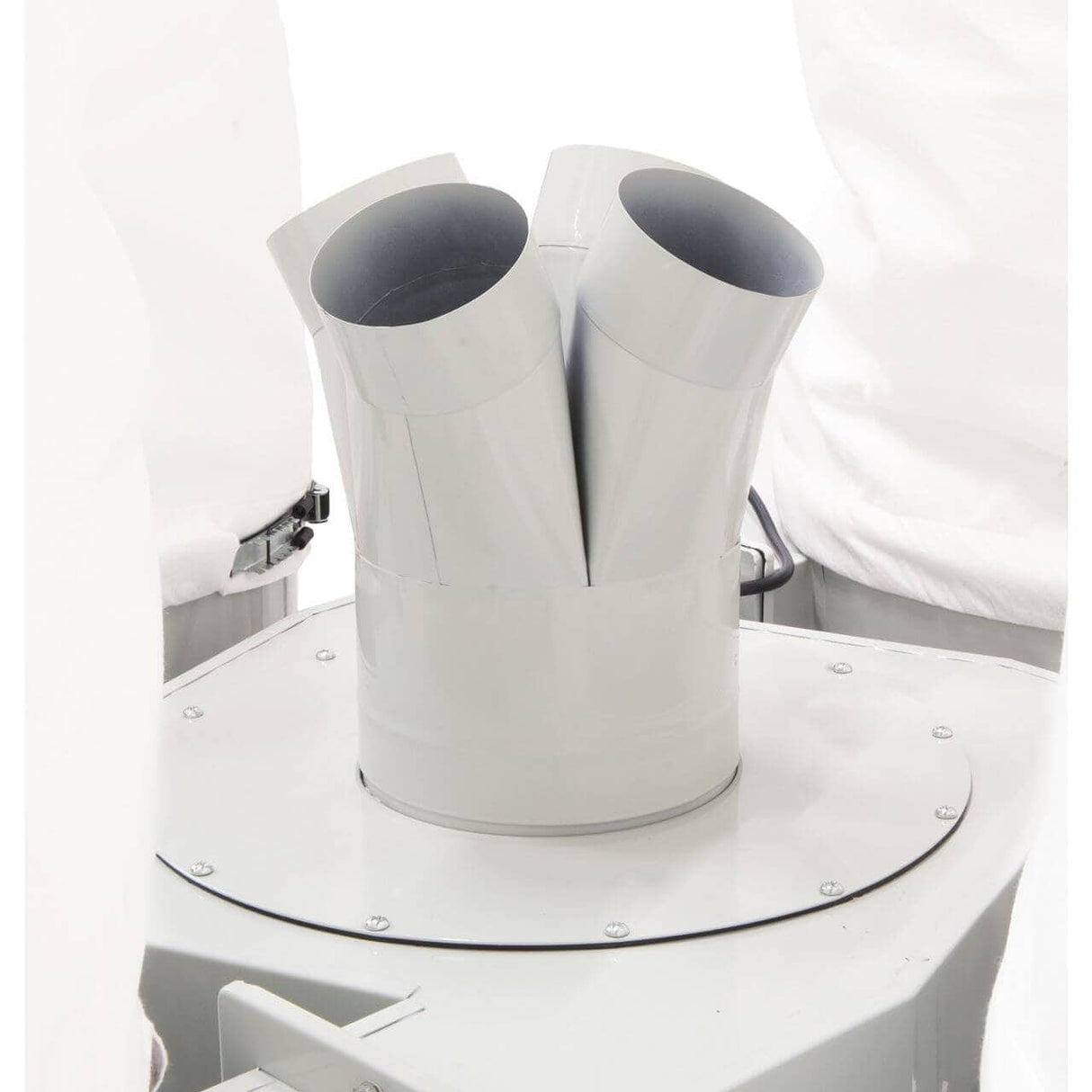

Suction connection: 1 x Ø 180 mm or 4 x Ø 100 mm with adapter
Three-phase motor 5.2 kW (7.0 HP) – S1
Output power S6 40%: 7.0 kW (9.5 HP)
Reduced sound pressure: 80 dB
Rotation speed: 2800 rpm
Dimensions: 1300 x 1300 x 2340 mm
Weight: 102 kg
Technical table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | DC 800 |
| Air flow | 6800 m³/h |
| Filter surface | 8.0 m² |
| Max. vacuum pressure | 2340 Pa |
| Suction connection | 1 x Ø 180 mm |
| Suction connection with distributor | 4 x Ø 100 mm |
| Chip bag capacity | 840 liters (4 x 210 L) |
| Min. rotation speed | 2800 rpm |
| Sound pressure | 80 dB |
| Motor input power (S1) | 5.2 kW (7.0 HP) |
| Motor output power (S6 40%) | 7.0 kW (9.5 HP) |
| Voltage | 400 V / 50 Hz |
| Machine dimensions (L x W x H) | 1300 x 1300 x 2340 mm |
| Weight | 102 kg |
Package contents:
Bernardo DC 800 Dust Collector
4 x 210 L chip collection bags
4 filter bags included
Adapter 1 x 180 mm / 4 x 100 mm
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to Southern Italy). Original spare parts available with 3–5 business day shipping. Italian customer support available.
Frequently asked questions
The DC 800 series – which machines is it suitable for and how is it connected?
The DC 800 connects to circular saws, planers, thicknessers, sanders via a 100 or 150 mm hose (depending on the model). Sized for industrial plants and large joineries with 5+ machines. Connection requires a standard suction outlet (Ø 100–150 mm) on the machine tool. For machines with a different diameter outlet, use reducing fittings.
The 210 L bag – how often should it be emptied?
The emptying frequency depends on the type of work and wood. For circular saws (coarse chips): every 2–4 hours. For thicknessers and sanders (fine dust): every 4–8 hours. Empty when the bag is 70–80% full – beyond this level, the airflow reduces, and fine dust starts to pass into the filter, shortening its lifespan. A level indicator or differential manometer on the filter (where present) is the most reliable way to know when to empty.
Spare parts and assistance available?
Original spare parts available with 3–5 business day shipping. Italian customer support available.
