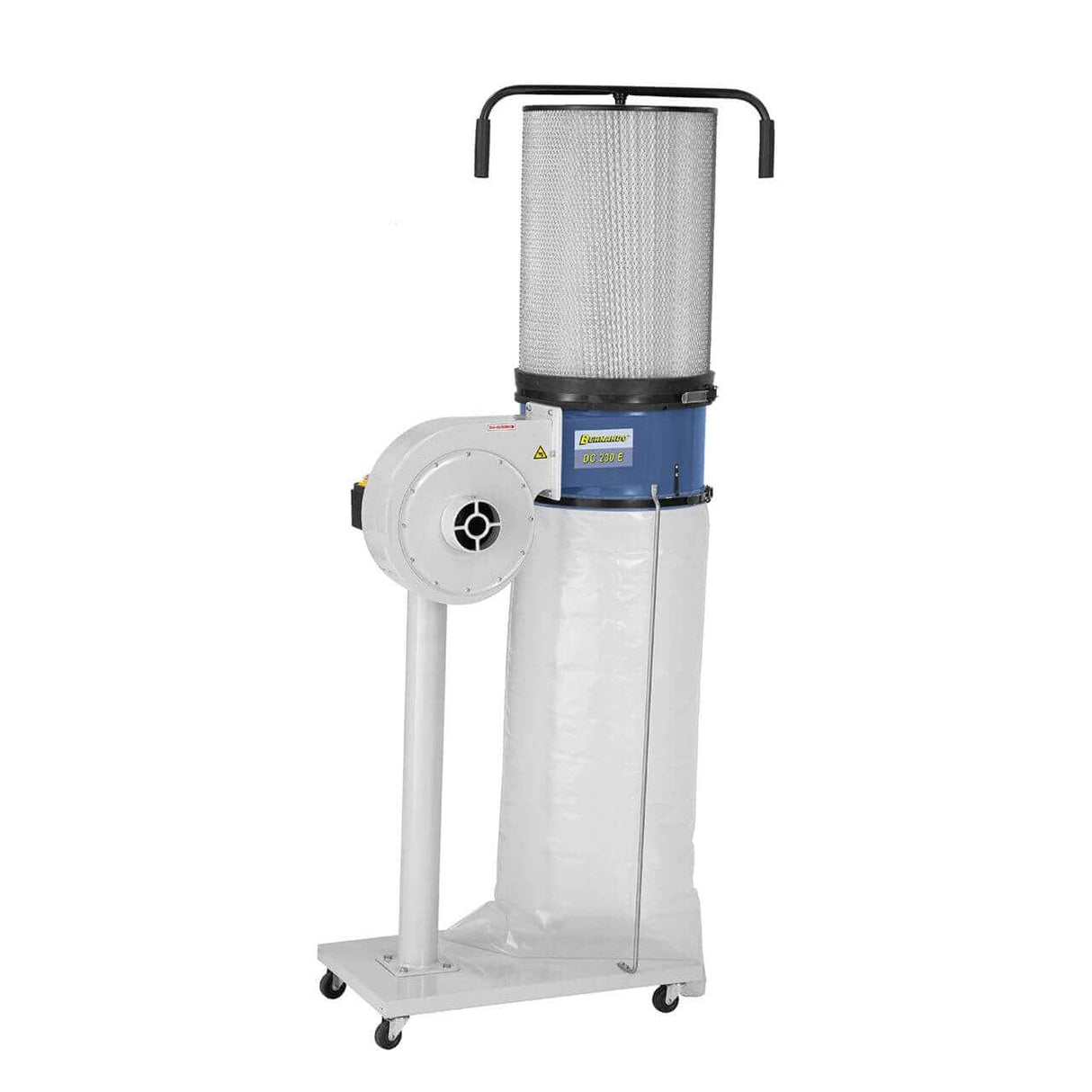

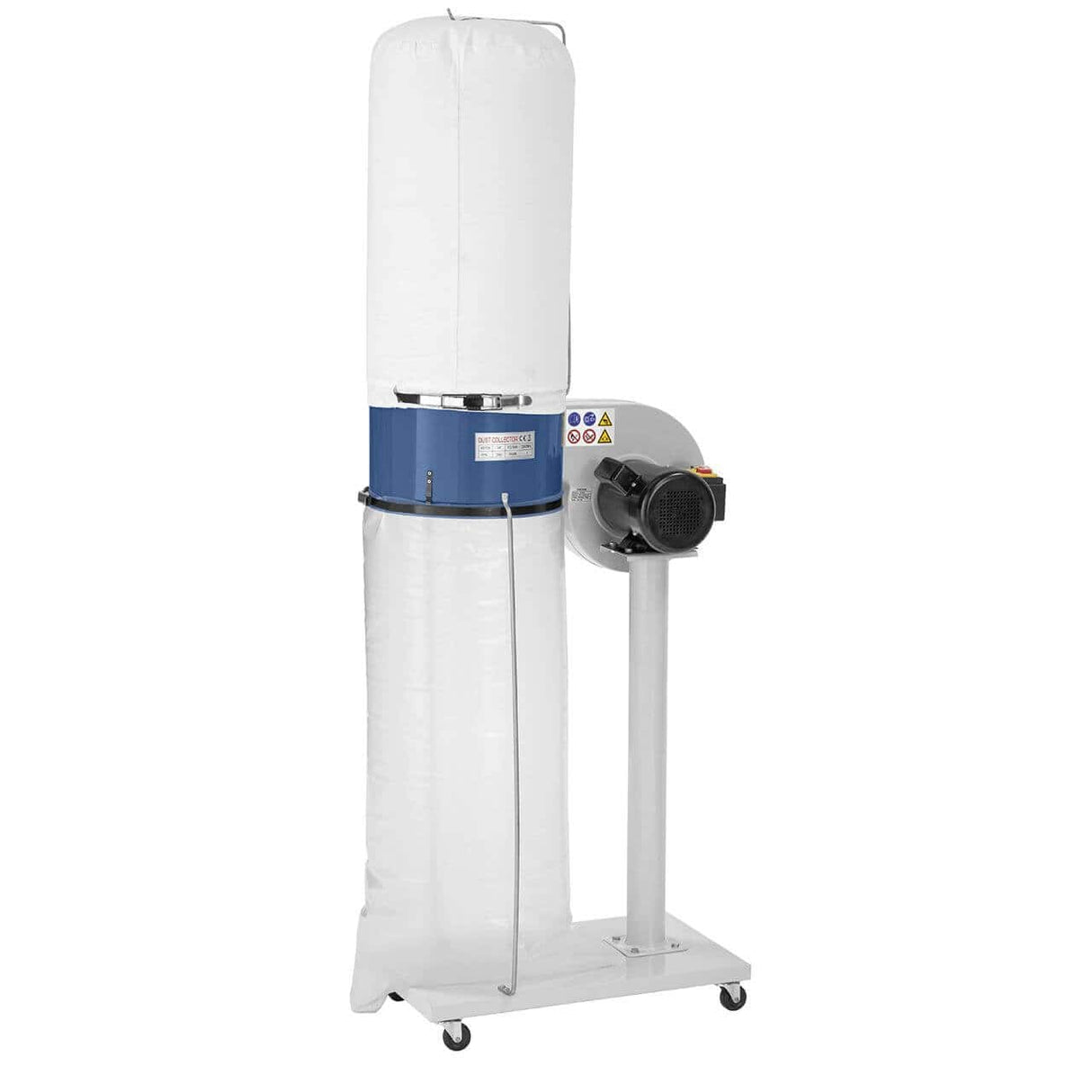

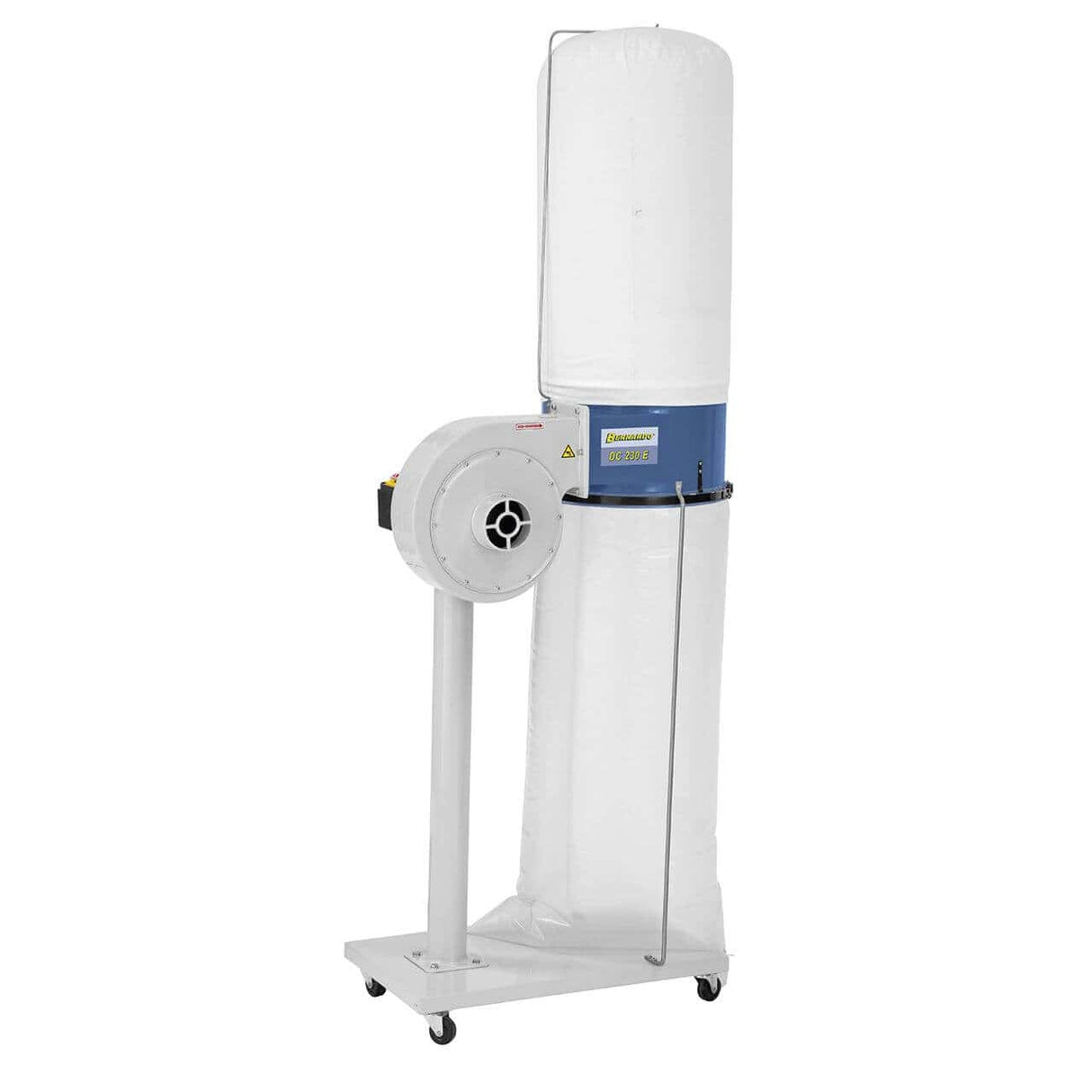

Bernardo DC 230 E – Dust Collector 1000 m³/h with 100 L bag
The Bernardo DC 230 E dust collector is suitable for small workshops, hobbyists, and joineries that require a compact and efficient system. With an air flow of 1000 m³/h and a maximum vacuum pressure of 1020 Pa, it allows you to keep your workspace clean even with frequent use. It features a 100-liter chip bag and a filter bag with a filter surface of 0.85 m². Thanks to the 2.5-meter suction hose and the Ø 100 mm connection, it easily adapts to small and medium-sized machinery. The 0.75 kW (1.0 HP) motor with 230 V / 400 V power supply ensures reliability and low consumption. Lightweight (26 kg) and equipped with a transport device, it is easy to move and use anywhere.
Main Specifications
Air flow: 1000 m³/h
Maximum vacuum pressure: 1020 Pa
100 L chip bag

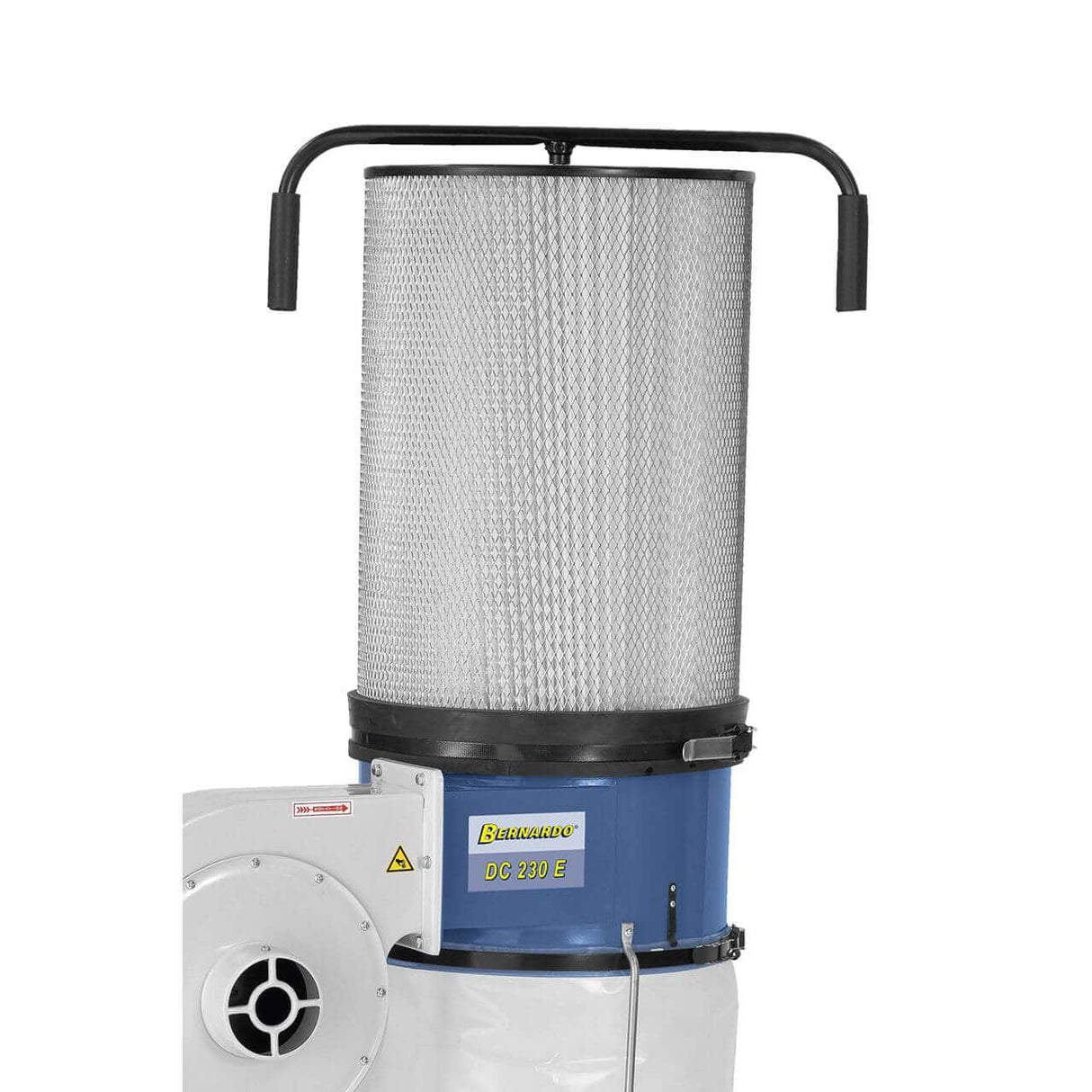

Filter bag with 0.85 m² surface area

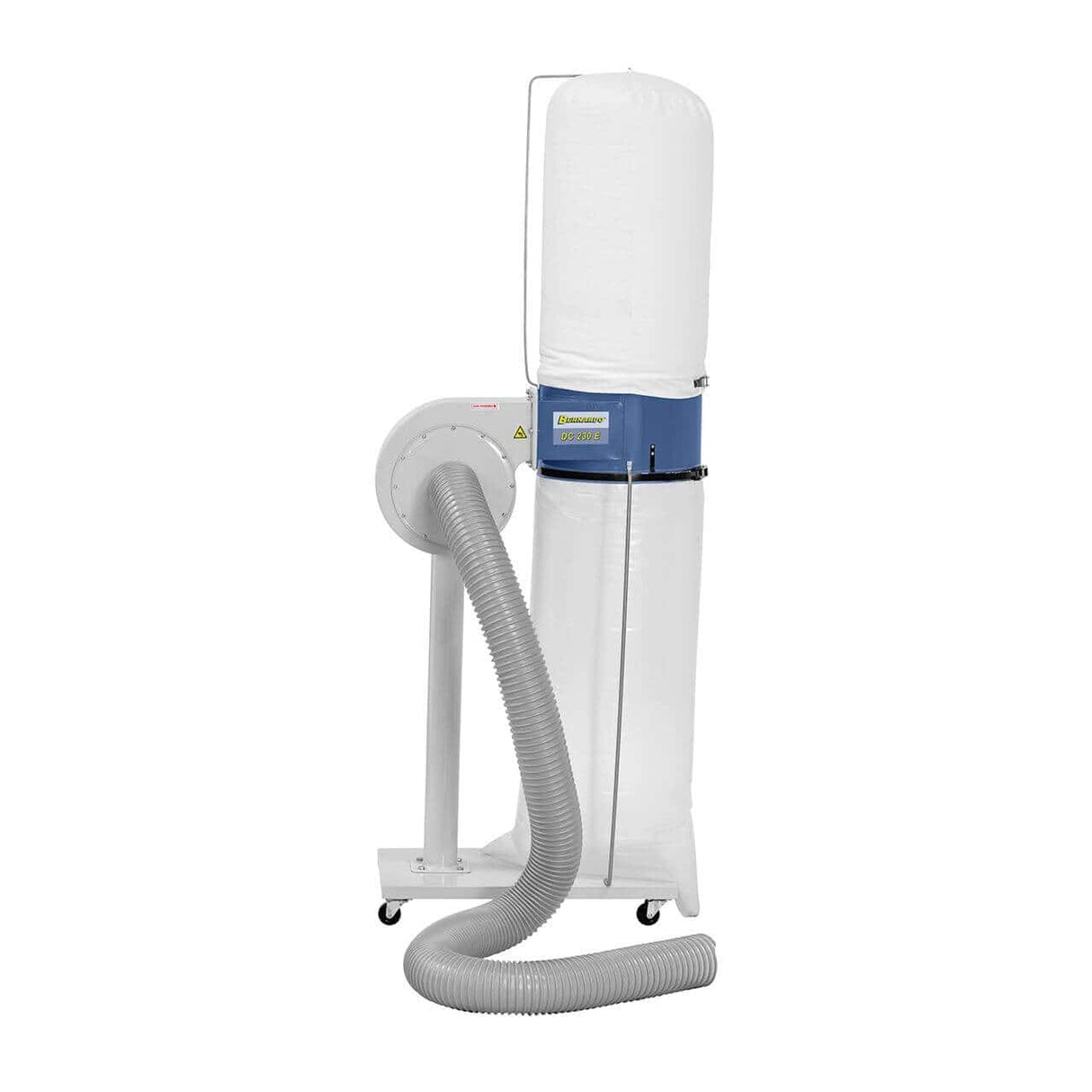

2.5 m long suction hose
Ø 100 mm suction connection

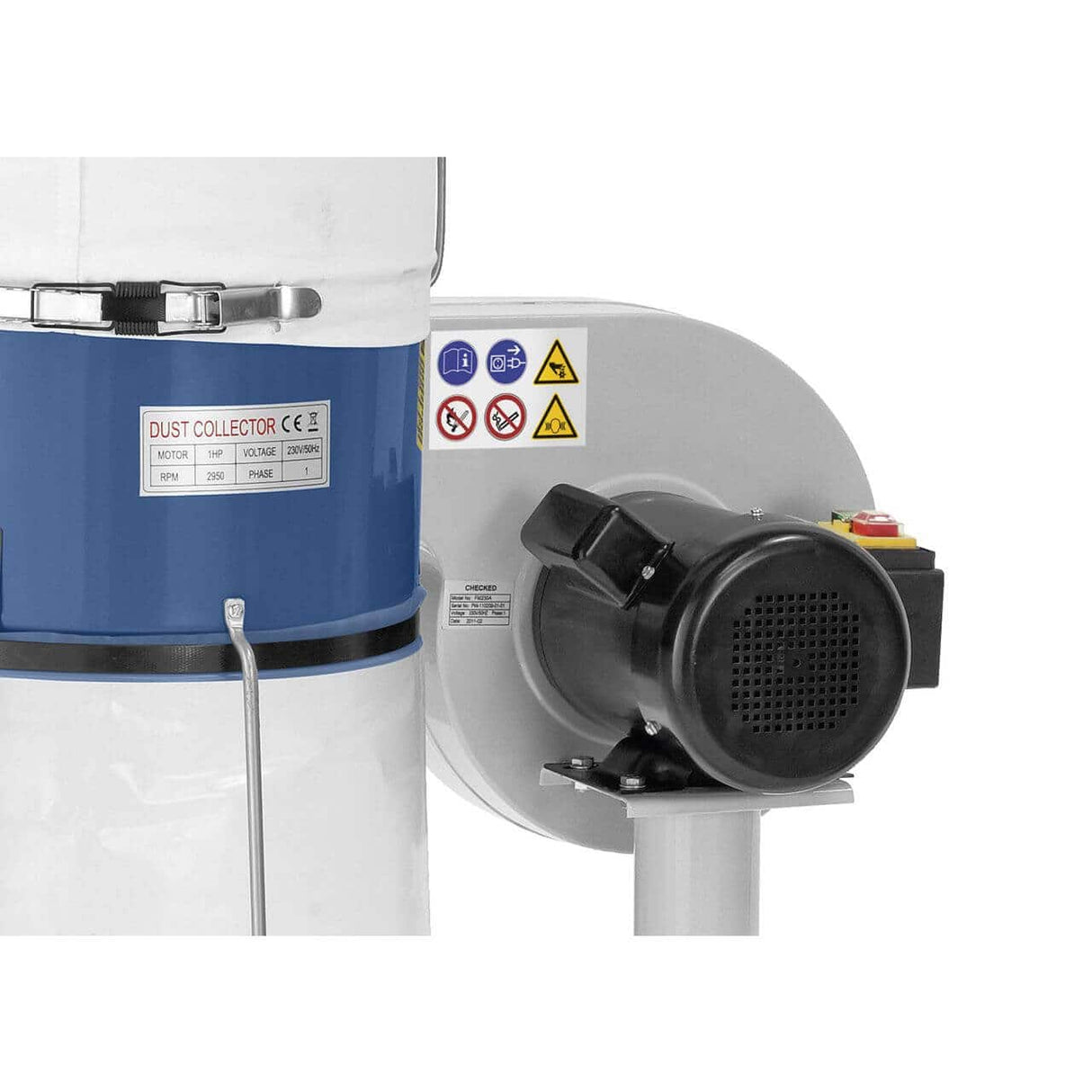

0.75 kW (1.0 HP) motor – S1
S6 40% output power: 1.0 kW (1.35 HP)
Sound pressure: 86.5 dB
Compact dimensions: 740 x 470 x 1900 mm
Weight: 26 kg
Transport device for mobility
Technical table:
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | DC 230 E |
| Air power | 1000 m³/h |
| Filter surface | 0.85 m² |
| Max. vacuum pressure | 1020 Pa |
| Suction connection | Ø 100 mm |
| Chip bag capacity | 100 liters |
| Suction hose | 2.5 m |
| Min. rotation speed | 2950 rpm |
| Sound pressure | 86.5 dB |
| Motor input power (S1) | 0.75 kW (1.0 HP) |
| Motor output power (S6 40%) | 1.0 kW (1.35 HP) |
| Voltage | 230 V / 400 V |
| Machine dimensions (L x W x H) | 740 x 470 x 1900 mm |
| Weight | 26 kg |
Package contents:
Bernardo DC 230 E Dust Collector
2.5 m suction hose
100 L chip bag
Filter bag
Transport device
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently Asked Questions
The DC 230 series — which machines is it suitable for and how does it connect?
The DC 230 connects to circular saws, planers, sanders, and jointers via a 100 or 150 mm hose (depending on the model). Sized for hobby workshops and small joineries — 1–2 machines connected. Connection requires a standard extraction outlet (Ø 100–150 mm) on the power tool. For machines with a different diameter outlet, use reducer fittings.
The 100 L bag — how often should it be emptied?
The emptying frequency depends on the type of work and wood. For circular saws (large chips): every 2–4 hours. For sanders and jointers (fine dust): every 4–8 hours. Empty when the bag is 70–80% full — beyond this level, the airflow reduces, and fine dust starts to pass into the filter, reducing its lifespan. A level indicator or differential pressure gauge on the filter (where present) is the most reliable way to know when to empty.
Are spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
