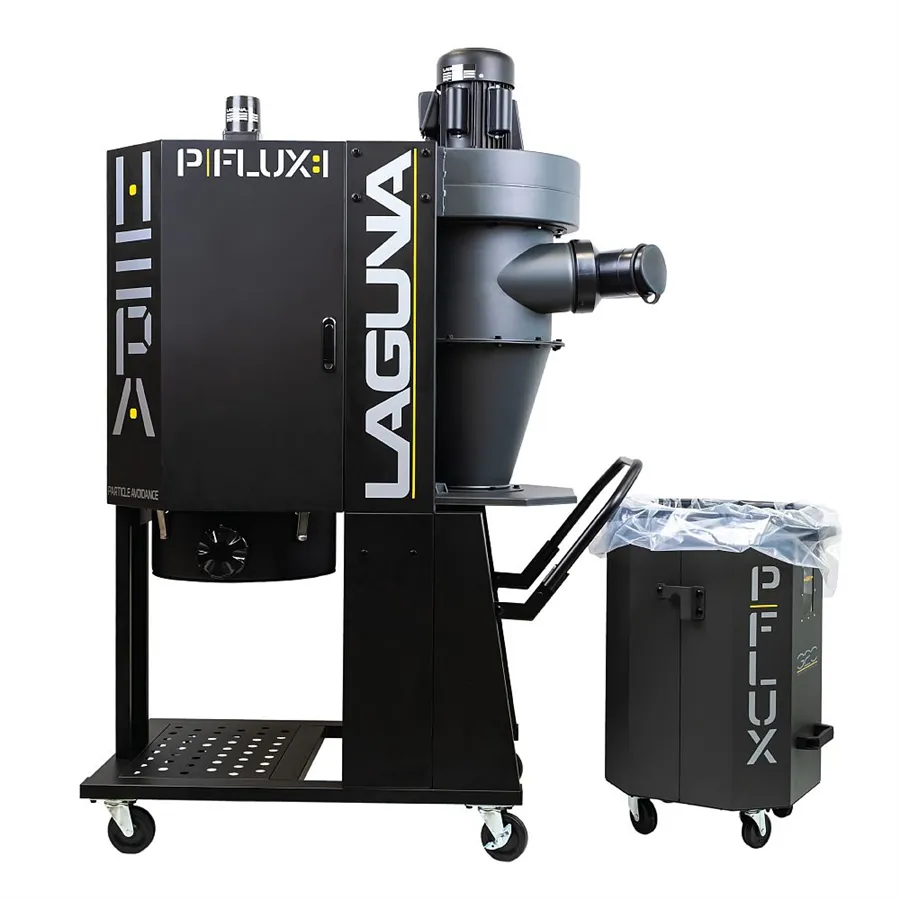

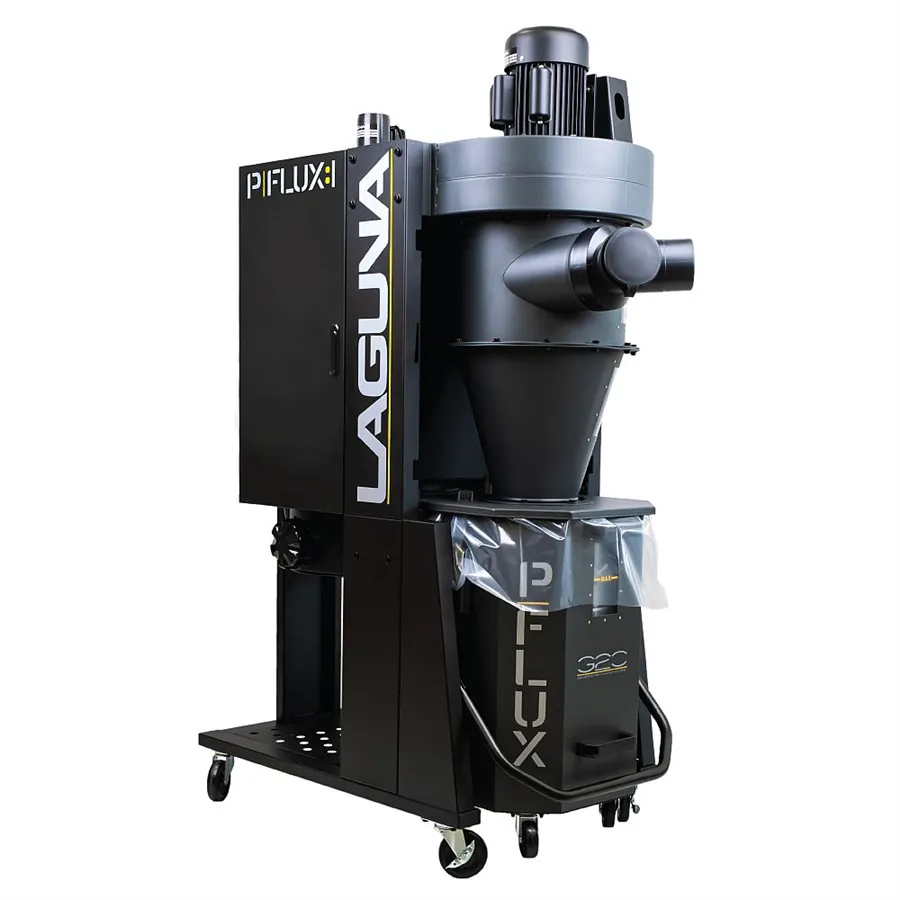

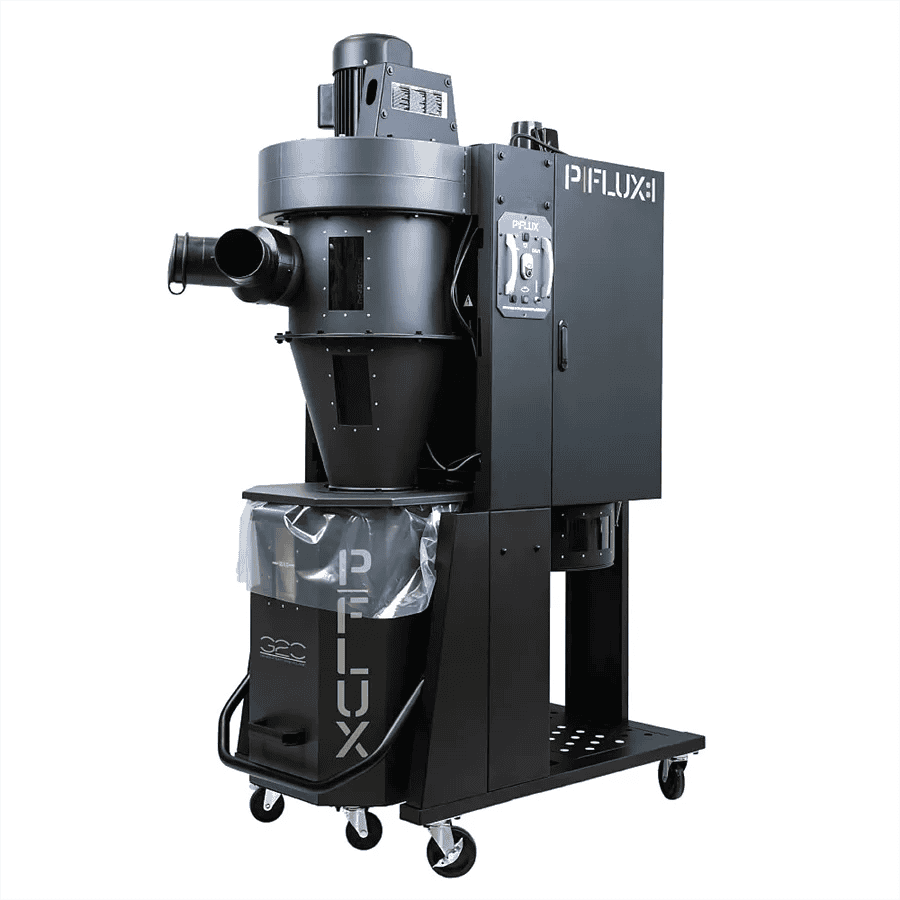

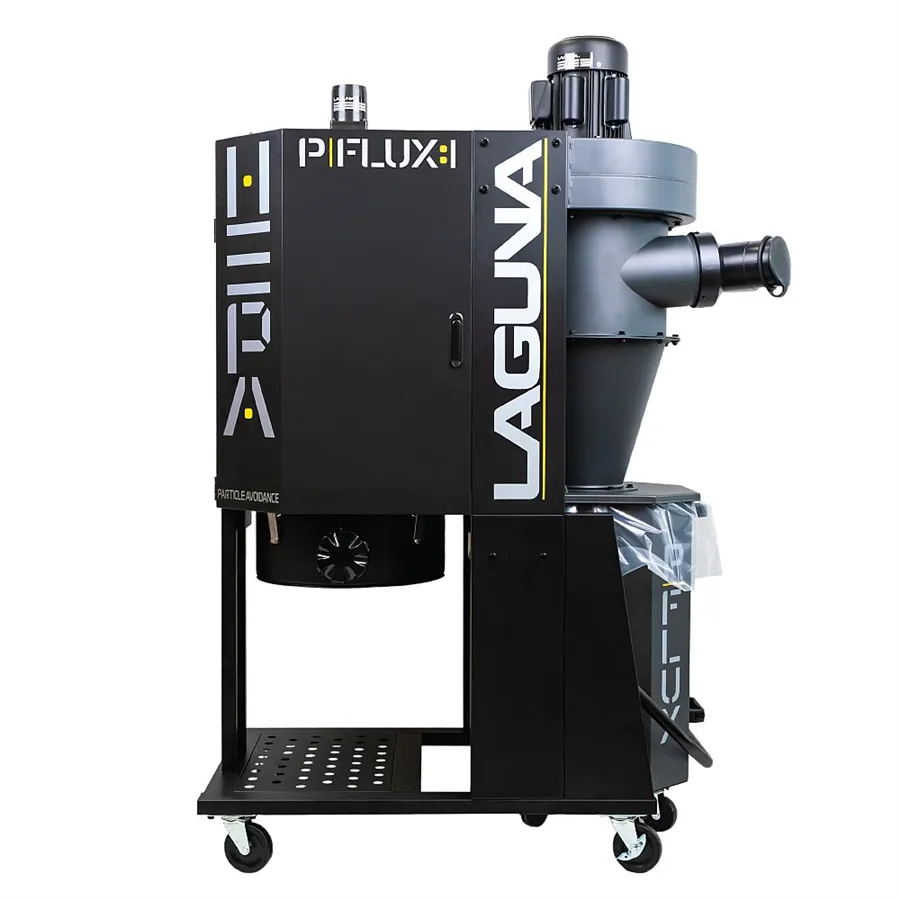

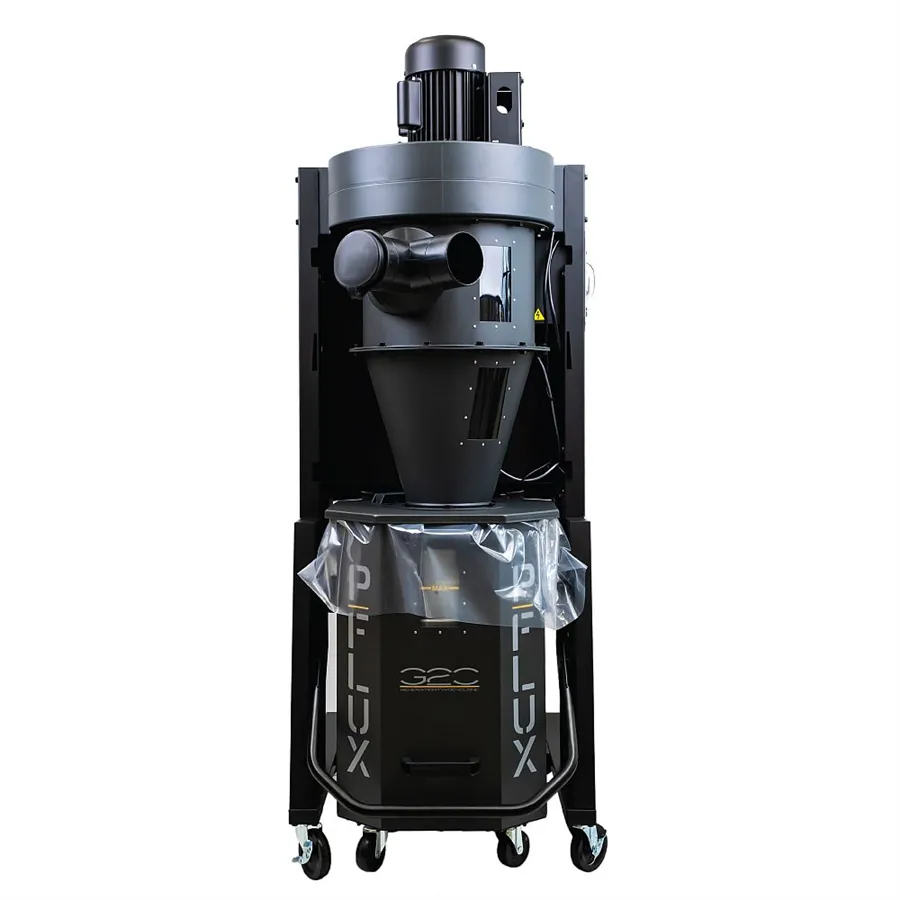

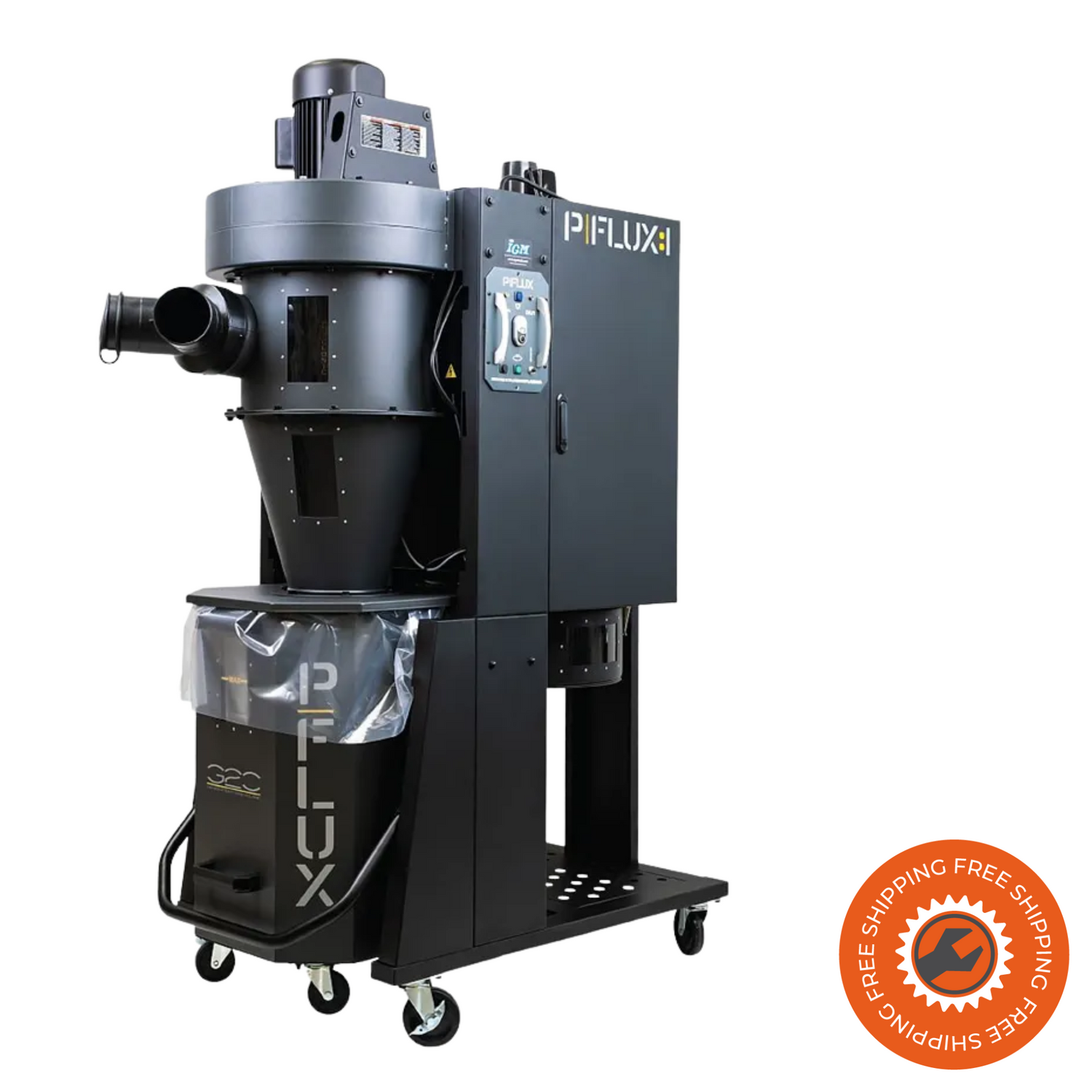

LAGUNA PFlux 1 / 230 V Cyclonic Dust Collector – Compact, Powerful, Professional
The LAGUNA PFlux 1 dust collection system offers high-level performance in a compact format, suitable for woodworking shops and professional workshops with space constraints. Thanks to its two-stage cyclonic technology, HEPA filter with automatic cleaning, and 95-liter container, the PFlux 1 ensures powerful and continuous dust collection, keeping the work environment clean and safe.
Key Specifications

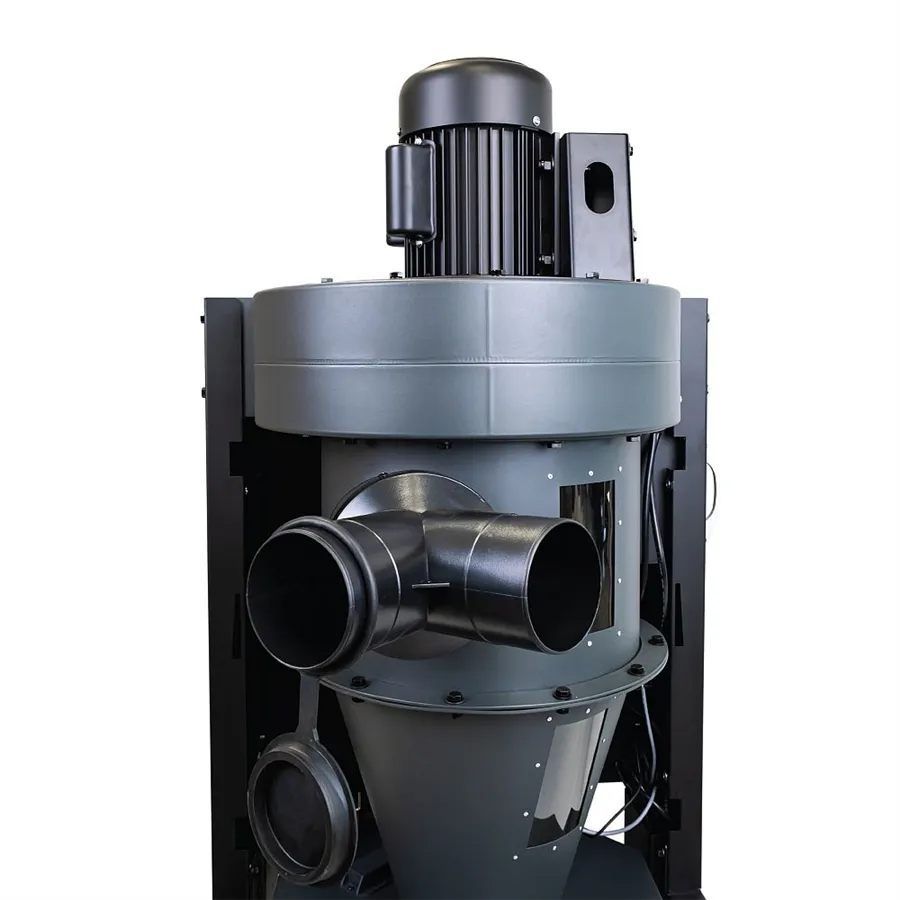

Two-stage cyclonic technology with efficient chip separation
Powerful suction:
1786 m³/hour with

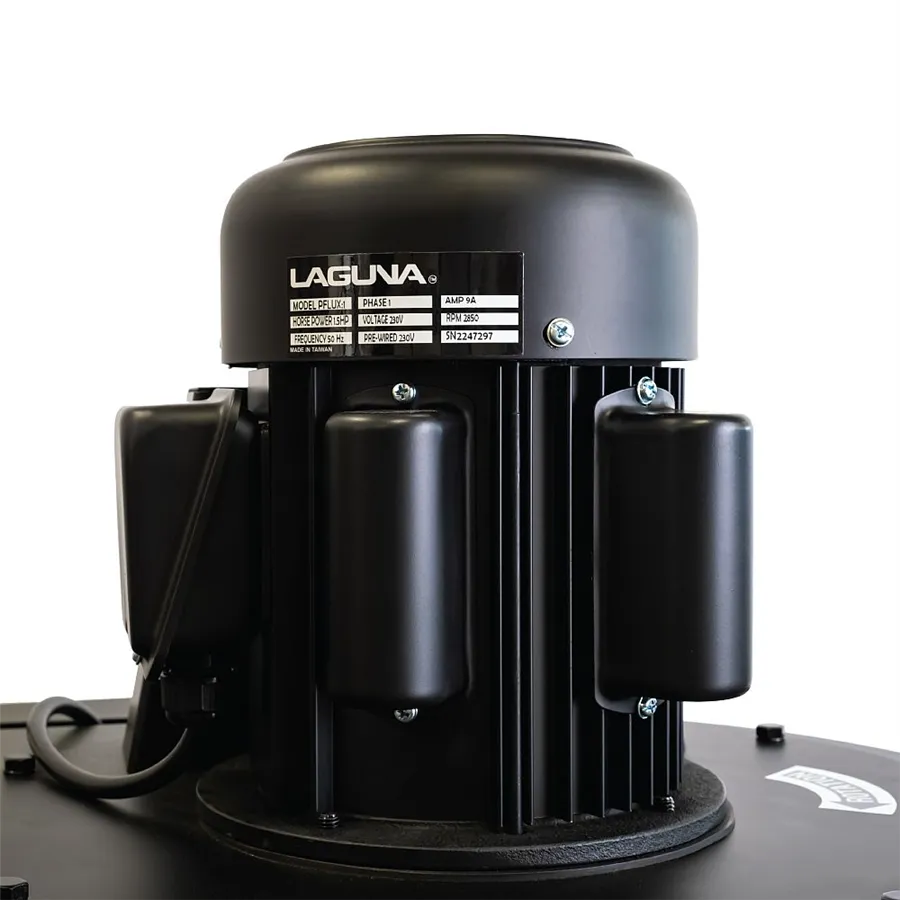

1100 W – 230 V motor

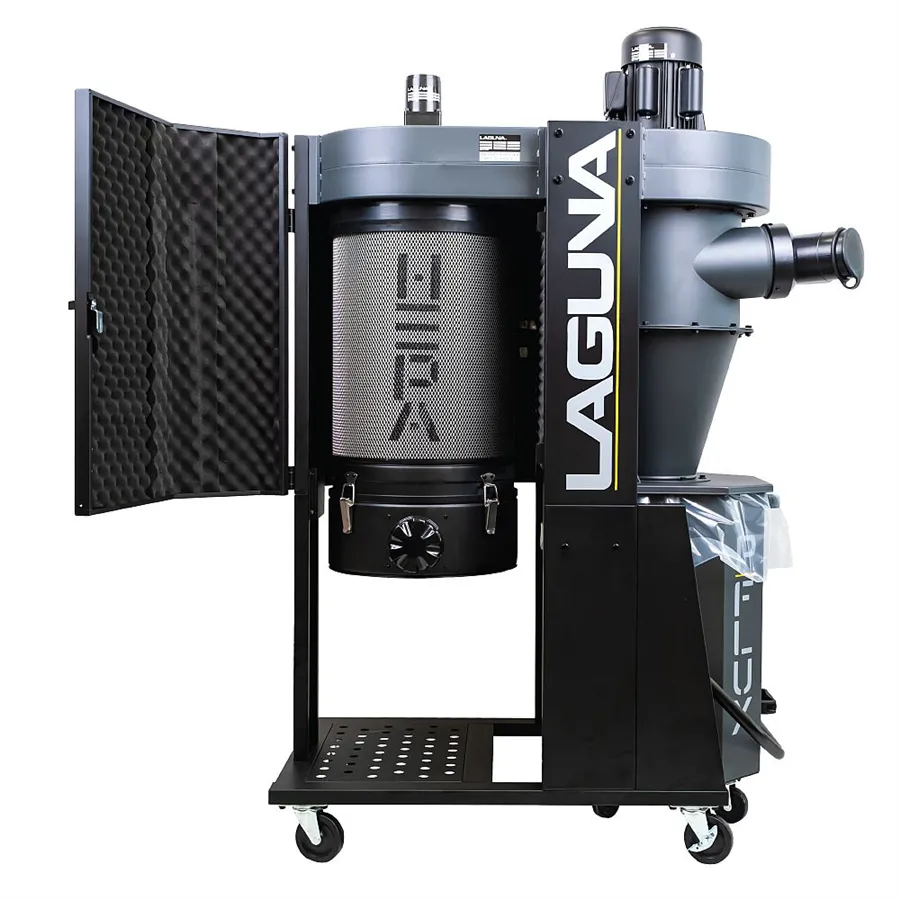

HEPA filter with
99.2% efficiency on particles > 0.4 micron
Integrated

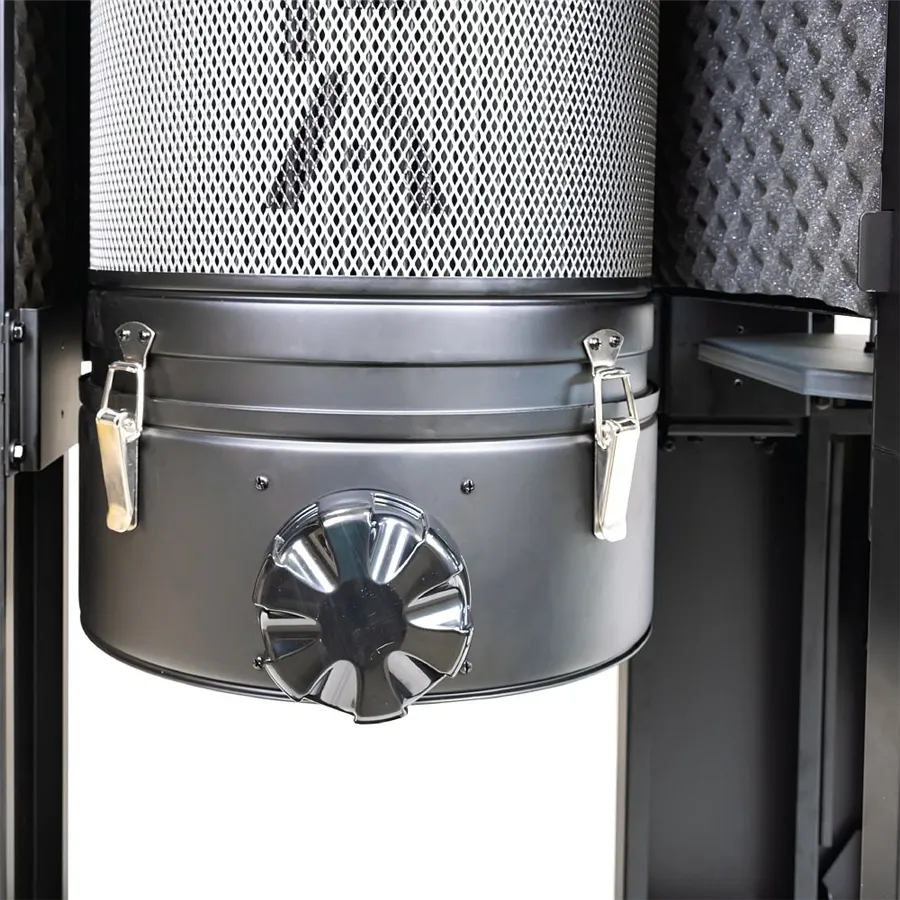

automatic filter cleaning system
95-liter waste container with quick release and wheels
Internal LEDs and visual/audible fill sensors
Quiet: only
70 dB(A) at 3 meters
Connections: 1x Ø150 mm or 2x Ø100 mm
Suitable for small spaces without sacrificing industrial performance
Technical Data Sheet
| Feature |
Detail |
| Model |
PFlux 1 |
| Voltage / Power |
230 V / 1100 W |
| Suction Capacity |
1786 m³/hour |
| Max Negative Pressure |
2514 Pa |
| Sound Volume |
70 dB(A) at 3 meters |
| Waste Container Capacity |
95 liters |
| Dust Collection Bag |
1090 x 810 mm |
| HEPA Filter Efficiency |
>0.4 µm – 99.2% |
| Automatic Filter Cleaning |
Yes, with separate motor |
| Suction Connections |
1x Ø150 mm or 2x Ø100 mm |
| Machine Dimensions (LxWxH) |
1168 x 610 x 1753 mm |
| Net Weight |
122 kg |
| Weight with Packaging |
155 kg |
| Recommended Use |
Professional production |
Package Contents
LAGUNA PFlux 1 Cyclonic Dust Collector
Integrated HEPA filter
95 L waste container with wheels
Dust collection bags
Automatic filter cleaning system
User manual and assembly accessories
Logistics
Bernardo Shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between CFlux and PFlux in the Laguna range?
The CFlux uses a cyclonic pre-separator that separates large chips before the fine filter — the filter clogs less frequently. The PFlux additionally has a true HEPA filter (99.97% efficiency on particles larger than 0.3 μm) — suitable for environments where fine dust (MDF, painting) is a health concern. The CFlux has a standard filter; the PFlux has superior filtration performance.
Two-stage cyclonic technology — why does it reduce maintenance?
The first cyclonic stage separates chips and coarse dust by centrifugal force, collecting them in the lower container. Only fine dust passes to the second filter stage. Result: the filter clogs 5–8 times slower than a single-stage dust collector with a direct filter — fewer filter replacements, fewer flow drops, less maintenance.
