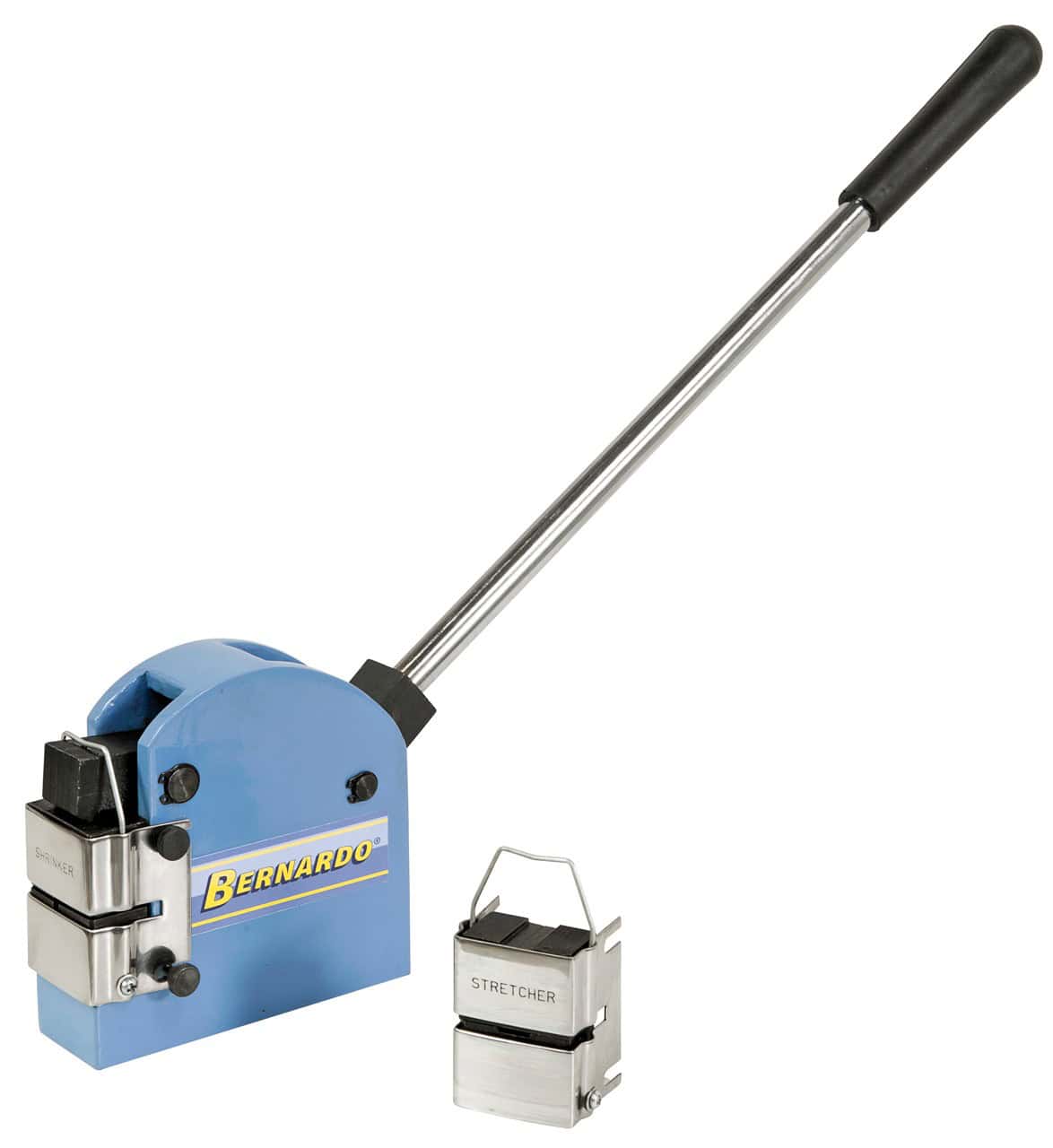

Bernardo Shrinker and Stretcher with Lever SS18
The Bernardo Shrinker and Stretcher with Lever SS18 is a professional tool for bending, stretching, and compressing sheet metal. Ideal for bodyworkers, hobbyists, and artisans, it allows for precise shaping of curves and edges without cutting or welding the material. Thanks to the included accessories – one for stretching and one for shrinking – it offers maximum versatility in the workshop. Robust and compact, it works on steel up to 1.2 mm and aluminum up to 1.5 mm, producing clean and uniform results. With a throat depth of 25 mm and compact dimensions, it adapts to various types of work while maintaining stability and ease of use. A reliable tool, weighing only 5.5 kg, designed for those seeking quality and durability over time.
Key Features:
⚙️ Includes 2 accessories: stretcher + shrinker
🛠️ Processes steel sheet up to 1.2 mm (400 N/mm²)
🪙 Processes aluminum up to 1.5 mm
📏 Operational throat depth 25 mm
📐 Compact dimensions: 65 x 160 x 140 mm
⚖️ Reduced weight: 5.5 kg
💪 Robust structure for intensive use
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Shrinker & Stretcher SS18 |
| Workable Material |
Steel ≤ 1.2 mm (400 N/mm²) / Aluminum ≤ 1.5 mm |
| Throat Depth |
25 mm |
| Width |
65 mm |
| Depth |
160 mm |
| Height |
140 mm (without lever) |
| Weight |
5.5 kg |
| Included Accessories |
1 for stretching, 1 for shrinking |
Standard Equipment
Bernardo Shrinker and Stretcher SS18 Device
1 stretching accessory
1 shrinking accessory
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Italian customer support available.
Frequently Asked Questions
What does a shrinker do and what does a stretcher do?

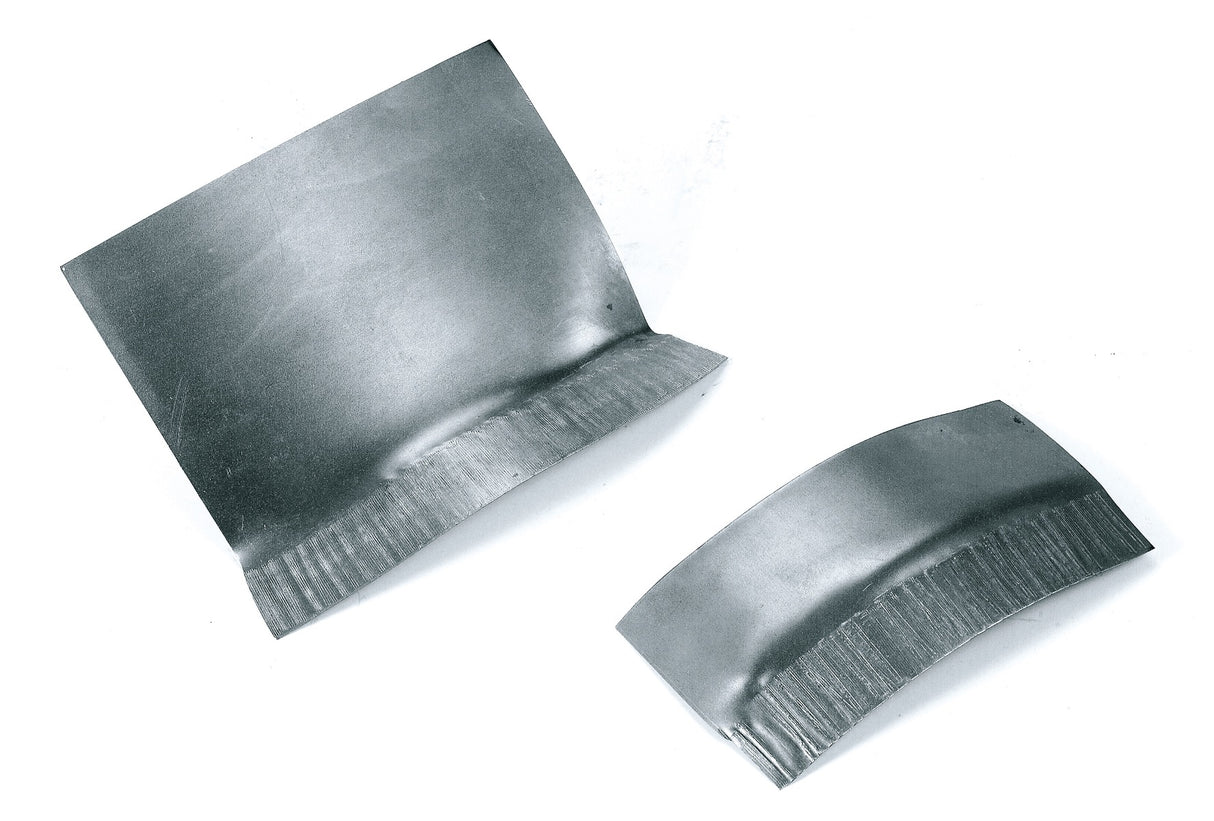

The shrinker compresses the metal fiber at the edge, shortening it and creating a concave curve. The stretcher elongates the fiber by expanding it, creating a convex curve. Alternating between the two functions allows complex shapes to be achieved on thin sheet metal without wrinkles or tears. An essential tool for bodyworkers, boat builders, and vehicle restorers.
What sheet metal thicknesses can the Bernardo Shrinker and Stretcher SS18 process?
Bernardo shrinkers/stretchers typically work steel up to 1.2–2.0 mm and aluminum up to 1.5–2.5 mm depending on the model. Check the specific limits in the technical table for the Bernardo Shrinker and Stretcher SS18. Exceeding the limits causes damage to the tools and irregular deformation of the workpiece.
What is the difference between the lever, foot-operated, and motorized versions?
The lever (Pro) version is manual: the operator activates the lever with both hands, ideal for occasional work. The foot-operated (FD/F) version operates the machine with the foot, freeing both hands to hold and guide the workpiece — more convenient for repetitive work. The motorized or electric version automates the entire cycle for series production.
Do the jaws wear out? Are spare parts available?
Yes. The jaws of shrinkers/stretchers wear out after prolonged intensive use. Original Bernardo spare jaws are available with 3–5 business day shipping. Replacement does not require special tools.
Does it also work on copper and brass?
Yes. Copper and brass are more ductile materials than steel: the actual capacity is higher compared to mild steel. For specific alloys, check thickness limits with Krollit. Italian customer support available.
