The Bernardo BS 1000 hydraulic lift table is a manual scissor lift with foot pedal operation, designed for ergonomic handling and positioning of loads up to 1000 kg. Lifting height 380-990 mm, table dimensions 1,015 × 510 mm, weight 140 kg. Powder-coated steel construction, with wheels for movement and a parking brake. Suitable for workshops, warehouses, laboratories for ergonomic positioning of workpieces on a workbench. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Load capacity: 1000 kg
-
Min/max lifting height: 380 - 990 mm
-
Table dimensions: 1,015 × 510 mm
-

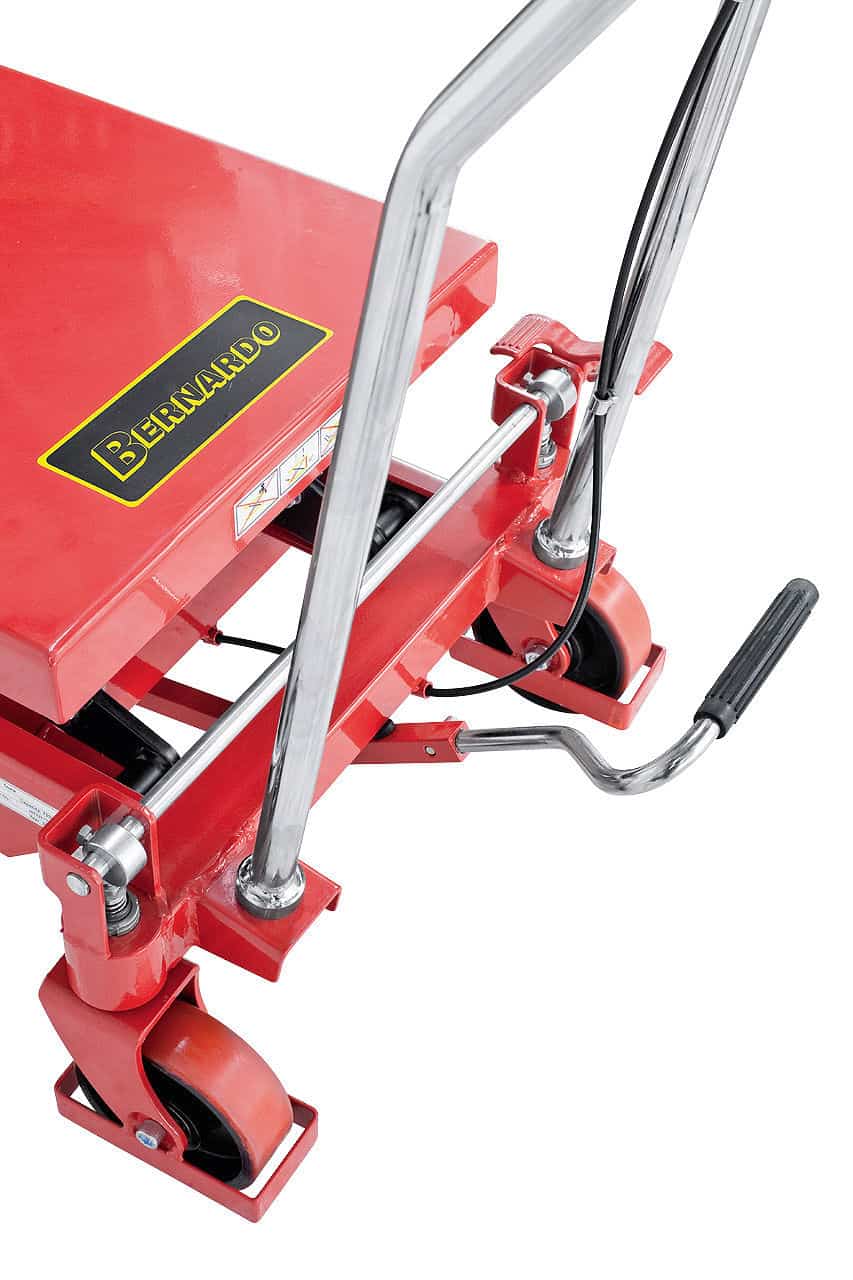

Operation: Manual hydraulic foot pedal
-
Weight: approx. 140 kg
Who uses the BS 1000 and for what

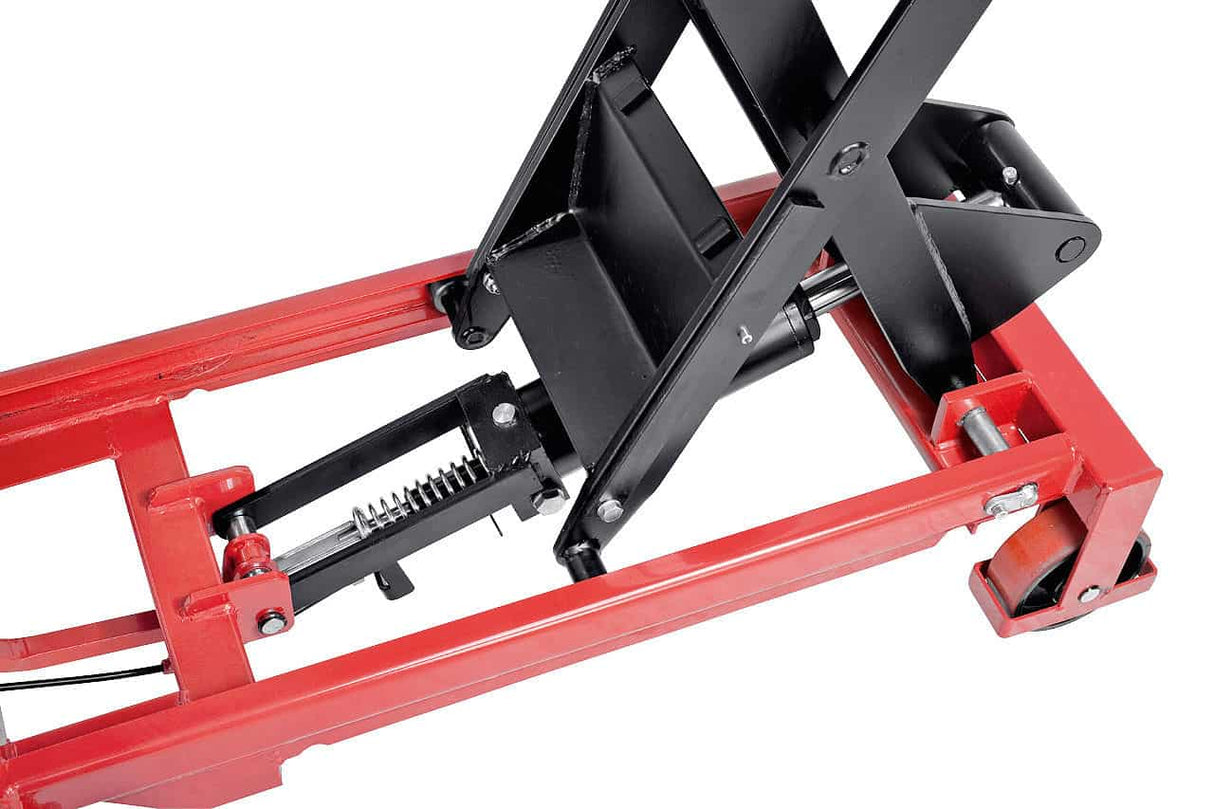

The Bernardo BS 1000 is a manual hydraulic scissor lift table, designed for ergonomic positioning of 1000 kg loads in workshops and laboratories. Operation is entirely manual: a foot-operated hydraulic pump raises the table, a release valve allows controlled lowering. No electric motor, no power supply required. Key design feature: the 380-990 mm lifting height covers most standard positioning applications (from floor to workbench, from floor to truck bed). The polyurethane wheels allow the loaded table to be moved between workstations, and the parking brake locks the table during work. Among Krollit customers, the Bernardo BS 1000 is chosen by mechanical workshops for ergonomic positioning of workpieces on workbenches, technical school laboratories, logistics warehouses for handling medium-heavy packages, and advanced hobbyists with repetitive positioning needs.
Its place in the Bernardo range
The Bernardo lift table range is organized into 5 sub-families by application: BS (manual hydraulic, capacities 150-1,000 kg, for standard hobby/light professional use); ES (semi-electric single platform, capacities 300-750 kg, for standard intensive use); ES D (semi-electric double platform for extended height, capacities 300-750 kg); SSHT/FSHT (industrial stationary/U-shaped, capacities 1,000-2,000 kg, for fixed use in factories); HK (tilting, capacities 400-800 kg, for handling + emptying bulk materials).
The BS 1000 model is in the BS family (manual hydraulic). For capacities from 150 kg (BS 150) to 1,000 kg (BS 1,000): choose based on the maximum weight of typical loads. BS 150 for light hobby use (heavy drawers, containers); BS 350 for standard workshop use; BS 500 for heavy workbenches; BS 1,000 for compact industrial machinery. For continuous intensive use, consider the semi-electric ES version of the same capacity (reduces the fatigue of manual pumping).
Krollit Logistics and Support
Bernardo shipping in 5-9 business days (7 days to the South). The BS 1000 table, weighing 140 kg, is handled by two people with care for unloading. The integrated wheels (for mobile models) facilitate movement after unloading. Hydraulic oil, valves, manual pumps, electrical system spare parts (for ES/SSHT/FSHT models), and original Bernardo accessories are available from stock with 3-5 business day shipping. Customer support in Italian is available.
Who is the BS 1000 for?
| Profile |
Compatibility |
Reason |
| Advanced hobbyist / small laboratory |
Recommended |
Economical manual table for occasional use. 1000 kg capacity sufficient for most hobby applications. |
| Mechanical workshop with occasional use |
Recommended |
For non-daily use (5-20 lifts per day), the manual is correctly sized: no electrical power required, significantly lower cost than the semi-electric version. |
| Warehouse with repetitive cycles |
Adequate |
For intensive use with over 50 lifts per day, consider the semi-electric ES version to reduce the fatigue of manual pumping. |
Not suitable for: continuous intensive use with over 50 lifts per day (the semi-electric ES version reduces the fatigue of manual pumping); applications with a capacity over 1000 kg (move up to BS 1,000, ES 750 models or the industrial SSHT family); applications with a required lifting height over 990 mm (the ES D family has an extended height up to ~1,600 mm); fixed stationary installations (the industrial SSHT family is correctly sized).
Lifting capacity
| Specification |
Value |
| Load capacity |
1,000 kg |
| Min lifting height |
380 mm |
| Max lifting height |
990 mm |
| Table dimensions |
1,015 × 510 mm |
Operation
| Specification |
Value |
| Lifting |
Manual hydraulic foot pedal |
| Lowering |
Manual (hydraulic valve) |
Mobility
| Specification |
Value |
| Swivel castors |
standard for movement |
Weight
| Specification |
Value |
| Weight |
approx. 140 kg |
Compliance
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery Directive 2006/42/EC |
Standard equipment
- Bernardo BS 1000 lift table
- Manual hydraulic foot pump
- Swivel castors for movement
- Parking brake
- User manual in Italian
- CE conformity documentation
Frequently Asked Questions
How much force is needed for manual pumping?
The foot-operated hydraulic pump is designed to reduce effort: typically 15-25 kg of force per pump stroke. For maximum rated capacity (with rated load on the platform), it takes about 30-50 pump strokes to reach max height.
For occasional use, the cumulative effort is manageable. For intensive daily use (over 50 lifts per day), the cumulative effort becomes significant: consider the semi-electric ES version of the same capacity. The hydraulic system is designed for durability: in daily use, the pump typically lasts 5-10 years before requiring maintenance.
What flooring surfaces are compatible?
For mobile models (BS, ES, ES D, HK): smooth industrial floors (polished concrete, industrial tiles, epoxy resins). On rough floors, the wheels may wear out more quickly.
The maximum capacity of the table applies to vertical loads: for movement on inclines (even slight ones like 2-3%), stability requires attention, especially with heavy loads near maximum capacity. For very rough floors (raw concrete, slabs with pronounced joints), the wheels may wear out more quickly: original Bernardo spare parts are available.
Does the hydraulic oil need to be replaced periodically?
Yes. For daily professional use, it is recommended to change the hydraulic oil every 2-3 years or every 1,000 operating hours. For occasional hobby use, replacement can be every 5-7 years.
Recommended hydraulic oil: ISO VG 32 or ISO VG 46 (check manual for exact specifications). Signs indicating the need for replacement: progressive slowing of lifting, vibrations during pumping (for manual models), slow or irregular lowering. Original Bernardo hydraulic oil or commercial equivalents (Shell Tellus, Mobil DTE) are available from standard industrial suppliers.
What is the average lifespan of the BS 1000 table?
For standard daily professional use, the average lifespan is 10-15 years with regular maintenance. For occasional hobby use, the lifespan can extend to 20+ years. The powder-coated steel structure is designed to withstand standard workshop corrosion and wear.
Consumable components that may require replacement during the service life: hydraulic pump (for manual models), valves, seals, wheels, joint bearings. For semi-electric/electric models, add: motor (typical lifespan 8-12 years with intensive use), switches, wiring. All original Bernardo spare parts are available from stock with 3-5 business day shipping.
Can I also use the table outdoors?
For occasional outdoor use (loading/unloading trucks, occasional movement between warehouse and yard), yes. For continuous exposure to weather, no: prolonged humidity can cause corrosion of the painted steel frame and degradation of the hydraulic system.
For outdoor applications, it is recommended to cover/shelter the table after use, perform more frequent maintenance of the hydraulic system (check for leaks, lubricate joints), and periodically inspect the paintwork. For exclusive outdoor use, consider models with reinforced industrial paint or specific anti-corrosion protection.
