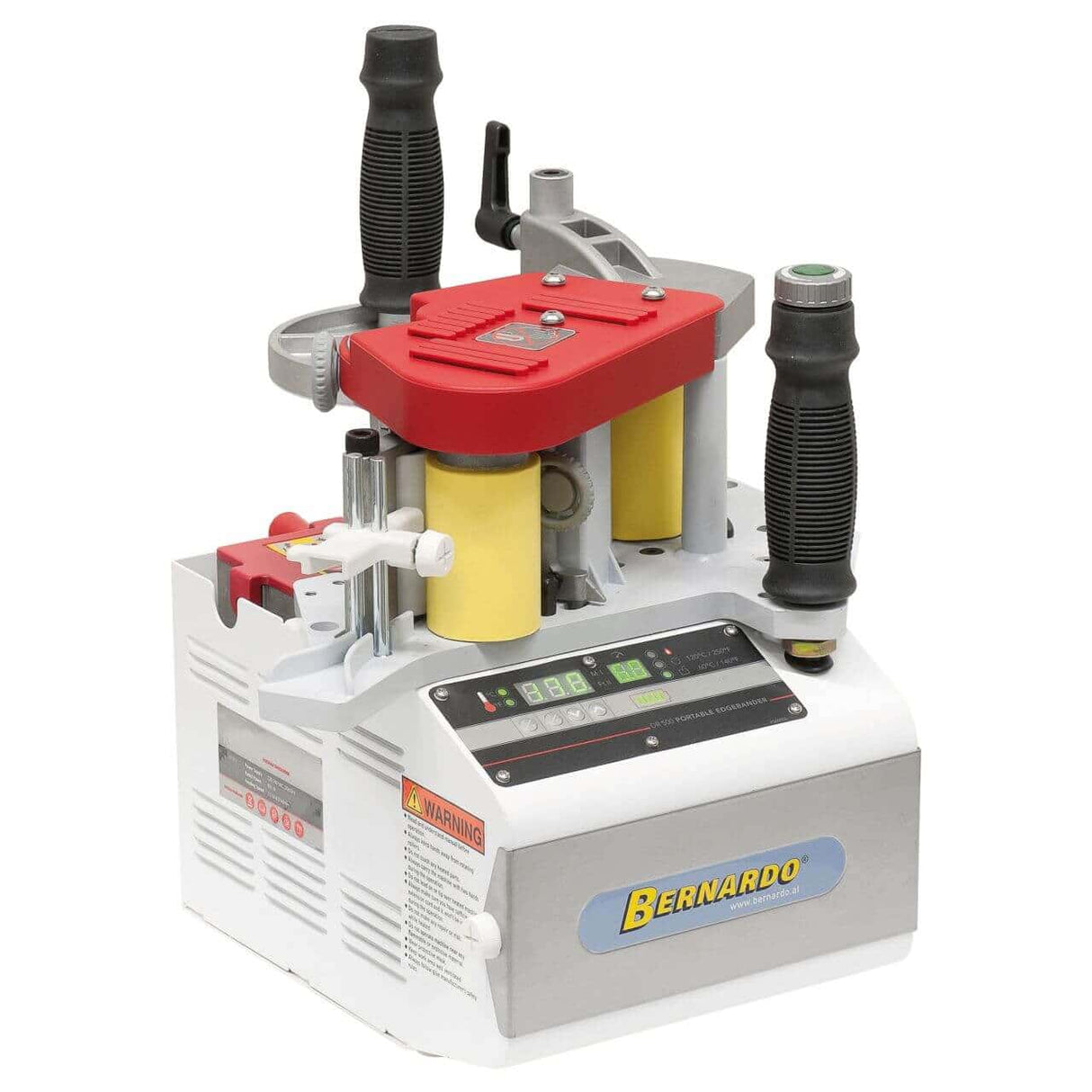

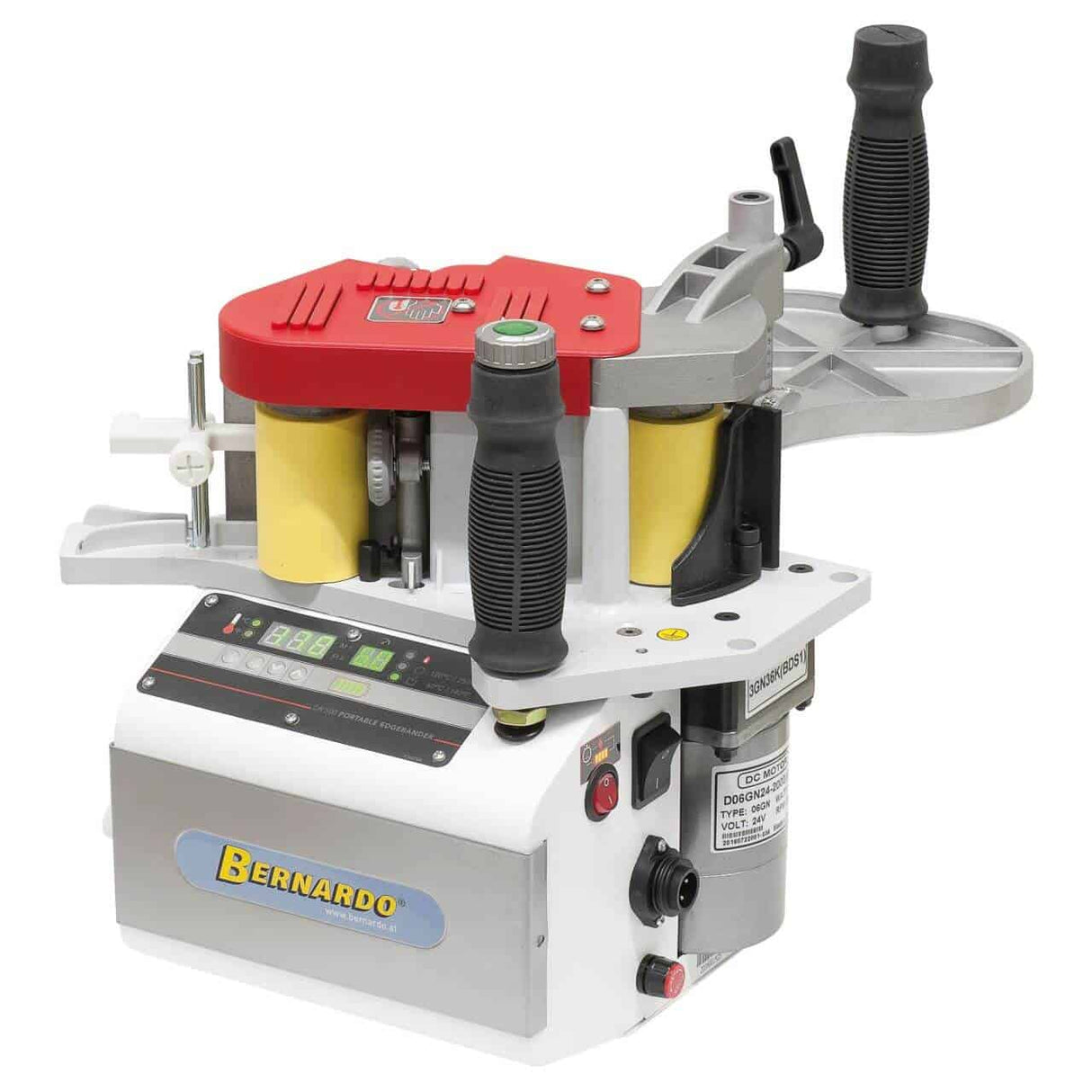

DR 500 S Edge Bander Set – Complete Professional Kit
The DR 500 S edge bander set is a complete professional solution for precise and versatile edge banding on wood panels and derivatives. Thanks to its continuous temperature adjustment and rapid heating time, it offers immediate use and high operational comfort. It is suitable for applying edges to straight or shaped elements, including concave or convex forms, ensuring high precision. Glue dosage is adjustable via a precision knob, while feed speed can be controlled directly from the handle. The high-performance motor maintains uniform feed in all conditions. The integrated accumulator allows mobile use without a cable, making it perfect for on-site work or installations outside the workshop.
Main Specifications
Continuous temperature adjustment
Rapid heating in 4 minutes
Suitable for straight, concave, and convex panels
Compatible with ABS, PVC, melamine, and veneer

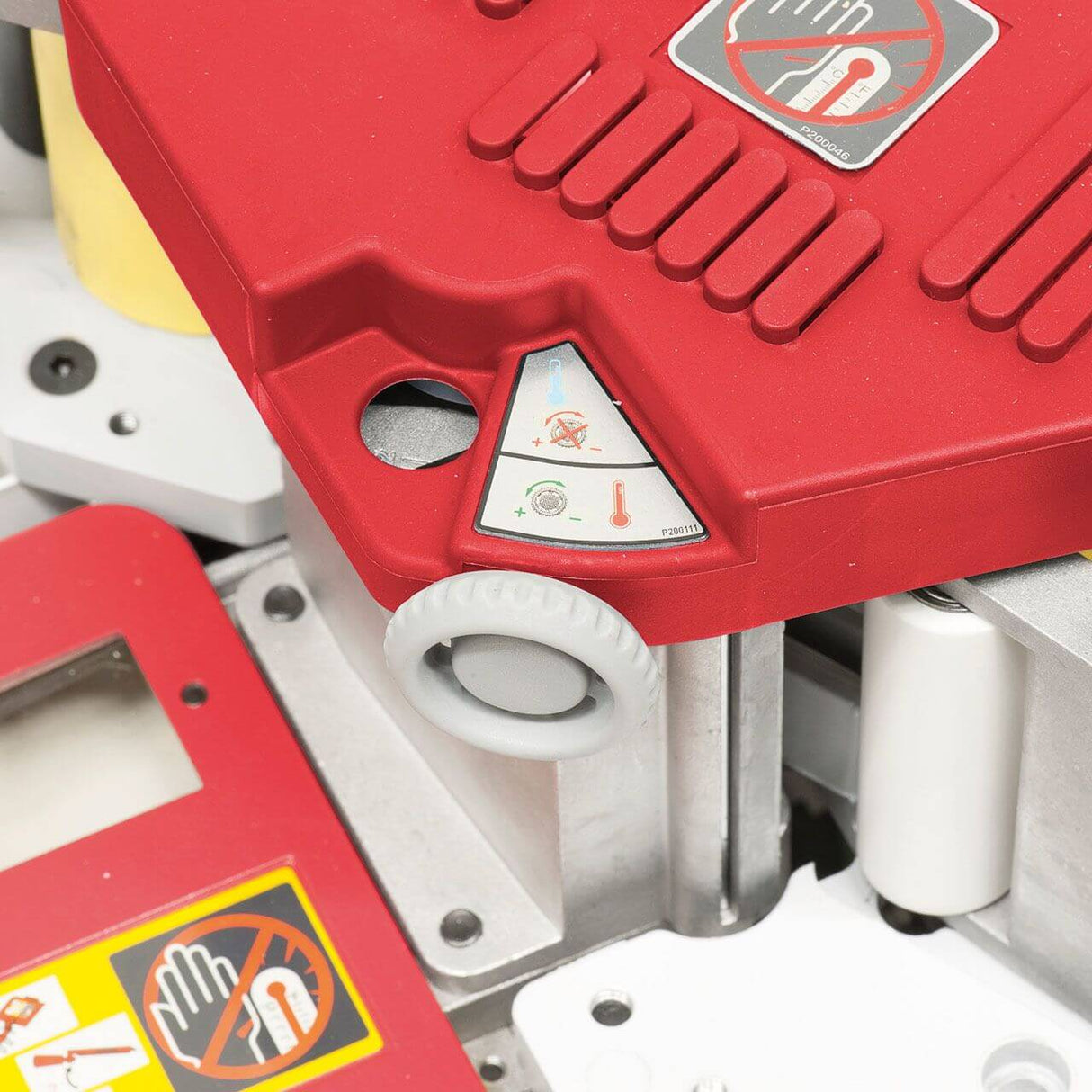

Adjustable glue dosage with precision knob

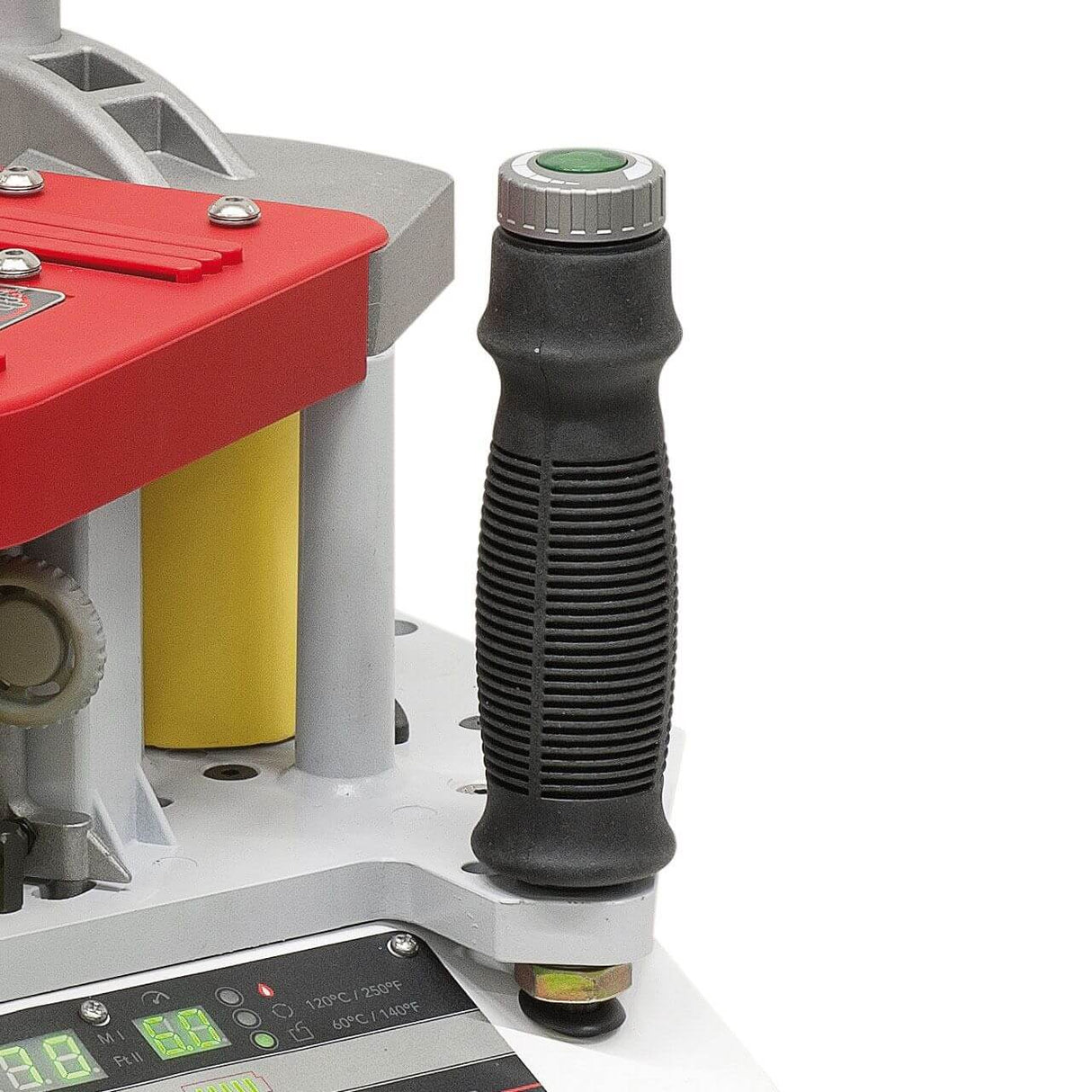

Feed speed adjustable directly on the handle
Powerful 855 W motor
Uniform feed at all speeds
Integrated battery for cordless use
Suitable for professional mobile use
Technical specifications:
| Specification |
Value |
| Model |
DR 500 S |
| Type |
Professional edge bander set |
| Edge thickness (PVC) |
0.3 – 3.0 mm |
| Edge height min./max. |
10 – 65 mm |
| Heating time |
4 min (120 °C) |
| Working temperature level 1 |
120 – 200 °C |
| Working temperature level 2 |
80 – 155 °C |
| Glue tank capacity |
400 ml |
| Feed speed |
2 – 6 m/min |
| Motor power |
855 W |
| Voltage |
230 V |
| Machine dimensions |
340 x 300 x 350 mm |
| Weight |
8.5 kg |

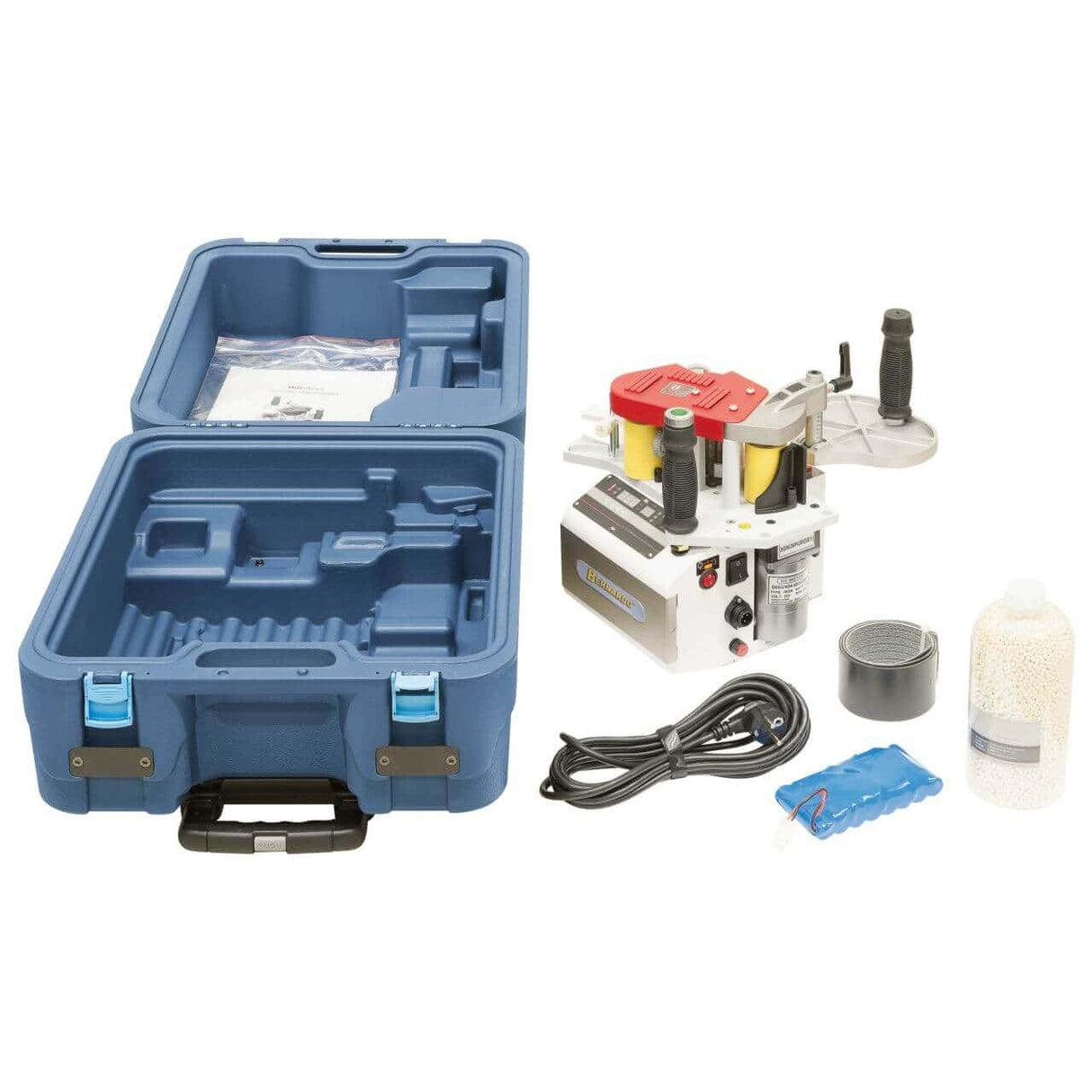

Package contents:
DR 500 S Edge Bander
Granular glue 0.8 kg
Continuous feed adjustment

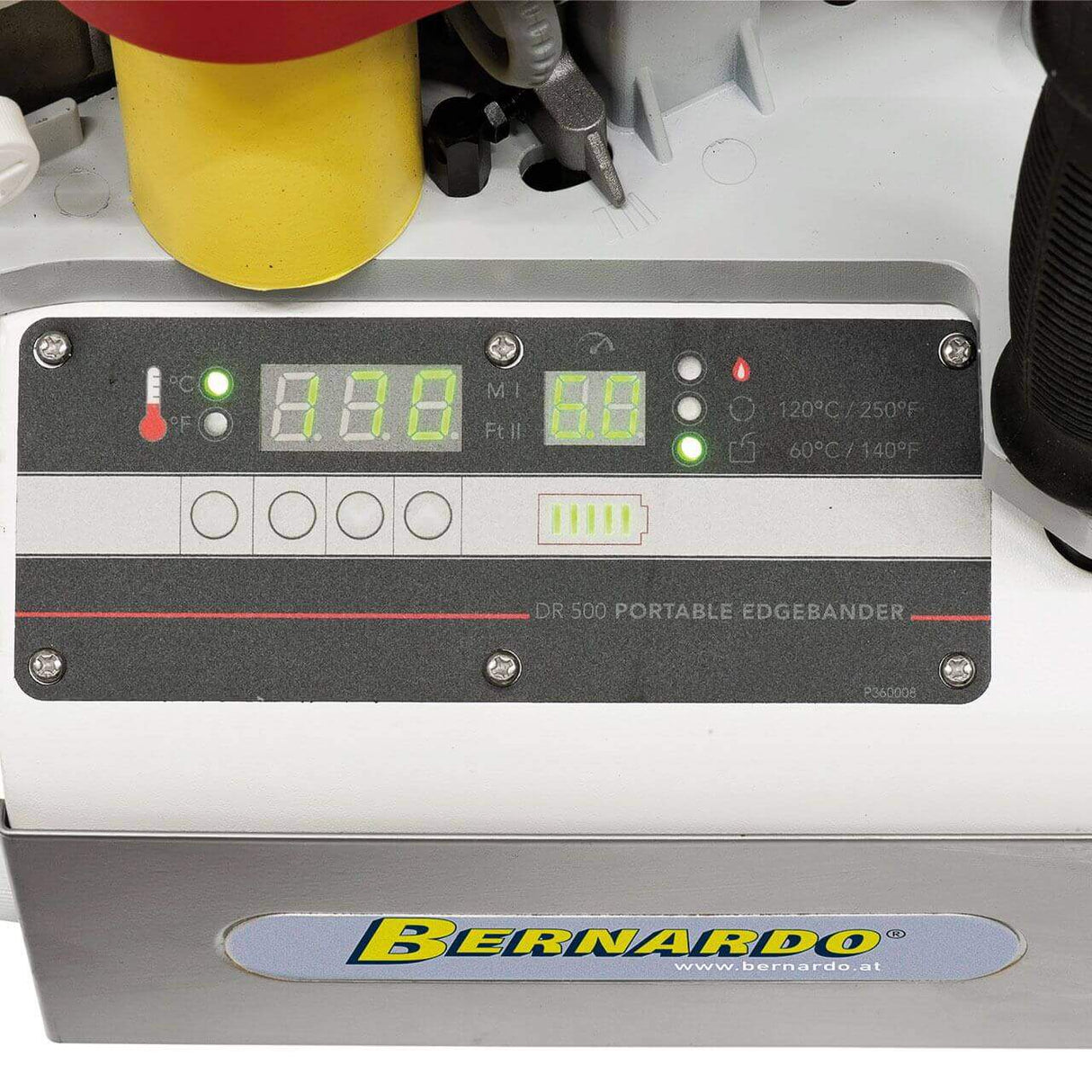

Digital temperature setting

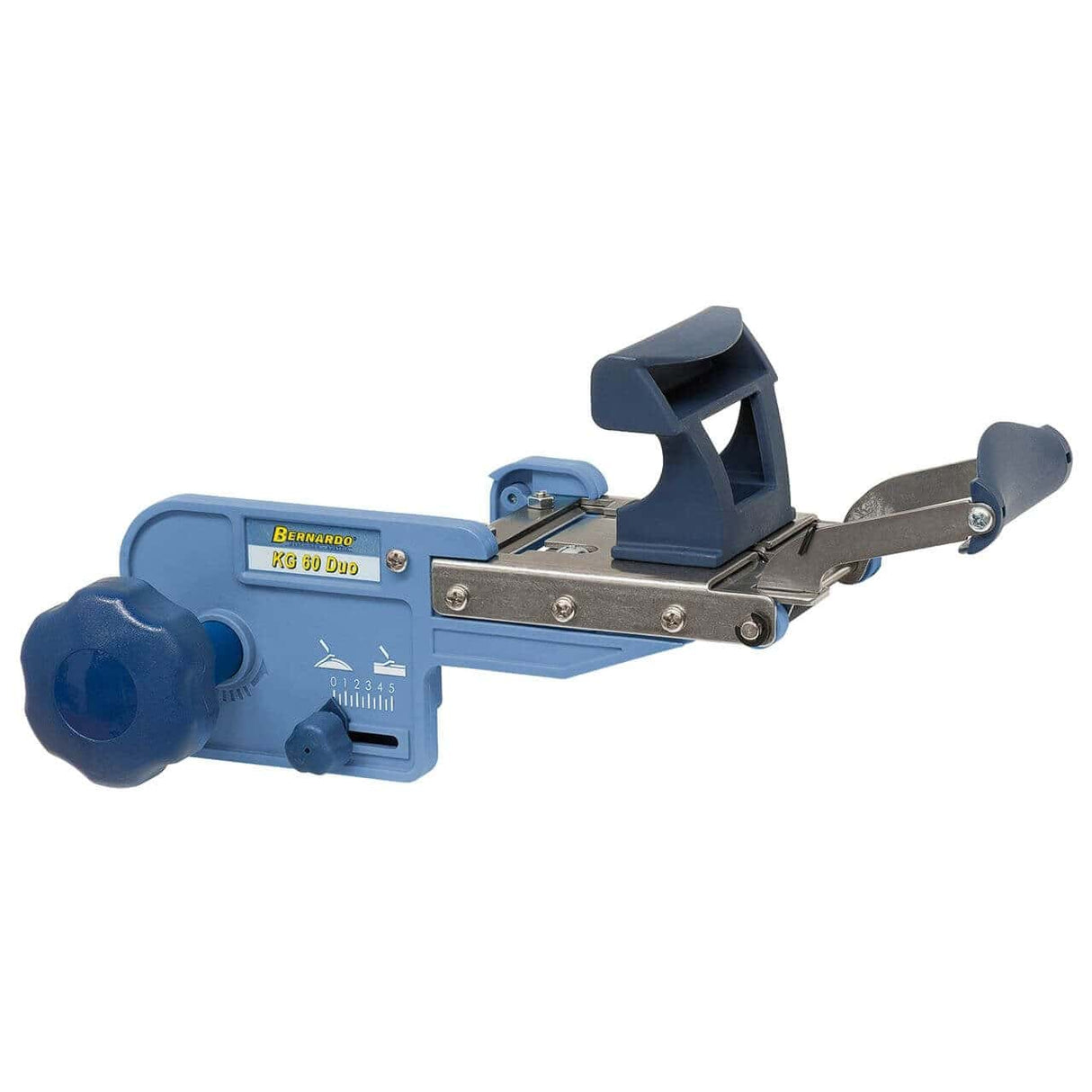

KG 60 Duo double edge trimmer

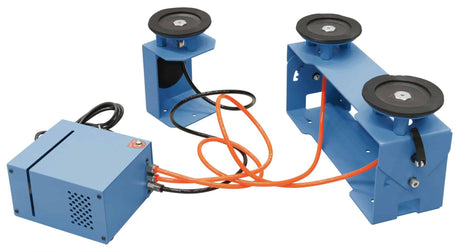

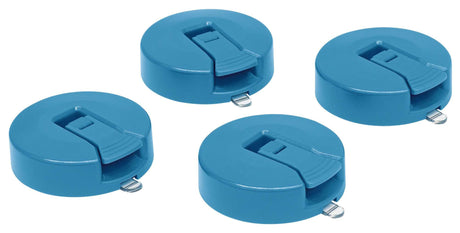

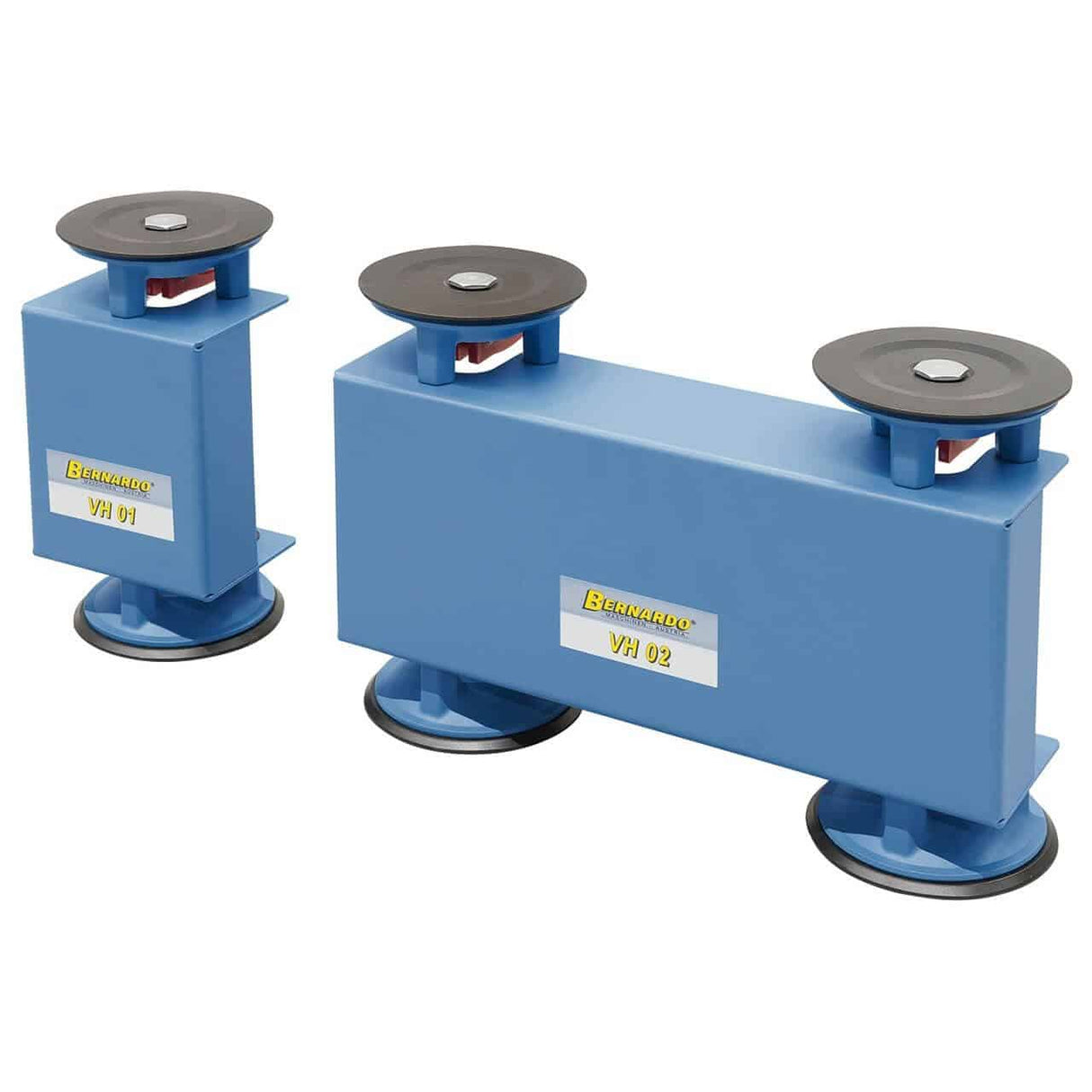

VH 03 vacuum clamping set

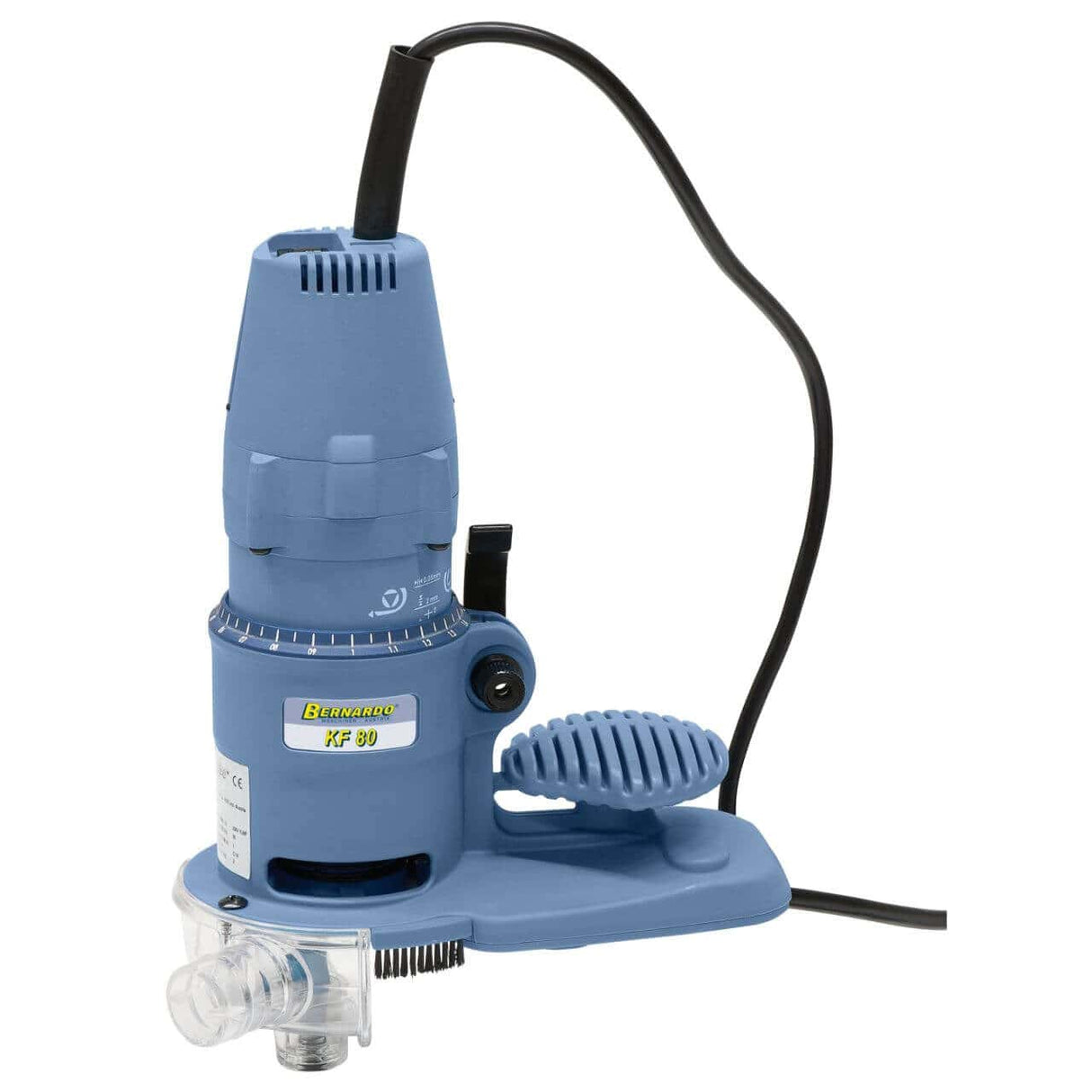

KF 80 electric edge router

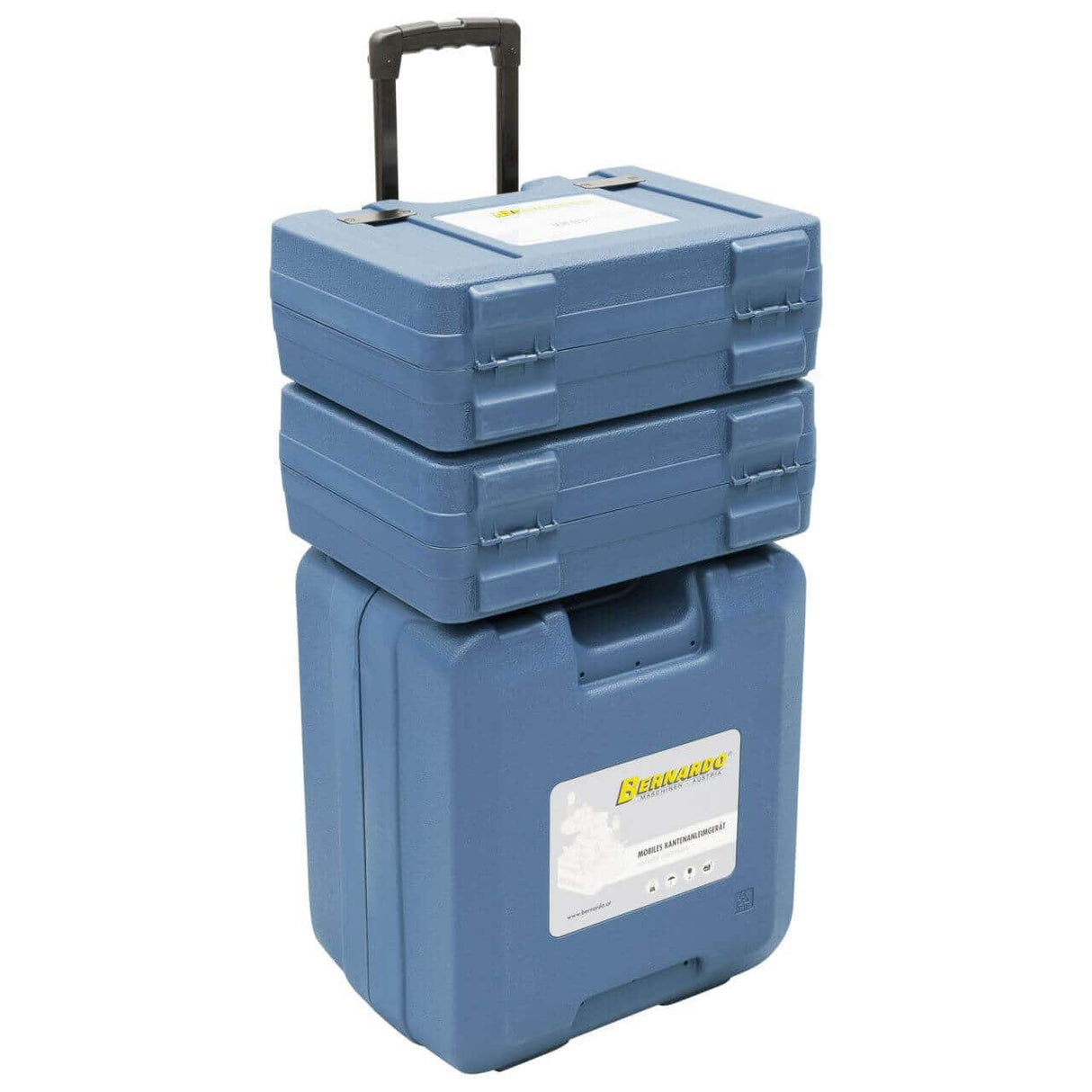

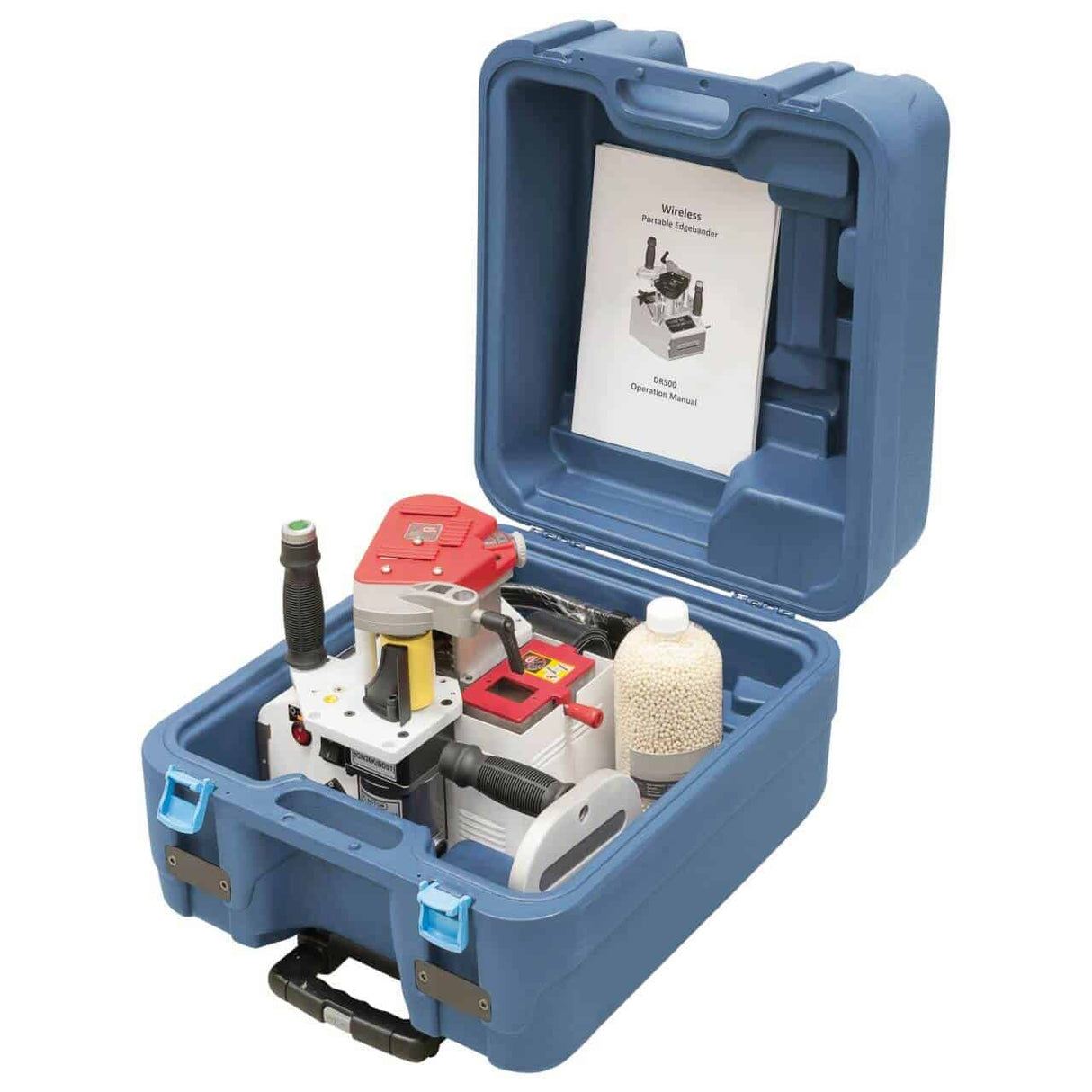

3 transport cases
Mobile trolley
Logistics
Bernardo Shipping: 5–9 business days (7 days in the South). Original spare parts available with 3–5 business day shipping. Customer service available in Italian.
Frequently Asked Questions
What is the difference between DR, EBM, and PEB in the Bernardo edge bander range?
DR 500 / DR 500 S: stationary fixed edge banders with automatic motorized feed — for series production with consistent quality on long runs. EBM 50 E / EBM 60 Profi: mobile edge banders with adjustable electric feed, more versatile for workshops with varied production. PEB 300 / PEB 500 V: portable manual edge banders or with variable feed (V) — the most economical, suitable for low-volume artisanal production.
What type of glue does it use and how long does it take to heat up?
All Bernardo edge banders use EVA hot melt granular glue dissolved in the heated tank. Heating time is typically 4–8 minutes. Keep the glue at the correct temperature for the edge type: standard PVC 140–160°C, ABS 160–180°C, thick edges 180–200°C. Replacement EVA granular glue available from Krollit.
What edge thicknesses are compatible?
PEB edge banders work with edges from 0.3 to 3.0 mm. DR and EBM edge banders accept edges from 0.4 mm up to 3.0 mm typically, with feed speed adaptable to thickness. For edges over 3 mm or solid wood edges, specialized equipment is required.
How do you clean the glue tank?
While the glue is still hot (never cold): empty the tank with a suitable scraper, then wipe residue with absorbent paper while the tank is still hot. Do not use water. If the glue has hardened cold, restart the machine until the glue softens and proceed with cleaning while the machine is hot.
Spare parts available?
Original Bernardo spare parts available with 3–5 business day shipping. Customer service available in Italian.
