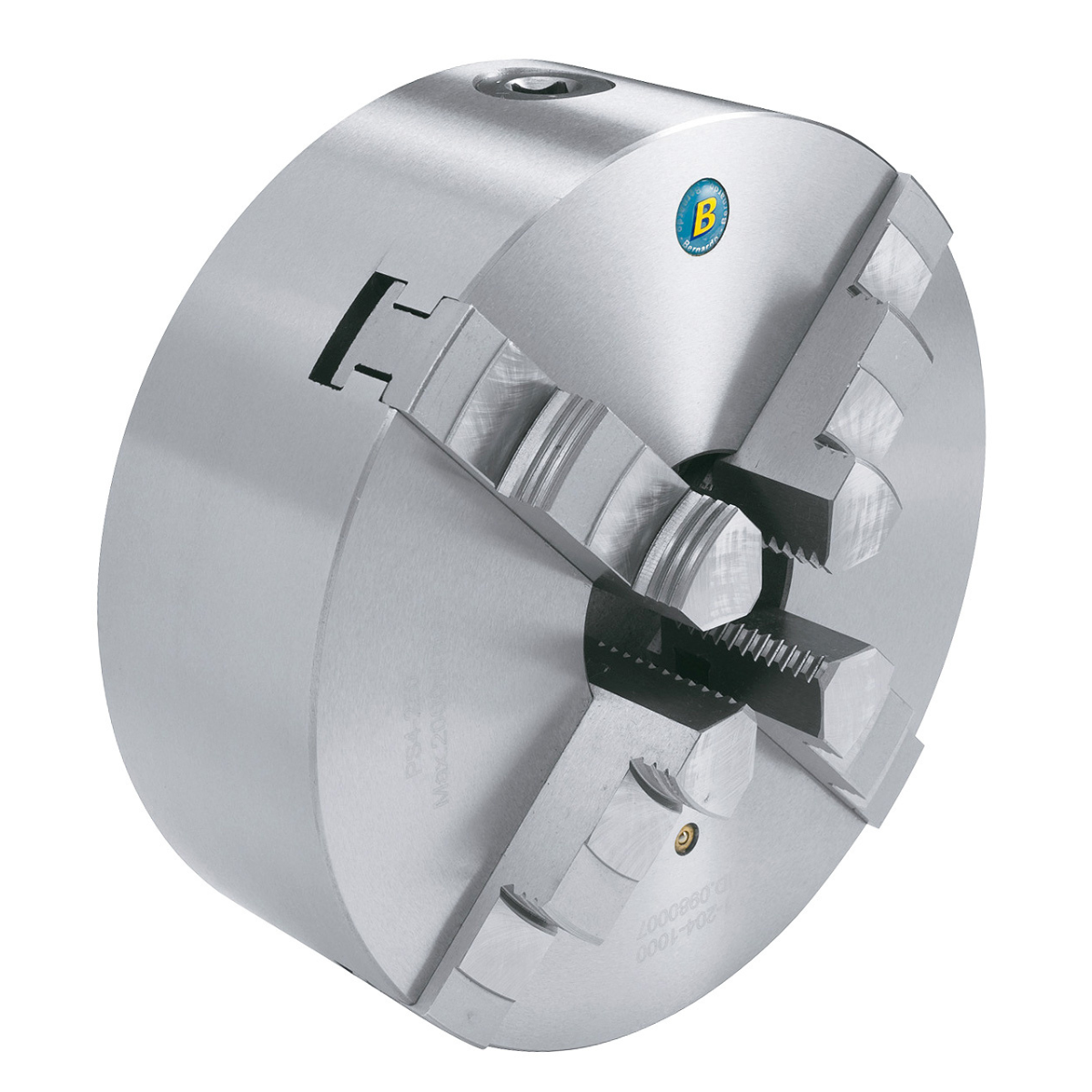

The Bernardo 4-jaw chuck DK12-125 is a lathe chuck for professional use, weighing 5.3 kg. Krollit, official Bernardo distributor since 2007.

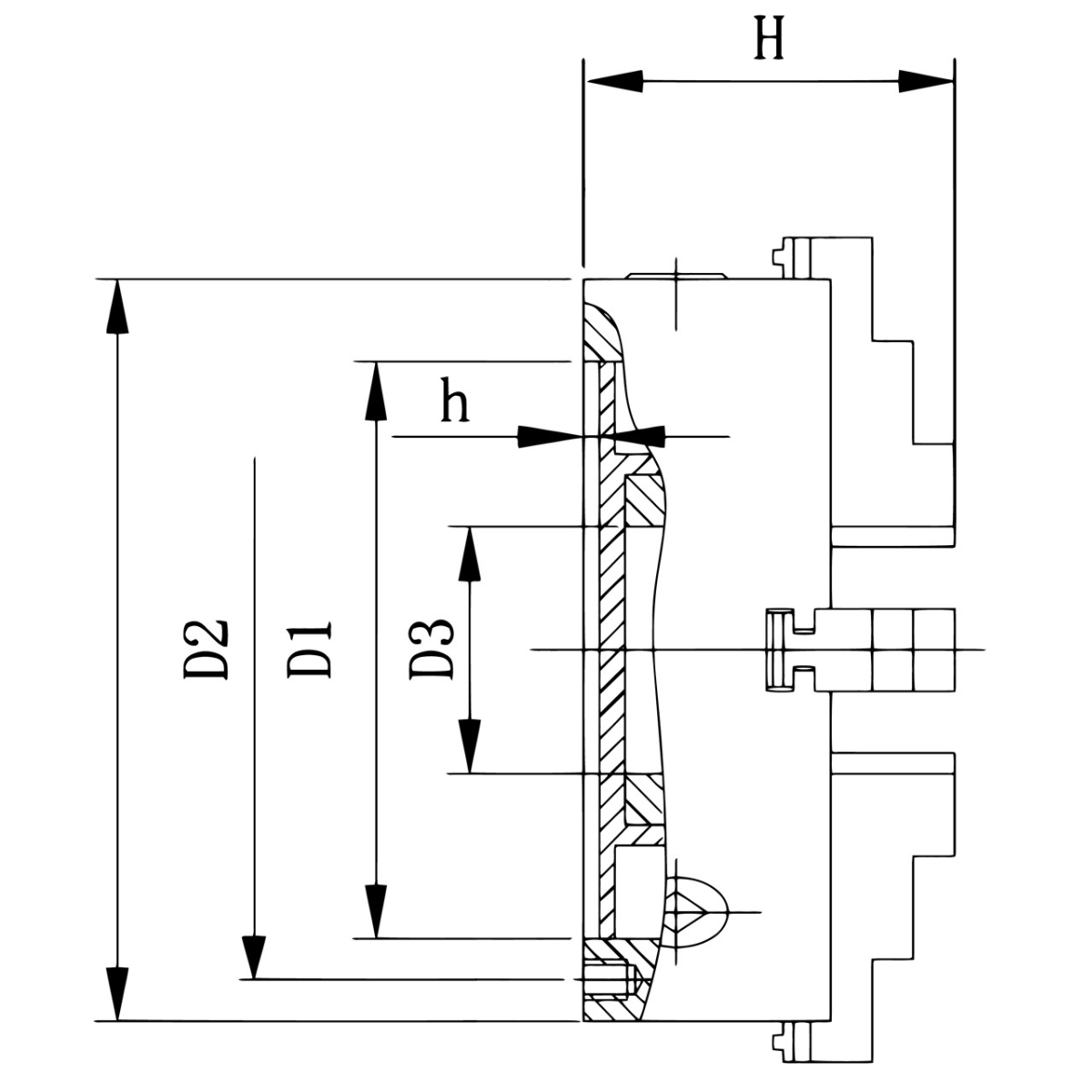

- D - Chuck size: 125
- D1: 95 mm
- D2: 108 mm
- D3: 30 mm
- h: 84.5 mm
- H1: 58 mm
Who uses the DK12-125 4-jaw chuck and for what purpose
Machine shops and artisan turners use the DK12-125 4-jaw chuck as a clamping accessory on metal lathes, ensuring secure clamping and centering of the workpiece during turning, drilling, and grooving operations.
Its place in the Bernardo range
The Bernardo 4-jaw chuck DK12-125 is part of the Bernardo lathe chuck range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Shipping within 3-5 business days from Krollit warehouse for spare parts and accessories. Customer support in Italian available for technical documentation and compatibility verification with the reference machine. Krollit has been an official distributor since 2007.
Who is the DK12-125 4-jaw chuck for
The DK12-125 4-jaw chuck is recommended for the following professional profiles:
-
Machine shops and artisan turners: secure clamping of round or hexagonal workpieces on metal lathes during turning, drilling, and grooving operations.
-
Users with a Bernardo lathe with a compatible flange: original replacement or upgrade for Bernardo range lathes (profi, hobby, etc.) with A2 mount according to DIN 55029.
-
Irregular or non-round workpieces: for non-symmetrically centered workpieces, consider independent 4-jaw chucks or universal faceplates.
Technical specifications
| D1 |
95 mm |
| D2 |
108 mm |
| D3 |
30 mm |
| h |
84.5 mm |
| H1 |
58 mm |
| h |
4 mm |
| Mounting screws |
3 x M8 |
| D - Chuck size |
125 |
| Max. speed |
3000 rpm |
| Approx. weight |
5.3 kg |
Frequently Asked Questions
When to use a 4-jaw chuck?
Self-centering 4-jaw chucks are for square and 4-8 sided workpieces. The jaws move together with a single wrench.
The self-centering 4-jaw chuck (not independent jaws) clamps square or octagonal workpieces symmetrically. For off-center (eccentric, asymmetric) clamping, independent jaw chucks are needed.
What material is the chuck body made of?
The material is indicated in the title: steel (PO series) for maximum precision, cast iron (DK/PS series) for standard use.
The choice depends on intensity of use and required tolerance: steel for production and precision, cast iron for general use.
What workpieces is the Ø 125 mm diameter suitable for?
Suitable for small-medium workpieces (max Ø ~140 mm): bench lathes and artisan workshops.
The nominal chuck diameter indicates the maximum body size, not the machinable workpiece size. The clamping capacity depends on the jaw opening (typically 60-70% of the nominal Ø).
How do I check compatibility with my lathe?
Check the type of lathe spindle nose fitting (Camlock D3-D15, or threaded M-mount) and the corresponding diameter.
On modern lathes, Camlock fitting is the most common. Older lathes may have a threaded (M-) or flanged mount. The lathe's technical documentation indicates the exact type.
How is chuck precision maintained?
Regular cleaning of the scroll mechanism, periodic lubrication with specific chuck grease, concentricity check every 6 months with a dial indicator.
A jaw that moves with difficulty indicates chips or rust in the mechanism: disassemble, clean, and grease. Concentricity is checked by mounting a ground bar and measuring with a dial indicator: acceptable tolerance 0.03-0.1 mm depending on the model.
