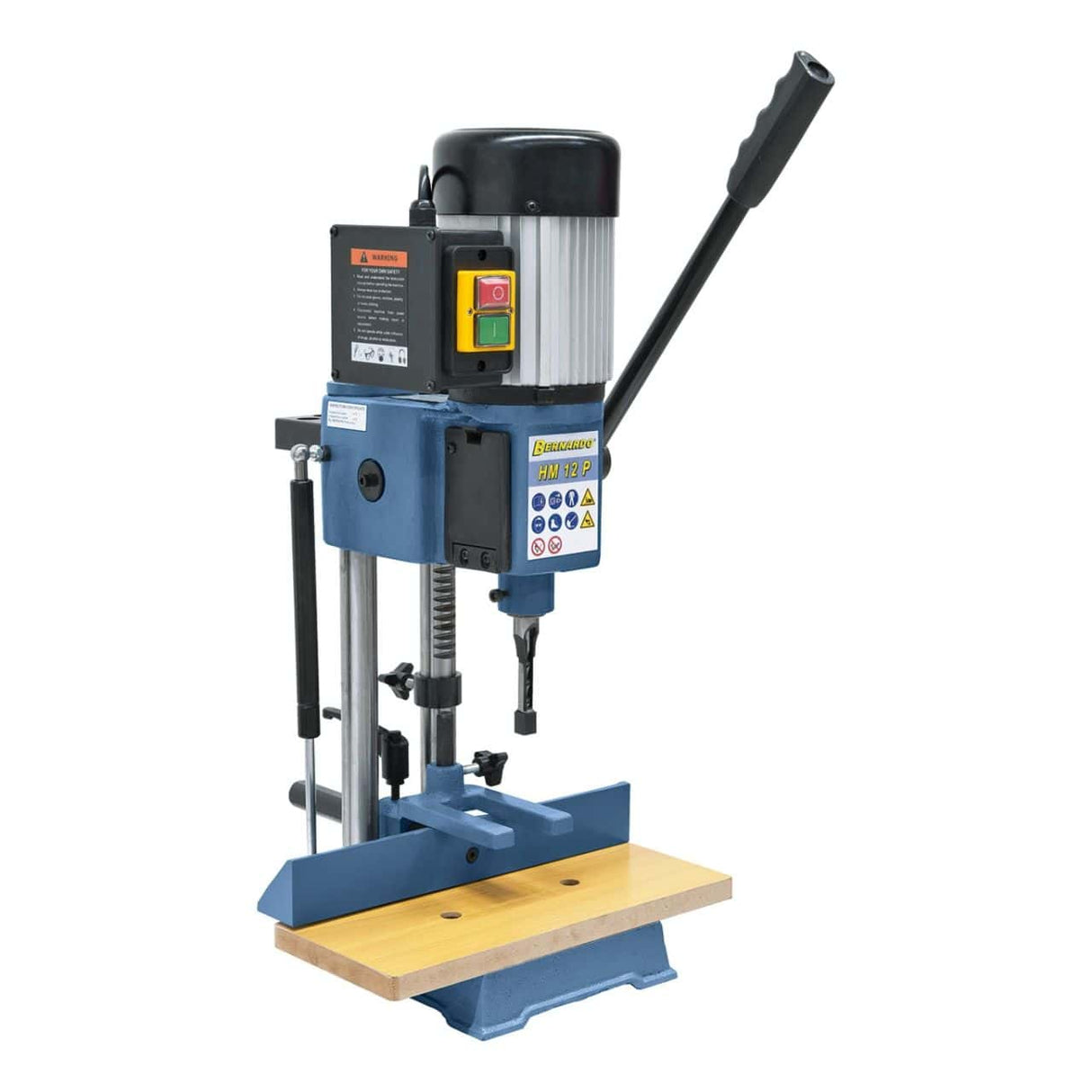

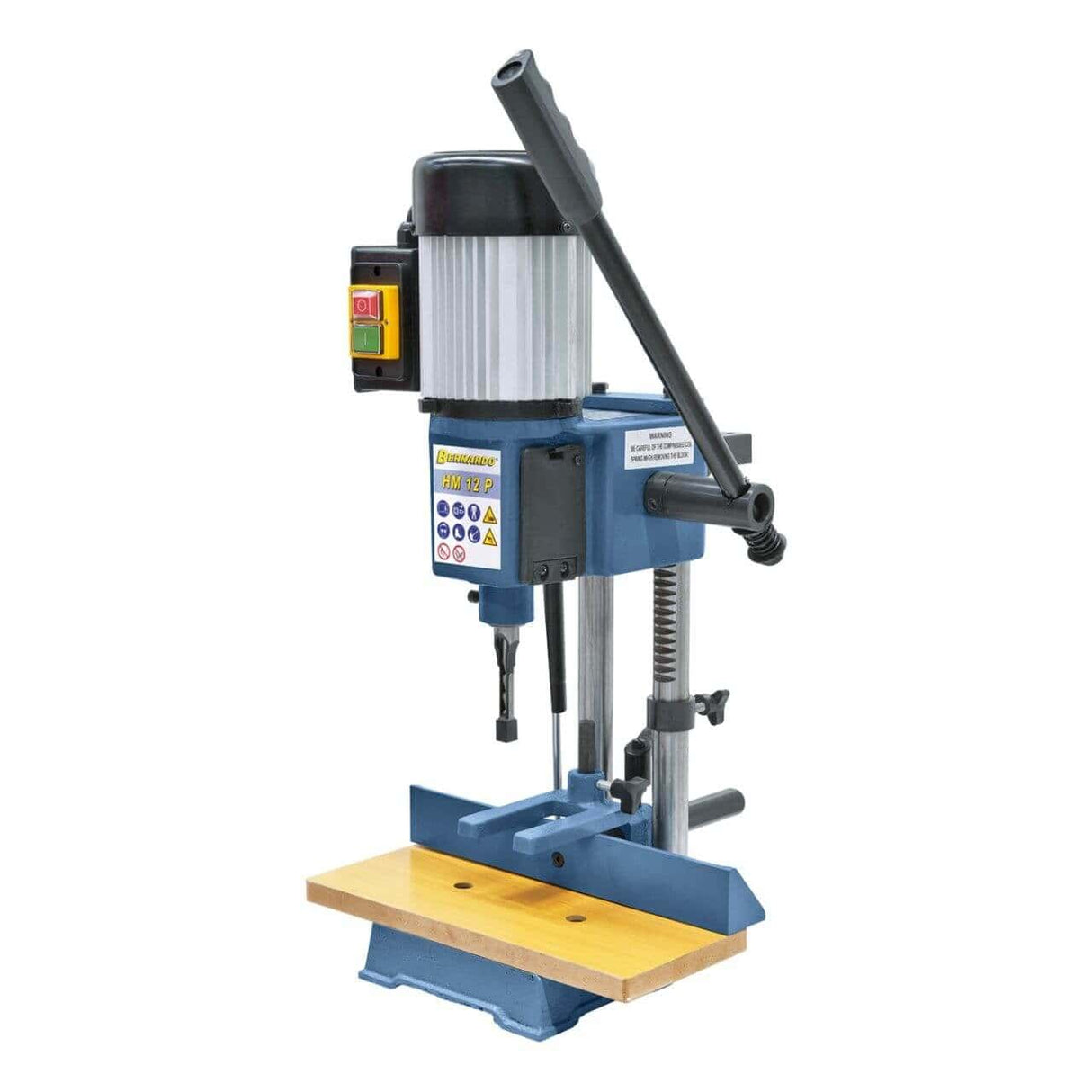

The Bernardo HM 12 P is a mortiser for professional use, with a 0.37 kW (0.5 HP) motor, weighing 26 kg. Krollit, official Bernardo distributor since 2007.
- Max chisel size: 12.7 mm
- Spindle travel: 130 mm
- Max workpiece height: 130 mm
- Table size: 340 x 140 mm
- Rotation speed: 1400 rpm

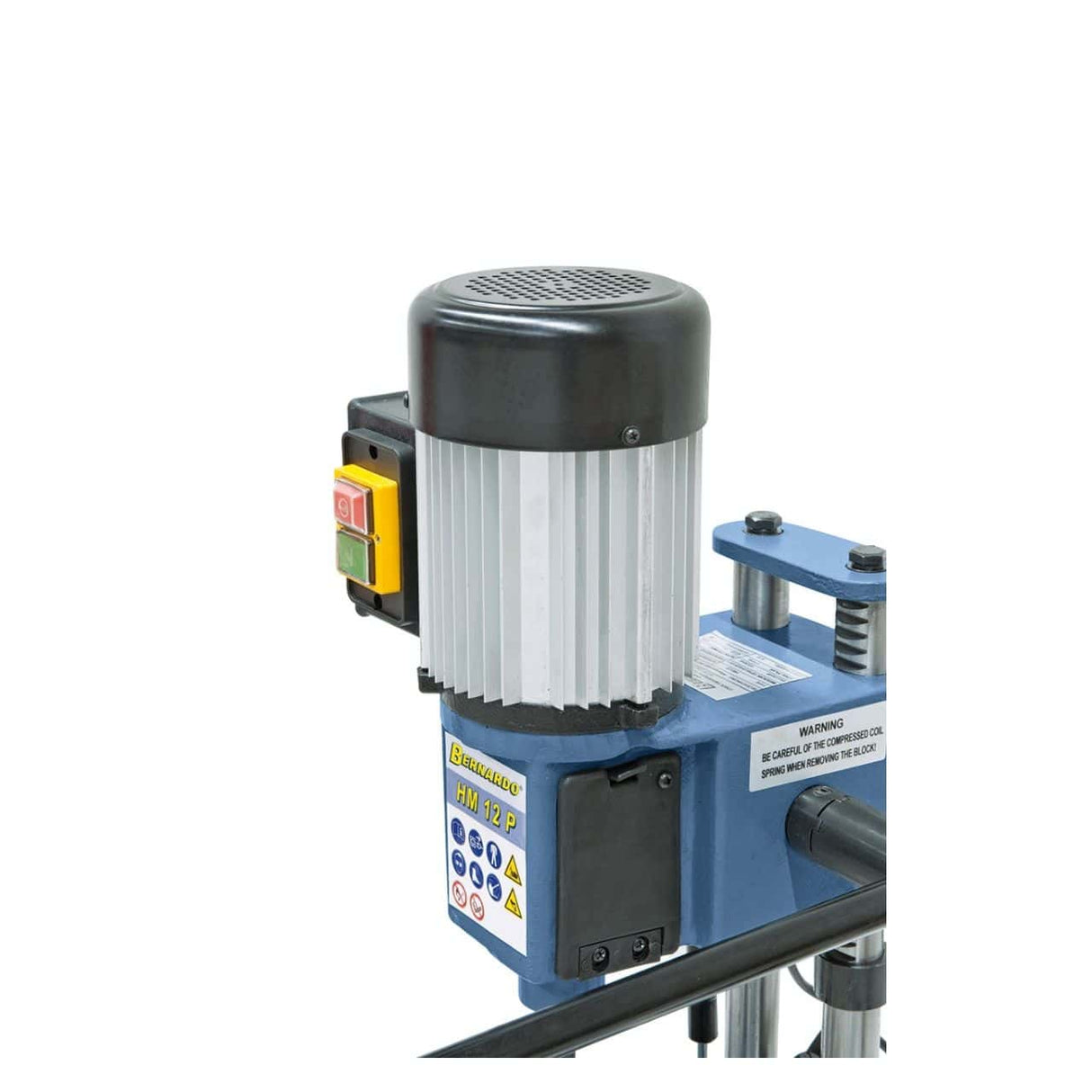

- Motor power: 0.37 kW (0.5 HP)
Who uses the HM 12 P and for what
Professional carpentry workshops and furniture factories use the HM 12 P for creating mortises for tenon joints on doors, windows, and furniture, with precise joints on rails and stiles.
Its place in the Bernardo range
The Bernardo HM 12 P is part of the Bernardo mortising machine range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the HM 12 P for?
The HM 12 P is recommended for the following professional profiles:
-
Professional carpentry workshops and furniture factories: creating mortises for tenon joints on doors, windows, and furniture.
-
Joinery manufacturers: processing rails and stiles with precise joints.
Not suitable for: mortising on metal or plastic (machine dedicated to wood: other materials require different processing).
Technical specifications
| Max chisel size |
12.7 mm |
| Spindle travel |
130 mm |
| Max workpiece height |
130 mm |

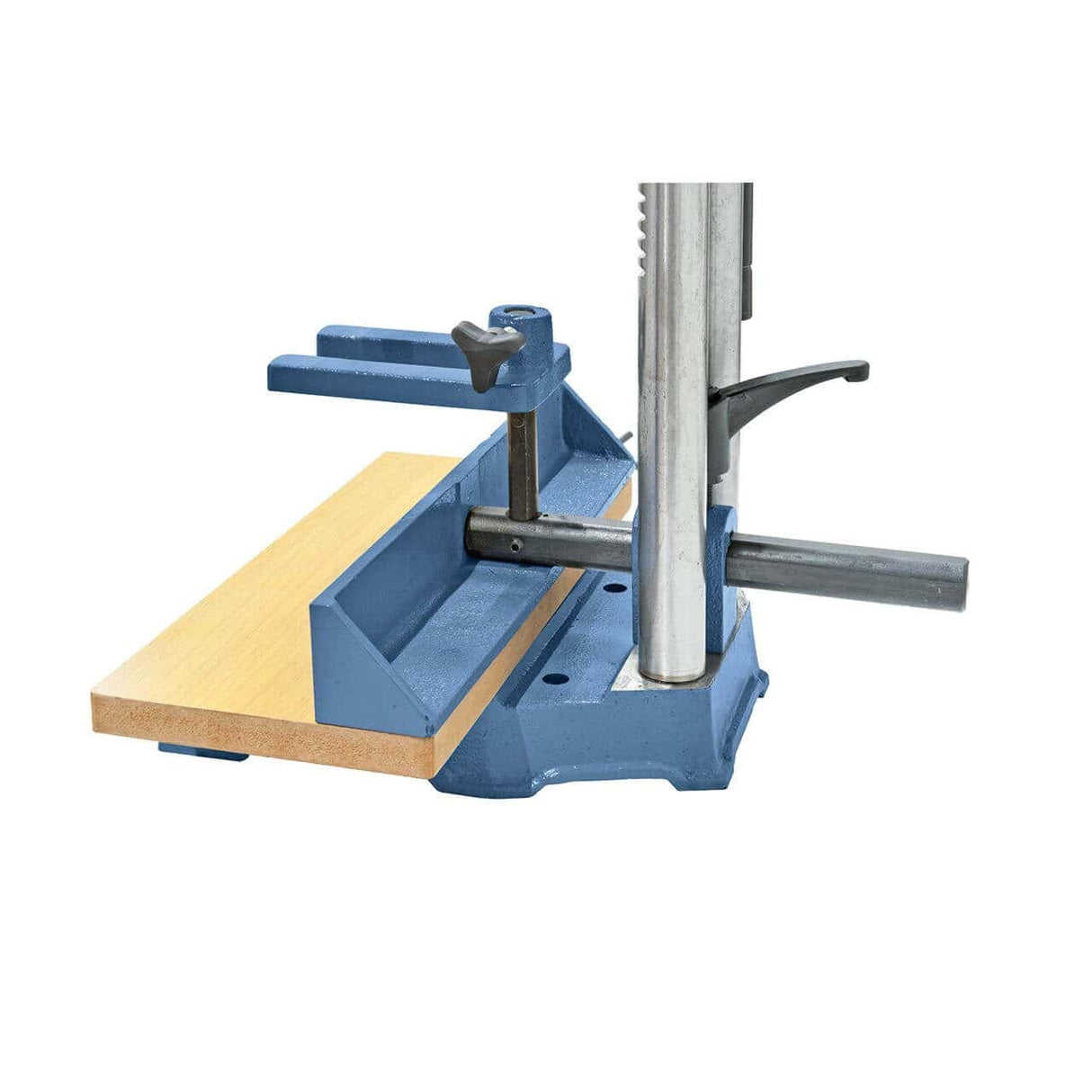

| Table size |
340 x 140 mm |
| Rotation speed |
1400 rpm |
| Motor power |
0.37 kW (0.5 HP) |
| Voltage |
230 V |
| Machine dimensions (LxWxH) |
340 x 390 x 700 mm |
| Weight |
26 kg |
Frequently Asked Questions
What can the HM 12 P process?
It creates rectangular mortises for tenon-mortise joints on solid wood, plywood, and wood-based panels.
Bernardo HM square chisel mortisers allow for the direct creation of right-angle mortises, without the need for manual finishing. Typical applications: door and window frames, chairs, furniture, and structural assemblies.
What chisel sizes does it support?
Typically chisels from 6 to 25 mm in width. Check the technical table for "drilling capacity" or "mortising capacity".

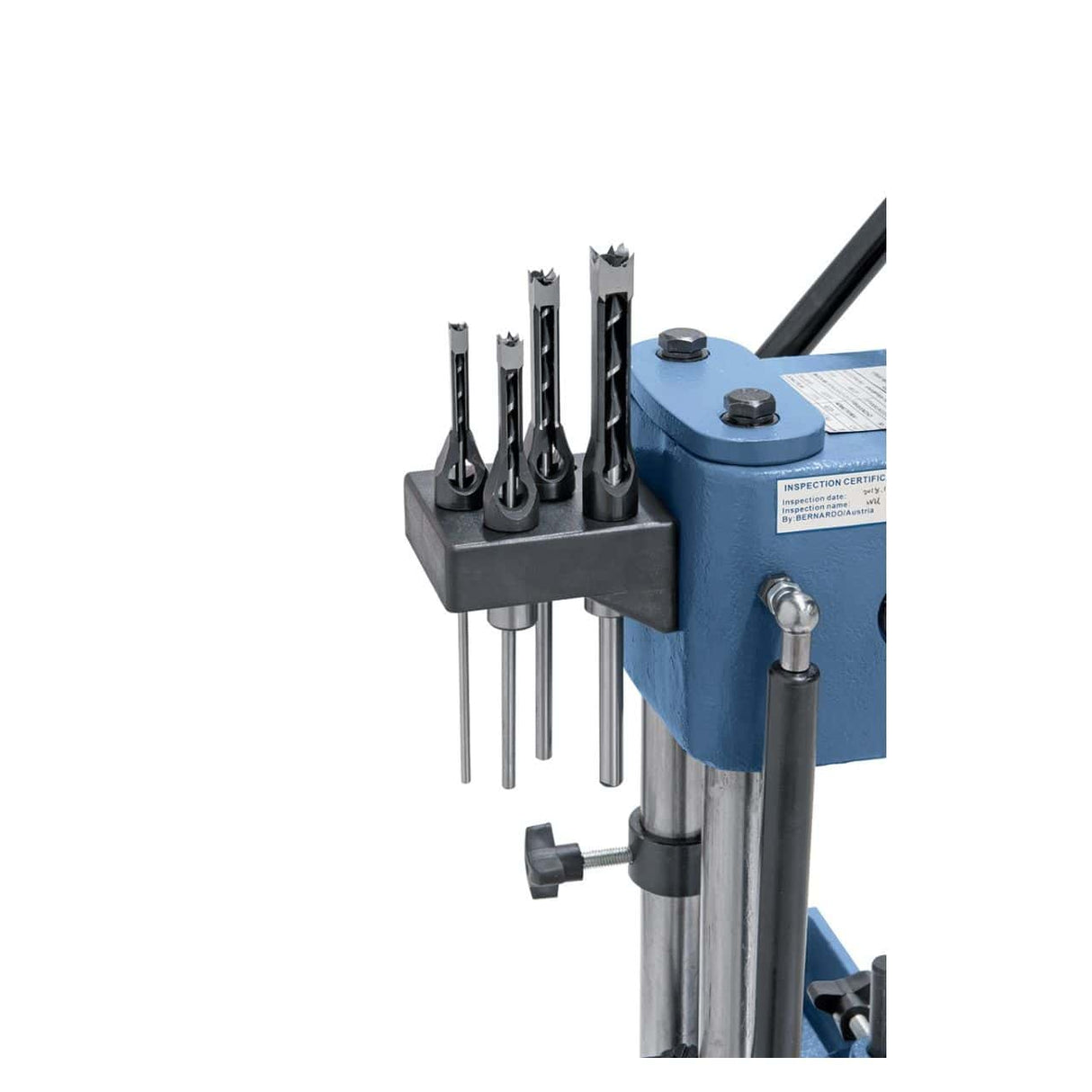

Bernardo HM chisels are dedicated accessories with a cylindrical shank and a hardened hollow tip. Krollit supplies original spare parts compatible with the HM 12, HM 25, and HM 30 series.
Is the head tiltable or rotatable?
It depends on the model: HM 25 has a 180° rotatable head, HM 25 TOP has a tiltable head ±22.5° right/left.
The rotatable head allows working on large pieces such as doors and frames from the back. The tiltable head allows for angled mortises for mitered assemblies.
What power supply does it require?
Models HM 12, HM 25, and HM 30 are equipped with a 0.75 kW single-phase 230 V motor. See "Voltage" in the technical table.
The single-phase power supply makes these mortisers usable even in workshops without a three-phase line. The machine still requires dedicated residual current protection.
How much does the machine weigh?
See the "Weight" data in the technical table. Typically 100 kg (HM 25) or 110 kg (HM 25 TOP).
The high cast iron mass provides rigidity during mortising, reducing vibrations and improving precision. For handling and installation, a hydraulic trolley or the help of a second operator is recommended.
