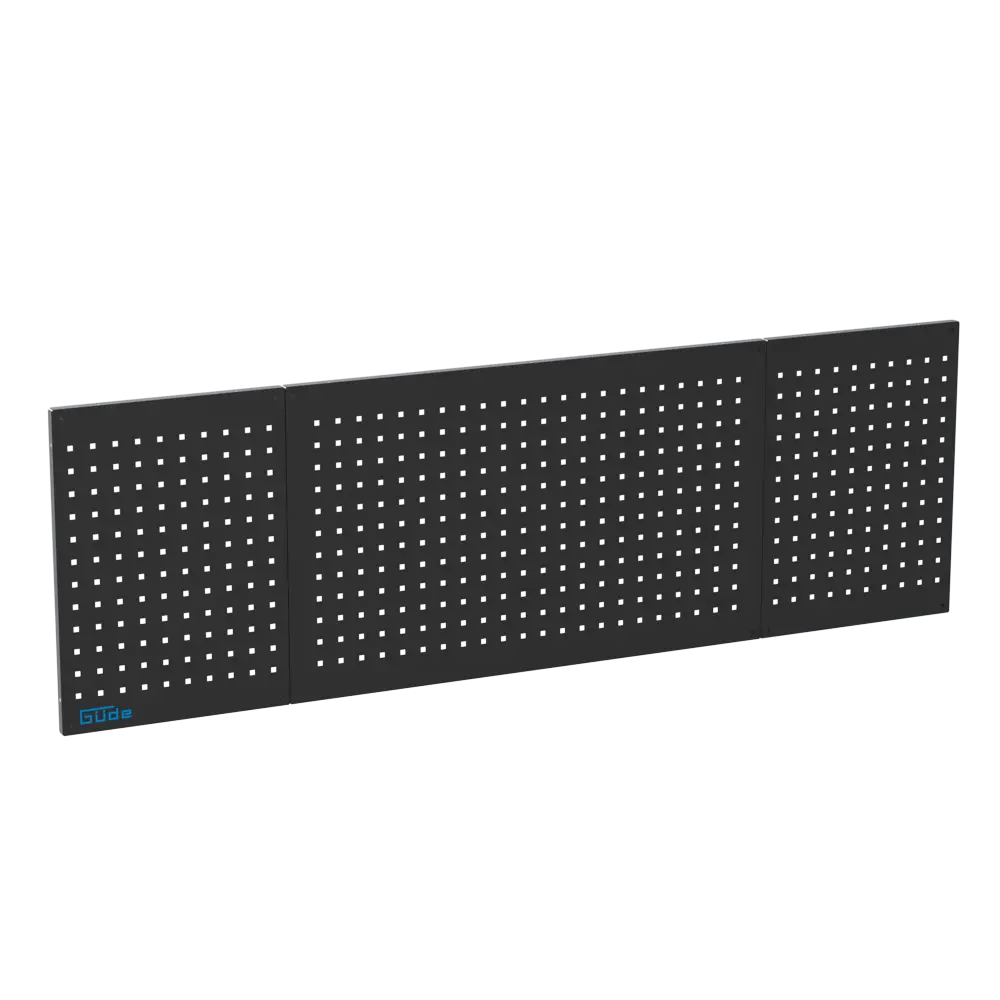

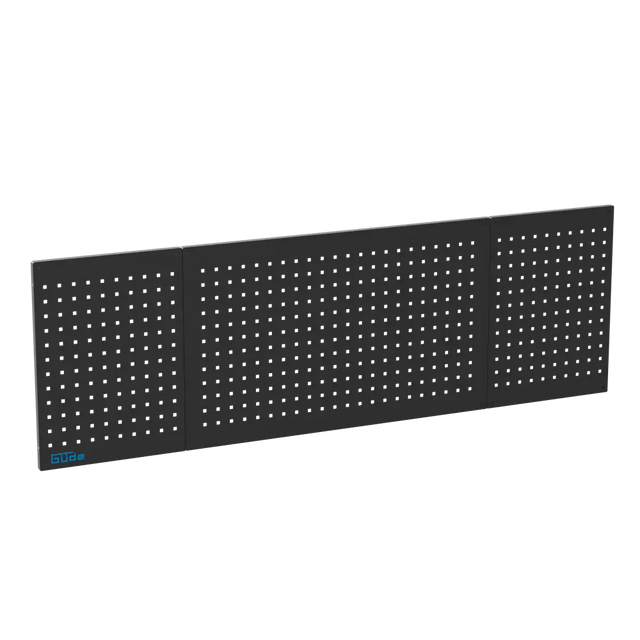

The Güde GL 1709 XL is a perforated panel in powder-coated steel sheet, made up of 3 elements (1,709 mm total width, 550 mm height), with standardised 9x9 mm square perforation and 38 mm pitch. Designed for the wall above the XL workbenches of the Eco line. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Total width: 1,709 mm
- Height: 550 mm
- Depth: 20 mm
- Composition: 3 panels (1 of 909 mm, 2 of 400 mm)
- Perforation: square 9x9 mm, 38 mm pitch
- Material: powder-coated steel sheet
- Net weight: 5 kg
Krollit logistics and support
Shipping 3–5 working days from the Krollit warehouse, Monteforte Irpino (AV). Technical support in Italian and English at +39 0825-1494022.
Who the GL 1709 XL panel is for
| Profile | Suitability | Reason |
|---|
| Workshop with Güde Eco Line XL benches | Suitable | Sized for the wall above the GW 6/1 XL and GW 6/2 XL benches |
| Hobbyist organising hand tools | Suitable | Standardised 9x9 mm perforation compatible with hooks and tool holders at 38 mm pitch |
| User of round-hole systems or different pitch | Not suitable | The 9x9 mm square perforation with 38 mm pitch is not compatible with accessories for other standards |
Not suitable for: mounting heavy workshop tools (e.g. cable reels or supports for power tools beyond the loads foreseen for the sheet), for which dedicated structural wall solutions are required.
Technical specifications
| Total width | 1,709 mm |
| Height | 550 mm |
| Depth | 20 mm |
| Large panel size | 909 x 550 x 20 mm |
| Small panel size | 400 x 550 x 20 mm (x2) |
| Perforation matrix | 9 x 9 mm |
| Perforation pitch | 38 x 38 mm |
| Material | Powder-coated steel sheet |
| Net weight | 5 kg |
| Gross weight | 5.2 kg |
| Packaging size | 920 x 550 x 25 mm |
| GTIN | 4015671315793 |
| Article code | 40464 |
Verified compatibility
| Code | Compatible product |
|---|
| 40480 | GW 6/1 XL workbench |
| 40481 | GW 6/2 XL workbench |
| 40462 | GWS 2T/L XL wall cabinet |
| 40463 | GWS 2T XL wall cabinet |
| 40768 | 28-piece tool holder set (optional accessory) |
All Güde tool holders and hooks with square perforation from 8x8 to 10x10 mm and 38 mm pitch are compatible with this panel.
Frequently asked questions
Can the GL 1709 XL set also be mounted partially?

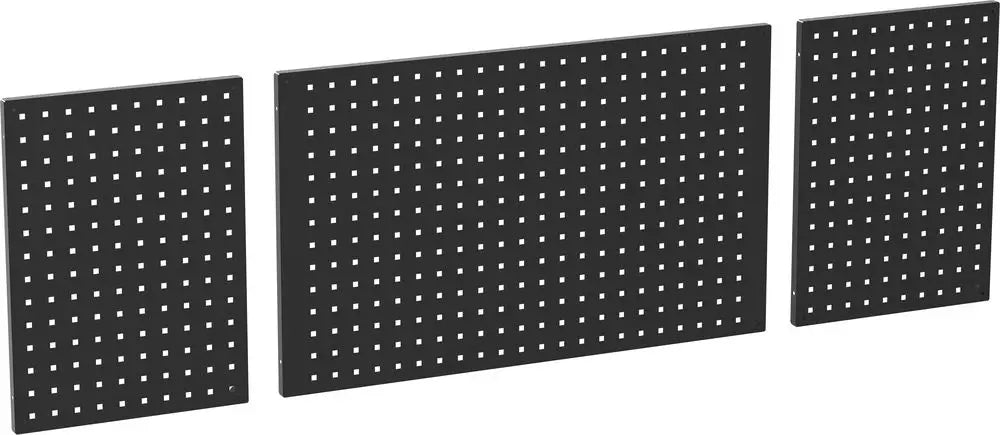

Yes. The set consists of three independent panels: one of 909 mm and two of 400 mm in width. They can be mounted all together or individually.
This makes it possible to adapt the wall coverage to the space available above the bench, mounting only the elements needed without having to install the full 1,709 mm width.
Which hooks and tool holders are compatible with this panel?
All Güde hooks and tool holders with square perforation from 8x8 to 10x10 mm and a hole pitch of 38 mm are compatible.
The panel perforation is square 9x9 mm with 38 mm pitch, a value within the Güde standard for wall systems. The 28-piece tool holder set (code 40768) is the dedicated accessory.
Which workbenches is the panel paired with?

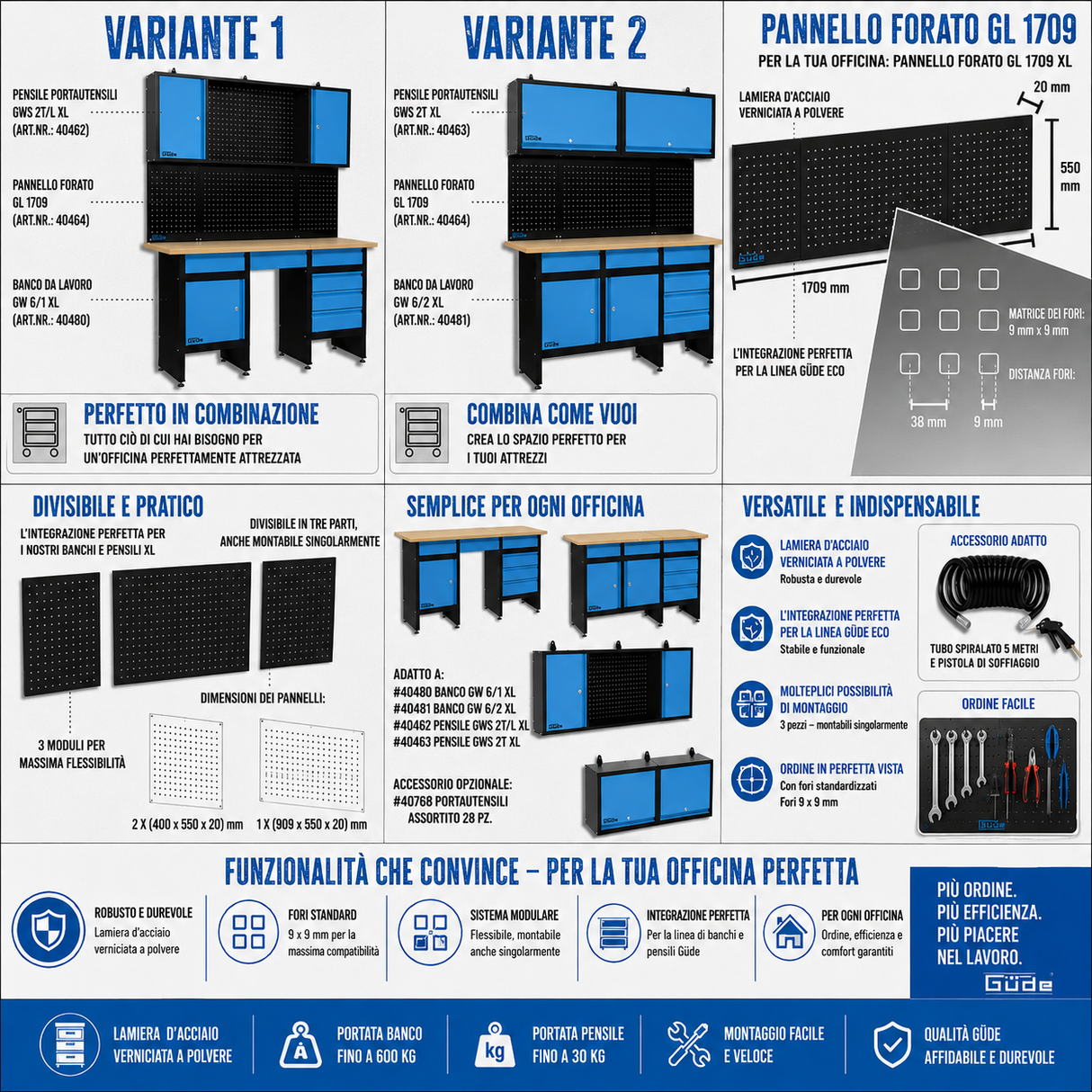

The panel is sized for the wall above the Güde Eco Line XL workbenches, in particular the GW 6/1 XL (code 40480) and GW 6/2 XL (code 40481) models.
It also pairs with the wall cabinets of the same line: GWS 2T/L XL (40462) and GWS 2T XL (40463), to complete the organisation of the work wall.
What material is the panel made of?
The panel is made of powder-coated steel sheet, a finish that protects the surface from wear and corrosion in a workshop environment.

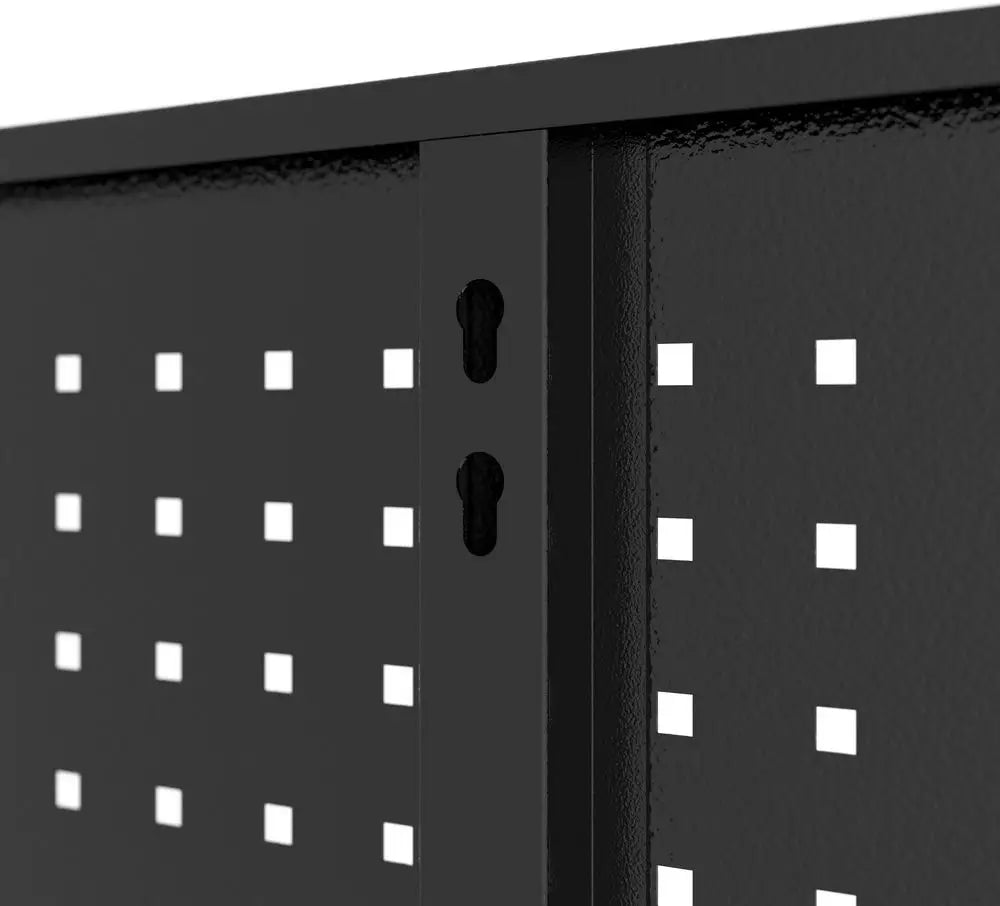

The 20 mm depth and the steel structure provide rigidity to the perforated wall once fixed, keeping the holes aligned for hooking accessories.
How much does it weigh and how is it shipped?
The complete set weighs 5 kg net (5.2 kg gross) and is packed in a parcel of 920 x 550 x 25 mm.
Shipping takes 3–5 working days from the Krollit warehouse in Monteforte Irpino (AV). For assistance on pairing with Eco Line benches and cabinets, technical support in Italian and English is available at +39 0825-1494022.
