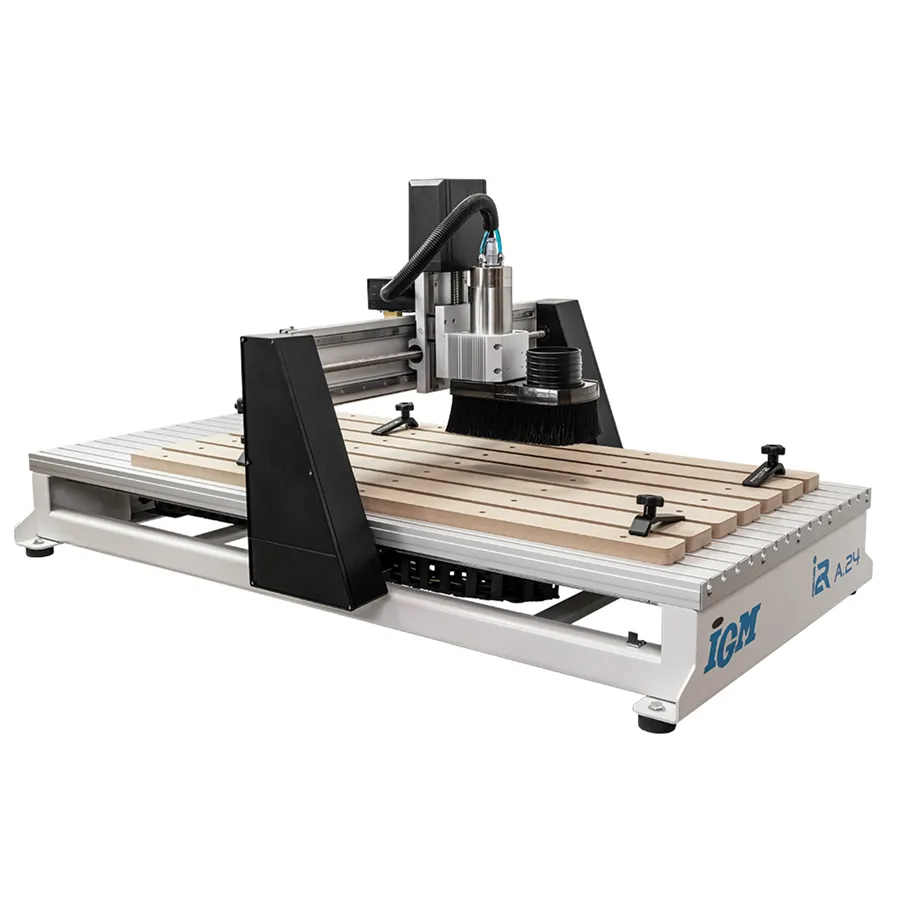

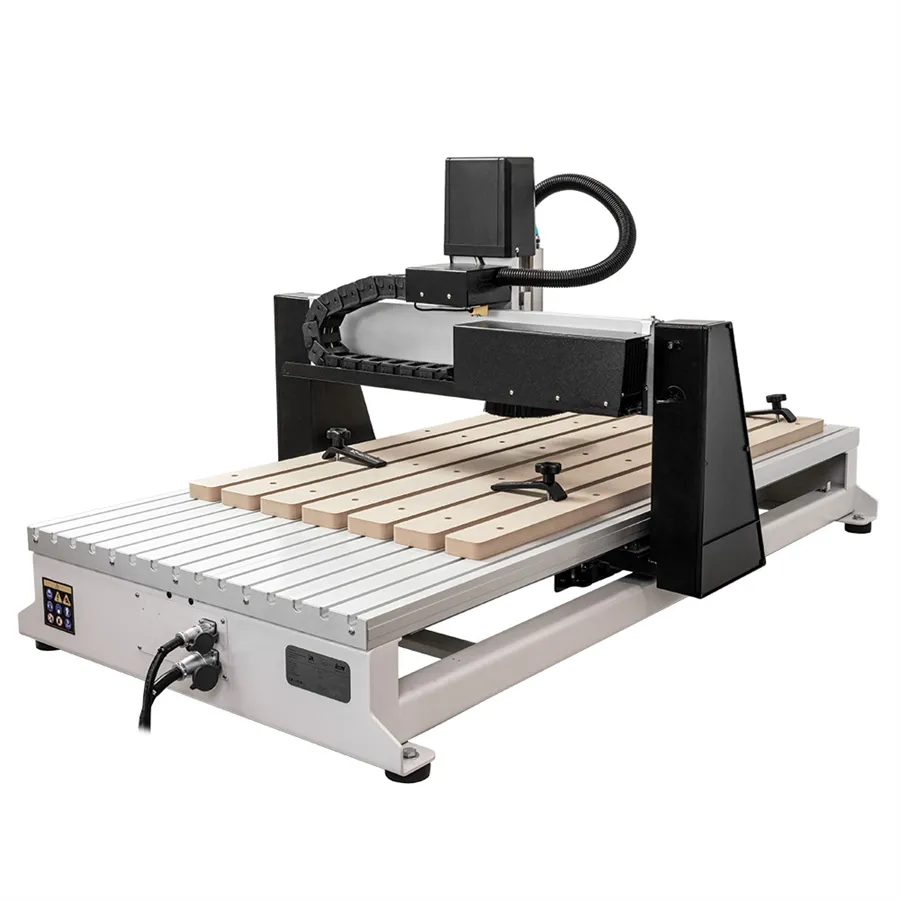

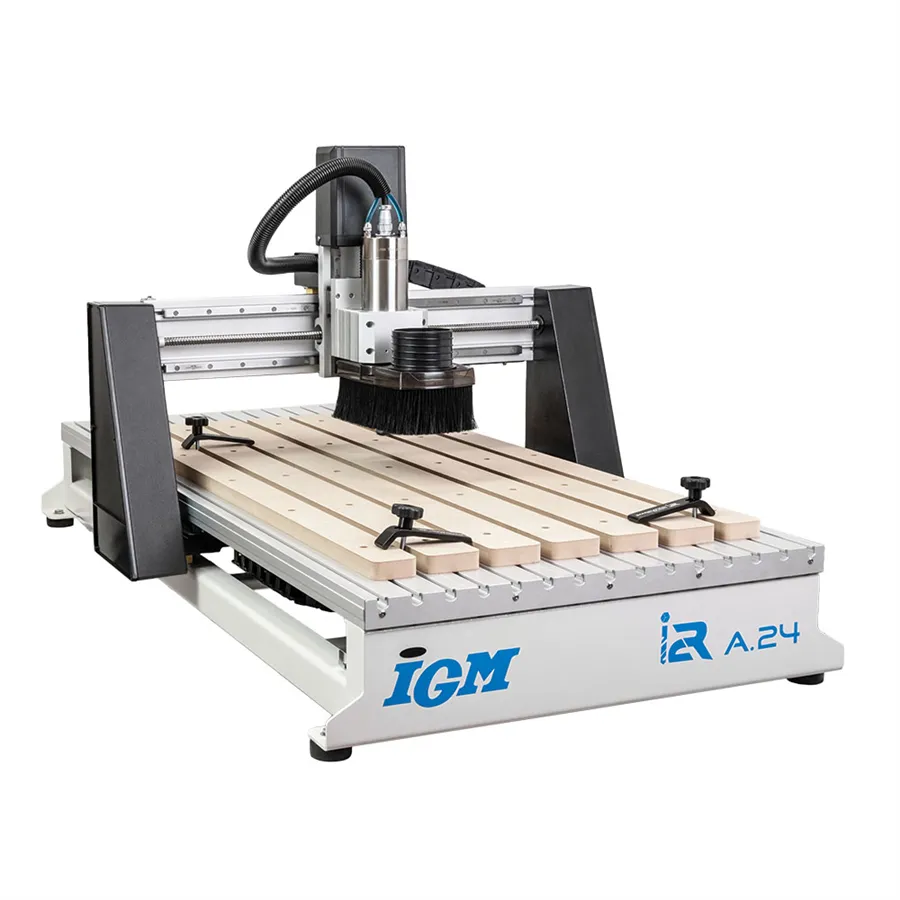

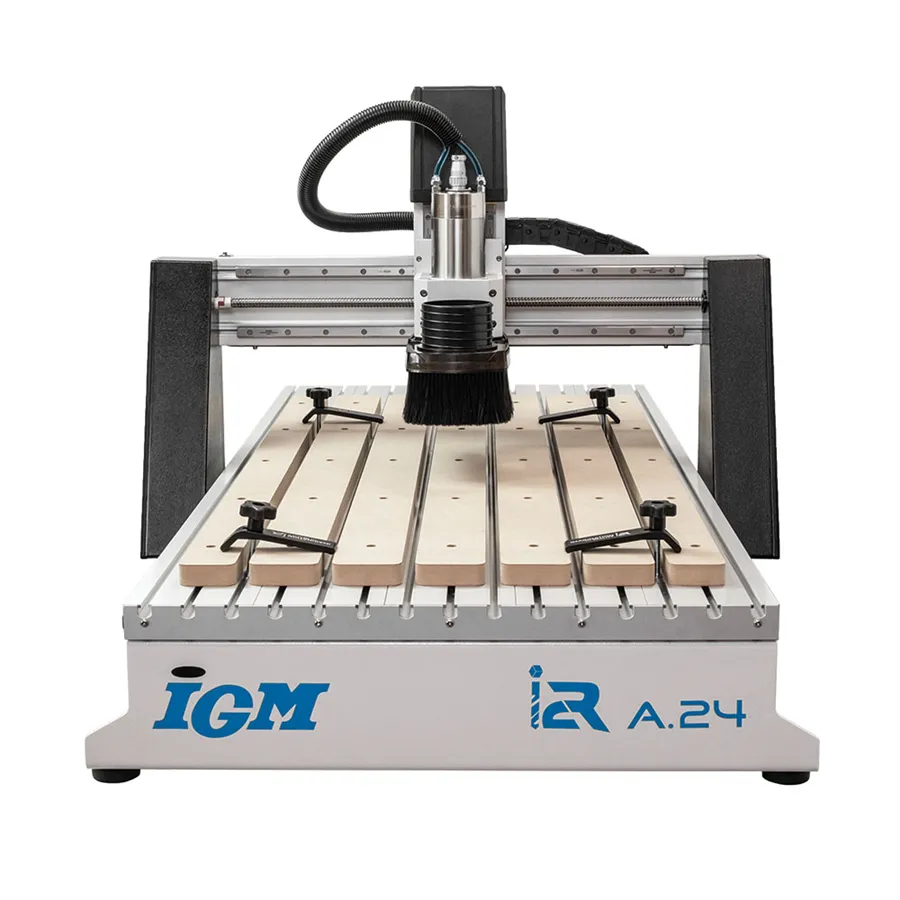

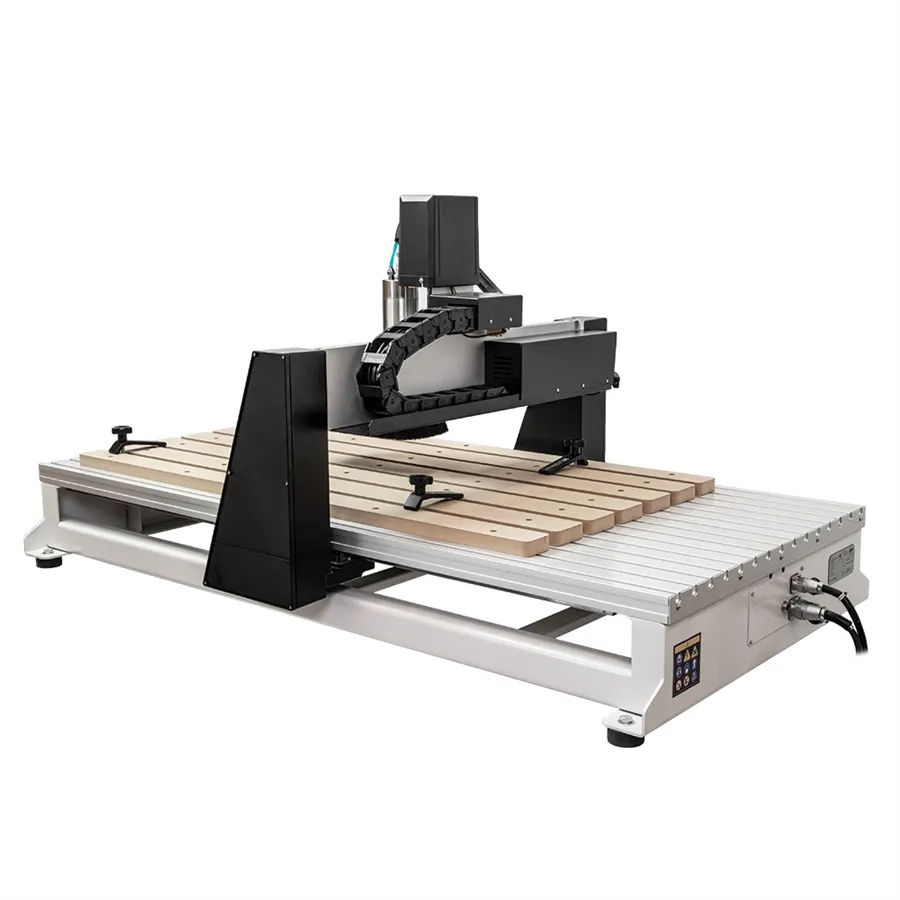

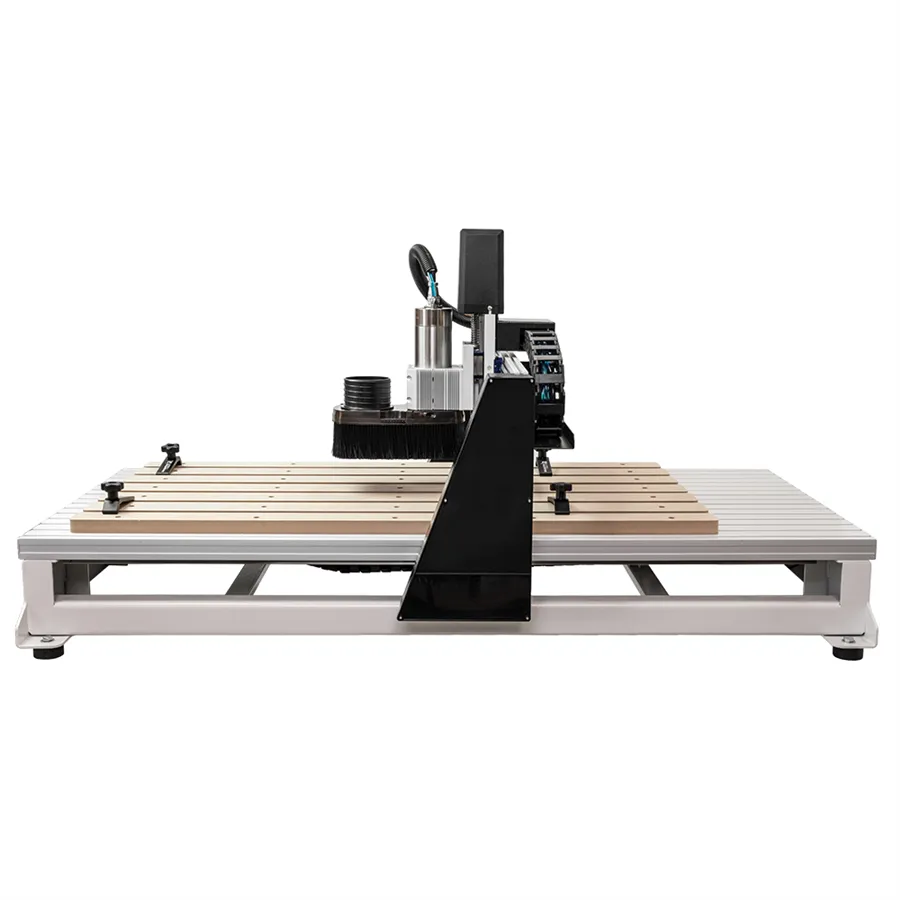

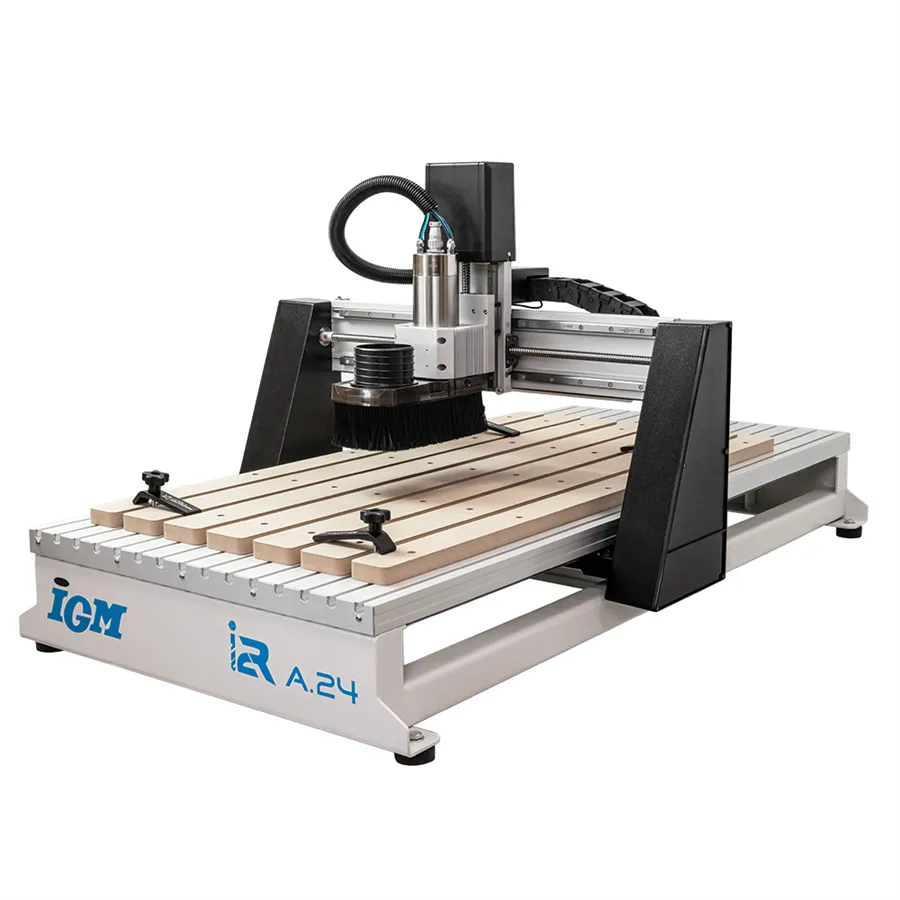

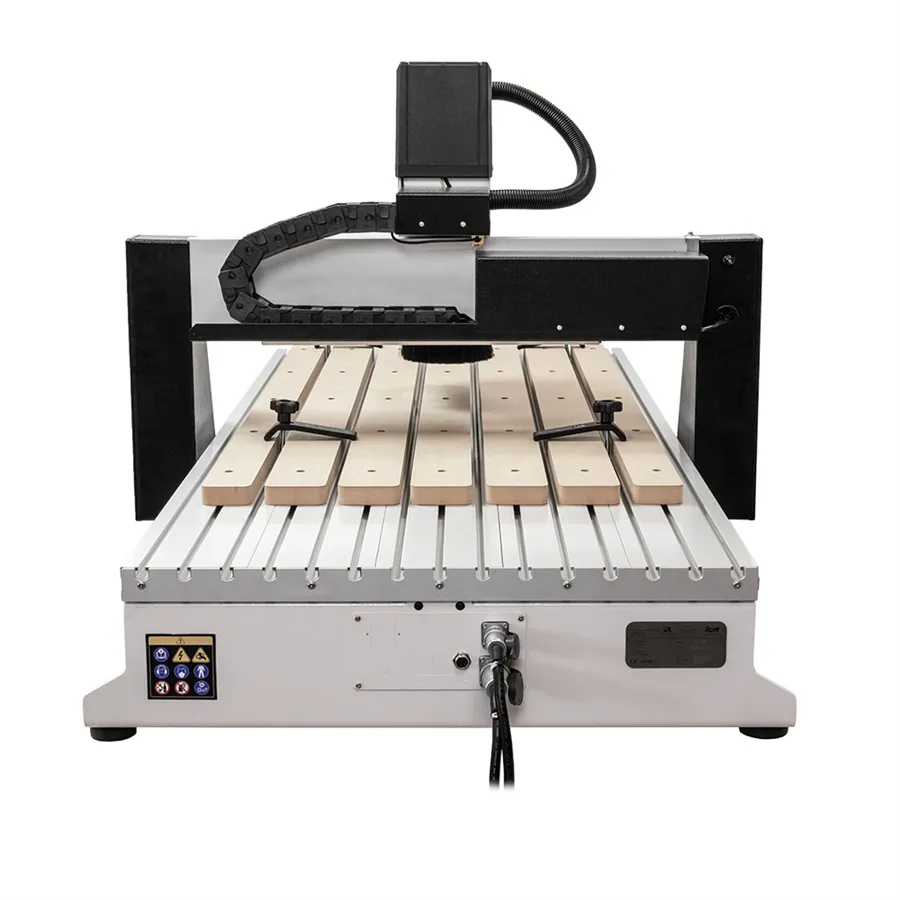

IGM i2R A24 CNC Engraving Machine – Working Area 610 × 1,220 mm, 2.2 kW Liquid-Cooled Spindle

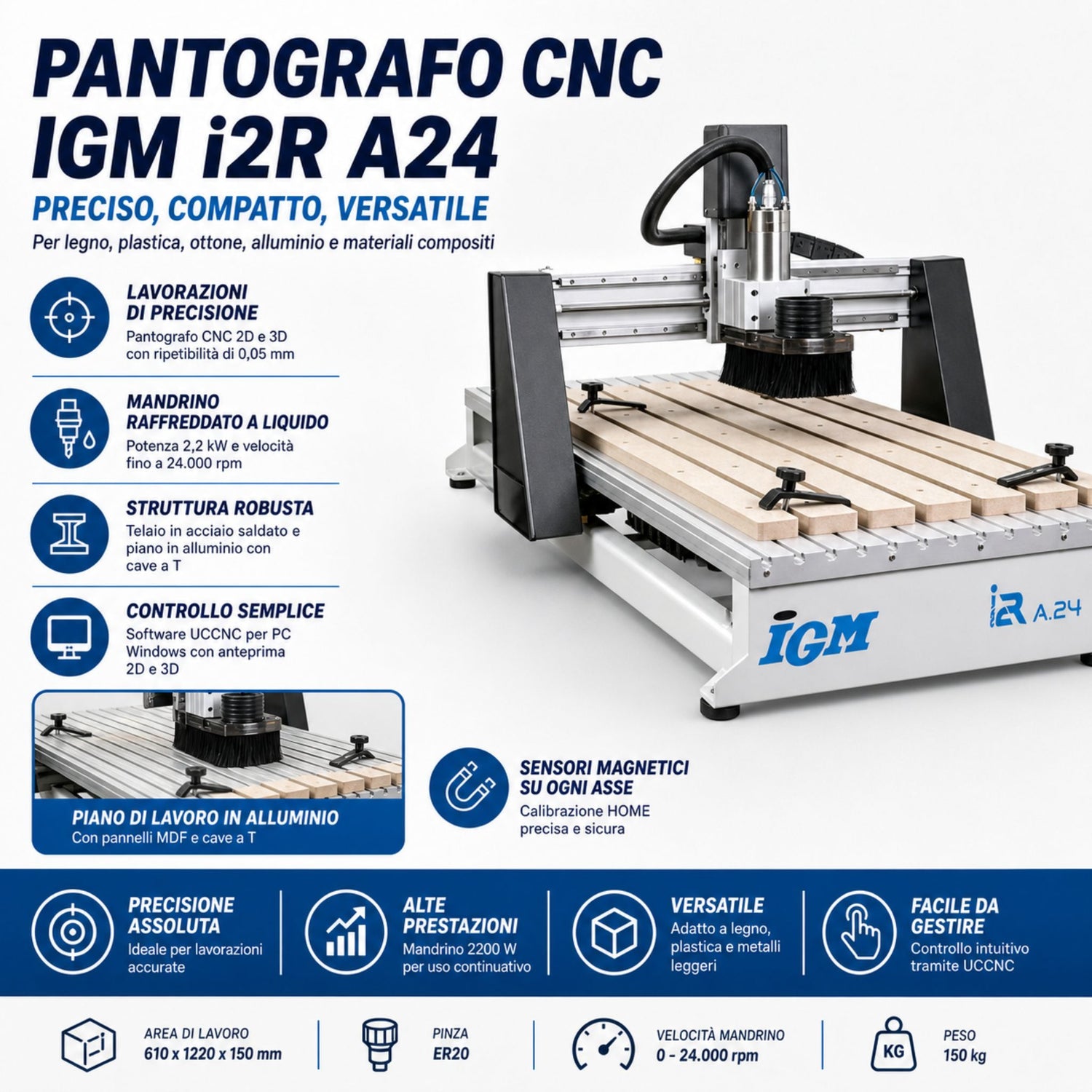

The IGM i2R A24 is a CNC engraving machine for hobbyist to professional use, featuring a working area of 610 × 1,220 × 150 mm, a 2.2 kW liquid-cooled spindle, 16 mm ball screws, and prismatic guides on all three axes. It offers a repeat accuracy of 0.05 mm and operates on 230 V single-phase power. Distributed in Italy by Krollit, an official IGM distributor since 2007.

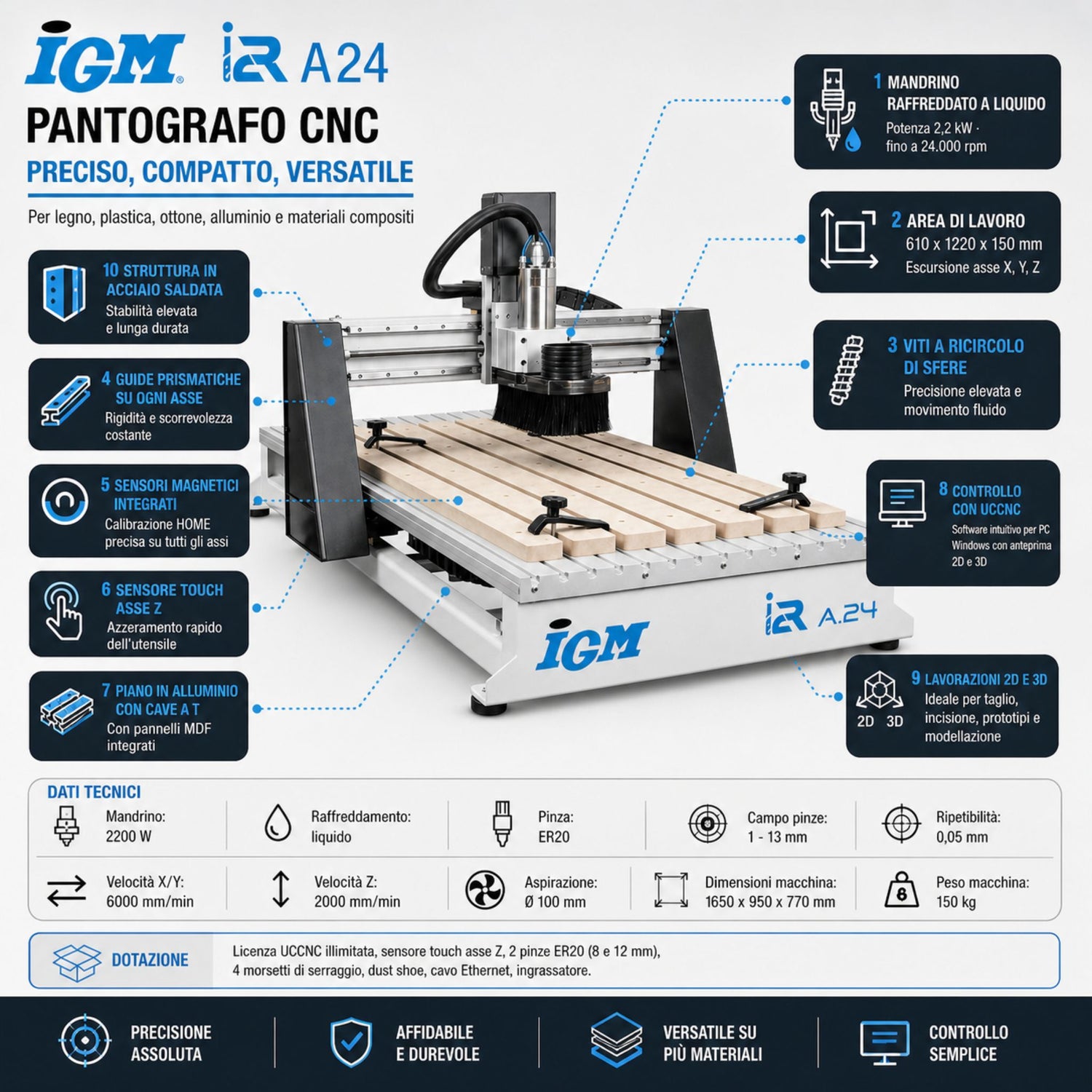

- Working area (X × Y × Z): 610 × 1,220 × 150 mm
- Spindle power: 2.2 kW
- Spindle cooling: liquid-cooled
- Spindle speed: 0–24,000 rpm
- Collet type: ER20, range 1–13 mm
- Max X/Y axis speed: 6,000 mm/min
- Max Z axis speed: 2,000 mm/min
- Drive system: 16 mm ball screws + prismatic guides
- Repeat accuracy: 0.05 mm
- Chip extraction: 100 mm connection
- Machine weight: 150 kg
- Power supply: 230 V single-phase
Who uses the i2R A24 and for what
The IGM i2R A24 CNC engraving machine is used by carpenters, model makers, rapid prototyping labs, and small custom manufacturing workshops. In woodworking, it is used for 2D cutting of furniture components, inlay, 3D sculptures, and reliefs on panels up to 1,220 mm. In plastic and foam laboratories, it processes polystyrene, PVC, and light composite materials. With a Z-axis travel of 150 mm and a 2.2 kW spindle, it allows continuous processing without overheating, thanks to the integrated liquid cooling system.
Who is the i2R A24 for
| Profile | Compatibility | Reason |
|---|---|---|
| Advanced hobbyist or maker with dedicated space | Suitable | 230 V single-phase power supply, 610 × 1,220 mm working area for medium-sized projects, UCCNC software included with unlimited license. |
| Small carpentry or model making workshop (1–5 people) | Suitable | 2.2 kW liquid-cooled spindle allows continuous use; 0.05 mm repeat accuracy for custom components. |
| Brass and aluminum prototyping laboratory | Suitable | The manufacturer states that brass and aluminum can be machined; 16 mm prismatic guides and ball screws maintain precision on non-ferrous metal materials. |
| Industrial series production on steel or hard materials | Not suitable | The machine is not designed for steel or hard alloys; for continuous series production on ferrous metals, CNC centers with a higher category structure and spindle are required. |
Not suitable for: Machining steel, cast iron, or hard alloys; serial production with 24-hour unsupervised cycles; parts with Y dimension greater than 1,220 mm.
Machining capabilities
| X working area | 610 mm |
| Y working area | 1,220 mm |
| Z working area | 150 mm |
| Repeat accuracy | 0.05 mm |
| Supported machining | 2D and 3D |
| Machinable materials | Wood, MDF, plywood, foam, polystyrene, brass, aluminum, plastic |

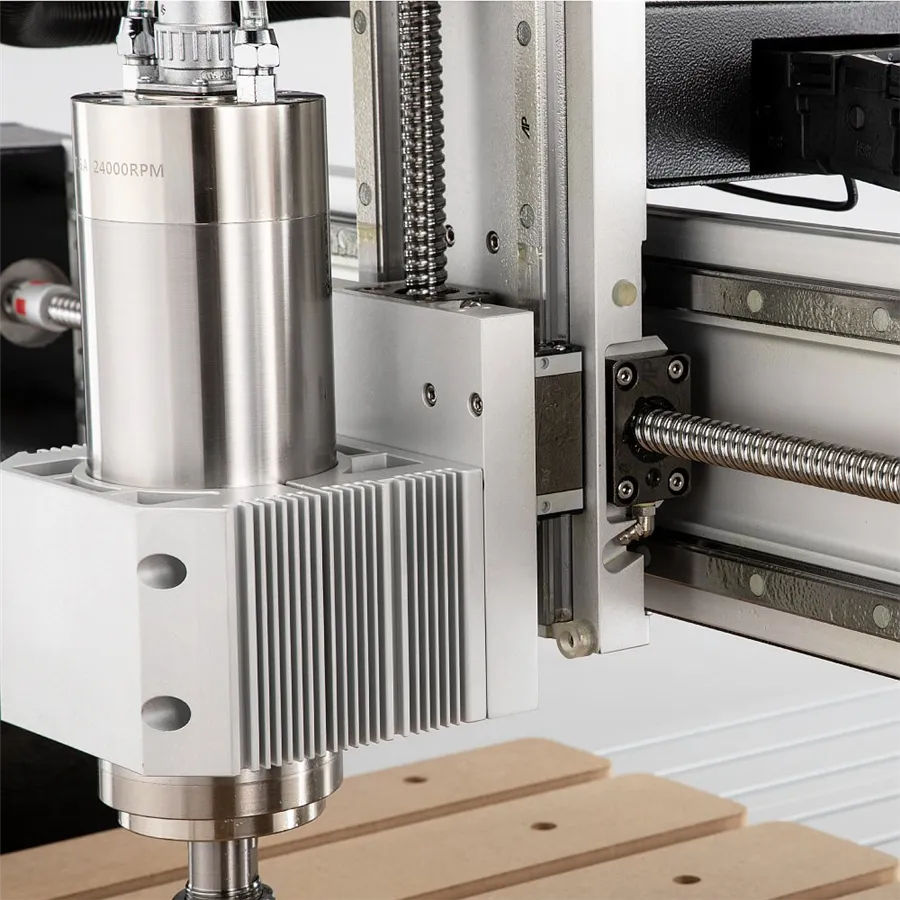

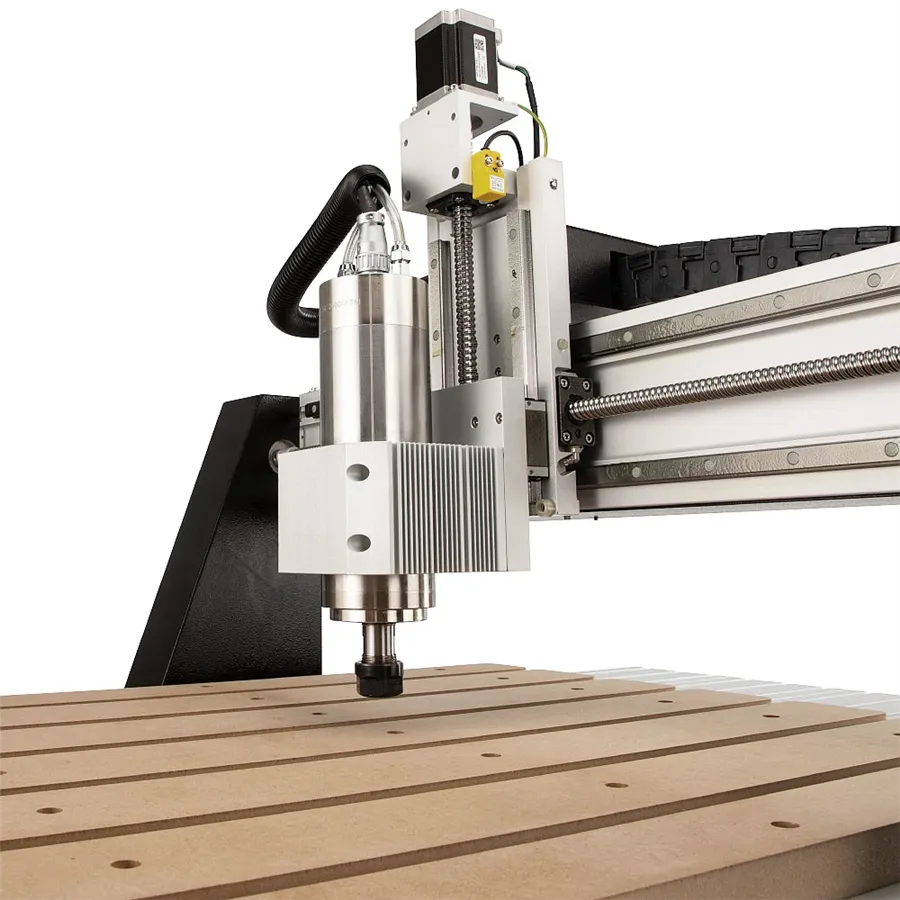

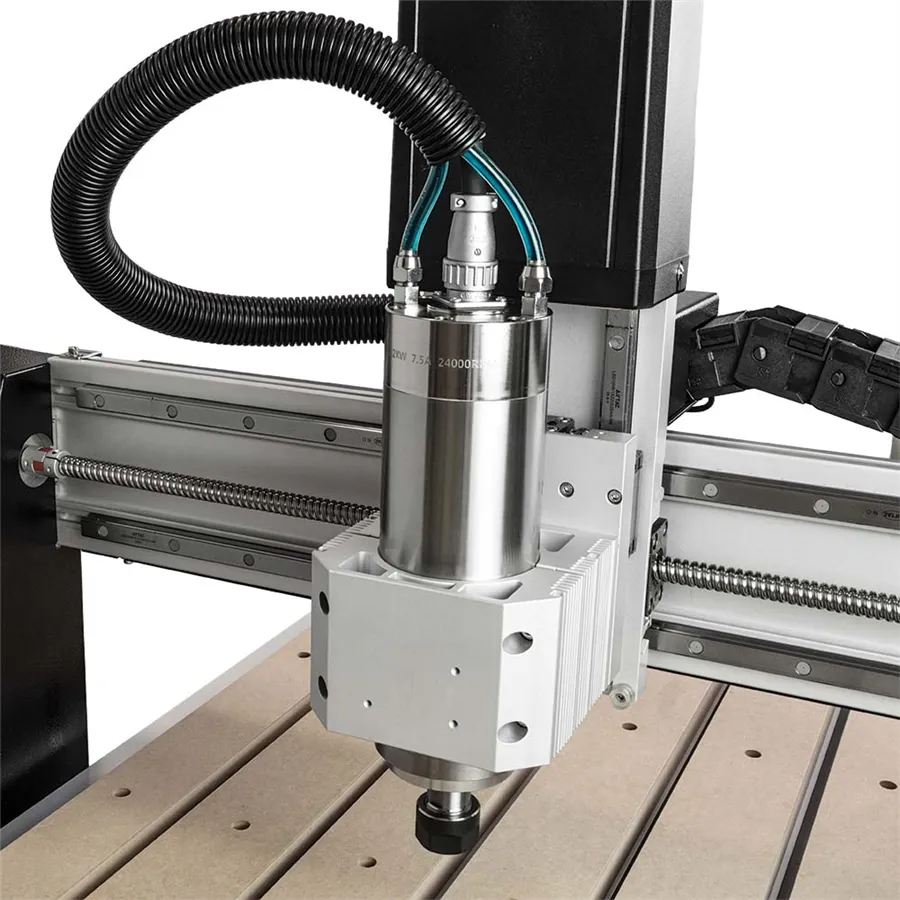

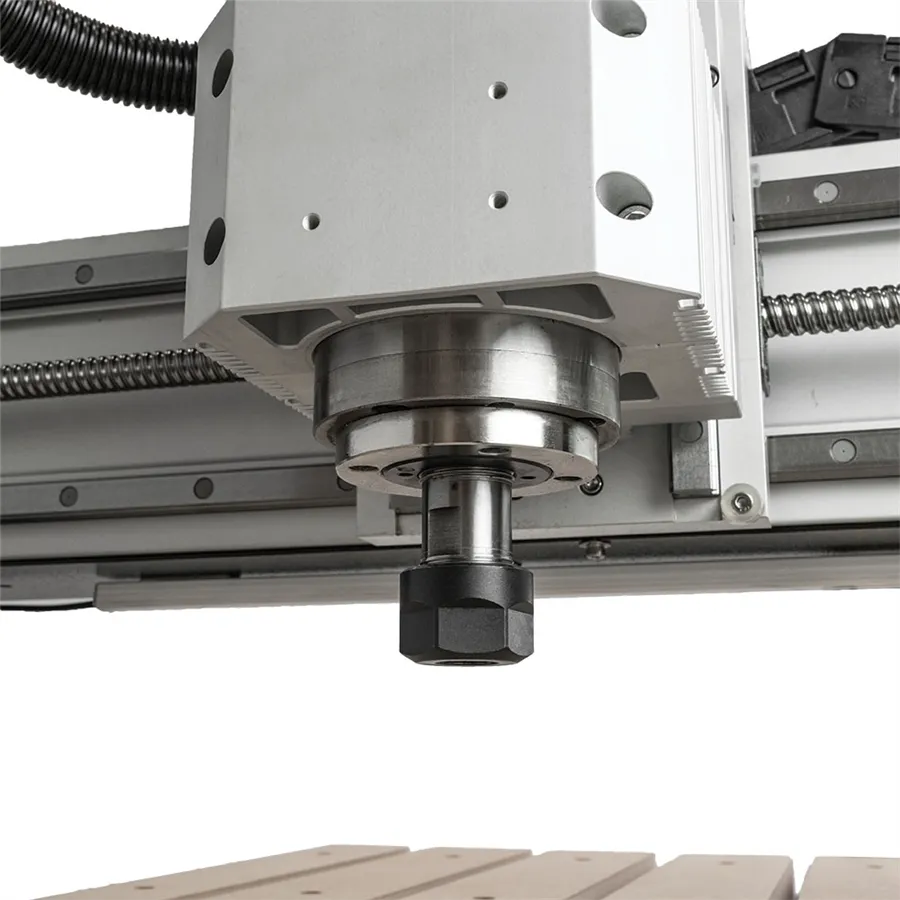

Spindle and drive system
| Spindle power | 2.2 kW |
| Cooling | Liquid-cooled |
| Spindle speed | 0–24,000 rpm |
| Collet type | ER20 |
| Collet range | 1–13 mm |
| Axis drive | 16 mm ball screws |
| Guides | Prismatic on each axis |
| Limit switches | Magnetic proximity on each axis |
Speed and dynamics
| Max X/Y axis speed | 6,000 mm/min (83 mm/s) |
| Max Z axis speed | 2,000 mm/min (33 mm/s) |

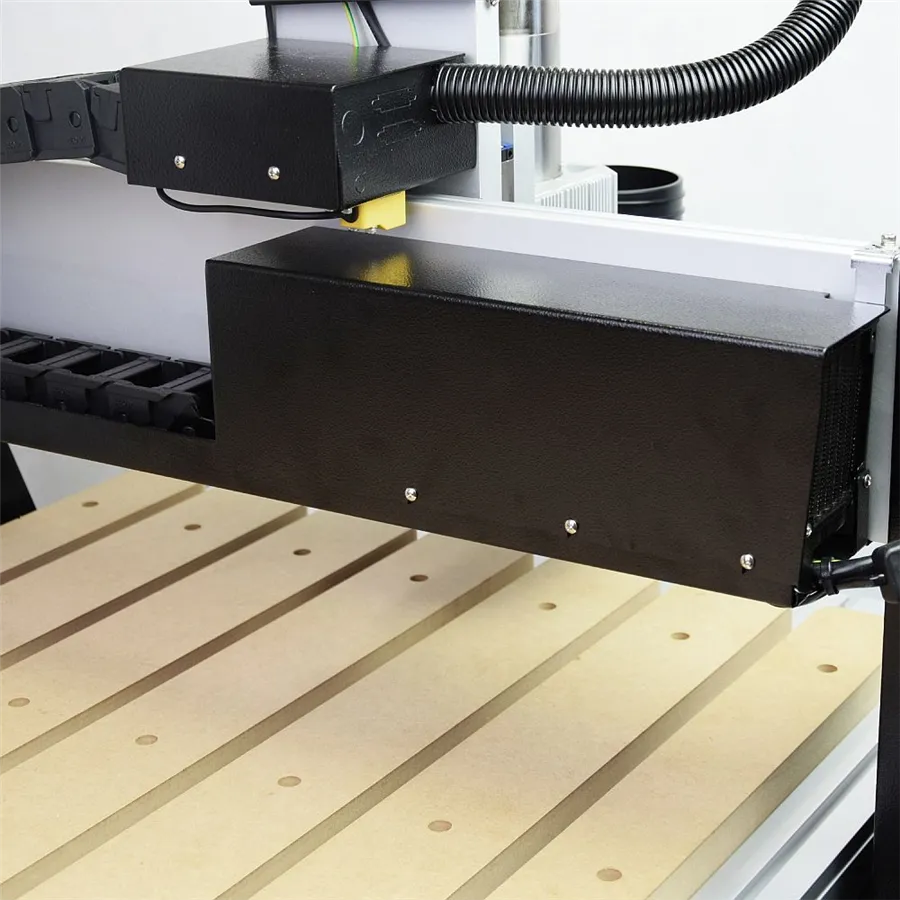

Work surface

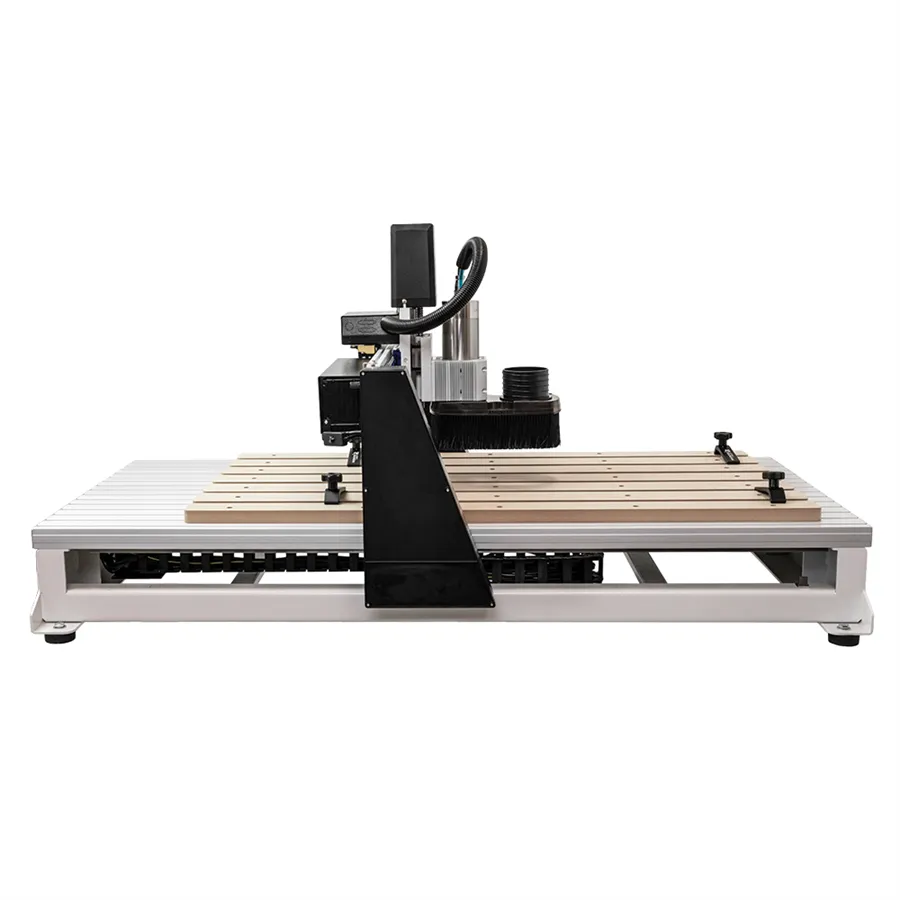

| Table material | Aluminum, 40 mm thick |

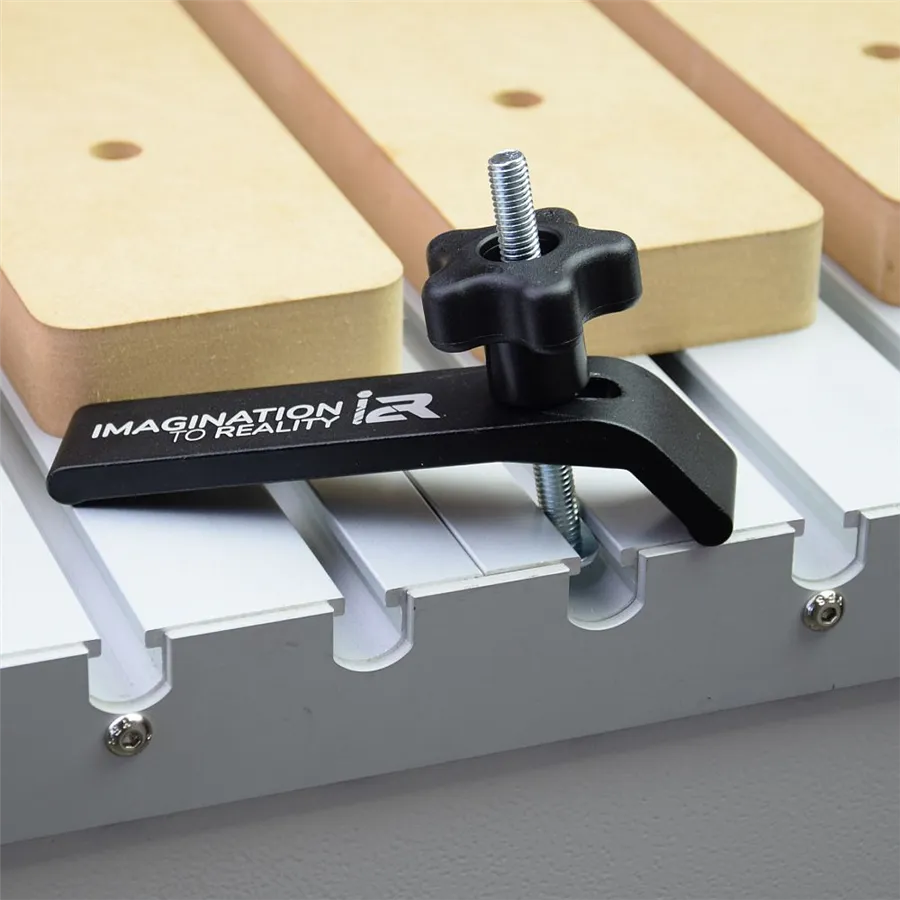

| Clamping system | T-slot with MDF inserts |
| Chip extraction port | 100 mm |
Dimensions, weight, and power supply
| Machine dimensions (L × W × H) | 1,650 × 950 × 770 mm |
| Net weight | 150 kg |
| Packing dimensions (L × W × H) | 1,670 × 1,000 × 840 mm |
| Packing weight | 188 kg |
| Power supply | 230 V single-phase |
| Interface | UCCNC on Windows PC |

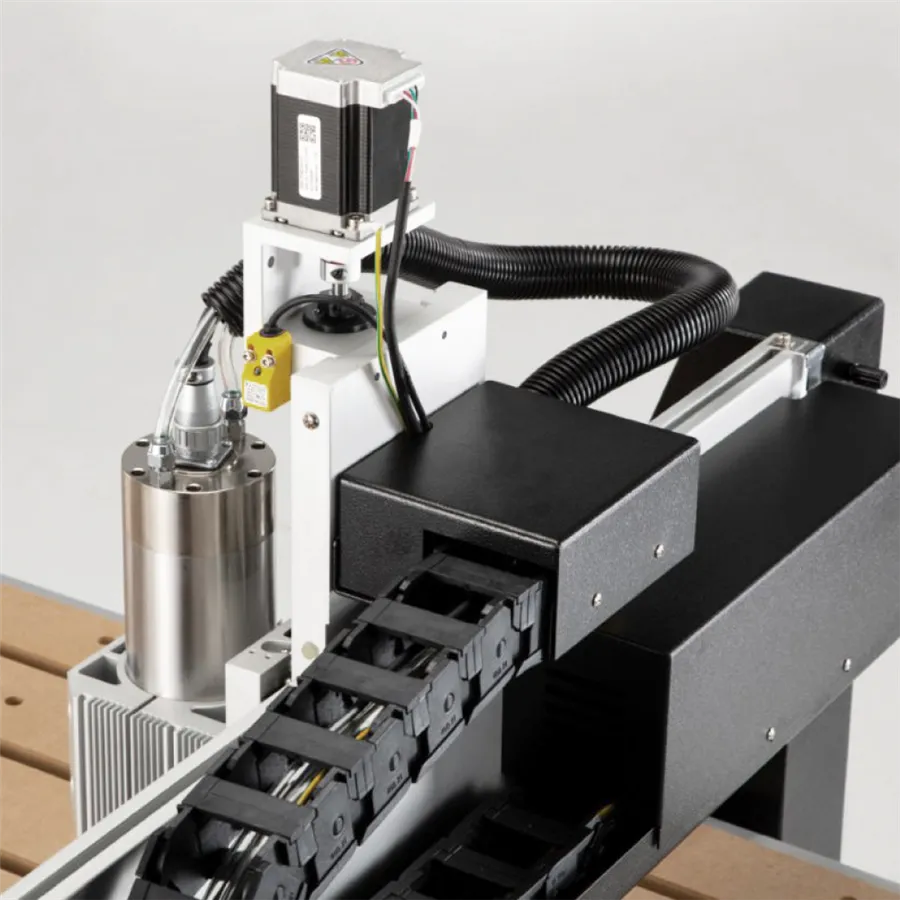

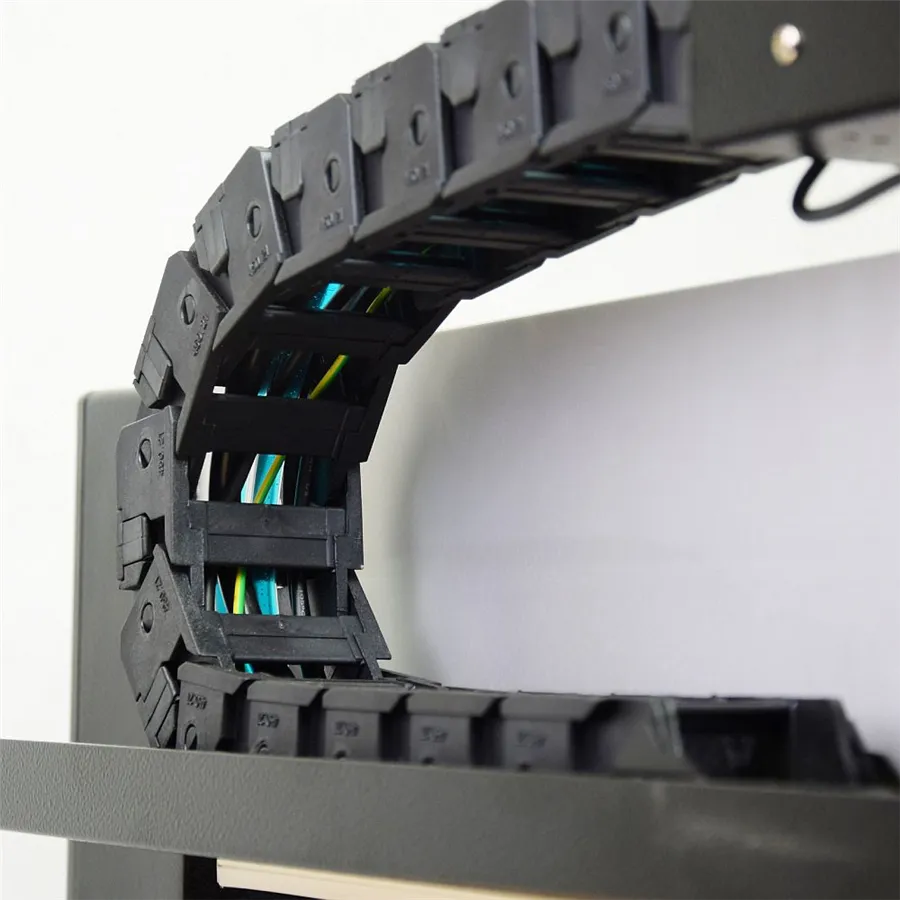

| Wiring | Flexible nylon cable drag chain on all axes |
Standard equipment
- A24 CNC engraving machine with integrated control panel
- 2 ER20 collets (8 mm and 12 mm)
- Chip extraction shoe
- 2 spindle wrenches
- Touch sensor for Z-axis zeroing
- Unlimited UCCNC license
- 4 clamping clamps
- Ethernet cable
- Grease gun
Professional applications
Cutting and milling on wood and wood derivatives
With a Y-axis range of 1,220 mm, the i2R A24 CNC engraving machine processes melamine, MDF, and plywood panels in commercial sizes without repositioning. The 40 mm aluminum table with T-slots allows for standard clamp fastening. The ER20 spindle accepts cutters from 1 to 13 mm for tracing, 3D pocketing, roughing, and finishing. Suitable for custom furniture components, frames, inlays, and architectural models.
Rapid prototyping on plastic and non-ferrous metals
The liquid cooling of the spindle allows for continuous sessions on expanded polystyrene, PVC, nylon, and aluminum without interruptions due to overheating. The repeat accuracy of 0.05 mm allows for the creation of functional prototypes, thermoforming molds, and presentation samples. The 150 mm Z-axis allows for machining foam blocks or deep pocket milling on aluminum with short tools.

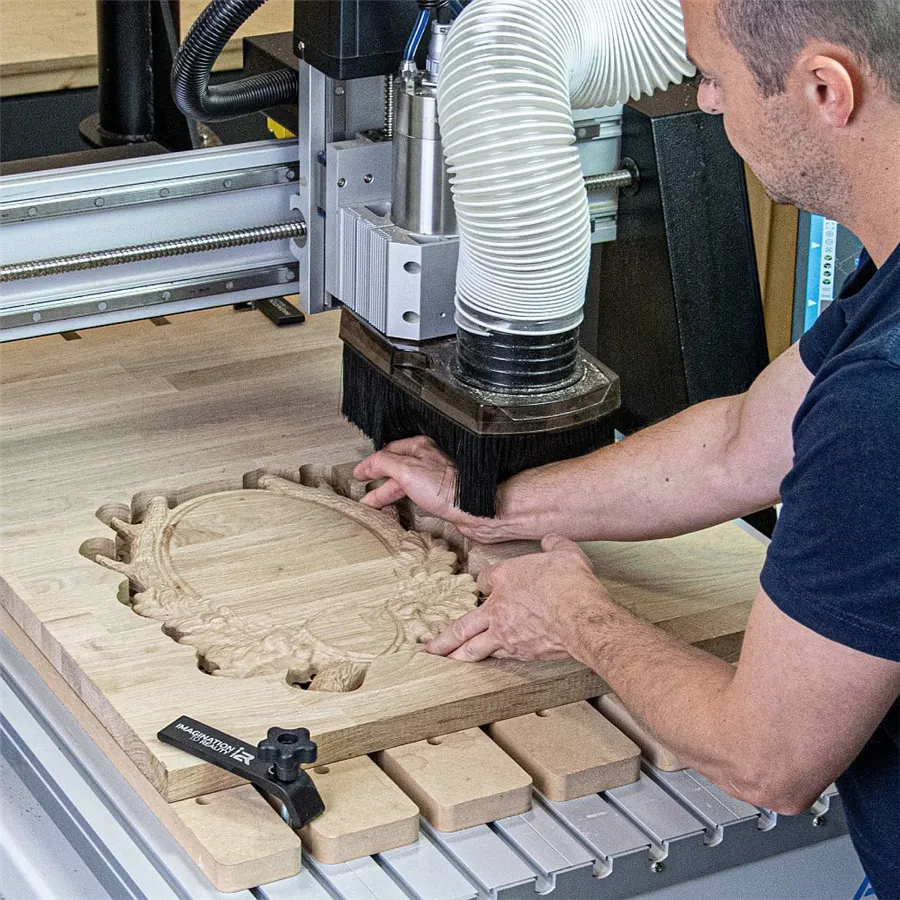

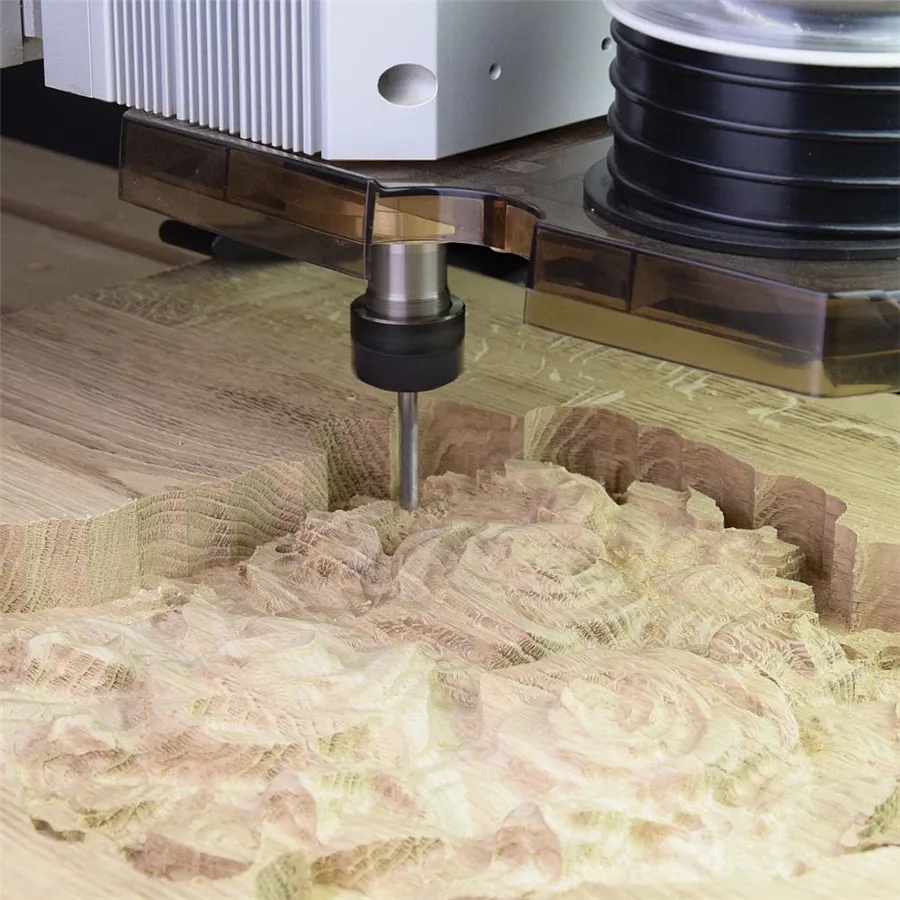

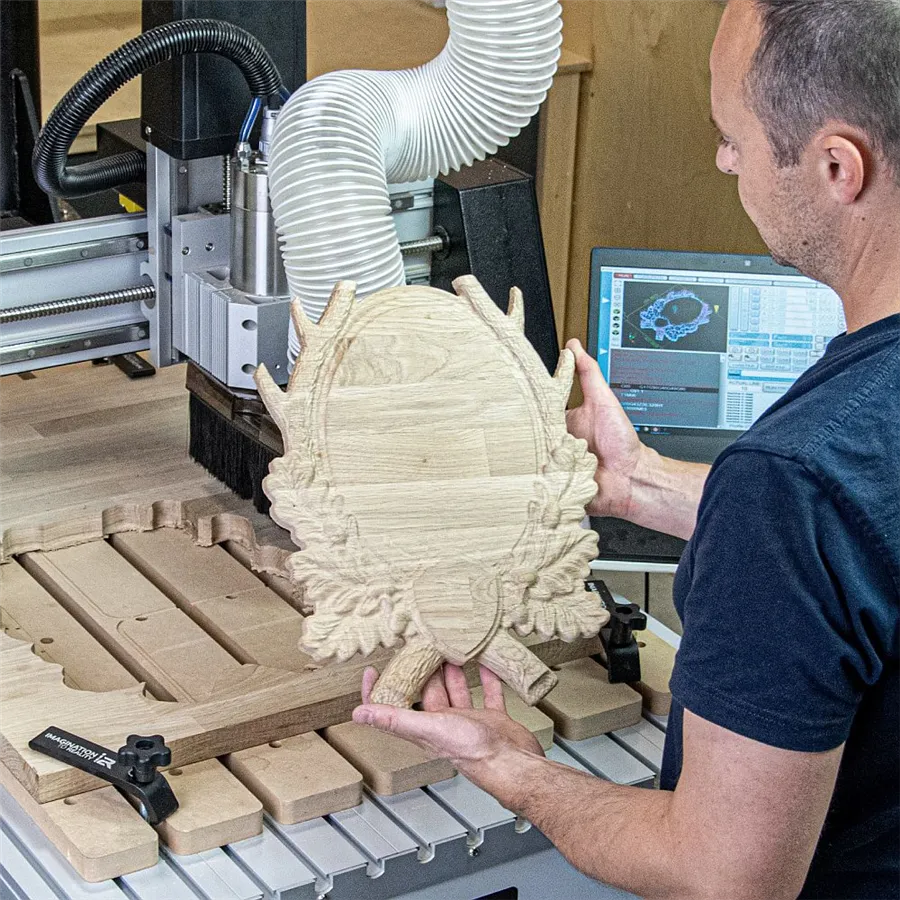

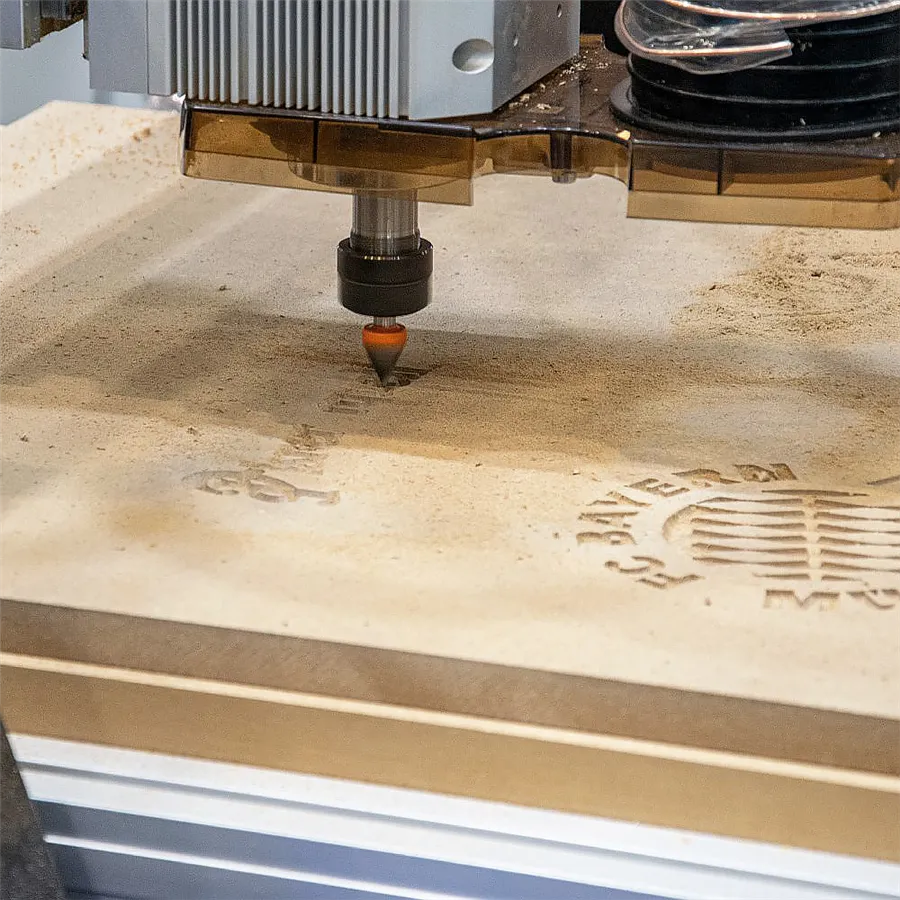

Model making, sculpture, and signage
3D management via UCCNC with real-time visualization allows for working on reliefs, sculptures, and signs from G-code files exported from any CAM software. The optional fourth-axis kit (not included) extends machining to cylinders and turned objects. The 1,220 mm Y-axis covers medium-sized plaques, signs, and decorative panels in a single pass.
Frequently Asked Questions
What is the effective working area of the IGM i2R A24 engraving machine and what can be machined with it?
The working area is 610 mm (X) × 1,220 mm (Y) × 150 mm (Z). Within this space, wood panels, MDF, plywood, aluminum, brass, hard plastic, and foam can be machined.
The 1,220 mm Y dimension corresponds to half of a commercial 2,440 mm panel, allowing for the machining of furniture components without having to cut the starting panel. The 150 mm Z depth is sufficient for most 3D milling jobs on foam or aluminum blocks with short tools. For parts over 150 mm in height, a larger format engraving machine should be considered.
Does the i2R A24 engraving machine work with standard 230 V household current?
Yes. The i2R A24 is powered by 230 V single-phase, the standard voltage for Italian domestic and artisanal users, without the need for a three-phase line.
The 2.2 kW spindle operates with a CEE 16 A industrial socket or a dedicated 16 A system on a normal single-phase circuit. A three-phase electrical panel is not required. It is advisable to ensure that the line dedicated to the engraving machine is not shared with other high-power machinery to avoid voltage drops during machining.
What software is needed to use the i2R A24 and what is included?
The machine is supplied with an unlimited UCCNC license for real-time control. CAD/CAM software for creating G-code files is not included and must be purchased separately.
UCCNC runs on Windows 7, 8, 10, and 11 with a PC equipped with at least a 2 GHz CPU, 4 GB of RAM, 16 GB of storage, and one USB-A port plus one Ethernet port. To utilize the entire 1,220 mm Y range in the CAM software, IGM recommends VCarvePro: the VCarveDesktop version only allows design on areas up to 610 × 610 mm. Neither the laptop nor the CAM software are included in the supply.
What optional accessories can be added to the i2R A24?
The i2R A24 is compatible with a fourth rotary axis kit for cylindrical machining. Additional clamps, a chip extraction arm, and custom supports can be installed using the table's T-slots.

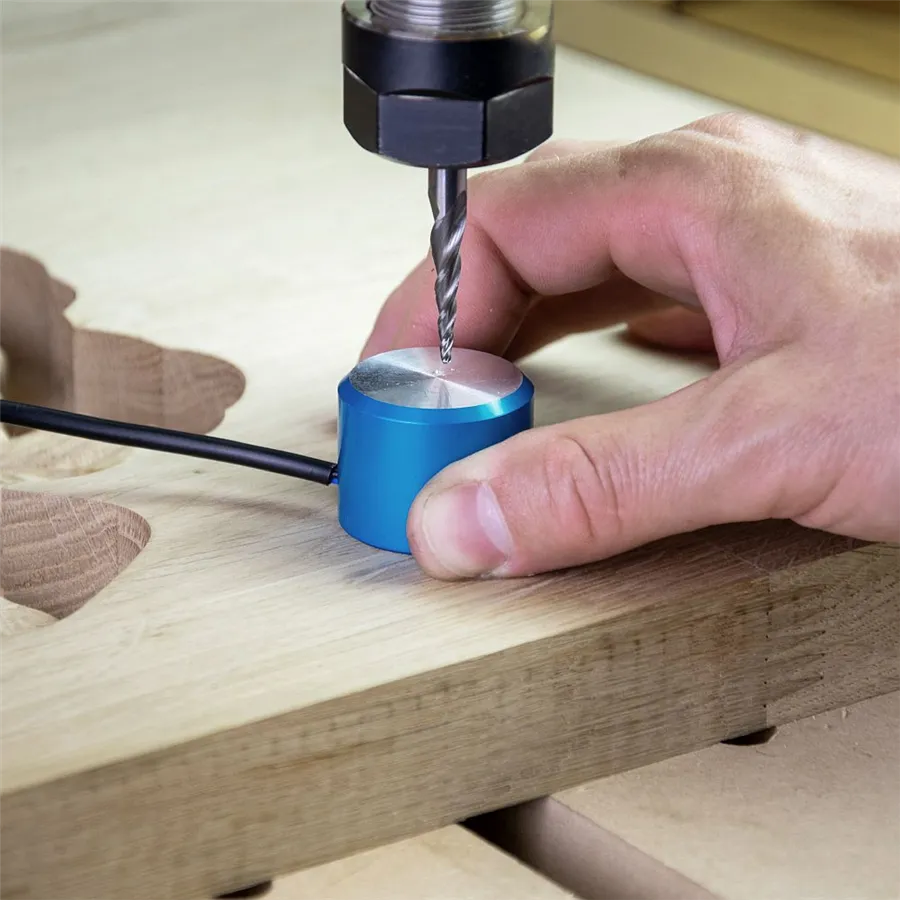

The table already includes four clamping clamps, an extraction shoe, and the Z-axis touch sensor. For those who frequently change tools, the Z-touch sensor allows for automatic tool length remeasurement with a click on "AUTO Touch-off" in UCCNC, without manual calculations. The Xbox controller (not included) is supported by the UCCNC software for manual control of the engraving machine.
What precision does the i2R A24 offer and what does it depend on?

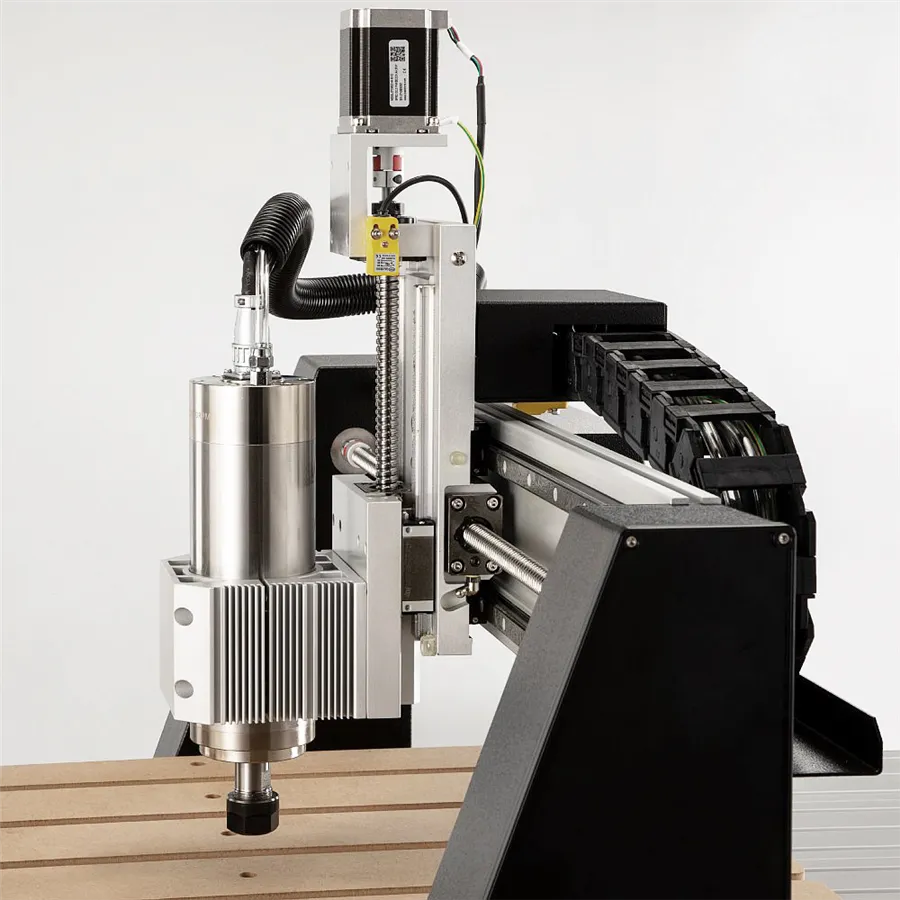

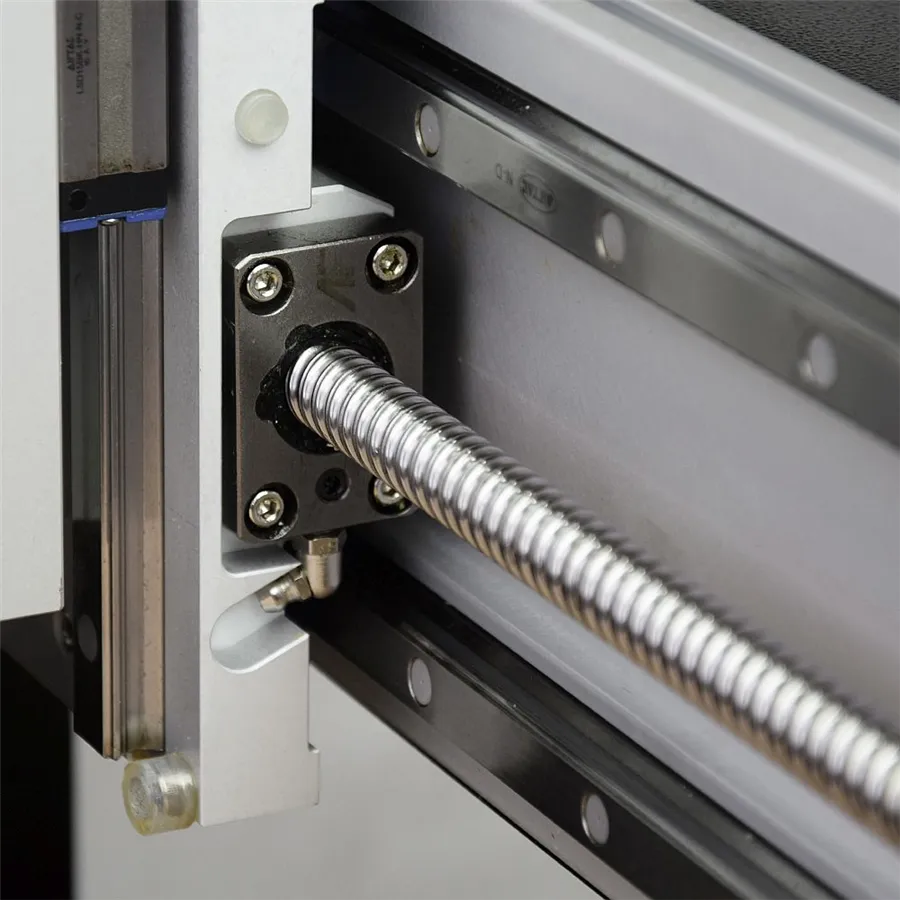

IGM declares a repeat accuracy of 0.05 mm, achieved with 16 mm ball screws and prismatic guides with recirculating bearings on all three axes.
The absence of belts and reducers in the drive system eliminates the most common sources of mechanical play in entry-level engraving machines. Magnetic proximity sensors on each axis allow for automatic HOME calibration before each session, returning the machine to a known reference position. On the table, MDF panels recessed into the T-slots keep the workpiece flat and protect the aluminum from any full-travel tool passes.
How much does the i2R A24 weigh and how is delivery handled?
The net weight is 150 kg; with packaging, it reaches 188 kg. Delivery is to the ground floor with a hydraulic tail lift included in the Krollit service.
The packing dimensions are 1,670 × 1,000 × 840 mm. To position the engraving machine in the workshop, it is advisable to plan access in advance: the 950 mm width requires a standard 100 cm door to be open. Krollit manages shipping in 5–9 working days (7 days for southern regions) with a courier equipped for heavy loads.
What materials cannot be machined with the i2R A24 engraving machine?
The manufacturer IGM does not include steel, cast iron, titanium, or hard alloys among the machinable materials. The engraving machine is designed for wood, wood derivatives, plastic, foam, brass, and aluminum.
Attempting to mill hardened steels or hard abrasive materials quickly wears out the guides and spindle, which are not dimensioned for these stresses. For machining stainless steel or high-strength alloys, a CNC machining center with a cast iron structure, ISO 30 or BT30 spindle, and MQL lubrication is required. For small-scale prototyping on brass and aluminum, the engraving machine works with reduced feeds and carbide tools dedicated to non-ferrous metals.
What maintenance does the i2R A24 require and how often?
The main maintenance involves lubricating the ball screws and prismatic guides, checking the spindle coolant level, and cleaning chips from the table.
IGM provides a grease gun in the standard equipment for periodic lubrication of the ball screws and guide rails. For continuous use, lubrication is recommended every 40–80 operating hours. The liquid cooling circuit requires checking the level and replacing the anti-corrosion fluid annually. The cables and hoses are protected in nylon cable drag chains, which reduces wear due to friction during axis movement.
