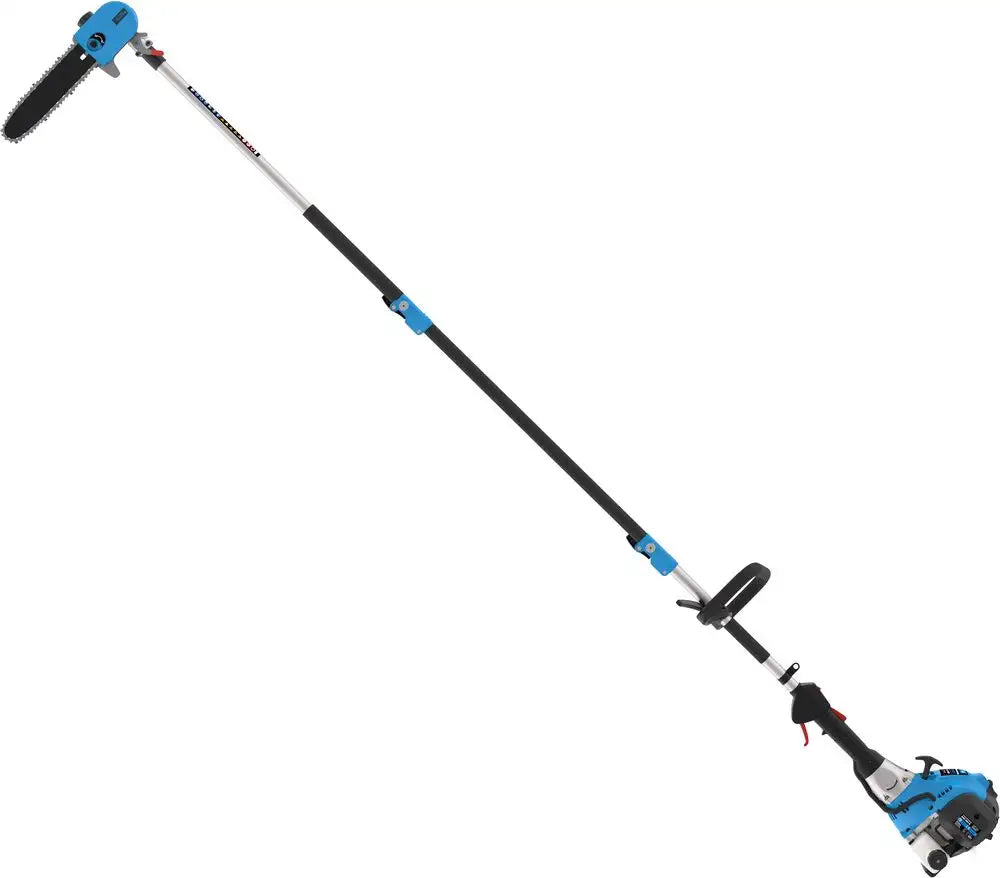

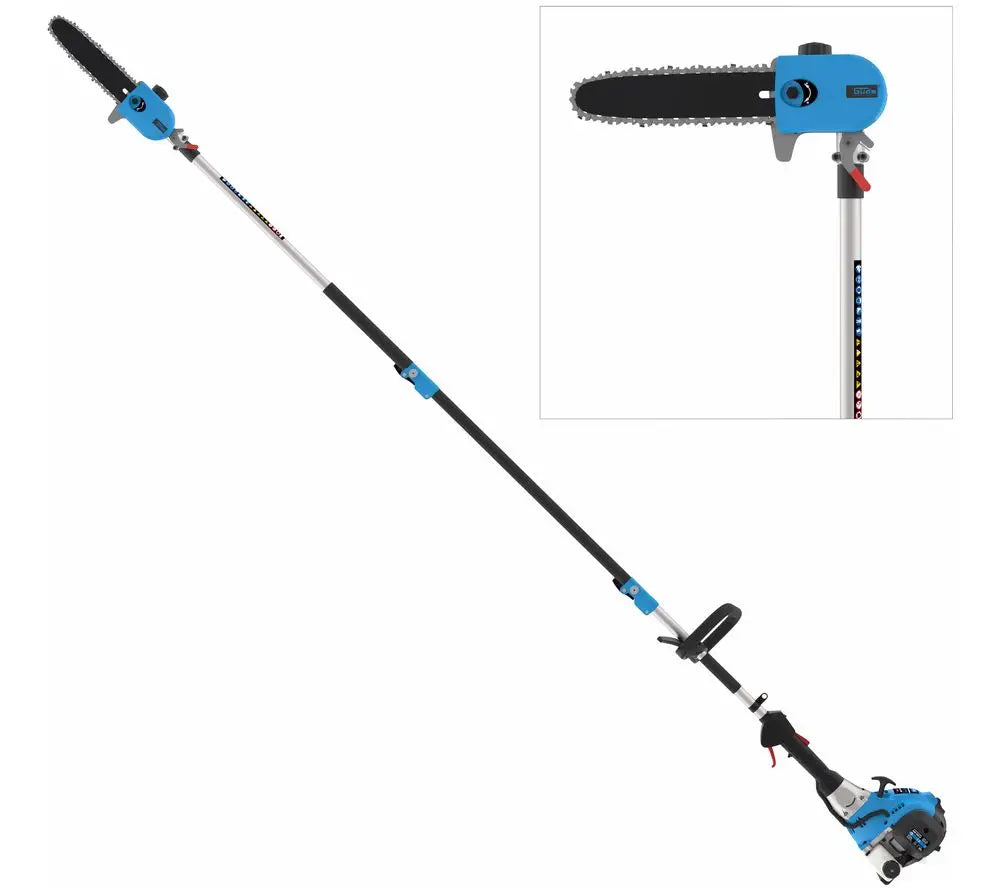

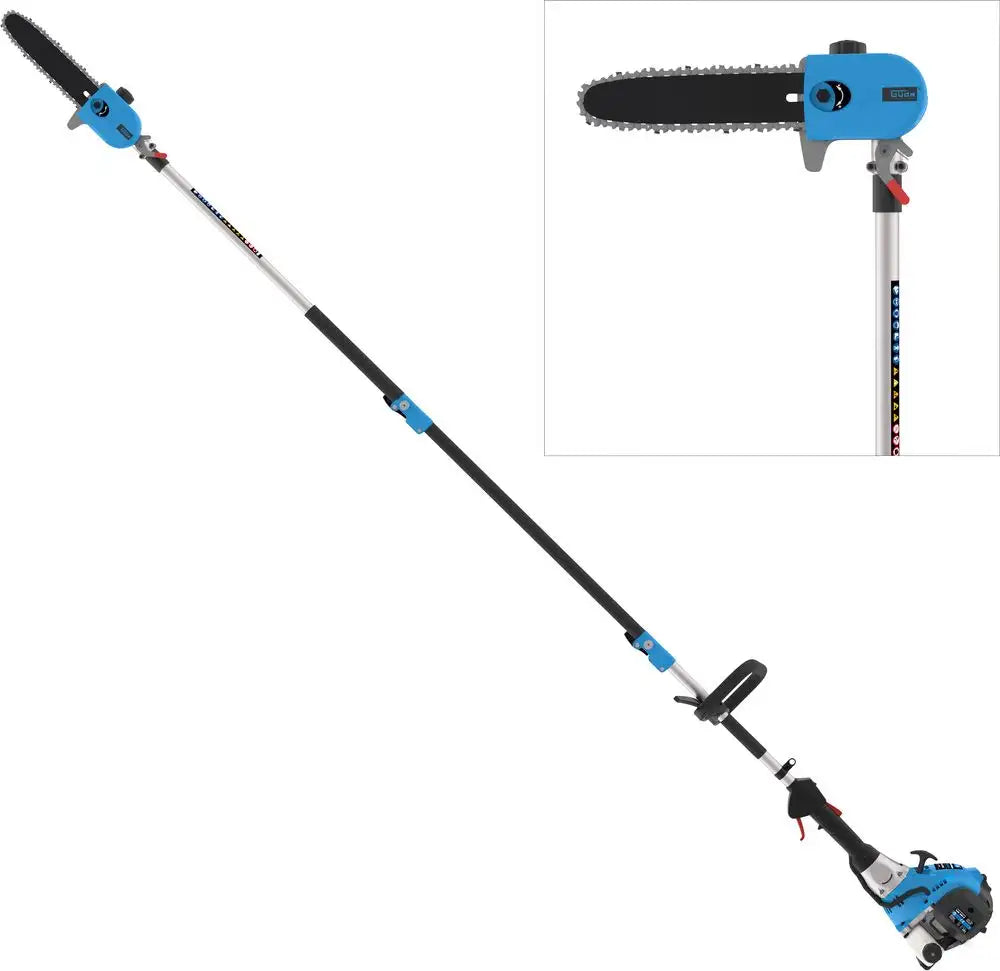

Petrol pole saw Güde GAK 1001 B – 2-stroke engine, pivoting head 0–90°
The Güde GAK 1001 B is a petrol pole saw for hobby and semi-professional use, with a 2-stroke engine of 30 cc and 0.9 kW, an Oregon guide bar of 240 mm, a cutting length of 180 mm, and a pivoting head adjustable between 0 and 90°. Made in Germany by Güde, founded in 1948. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Engine type: 2-stroke
- Engine displacement: 30 cc
- Power output: 0.9 kW (1.2 hp)
- Engine speed: 9,000 rpm
- Guide bar length: 240 mm (Oregon)
- Cutting length: 180 mm
- Max. chain speed: 21 m/s
- Pivoting head: 0–90°
- Length without extension: 1,950 mm – with fixed extension: 2,700 mm
- Fuel tank: 0.5 l (petrol–oil mixture 40:1, E10 compatible)
- Chain oil tank: 0.15 l
- Net weight: 7.3 kg
- Sound power level LWA: 112 dB
Who uses the GAK 1001 B and for what
The GAK 1001 B is used by garden owners, part-time farmers and agritourism operators for pruning high branches up to approximately 5 m without a ladder. The pivoting head between 0 and 90° allows horizontal cuts on overhanging branches and perpendicular cuts on vertical branches. The 2-stroke petrol engine with pull-start and primer pump provides operational autonomy independent of the mains supply, suitable for large properties or rural areas without available power outlets.
Logistics and Krollit support
Delivery within 5–9 working days (7 days for southern Italian regions). Italian-language technical assistance available throughout the product's lifetime. Genuine Güde spare parts available from Krollit's warehouse in Monteforte Irpino (AV), Italy.
Who the GAK 1001 B is for
| Profile | Suitability | Reason |
|---|
| Hobby gardener with trees on the property | Suitable | Fixed 750 mm extension extends reach to approximately 5 m without a ladder; petrol engine independent from the mains |
| Part-time farmer / agritourism | Suitable | 0–90° head allows pruning of rows and orchards at variable angles; petrol-powered autonomy without a cable |
| High-intensity professional arboriculture | Not recommended | 240 mm guide bar and 0.9 kW output insufficient for branches over 15 cm in diameter or continuous 8-hour working days |
Not recommended for: professional pruning of branches with a diameter exceeding 15 cm — the 240 mm guide bar and 0.9 kW output are insufficient. Not suitable for continuous use on large forestry sites or felling operations.

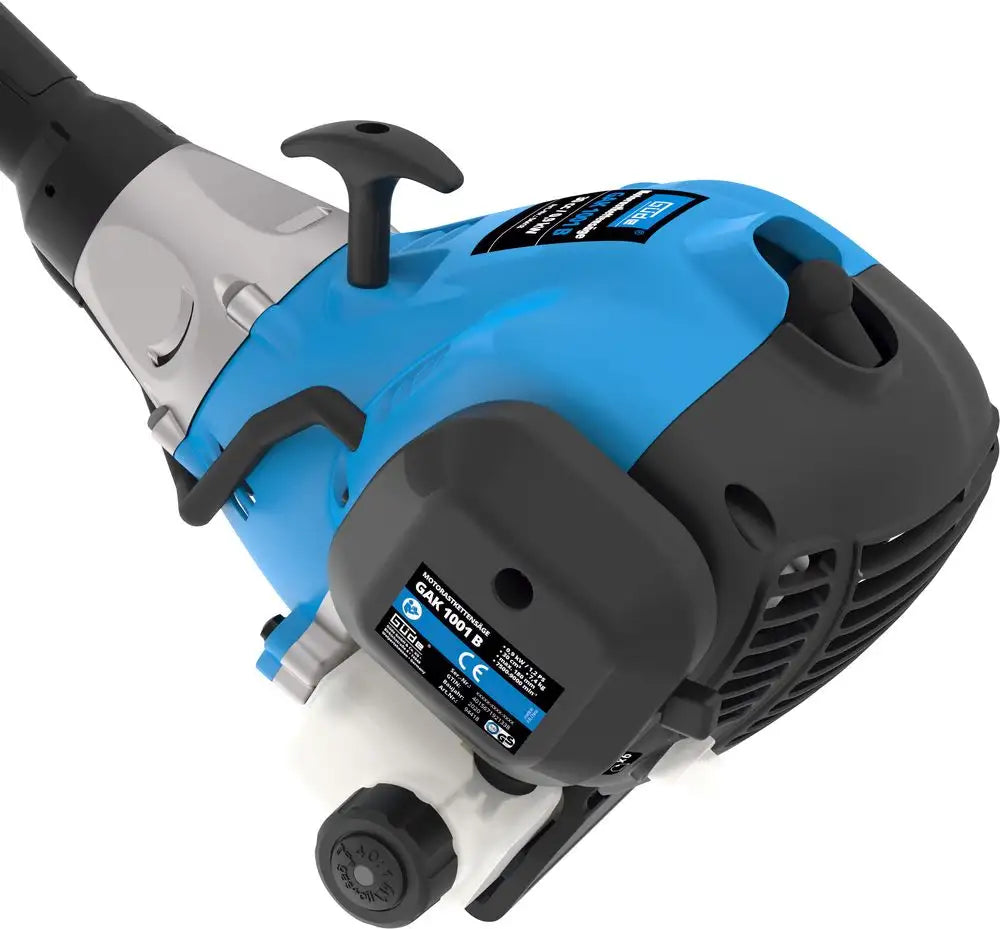

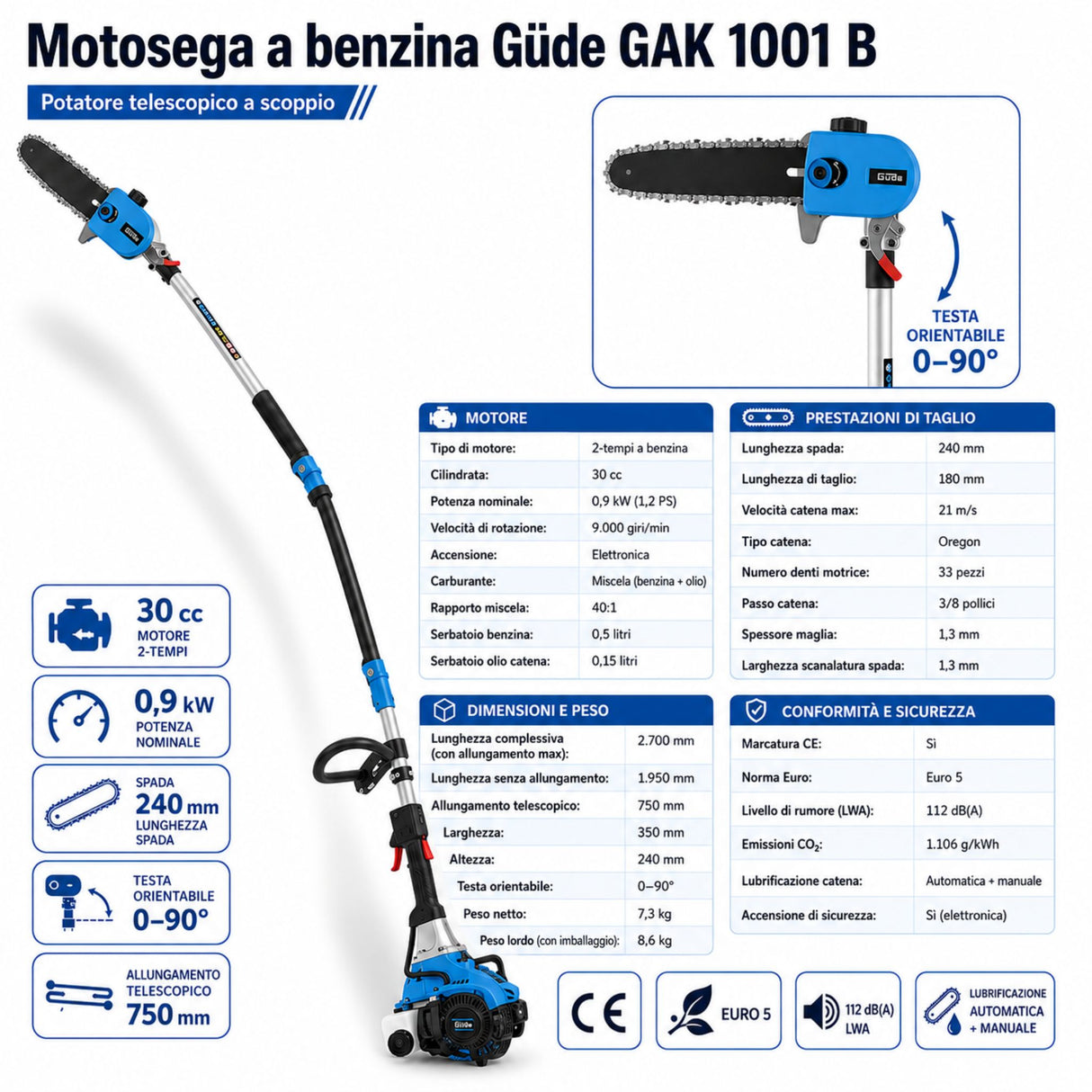

Engine and fuel
| Engine type | 2-stroke |
| Engine displacement | 30 cc |
| Power output | 0.9 kW / 1.2 hp |
| Engine speed | 9,000 rpm |
| Fuel tank capacity | 0.5 l |
| Fuel | Petrol–oil mixture (ratio 40:1, E10 compatible) |
Operating performance
| Cutting length | 180 mm |
| Max. chain speed | 21 m/s |
| Pivoting head | 0–90° |
| Length without extension | 1,950 mm |
| Fixed extension | 750 mm |
| Total length with extension | 2,700 mm |
| Chain oil tank capacity | 0.15 l |
| Working reach | up to approximately 5 m in height |

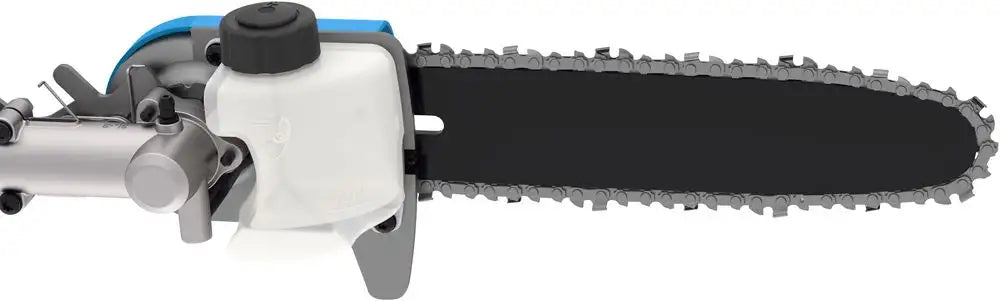

Bar and chain
| Guide bar type | Oregon |
| Guide bar length | 240 mm |
| Groove width | 1.3 mm |
| Chain type | Oregon |
| Chain pitch | 3/8" |
| Number of drive links | 33 |
| Drive link gauge | 1.3 mm |
Dimensions and weight
| Total length | 2,700 mm (with extension) |
| Width | 350 mm |
| Height | 240 mm |
| Net weight | 7.3 kg |
Compliance
| Marking | CE |
| Emissions standard | Euro 5 |
| Sound power level LWA | 112 dB |
| CO₂ emissions | 1,106 g/kWh |
| Item number | 94418 |
| GTIN | 4015671921338 |
Standard equipment
- Oregon guide bar 240 mm
- Oregon chain 3/8" – 33 drive links
- Shoulder strap
Professional applications
High-reach pruning

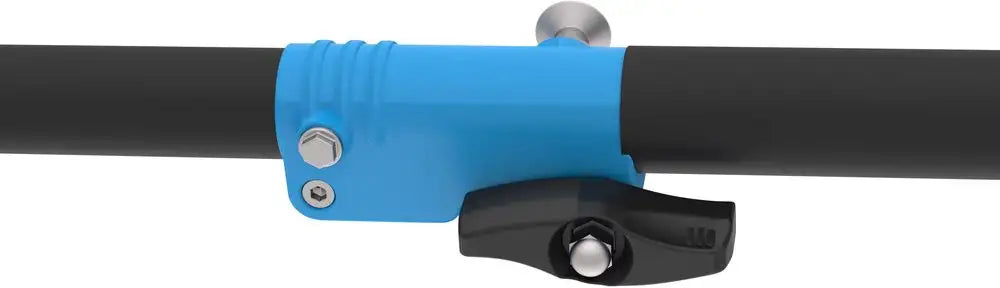

The fixed 750 mm extension brings the total operating length to 2,700 mm, allowing branches up to approximately 5 m in height to be reached depending on the operator's stature. Eliminates the need for a ladder for standard pruning work on fruit trees, ornamental trees and tall hedges.
Variable-angle pruning
The pivoting head between 0 and 90° allows horizontal, vertical and any intermediate-angle branches to be tackled without repositioning the operator. Suitable for overhanging branches on hedges, avenue trees and orchards with irregular layouts.
Genuine Güde spare parts
| Code | Description | Note |
|---|
| 95145-01007 | Spark plug L8RTC | Recommended periodic replacement |
| 95145-01013 | Air filter cartridge | Clean or replace every season |
| 95145-01015 | Complete air filter | Replace if damaged |
| 95145-02014 | Carburettor | Replace in case of malfunction |
| 95145-01001 | Engine gasket kit | For engine overhaul |
| 95145-01005 | Complete piston with connecting rod | Engine structural component |
| 95145-01009 | Ignition coil | Replace in case of starting failure |
| 95145-01010 | Clutch | Replace in case of slipping |
| 95145-01020 | Crankshaft | Engine structural component |
| 95145-01023 | Complete fuel tank | Replace in case of leakage |
| 95145-01025 | Fuel line | Periodic replacement (every 2–3 seasons) |
| 94030-02015 | Shoulder strap | Standard equipment replacement |
| 95145-01027 | Complete handle | Replace in case of damage |
| 95156-03034 | Extension tube | Replace in case of deformation |
| 95691 | Oregon chain 33/1.3/3/8" (replacement) | Accessory – Ersatzkette Oregon |
| 95159 | Oregon guide bar 240 mm (replacement) | Accessory – Führungsschiene Schwert 240 |
Frequently asked questions
How high can you work with the GAK 1001 B?
With the fixed 750 mm extension fitted, the total operating length reaches 2,700 mm. Güde states a working reach of approximately 5 m in height, depending on the operator's stature.
The effective reach varies according to the operator's height and the slope of the ground. For branches between 4 and 5 m, the pivoting head at 90° allows horizontal cuts without leaning the torso. The extension can be removed for low-level work, reducing the operating length to 1,950 mm.
What fuel does the GAK 1001 B use?
The GAK 1001 B uses a petrol–oil mixture at a 40:1 ratio, compatible with E10 fuel. The tank capacity is 0.5 l.
A 40:1 ratio corresponds to 25 ml of oil per litre of petrol. Güde recommends a dedicated 2-stroke engine oil. E10 compatibility (petrol with up to 10% ethanol) is certified on the product. The chain oil tank — separate, capacity 0.15 l — is automatically fed during operation.
Can the head of the GAK 1001 B be locked in intermediate positions?

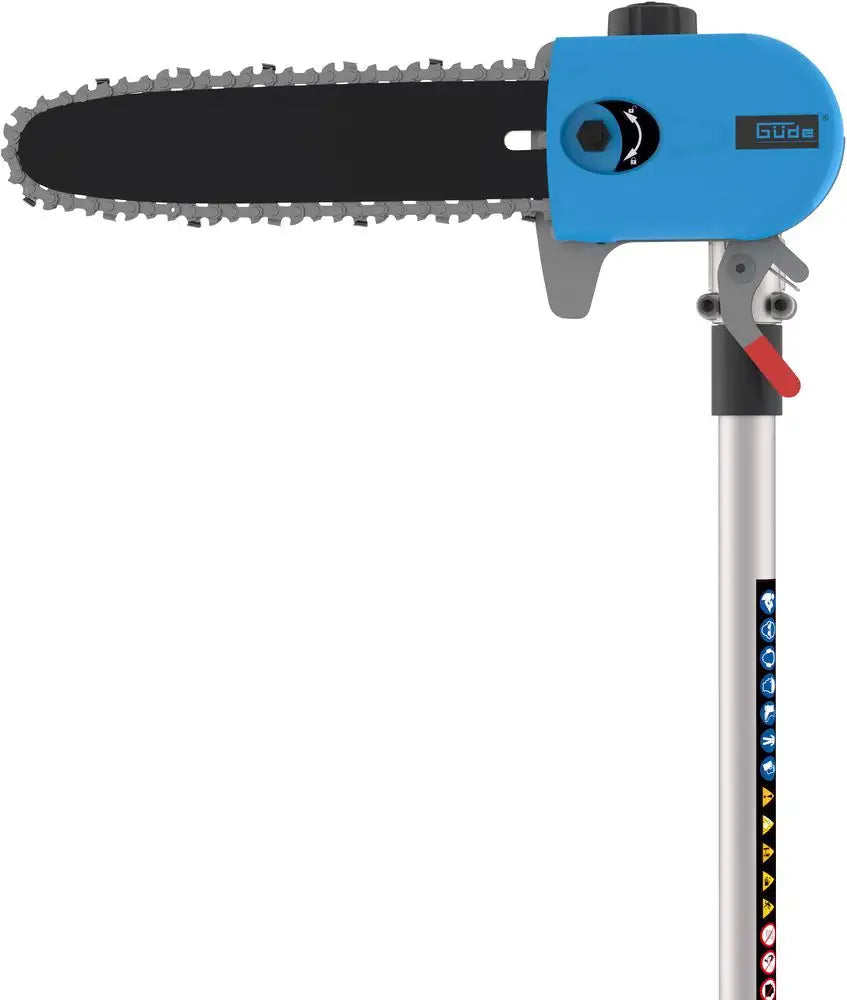

The head is adjustable between 0° and 90° relative to the pole axis. At 0° the orientation is coaxial (cut parallel to the pole), useful for vertical branches. At 90° the cut is perpendicular to the pole, for horizontal branches.
Adjustment is carried out manually before starting the engine. There are no preset click positions: any angle within the 0–90° range can be selected. This allows the cutting direction to be matched to the branch position without moving the feet or repositioning the body.
Can the Oregon chain of the GAK 1001 B be replaced with chains from other manufacturers?
The chain specifications are: pitch 3/8", groove width 1.3 mm, 33 drive links. Any chain matching these three parameters is technically compatible.
The genuine Güde replacement chain is the Oregon 33/1.3/3/8" with code #95691. The Oregon 240 mm replacement guide bar has code #95159. Using chains that do not conform to the stated dimensions may damage the bar groove and the drive sprocket. Krollit holds both genuine replacement parts in stock.
What maintenance does the 2-stroke engine of the GAK 1001 B require?
The 2-stroke engine requires: replacement of spark plug L8RTC (code 95145-01007) every season or every 50 working hours; cleaning or replacement of the air filter (95145-01013) every season; inspection of the fuel line (95145-01025) every 2–3 seasons.
The carburettor (95145-02014) should be cleaned if the machine is difficult to start or loses power. Before winter storage, drain the fuel tank and run the engine until it stops to prevent varnish deposits forming in the carburettor. The fuel line tends to harden over time and should be replaced preventively every 2–3 seasons.
What is the noise level of the GAK 1001 B?
The guaranteed sound power level (LWA) is 112 dB. The use of hearing protection is recommended during operation.
For work lasting more than 30 consecutive minutes, the use of hearing protectors with a minimum attenuation of 25 dB is required, in compliance with applicable workplace health and safety regulations. The machine conforms to CE marking and the Euro 5 emissions standard.
Does Krollit supply genuine Güde spare parts for the GAK 1001 B?
Yes. Krollit, official Güde distributor since 2007, holds genuine spare parts for the GAK 1001 B in stock at its warehouse in Monteforte Irpino (AV), Italy. Italian-language technical support is available at +39 0825-1494022.
Available parts include: spark plug L8RTC (95145-01007), air filter (95145-01013/01015), carburettor (95145-02014), ignition coil (95145-01009), clutch (95145-01010), complete fuel tank (95145-01023), extension tube (95156-03034), Oregon replacement chain (95691) and Oregon replacement guide bar (95159). See the complete list in the spare parts table above.
