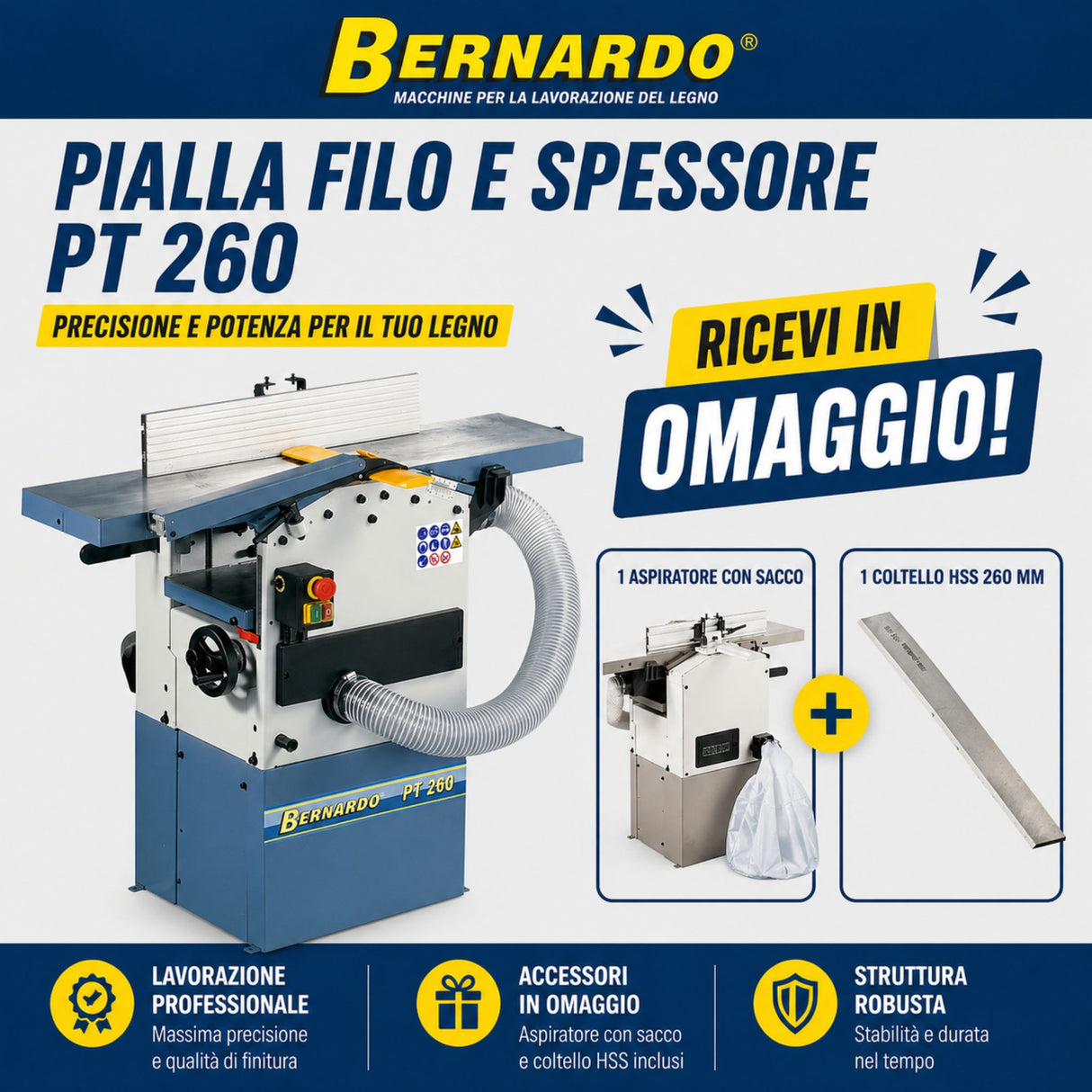

The Bernardo Jointer and Thickness Planer PT 260 230V with blade and filter bag is a jointer and thickness planer for professional use, with a 1.6 kW / 2.1 HP motor, weighing 75 kg. Krollit, official Bernardo distributor since 2007.
- Planing width: 260 mm
- Jointer table length: 1050 mm
- Table height: 885 mm
- Planer shaft speed: 6700 rpm
- Number of blades: 2 HSS pieces
- Planer shaft diameter: 55 mm
Who uses the Jointer and Thickness Planer PT 260 230V with blade and filter bag and for what
The Jointer and Thickness Planer PT 260 230V with blade and filter bag is a professional jointer and thickness planer distributed by Krollit.
Its place in the Bernardo range
The Bernardo Jointer and Thickness Planer PT 260 230V with blade and filter bag is part of the Bernardo jointer and thickness planer range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance: to choose the machine suitable for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian customer assistance available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Jointer and Thickness Planer PT 260 230V with blade and filter bag for
The jointer and thickness planer PT 260 230V with blade and filter bag is recommended for the following professional profiles:
-
Professional carpentry shops: jointing and thicknessing of boards, battens, and solid wood with precise dimensional tolerance.
-
Furniture factories and window/door production: surface preparation and board calibration before subsequent assembly operations.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels damage the blades, consider sanding machines).
Working capacity
| Thicknesser table length |
480 mm |
| Thicknesser planing width |
250 mm |
| Thicknesser capacity min./max. |
5 – 150 mm |
| Max. chip removal thicknesser |
2 mm |
Spindle, tools and speed
| Planer shaft speed |
6700 rpm |
| Feed rate |
8 m/min |
| Dust extraction connection |
Ø 80 mm |
| Blade included |
260 x 20 x 2.5 mm |
| Blade compatibility |
PT 260 |
| Blade material |
HSS |
Table, dimensions and geometry
| Planing width |
260 mm |
| Jointer table length |
1050 mm |
| Table height |
885 mm |
| Fence inclination |
90° – 45° |
| Machine dimensions (L x W x H) |
1050 x 650 x 1050 mm |
| Weight |
75 kg |
Motor and power supply
| Motor power S1 100% |
1.6 kW / 2.1 HP |
| Motor power S6 40% |
2.2 kW / 3.0 HP |
| Power supply |
230 V |
Other specifications
| Number of blades |
2 HSS pieces |
| Planer shaft diameter |
55 mm |
| Jointer fence |
610 x 110 mm |
| Max. chip removal jointer |
3 mm |
Frequently Asked Questions
What planing width does the Jointer and Thickness Planer PT 260 230V with blade and filter bag offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum width of the board that can be processed in a single pass. For wider boards, a double pass or a larger machine is required.
Knife or helical cutterhead?
See the model: the "S" or "Spirale" version has a helical cutterhead with HM inserts, the others have standard HSS knives.
The helical cutterhead produces less noise, a better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually when worn.
Minimum and maximum working thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the thicknesser shaft.
Does it have quick change jointer/thicknesser?
Professional models allow changing functions in a few seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Check availability in the workshop before purchasing.
