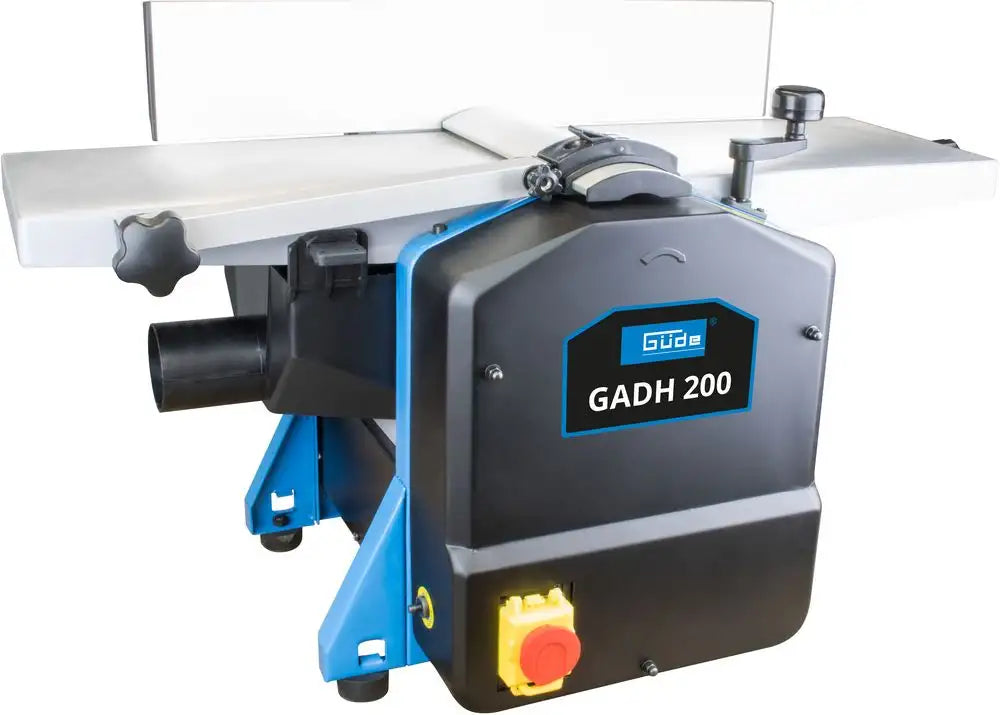

The Guede GADH 200 Planer is a professional jointer and thicknesser, with a 1250 W motor, weighing approximately 27–30 kg. Krollit, official Guede distributor since 2007.
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1250 W
- Planer shaft speed: 8000 rpm
- Number of blades: 2
- Max planing width: 204 mm
Who uses the GADH 200 Jointer and Thicknesser and for what
The GADH 200 Jointer and Thicknesser is a professional jointer and thicknesser distributed by Krollit.
Its place in the Guede range
The Guede GADH 200 Jointer and Thicknesser is part of the Guede range of jointers and thicknessers, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer support for assistance in selection.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets and spare parts order management. Krollit has been an official distributor since 2007.
Who is the GADH 200 Jointer and Thicknesser for
The GADH 200 jointer and thicknesser is recommended for the following professional profiles:
-
Professional joinery workshops: jointing and thicknessing of boards, battens and solid wood with precise dimensional tolerance.
-
Furniture manufacturers and window/door production: surface preparation and board calibration before subsequent assembly processes.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels ruin the blades, consider sanding machines).
Processing capacity
| Max planing width |
204 mm |

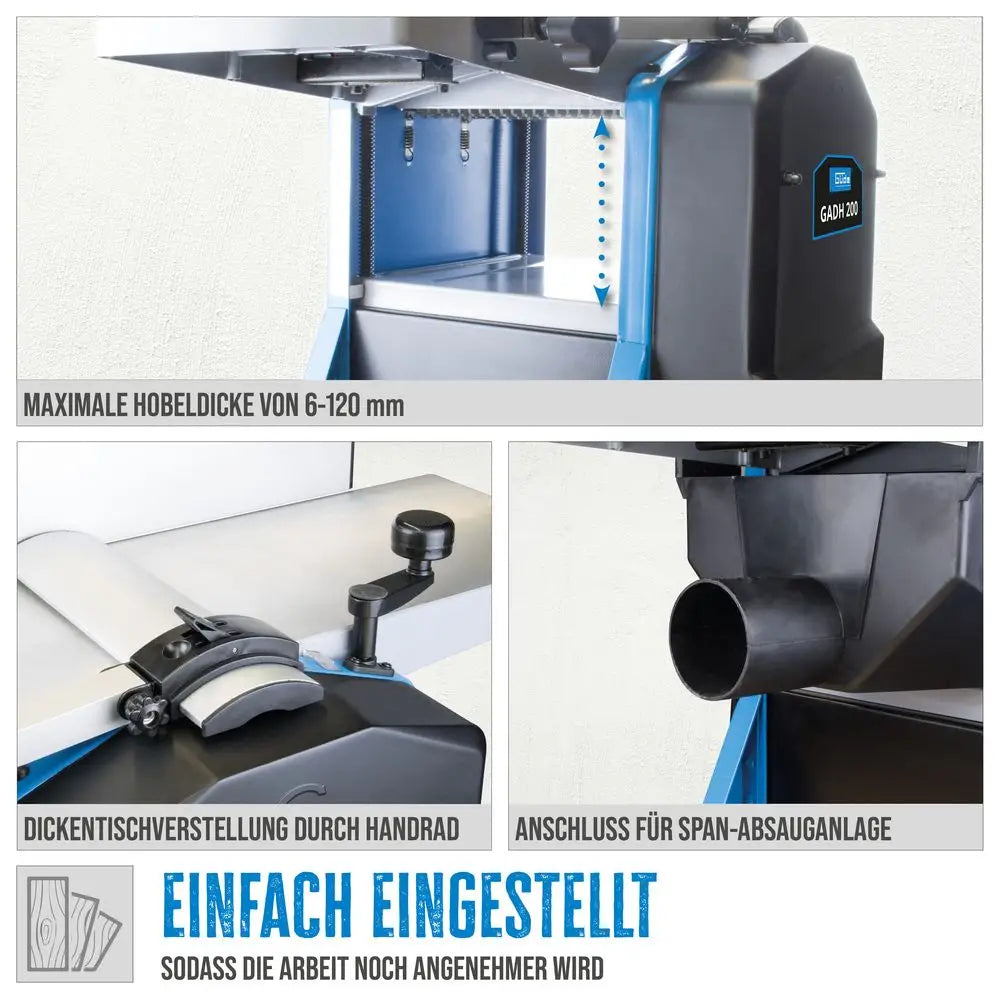

| Max workpiece height (thickness) |
6 – 120 mm |
| Max thickness removal |
0 – 2 mm |
| Thicknesser table dimensions |
255 × 204 mm |
Table, dimensions and geometry
| Jointer table dimensions |
737 × 210 mm |
| Fence inclination |
0–45° |
| Overall dimensions (L × W × H) |
780 × 445 × 460 mm |
| Weight |
approx. 27–30 kg |
Motor and power supply
| Mains voltage |
230 V |
| Frequency |
50 Hz |
| Motor power (P1) |
1250 W |
Other specifications
| Number of blades |
2 |
| Max jointing removal |
0 – 2 mm |

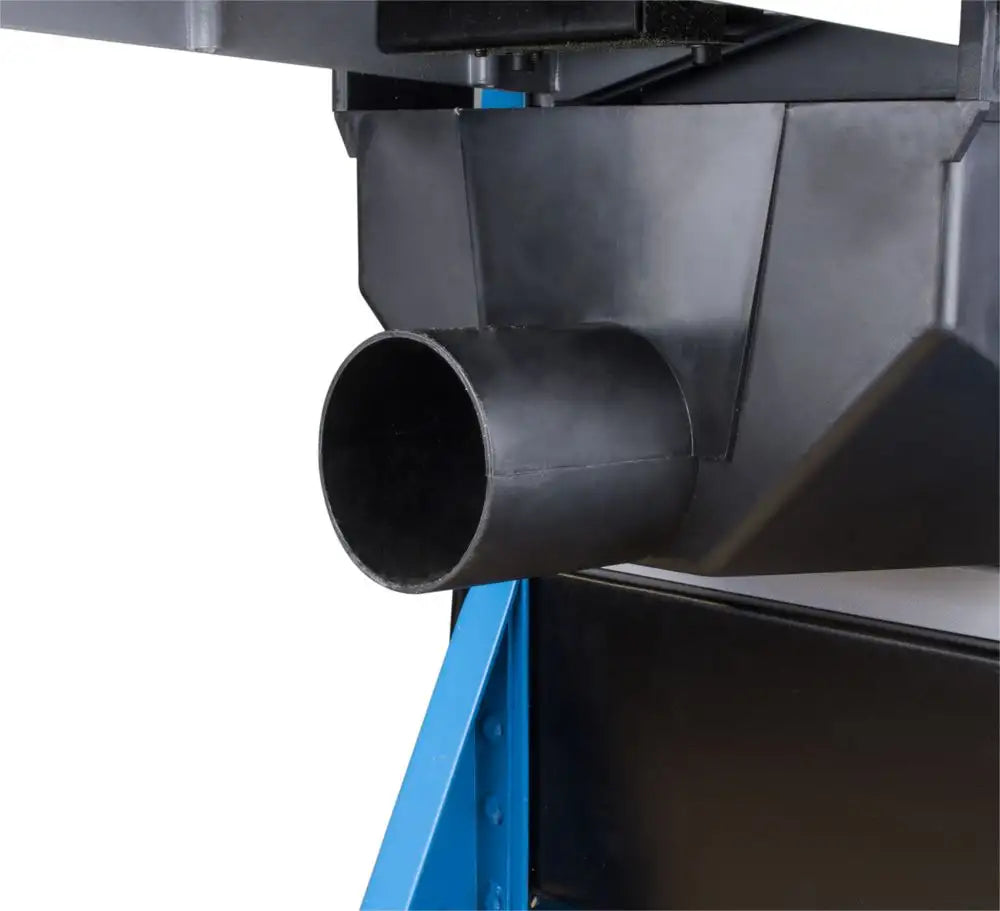

| Dust extraction port |
Ø 63 mm |
| Planer shaft speed |
8000 rpm |
| Blade material |
HSS |
Frequently Asked Questions
What planing width does the GADH 200 Jointer and Thicknesser offer?
See "Planing width" in the technical table: typically 250 to 410 mm.
The width determines the maximum width of the board that can be processed in a single pass. For wider boards, a double pass or a larger machine is required.
Cutter block or spiral cutter block?
See the model: the "S" or "Spirale" version is fitted with a helical cutter block with HM inserts, the others are fitted with standard HSS blades.
The spiral cutter block produces less noise, a better finish and 5-10 times longer tool life, but costs more. The inserts can be rotated individually when worn.
Minimum and maximum workable thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety devices; the maximum depends on the clearance under the thicknesser shaft.
Does it have quick changeover from jointing to thicknessing?
Professional models allow changing functions in a few seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Check availability in the workshop before purchase.
