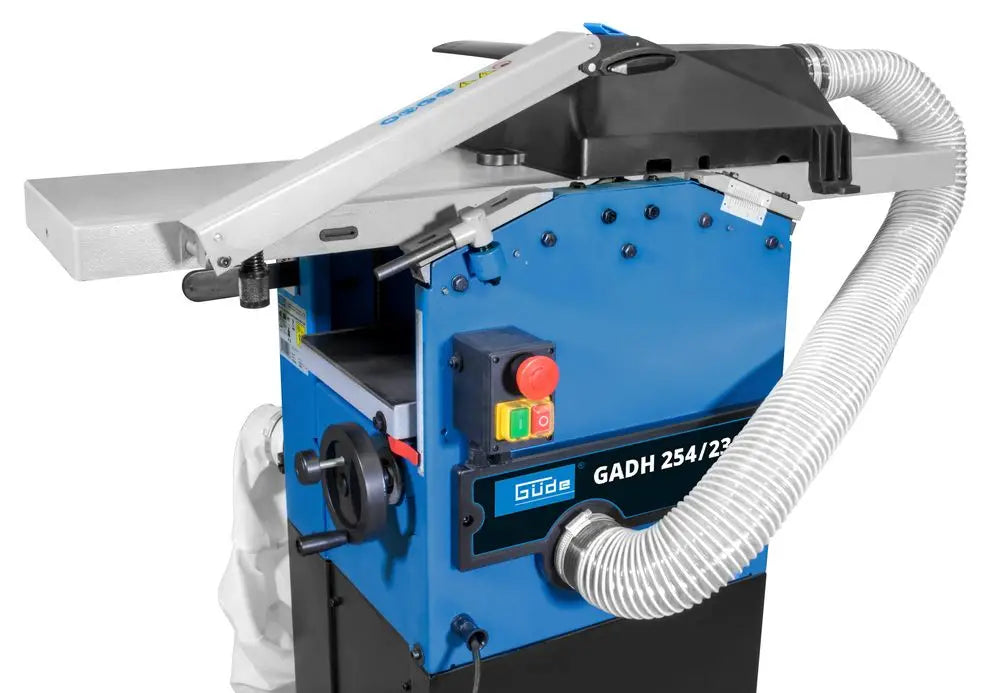

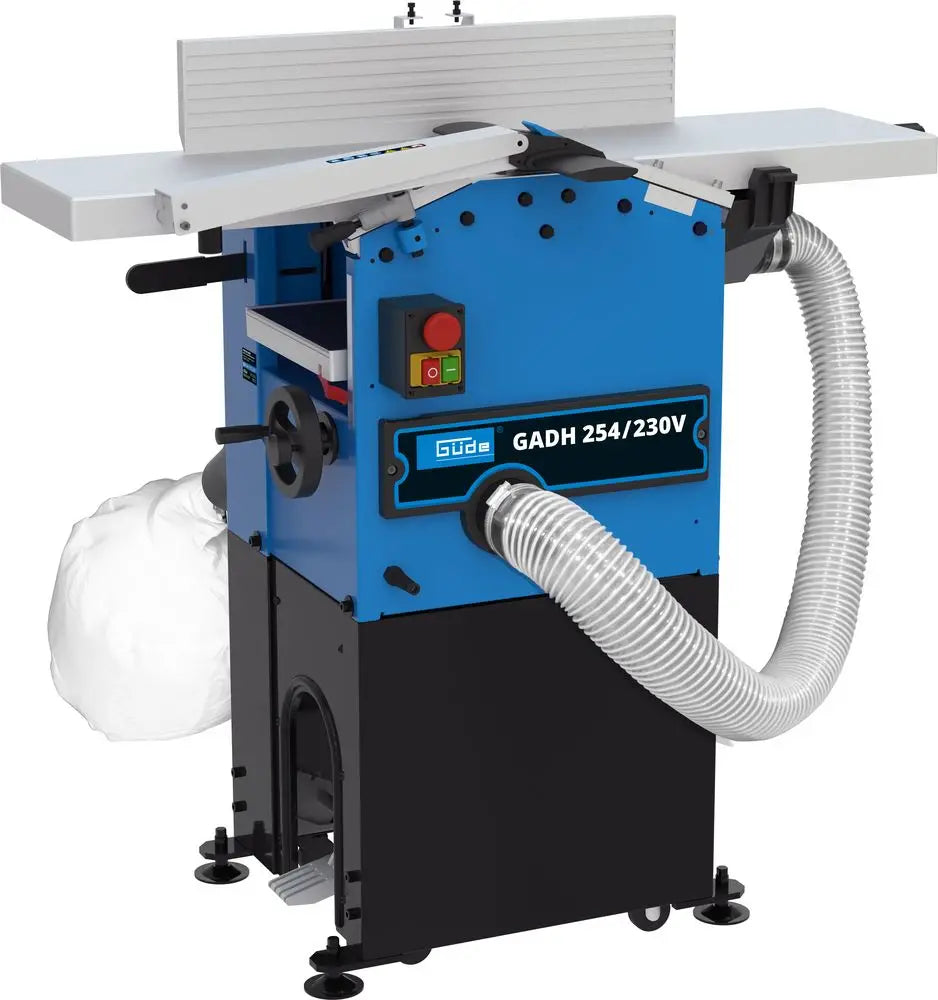

Guede GADH 254 Planer and Thicknesser
Guede GADH 254 Planer and Thicknesser - 230V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.
For international shipments, please send your request via the dedicated contact form.
Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.
Our goal is to ensure you receive prompt service and a worry-free shopping experience.
Description
Guede Planer/Thicknesser GADH 254 is a planer/thicknesser for professional use, with an 1800 W motor, weighing approximately 35–40 kg. Krollit, official Guede distributor since 2007.
- Mains voltage: 230 V or 400V
- Frequency: 50 Hz
- Motor power (P1): 1800 W
- Planer shaft speed: 6700 rpm
- Number of blades: 2
- Planer shaft diameter: 63 mm
Who uses the Planer/Thicknesser GADH 254 and for what
The Planer/Thicknesser GADH 254 is a planer/thicknesser for professional use distributed by Krollit.
Its place in the Guede range
Guede Planer/Thicknesser GADH 254 is part of the Guede planer/thicknesser range, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer service for selection support.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Planer/Thicknesser GADH 254 for
The GADH 254 planer/thicknesser is recommended for the following professional profiles:
- Professional carpentry shops: planing and thicknessing of boards, battens and solid wood with precise dimensional tolerance.
- Furniture manufacturers and window/door manufacturers: surface preparation and board calibration before subsequent assembly processes.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels ruin the knives, consider calibrating machines).
Technical specifications
Working capacity
| Max planing width | 254 mm |

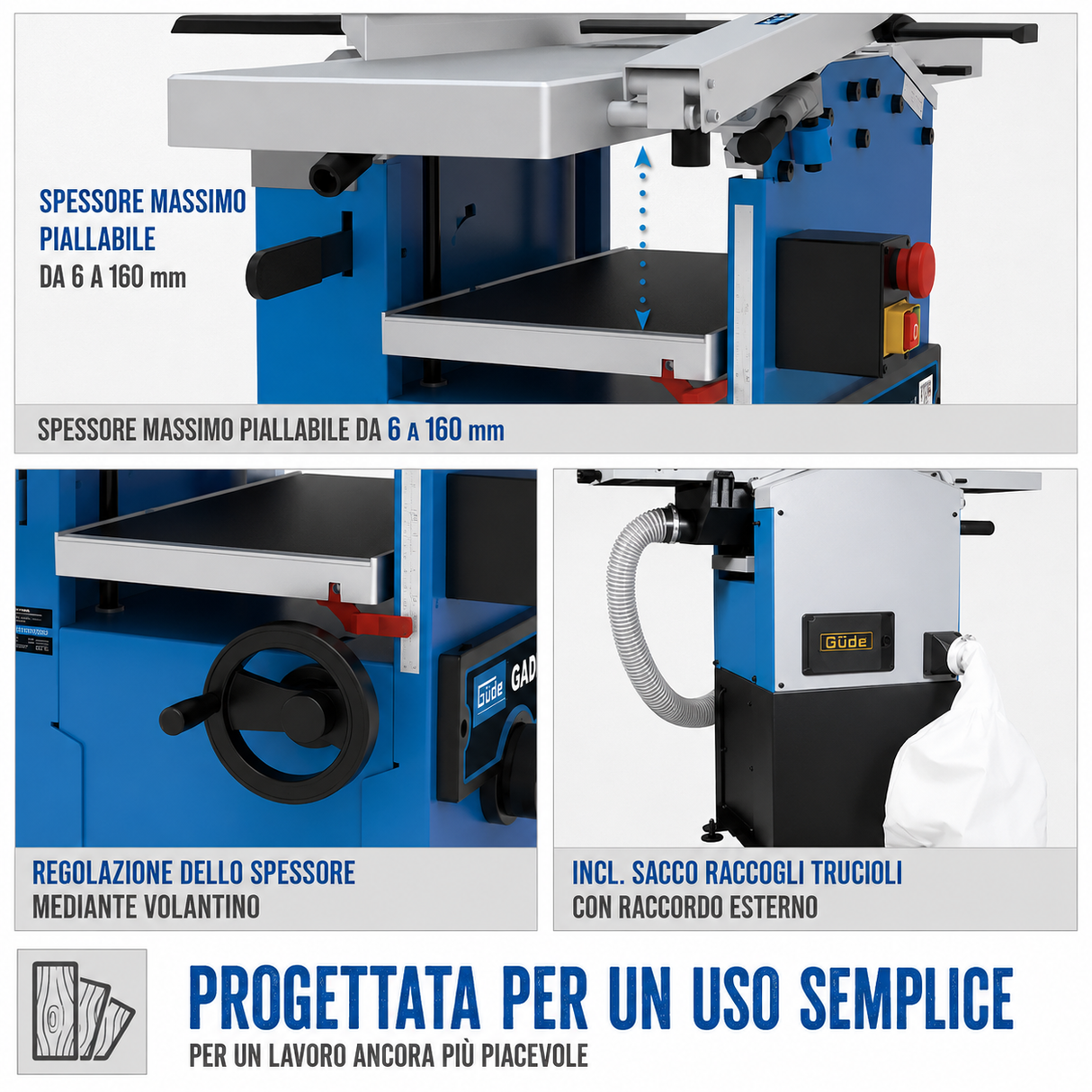

| Workpiece height (thickness) | 6 – 160 mm |
| Max thicknessing removal | 0 – 2 mm |
| Thicknesser table dimensions | 480 × 254 mm |
Table, dimensions and geometry
| Planer table dimensions | 1050 × 260 mm |
| Overall dimensions (L × W × H) | 1110 × 700 × 1020 mm |
| Weight | approx. 35–40 kg |
Motor and power supply
| Mains voltage | 230 V or 400V |
| Frequency | 50 Hz |
| Motor power (P1) | 1800 W |
Other specifications
| Number of blades | 2 |
| Planer shaft diameter | 63 mm |
| Max planing removal | 0 – 3 mm |
| Dust extraction port | Ø 74 mm |
| Noise level LWA | 98 dB |
| Planer shaft speed | 6700 rpm |
| Feed rate | 8 m/min |
| Blade material | HSS |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently Asked Questions
What planing width does the Planer/Thicknesser GADH 254 offer?
See "Planing width" in the technical table: typically 250 to 410 mm.
The width determines the maximum width of the board that can be processed in a single pass. For wider boards, a double pass or a larger machine is required.
Knife or helical cutter block?
See the model: the "S" or "Spiral" version features a helical cutter block with HM inserts, the others have standard HSS knives.
The helical cutter block produces less noise, a better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually when worn.
Minimum and maximum machinable thickness?
See "Min/max thickness" in the technical table: typically 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the thicknesser shaft.
Does it have quick change from planing to thicknessing?
Professional models allow changing functions in a few seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Verify availability in the workshop before purchasing.
-
