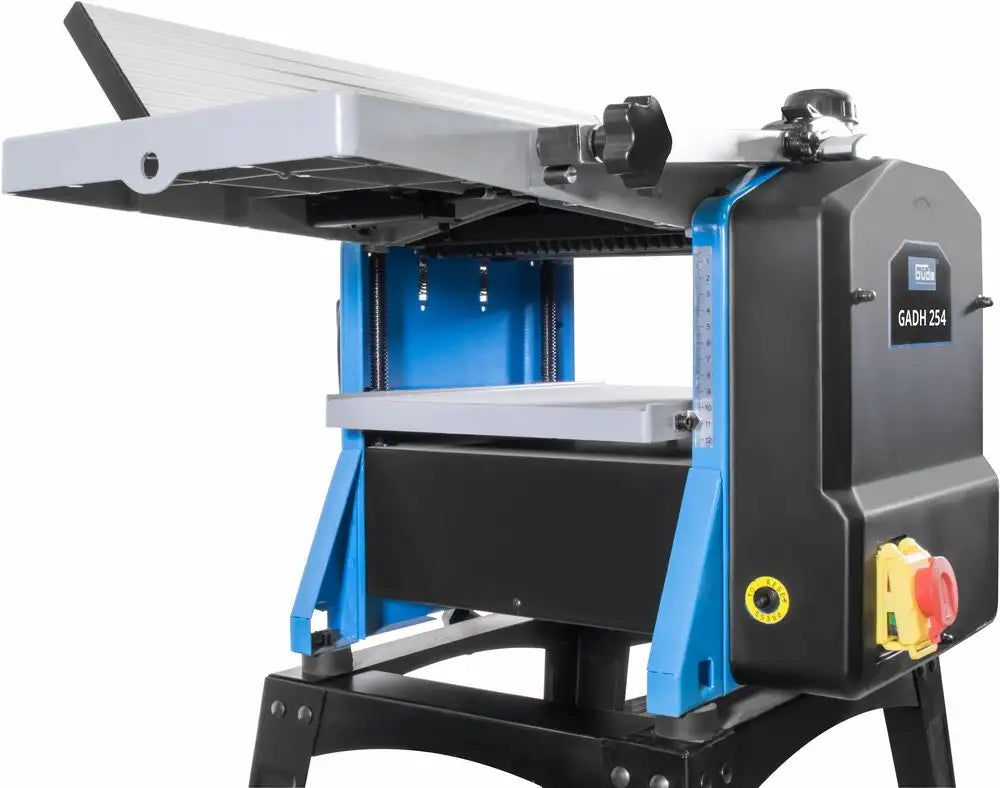

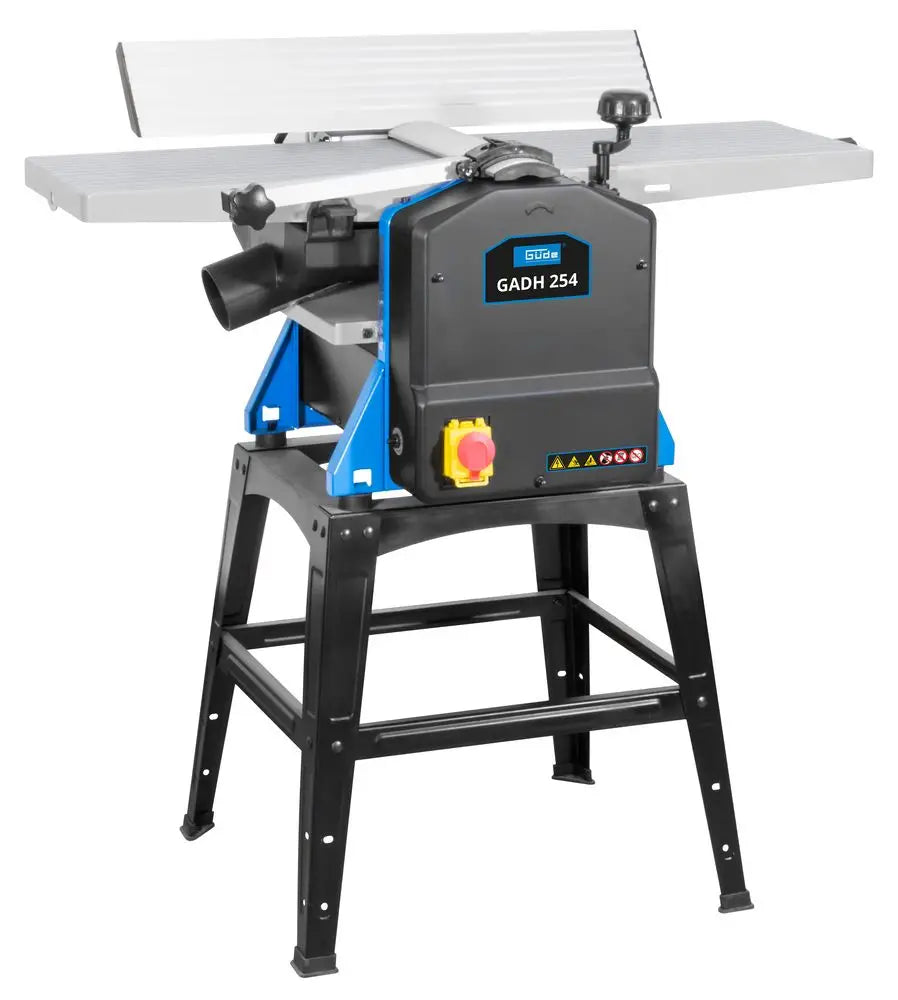

Guede Planer/Thicknesser GADH 254 is a professional planer/thicknesser, with a 1500 W motor, weighing ~35–40 kg. Krollit, official Guede distributor since 2007.
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power: 1500 W
- Planer shaft speed: 8500 rpm
- Number of blades: 2 HSS
- Max planing width: 254 mm
Who uses the GADH 254 Planer/Thicknesser and for what
The GADH 254 Planer/Thicknesser is a professional planer/thicknesser distributed by Krollit.
Its place in the Guede range
The Guede Planer/Thicknesser GADH 254 is part of the Guede planer/thicknesser range, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the GADH 254 Planer/Thicknesser for
The GADH 254 planer/thicknesser is recommended for the following professional profiles:
-
Professional joinery workshops: planing and thicknessing of boards, battens, and solid wood with precise dimensional tolerance.
-
Furniture factories and window/door manufacturers: surface preparation and board calibration before subsequent assembly processes.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels damage the blades, consider calibrating machines).
Processing capacity
| Max planing width |
254 mm |
| Max stock removal (thicknesser) |
0 – 2 mm |
| Thicknesser table |
380 × 264 mm |

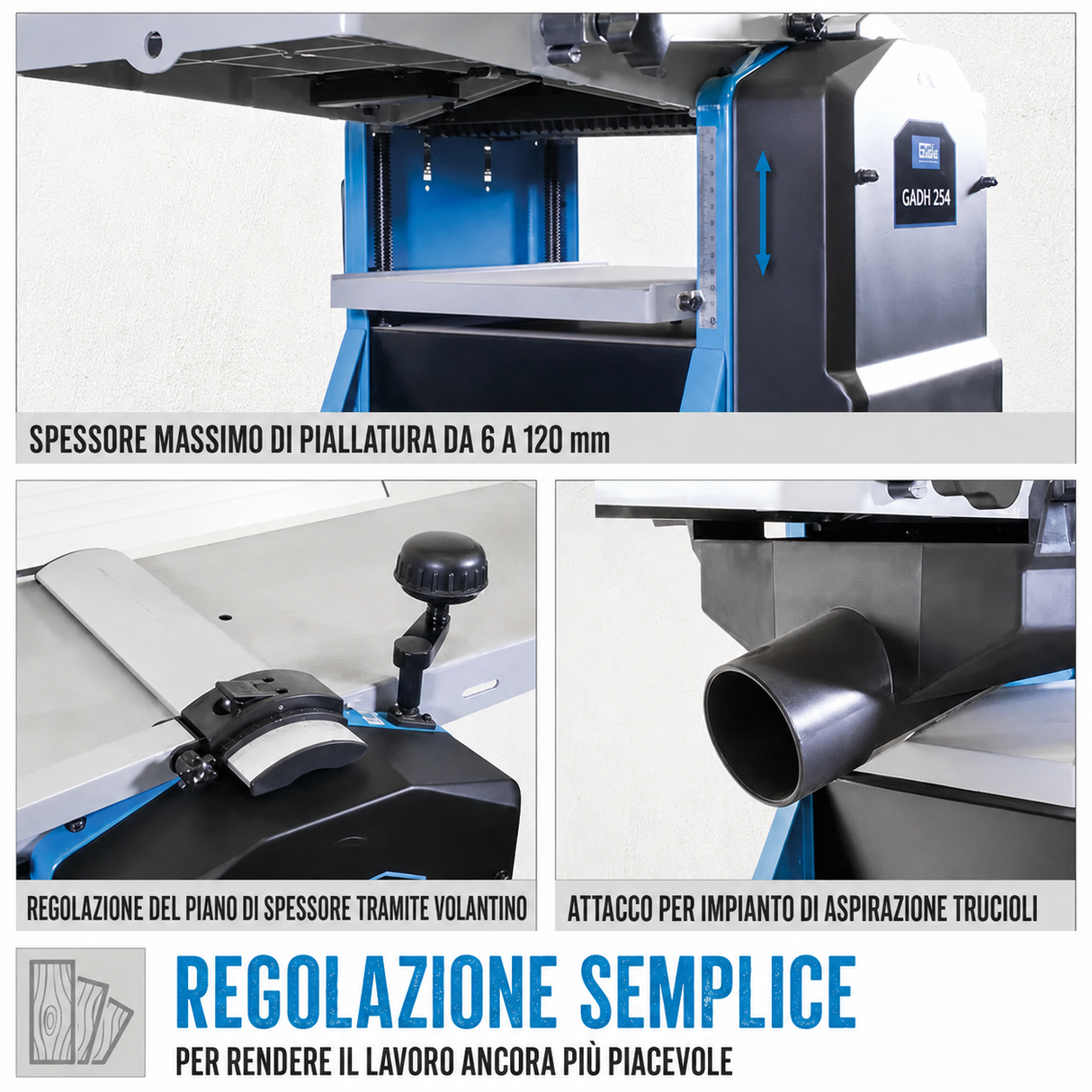

Table, dimensions and geometry
| Workpiece height |
6 – 120 mm |
| Planer table |
920 × 264 mm |
| Parallel fence inclination |
0° – 45° |
| Dimensions (L × W × H) |
965 × 565 × 1114 mm |
| Approximate weight |
~35–40 kg |
Motor and power supply
| Mains voltage |
230 V |
| Frequency |
50 Hz |
| Motor power |
1500 W |
Other specifications
| Number of blades |
2 HSS |
| Max stock removal (planer) |
0 – 3 mm |
| Noise level (LWA) |
93 dB |
| Planer shaft speed |
8500 rpm |
Frequently Asked Questions
What planing width does the GADH 254 Planer/Thicknesser offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum width of the board that can be worked in a single pass. For wider boards, a double pass or a larger machine is required.
Cutter block or spiral cutterhead?
See the model: the "S" or "Spirale" version features a helical cutterhead with HM inserts, while others use standard HSS blades.
The spiral cutterhead produces less noise, a better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually when worn.
Minimum and maximum working thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the thicknesser shaft.
Does it have quick changeover for planing/thicknessing?
Professional models allow function changes in a few seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Verify availability in the workshop before purchasing.
