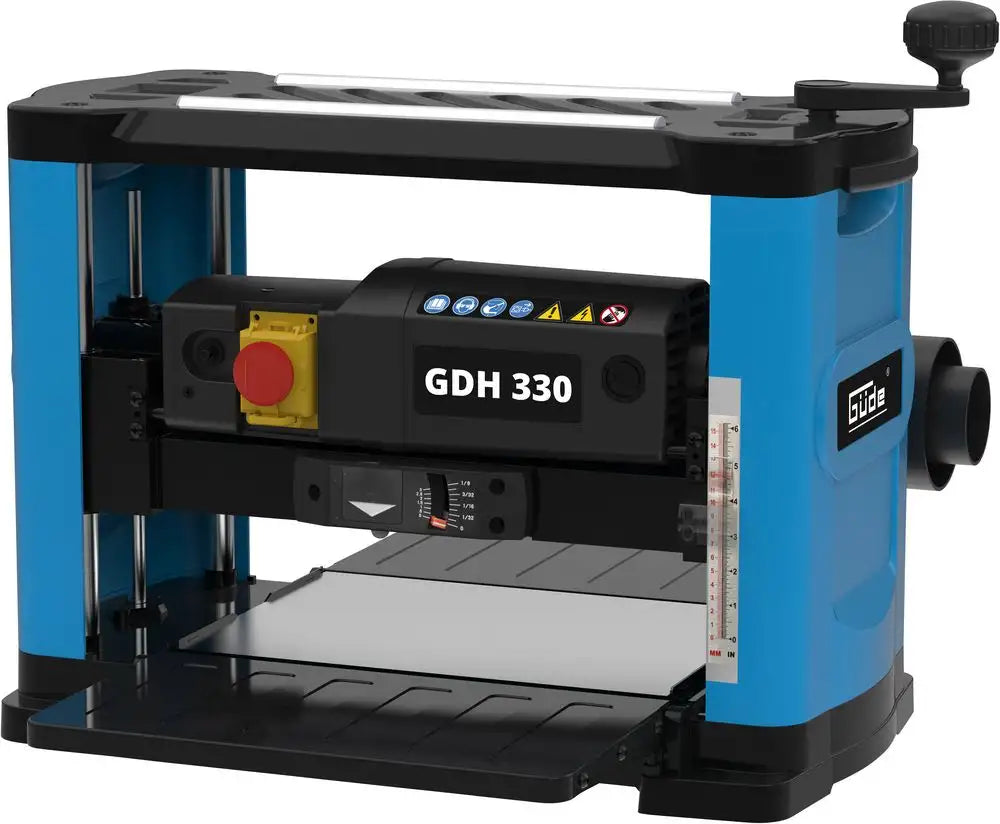

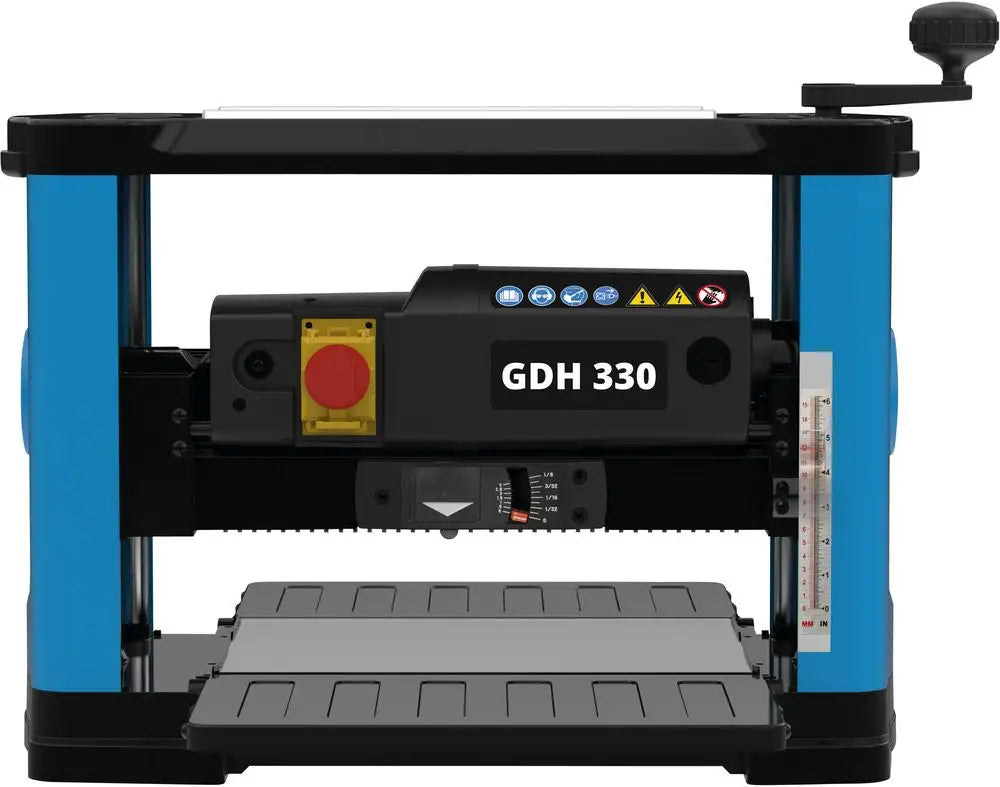

Guede Planer GDH 330 is a jointer and planer for professional use, with a 1500 W motor, weighing approximately 33–36 kg. Krollit, official Guede distributor since 2007.
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1500 W
- Cutterblock speed: 8500 rpm
- Number of blades: 2
- Max planing width: 330 mm
Who uses the GDH 330 planer and for what
The GDH 330 planer is a jointer and planer for professional use distributed by Krollit.
Its place in the Guede range
The Guede Planer GDH 330 is part of the Guede range of jointer and planers, distributed in Italy by Krollit since 2007. The Guede range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Guede catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer assistance in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the GDH 330 planer for
The GDH 330 planer is recommended for the following professional profiles:
-
Professional carpentry shops: jointing and planing boards, battens, and solid wood with precise dimensional tolerance.
-
Furniture manufacturers and window/door production: surface preparation and board calibration before subsequent assembly operations.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels damage knives, consider sanders).
Table, dimensions, and geometry
| Max workpiece height |
152 mm |
| Working width |
330 mm |
| Overall dimensions (L × W × H) |
630 × 580 × 500 mm |
| Weight |
approx. 33–36 kg |
Motor and power supply
| Mains voltage |
230 V |
| Frequency |
50 Hz |
| Motor power (P1) |
1500 W |
Other specifications
| Number of blades |
2 |
| Max removal per pass |
2.8 mm |
| Guide system |
4 columns |
| Noise level LWA |
92 dB |
| Dust extraction port |
Yes |
| Max planing width |
330 mm |
| Planer table dimensions |
330 × 630 mm |
| Cutterblock speed |
8500 rpm |
Frequently Asked Questions
What planing width does the GDH 330 planer offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum width of the board that can be processed in a single pass. For wider boards, a double pass or a larger machine is required.
Knife or helical cutterhead?
See the model: the "S" or "Spirale" version features a helical cutterhead with HM inserts, while others use standard HSS knives.
The helical cutterhead produces less noise, better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually when worn.
Minimum and maximum workable thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the planer head.
Does it have quick change for jointing/planing?
Professional models allow switching between functions in a few seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Verify availability in the workshop before purchase.
