Description

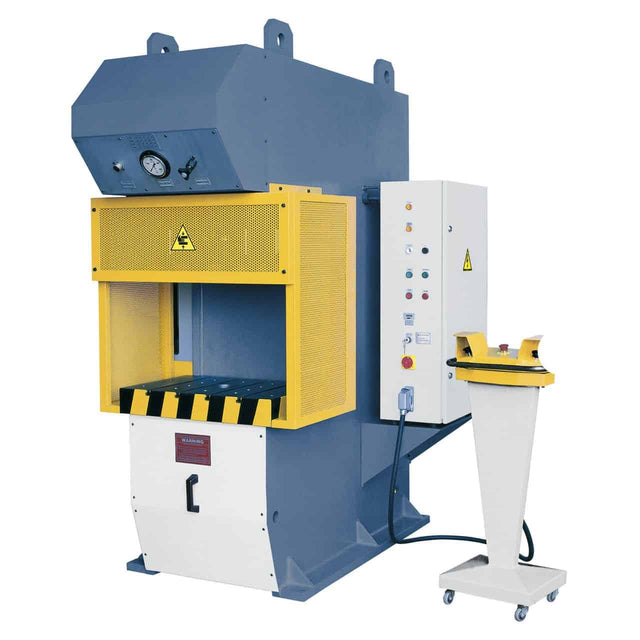

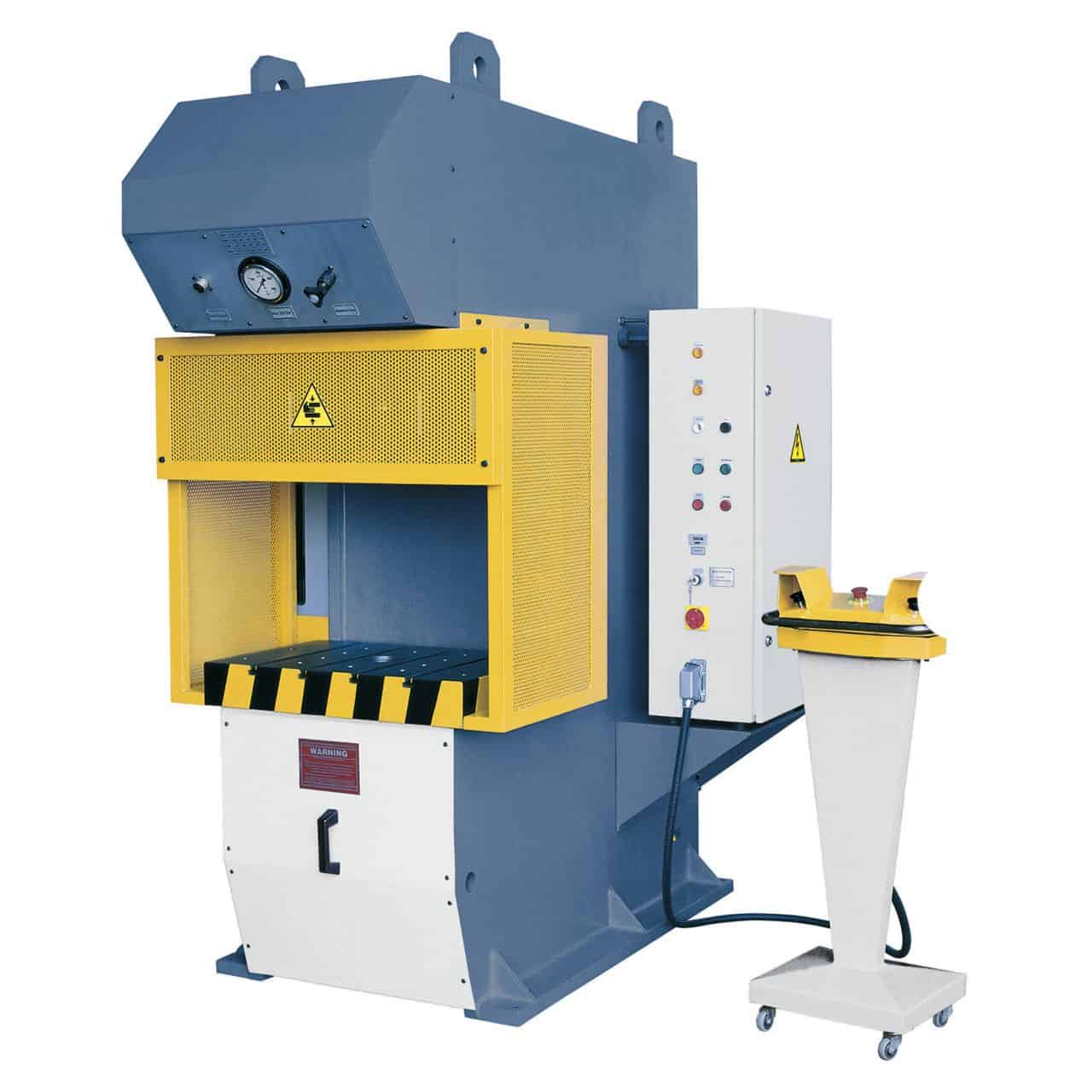

Bernardo Single Column Hydraulic Press HCP 150
The HCP 150 is a C-frame hydraulic press designed for the most demanding industrial applications. With a pressing force of 150 tons and a piston stroke of 300 mm, this machine is ideal for stamping, punching, shrinking, and high-pressure assembly. The robust structure with a large 700 x 1100 mm work surface allows for processing even large components, while the 260 mm throat depth offers operational flexibility. The powerful 7.5 kW motor and 340-liter tank ensure efficient and reliable continuous operation.
✅ Main Features
• Maximum pressing force: 150 tons
• C-frame structure with easy front access
• Lower table measuring 700 x 1100 mm with a 120 mm central hole
• Piston with 300 mm stroke
• Working speed: 3.5 mm/sec
• Upper ram 500 x 750 mm
• Throat depth: 260 mm
• 7.5 kW motor – oil flow rate 40 l/min
• 340-liter oil tank
📊 Technical Table
| Features | Data |
|---|---|
| Max. pressing force | 150 tons |
| Piston stroke | 300 mm |
| Approach speed | 10 mm/sec |
| Working speed | 3.5 mm/sec |
| Return speed | 22 mm/sec |
| Table - ram distance | 500 mm |
| Lower table dimensions | 700 x 1100 mm |
| Upper ram dimensions | 500 x 750 mm |
| Throat depth (usable depth) | 260 mm |
| Through hole in table | 120 mm |
| Motor power | 7.5 kW |
| Pump flow rate | 40 l/min |
| Oil tank capacity | 340 liters |
| Dimensions (L x W x H) | 2300 x 1400 x 2750 mm |
| Overall weight | approx. 7700 kg |
📦 Scope of delivery
• Complete HCP 150 press
• Hydraulic unit with 7.5 kW motor
• 340-liter oil tank
• Work table with through hole
• Ground upper piston
• Control panel with emergency buttons
