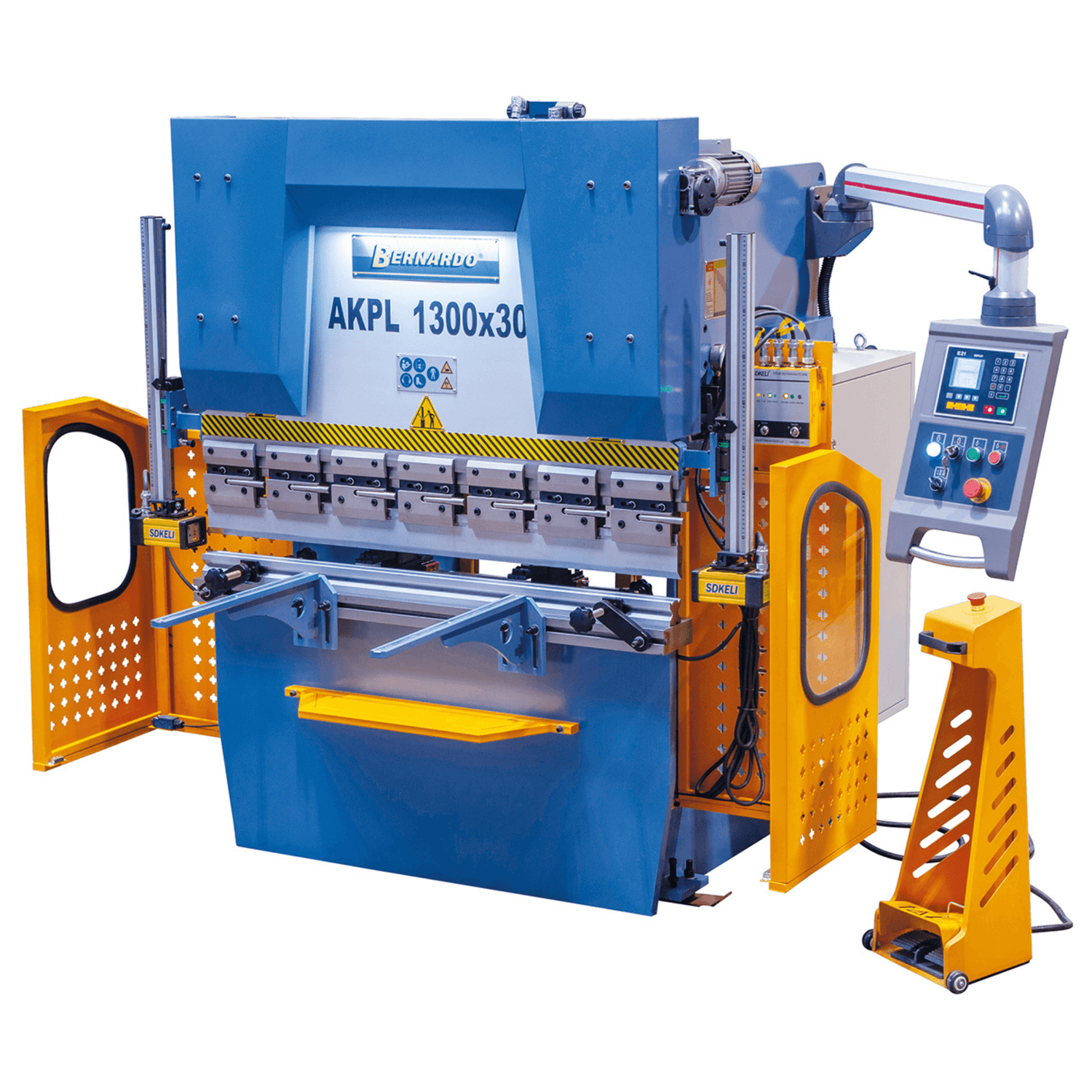

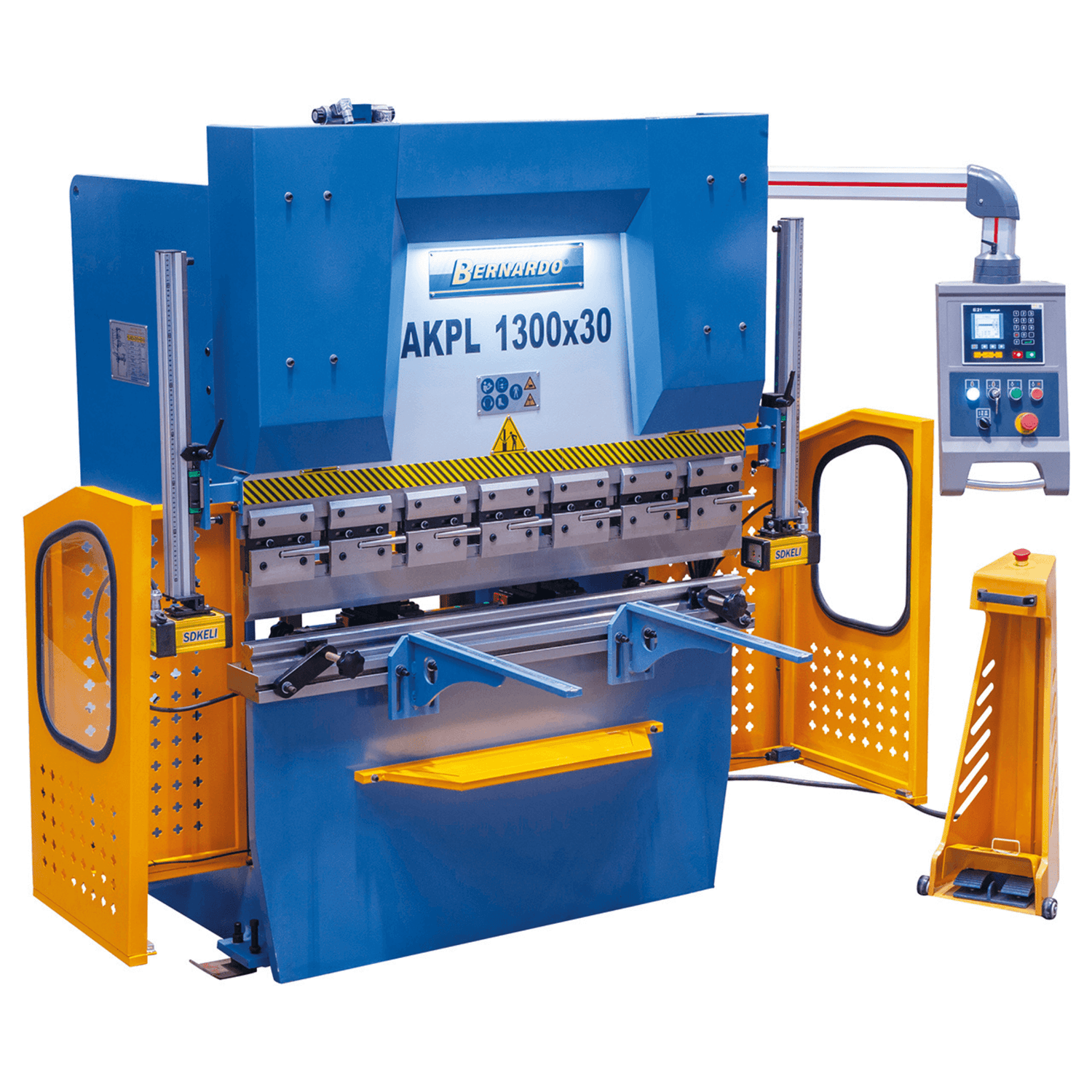

Bernardo AKPL 1300 x 30 Hydraulic Press Brake
The AKPL 1300 x 30 hydraulic press brake is suitable for workshops and metalworking shops that require a compact yet highly efficient machine. With a bending force of 30 tons and a working length of 1300 mm, it produces precise and repeatable results even in the most complex operations. The synchronized dual-cylinder system, professional-grade steel frame, and backgauge with ball screw ensure reliability, stability, and precision. The NC E21S numerical control makes operation intuitive, while quick tool changes reduce setup times.
Main Specifications
30-ton bending force with 1300 mm working length

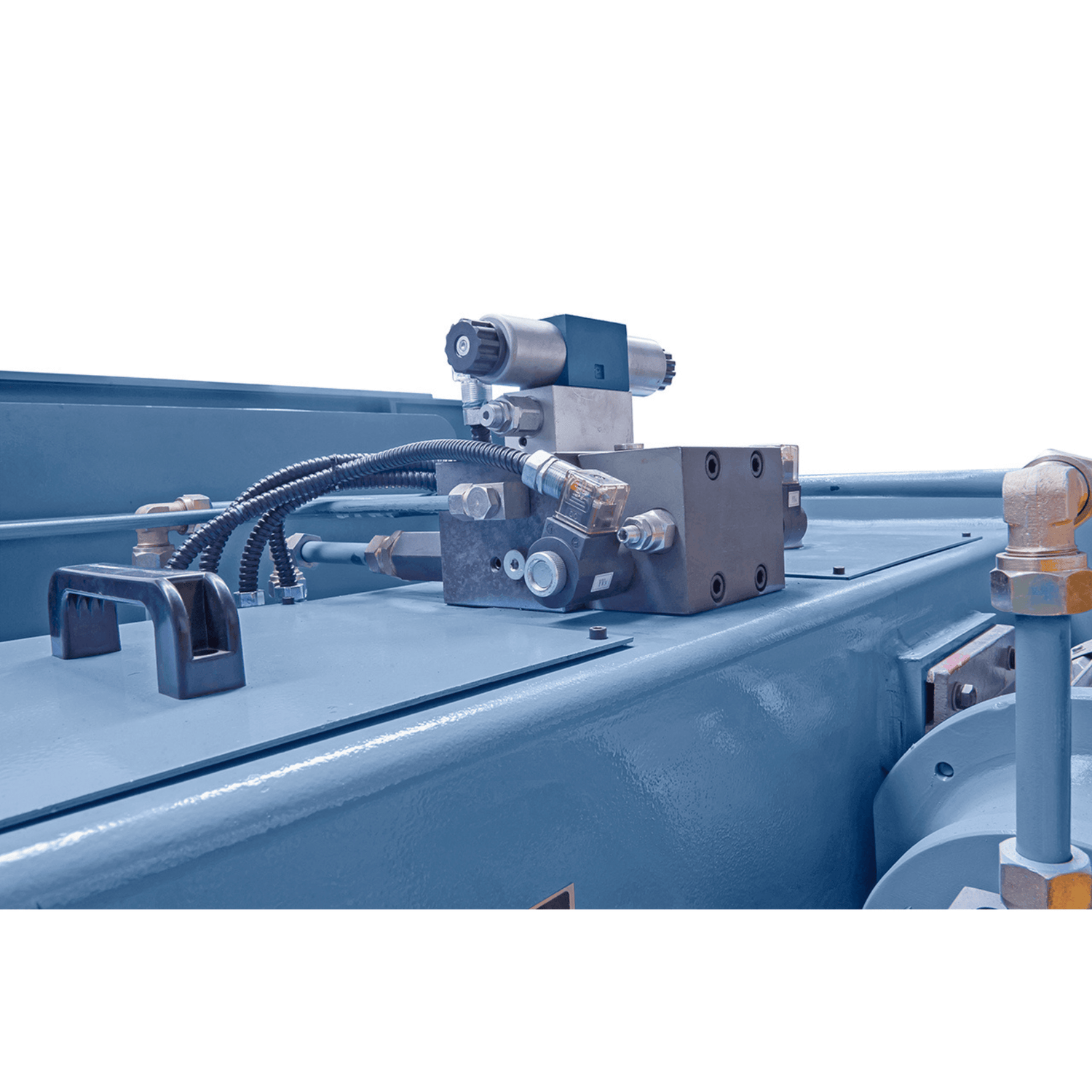

Synchronized cylinders for parallel upper beam movement

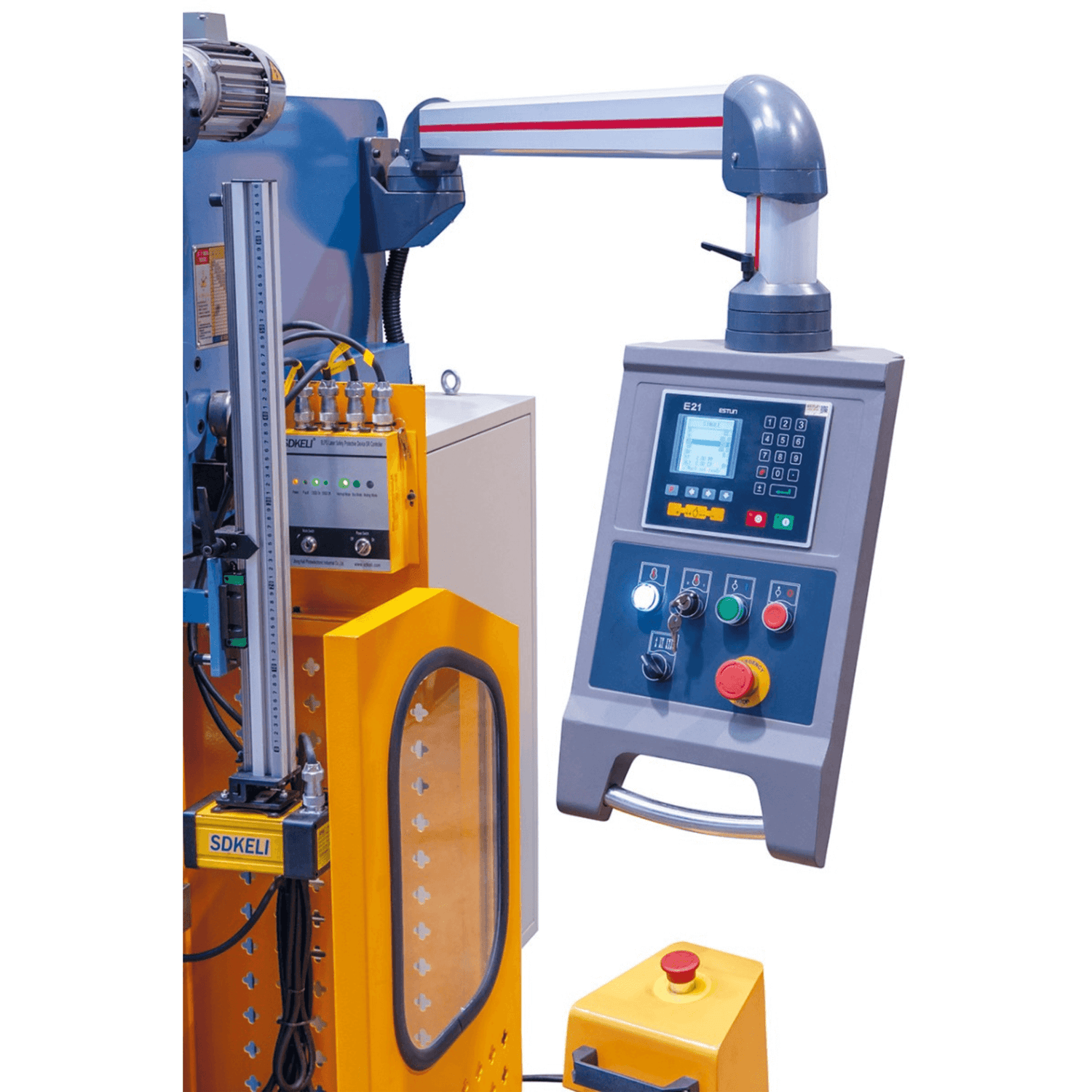

NC E21S numerical control for simple and fast operation

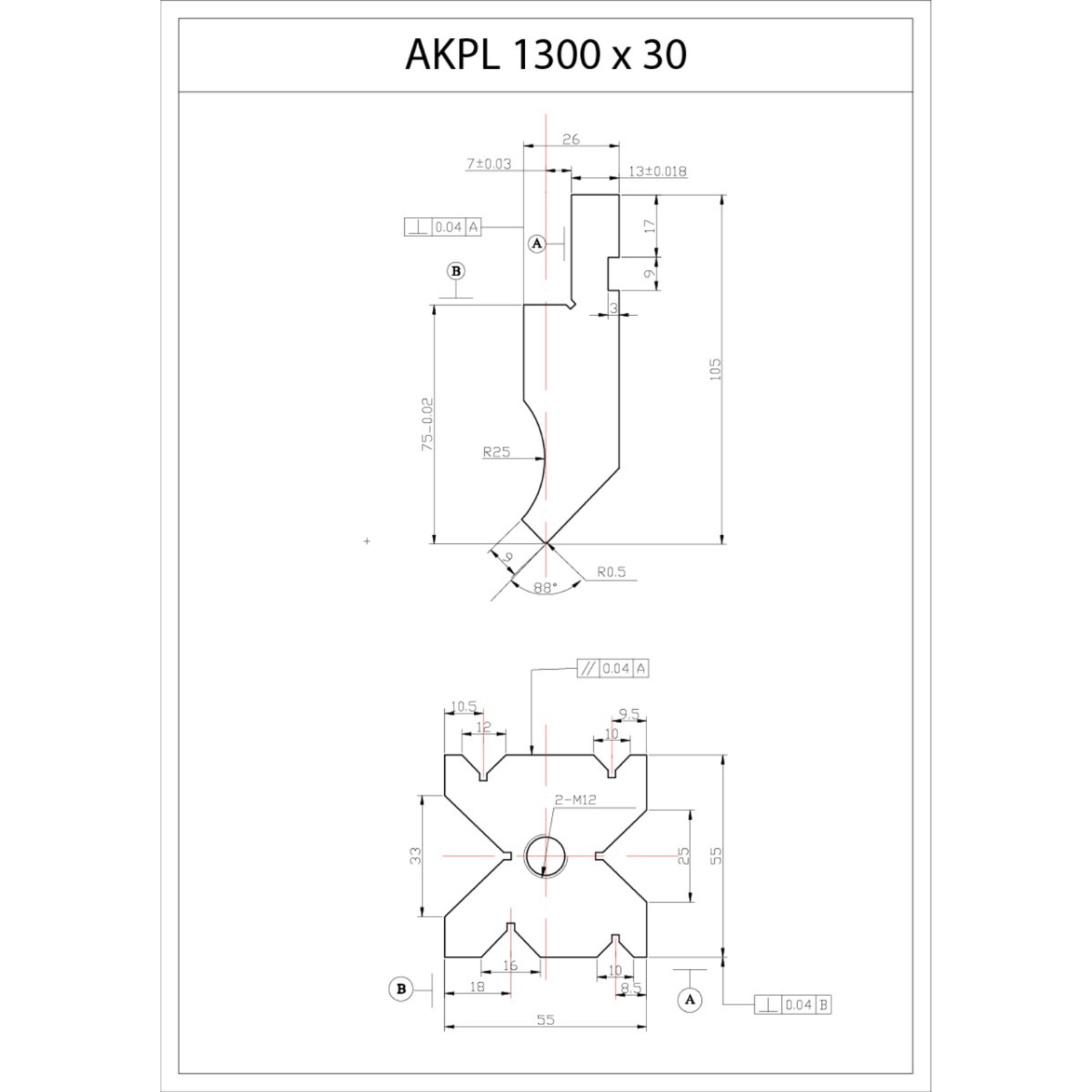

Segmented upper tool with quick clamping for fast changes
Lower tool with 6 V-openings for versatile bends

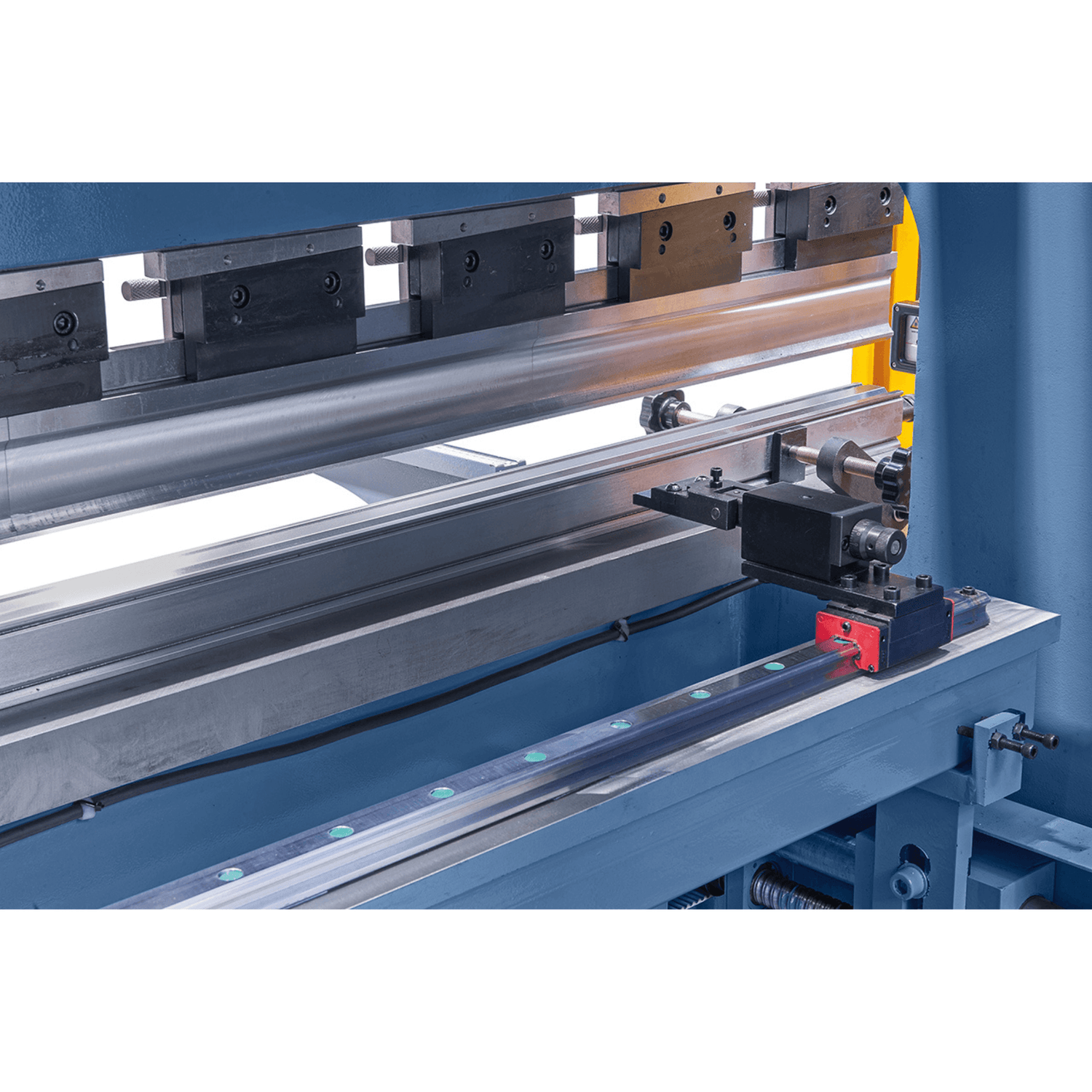

Backgauge with ball screw (0–500 mm) for high precision
Stable, stress-free steel structure

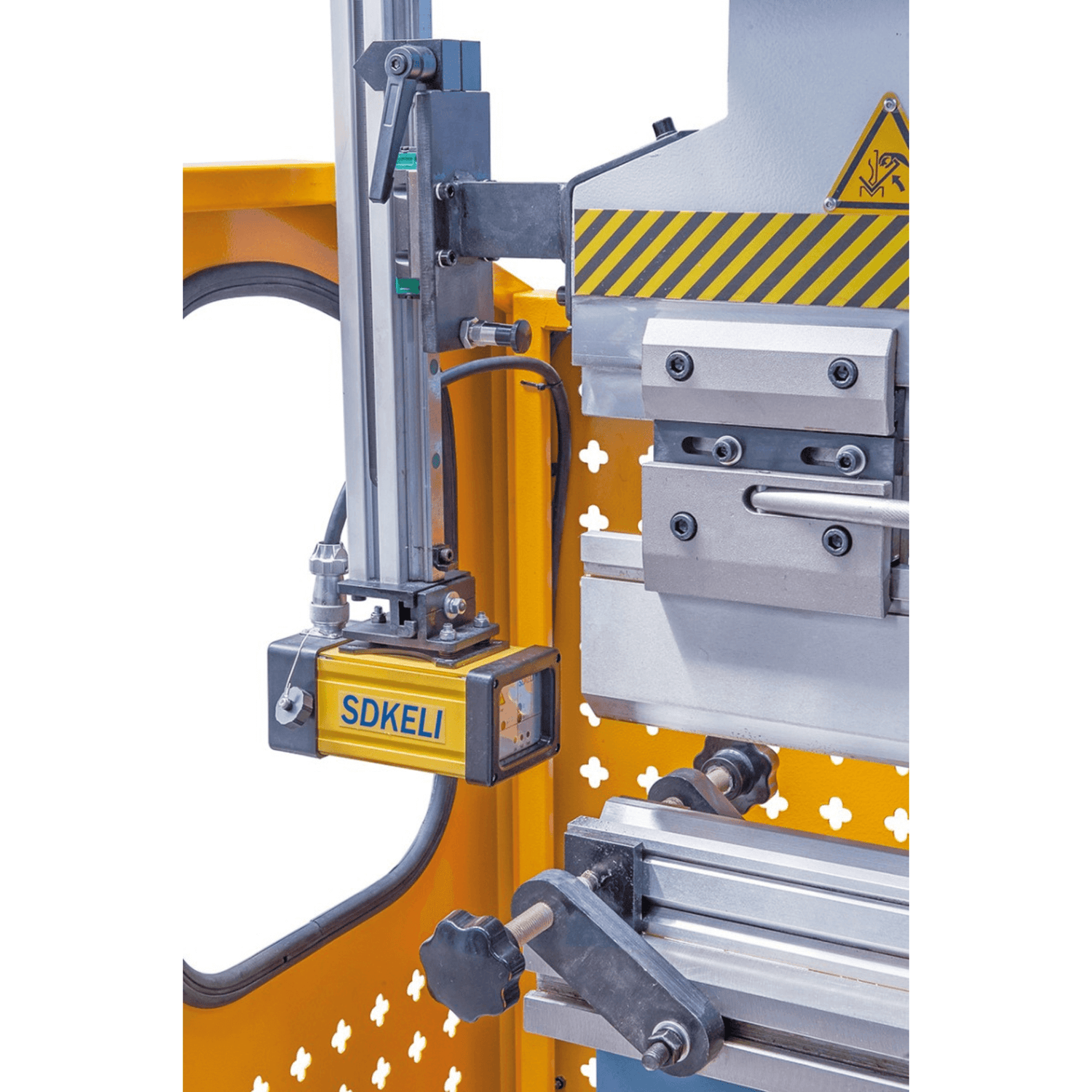

SDKELI safety system with side protective grid
Foot pedal control with emergency stop
Front sheet supports included
Technical Data
| Features | Data |
|---|---|
| Bending pressure | 30 tons |
| Working length | 1300 mm |
| Distance between uprights | 1050 mm |
| Ram stroke | 90 mm |
| Throat depth | 180 mm |
| Backgauge (X-axis) | 0 – 500 mm |
| Table width | 140 mm |
| Table height | 730 mm |
| Approach speed | 60 mm/sec |
| Bending speed | 8 mm/sec |
| Return speed | 60 mm/sec |
| Oil tank capacity | 110 liters |
| Motor power | 3.0 kW |
| Dimensions (L x W x H) | 1900 x 1600 x 1900 mm |
| Overall weight | approx. 2100 kg |
Scope of delivery
Backgauge with ball screw
Segmented upper tool with quick clamping
Lower tool with 6 V-openings
Front sheet supports
NC E21S numerical control
Height-adjustable backgauge fingers
SDKELI safety system
Side protective grid
Foot pedal control with emergency stop
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer service in Italian available.
Frequently Asked Questions
How is the required bending force calculated?
Basic formula: F (kN) = (8 × thickness² × strength × length) / V-opening. For S235 steel (400 N/mm²) with V = 8× thickness: F ≈ 50 kN/m for each mm of thickness. Example: 2 mm over 2,000 mm → approx. 200 kN (20T). The AKPL should be chosen with a nominal force at least 20% higher than the calculated force. For different materials or complex geometries, contact Krollit for verification.
What is the maximum thickness for stainless steel with the AKPL?
The nominal capacity refers to S235 steel (400 N/mm²). For AISI 304 stainless steel (620 N/mm²), the capacity is reduced by 35–40%. For 5052 aluminum (195 N/mm²), it increases by 50%. Verify with Krollit for specific materials.
Are punches and dies interchangeable with other manufacturers?
AKPL press brakes use standard European punch holders (Wila/Wilson tooling). Compatibility with tools from other manufacturers must be checked on a case-by-case basis — it is preferable to use original Bernardo punches and dies to ensure correct clamping forces and safety. Contact Krollit for the availability of specific tools.
Is the backgauge motorized or manual?
It depends on the version. Basic AKPL models have a manual backgauge with screw adjustment. Versions with integrated NC have a motorized backgauge automatically positioned by the machine. Refer to the technical data table for the specific model.
Are spare parts and assistance available?
Original Bernardo spare parts available with 3–5 working day shipping. Customer service in Italian available.
