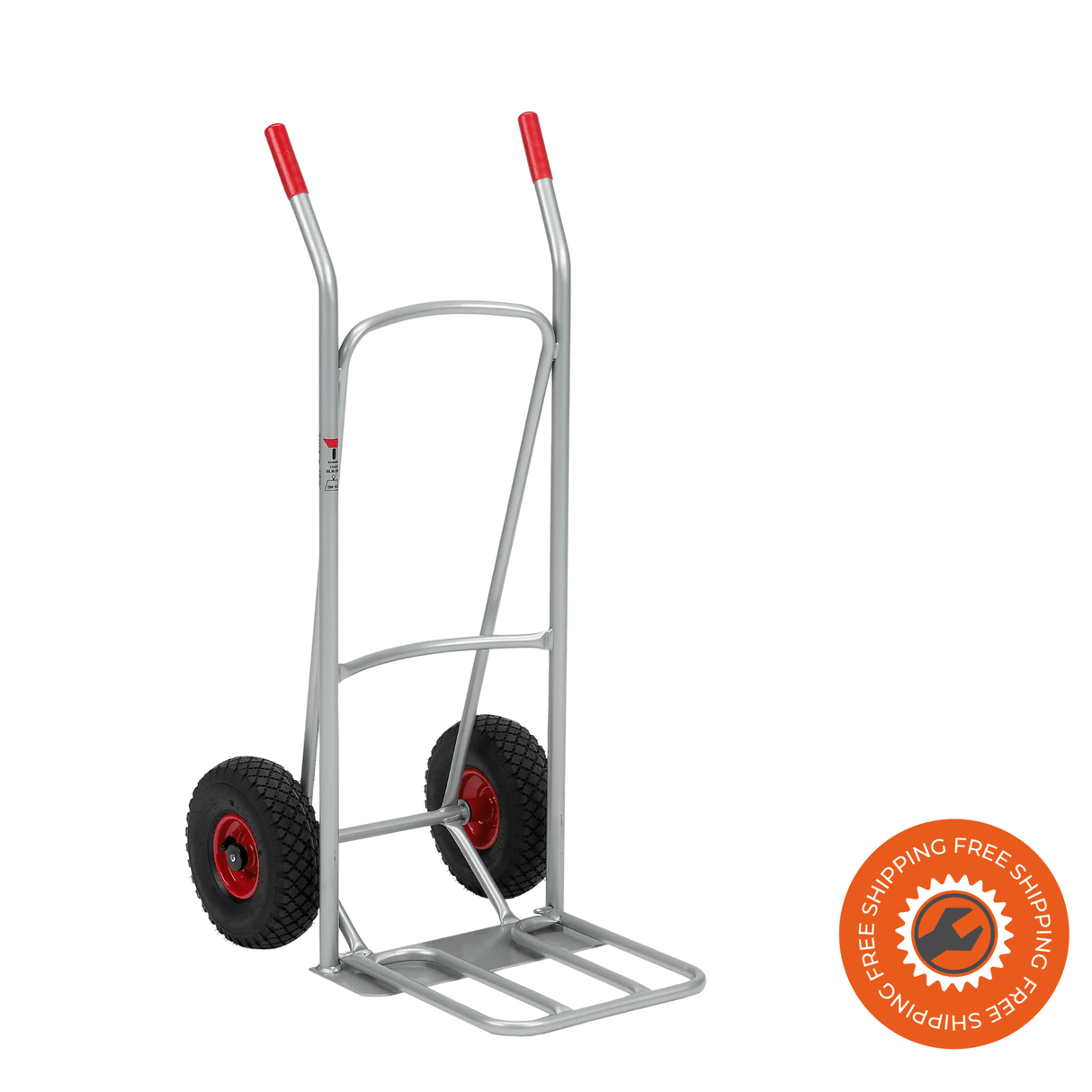

Ravendo BLM 200 L is a sack truck for professional use, with a load capacity of 200 kg and a weight of 9.8 kg. Krollit, official Ravendo distributor since 2007.
- Load capacity: 200 kg
- Net weight: 9.8 kg
- Overall height (H): 1120 mm
- Overall width (W): 480 mm
- Overall length (L): 420 mm
- Frame – Width (B): 310 mm
Who uses the BLM 200 L and for what
Logistics warehouses, shops, and distribution centers use the BLM 200 L for the manual handling of packages, boxes, and goods of various sizes up to the declared limit.
Its place in the Ravendo range
The Ravendo BLM 200 L is part of the Ravendo sack truck range, distributed in Italy by Krollit since 2007. The Ravendo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Ravendo catalog on Krollit or contact customer support for assistance with selection.
Krollit logistics and support
Machine shipment in 5-9 working days (7 days in the South). For spare parts and accessories, shipment in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the BLM 200 L is for
The BLM 200 L is recommended for the following professional profiles:
-
Logistics warehouses and distribution centers: manual handling of packages, boxes, and goods of various sizes.
-
Shops, supermarkets, and service companies: transport of loads up to the declared limit in indoor spaces.
Not suitable for: handling full pallets (pallets require dedicated pallet trucks or forklifts).
Table, dimensions and geometry
| Net weight |
9.8 kg |
| Overall height (H) |
1120 mm |
| Overall width (W) |
480 mm |
| Overall length (L) |
420 mm |
| Frame – Width (B) |
310 mm |
| Frame – Length (L) |
390 mm |
| Support plate – Width (B) |
415 mm |
| Wheel dimensions |
3.00 x 4/4 |
| Hub width |
75 mm |
Other specifications
| Hub Ø |
20 mm |
| Tube |
Ø 25 mm |
| Handles |
Red plastic with black safety grips |
| Wheel type |
Pneumatic |
| Rim |
Steel |
| Bearings |
Roller |
| Load capacity |
200 kg |
| Support plate – Depth (L) |
110 mm |
| Frame material |
Steel |
Frequently Asked Questions
What is the maximum load it can carry?
See "Load capacity" in the technical table.
The load must be evenly distributed. For concentrated loads (over 50 kg/dm²), check the rigidity of the platform and supports.
What are the dimensions of the platform?
See "Platform dimensions" in the technical table.
The dimensions determine the type of goods that can be transported. For large packages, extended platforms or folding trolleys are needed.
Are the wheels brakable?
Professional models offer at least 2 wheels with brakes for secure parking.
For use on ramps or inclined floors, it is essential to check for parking brakes.
Is it foldable?
Some models fold up to take up less space during transport.
Folding trolleys are suitable for those who need to transport the trolley itself in a car or store it in confined spaces.
What material is the frame made of?
Typically painted steel or aluminum for lighter use.
Steel is more robust but heavier; aluminum is light and does not oxidize but has a slightly lower capacity for the same cross-section.
