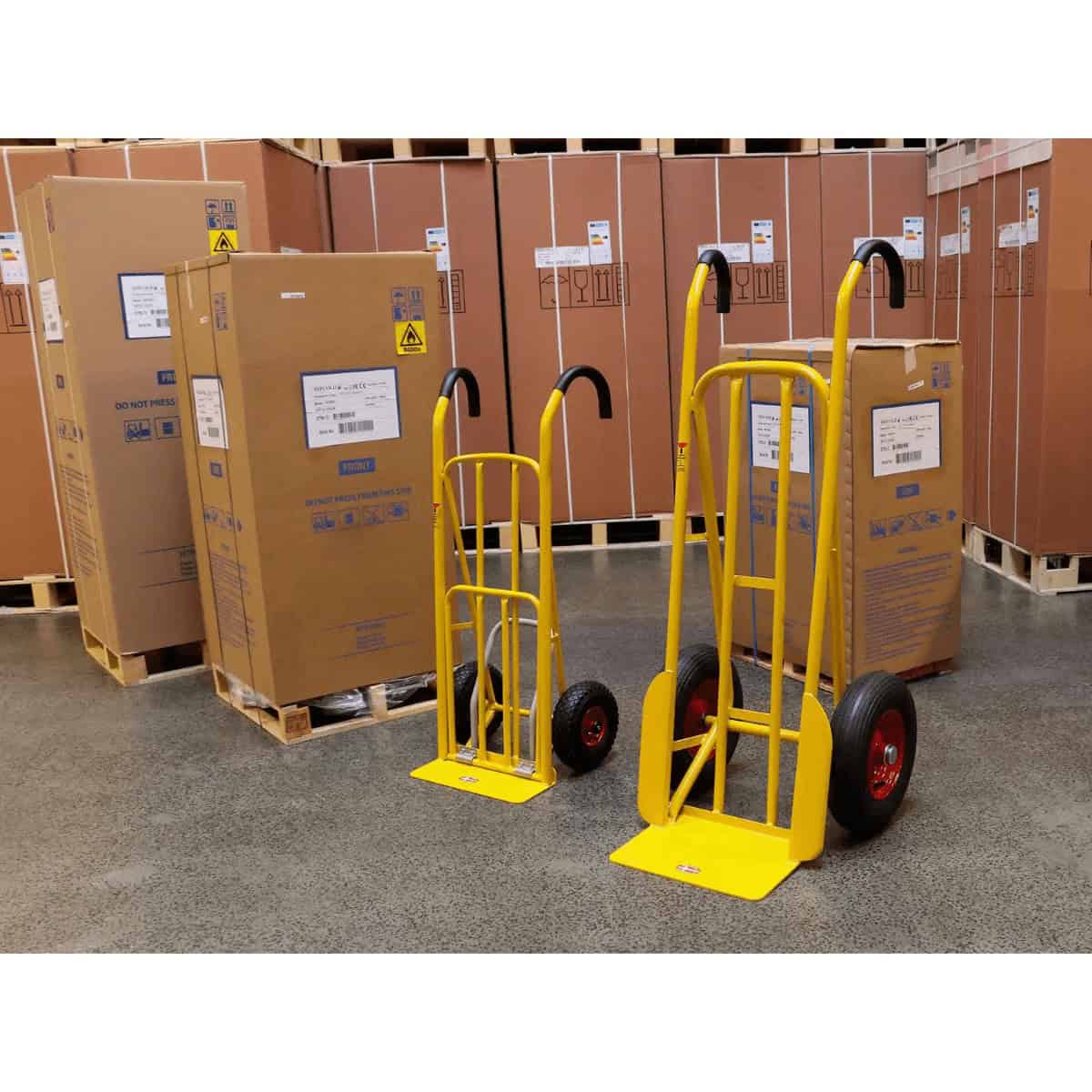

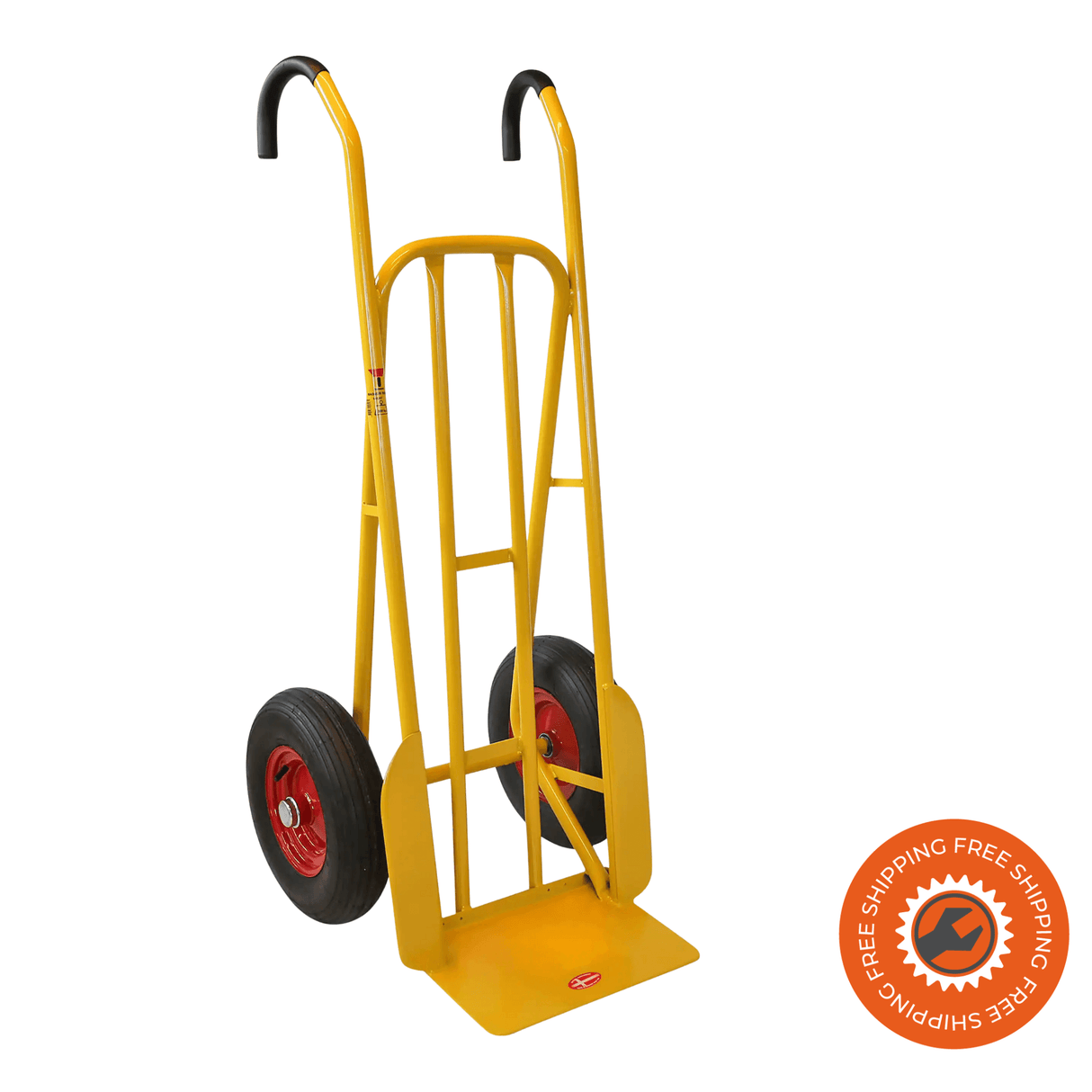

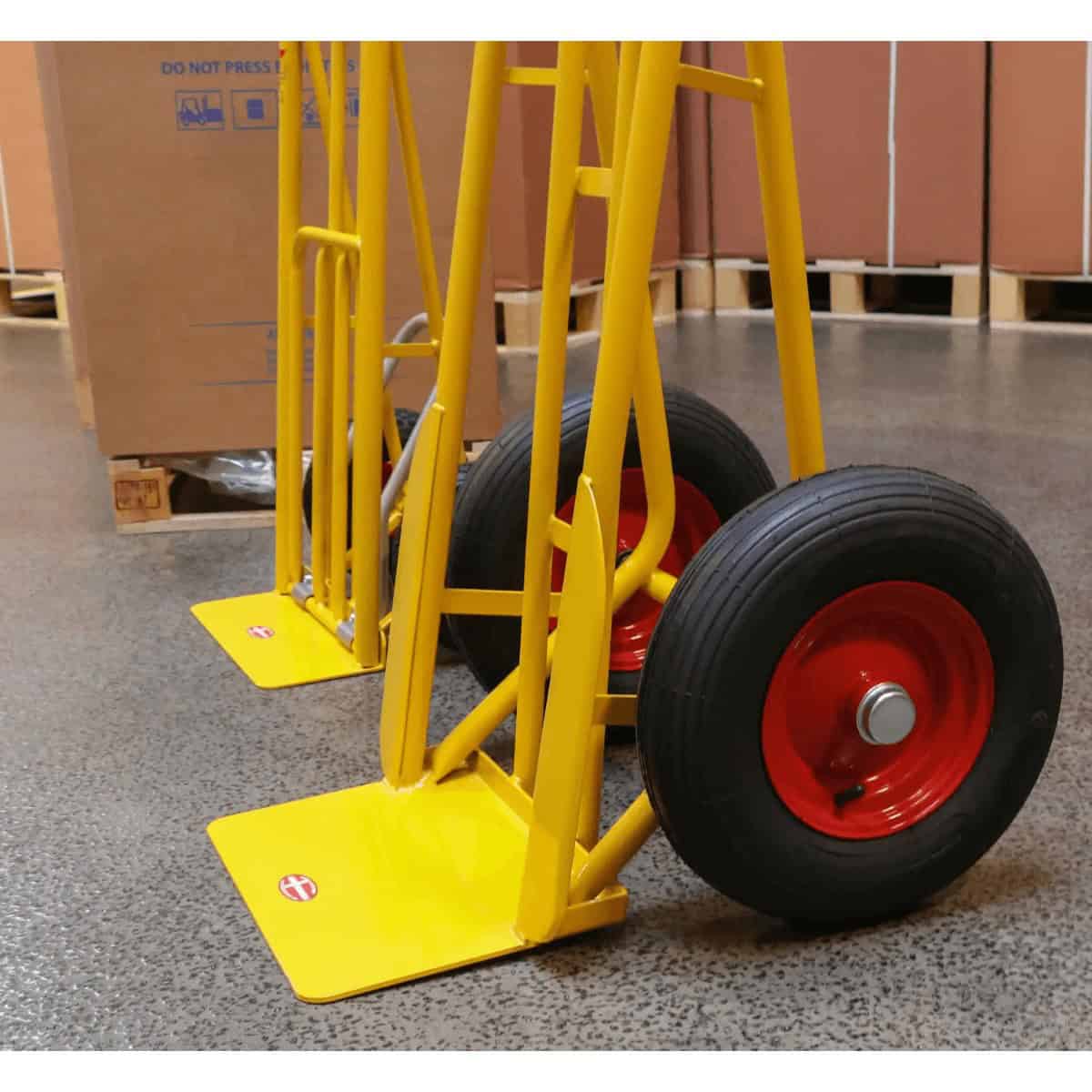

Ravendo Magnum 500 is a sack truck for professional use, with a load capacity of 500 kg and a weight of 26.6 kg. Krollit, official Ravendo distributor since 2007.
- Load capacity: 500 kg
- Net weight: 26.6 kg
- Overall height (H): 1400 mm
- Overall width (W): 620 mm
- Overall length (L): 670 mm
- Support plate – Width (B): 410 mm
Who uses the Magnum 500 and for what
Logistics warehouses, shops, and distribution centers use the Magnum 500 for the manual handling of packages, boxes, and goods of various sizes up to the declared limit.
Its place in the Ravendo range
Ravendo Magnum 500 is part of the Ravendo sack truck range, distributed in Italy by Krollit since 2007. The Ravendo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Ravendo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Magnum 500 for?
The Magnum 500 is recommended for the following professional profiles:
-
Logistics warehouses and distribution centers: manual handling of packages, boxes, and goods of various sizes.
-
Shops, supermarkets, and service companies: transporting loads up to the declared limit in internal spaces.
Not suitable for: handling full pallets (pallets require dedicated pallet trucks or forklifts).
Table, dimensions and geometry
| Net weight |
26.6 kg |
| Overall height (H) |
1400 mm |
| Overall width (W) |
620 mm |
| Overall length (L) |
670 mm |
| Support plate – Width (B) |
410 mm |
| Wheel dimensions |
4.00 x 8 |
| Hub width |
85 mm |
Other specifications
| Hub |
Ball bearings |
| Hub Ø |
20/25 mm |
| Wheel type |
Pneumatic |
| Rim |
Steel |
| Handle |
Ergonomic |
| Load capacity |
500 kg |
| Support plate – Depth (L) |
275 mm |
| Frame material |
Steel |
Frequently Asked Questions
What is the maximum load it can carry?
See "Load capacity" in the technical table.
The load must be distributed uniformly. For concentrated loads (over 50 kg/dm²), check the rigidity of the platform and supports.
What are the dimensions of the platform?
See "Platform dimensions" in the technical table.
The dimensions determine the type of goods that can be transported. Large packages require extended platforms or folding trolleys.
Are the wheels braked?
Professional models offer at least 2 wheels with brakes for safe parking.
For use on ramps or inclined floors, it is essential to check for the presence of parking brakes.
Is it foldable?
Some models fold up to take up less space during transport.
Folding trolleys are suitable for those who need to transport the trolley itself in a car or store it in confined spaces.
What material is the frame made of?
Typically painted steel or aluminum for lighter use.
Steel is sturdier but heavier; aluminum is light and does not rust but has a slightly lower capacity for the same cross-section.
