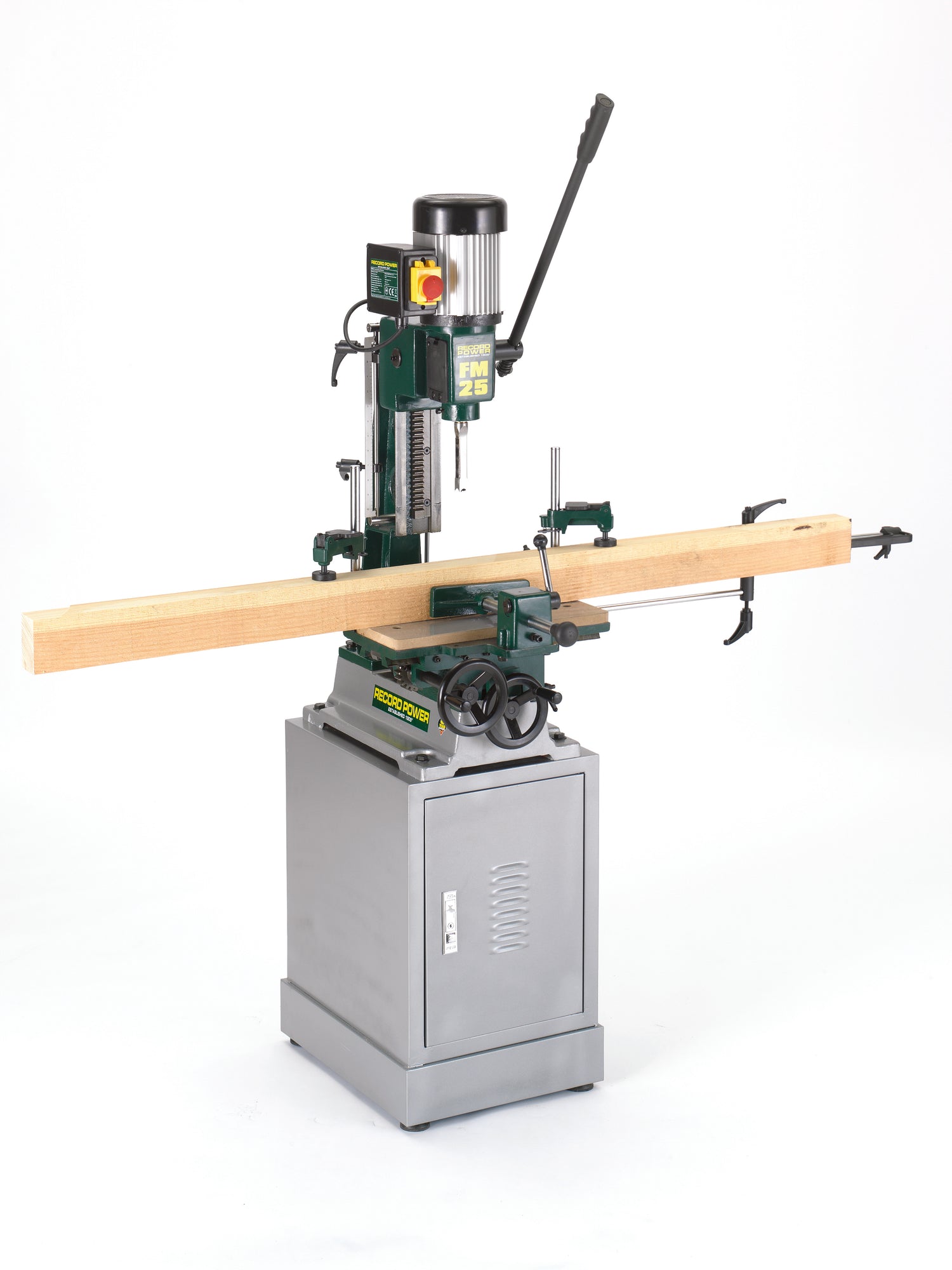

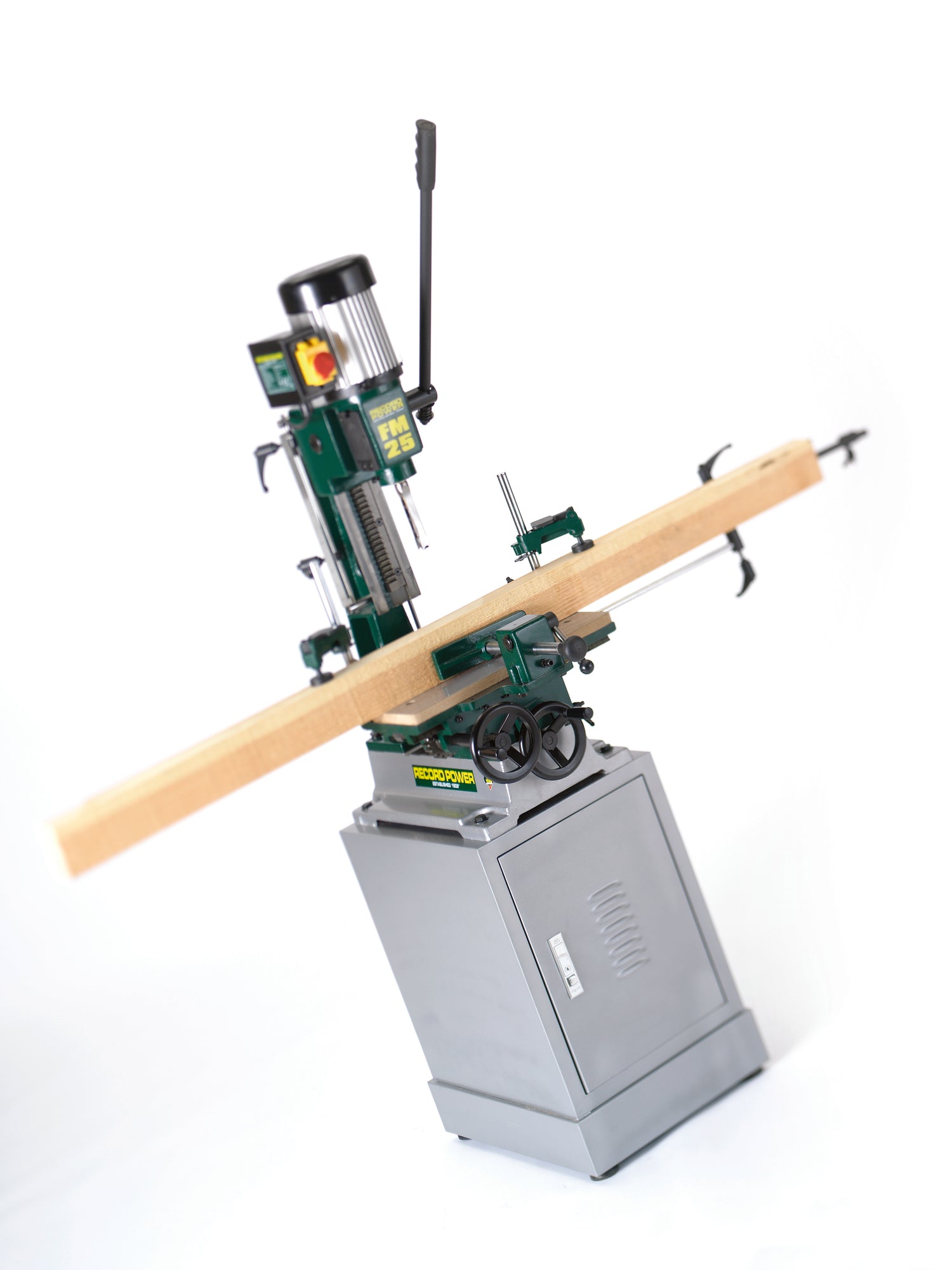

Record Power MORTASATRICE BANCO FM25 is a professional bench mortiser, with a capacity of 70 mm. Krollit, official Record Power distributor since 2007.
- Table size: 400 x 150 mm
- Table height: 240 mm
- Max drilling depth: 70 mm
- Max workpiece height: 200 mm
- Max workpiece depth: 140 mm
- Table travel right/left: 170 mm
Who uses the MORTASATRICE BANCO FM25 and for what

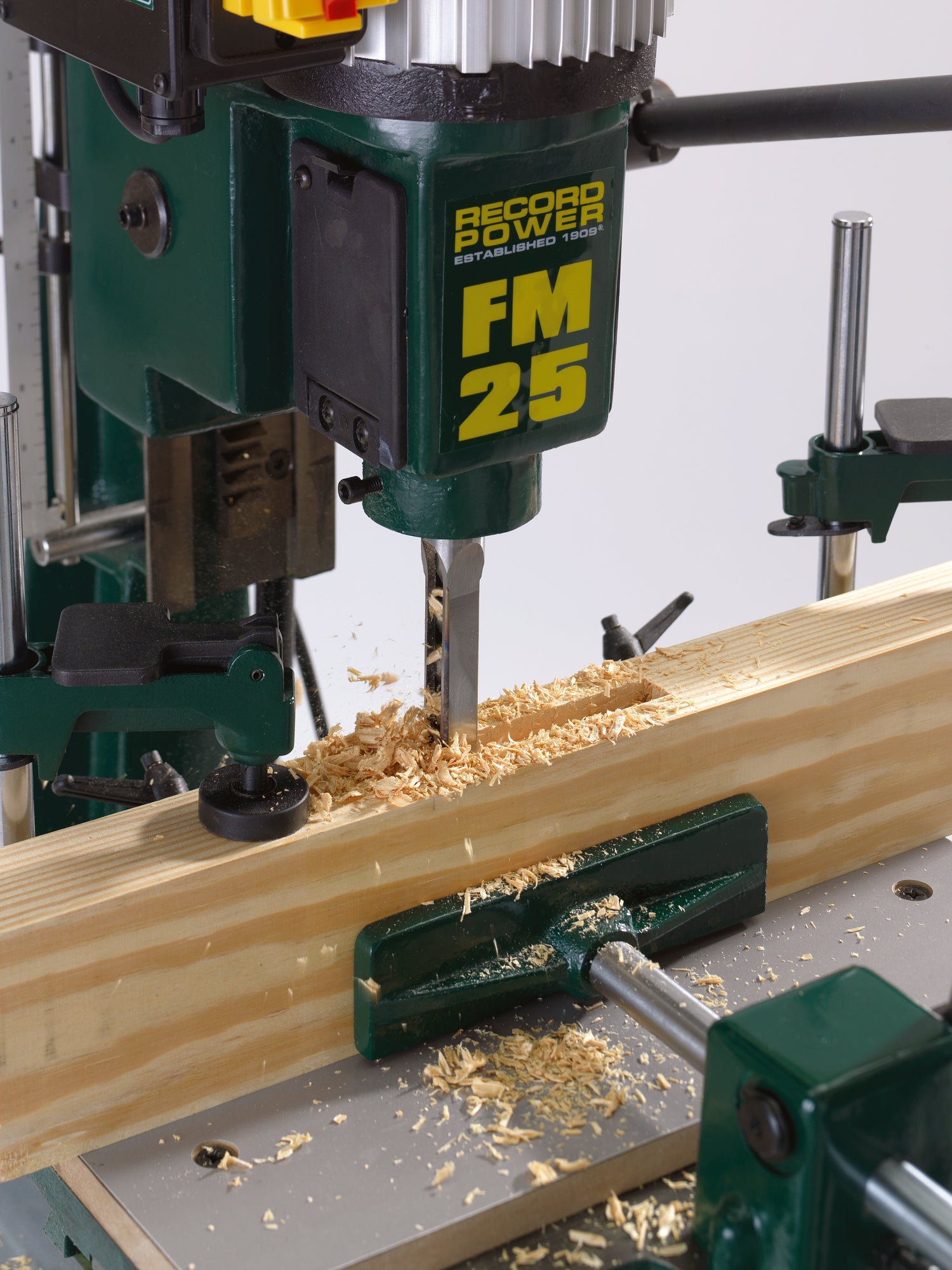

Professional carpenters and furniture manufacturers use the MORTASATRICE BANCO FM25 for creating mortises for tenon joints on doors, windows, and furniture, with precise joints on rails and stiles.
Its place in the Record Power range
The Record Power MORTASATRICE BANCO FM25 is part of the Record Power mortiser range, distributed in Italy by Krollit since 2007. The Record Power range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Record Power catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the MORTASATRICE BANCO FM25 for?
The FM25 bench mortiser is recommended for the following professional profiles:
-
Professional carpentry shops and furniture manufacturers: for creating mortises for tenon joints on doors, windows, and furniture.
-
Window and door manufacturers: for working on rails and stiles with precise joints.
Not suitable for: mortising on metal or plastic (this machine is dedicated to wood; other materials require different processes).
Working capacity
| Max drilling depth |
70 mm |
| Max workpiece depth |
140 mm |

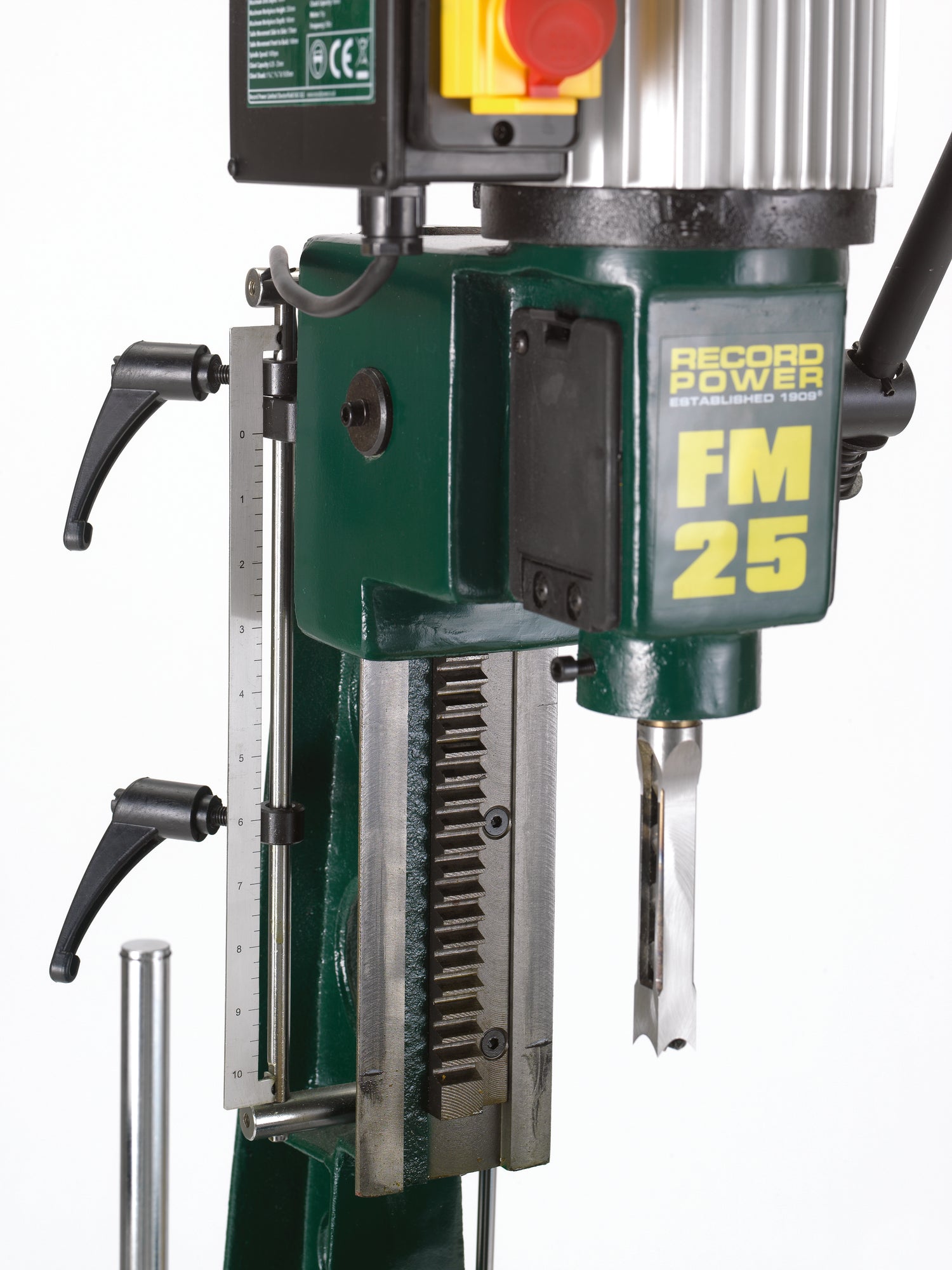

| Chisel capacity |
from 1/4” to 1” (6–25 mm) |
| Vertical stroke |
210 mm |

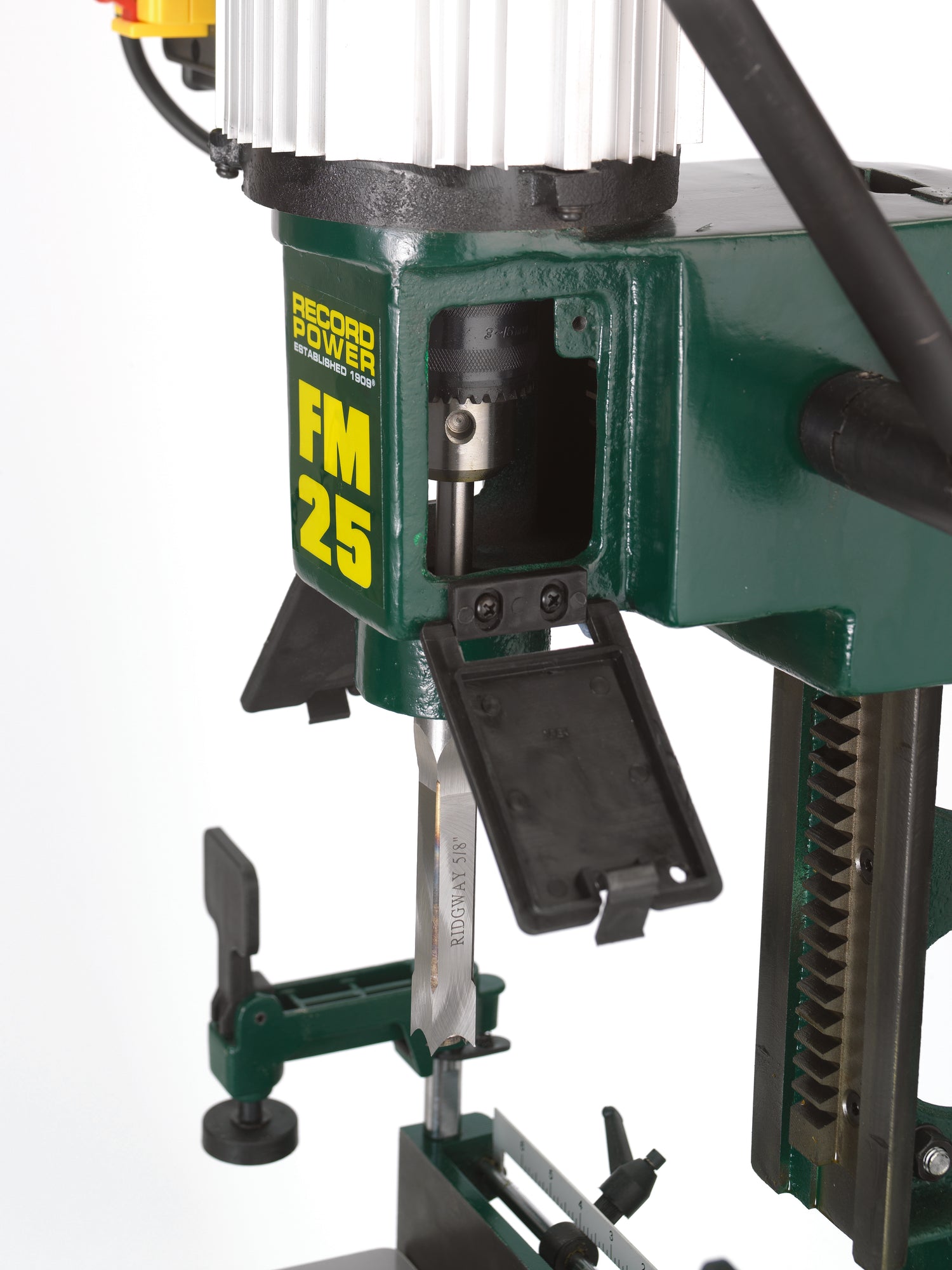

| Chuck capacity |
16 mm |
Table, dimensions and geometry
| Table size |
400 x 150 mm |
| Table height |
240 mm |
| Max workpiece height |
200 mm |

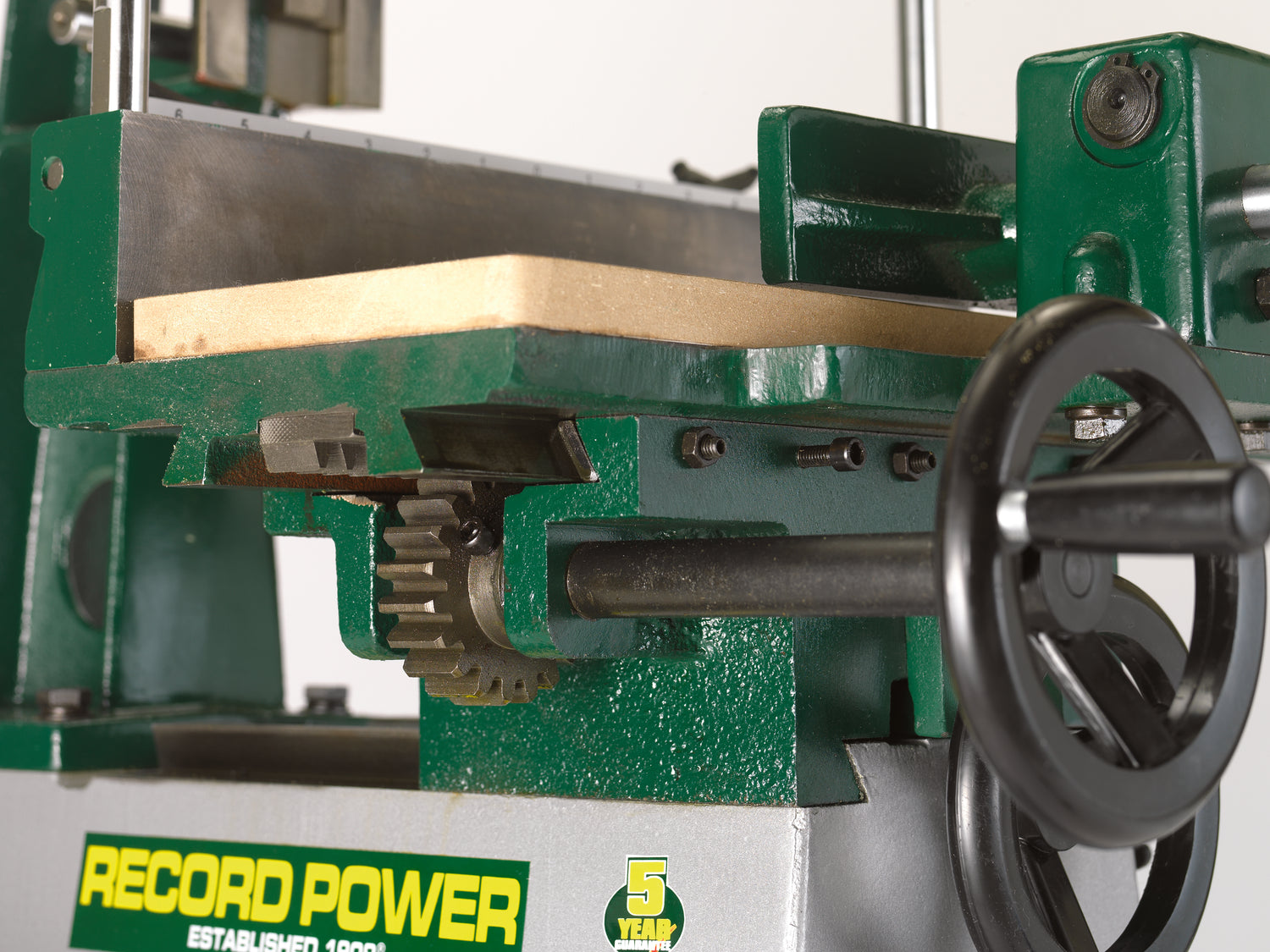

| Table travel right/left |
170 mm |
| Table travel front/back |
140 mm |
| Distance fence–chisel center |
140 mm |
Motor and power supply
| Absorbed current |
4 A |
| Sound power |
< 85 dB(A) |
| Sound pressure |
< 85 dB(A) |
| Motor type |
Induction motor |
| Motor |
230 V / 50 Hz / 750 W / 1 HP |
Other specifications
| Chisel shank diameter |
13/16” and 1 3/16” |
| Machine type |
Bench mortiser |
| Spindle speed |
1400 rpm |
| Construction |
Heavy cast iron |
Frequently Asked Questions
What can the MORTASATRICE BANCO FM25 work with?
It creates rectangular mortises for tenon-mortise joints on solid wood, plywood, and derived panels.
Bernardo HM hollow chisel mortisers allow direct creation of right-angle mortises, without the need for manual finishing. Typical applications: door and window frames, chairs, furniture, and structural assemblies.
What chisel sizes does it support?
Typically chisels from 6 to 25 mm wide. Check the technical table for "drilling capacity" or "mortise capacity."
Bernardo HM chisels are dedicated accessories with cylindrical shanks and hardened hollow tips. Krollit supplies original spare parts compatible with the HM 12, HM 25, and HM 30 series.
Is the head tiltable or rotatable?
Depends on the model: HM 25 has a 180° swivel head, HM 25 TOP has a tiltable head ±22.5° right/left.
The swivel head allows working on large pieces like doors and frames from the back. The tilting head allows angled mortises for mitered assemblies.
What power supply does it require?
HM 12, HM 25, and HM 30 models are equipped with a 0.75 kW single-phase 230 V motor. See "Voltage" in the technical table.
The single-phase power supply makes these mortisers usable even in workshops without a three-phase line. However, the machine requires dedicated differential protection.
How much does the machine weigh?
See the "Weight" data in the technical table. Typically 100 kg (HM 25) or 110 kg (HM 25 TOP).
The high cast iron mass provides rigidity during mortising, reducing vibrations and improving precision. For handling and installation, a hydraulic trolley or the help of a second operator is recommended.
