Güde SG 121 A-SYN is an inverter flux-cored wire welder for hobby-professional use, with adjustable welding current 50-120 A, 0.9 mm cored wire, 230V single-phase power supply and a weight of 6.5 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Welding process: flux-cored wire, no gas cylinder required
- Adjustable welding current: 50-120 A
- Cored wire diameter: 0.9 mm

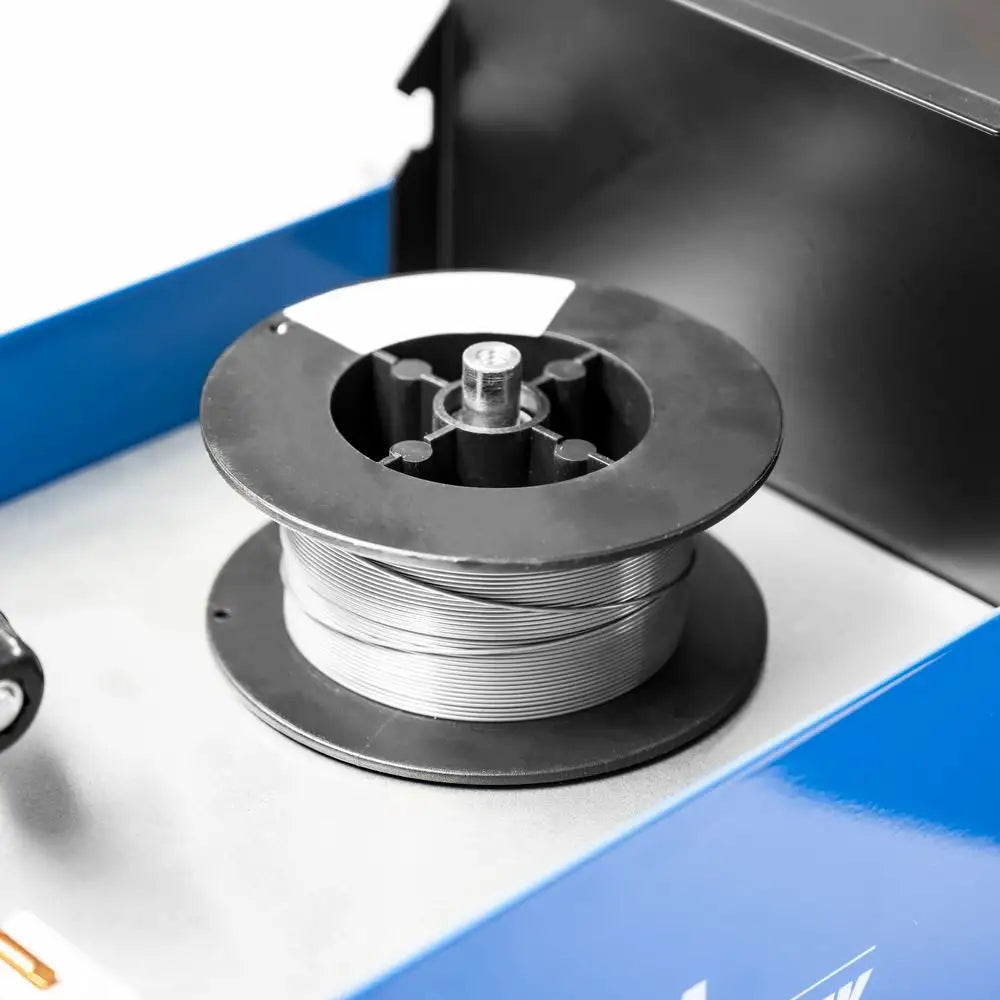

- Wire spool capacity: up to 1 kg

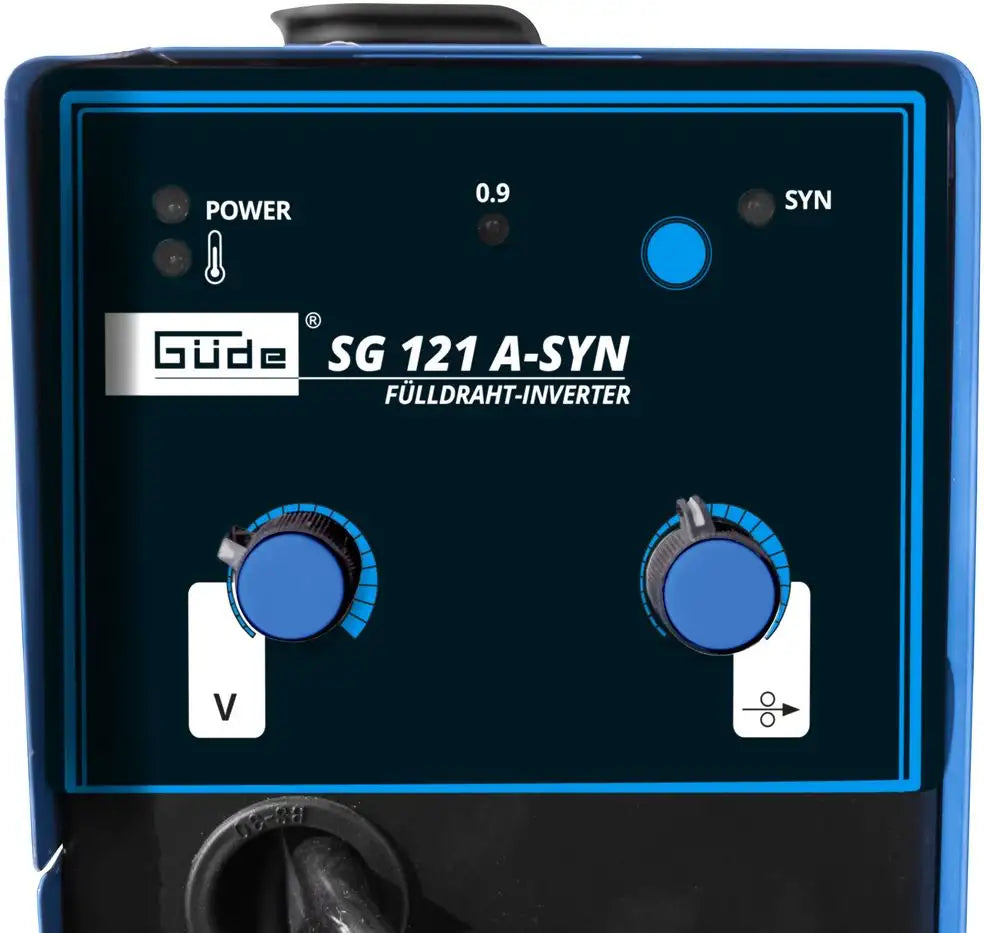

- Synergic wire feed, can also be set to manual
- Power supply: 230V single-phase, 50 Hz
- Maximum power input: 3 kVA
- Open-circuit voltage: 86 V
- Duty cycle at maximum current: 20% at 120 A
- Recommended material thickness: 2-6 mm
- Net weight: 6.5 kg
Who uses the SG 121 A-SYN and for what
The SG 121 A-SYN is used by hobbyists and small workshops for occasional welding on light fabrication, brackets and small metal structures, with recommended thicknesses between 2 and 6 mm. Since it requires no gas cylinder, the flux-cored wire encloses the shielding gas within the wire itself: this also makes it suitable for outdoor work and windy conditions, where a wire welder with external gas would lose effectiveness as the shielding flow gets blown away. The synergic wire feed automatically adjusts speed to the set current, simplifying use even for less experienced welders; manual control remains available for those who prefer direct adjustment.
Its place in the Güde range
Within the Güde inverter welder range, the SG 121 A-SYN is a model dedicated exclusively to flux-cored wire, with synergic feed and current up to 120 A. Flux-cored wire is also available on the GIS 200, a multi-process model covering MIG/MAG, MMA, flux-cored wire and optional TIG up to 200 A: anyone who only needs flux-cored wire, without the other processes, will find the SG 121 A-SYN more compact, easier to handle thanks to automatic synergic control, and specifically designed for gasless use on site or outdoors.
Krollit logistics and support
Shipping in 3-5 working days from Krollit's warehouse in Monteforte Irpino (AV), Italy. Technical support in Italian at +39 0825-1494022.
Who the SG 121 A-SYN is for
| Profile | Fit | Reason |
|---|
| Hobbyist and small workshop | Suitable | Adjustable current 50-120 A and synergic feed cover the most common light fabrication welds, 2-6 mm thickness |
| On-site or outdoor work | Suitable | Flux-cored wire needs no gas cylinder and can be used even in windy conditions |
| Continuous or industrial production | Not suitable | 20% duty cycle at 120 A requires frequent cooling pauses, incompatible with long production cycles |
Not suitable for: MIG/MAG welding with external shielding gas or MMA stick electrode welding, processes not supported by the SG 121 A-SYN, dedicated exclusively to flux-cored wire.
Power supply and mains
| Mains voltage | 230 V |
| Frequency | 50 Hz |
| Protection class | I |
| Protection rating (IP) | 21S |
| Insulation class | H |
| No-load power | 52 W |
| Efficiency | 81% |
| Maximum power input at 230V | 3 kVA |
| Maximum current drawn from mains | 19.2 A |
| Slow-blow fuse | 16 A |
Flux-cored wire welding
| Open-circuit voltage | 86 V |
| Current adjustment range | 50-120 A |
| Duty cycle (ED) at maximum current 230V | 120 A / 20% |
| Recommended material thickness | 2-6 mm |
| Cored wire diameter | 0.9 mm |
| Wire spool capacity | up to 1 kg |
| Wire feed | Automatic synergic or manual |
Dimensions and weight
| Dimensions (L x W x H) | 330 x 140 x 240 mm |
| Packaging dimensions (L x W x H) | 410 x 240 x 300 mm |
| Net weight | 6.5 kg |
| Gross weight | 7.6 kg |

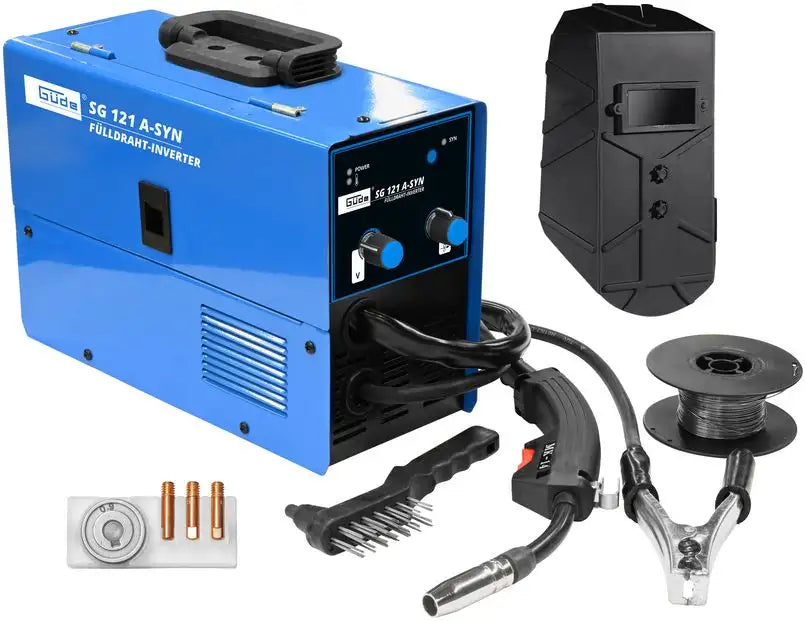

Standard equipment
- Torch with directly connected hose package
- Earth cable with earth clamp
- Brush hammer and welding shield
- Filler wire included, 0.9 mm / 0.45 kg

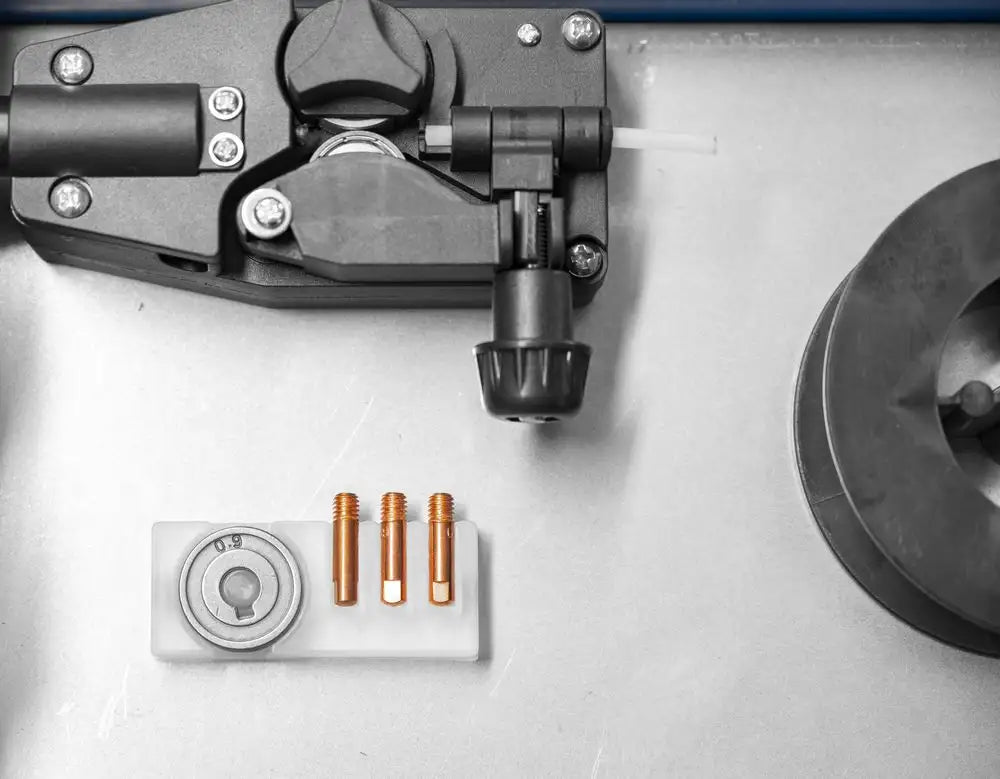

- Spare nozzles, 3 x 0.9 mm
- Spare feed roll, 0.9 mm
- Forced cooling fan
- Thermal overload protection
Professional applications
Outdoor and on-site welding
Requiring no gas cylinder, the SG 121 A-SYN can be used in windy conditions without the shielding flow being blown away, a real advantage over MIG/MAG welding with external gas for assembly and site work.
Workshop welding
With adjustable current 50-120 A and recommended thicknesses of 2-6 mm, the SG 121 A-SYN covers typical small-workshop jobs: light fabrication repairs and small metal structures, with synergic wire feed simplifying setup.
Comparison with Güde GIS 200
| Parameter | SG 121 A-SYN | GIS 200 | When to choose GIS 200 |
|---|
| Supported processes | Flux-cored wire only | MIG/MAG, MMA, flux-cored wire, optional TIG | If flexibility across multiple welding processes is needed |
| Adjustable current | 50-120 A | 10-200 A | For greater thicknesses or heavier work |
| Wire feed | Automatic synergic or manual | Manual wire adjustment | If automatic synergic control is not needed |
| Net weight | 6.5 kg | Higher (fitted with a cylinder trolley) | If maximum portability is not required |
Güde optional accessories
| Code | Description | Note |
|---|
| 16921 | Automatic welding helmet GSH-TC-2 | Auto-darkening |
| 16922 | Automatic welding helmet GSH-K | Auto-darkening |
| 16924 | Automatic welding helmet GSH 180-TC-2 | Auto-darkening |
| 16975 | Welding gloves, 5-finger, model 6120 | Hand protection |
| 24843 | Welding & nozzle protection spray | Protects nozzle and torch from spatter |
Frequently asked questions
What thickness can I weld with the SG 121 A-SYN?
The recommended thickness is 2-6 mm, with 0.9 mm flux-cored wire and adjustable current 50-120 A.
The synergic wire feed automatically matches wire speed to the set current, simplifying setup even across variable thicknesses within the recommended range; manual mode remains available for those who prefer to set parameters by hand.
Does the SG 121 A-SYN work on a standard household socket?
Yes, the SG 121 A-SYN runs on 230V single-phase with a 16 A slow-blow fuse, compatible with a standard household or small workshop electrical system.
Maximum power input is 3 kVA, with a maximum current drawn from mains of 19.2 A: before continuous use at maximum welding current, check that the available electrical line can support this load.
What is included with the SG 121 A-SYN?
Standard equipment includes a torch with directly connected hose package, an earth cable with earth clamp, a brush hammer, a welding shield, 0.9 mm filler wire (0.45 kg), 3 spare 0.9 mm nozzles and a spare 0.9 mm feed roll.
Since no gas cylinder is required, the machine is ready for immediate use once the torch is connected, with no additional shielding-gas components needed.
What's the difference between the SG 121 A-SYN and the GIS 200?
The SG 121 A-SYN works only with flux-cored wire, with automatic synergic feed, up to 120 A. The GIS 200 is multi-process: MIG/MAG, MMA, flux-cored wire and optional TIG, up to 200 A.
The choice depends on the type of work: those welding exclusively with flux-cored wire, especially outdoors or on site, will find the SG 121 A-SYN more targeted and easier to use, while those who also need MIG/MAG or MMA should choose the GIS 200.
What maintenance does a flux-cored wire welder like the SG 121 A-SYN need?
Routine maintenance involves periodic checks of the torch, earth cable and feed roll, plus cleaning the air intakes of the forced cooling fan.
Nozzles and the feed roll are wear items: genuine Güde spare parts are available through Krollit, official distributor since 2007, with technical support in Italian at +39 0825-1494022.
Can I use the SG 121 A-SYN outdoors in windy conditions?
Yes, this is one of the strengths of flux-cored wire: the shielding gas is enclosed within the wire itself, so it is not blown away by wind as happens with MIG/MAG welding using external gas.
This makes it suitable for direct work on assembly jobs and outdoor sites, where an external-gas welder would lose shielding effectiveness on the weld pool.
