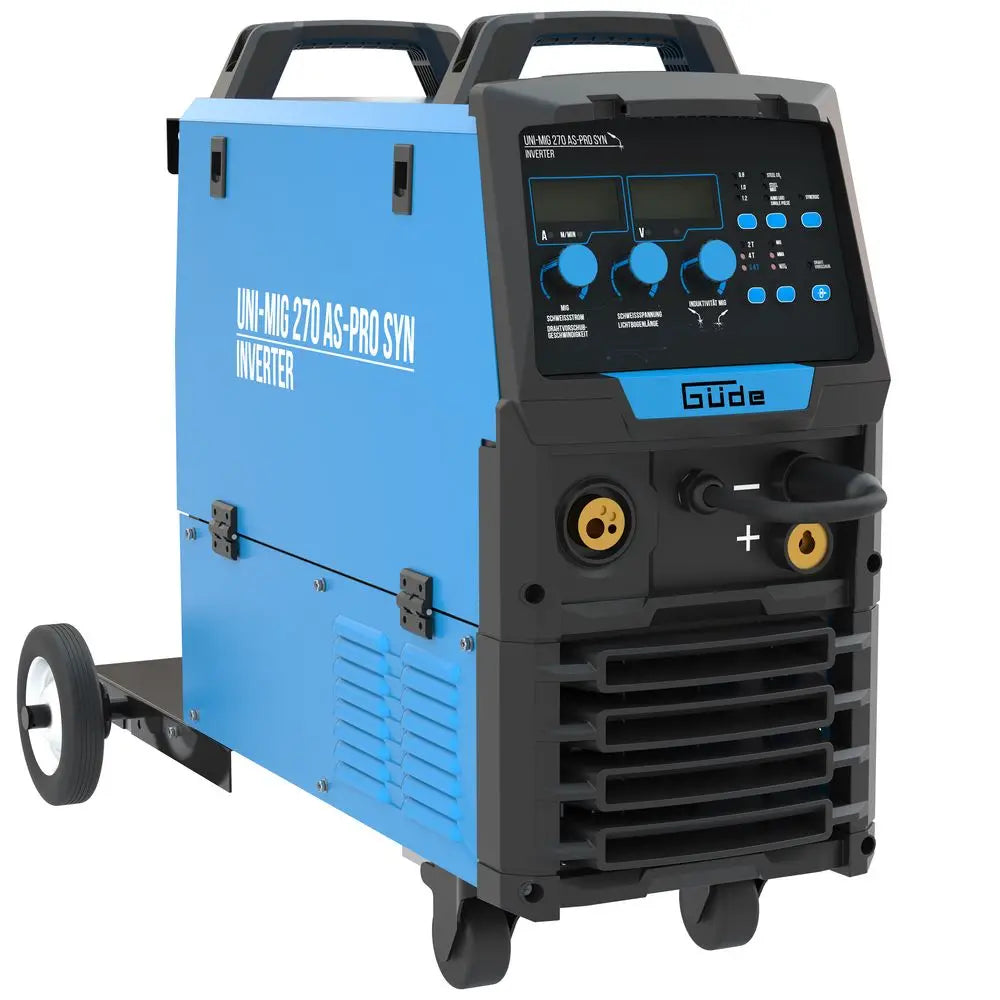

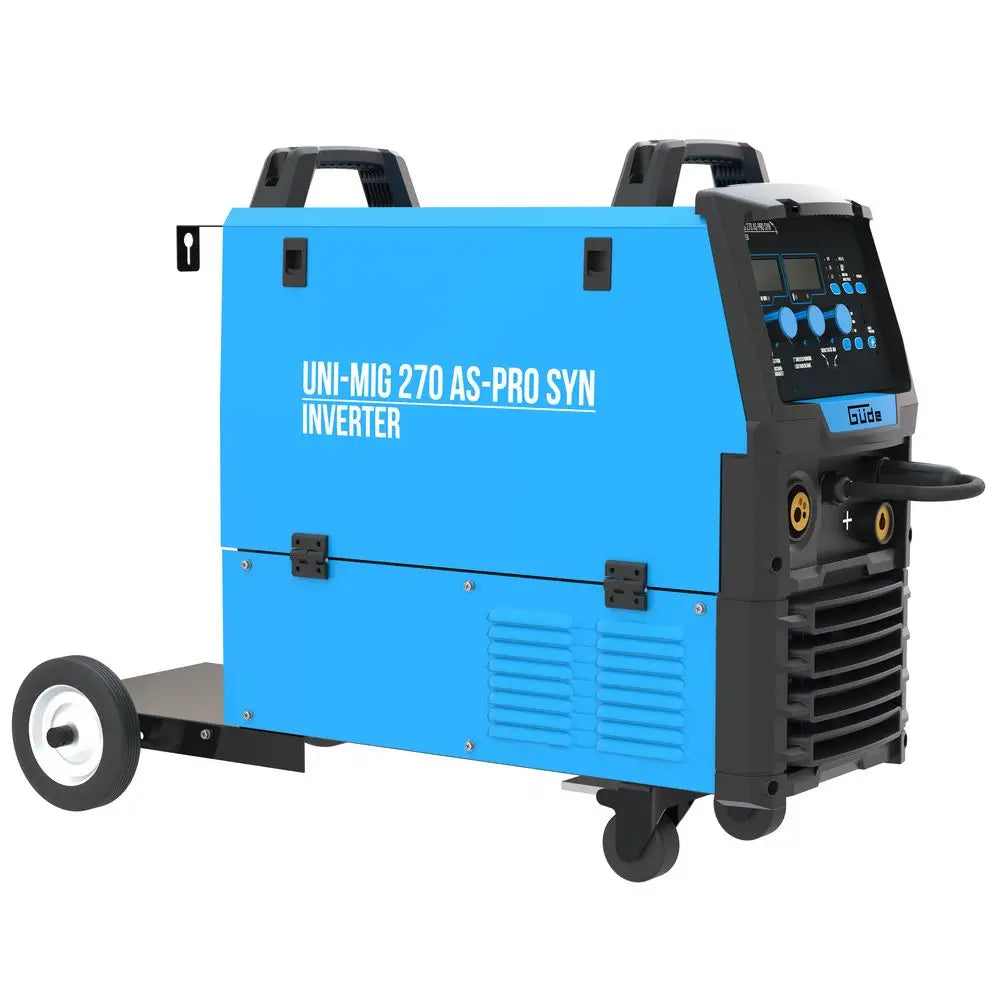

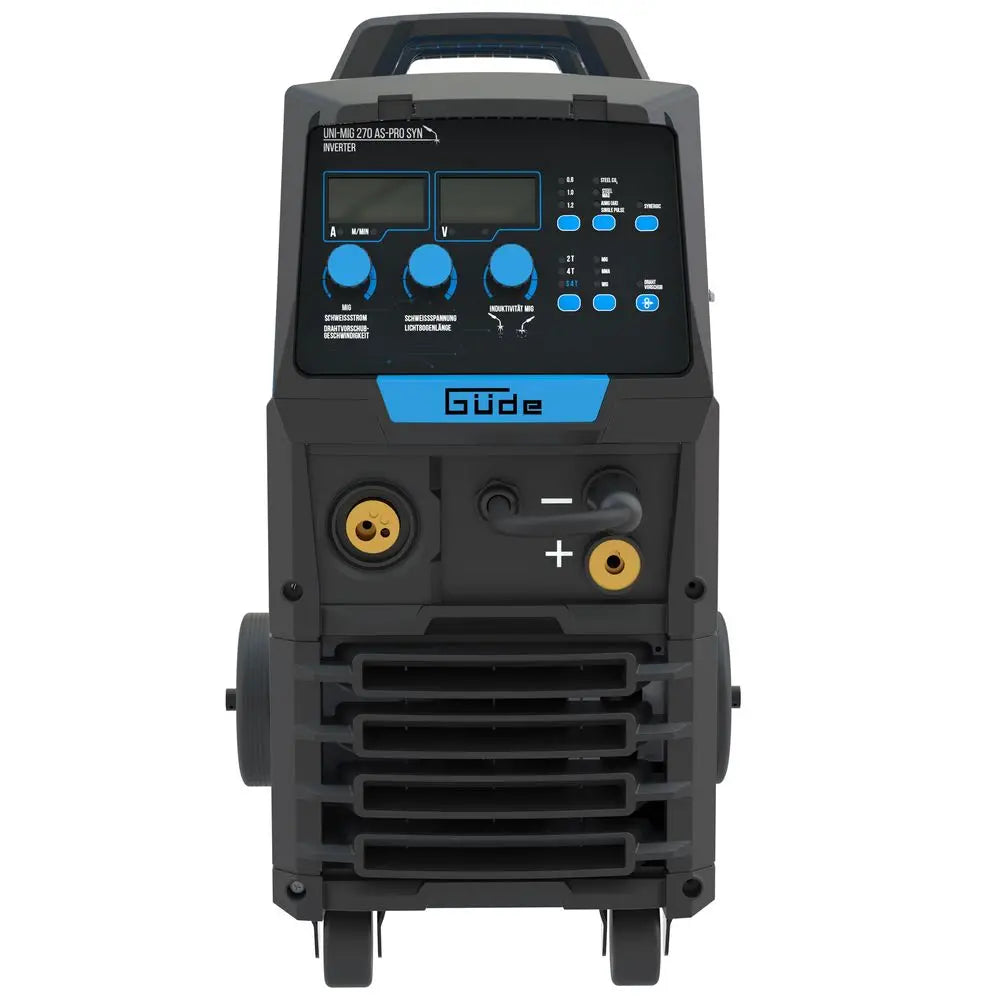

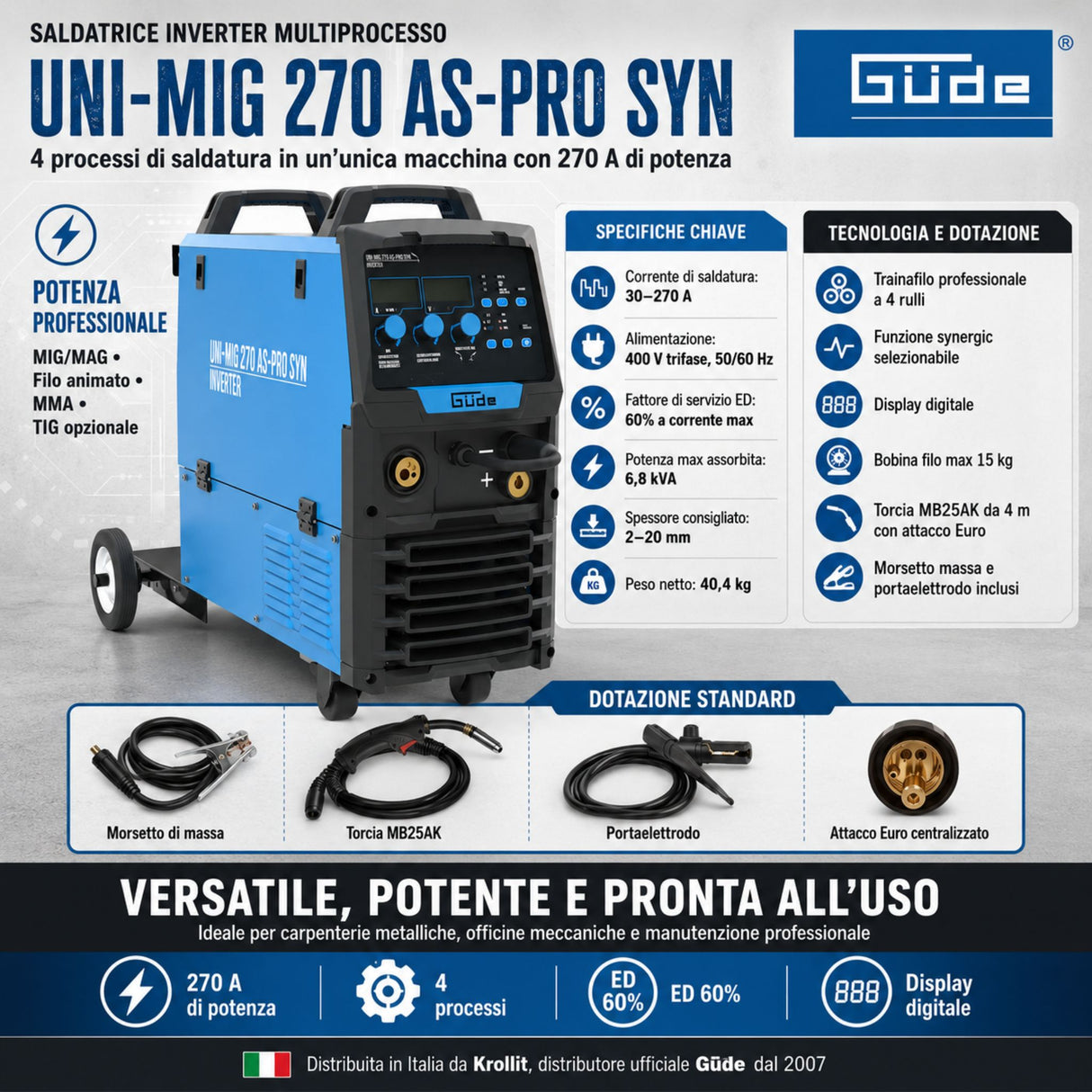

Güde Uni-Mig 270 AS-Pro SYN is a multi-process inverter welder for professional use, with adjustable welding current 30–270 A, three-phase 400 V supply, 4-roller wire feed with synergic function and 60% duty cycle at maximum current. It handles MIG/MAG, flux-cored, electrode (MMA) and TIG (with optional kit). Distributed in Italy by Krollit, official Güde distributor since 2007.
- Processes: MIG/MAG, flux-cored, electrode (MMA), TIG optional
- Welding current: 30–270 A
- Supply: 400 V three-phase, 50/60 Hz
- Max. input power: 6.8 kVA
- Duty cycle at max. current: 60%
- Wire feed: 4 rollers, continuous adjustment, selectable synergic function
- Recommended material thickness: 2–20 mm
- Wire diameter (steel): 0.8–1.0 (1.2) mm
- Max. wire spool: 15 kg
- Torch: MB25AK 4 m with central Euro connector
- Digital display
- Net weight: 40.4 kg
Who uses the Uni-Mig 270 AS-Pro SYN and what for
A machine designed for metal workshops, steel fabricators and locksmiths working steel in medium and heavy sections. Welding capacity up to 20 mm and 270 A of current make it suitable for load-bearing structures, frames, gates, railings and repairs on agricultural and industrial machinery. Switching from MIG/MAG to MMA electrode, up to TIG with the optional kit, covers jobs where several processes are needed on the same workpiece. The HOT-START, ARC-FORCE and ANTI-STICK functions in electrode mode help less experienced welders achieve stable striking and arc.
Synergic technology and 4-roller feed

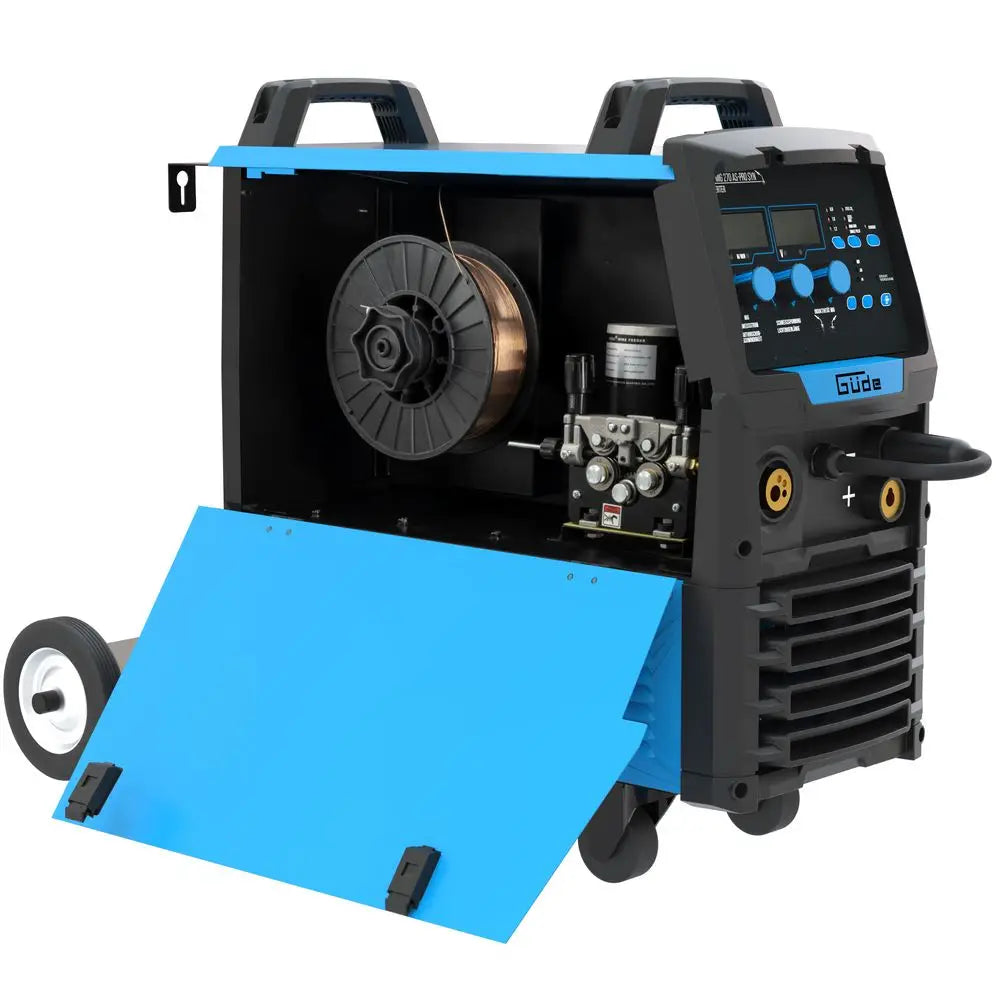

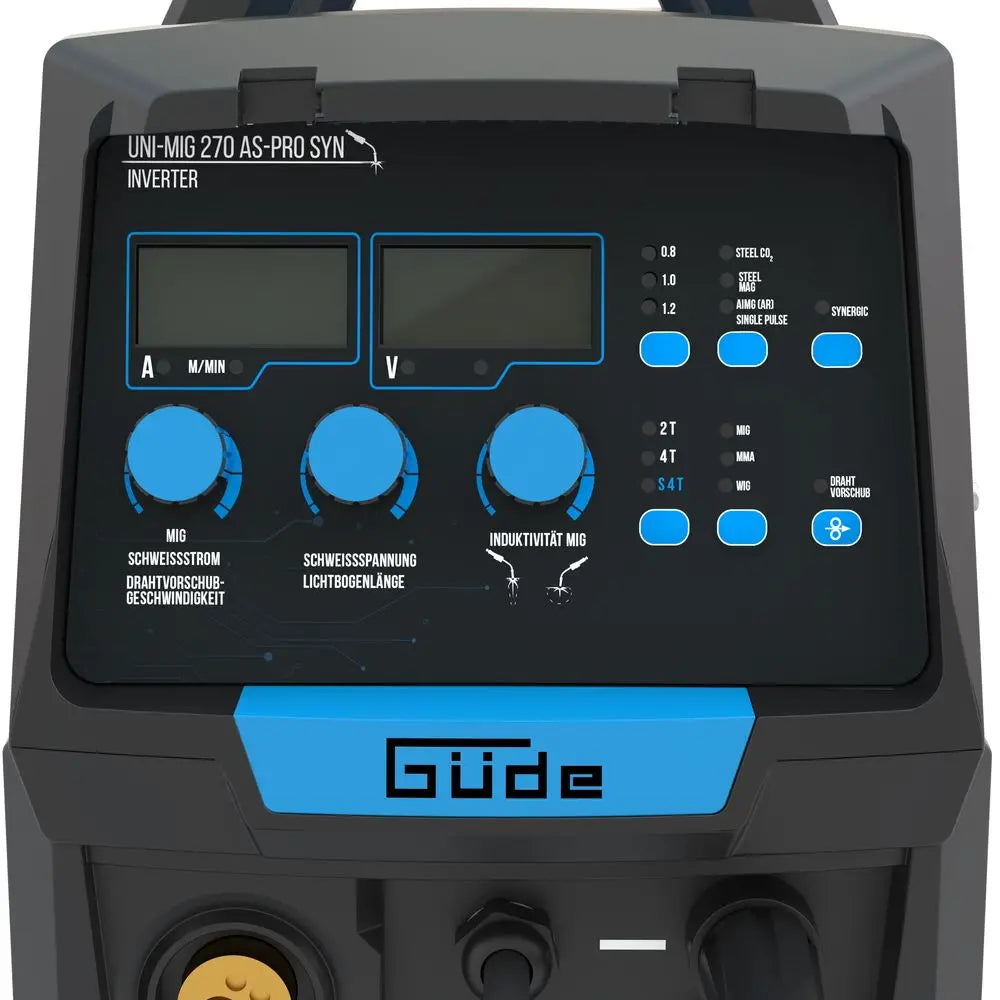

The 4-roller wire feed with continuous adjustment keeps feeding constant even with 15 kg spools and wires of different diameters, reducing the jams typical of 2-roller systems. The selectable synergic function automatically sets voltage and wire speed according to material and thickness, simplifying setup in MIG/MAG. The digital display shows the set values for immediate parameter control.
Krollit logistics and support
Shipping 5–9 working days (7 days for southern regions). Technical support in Italian available for the entire product life. Original Güde spare parts available from the Krollit warehouse, Monteforte Irpino (AV). For information: +39 0825-1494022.
Who the Uni-Mig 270 AS-Pro SYN is for
| Profile | Suitability | Reason |
|---|
| Steel fabrication and locksmithing | Suitable | 270 A and thickness up to 20 mm cover load-bearing structures and heavy profiles |
| Multi-process metal workshop | Suitable | MIG/MAG, MMA and optional TIG in one machine, 60% duty cycle for long cycles |
| Agricultural/industrial machinery maintenance | Suitable | 4-roller feed and spools up to 15 kg for repeated steel work |
| Hobbyist with single-phase domestic supply | Not suitable | Supply exclusively 400 V three-phase, cannot be connected to 230 V single-phase |
Not suitable for: users without a 400 V three-phase supply in the workshop, and for welding aluminium or light alloys without the optional TIG kit and dedicated gas.
General technical specifications
| Mains voltage | 400 V |
| Frequency | 50/60 Hz |
| Protection class | I |
| Protection rating (IP) | 21S |
| Insulation class | H |
| No-load power | 20 W |
| Efficiency | 89% |
| Max. mains power (400V) | 6.8 kVA |
| Fuse, slow-blow | 16 A |
| No-load voltage | 63 V |
| Power cable length | 2 m |
Welding capacity
| Max. welding current (400V) | 270 A |
| Welding current range | 30–270 A |
| Duty cycle at max. current | 60% |
| Recommended material thickness | 2–20 mm |
| Wire diameter (flux-cored) | 0.9 mm |
| Wire diameter (steel) | 0.8–1.0 (1.2) mm |
| Max. wire spool | 15 kg |
Parameters per process
| Process | Current range | Functions |
|---|
| MMA (electrode) | 30–270 A | HOT-START, ARC-FORCE, ANTI-STICK; electrodes 1.0–5.0 mm |
| MIG/MAG | 40–270 A | 4-roller feed, selectable synergic |
| TIG (optional) | 30–270 A | Requires kit 41692 |
Dimensions and weight
| Dimensions (LxWxH) | 1,030 x 450 x 650 mm |
| Packaging dimensions (LxWxH) | 700 x 400 x 635 mm |
| Net weight | 40.4 kg |
| Gross weight | 44.5 kg |
| GTIN | 4015671689153 |
| Article number | 20127 |

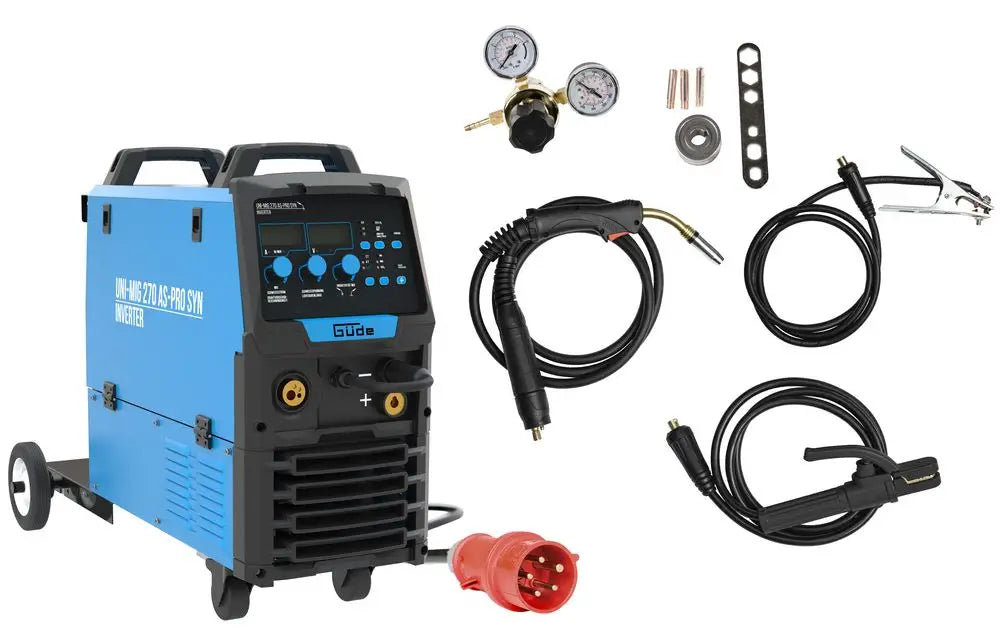

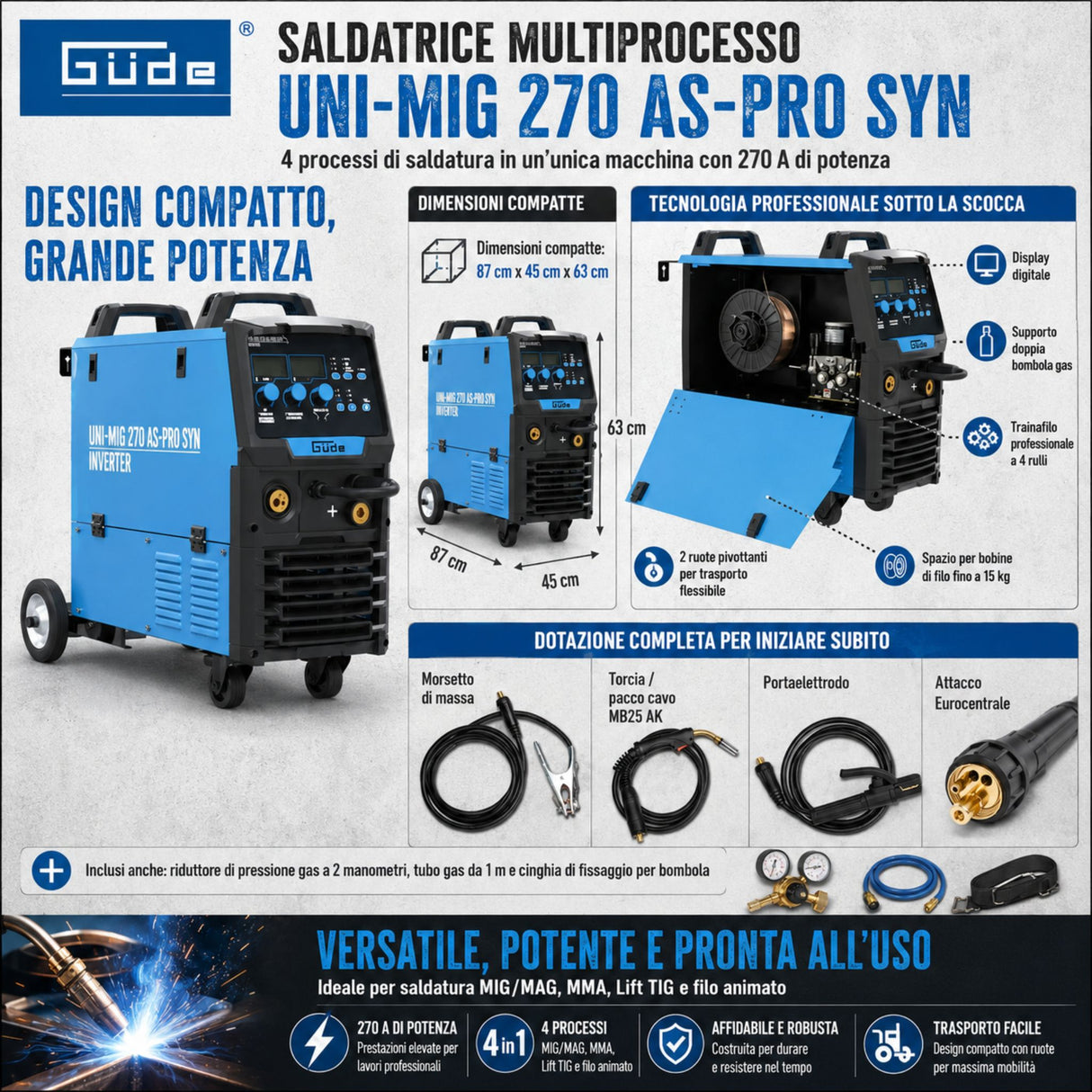

Standard equipment

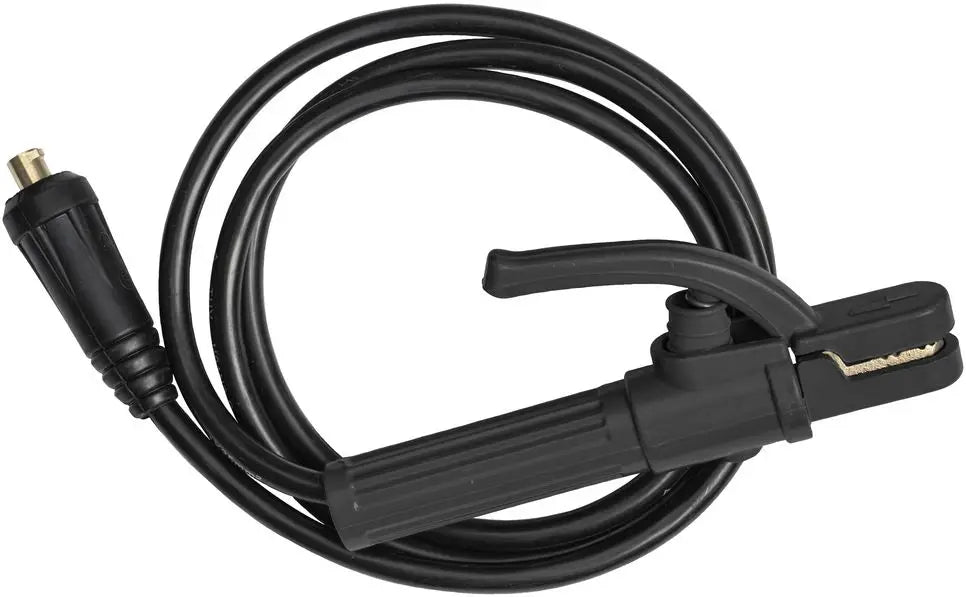

- 300 A electrode holder with 2.5 m cable and plug connector

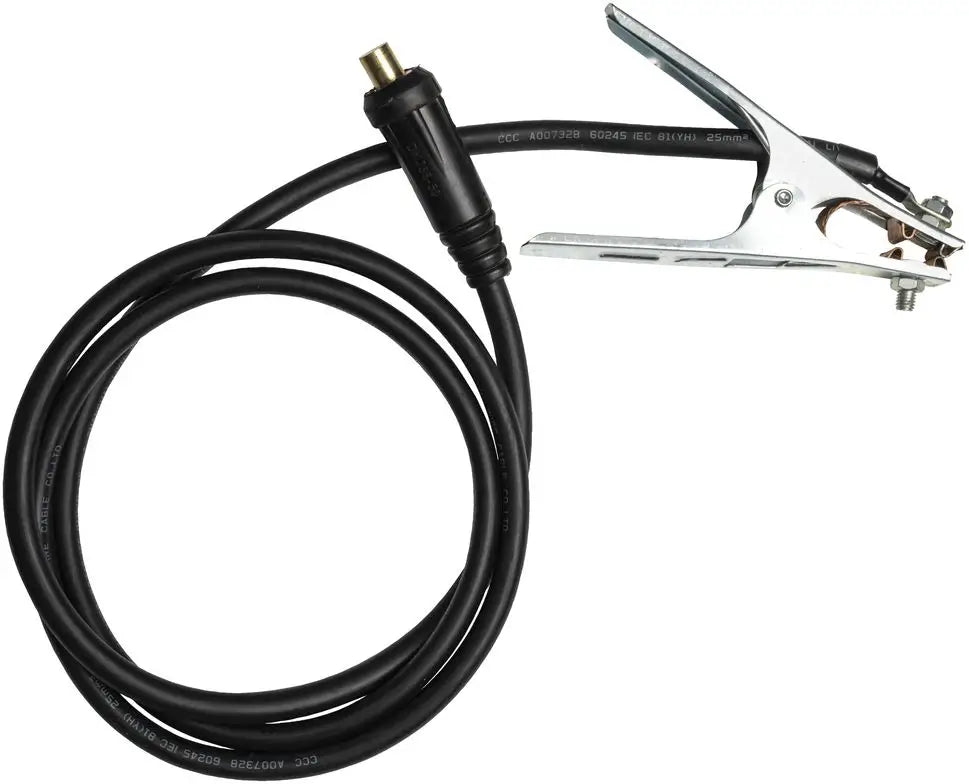

- 300 A earth cable, 2.5 m, with earth clamp and plug connector

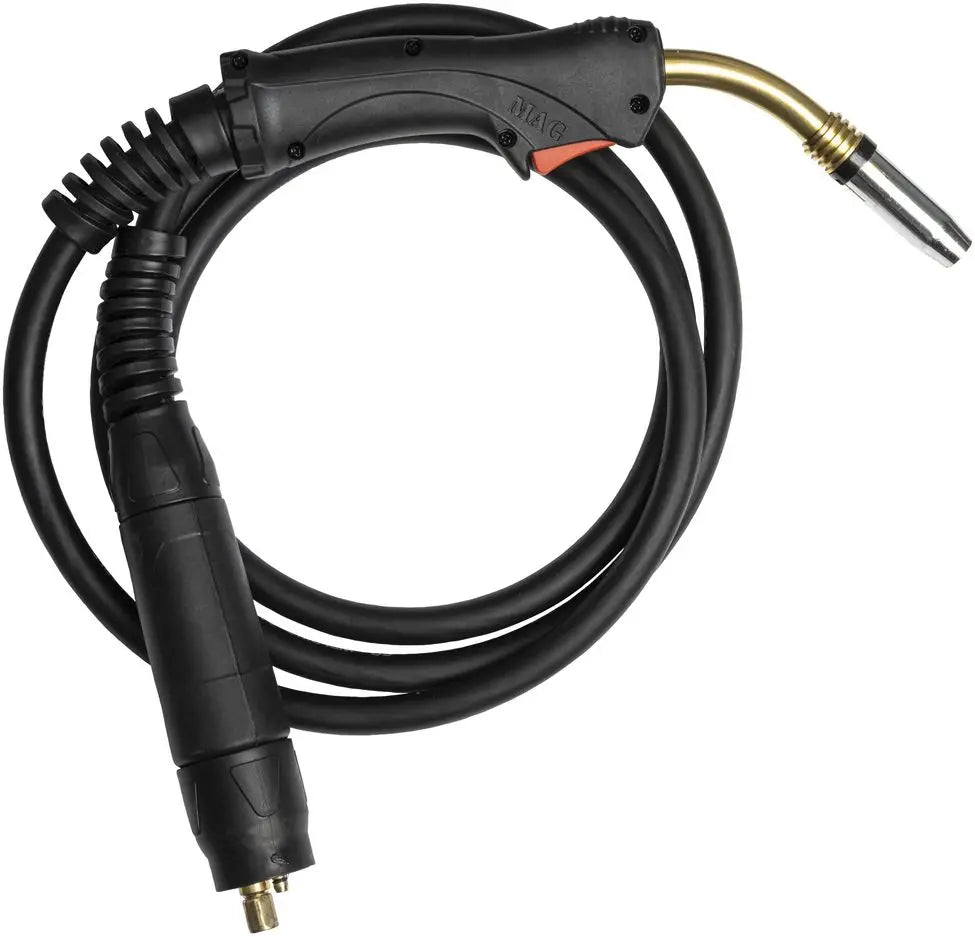

- MB25AK torch 4 m with central Euro connector
- Gas pressure regulator with 2 gauges
- Gas hose 1 m with hose clamps
- Securing strap for gas cylinder max. 11 l
- Digital display
- Powder-coated steel sheet housing
Optional accessories
| Code | Description |
|---|
| 18786 | Basket spool adapter for 15 kg spools |
| 41692 | Complete TIG welding kit |
| 16926 | Automatic welding helmet GSH-3S-VL-TC-2 |
| 20105 | Mobile welding table 915 Plus |
| 16975 | 5-finger welding gloves 6120 |
Frequently asked questions
Can the Uni-Mig 270 AS-Pro SYN be connected to a 230 V single-phase socket?
No. The machine is powered exclusively by 400 V three-phase, with a 16 A slow-blow fuse and max. input power of 6.8 kVA. It therefore requires a three-phase line in the workshop.
Before purchase it is worth checking the availability of a three-phase supply and the panel sizing. For single-phase domestic use there are dedicated lower-power Güde models; our technical service can indicate the right alternative at +39 0825-1494022.
Which welding processes are ready to use at purchase?
Ready as standard are MIG/MAG, flux-cored and electrode (MMA), with a current range up to 270 A. TIG is possible only by adding the optional kit 41692.
In MMA mode the machine handles electrodes from 1.0 to 5.0 mm with HOT-START, ARC-FORCE and ANTI-STICK functions for striking and arc stability. In MIG/MAG the 4-roller feed and synergic function simplify setup on steel up to 1.2 mm wire diameter.
What steel thickness can it weld?
Recommended material thickness is 2–20 mm, with current adjustable from 30 to 270 A. It therefore covers medium sheets and structural profiles in one machine.
The 60% duty cycle at maximum current allows longer work cycles without immediate thermal shutdown, useful on fabrications and load-bearing structures where welds are long and repeated.
Which wire spools does it accept and is an adapter needed?
It accepts basket and plastic spools up to 15 kg, with steel wire from 0.8 to 1.0 (1.2) mm and flux-cored wire of 0.9 mm. For 15 kg basket spools the optional adapter 18786 is available.
The 4-roller feed, compared with 2-roller systems, keeps feeding more constant with heavy spools, reducing slippage and jams during continuous work.
How do service and spare parts work in Italy?
Technical support is in Italian for the entire product life, and original Güde spare parts are available from the Krollit warehouse in Monteforte Irpino (AV). Support: +39 0825-1494022.
The powder-coated steel sheet housing and standardised plug connectors simplify maintenance and cable replacement. MB25AK torch and central Euro connector use widely available consumables (nozzles, contact tips).
