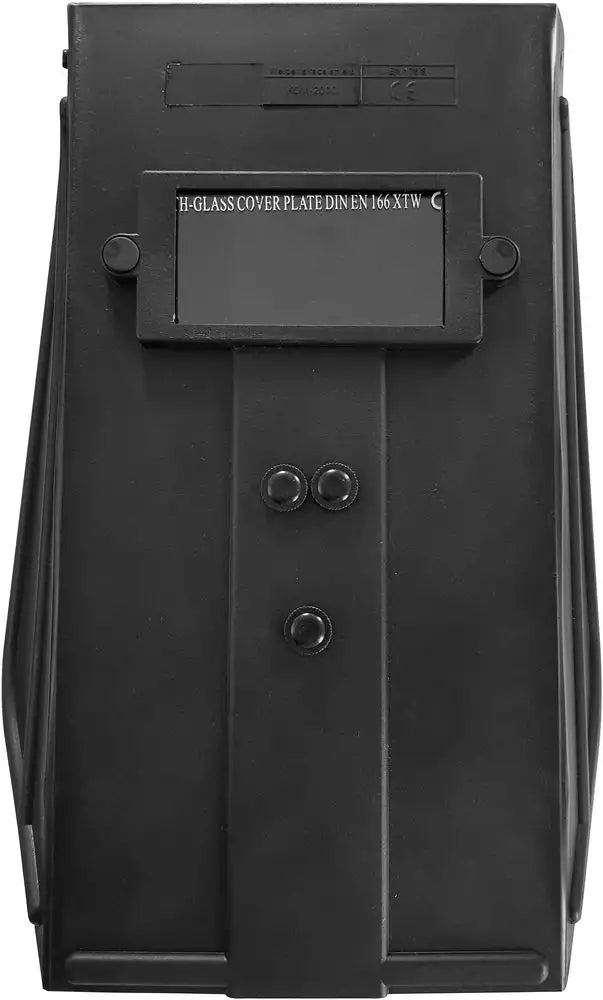

Güde is a hand-held welding shield with fixed DIN 12 protective glass, for electrode and inert gas welding work up to 300 A, weighing 0.3 kg. Germany, since 1979. Distributed in Italy by Krollit, official Güde distributor since 2007.
- Protective glass: fixed darkening level DIN 12
- Field of view: approx. 90 x 45 mm
- Net weight: 0.3 kg
- Large plastic handle
- Suitable for electrode welding (MMA) and inert gas welding (TIG/MIG-MAG) up to 300 A
- Type tested
Who uses the DIN 12 shield and for what
This hand-held welding shield is designed for those seeking simple, sturdy and affordable protection for electrode and inert gas welding work up to 300 A, without needing electronic adjustments or a variable darkening level. The large handle allows a firm grip even with work gloves, while the contained weight of 0.3 kg reduces arm fatigue during prolonged hand use. It's also a suitable solution as a backup device in the workshop, or for those doing occasional welding on a single process with stable current parameters.
Its place in the Güde range
Unlike Güde's automatic welding helmets (GSH-TC-2, GSH-K, GSH 180-TC-2, GSH-3S-VL-TC-2), all fitted with an adjustable auto-darkening filter and headband for hands-free use, this shield has a fixed DIN 12 darkening glass and is held by hand via the plastic handle. It's the most essential and affordable solution in Güde's welding protection range: those needing free hands during work or the ability to adjust darkening by process will find the automatic helmets more suitable; those looking for a simple, lightweight device with no electronic components will find this manual shield a reliable option.
Krollit logistics and support
Shipping in 3-5 working days from Krollit's warehouse in Monteforte Irpino (AV), Italy. Technical support in Italian at +39 0825-1494022.
Who the DIN 12 shield is for
| Profile | Fit | Reason |
|---|
| Hobbyist or small workshop with occasional welding | Suitable | Fixed DIN 12 darkening level covers most electrode and inert gas welding up to 300 A without needing adjustments |
| Those wanting an affordable, electronics-free backup device | Suitable | No battery or electronic component to maintain, contained weight of 0.3 kg |
| Those needing hands-free operation while welding | Not suitable | The shield is held by hand; for work requiring both hands free, automatic helmets with a headband are more suitable |
Not suitable for: those needing hands-free operation while working or a darkening level adjustable by process, needs covered by Güde's automatic welding helmets.
Technical specifications
| Protective glass | Fixed darkening level DIN 12 |
| Field of view (L x W) | approx. 90 x 45 mm |
| Maximum operating current | 300 A (electrode and inert gas welding) |
Dimensions and weight
| Dimensions (L x W x H) | 400 x 235 x 90 mm |
| Packaging dimensions (L x W x H) | 405 x 160 x 95 mm |
| Net weight | 0.3 kg |
| Gross weight | 0.5 kg |
Standard equipment
- Hand-held welding shield with DIN 12 protective glass
- Plastic handle
Güde optional accessories
| Code | Description | Note |
|---|
| 16936 | Spare glass set | Wear or breakage component |
Frequently asked questions
Which welding processes is this shield suitable for?
It's suitable for electrode welding (MMA) and inert gas welding (TIG/MIG-MAG), up to a maximum current of 300 A.
The darkening level is fixed at DIN 12, an intermediate value suited to most common welding currents in these two processes; it's not adjustable by process or specific current.
What's the difference between this shield and an automatic welding helmet?
This shield has a fixed DIN 12 darkening protective glass and is held by hand, while Güde's automatic helmets have an adjustable auto-darkening filter and a headband for hands-free use.
The choice depends on the need: for work requiring both hands free or alternating between different processes, an automatic helmet is more suitable; for simple, affordable use with no electronic components, this manual shield is a reliable solution.
Can the protective glass be replaced?
Yes, the protective glass can be replaced using the spare glass set, article code 16936, available as an optional accessory.
Replacement is useful in case of scratches, breakage or wear on the glass that compromise visibility during work.
How much does the shield weigh and how comfortable is it for prolonged use?
Net weight is 0.3 kg, a contained value that reduces arm fatigue during prolonged hand use.
The large plastic handle offers a firm grip even with work gloves, useful for those using it over extended work periods.
Does this shield need a battery to work?
No, this shield has a fixed darkening protective glass and requires no electrical power or battery.
This makes it a simple solution with no electronic maintenance, unlike automatic helmets, which require solar or battery power for the filter to function.
