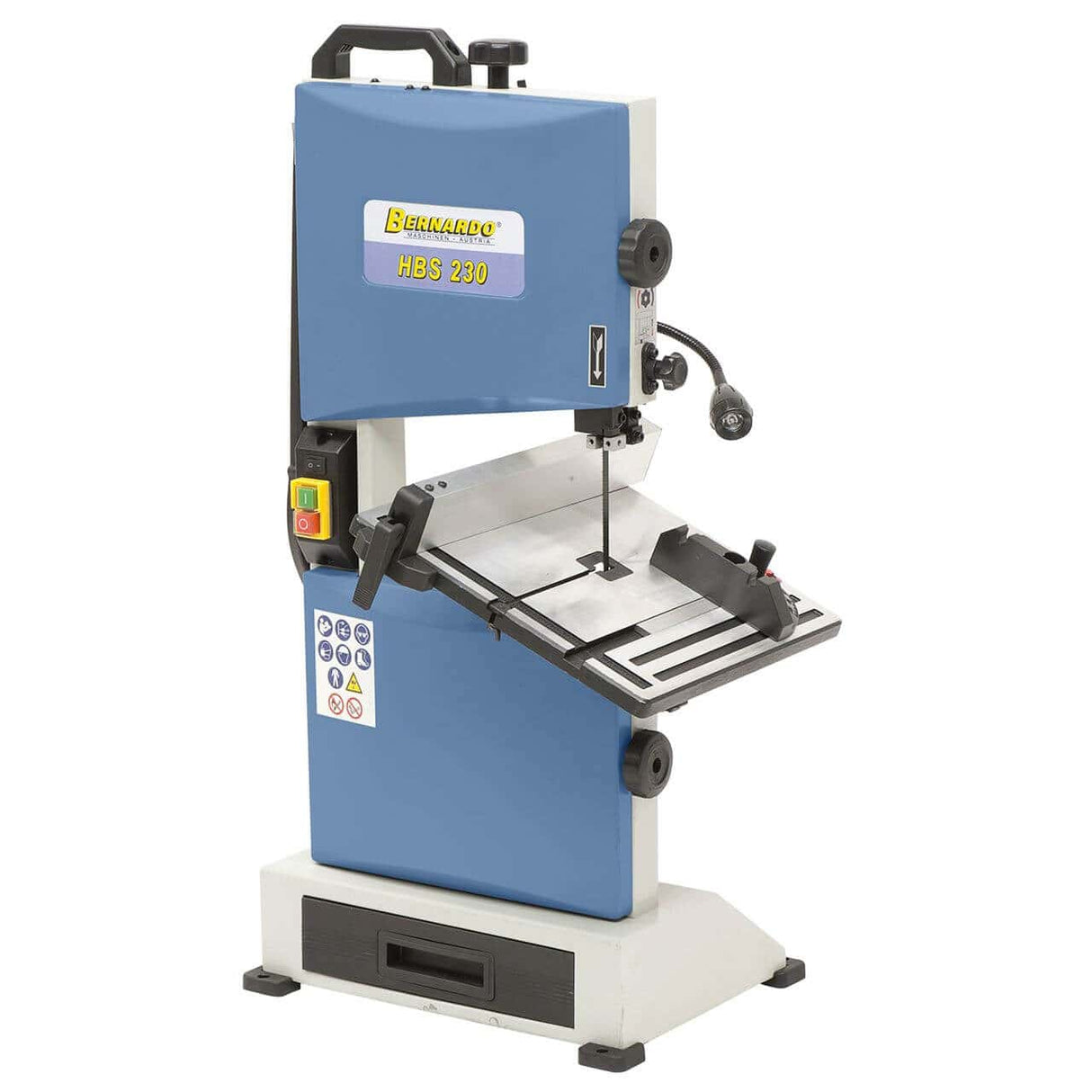

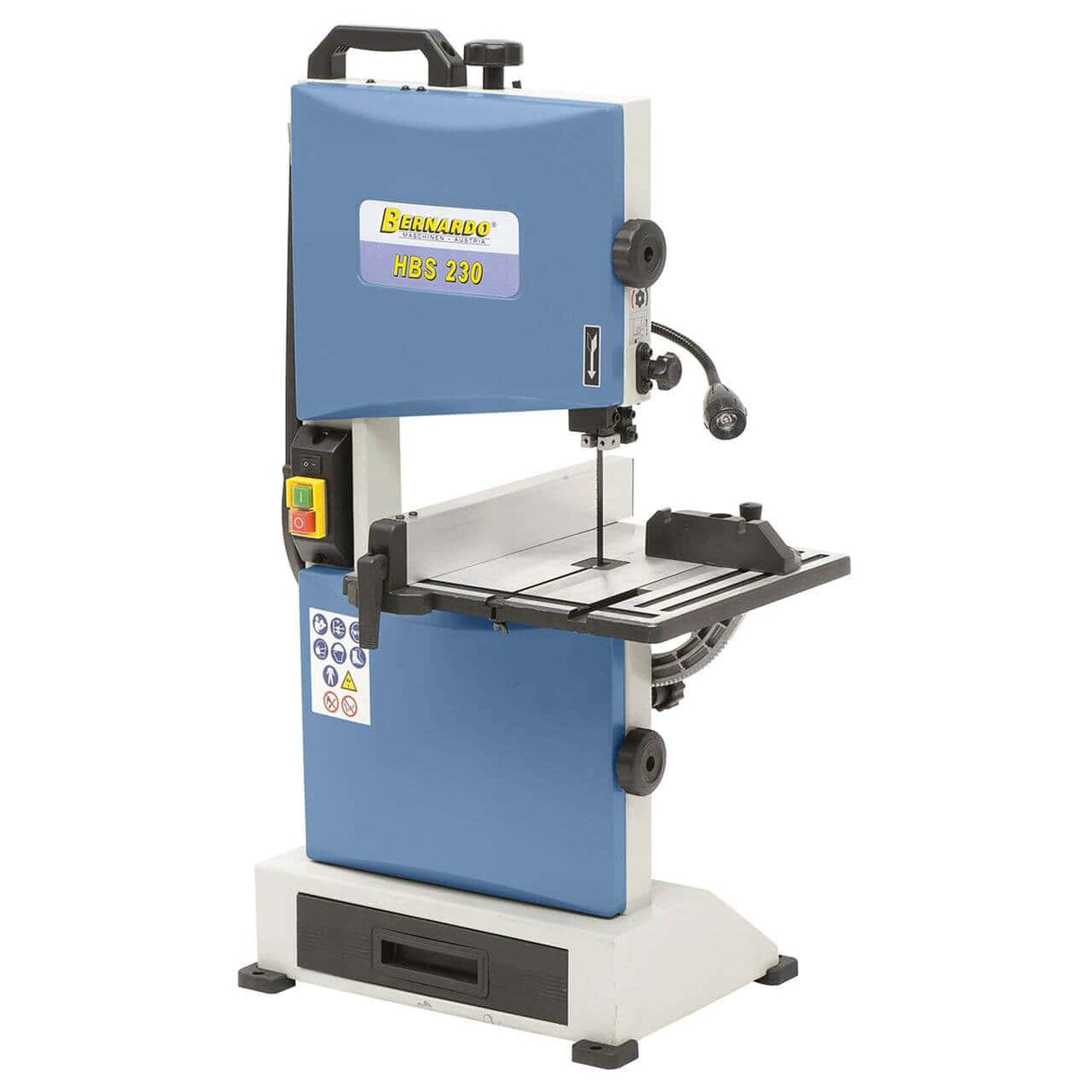

Bernardo HBS 230 is a professional woodworking band saw, with a cutting width of 225 mm, cutting height of 95 mm, speed of 635 m/min, and a weight of approx. 21 kg. Krollit, official Bernardo distributor since 2007.
- Cutting width: 225 mm
- Cutting height: 95 mm

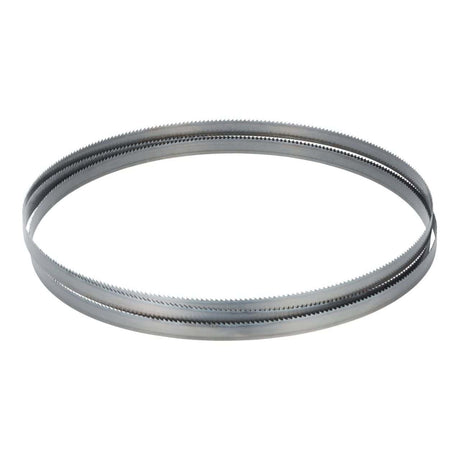

- Saw blade dimensions: 1575 × 6.35 × 0.35 – 10 tpi
- Saw blade width: 3 – 12.5 mm
- Cutting speed: 635 m/min
- Table dimensions: 300 × 300 mm
Who uses the HBS 230 and for what
Professional carpenters and furniture manufacturers use the HBS 230 for straight, curved, and resawing cuts on solid wood, plywood, and panels, with adjustable speed and inclinable table.
Its place in the Bernardo range
The Bernardo HBS 230 is part of the Bernardo range of woodworking band saws, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the HBS 230 for
The HBS 230 is recommended for the following professional profiles:
-
Professional carpenters and furniture manufacturers: straight, curved, and resawing cuts on solid wood, plywood, and panels.
-
Advanced hobbyists and artisan workshops: precision work on single pieces and small series, model making, and marquetry.
Not suitable for: processing metals or hard industrial materials (machine dedicated to wood: for metals, use metal-cutting band saws with reduced speed).
Processing capacity
| Cutting width |
225 mm |
| Cutting height |
95 mm |
| Cutting speed |
635 m/min |
Table, dimensions and geometry
| Saw blade dimensions |
1575 × 6.35 × 0.35 – 10 tpi |
| Saw blade width |
3 – 12.5 mm |
| Table dimensions |
300 × 300 mm |
| Table height |
405 mm |

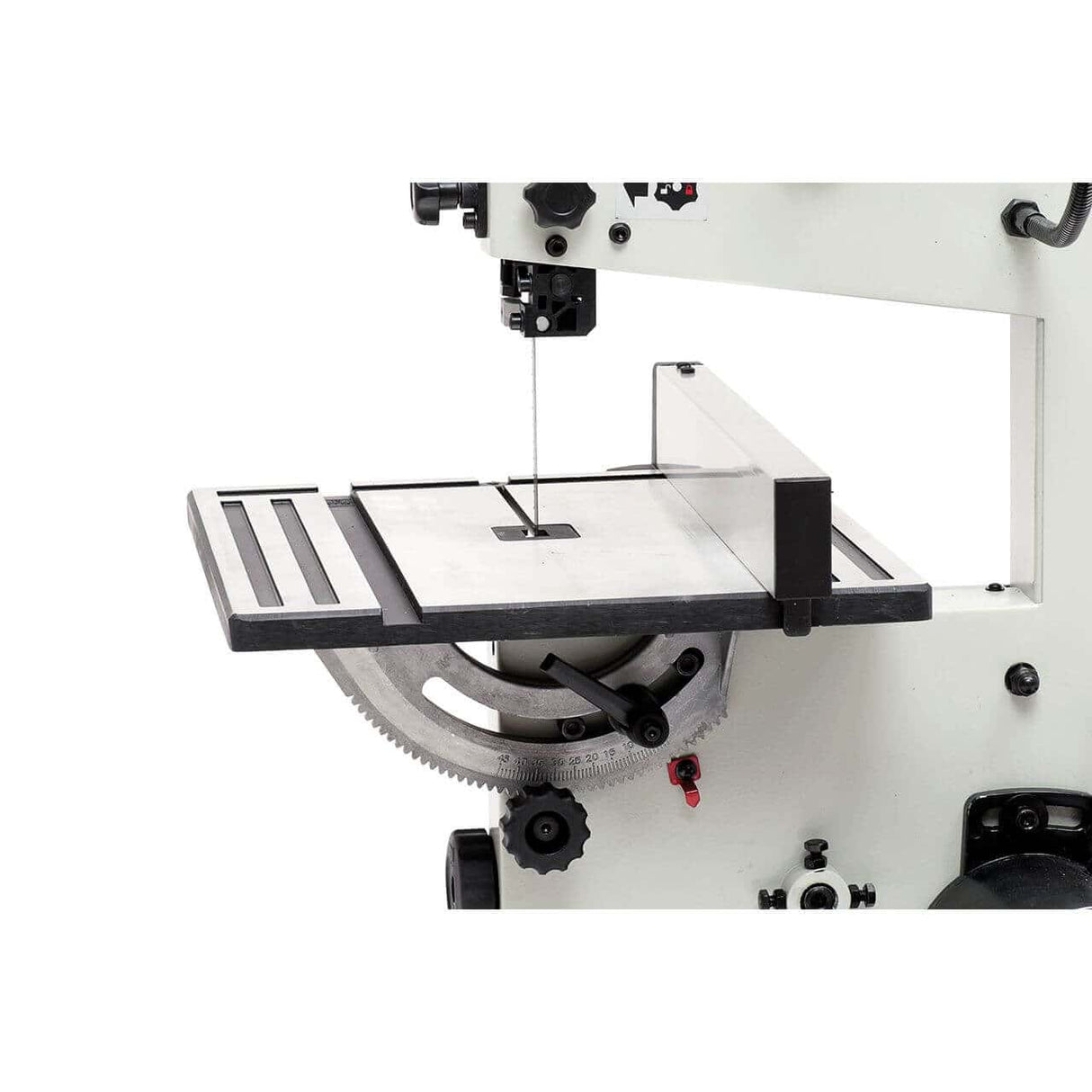

| Table tilt |
0° – 45° |
| Weight |
approx. 21 kg |
Motor and power supply
| Motor input power (S1 100%) |
0.30 kW (0.40 HP) |
| Motor output power (S6 40%) |
0.42 kW (0.57 HP) |
| Voltage |
230 V |
Other specifications
| Machine dimensions (L × W × H) |
480 × 370 × 840 mm |
| Dust extraction outlet Ø |
50 mm |
Frequently Asked Questions
What cutting capacity does the HBS 230 offer?
See "Cutting width" and "Cutting height" in the technical table: typically 225-305 mm in width and 95-170 mm in height for benchtop/semi-pro models.
The cutting width is the distance between the blade and the machine's throat. The cutting height determines the maximum workpiece thickness. For resawing large pieces (250+ mm), professional models with 500+ mm flywheels are needed.
Does it have multiple cutting speeds?
Professional models offer 2 speeds (e.g., 370/800 m/min) to adapt to materials: low for hardwoods, high for softwoods.
Lower speeds reduce the risk of burning on hard woods (oak, beech). High speeds optimize performance on pine and particle boards.

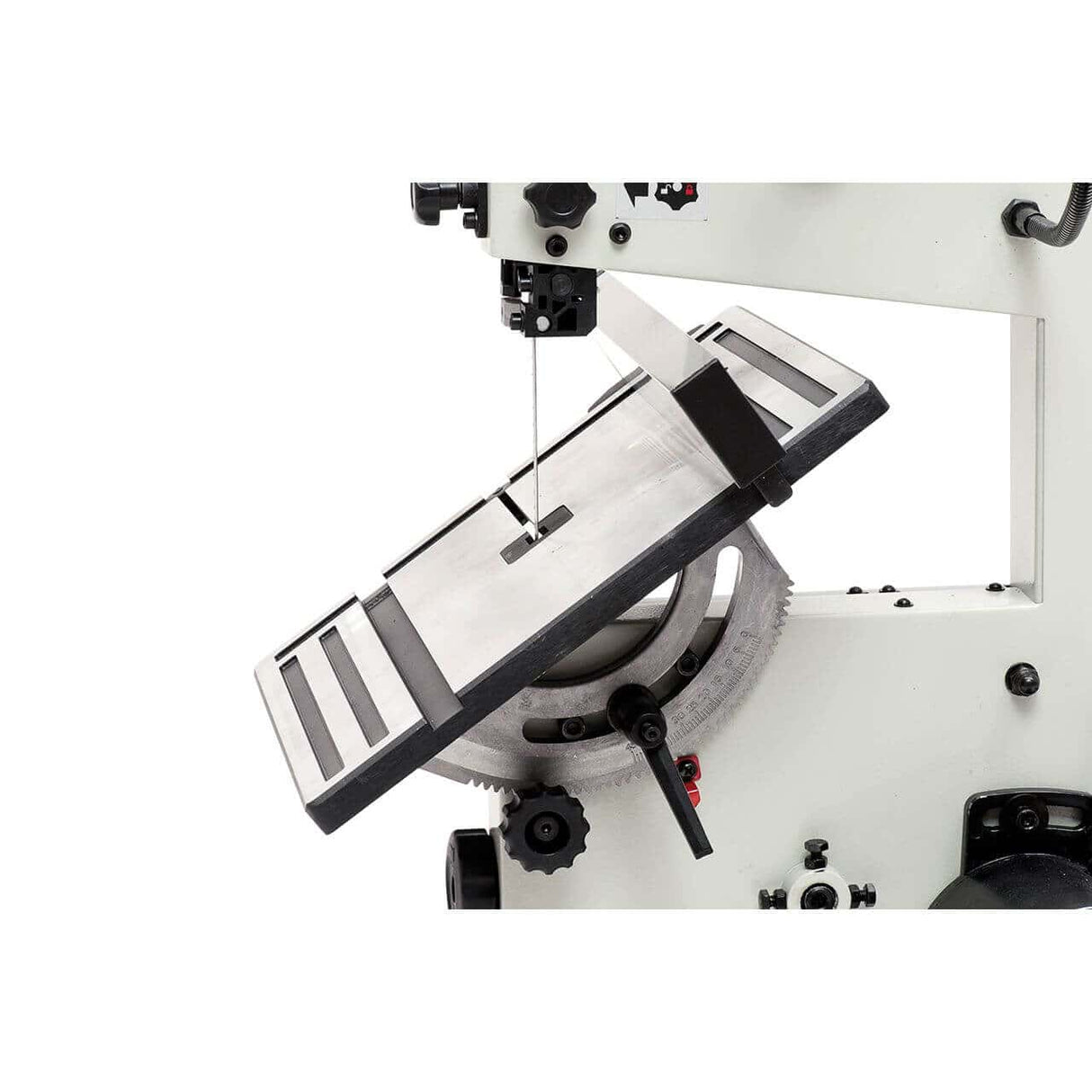

Is the table inclinable?
Yes, professional models have an inclinable table up to 45° for angled cuts.
The inclination allows for miter cuts for joints and furniture details. Check for a stop at 0° inclination for repeatability on straight cuts.
What power supply does it require?
Benchtop and compact models are 230 V single-phase (0.3-0.75 kW motor). Professional models with 500+ mm flywheels require 400 V three-phase.
For workshops without a three-phase line, choose HBS 320, HBS 360, or HBS 400 (single-phase) models. HBS 500 N and HBS 600 N models require mandatory three-phase.
Does it have an integrated dust extraction outlet?
Yes, professional models have a Ø 50-100 mm dust extraction outlet for connection to a chip extraction system.
Dust extraction is essential for air quality in the workshop. Krollit provides compatible Bernardo DC series extractors and dedicated connection hoses.
