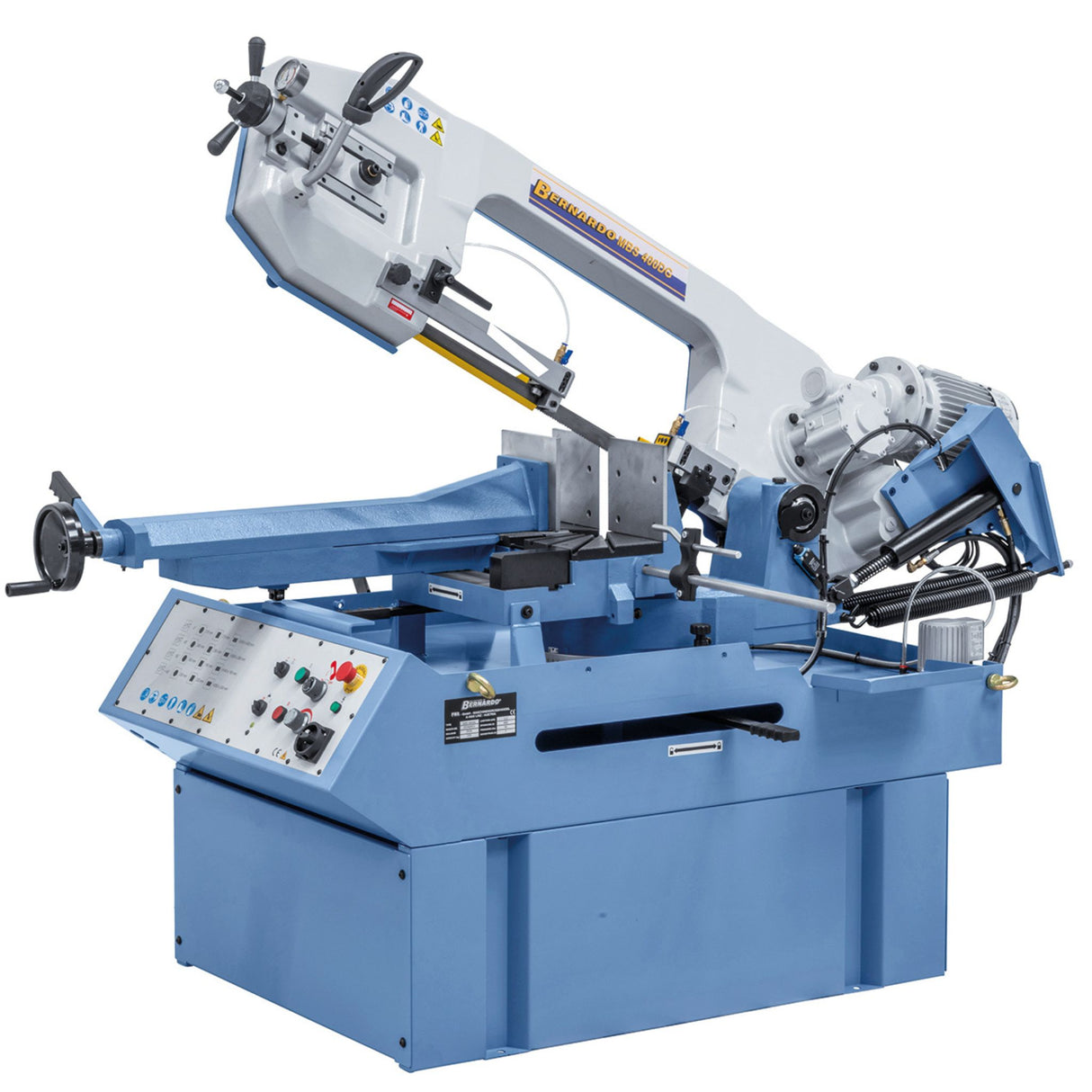

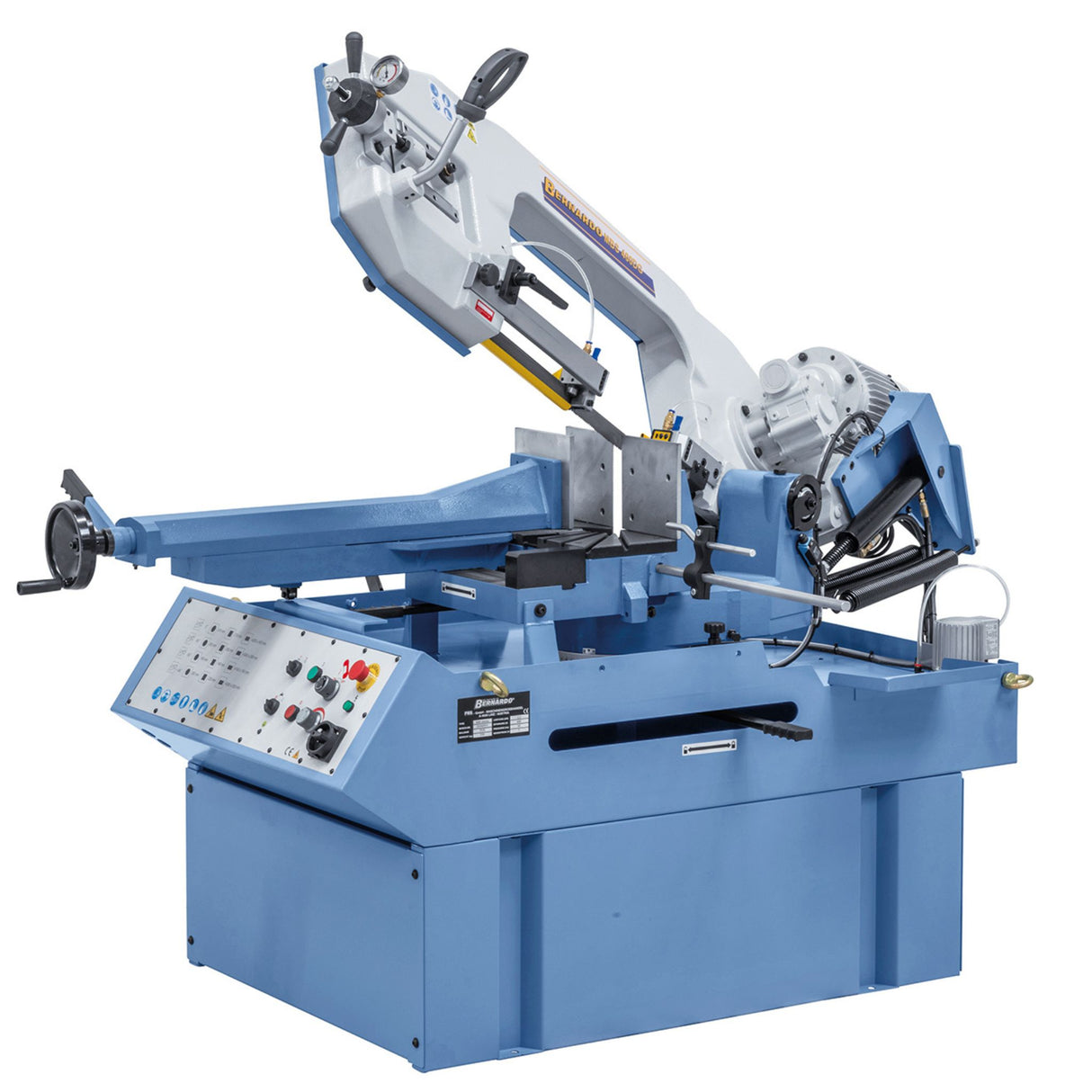

Bernardo MBS 400 DG is a horizontal double mitre bandsaw for professional use, with a swivelling saw frame for mitre cuts from -45° to +60°, cutting capacity Ø 315 mm at 90°, 2.2 kW (S1) motor and 400 V three-phase supply. Torsion-free spheroidal cast iron frame, hydraulic cylinder for controlled lowering and integrated coolant pump. Made in Austria. Distributed in Italy by Krollit, official Bernardo distributor since 2007.
- Frame swivel range: from -45° (left) to +60° (right)
- Cutting capacity round 90°: Ø 315 mm
- Cutting capacity flat 90°: 400 x 250 mm
- Blade: 3,460 x 34 x 1.1 mm
- Cutting speeds: 35 / 70 m/min
- Motor output S1 (continuous 100%): 2.2 kW
- Motor input S6 (intermittent 40%): 3.0 kW
- Supply: 400 V three-phase
- Coolant pump: 100 W
- Adjustable hydraulic cylinder for lowering
- Weight: approx. 550 kg
Who uses the Bernardo MBS 400 DG and what for
A machine designed for steel fabricators, mechanical engineering shops and metalwork firms cutting profiles, tubes and solid materials in steel, stainless steel and tool steel. The swivelling frame from -45° to +60° allows double mitre cuts without repositioning the workpiece: you swivel the frame, the blade stays the same. The two cutting speeds (70 m/min for mild steel, 35 m/min for hard steel and stainless) and the integrated coolant pump protect the blade on long cuts. The adjustable hydraulic cylinder regulates the support pressure for even contact.
Krollit logistics and support
Shipping 5–9 working days (7 days for southern regions). For machines over 200 kg, ground-floor delivery with tail lift included. Technical support in Italian available for the entire product life at +39 0825-1494022. Original Bernardo spare parts available from the Krollit warehouse, Monteforte Irpino (AV).
Who the Bernardo MBS 400 DG is for
| Profile | Suitability | Reason |
|---|
| Steel fabrication | Suitable | Mitre cuts -45°/+60° on profiles without repositioning |
| Mechanical engineering | Suitable | Ø 315 mm capacity and two speeds for steel, stainless, tool steel |
| Metalwork and batch cutting | Suitable | Quick-release vice and hydraulic lowering for repeated cuts |
| Hobbyist with single-phase supply | Not suitable | Supply 400 V three-phase, cannot be connected to 230 V single-phase |
Not suitable for: users without a 400 V three-phase supply and without the space for a machine of about 550 kg, and for cutting very hard materials beyond the stated capacities without a dedicated blade.
Technical specifications
Cutting capacity
| Cut round/square 90° | Ø 315 mm / 270 x 270 mm |
| Cut flat 90° | 400 x 250 mm |
| Cut round/square 45° right | Ø 280 mm / 280 x 280 mm |
| Cut flat 45° right | 300 x 280 mm |
| Cut round/square 45° left | Ø 250 mm / 220 x 220 mm |
| Cut flat 45° left | 280 x 200 mm |
| Cut round/square 60° right | Ø 180 mm / 140 x 140 mm |
| Working height | 870 mm |
Blade and speed
| Blade dimensions | 3,460 x 34 x 1.1 mm |
| Cutting speeds | 35 / 70 m/min |

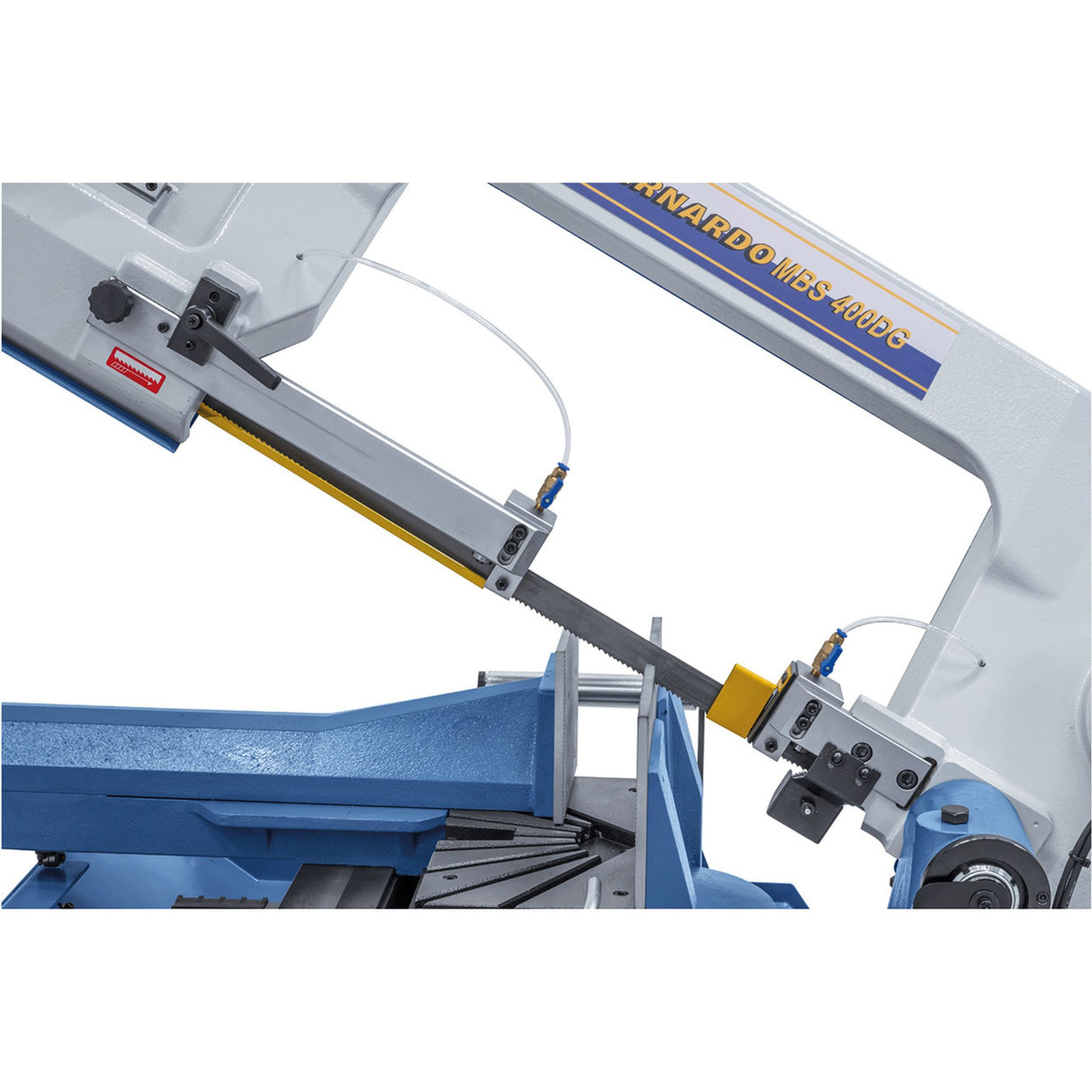

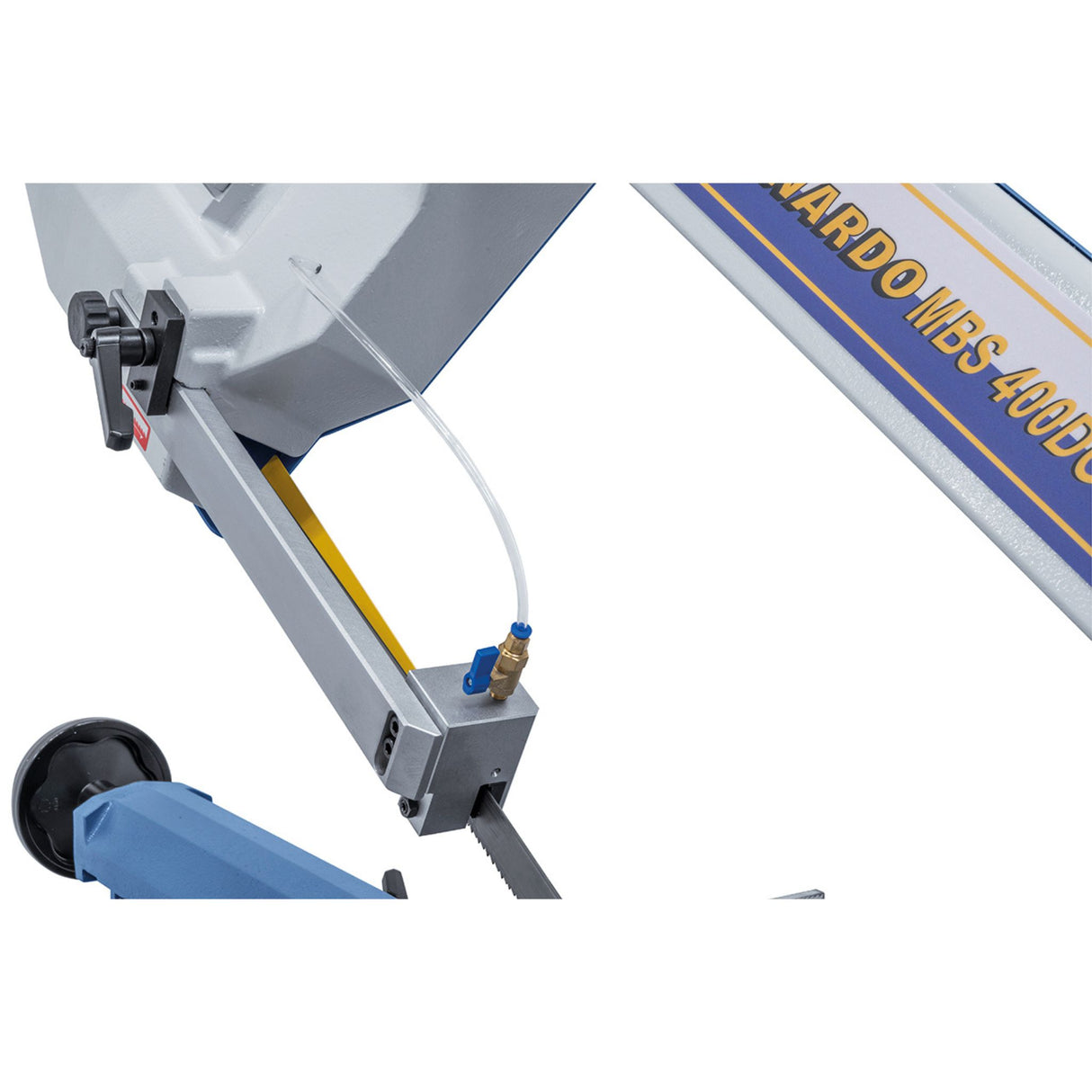

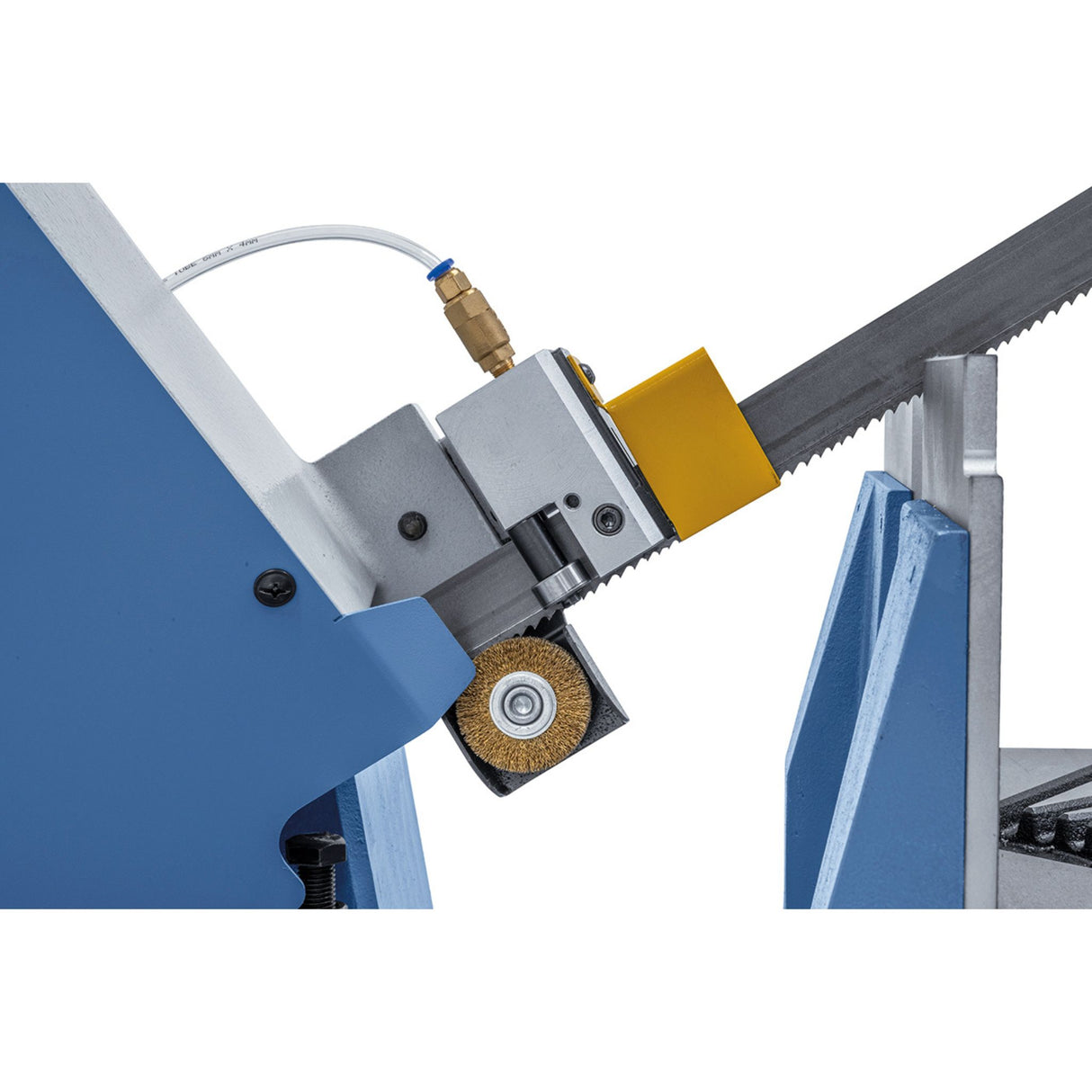

| Blade guide | Combined roller and jaw system with carbide inserts |
Frame and cutting system

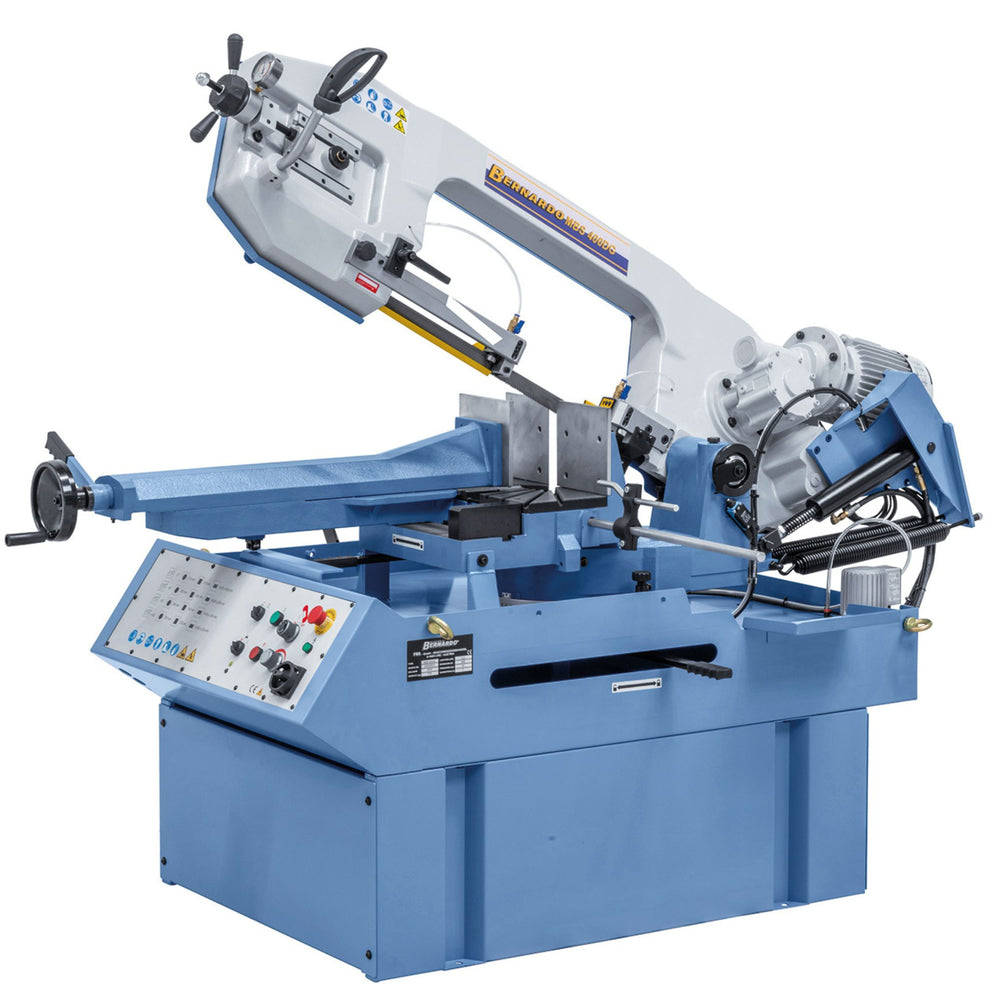

| Frame swivel range | From -45° (left) to +60° (right) |
| Frame material | Torsion-free spheroidal cast iron |

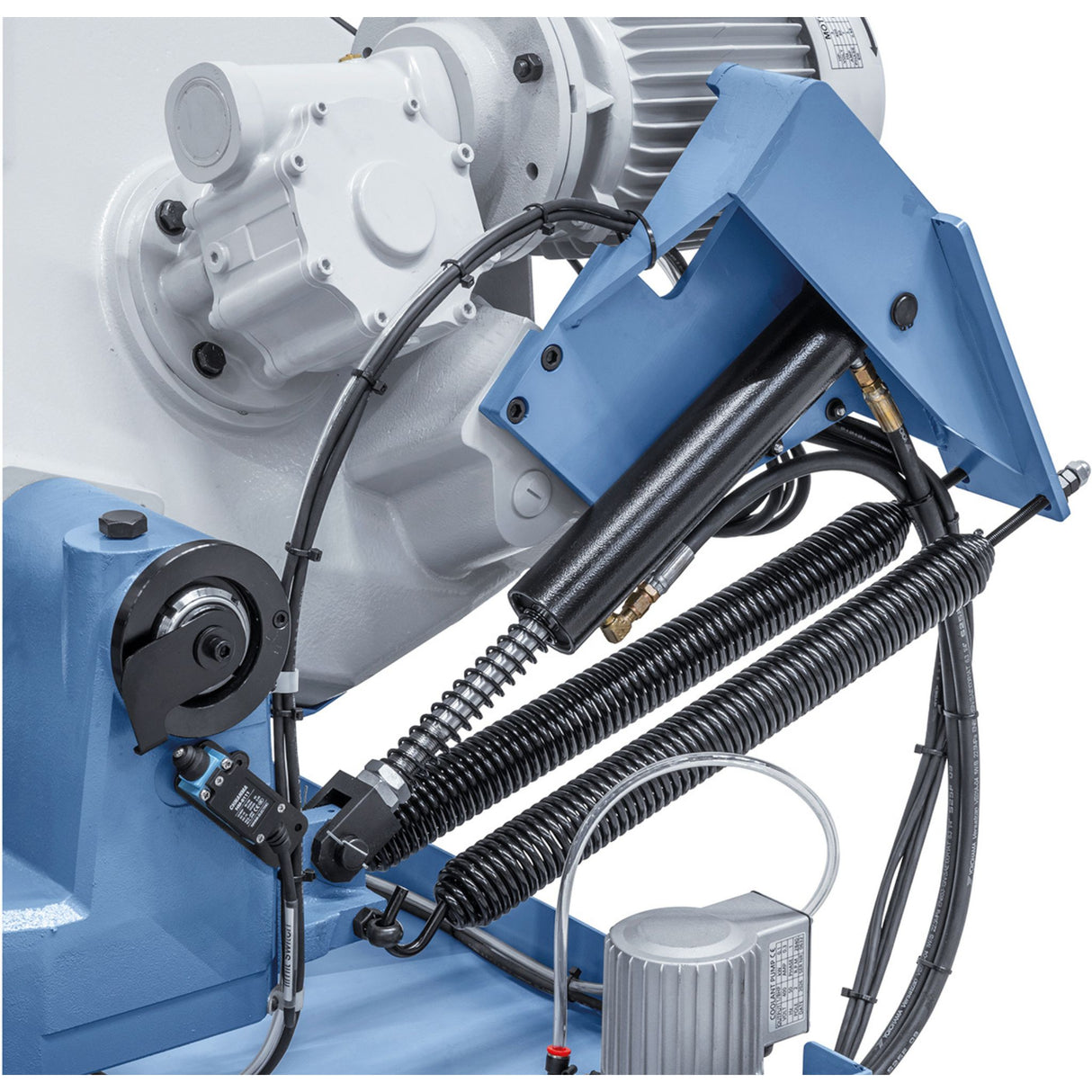

| Hydraulic cylinder | Adjustable for controlled lowering |

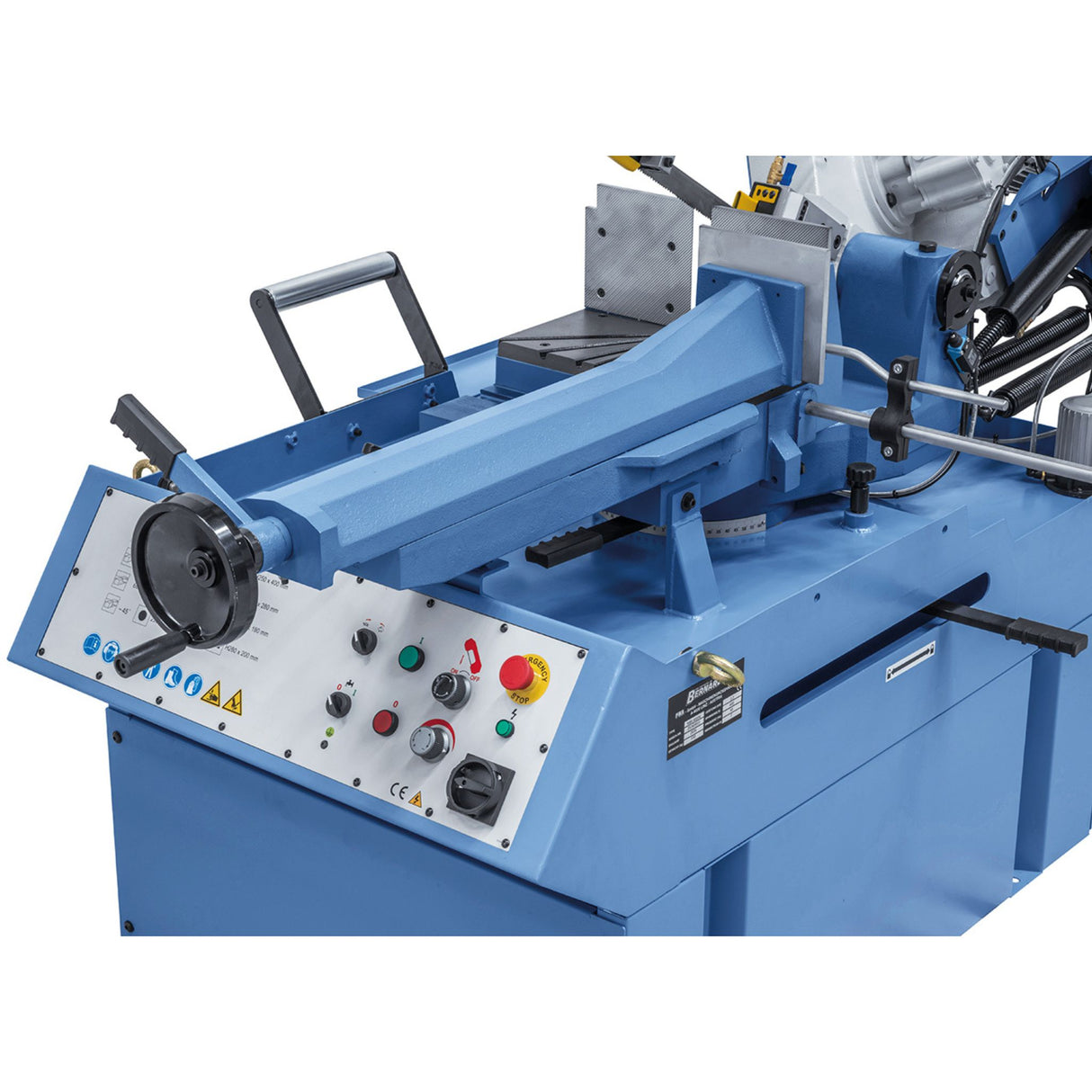

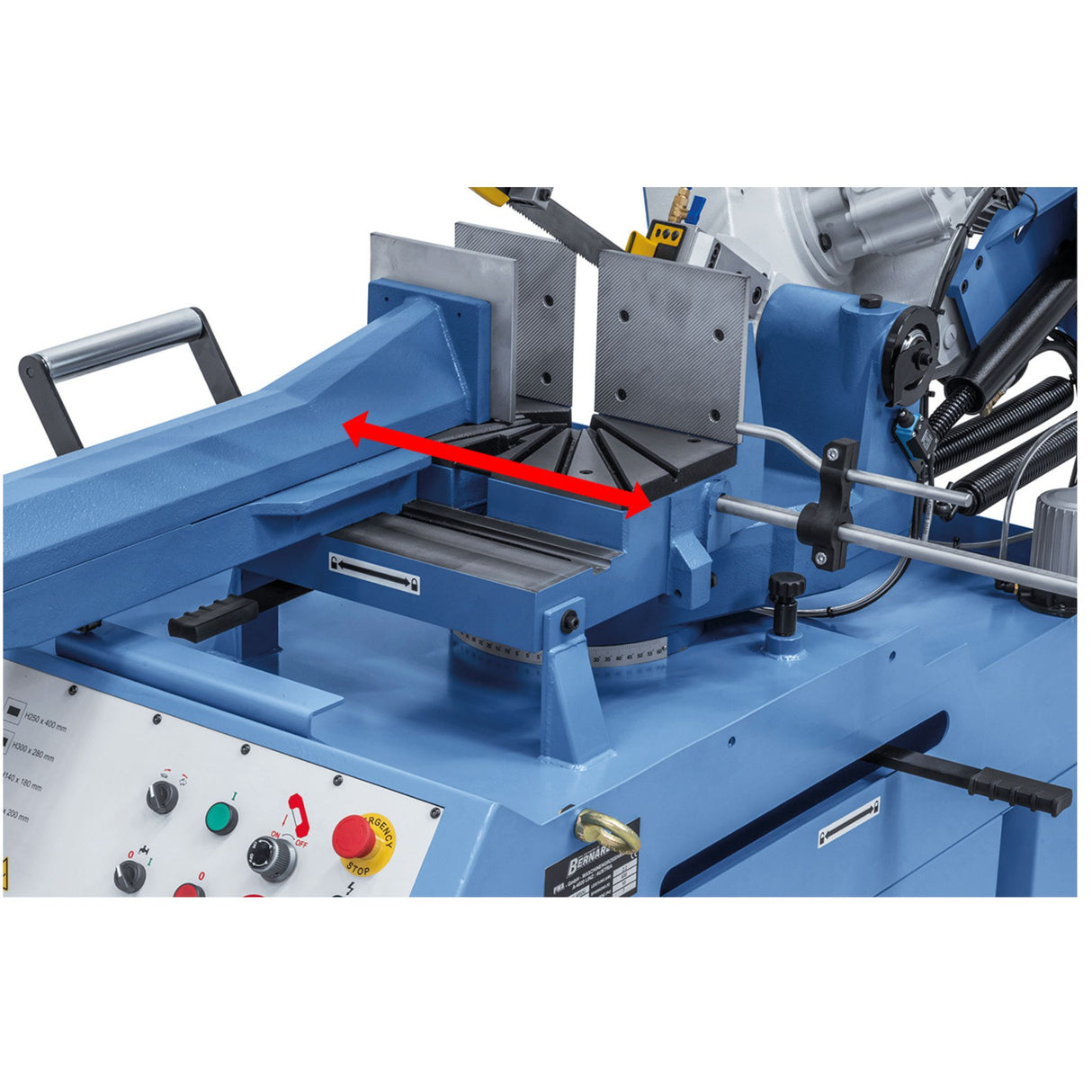

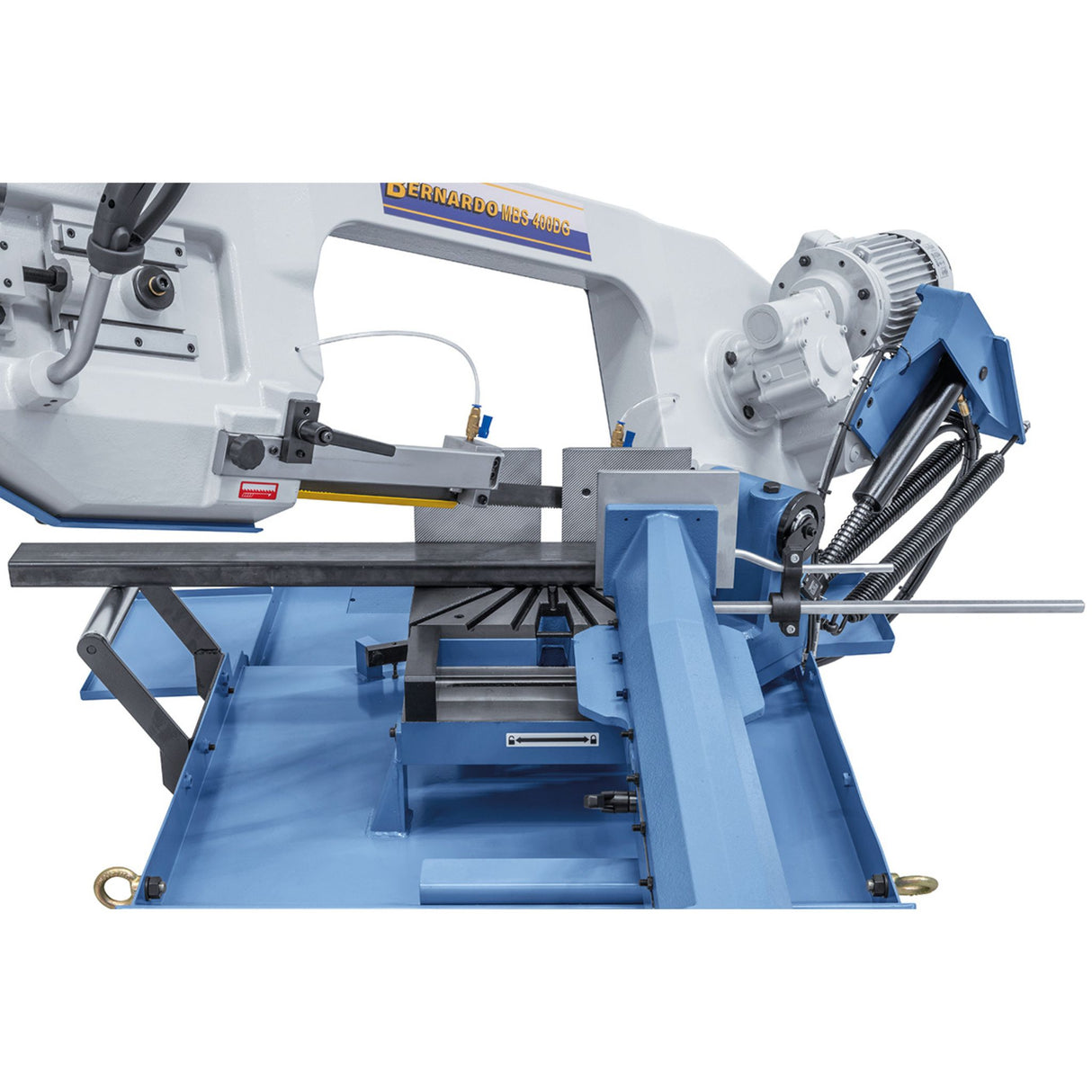

| Vice | Cast iron, with quick release |
| Coolant pump | 100 W |
Motor and supply
| Motor output S1 (continuous 100%) | 2.2 kW |
| Motor input S6 (intermittent 40%) | 3.0 kW |
| Voltage | 400 V three-phase |

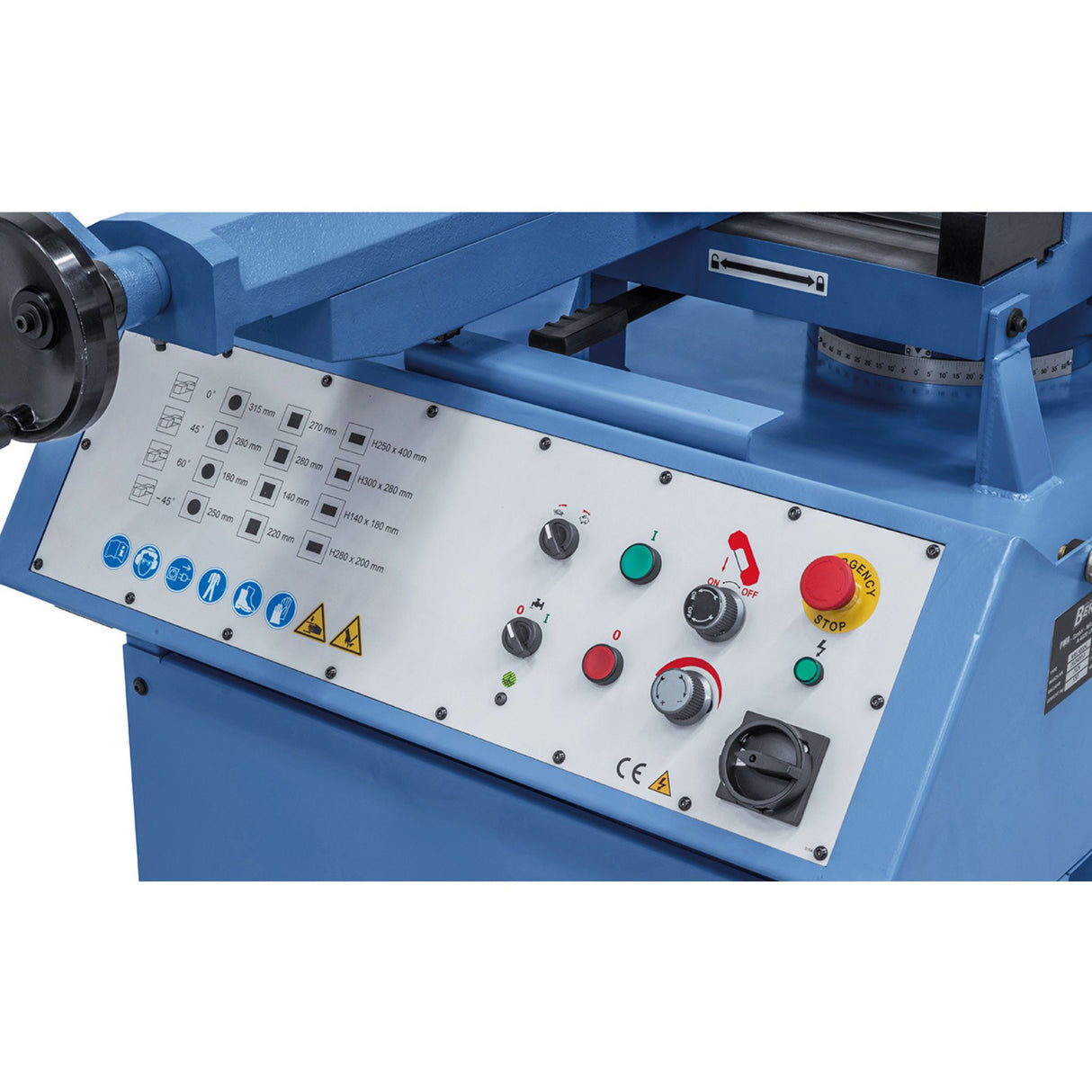

| Motor protection | Thermal cut-out switch |
| Automatic cut-off at end of cut | Yes |
Dimensions and weight
| Dimensions (LxDxH) | 2,150 x 1,400 x 1,420 mm |
| Weight | approx. 550 kg |
| Article number | 04-1721 |
Standard equipment
- Blade 3,460 x 34 x 1.1 mm (pre-fitted)
- Adjustable workpiece stop
- Base stand

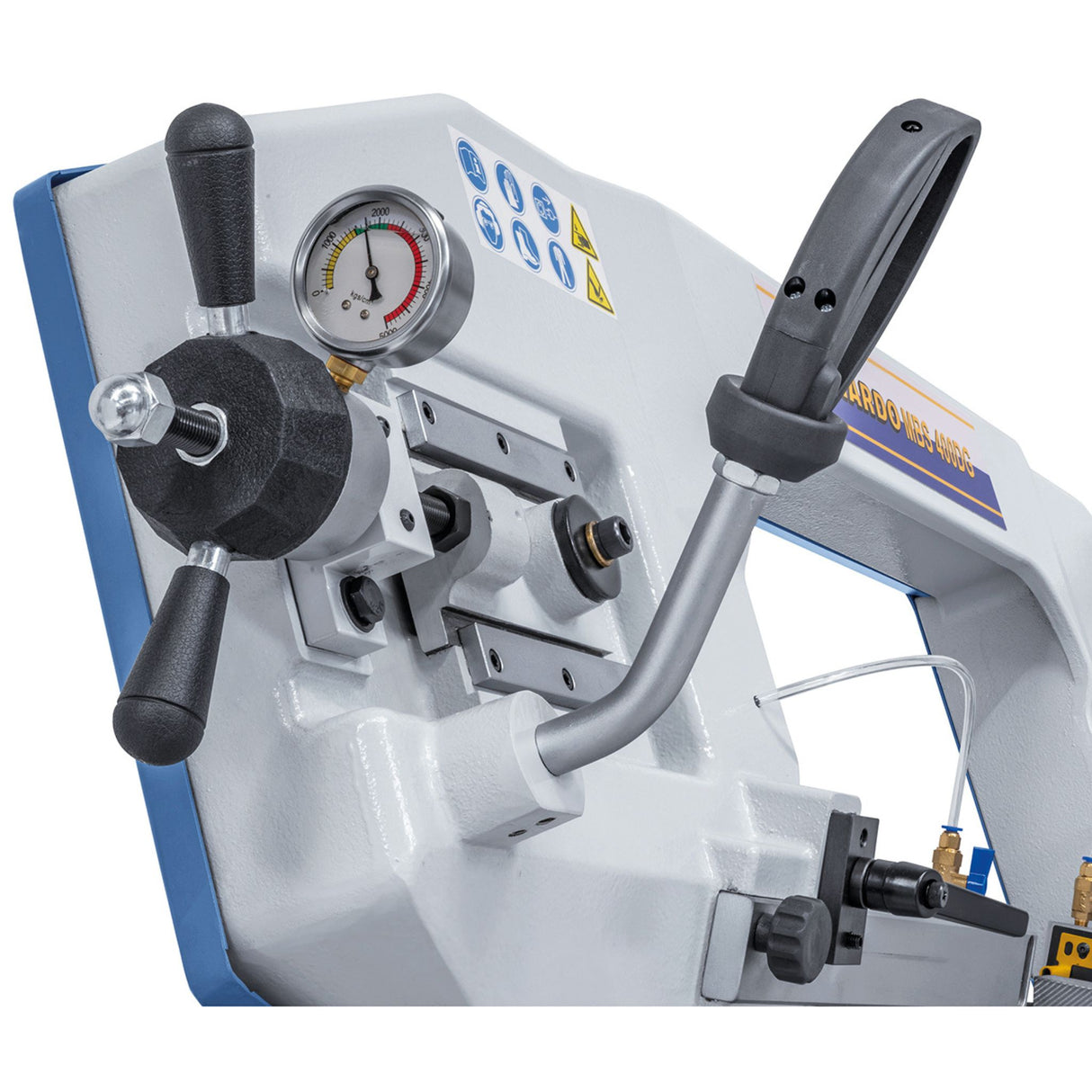

- Gauge for blade tension
- Blade guide with carbide inserts
- Quick-release vice
- Coolant system (pump + tank)
- Hydraulic lowering cylinder
- Motor protection switch
- Automatic cut-off at end of cut
- CE certificate
- Bernardo manufacturer warranty 24 months
Optional accessories
| Code | Description |
|---|
| 47-1261 | Blade BiFlex 3460 x 34 x 1.1 – Vario 4/6 TPI |
| 07-1461 | Roller conveyor RB 4 – 1000 |
| 07-1462 | Roller conveyor RB 7 – 2000 |
| 54-1206 | Universal coolant concentrate MN 1103, 5 litres |
Frequently asked questions
What is the difference between 35 and 70 m/min?
The 70 m/min speed suits mild steel, aluminium and copper: fast penetration and short cycle time. The 35 m/min speed is for stainless steel, tool steel and cast iron: it protects the blade from overheating and reduces wear.
Selection is manual with two positions. Choosing the correct speed by material extends blade life and improves cut quality, especially on hard materials where heat is the main wear factor.
Can I make 90° and 45° cuts without changing the blade?

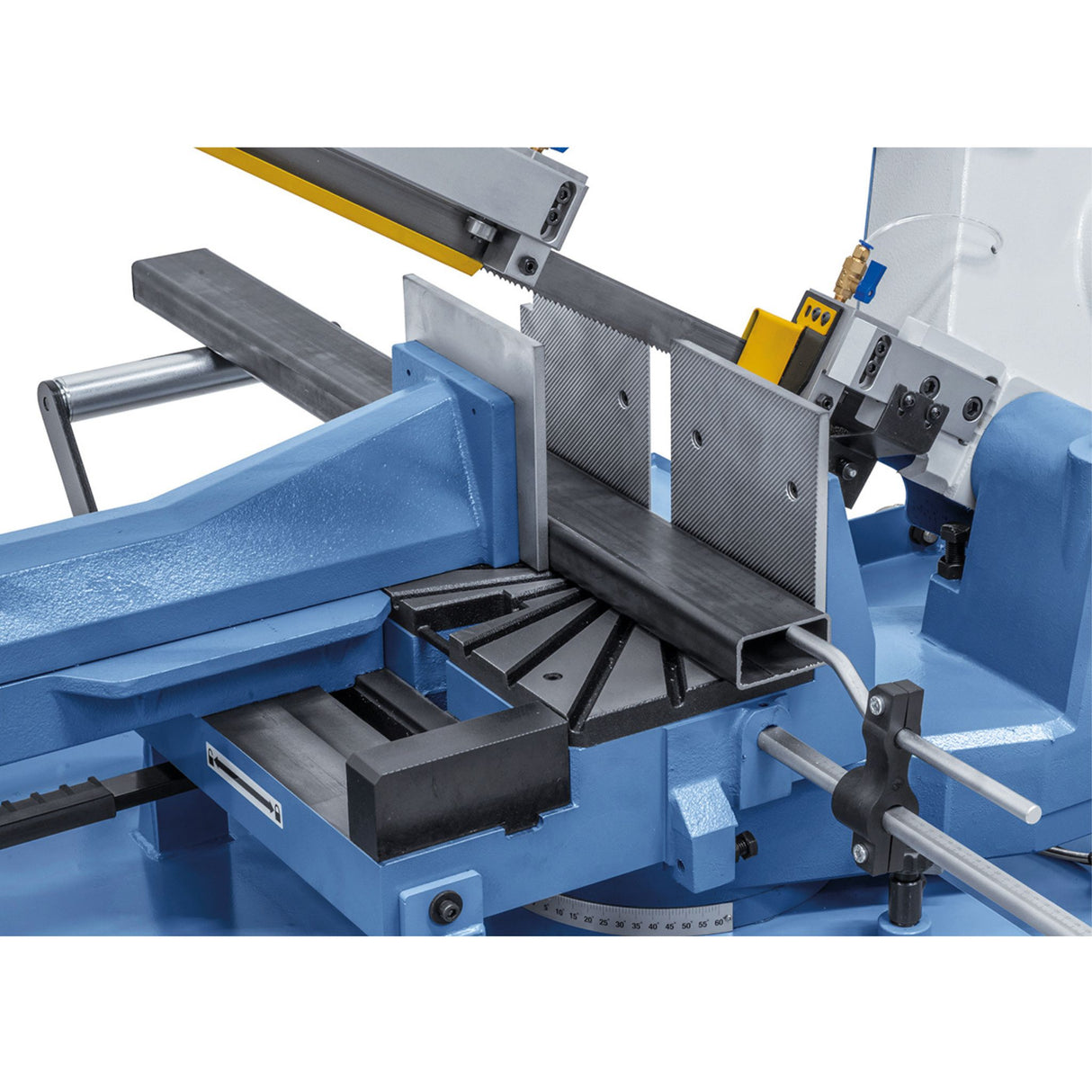

Yes. The machine swivels the frame, not the blade, which stays the same at 3,460 x 34 x 1.1 mm. To switch from 90° to a mitre cut you simply swivel the frame, with the workpiece clamped in the vice.
The frame swivels from -45° to +60°, covering double mitre cuts without repositioning the workpiece. The speed change (35/70 m/min) is independent and chosen by material.
Is the MBS 400 DG automatic or manual?
It is semi-automatic. The operator clamps the workpiece and starts the cut; the frame lowering is controlled by the hydraulic cylinder, and the machine stops automatically at the end of the cut.
The automatic cut-off at end of material frees the operator during the cut. Loading and unloading remain manual, making the machine suitable for both single and small batch cuts.
Is cooling mandatory?
Recommended for long cuts and hard materials such as stainless and tool steel, where it reduces blade wear. On mild steel and short cuts it is not critical but remains useful.

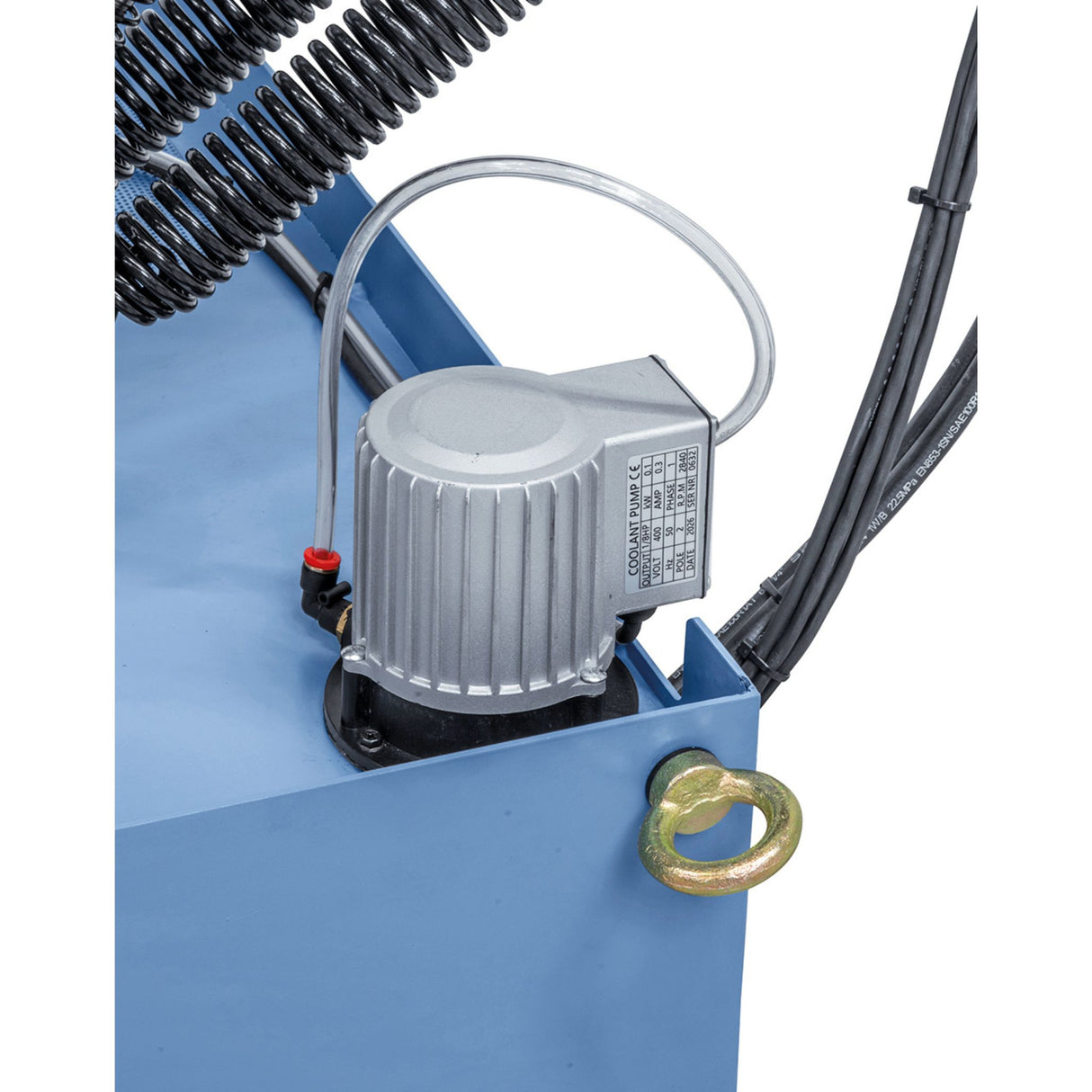

The 100 W pump maintains a constant coolant flow. Use the specific concentrate (e.g. MN 1103), not pure water, which would cause rust inside the system.
How do service and spare parts work in Italy?
Technical support is in Italian for the entire product life, and original Bernardo spare parts including replacement blades are available from the Krollit warehouse in Monteforte Irpino (AV). Support: +39 0825-1494022.
The Bernardo manufacturer warranty is 24 months on material and manufacturing defects. Hydraulic cylinder maintenance involves periodic inspection for leaks and checking the lowering action; the coolant should be replaced according to the manual.
