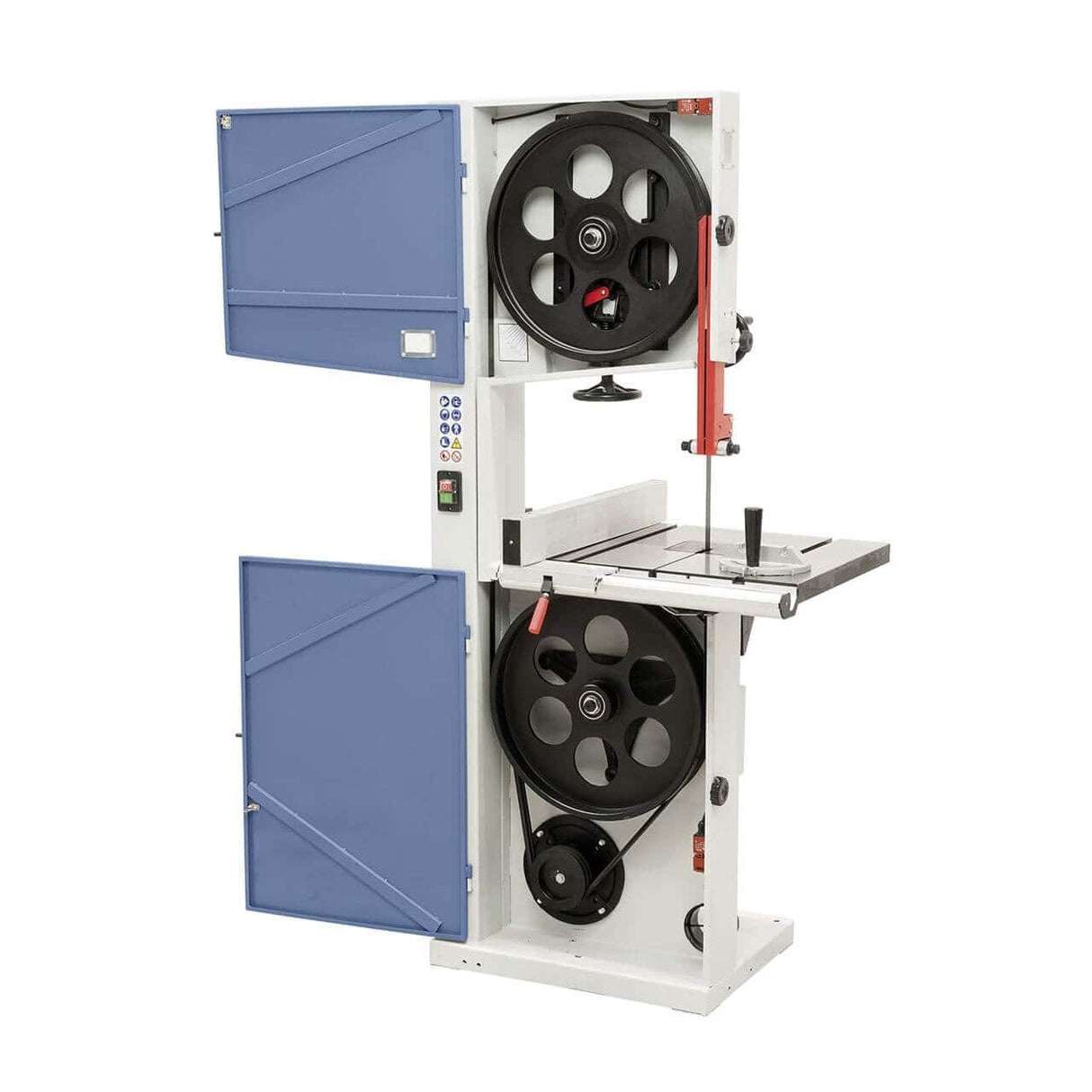

Bernardo HBS 510 Wood Bandsaw
Bernardo HBS 510 Wood Bandsaw is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Ricevi gli ultimi aggiornamenti su tutte le nostre nuove collezioni, saldi, offerte e date di arrivo dei prodotti.
-
Description
-
Sicurezza del prodotto
-
Reviews
Description

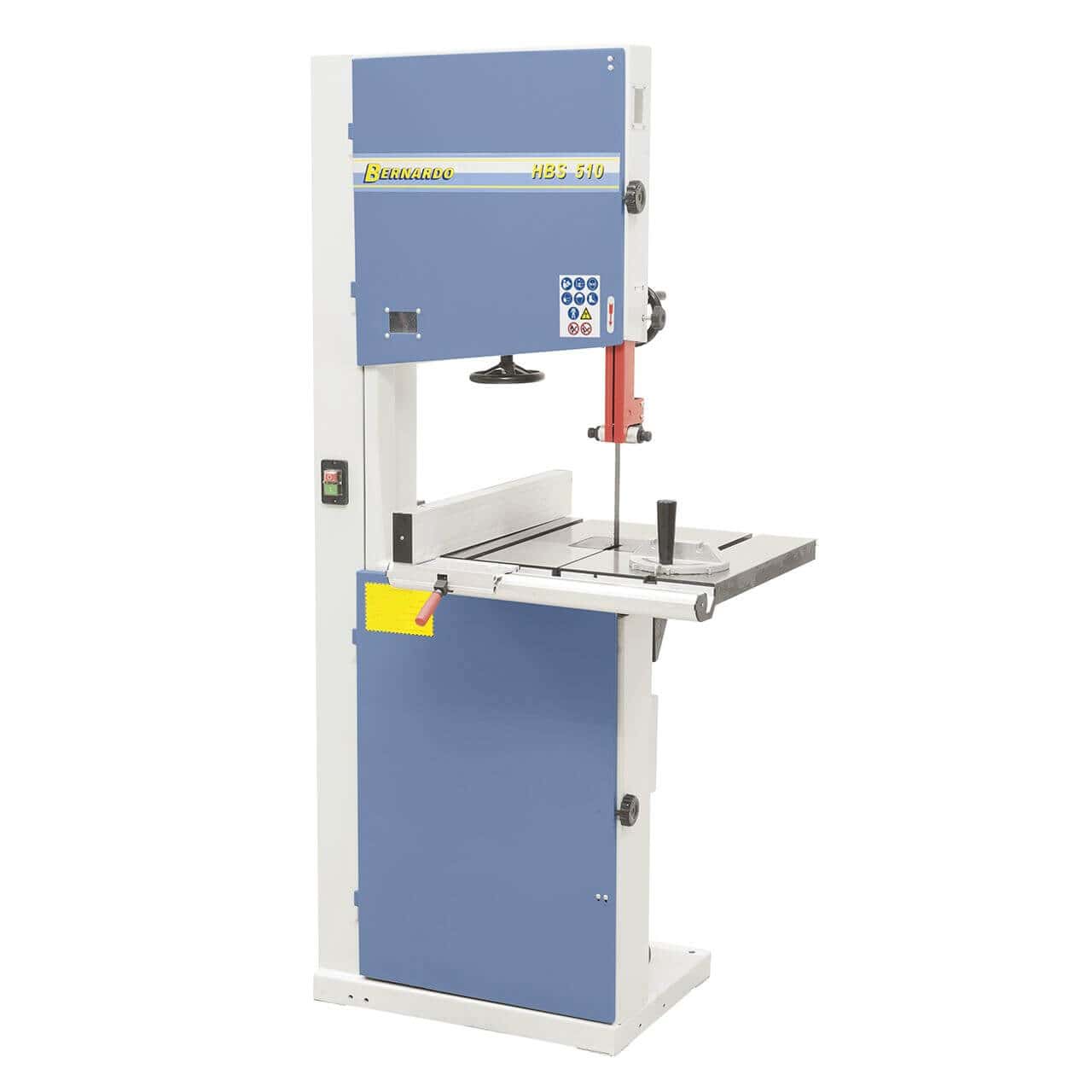

The Bernardo HBS 510 is a professional woodworking bandsaw with a cutting width of 480 mm, a cutting height of 305 mm, a speed of 600 m/min, and a 2.2 kW (3.0 HP) motor. Krollit, official Bernardo distributor since 2007.
- Cutting width: 480 mm
- Cutting height: 305 mm
- Supported blade width: 10 – 40 mm
- Cutting speed: 600 m/min
- Table dimensions: 490 × 590 mm
- Table height: 940 mm
Who uses the HBS 510 and for what
Professional carpenters and furniture manufacturers use the HBS 510 for straight, curved, and resawing cuts on solid wood, plywood, and panels, with adjustable speed and an inclinable table.
Its place in the Bernardo range
The Bernardo HBS 510 is part of the Bernardo woodworking bandsaw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the machine suitable for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product data sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the HBS 510 is for
The HBS 510 is recommended for the following professional profiles:
- Professional carpenters and furniture manufacturers: straight, curved, and resawing cuts on solid wood, plywood, and panels.
- Advanced hobbyists and artisanal workshops: precision work on single pieces and small series, model making, and inlay.
Not suitable for: working with metals or hard industrial materials (machine dedicated to wood: for metals, use metal bandsaws with reduced speed).
Working capacity
| Cutting width | 480 mm |
| Cutting height | 305 mm |
| Cutting speed | 600 m/min |
Table, dimensions and geometry
| Supported blade width | 10 – 40 mm |
| Table height | 940 mm |

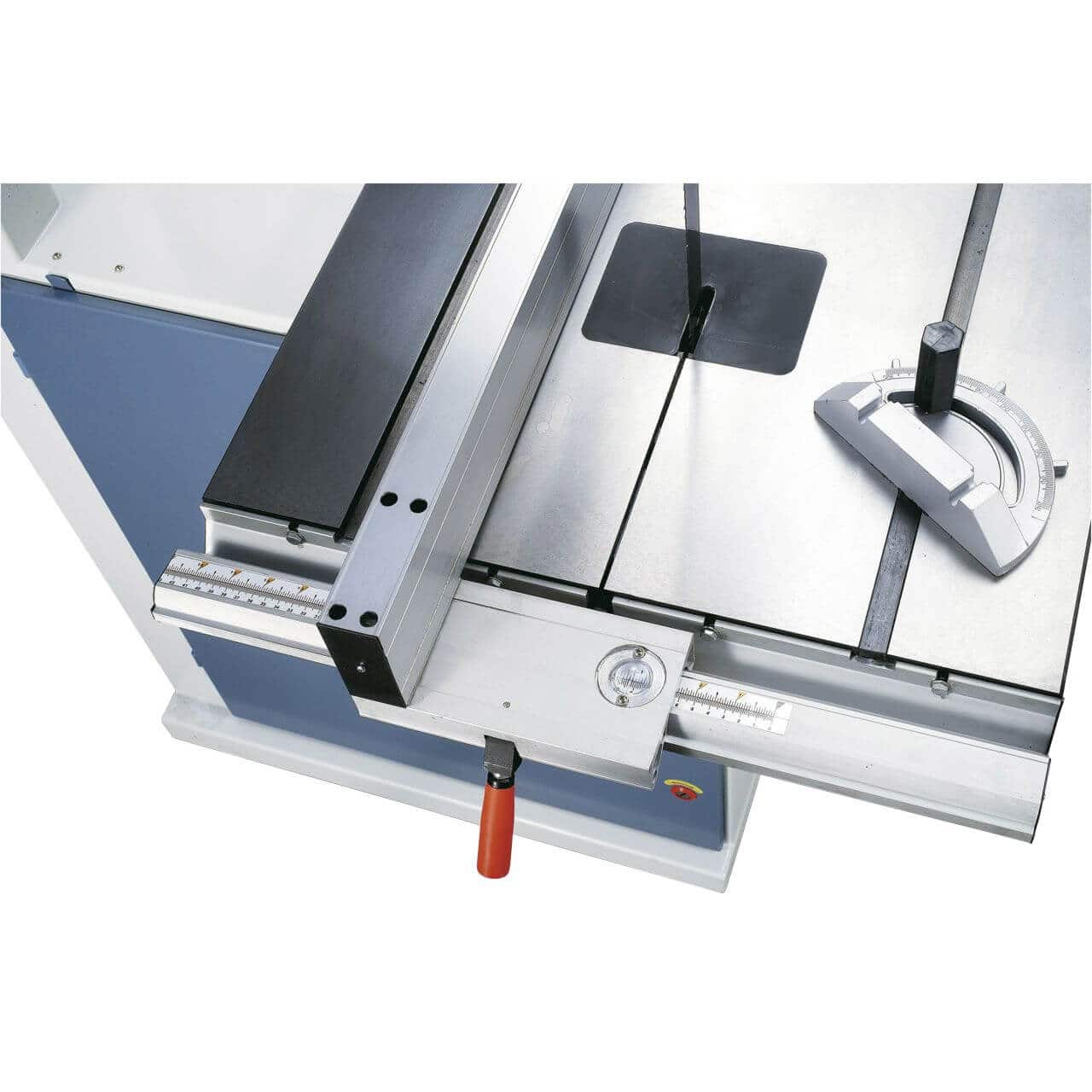

| Table tilt | 0° – 45° |
| Machine dimensions (L × W × H) | 930 × 880 × 1865 mm |
| Weight | approx. 220 kg |
| Blade dimensions | 3500 × 25 × 0.62 mm – 3.5 TPI |
Motor and power supply
| Motor power S1 (100%) | 2.2 kW (3.0 HP) |
| Motor power S6 (40%) | 3.0 kW (4.0 HP) |
| Voltage | 230 V / 400 V |
Other specifications
| Table dimensions | 490 × 590 mm |
| Dust extraction port | Ø100 mm |
Frequently asked questions
What cutting capacity does the HBS 510 offer?
See "Cutting width" and "Cutting height" in the technical table: typically 225-305 mm in width and 95-170 mm in height for benchtop/semi-pro models.

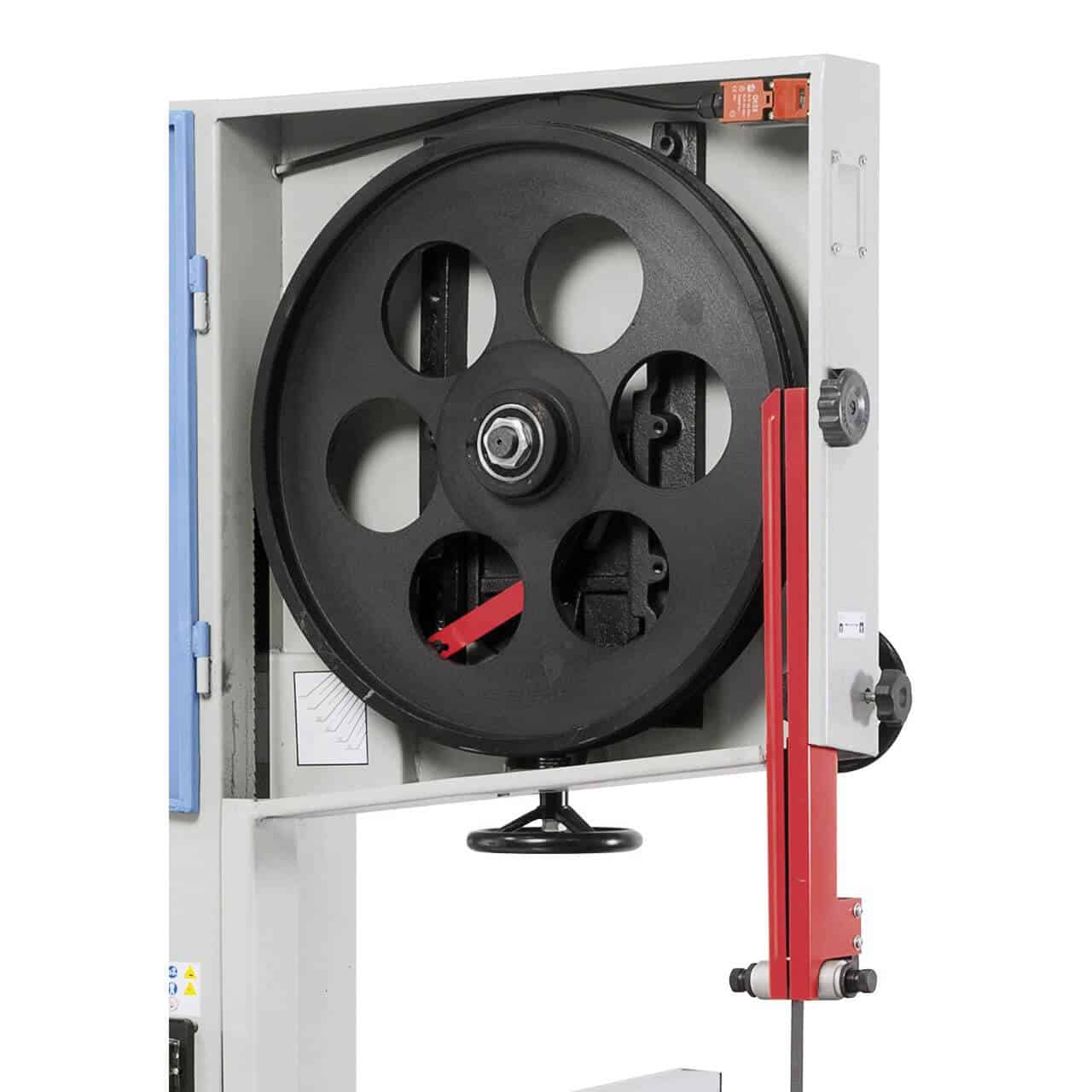

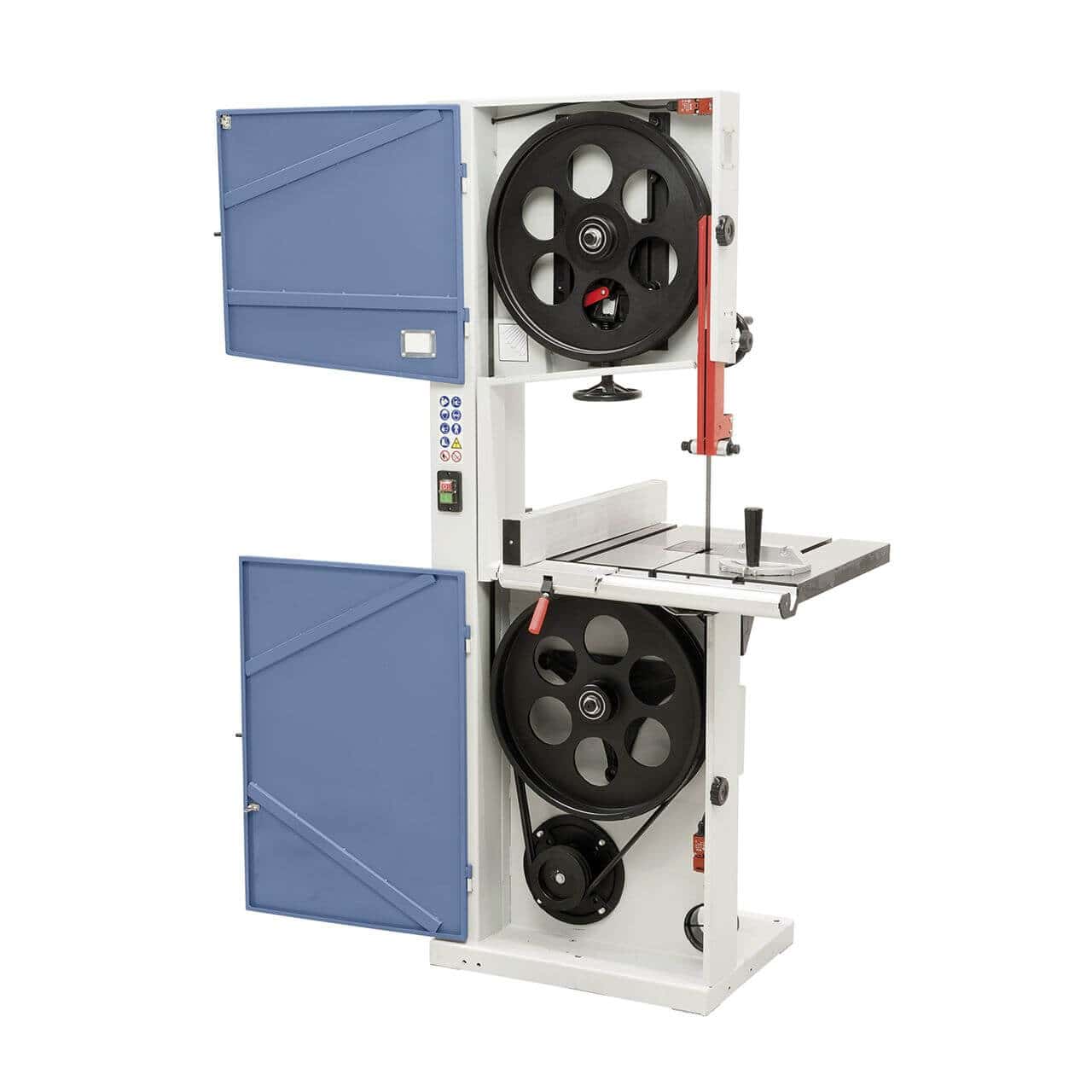

The cutting width is the distance between the blade and the machine's throat. The cutting height determines the maximum workpiece thickness. For resawing large pieces (250+ mm), professional models with Ø 500+ mm flywheels are needed.
Does it have multiple cutting speeds?
Professional models offer 2 speeds (e.g., 370/800 m/min) to adapt to materials: low for hardwoods, high for softwoods.
Lower speeds reduce the risk of burning on hard woods (oak, beech). High speeds optimize performance on pine and chipboard panels.
Is the table tiltable?

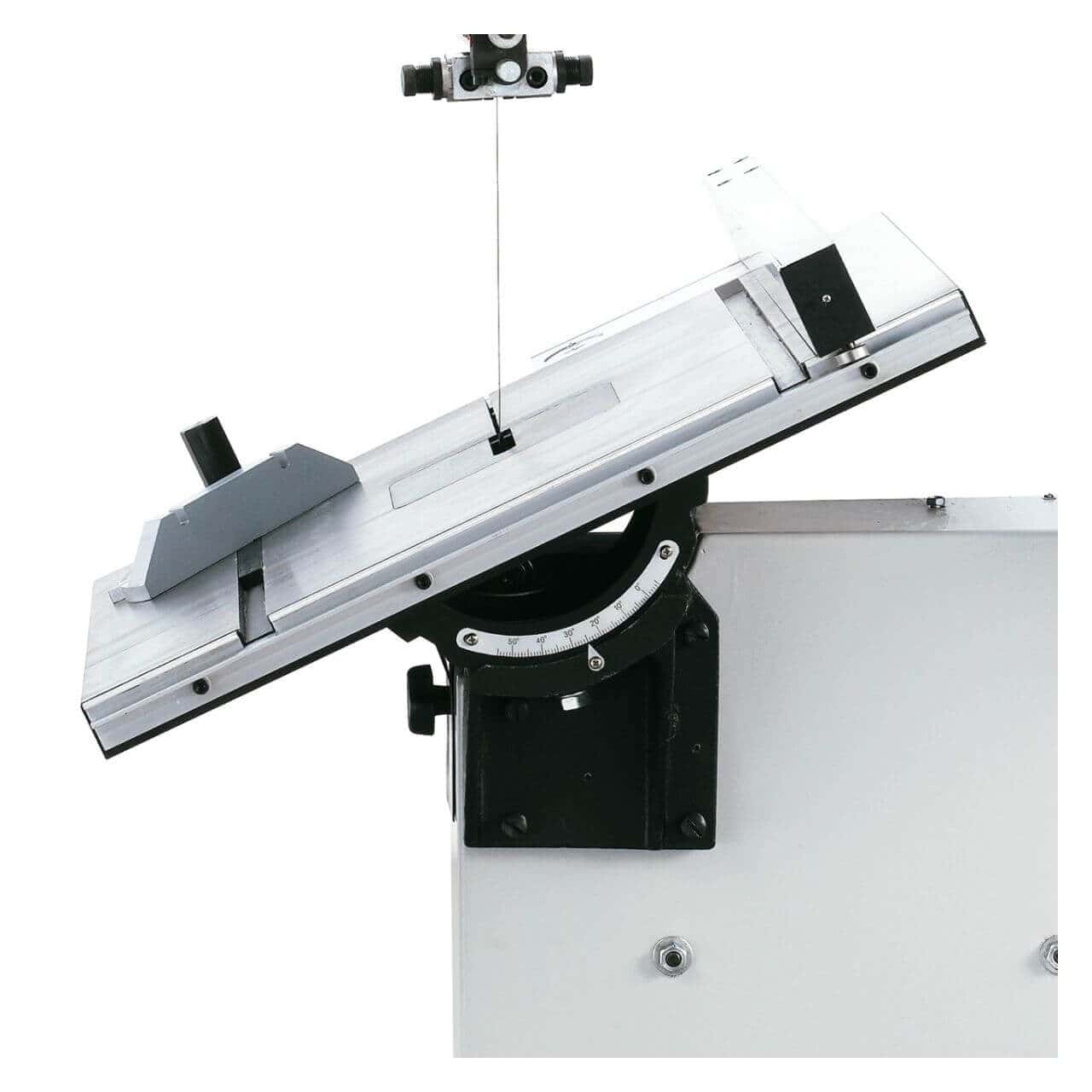

Yes, professional models have a table that can be tilted up to 45° for angled cuts.
The tilt allows for bevel cuts for joints and furniture details. Check for a stop for 0° tilt for repeatability on straight cuts.
What power supply does it require?
Benchtop and compact models are 230 V single-phase (0.3-0.75 kW motor). Professional models with 500+ mm flywheels require 400 V three-phase.
For workshops without a three-phase line, choose HBS 320, HBS 360, or HBS 400 (single-phase) models. HBS 500 N and HBS 600 N models require mandatory three-phase.
Does it have an integrated dust extraction port?
Yes, professional models have a Ø 50-100 mm dust extraction port for connection to a chip extraction system.
Extraction is essential for air quality in the workshop. Krollit supplies compatible Bernardo DC series extractors and dedicated connection hoses.
