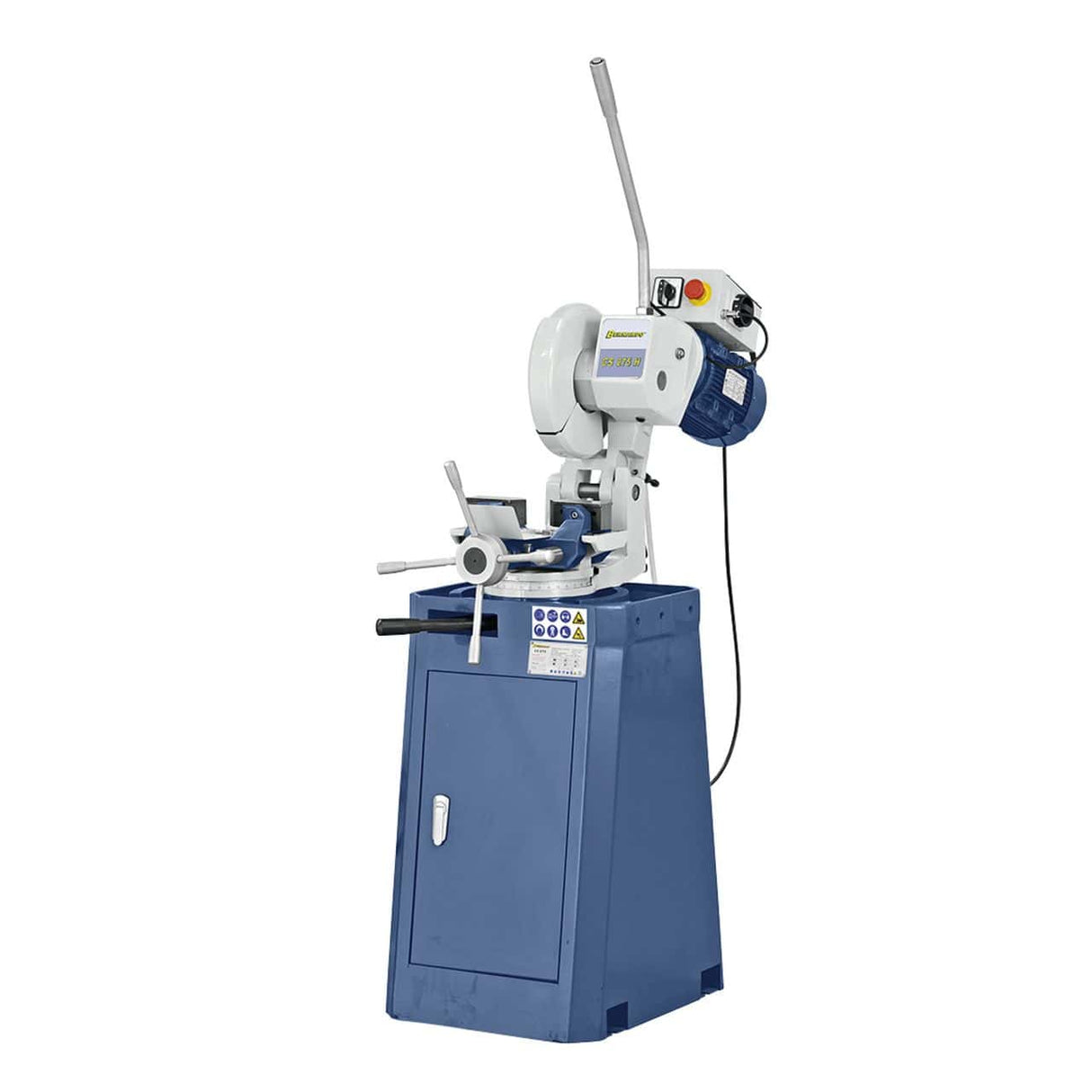

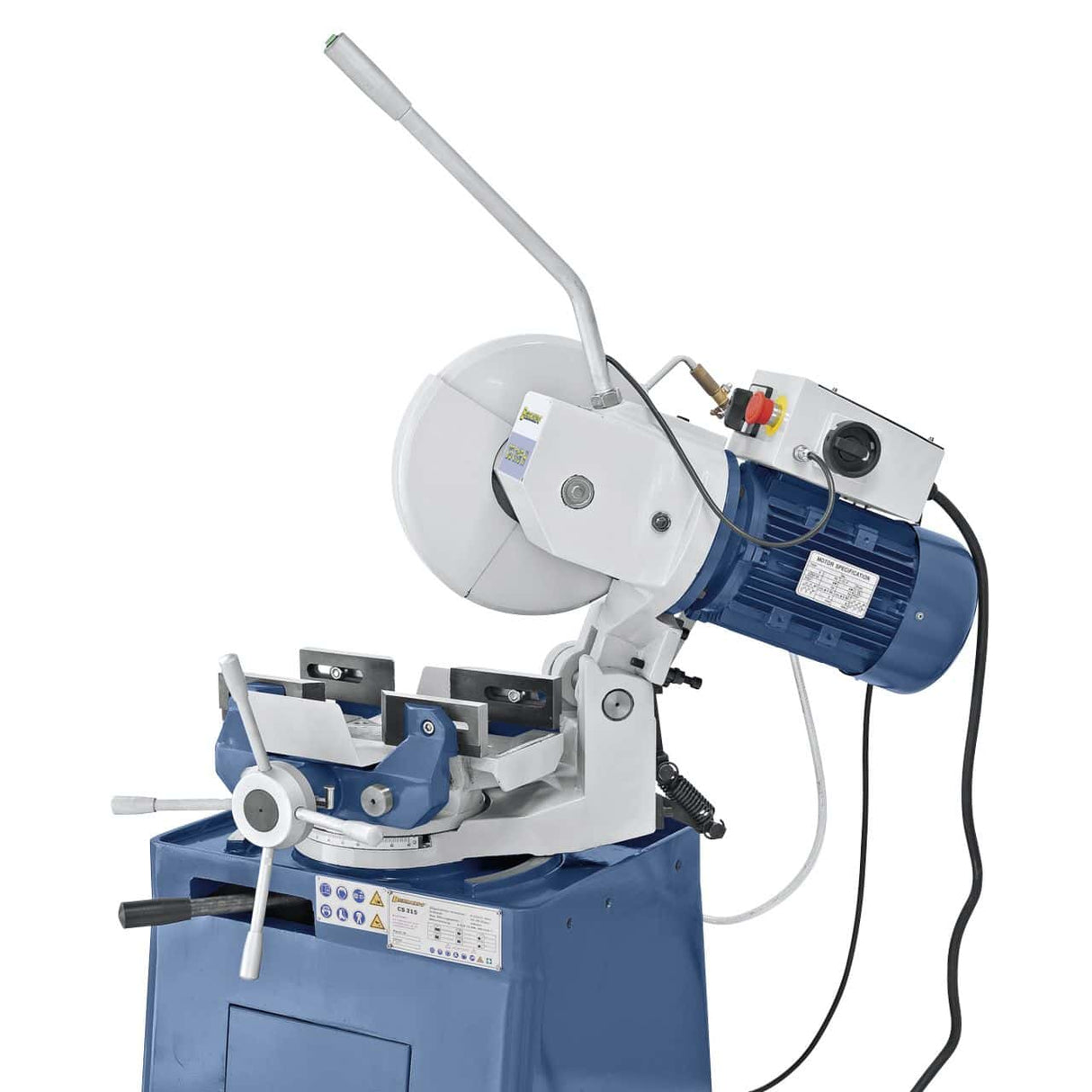

Bernardo CS 275 H is a professional metal cutting saw, with a Ø 275 x 40 mm blade, 48 / 96 rpm speed, 1.4 / 2.0 kW motor, and 175 kg weight. Krollit, official Bernardo distributor since 2007.
- Blade size: 275 x 40 mm
- Blade speed: 48 / 96 rpm
- Max. vice opening: 110 mm
- Working height: 900 mm
- Motor power (S1 100%): 1.4 / 2.0 kW
- Motor power (S6 40%): 2.0 / 2.8 kW
Who uses the CS 275 H and for what

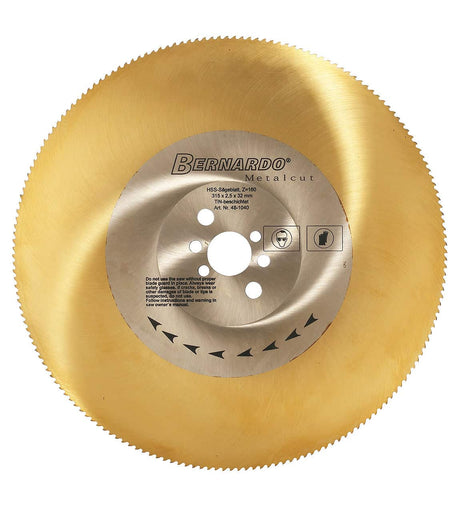

Mechanical workshops and metalworking shops use the CS 275 H for straight and 45° cutting of pipes, profiles, and solids in steel, stainless steel, aluminum, and plastic with a TiN-coated HSS blade.
Its place in the Bernardo range
Bernardo CS 275 H is part of the Bernardo metal cutting saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer assistance in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who the CS 275 H is for
The CS 275 H is recommended for the following professional profiles:
-
Mechanical workshops and metalworking shops: straight and 45° cutting of pipes, profiles, and solids in steel, stainless steel, aluminum, and plastic.
-

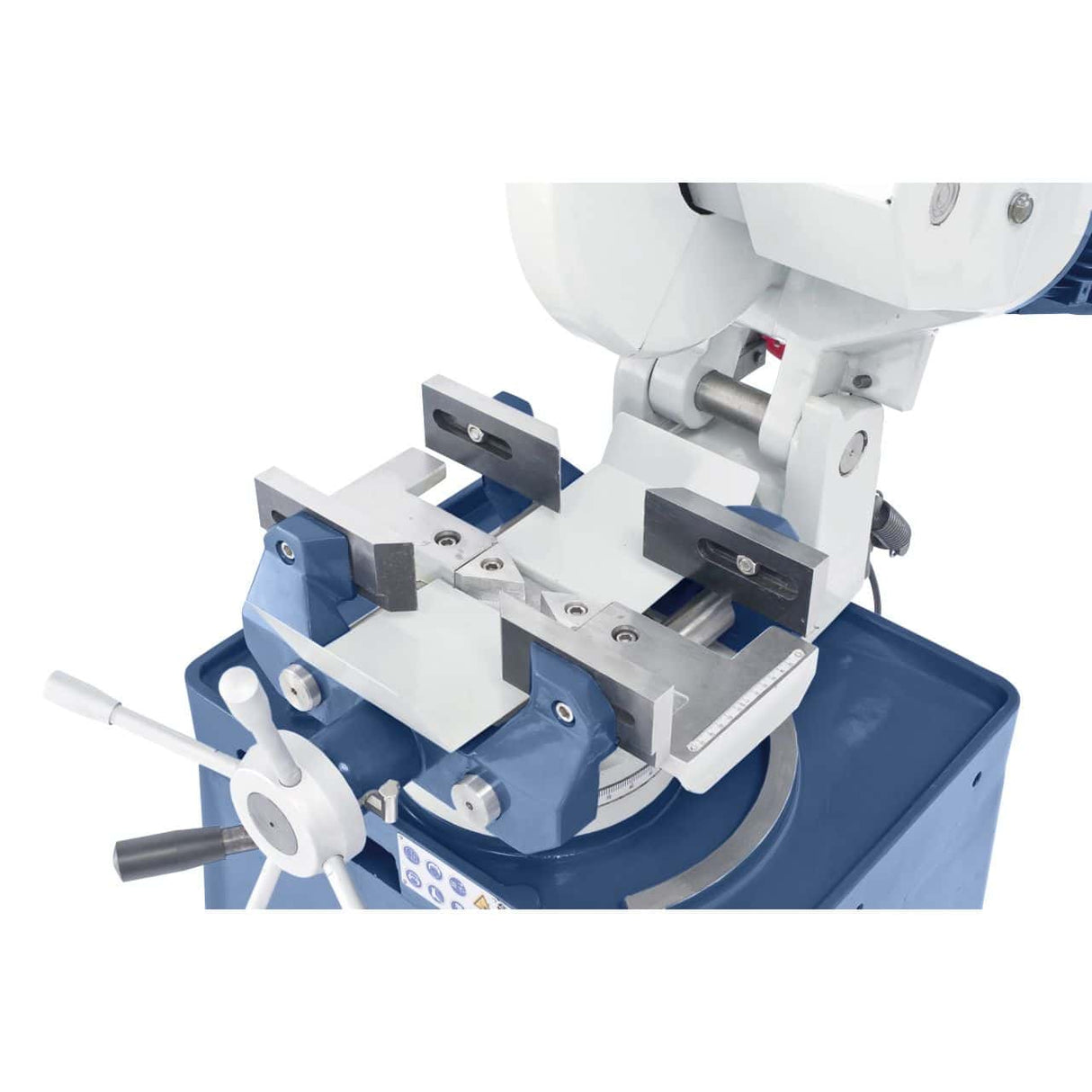

Maintenance workers and light metalworking shops: rapid series cutting of calibrated pieces with a quick-release vice and longitudinal stop.
-
Precision cutting on hardened materials: for stainless steel and hard steels, reduce blade speed and use coolant.
Table, dimensions and geometry
| Working height |
900 mm |
| Machine dimensions (L x W x H) |
460 x 840 x 1740 mm |
| Weight |
175 kg |
Motor and power supply
| Motor power (S1 100%) |
1.4 / 2.0 kW |
| Motor power (S6 40%) |
2.0 / 2.8 kW |
| Voltage |
400 V |
Other specifications
| Max. vice opening |
110 mm |
| Solid round |
Ø 70 mm |
| Solid square |
70 × 70 mm |
| Solid rectangular |
70 × 60 mm |
| Round tube |
Ø 70 mm |
| Square tube |
70 × 70 mm |
| Rectangular tube |
70 × 60 mm |
| Blade size |
275 x 40 mm |
| Blade speed |
48 / 96 rpm |
Frequently Asked Questions
What materials can the CS 275 H cut?
Common steels, stainless steel, aluminum, light metals, and plastic, on both solids and pipes and profiles.
For stainless steel and hardened steels, use the lowest speed and a cooling device. For aluminum and light alloys, the high speed is sufficient. TiN-coated HSS blades offer longer life.
What is the maximum cutting capacity?
See "Cutting capacity" in the technical table: typically Ø 100 mm on tubes and Ø 55 mm on solids for Ø 315 mm models.
Capacity varies based on blade diameter and workpiece geometry. For 45° angled cuts, capacity is reduced by approximately 30-40%.
Does it have multiple speeds?
Professional models offer 2 blade speeds (e.g., 18/36 rpm) to adapt to the material: low for stainless steel, high for common steels.
Dual speed is essential for optimizing blade life and cutting efficiency. For cuts on single materials, single speed may be sufficient.
Does it have a cooling device?

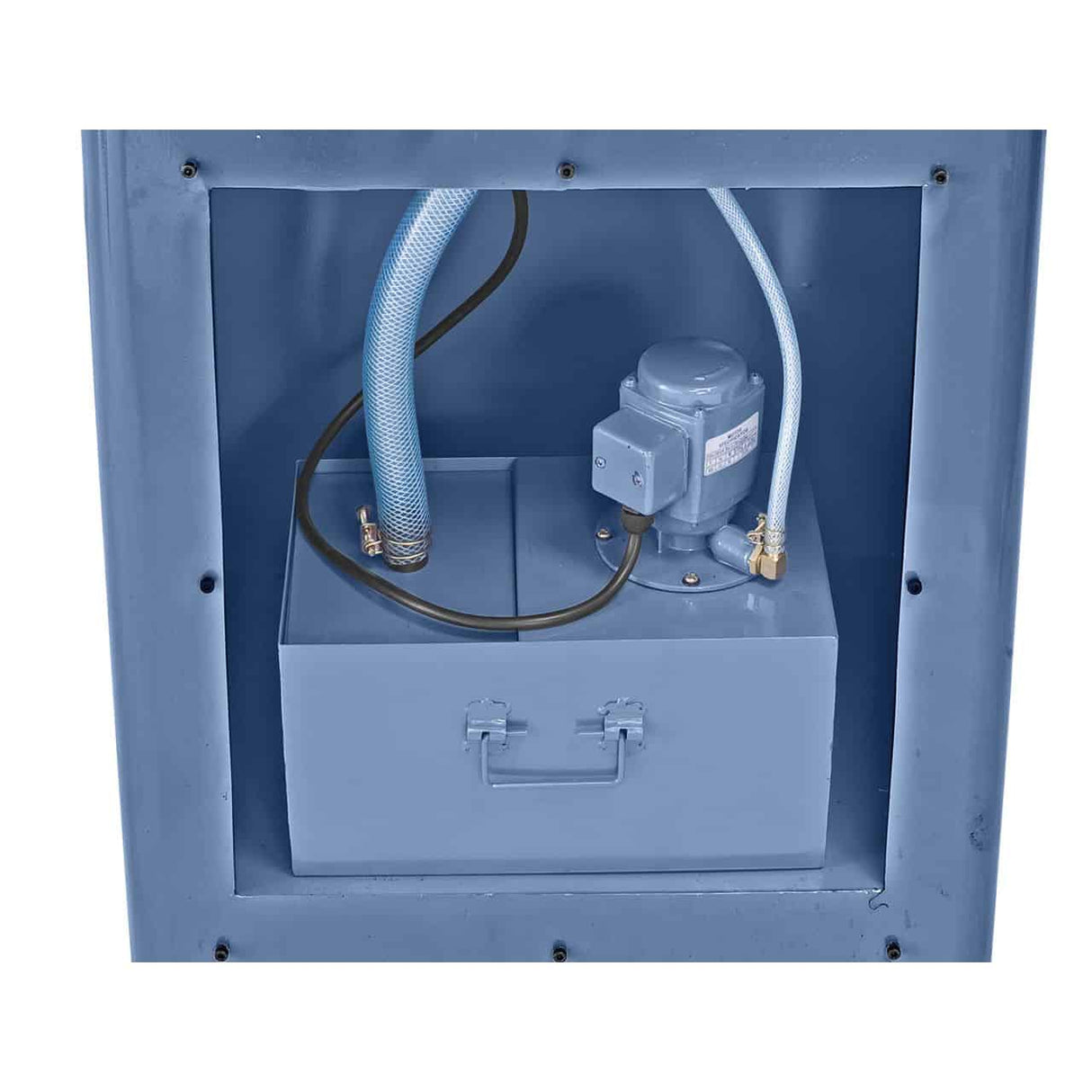

Professional models have an integrated cooling device in the base with a filter, to reduce bulk.
Coolant extends blade life and improves cutting quality on hardened materials. It should be mixed with specific oil at 5-10% in water.

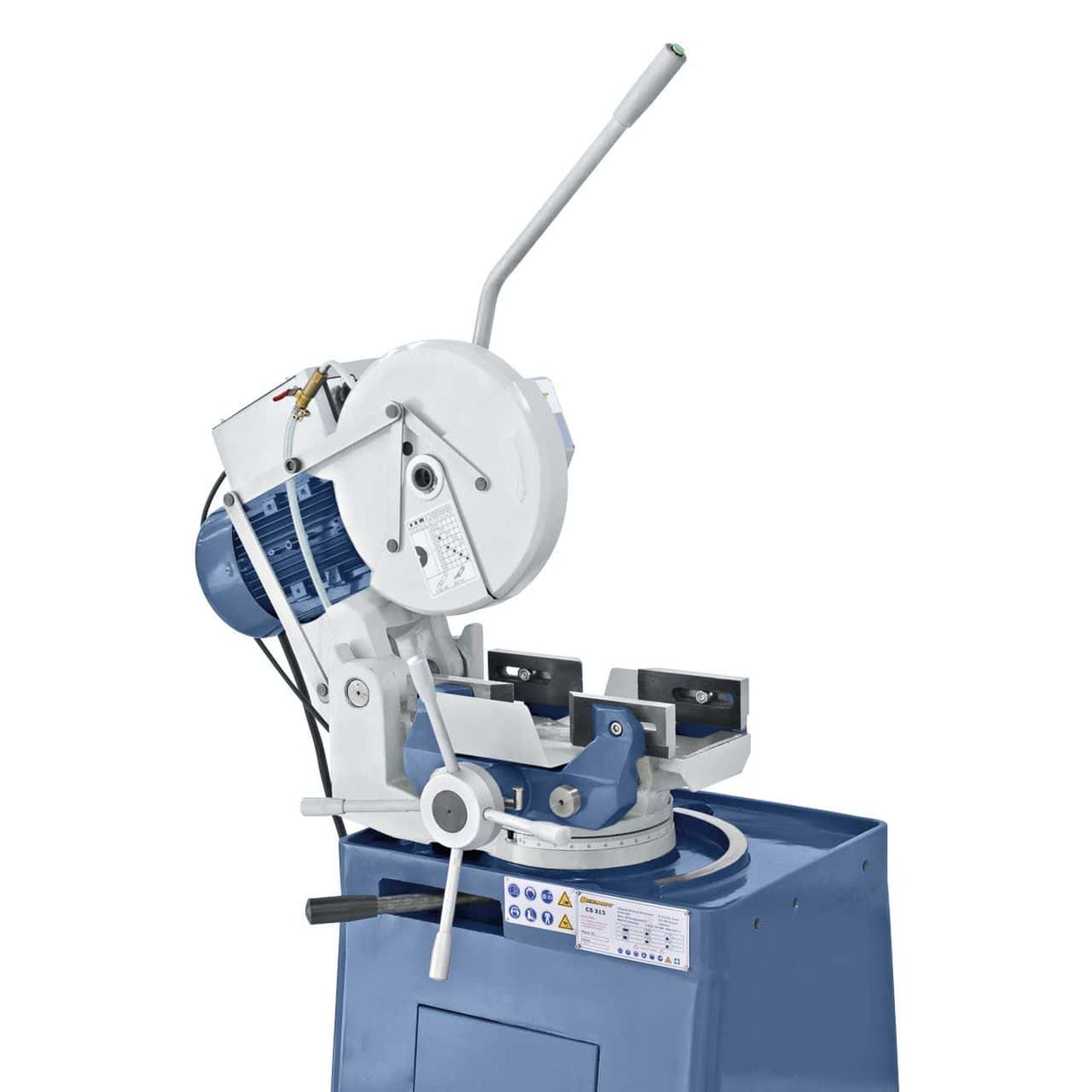

Is the head tiltable for angled cuts?
Yes, professional models allow angled cuts up to 45° right/left.
The tilt allows for custom cuts for angular joinery. For series production with 45° cuts on both sides, it is advisable to use a longitudinal stop.
