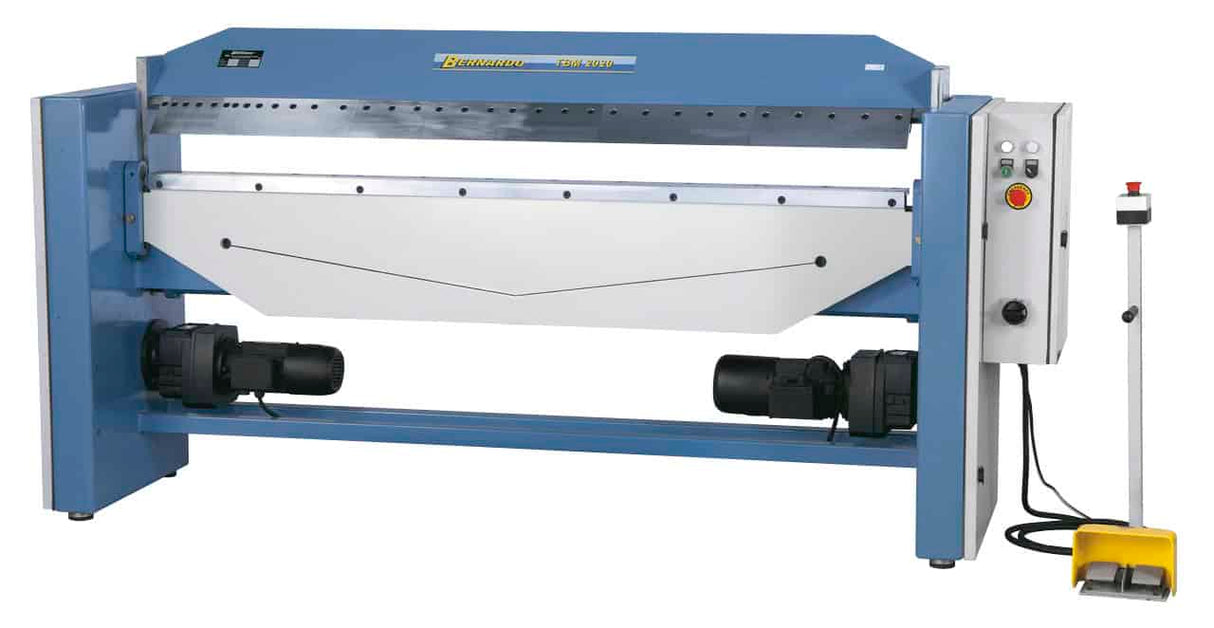

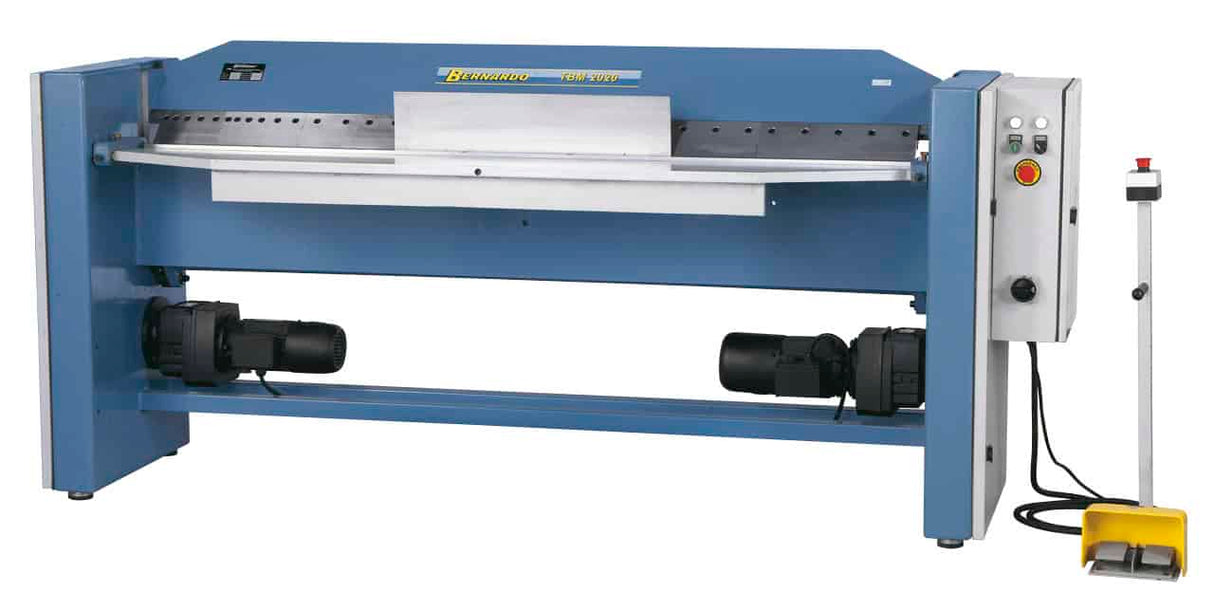

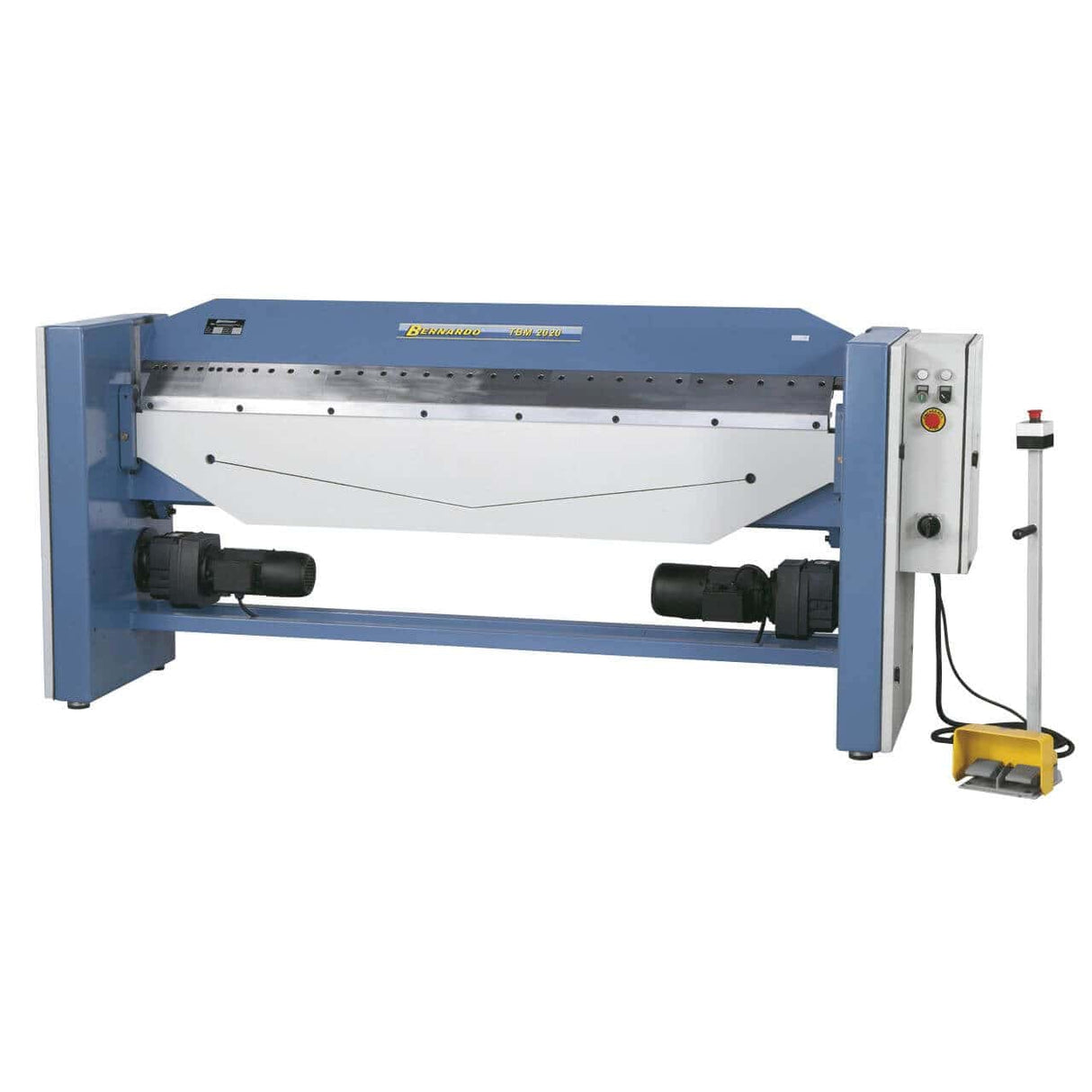

Bernardo TBM 2520 Motorized Folding Machine with Segmented Blade
The Bernardo TBM 2520 folding machine is a professional motorized machine, suitable for sheet metal workers, workshops, and companies that require precision and productivity. With a working length of 2520 mm and a capacity of up to 1.0 mm thickness (400 N/mm²), it offers reliable performance even in intensive operations. Equipped with a segmented upper blade, it allows for a wide range of bends, including complex boxes and profiles. The advancement of the upper blade and the bending process are motorized, with chain drive for optimal power distribution. The graduated ring allows for precise adjustment of the bending angle, while the foot pedal control with emergency stop switch ensures safety and free hands for workpiece positioning. The welded steel structure and large flat guides guarantee stability and torsion-free processing. With a weight of 1310 kg, the TBM 2520 is suitable for high-precision professional bending.
Main Specifications

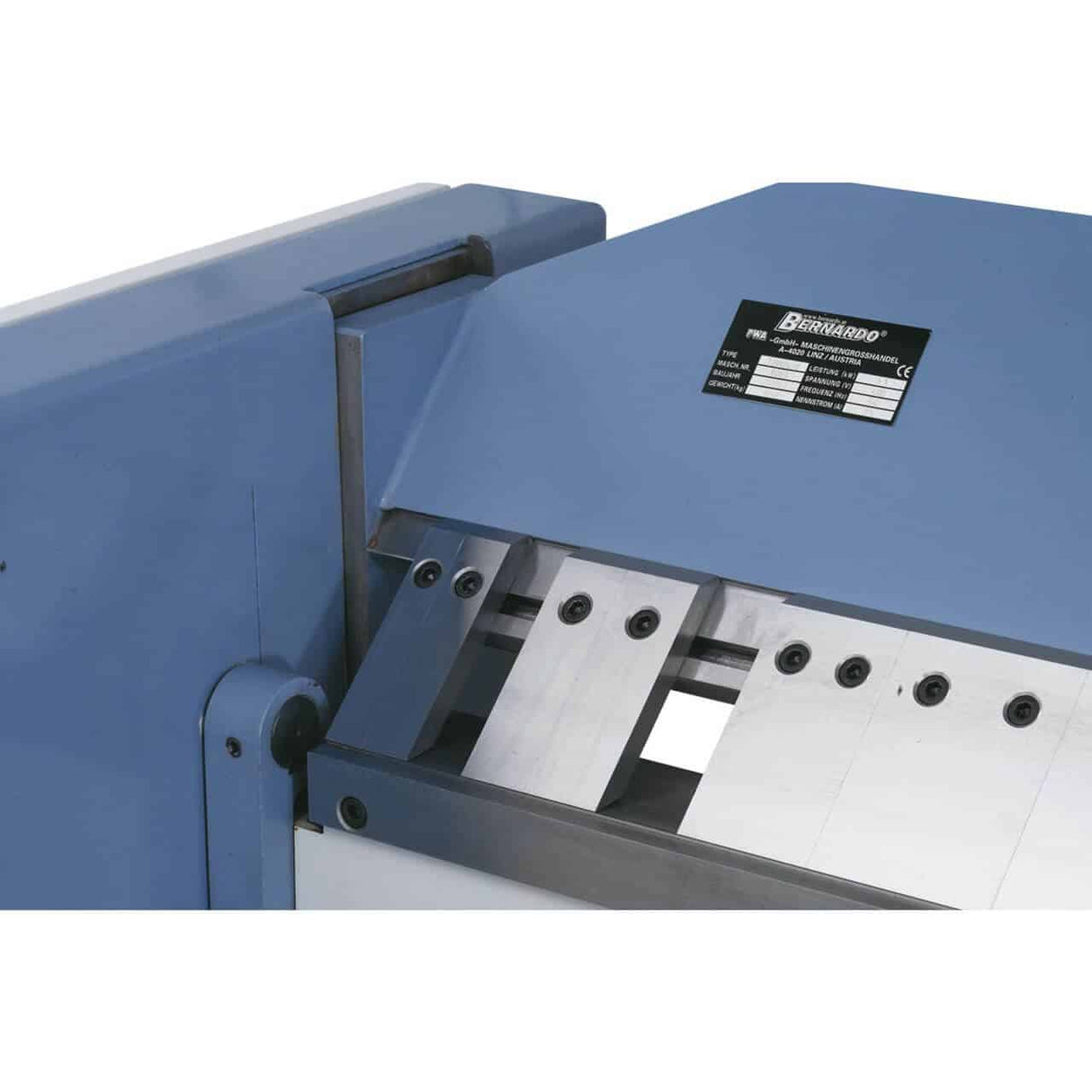

Motorized folding machine with segmented upper blade
Working length 2520 mm, max. thickness 1.0 mm
Motorized upper blade advancement and bending

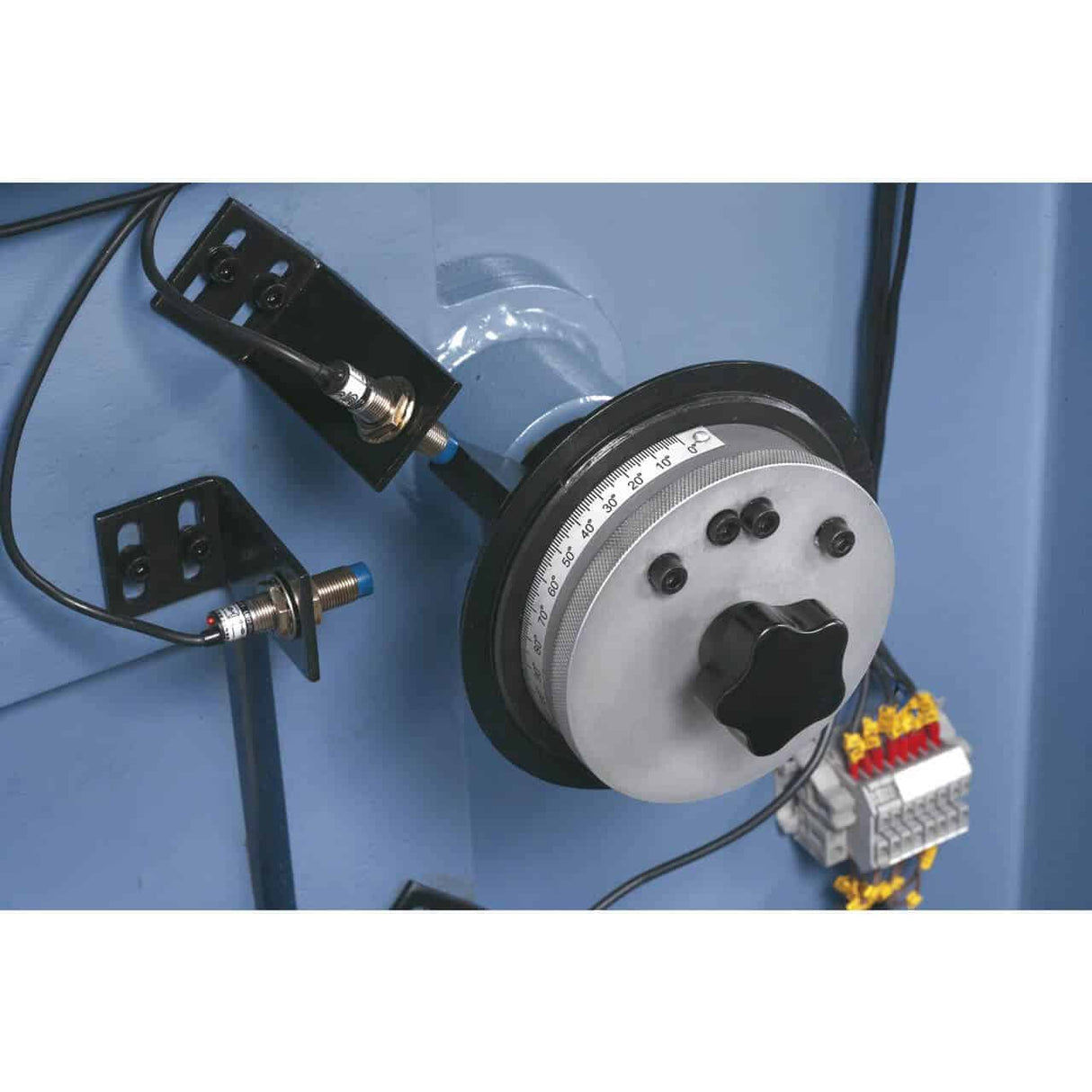

Graduated ring for precise angle adjustment

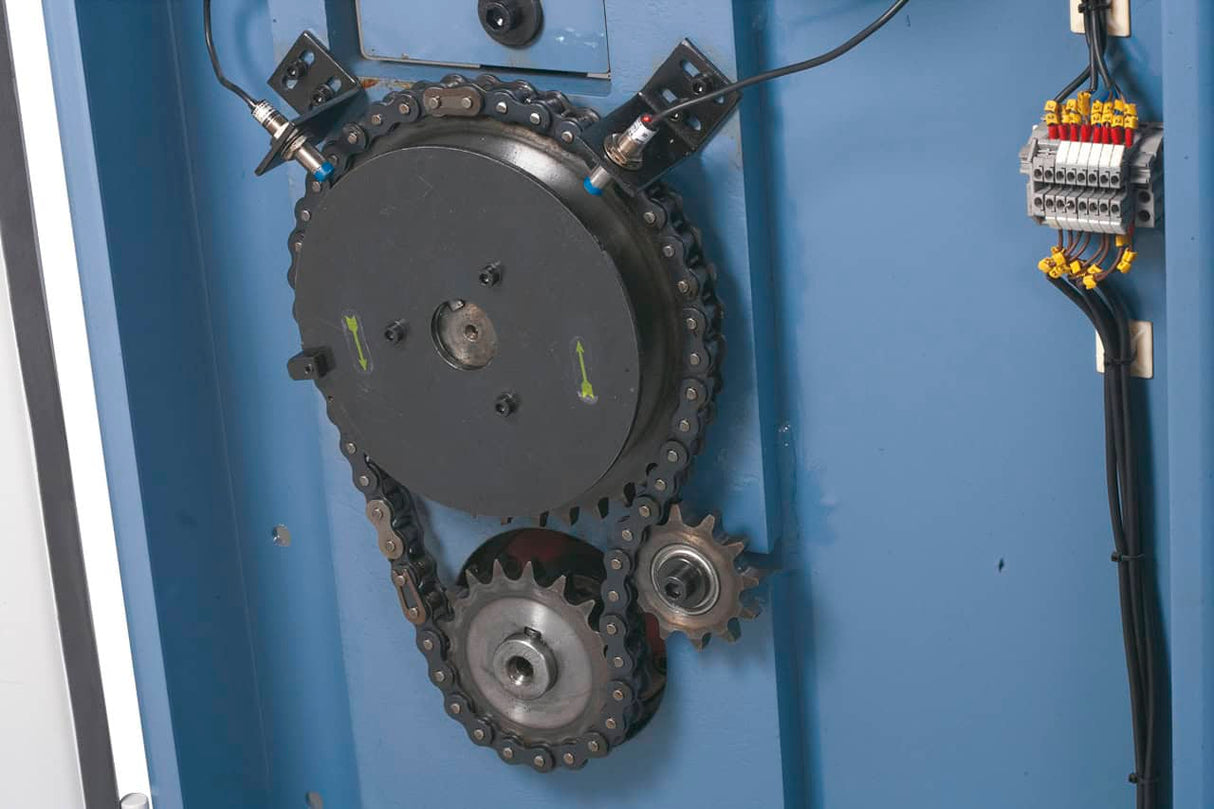

Chain drive for optimal power distribution
Welded steel structure for stability and long life
Large flat guides for accurate movements
Foot pedal control with integrated emergency stop switch
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
TBM 2520 |
| Working length |
2520 mm |
| Max. sheet metal thickness (400 N/mm²) |
1.0 mm |
| Max. opening width with segments |
100 mm |
| Max. opening width without segments |
130 mm |
| Max. closed passage height |
30 mm |
| Bending angle |
0° – 135° |
| Working height |
880 mm |
| T-slot dimension |
12 mm |
| Upper blade motor power |
0.37 kW |
| Bending blade motor power |
0.75 kW |
| Voltage |
400 V |
| Machine width |
3180 mm |
| Depth |
760 mm |
| Height |
1410 mm |
| Weight |
1310 kg |
Package contents:
Bernardo TBM 2520 folding machine
Segmented upper blade
Bending angle scale
Foot pedal with emergency stop
Bending segments: 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 100 | 150 | 200 | 200 | 270 | 400 | 400 | 400 mm
Logistics
Bernardo shipping: 5–9 working days (7 days in the South). Original spare parts available with 3–5 working days shipping. Customer service in Italian available.
Frequently Asked Questions
What is the difference between BM (manual), TBM (motorized) and SB (with rails)?
BM: manual lever folding machine — suitable for low-volume artisanal production. TBM: motorized version of the BM — same capacity but lever operated by motor, less fatigue in continuous production. SB: folding machine with integrated cutting rails — allows cutting and bending sheet metal in the same workstation without moving the workpiece.
What is the maximum thickness for aluminum and stainless steel?
The nominal capacity refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50%. For stainless steel, it decreases by 30–40%. For copper, behavior is similar to aluminum.
Are segmented blades included as standard?
Yes. Interchangeable segmented blades are included in the standard equipment of BM and TBM folding machines. They allow bending U-profiles and boxes where the sheet metal must pass through the presser.
Are spare blades available?
Yes. Original Bernardo spare blades and segments available with 3–5 working days shipping.
Is assistance available?
Original Bernardo spare parts available with 3–5 working days shipping. Customer service in Italian available.
