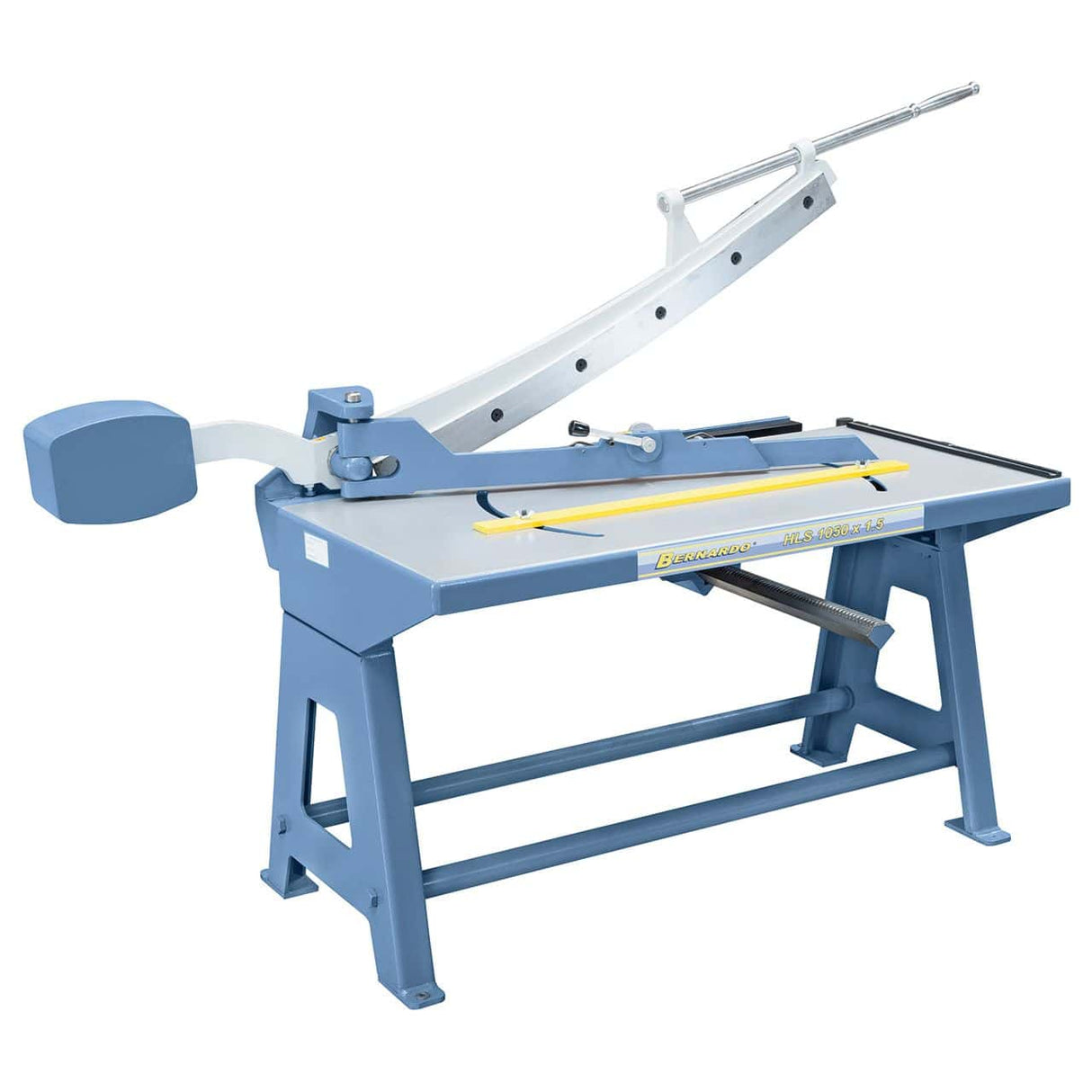

Bernardo Manual Lever Shear HLS 1050 x 1.5

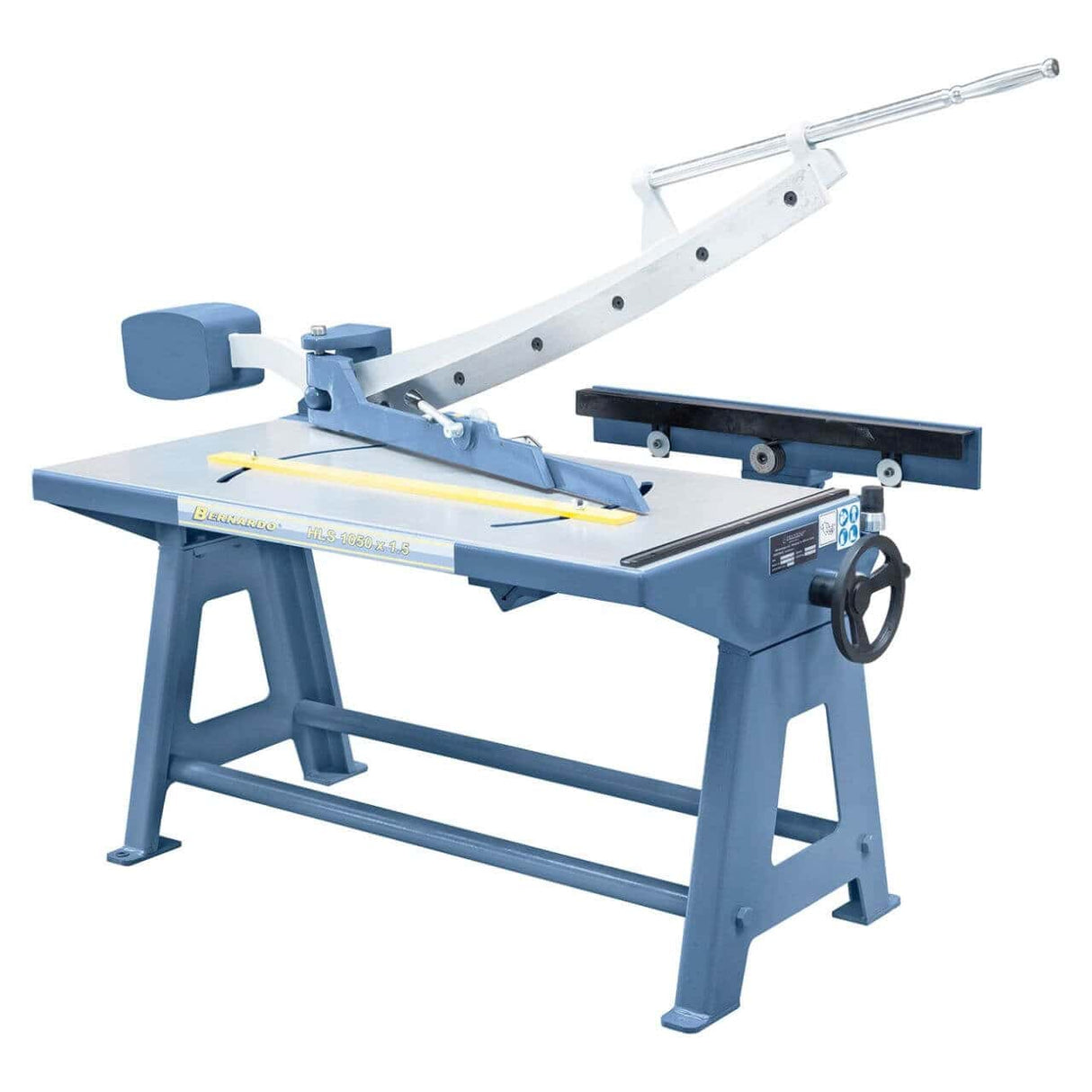

The Bernardo HLS 1050 x 1.5 manual lever shear is designed for safe and precise cutting of sheet metal up to 1050 mm in length and 1.5 mm in thickness (400 N/mm²). Thanks to the robust, large work table, even longer sheet metal panels can be positioned stably, with the possibility of through-feed for progressive cuts. The standard hold-down device with quick-release clamp ensures material stability during work, while the adjustable stop allows for easy and precise angled cuts. The counterweight on the rear side facilitates blade lifting, reducing operator effort. Furthermore, the rear stop, adjustable up to 600 mm with a front handwheel, makes adjustments quick. The quality steel blades ensure long life and clean, burr-free cuts. Ideal for workshops, laboratories, and light metalworking.
Main features:
Robust and stable structure for professional work
Large work table for large sheet metal panels
Through-feed function for cutting longer sheets
Hold-down device with quick-release clamp included as standard

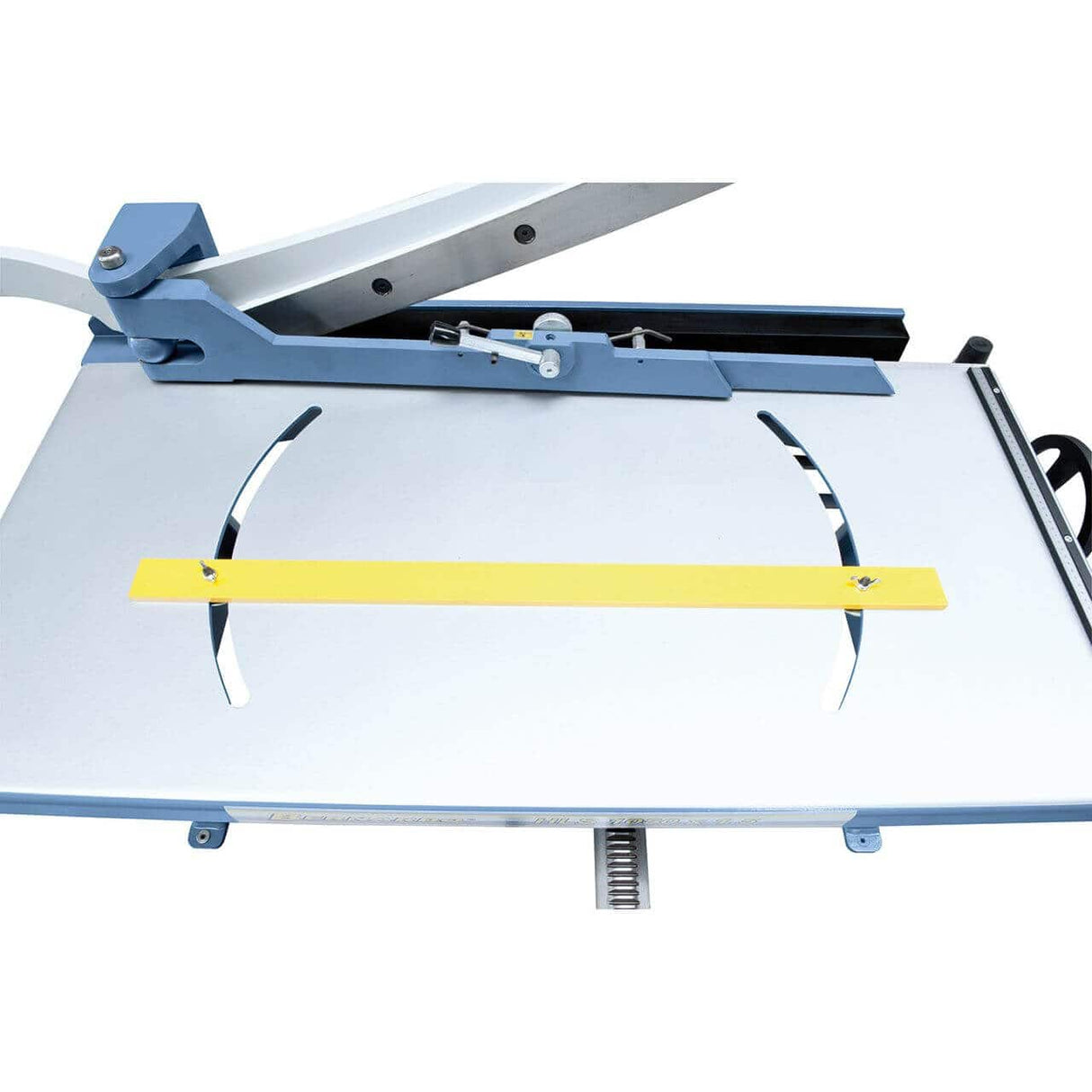

Adjustable stop on the table for precise angled cuts
Rear counterweight to facilitate blade lifting

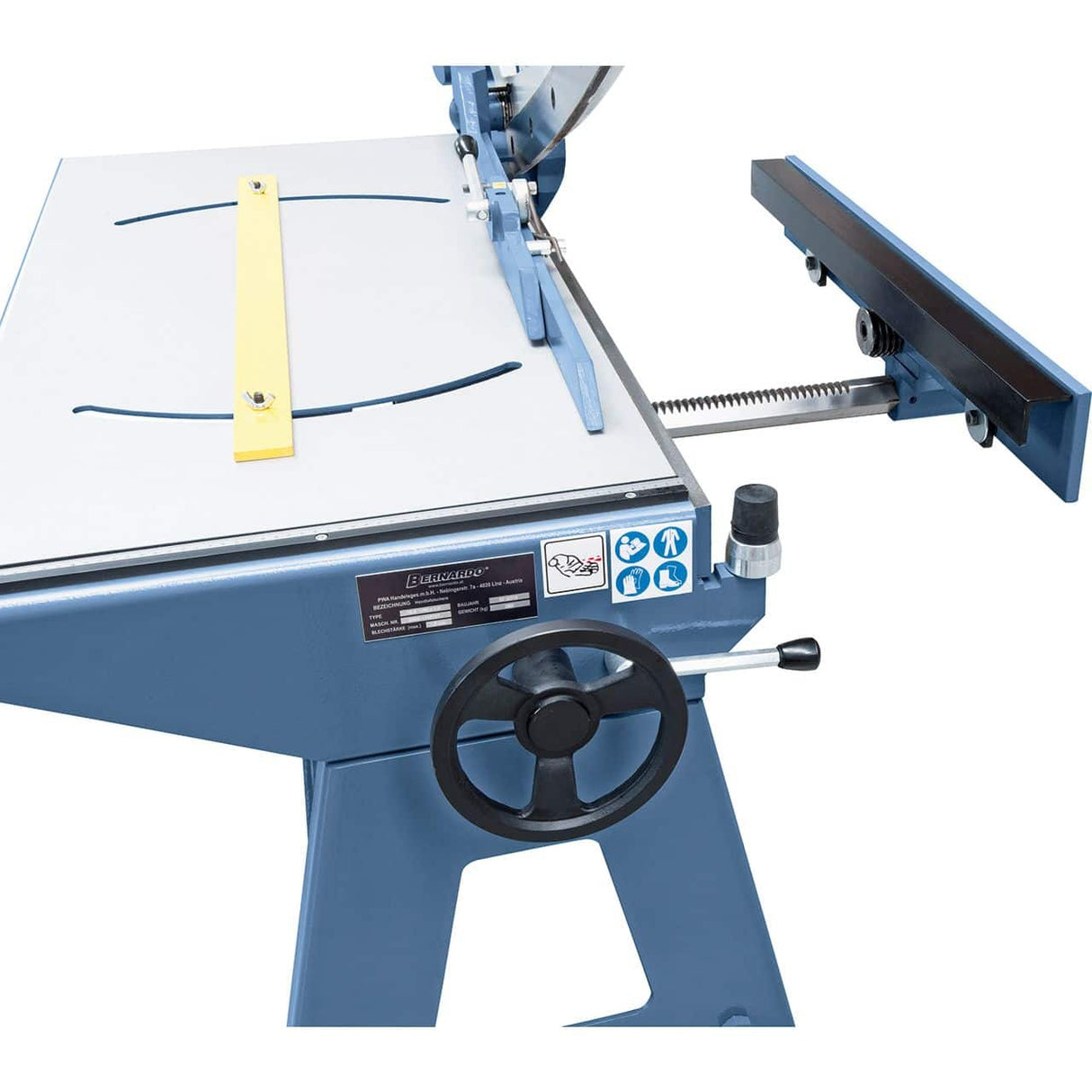

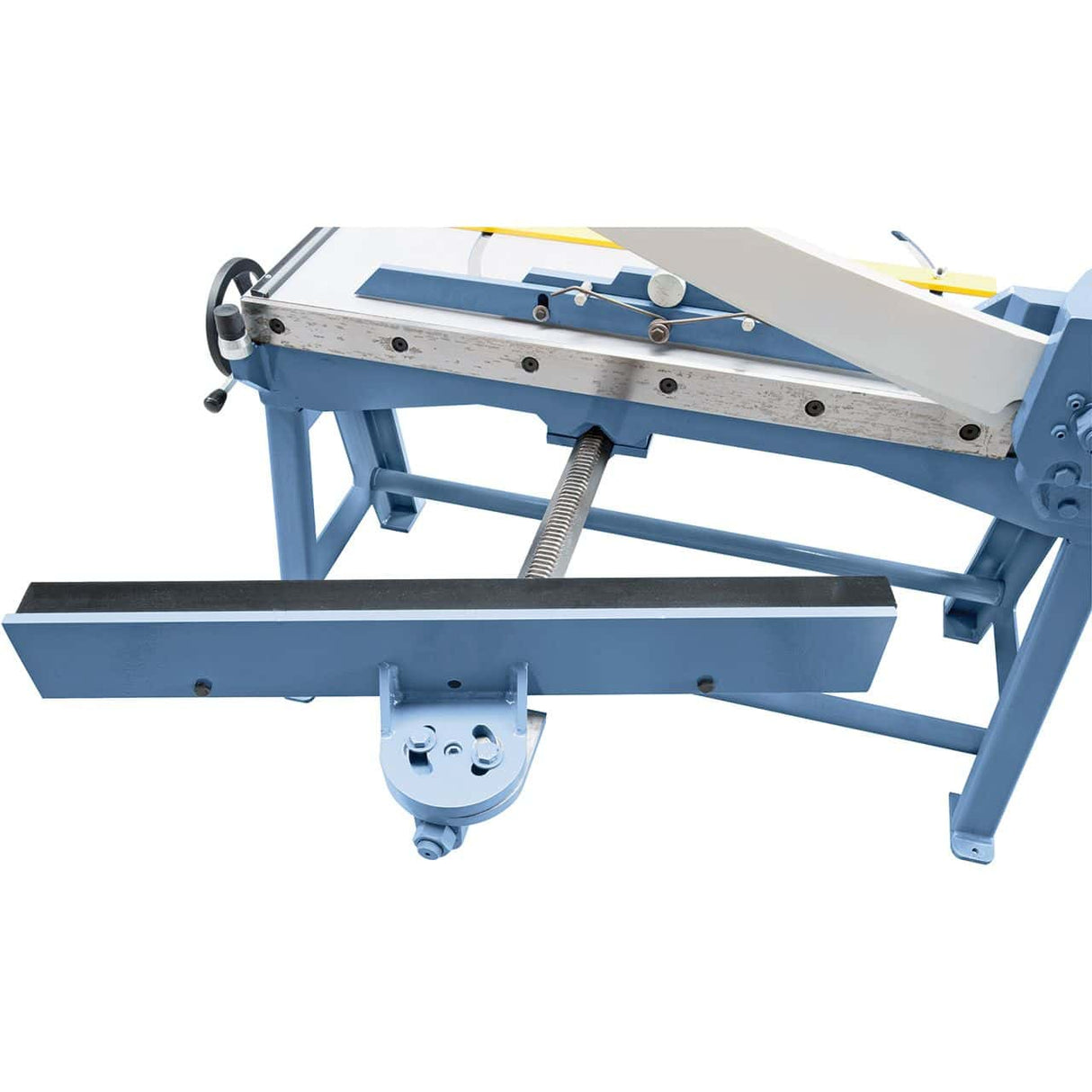

Front handwheel for adjusting the rear stop (0–600 mm)
Long-lasting, quality steel blades
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
HLS 1050 x 1.5 |
| Cutting length |
1050 mm |
| Max. sheet thickness (400 N/mm²) |
1.5 mm |
| Rear stop |
0 – 600 mm |
| Table stop adjustment |
240 – 360 mm |
| Table dimensions |
1300 x 600 mm |
| Working height |
765 mm |
| Machine dimensions (L x W x H) |
1920 x 1040 x 1600 mm |
| Weight |
350 kg |
Standard equipment
Bernardo HLS 1050 x 1.5 manual lever shear
Hold-down device with quick clamp
Adjustable rear stop
Table stop for angular cuts
Support base
Tool steel blades
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
Frequently asked questions
What is the maximum thickness for aluminum and stainless steel?
The nominal thickness of 1.5 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.1 mm). For AISI 304 stainless steel, the capacity decreases by 30–40% (approx. 1.0 mm).
Are the blades replaceable?
Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo replacement blades are available with 3–5 working day shipping.
Does it require fixed installation or can it be used on a workbench?
Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used on a bench vise.
Bernardo HLS 1050 x 1.5 – Shear, but does it also cut copper and brass?
Yes. Copper and brass have lower resistance than S235 steel: the actual capacity for copper is similar to aluminum (approx. 2.1 mm). For specific alloys, contact Krollit for verification.
Are assistance and spare parts available?
Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
