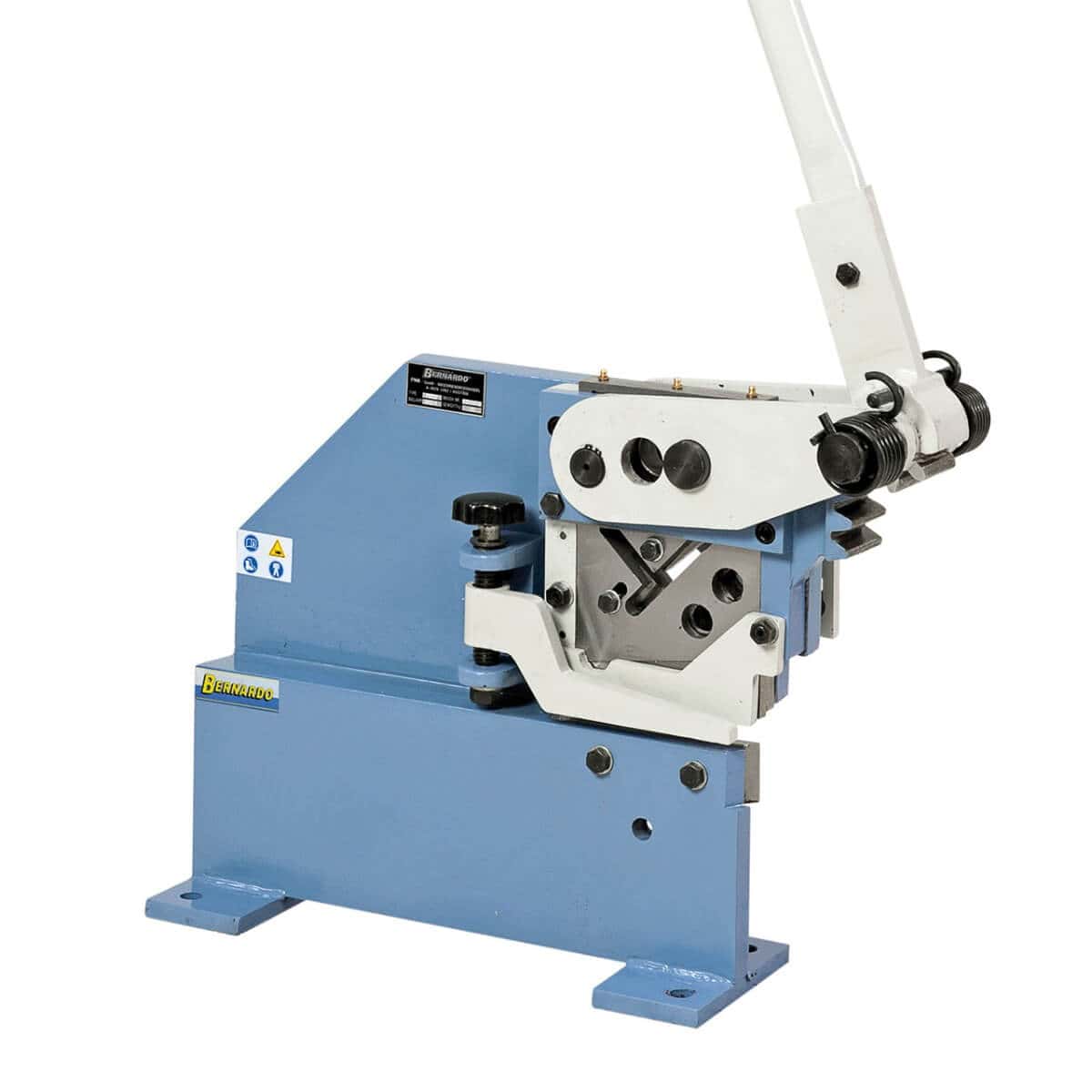

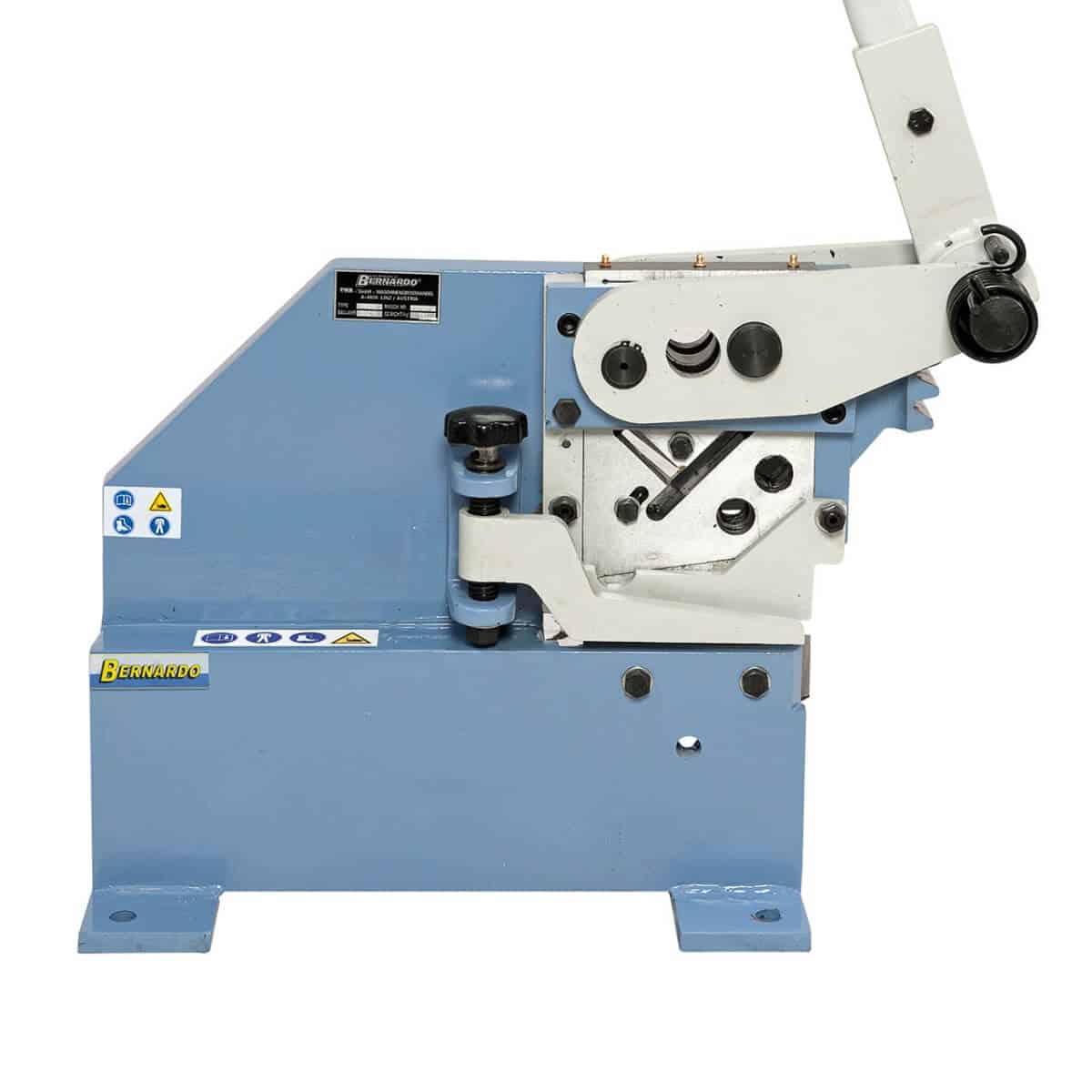

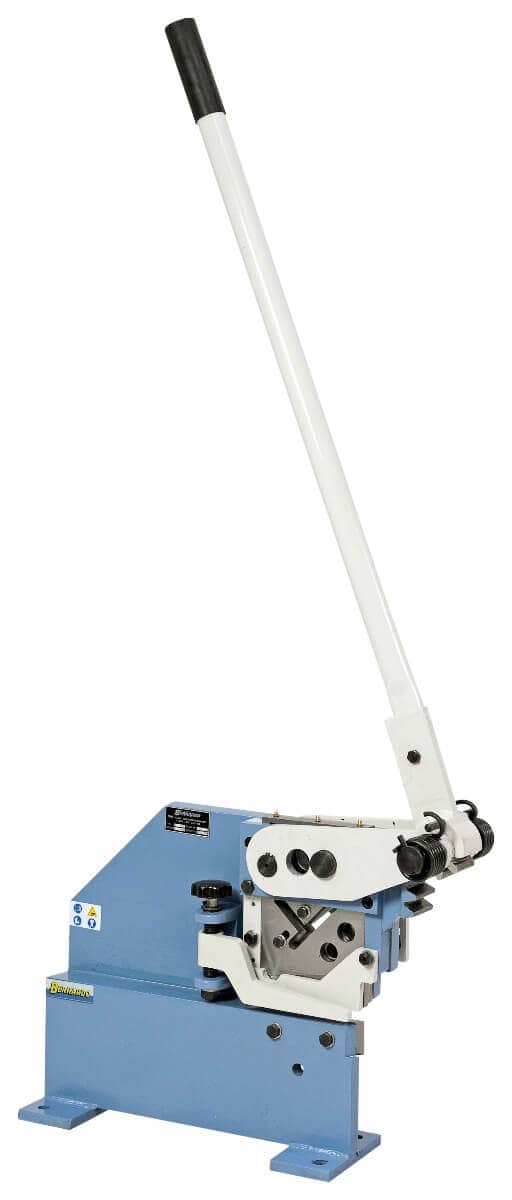

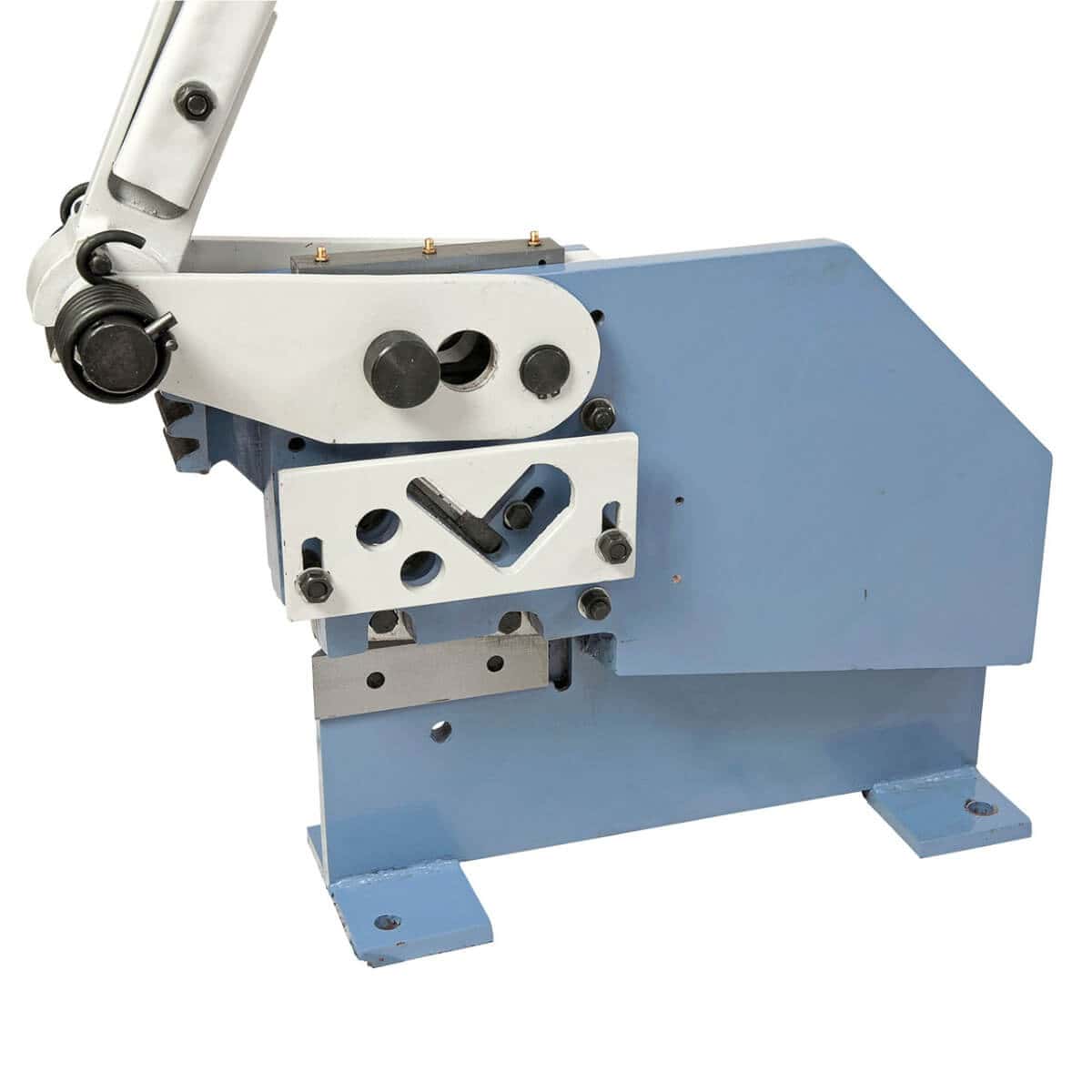

Bernardo Lever Shears for Sheet Metal and Sections PBS 22
The Bernardo PBS 22 lever shears are designed for precise and safe cutting of sheet metal and metal sections. Versatile and robust, they are ideal for artisanal workshops, school laboratories, and maintenance departments. Thanks to their stable steel structure and hardened and ground steel knife, they are built for durability and consistent precision. The height-adjustable stop device prevents material torsion during cutting, while the machine's ergonomics allow for comfortable use even during extended sessions. With a cutting capacity of up to 20 mm for round and square materials, 6 mm for sheet metal, and 90 x 14 mm for flat stock, the PBS 22 ensures high performance with minimal effort thanks to its optimized cutting geometry. A reliable and indispensable solution for those seeking quality and reliability in manual metal cutting.
Key features:
Robust welded steel structure
Hardened and ground tool steel knife
Optimized cutting geometry to reduce effort

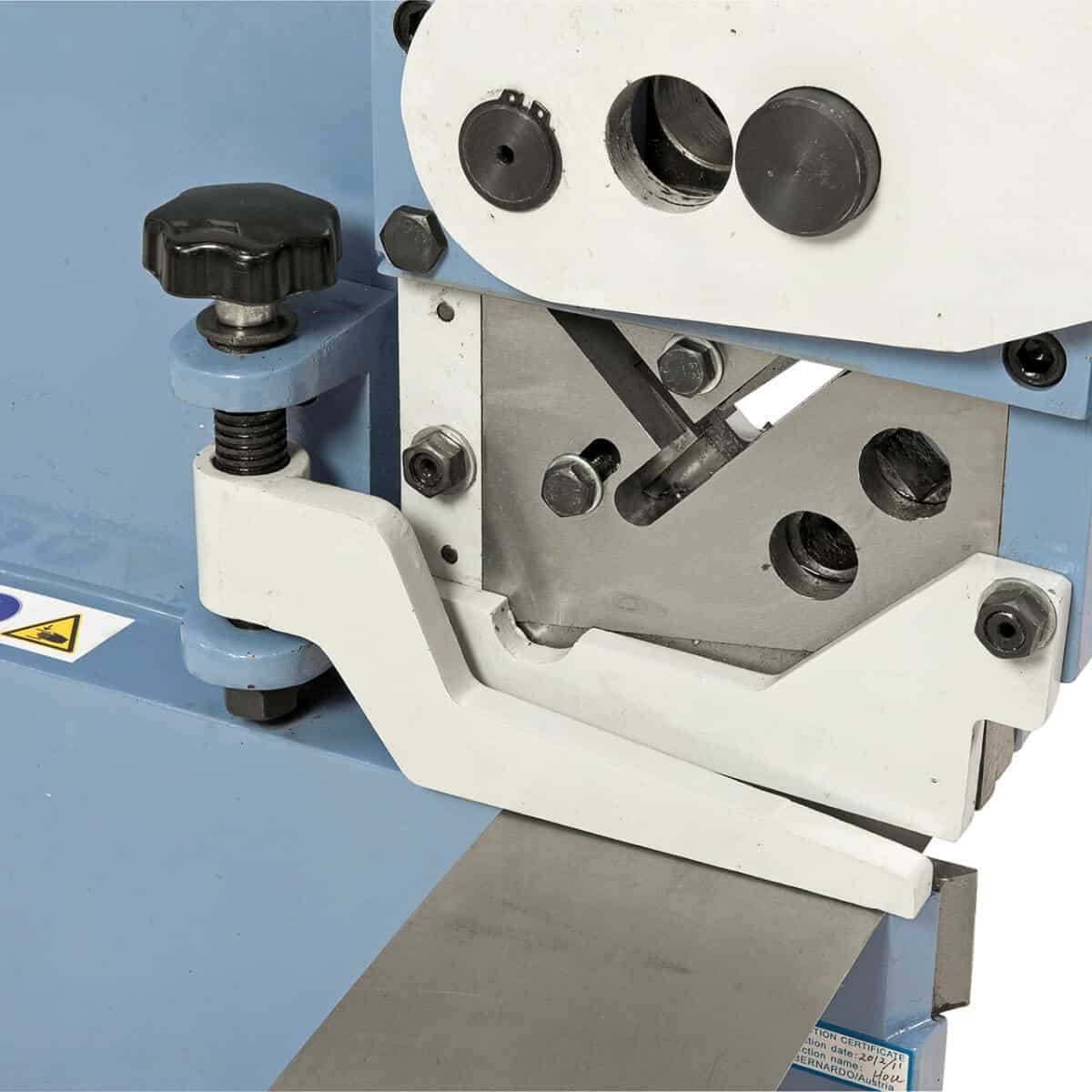

Height-adjustable stop device to prevent torsion
Excellent visibility along the entire blade length
Ideal for workshops, schools, and maintenance departments

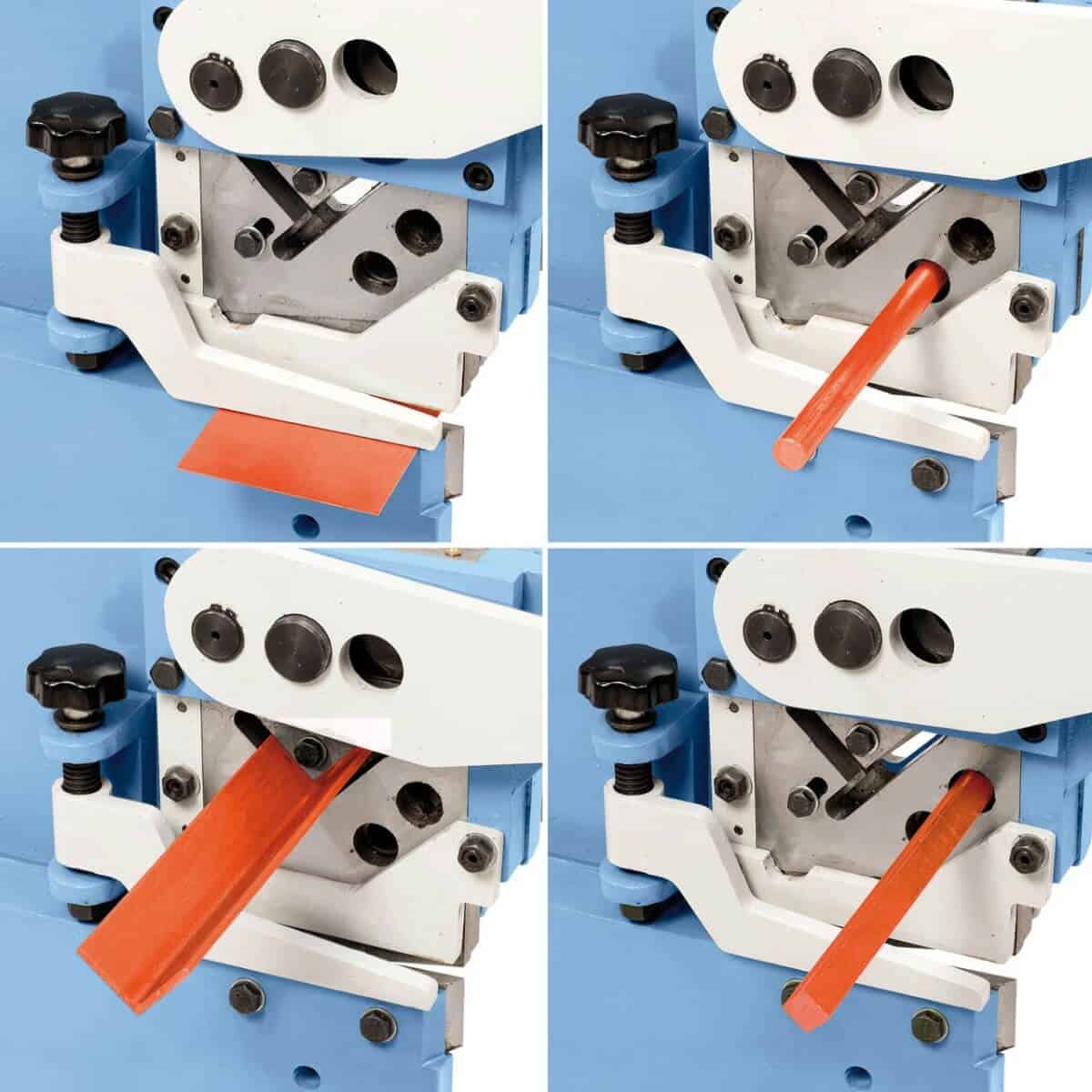

Suitable for sheet metal, round, square, L and T sections
Technical specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
PBS 22 |
| Sheet metal cutting capacity (400 N/mm²) |
6.0 mm |
| Max. round bar cutting |
Ø 20 mm |
| Max. square bar cutting |
20 x 20 mm |
| Max. flat bar cutting |
90 x 14 mm |
| Max. L-section cutting |
60 x 7 mm |
| Max. T-section cutting |
60 x 7 mm |
| Blade length |
175 mm |
| Max. cutting length |
150 mm |
| Machine dimensions (L x W x H)** |
270 x 720 x 1750 mm |
| Weight |
102 kg |
(** incl. lever)
Standard equipment
Complete Bernardo PBS 22 lever shears
Mounted hardened steel knife
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Frequently Asked Questions
What is the maximum thickness for aluminum and stainless steel?
The nominal thickness of 1.5 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.1 mm). For AISI 304 stainless steel, the capacity decreases by 30–40% (approx. 1.0 mm).
Are the blades replaceable?
Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo replacement blades available with 3–5 business day shipping.
Does it require fixed installation or can it be used on a workbench?
Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used in a bench vise.
Can the Bernardo PBS 22 lever shears also cut copper and brass?
Yes. Copper and brass have lower resistance than S235 steel: the actual capacity for copper is similar to aluminum (approx. 2.1 mm). For specific alloys, please contact Krollit for verification.
Are assistance and spare parts available?
Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
