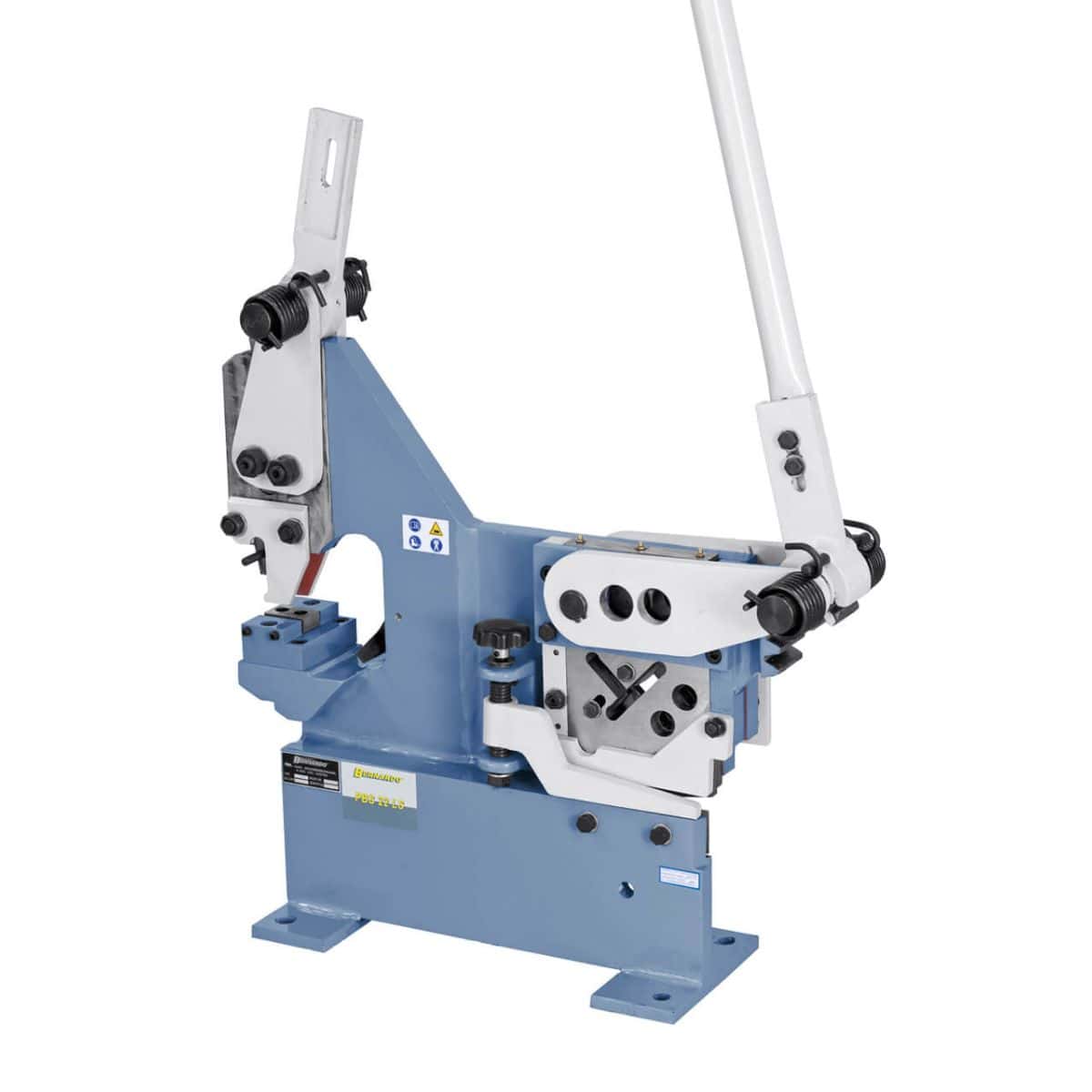

Bernardo Lever Shear and Universal Punch PBS 22 LS

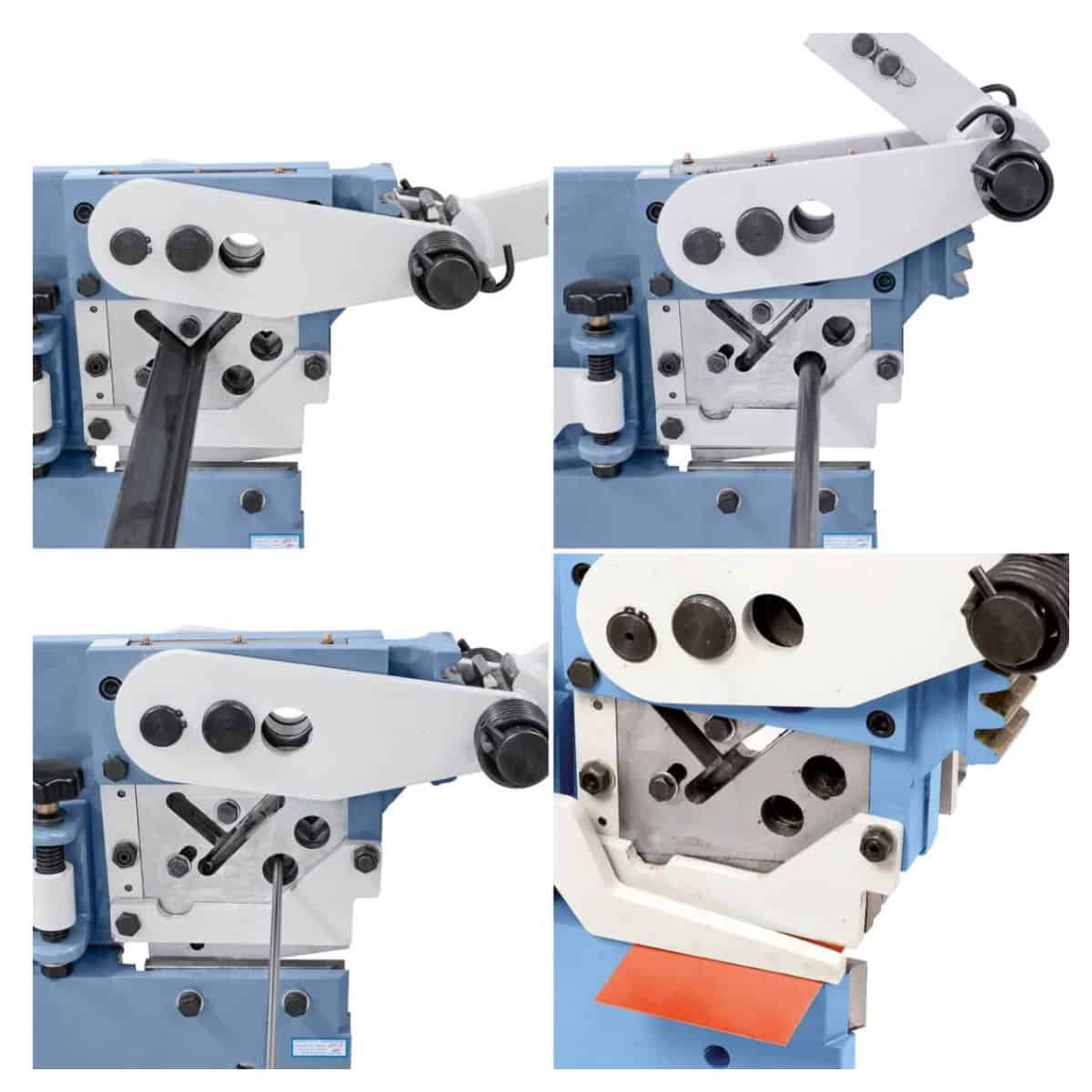

The Bernardo PBS 22 LS lever shear and punch is a universal machine designed for maximum versatility in metal cutting and punching. In addition to cutting sheet metal, round bars, square bars, flats, and L and T profiles, it features an integrated punching unit with a capacity of up to 20 mm in diameter and 8 mm in thickness. The robust steel structure and the hardened and ground tool steel blade ensure long life and constant precision. The height-adjustable stop device prevents material torsion during cutting, while the optimized geometry reduces the effort required by the operator. Thanks to its versatility, the PBS 22 LS is ideal for artisanal workshops, maintenance departments, schools, and technical training laboratories. A two-in-one solution that combines efficiency, robustness, and practicality.
Key Features:
Robust welded steel structure, ergonomic and stable
Hardened and ground tool steel blade
Optimized cutting to reduce operator effort
Height-adjustable stop device for precise cuts
Excellent visibility along the entire blade

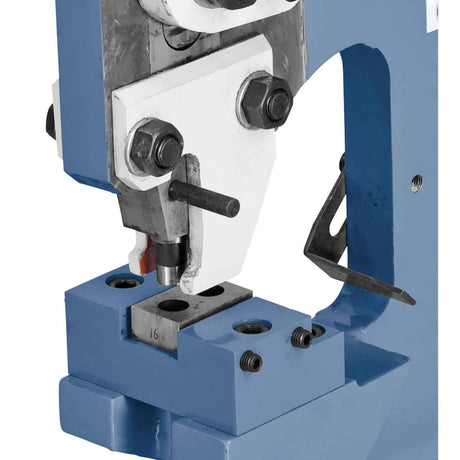

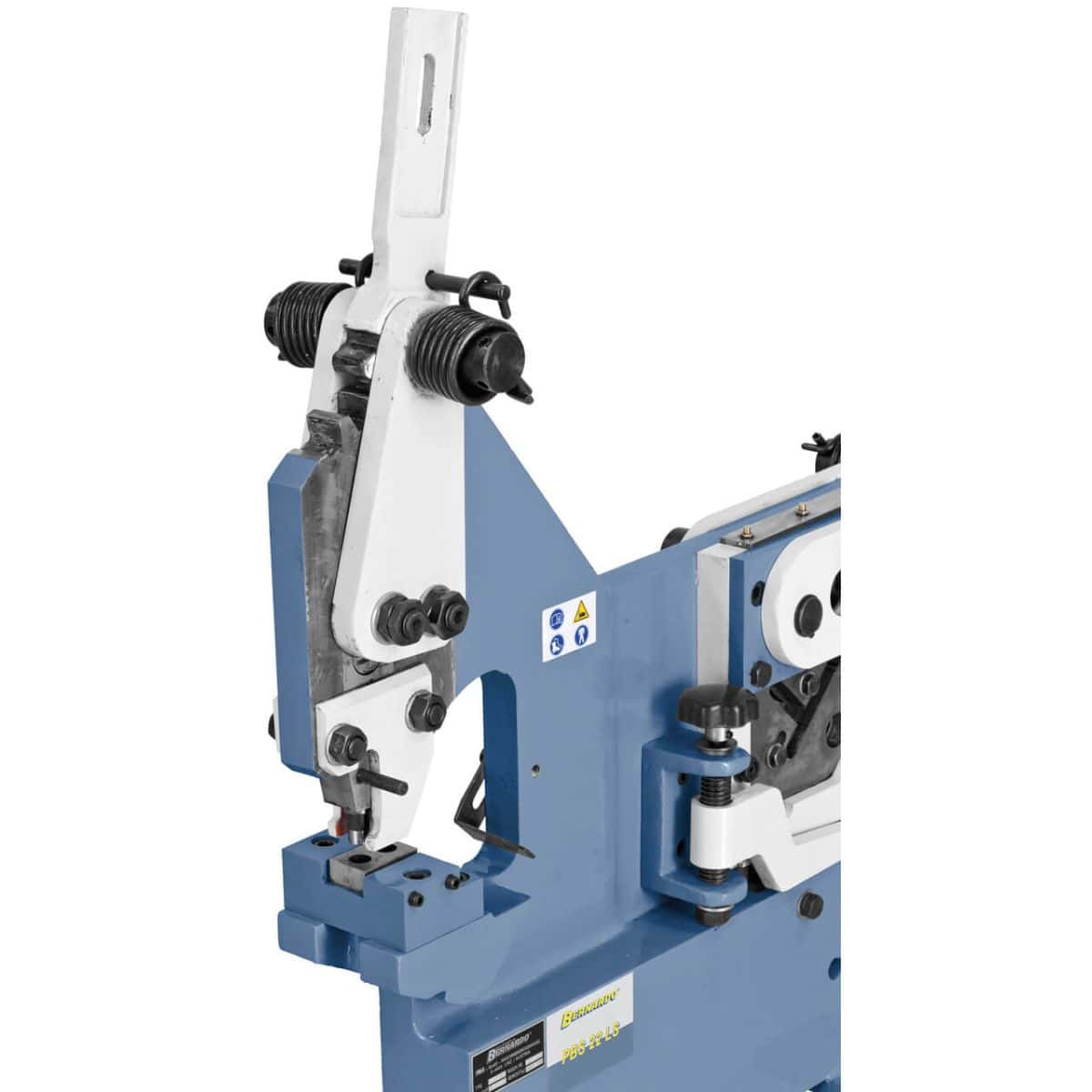

Integrated punching unit up to Ø 20 mm and 8 mm thickness
Ideal for schools, workshops, and maintenance departments
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
PBS 22 LS |
| Sheet metal cutting capacity (400 N/mm²) |
8.0 mm |
| Max. round cutting |
Ø 20 mm |
| Max. square cutting |
20 x 20 mm |
| Max. flat cutting |
90 x 14 mm |
| Max. L-section cutting |
60 x 7 mm |
| Max. T-section cutting |
60 x 7 mm |
| Blade length |
175 mm |
| Max. cutting length |
150 mm |
| Punching throat |
150 mm |
| Min./max. hole diameter |

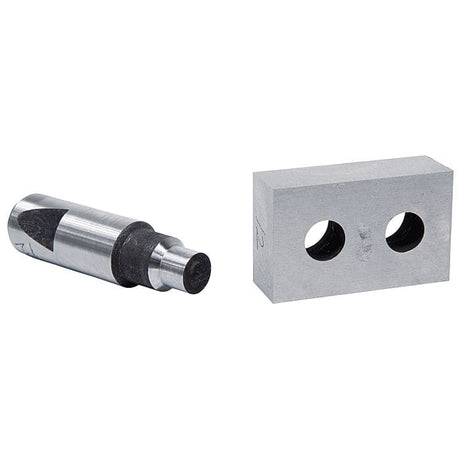

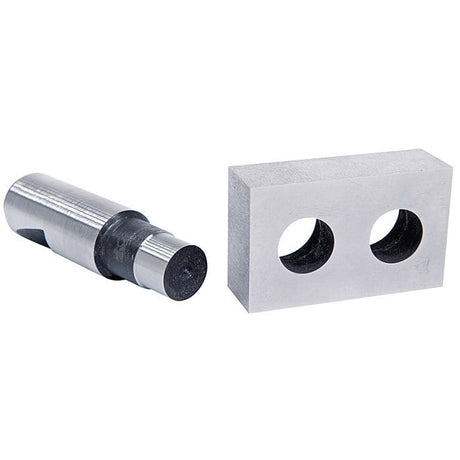

3 – 20 mm |
| Punchable material thickness |
8 mm |
| Machine dimensions (L x W x H)** |
270 x 810 x 1995 mm |
| Weight |
100 kg |
(** incl. lever)
Standard equipment
Bernardo PBS 22 LS Lever Shear and Punch, complete

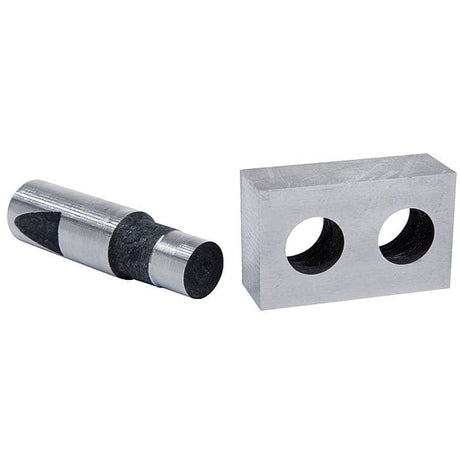

Round punch with Ø 16 mm die
User manual
Logistics
Bernardo Shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the maximum thickness for aluminum and stainless steel?
The nominal thickness of 1.5 mm refers to S235 steel (400 N/mm²). For aluminum, the capacity increases by 30–50% (approx. 2.1 mm). For AISI 304 stainless steel, the capacity is reduced by 30–40% (approx. 1.0 mm).
Are the blades replaceable?
Yes. The cutting blades are replaceable when worn or damaged. Original Bernardo replacement blades are available with 3–5 business days shipping.
Does it require fixed installation or can it be used on a workbench?
Most Bernardo lever shears are fixed to a workbench or floor with bolts. They do not require a special foundation. More compact versions can also be used on a bench vise.
Does the Bernardo PBS 22 LS – Lever Shear also cut copper and brass?
Yes. Copper and brass have lower resistance than S235 steel: the actual capacity for copper is similar to aluminum (approx. 2.1 mm). For specific alloys, contact Krollit for verification.
Are assistance and spare parts available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
