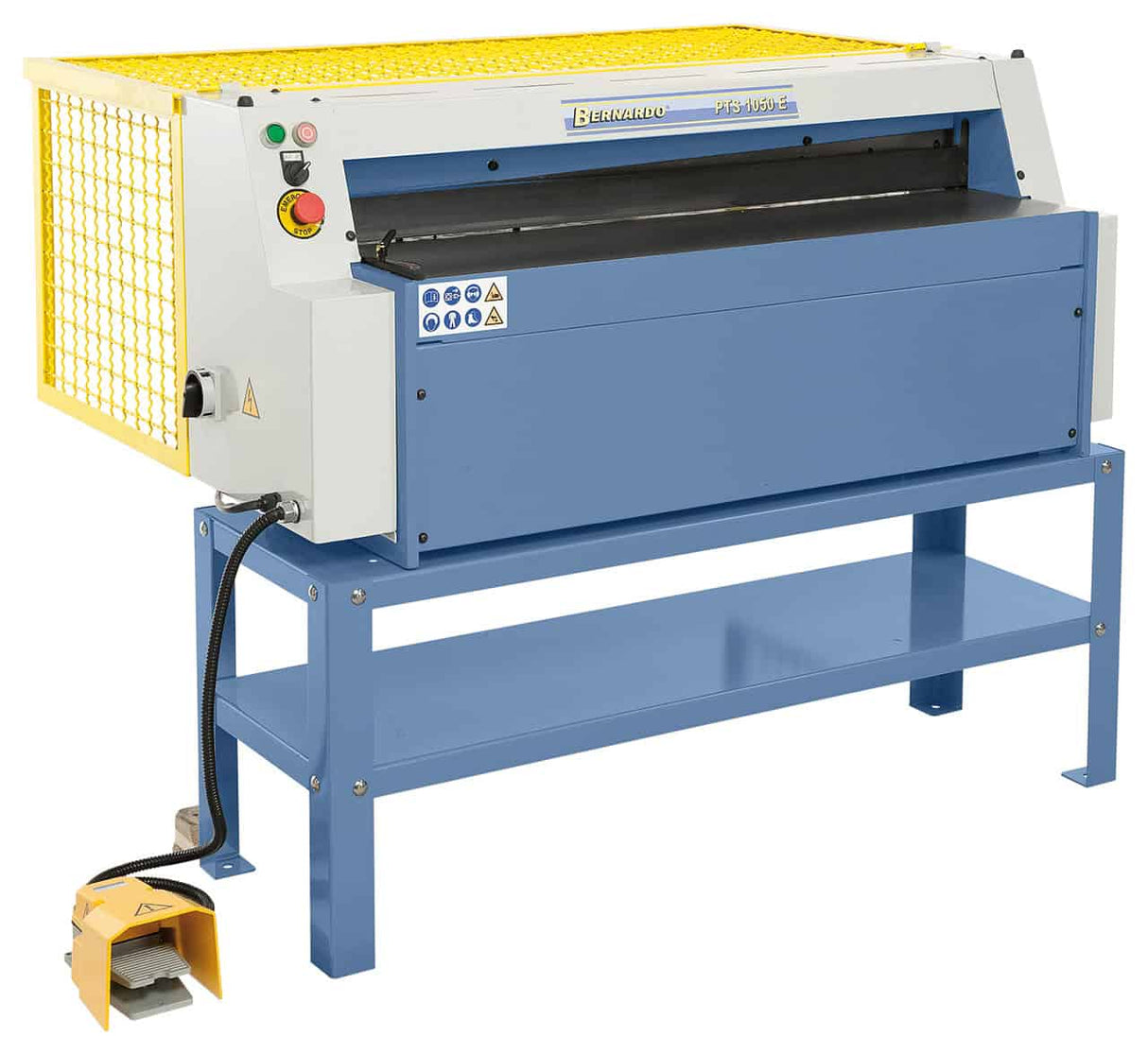

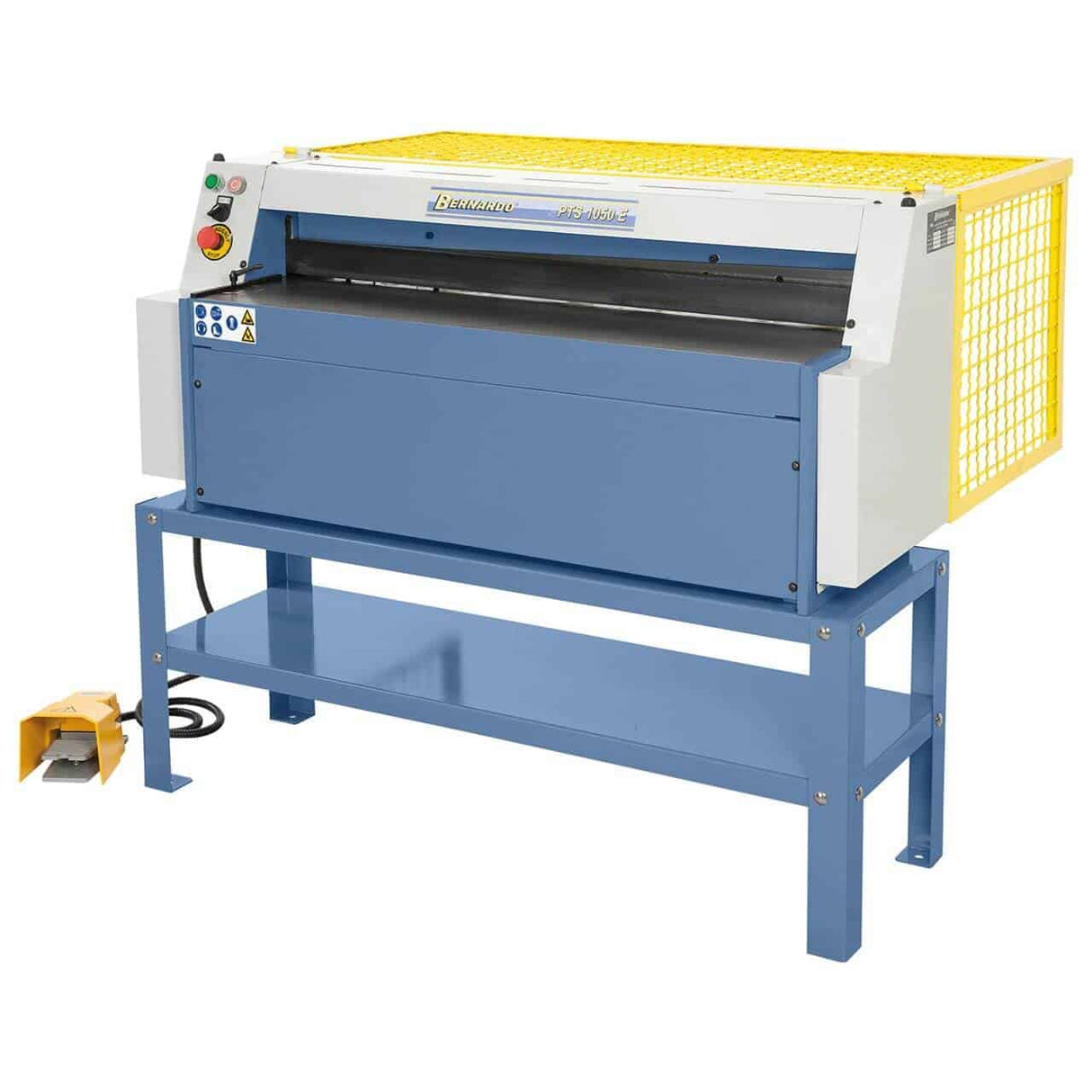

The Bernardo PTS 1050 E motorized guillotine shear cuts sheet metal up to 1.0 mm (400 N/mm²) over a length of 1050 mm, backgauge 0–500 mm, 0.75 kW three-phase 400V motor. Weight 238 kg. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Cutting length: 1050 mm
- Max. sheet thickness (400 N/mm²): 1.0 mm
- Cutting angle: 3°
- Backgauge: 0 – 500 mm
- Side stop: 225 mm
- Motor: 0.75 kW – 400V three-phase
- Dimensions (L × W × H): 1300 x 960 x 550 mm
- Weight: 238 kg
Who uses the PTS 1050 E and for what
The Bernardo PTS 1050 E is the motorized version of the manual PTS 1050 S: same dimensions, same format (1050 mm × 1.0 mm), but with motorized blade operation instead of manual lever operation. The 0.75 kW motor eliminates the physical effort of cutting in continuous production, ensuring consistent cutting force with each stroke regardless of the operator. Compared to large MTE/MTR shears, it is compact (1300 mm) and low-powered: the choice for workshops that produce medium volumes of thin sheet metal and want to switch from manual to motorized without investing in large format machines.
Who the Bernardo PTS 1050 E is for
| Profile | Compatibility | Reason |
|---|---|---|
| Hobbyist | Not suitable | Requires 400V three-phase. For hobby use, the manual PTS 1050 S version is sufficient. |
| Sheet metal worker with three-phase | Ideal | 1050 mm × 1.0 mm motorized: for those who produce medium volumes and want to eliminate the fatigue of manual cutting in a compact format. |
| High-volume industrial production | Adequate | For high volumes on thicker sheets, consider MTE/MTR shears with NC backgauge. |
Not suitable for: sheets over 1.0 mm; workshops without 400V three-phase (choose manual PTS 1050 S version); intensive industrial production.
Technical specifications
| Specification | Value |
|---|---|
| Cutting length | 1050 mm |
| Max. sheet thickness (400 N/mm²) | 1.0 mm |
| Cutting angle | 3° |
| Backgauge | 0 – 500 mm |
| Side stop | 225 mm |
| Motor power | 0.75 kW |
| Power supply | 400V – three-phase |
| Dimensions (L × W × H) | 1300 x 960 x 550 mm |
| Weight | 238 kg |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 business days (7 days for Southern Italy). Original spare parts available with 3–5 business days shipping. Customer service in Italian available.
Frequently Asked Questions
What is the difference between PTS 1050 E (motorized) and PTS 1050 S (manual)?
The PTS 1050 E has motorized blade operation (0.75 kW, 400V three-phase); the PTS 1050 S is manual with a lever. Same dimensions, same cutting format, same backgauge. The E version eliminates the fatigue of cutting in continuous production and ensures constant force with each stroke. The E version is more expensive; it requires 400V three-phase.
What thickness for aluminum and stainless steel?
For aluminum, the capacity increases by 30–50% (approx. 1.4 mm). For AISI 304 stainless steel, it decreases by 30–40% (approx. 0.7 mm).
Are the blades reversible?
Yes. 4 cutting edges before replacement. Original Bernardo replacement blades available with 3–5 business days shipping.
How much space is needed in the workshop?
Dimensions 1300 x 960 x 550 mm. For sheet handling, at least 1050 mm of free space is needed in front of and behind the machine.
Is the backgauge included as standard?

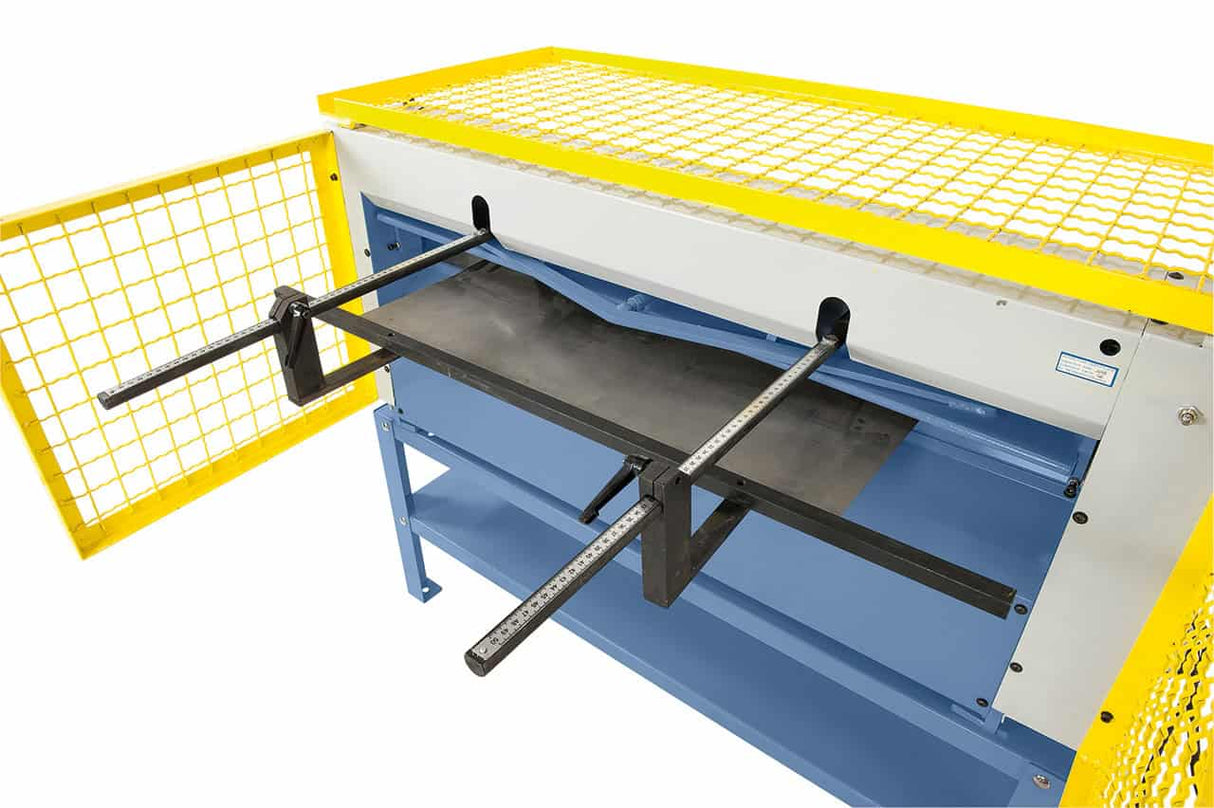

Yes. The adjustable backgauge 0–500 mm is included as standard. It allows setting the cutting width and repeating it on series of identical pieces without measuring each time.
