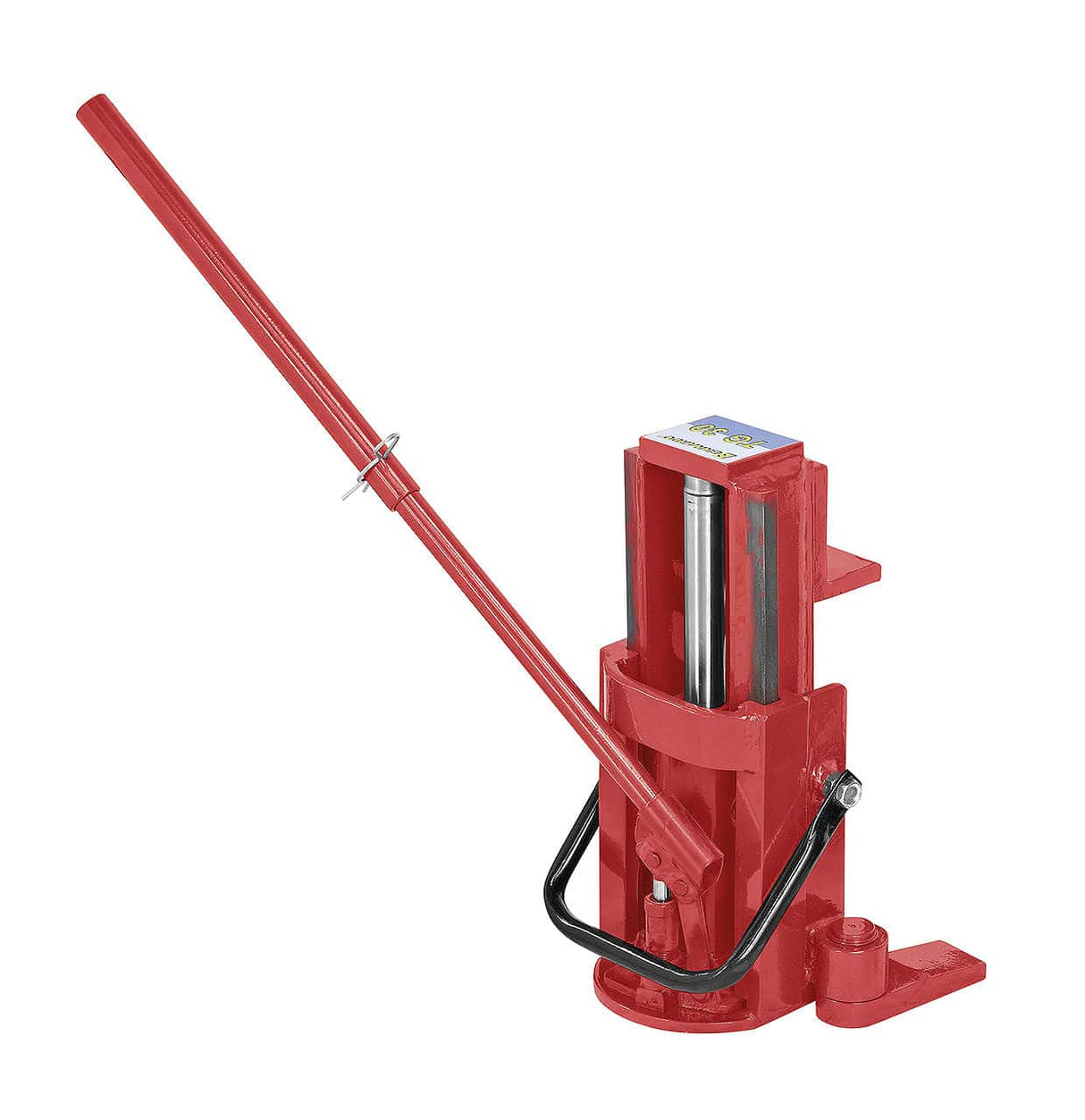

TG 30 machine lift
Description
Technical specifications
- Capacity from 3 to
- Lifting range step 1 15-170 mm
- Lifting range step 2 75 - 225 mm
- Lifting range step 3135-285 mm
- Weight approx. 21.5 kg
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working day shipping. Italian customer support available.
Technical specifications
Specifications
| Specification | Value |
|---|---|
| Capacity from 3 to | |
| Lifting range step 1 15-170 mm | |
| Lifting range step 2 75 - 225 mm | |
| Lifting range step 3135-285 mm | |
| Weight approx. 21.5 kg | |
| Origin | Austria |
Warranty
Warranty terms and support procedures are available on the dedicated Krollit page.
View Krollit warranty termsFAQ / Frequently asked questions
Frequently asked questions
Screw jack TG 30 vs belt jack TB: when to use the TG?
The TG 30 is a worm screw jack: millimeter precision movement, ideal for fine leveling of machinery (0.5–1 mm adjustment at a time). The belt TB is faster for large lifting heights. In practice: use the TG for final precision positioning after lifting with the TB. The swiveling feet of the TG prevent overturning under load — superior safety for working under the machine during leveling.
Capacity ? tons — how to check the machine weight?
The weight is indicated in the machinery's technical table. For machines with no data available: estimate 1 kg per 10 cm³ of cast iron (density approx. 7.2 g/cm³). Never exceed 80% of the jack's rated capacity — a safety margin is necessary to compensate for dynamic loads during maneuvering. Always use multiple jacks in pairs for machines with an asymmetrical base.
Spare parts available?
Original spare parts available with 3–5 working day shipping. Italian customer support available.
-
