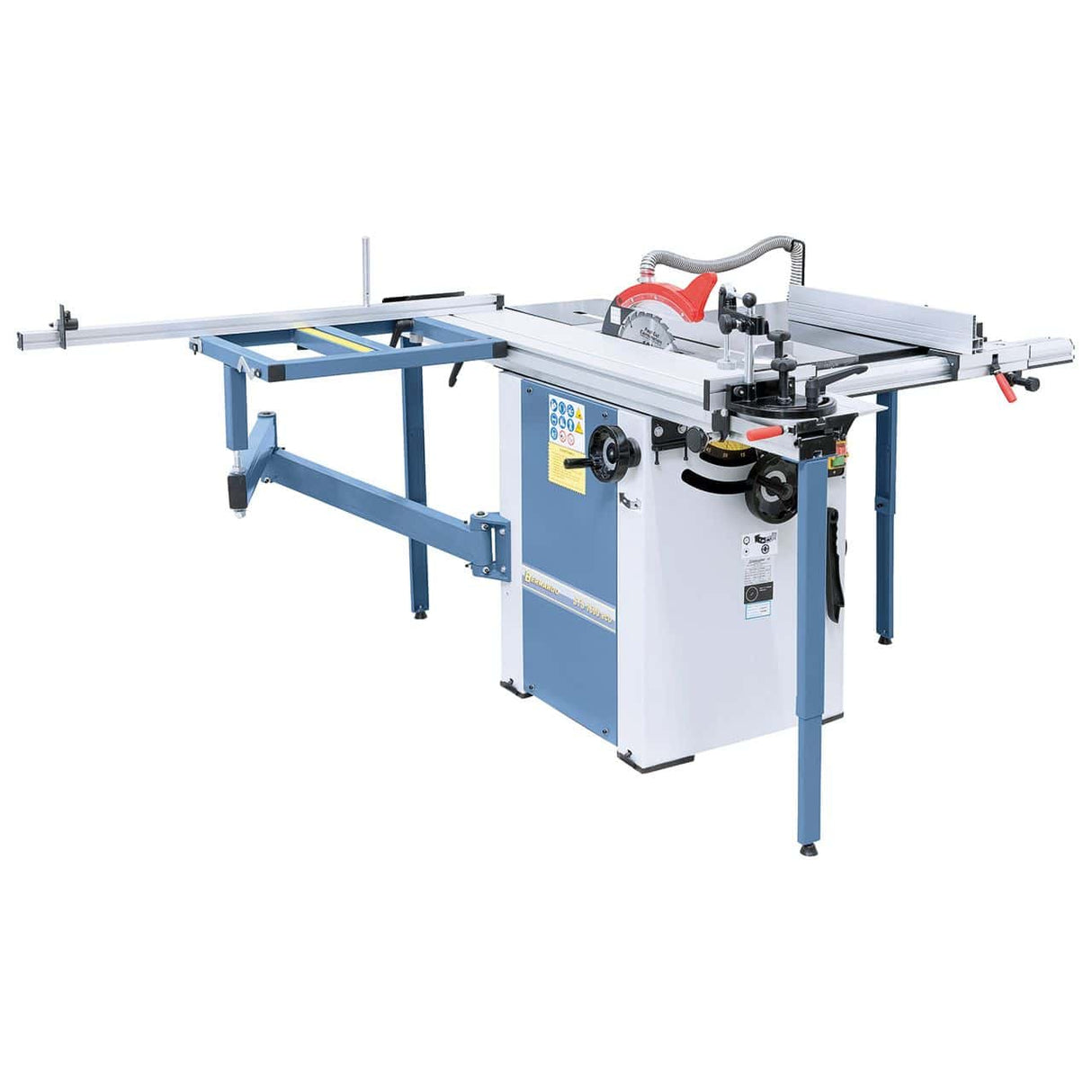

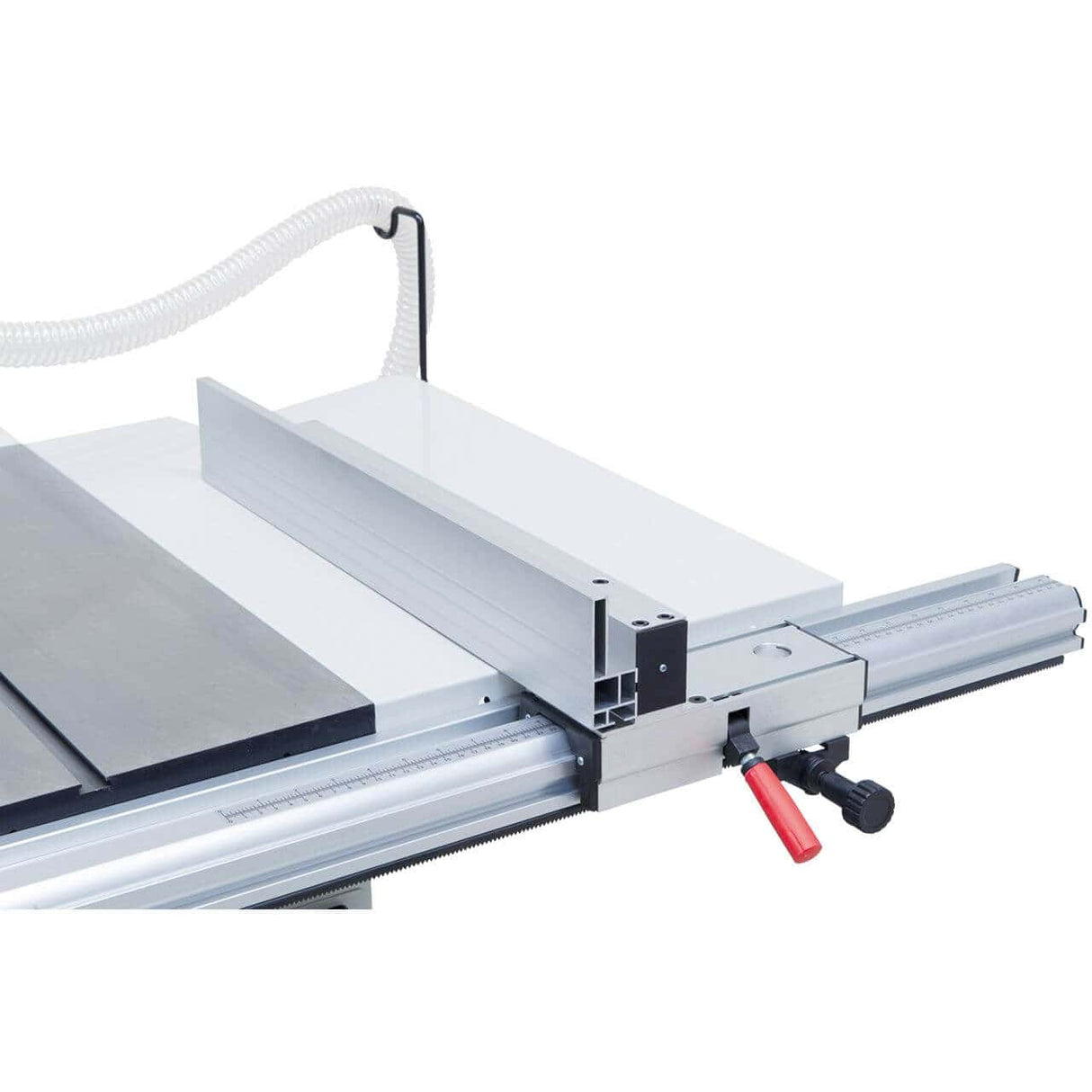

Bernardo STS 1600 eco - 230 V is a professional woodworking panel saw, with a 2.2 kW (3.0 HP) motor, weighing 140 kg. Krollit, official Bernardo distributor since 2007.
- Table size: 670 x 310 mm
- Sliding table: 1600 x 240 mm
- Cutting length: 1600 mm
- Max blade diameter: 254 x 30 mm
- Max cutting height 90° / 45°: 80 / 63 mm
- Cutting width on parallel fence: 690 mm
Who uses the STS 1600 eco - 230 V and for what
Professional carpenters use the STS 1600 eco - 230 V for squaring panels with a sliding table, cutting chipboard, MDF, and solid wood panels.
Its place in the Bernardo range
The Bernardo STS 1600 eco - 230 V is part of the Bernardo panel saw range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South of Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the STS 1600 eco - 230 V for
The STS 1600 eco - 230 V is recommended for the following professional profiles:
-
Professional carpentry workshops: squaring panels with a sliding table for precise 90° cuts.
-
Furniture factories and window/door manufacturers: cutting chipboard, MDF, and solid wood panels.
Not suitable for: metal sheet processing (this machine is for wood: specific shears and saws are needed for metal).
Processing capacity
| Cutting length |
1600 mm |
| Max cutting height 90° / 45° |
80 / 63 mm |

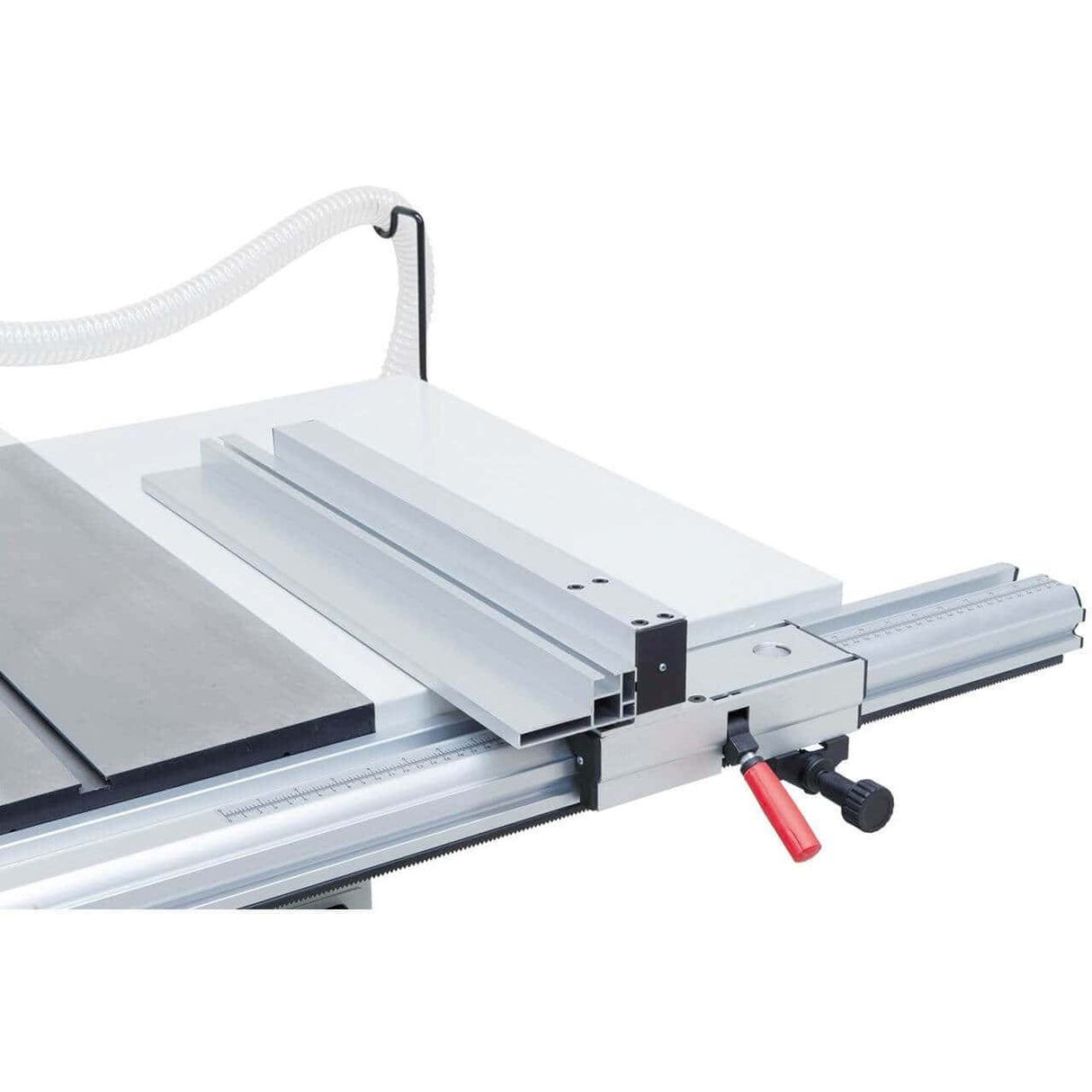

| Cutting width on parallel fence |
690 mm |
Table, dimensions and geometry
| Table size |
670 x 310 mm |
| Table height |
870 mm |
| Table extension |
325 x 310 mm |
| Machine dimensions (L x W x H) |
1600 x 2160 x 1130 mm |
| Approx. weight |
140 kg |
Motor and power supply
| Motor power (S1 100%) |
2.2 kW (3.0 HP) |
| Motor power (S6 40%) |
3.0 kW (4.0 HP) |
| Voltage |
230 V |
Other specifications

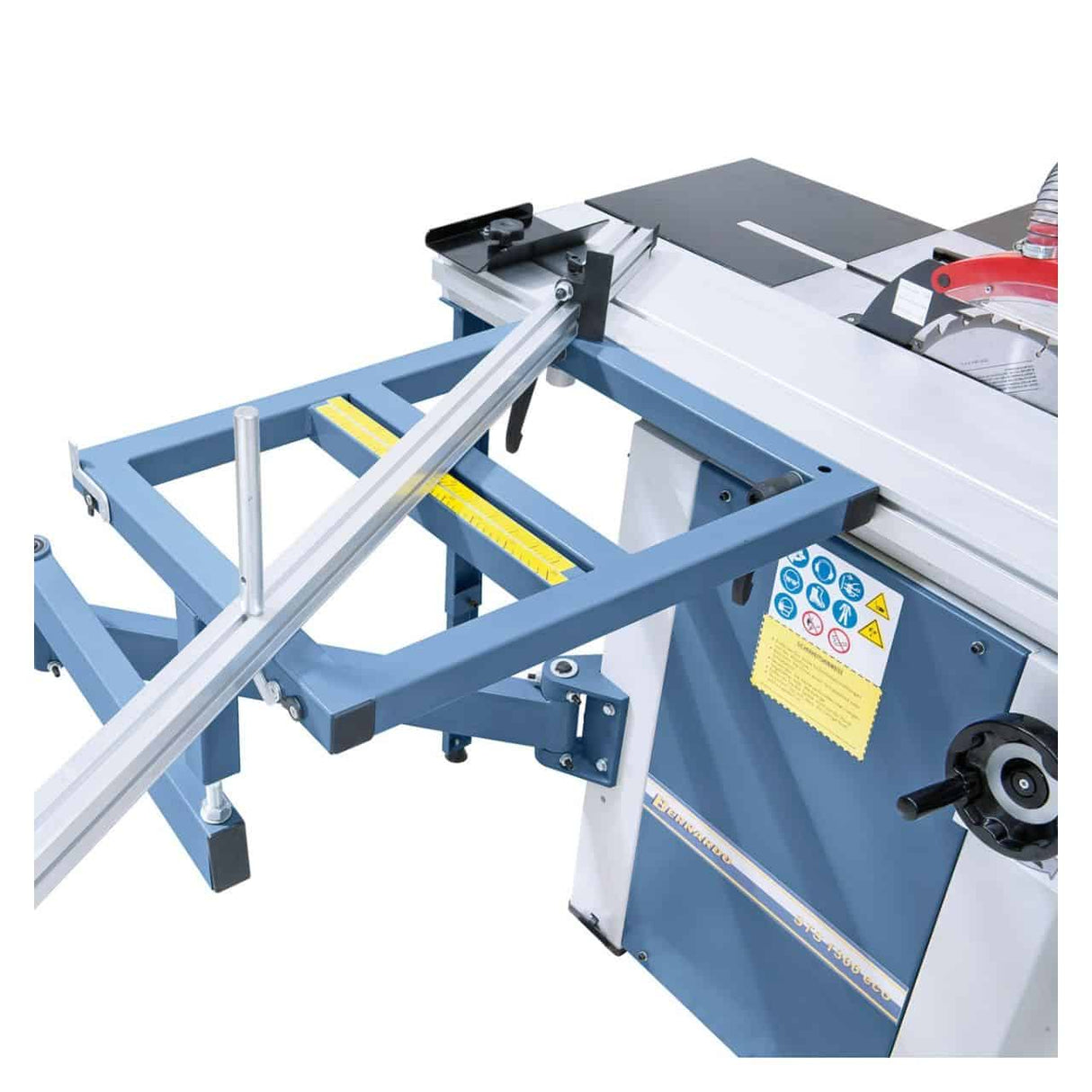

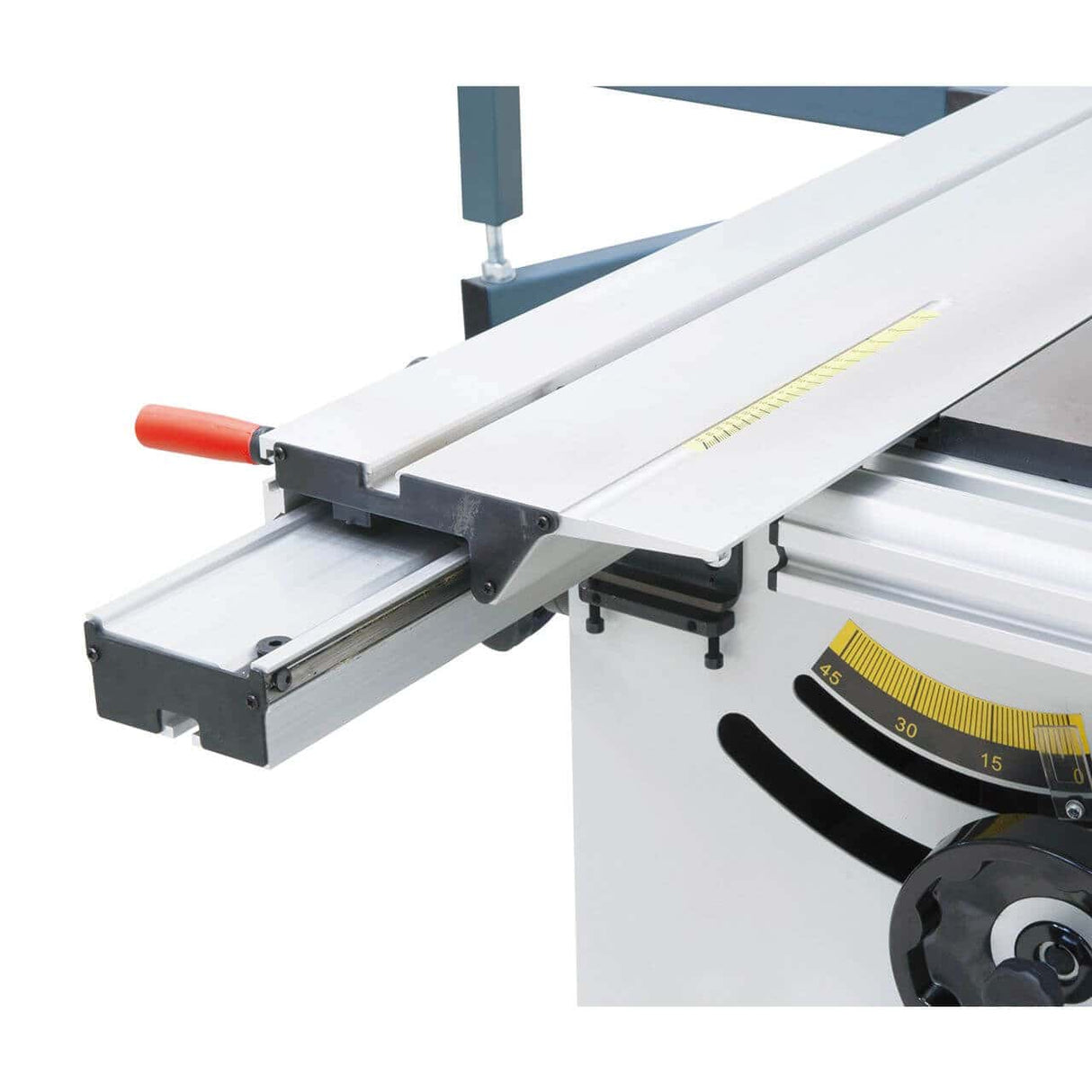

| Sliding table |
1600 x 240 mm |
| Table enlargement |
670 x 400 mm |

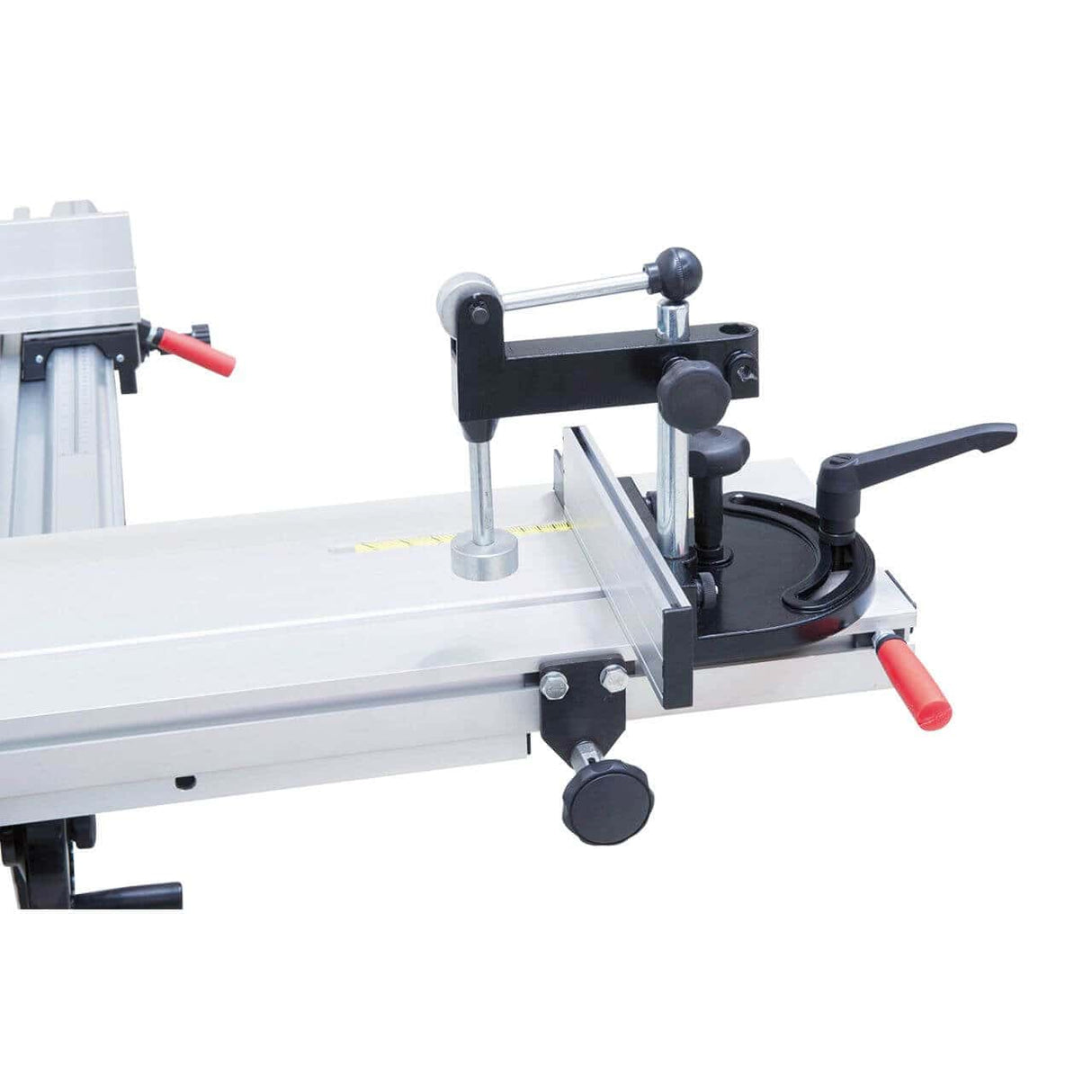

| Squaring table |
600 x 455 mm |

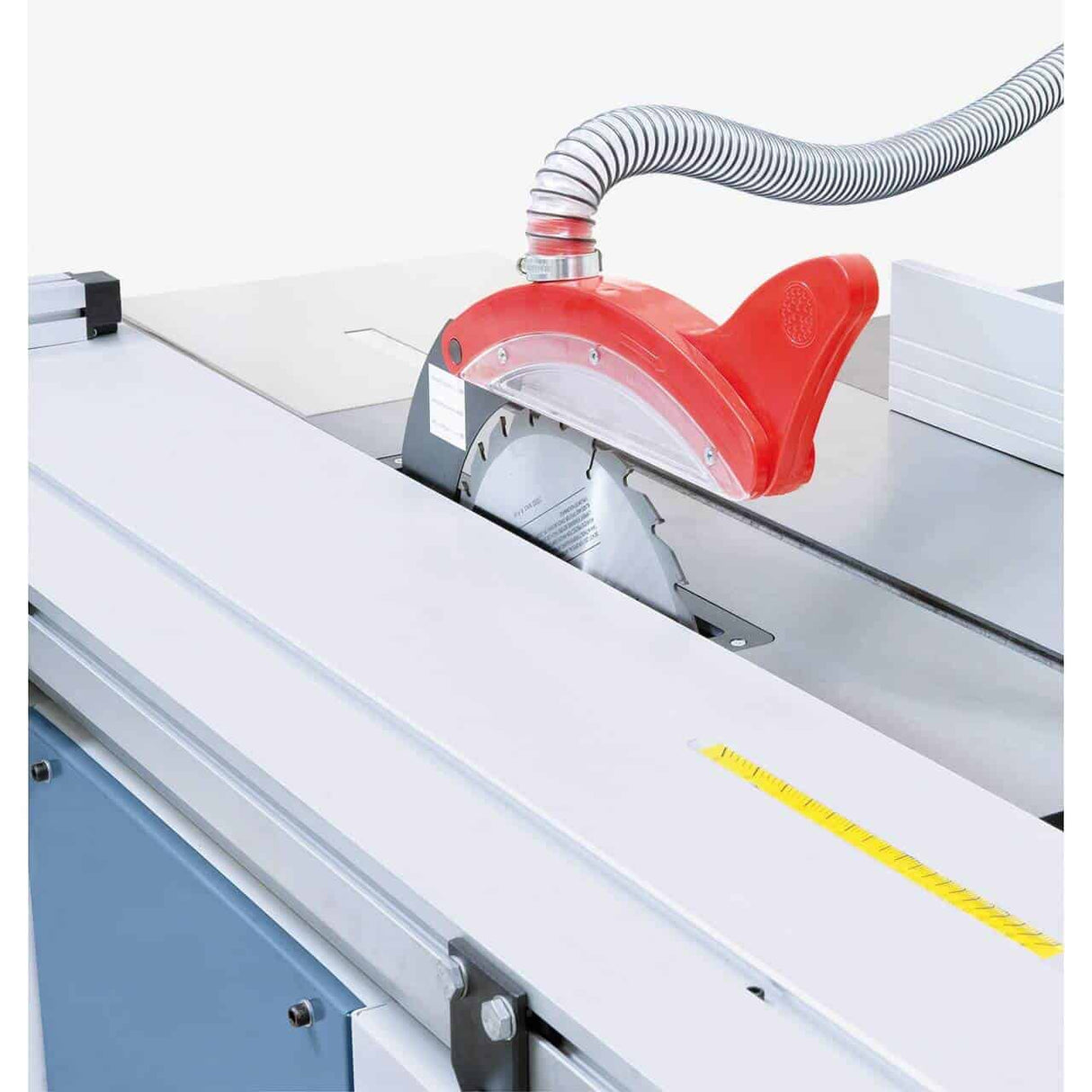

| Dust extraction outlet |
Ø 100 mm |

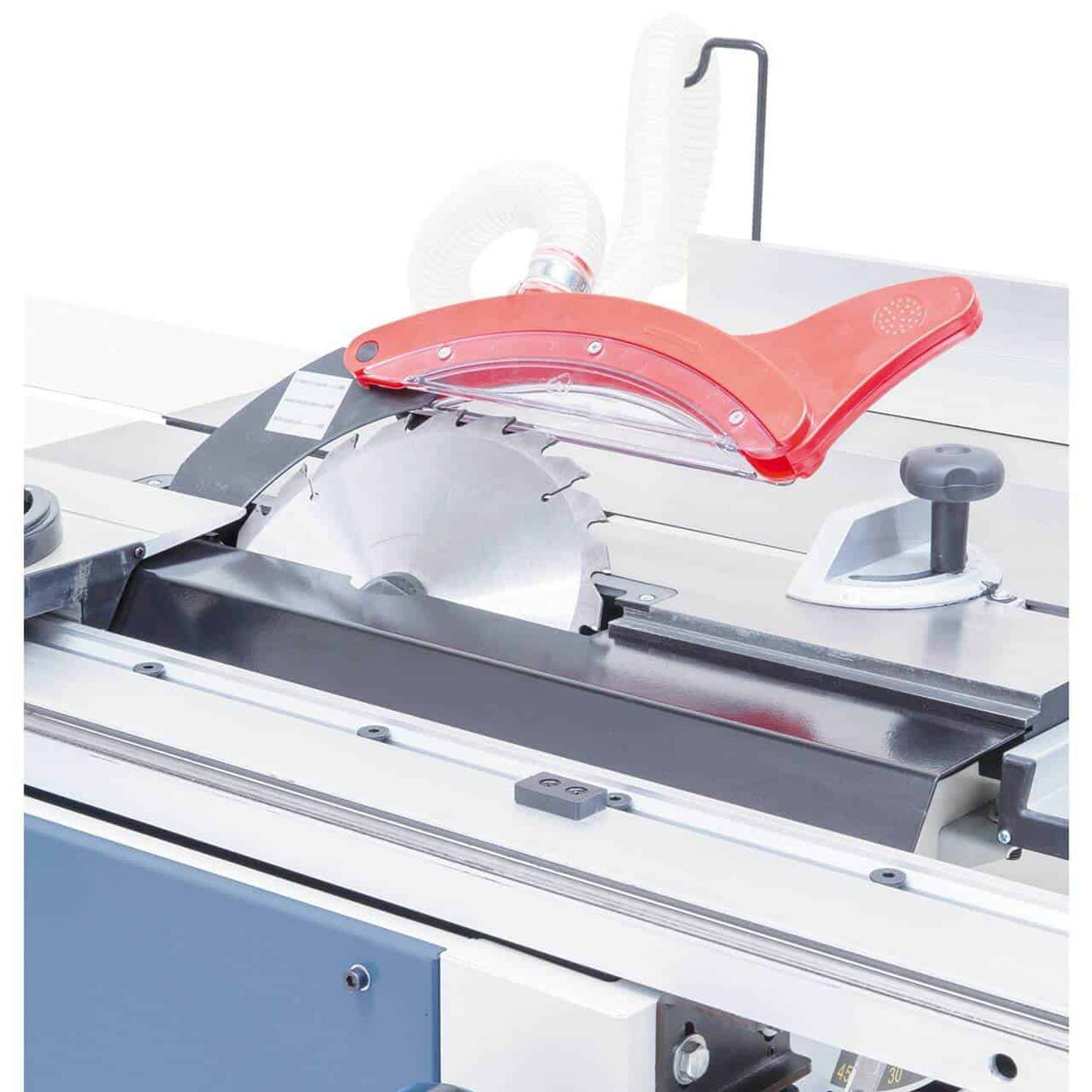

| Max blade diameter |
254 x 30 mm |
| Main blade speed |
4750 rpm |
Frequently asked questions
What panel sizes can it square?
See "Table size" and "Useful sliding table length" in the technical table.
Professional sliding tables measure 2,000-3,200 mm. Longer panels require larger industrial panel saws.
Does it have a scoring saw for coated panels?
Professional models offer a scoring saw as standard or optional to prevent chipping on MDF and laminates.
The scoring saw performs a preliminary surface incision before the main cut, eliminating the problem of chipping on the visible side of the panel.
What cutting height and angle does it offer?
See "Max cutting height" and "Blade inclination" in the technical table.
Blade inclination (typically 0-46°) allows 45° cuts for joints and chamfered edges. Check the useful height at 45°, which is less than the maximum at 90°.
Power supply and power requirements?
Professional panel saws require 400 V three-phase with motors from 4 to 7 kW.
Check the capacity of the electrical line and the presence of a dedicated residual current device.
How much does the machine weigh?
From 200 kg to over 800 kg for industrial models complete with long sliding table.
Installation requires a flat and level floor. For continuous use, fastening with anchors is recommended for stability in more demanding operations.
