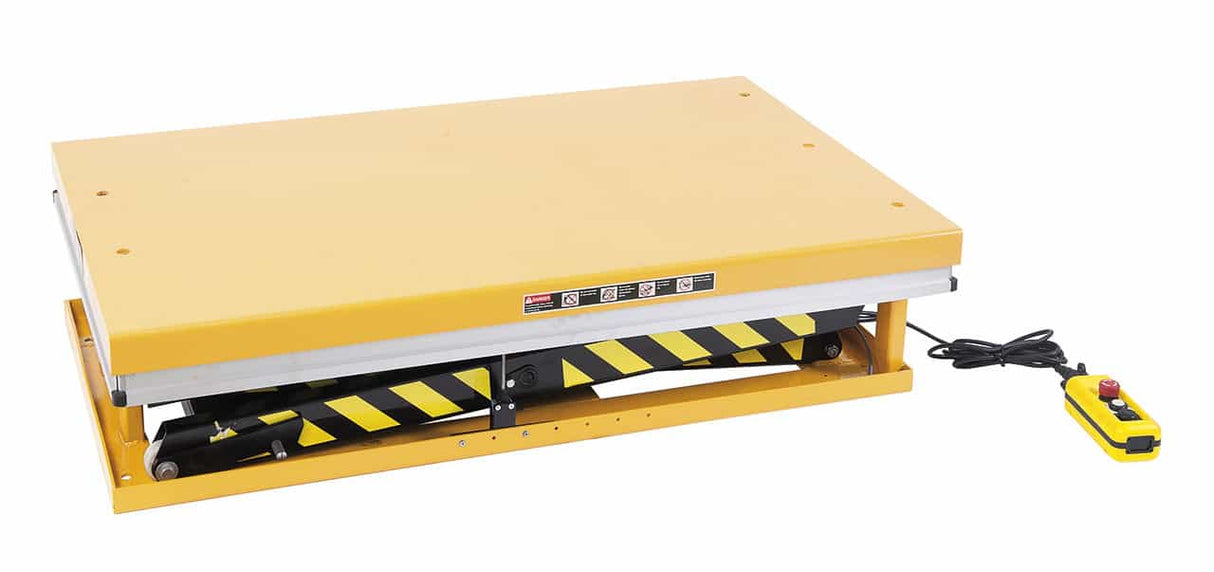

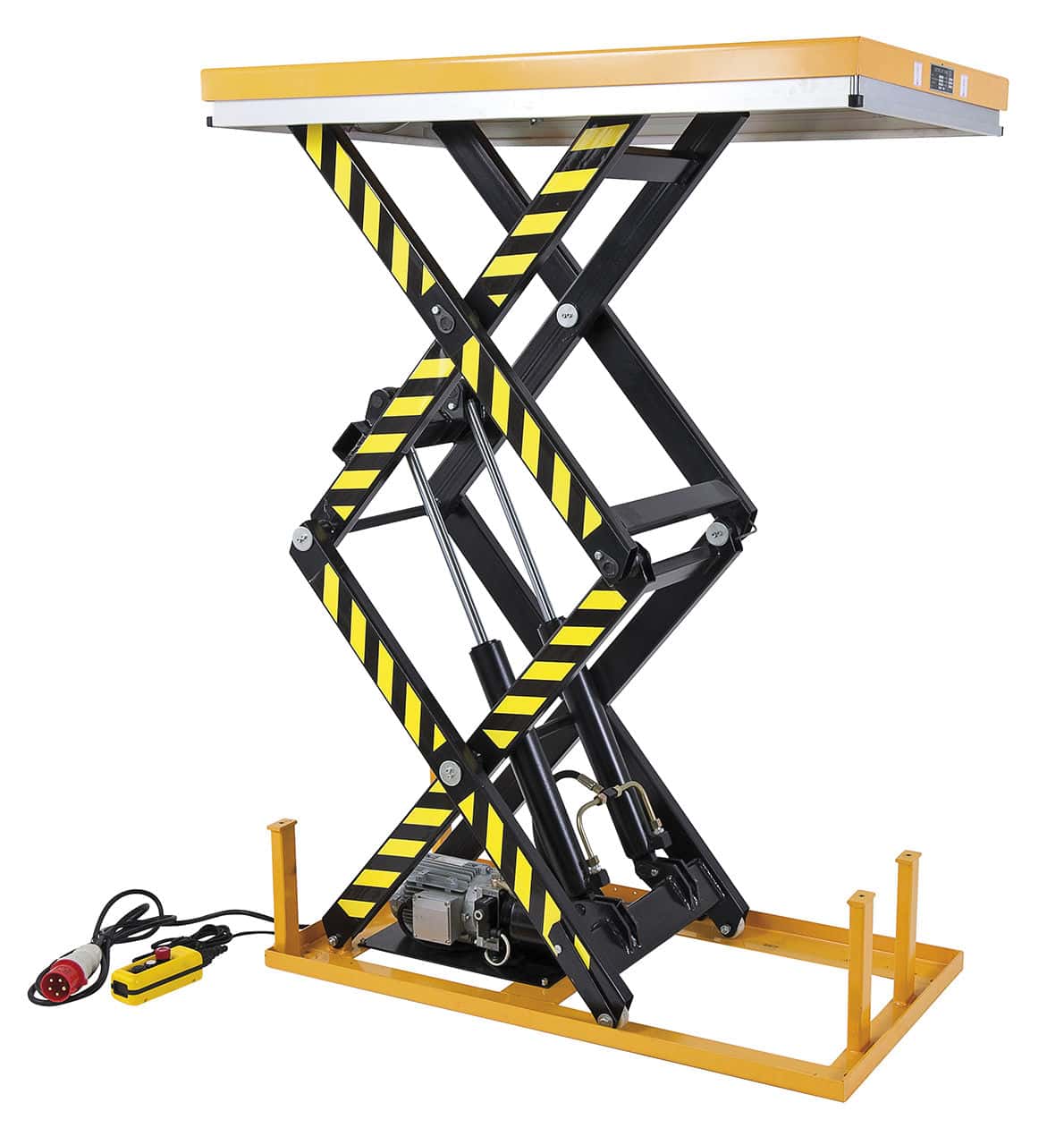

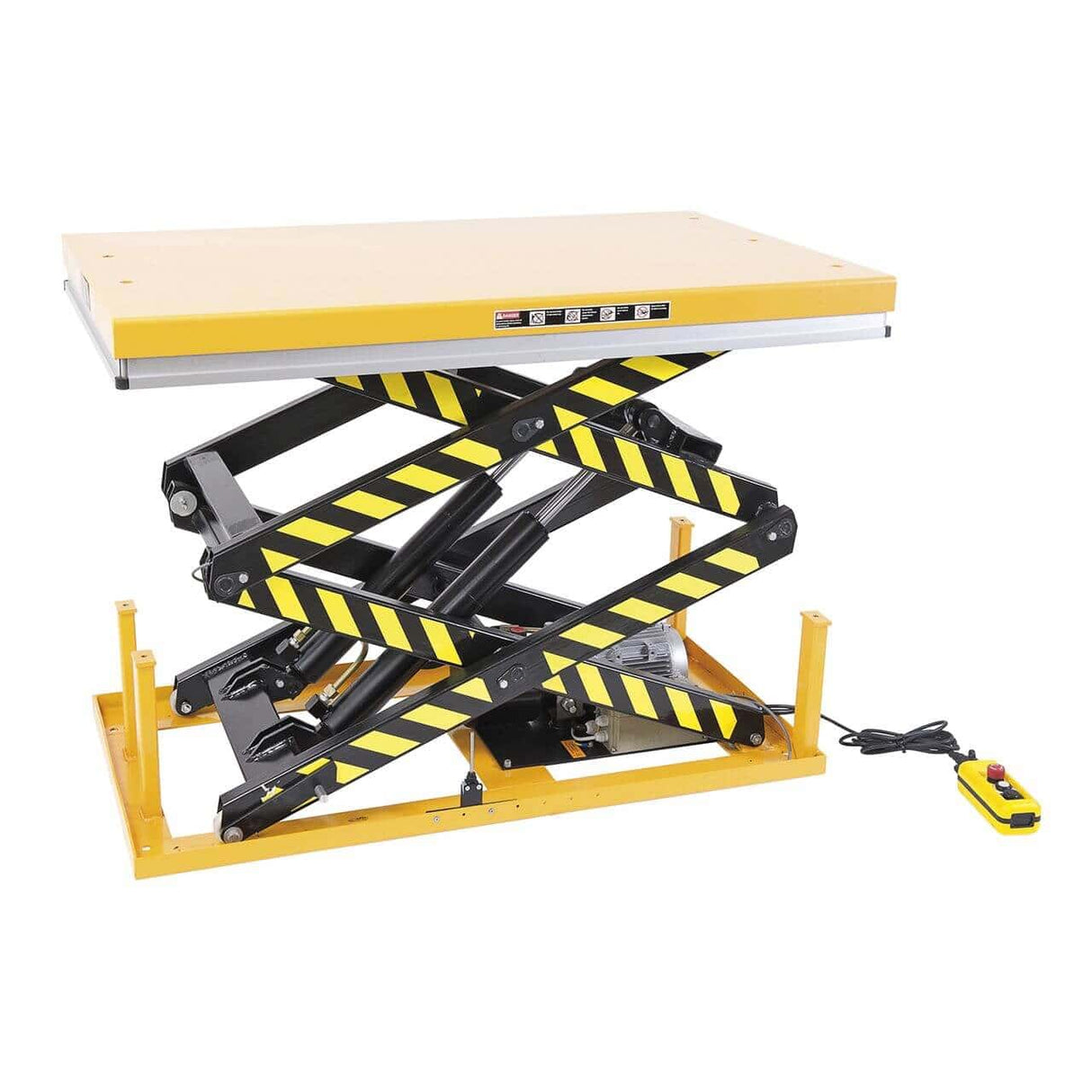

The Bernardo SSHT 2000 D double-platform stationary lifting table is a fixed industrial lift with a 2.2 kW 400V three-phase electric motor, sized for intensive use in serial production with a capacity of up to 2,000 kg. Lifting height 360-1,780 mm with a double scissor configuration, platform dimensions 1,300 × 850 mm, base plate 1,220 × 785 mm, lifting time 35-45 sec, weight 295 kg. Suitable for production plants with fixed assembly lines, logistics warehouses with repetitive loading/unloading cycles. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Capacity: 2,000 kg
-
Lifting height: 360 - 1,780 mm
-
Platform dimensions: 1,300 × 850 mm
-
Lifting time: 35-45 sec
-

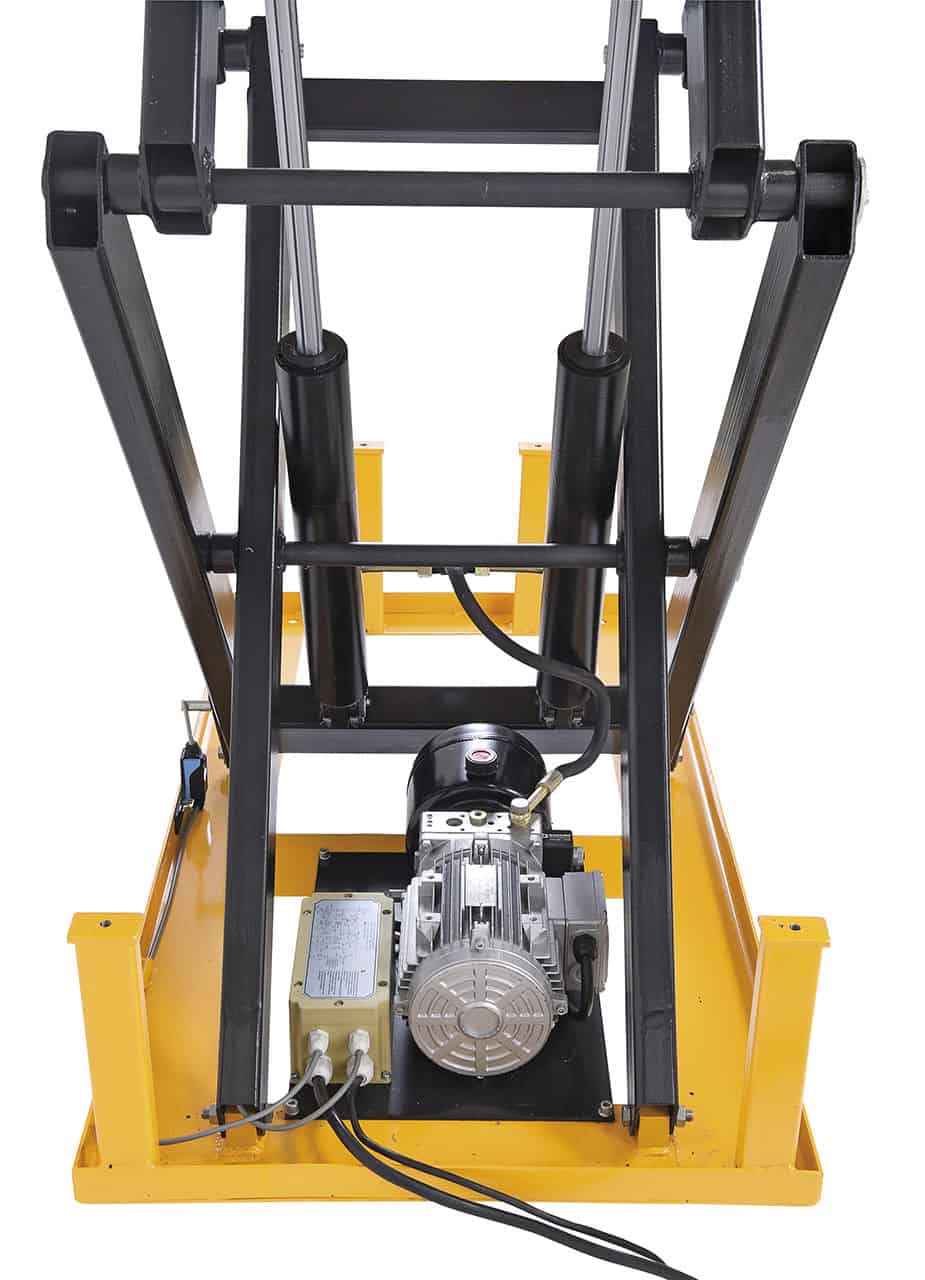

Motor: 2.2 kW / 400V three-phase
-
Configuration: Stationary double platform
-
Weight: approx. 295 kg
Who uses the SSHT 2000 D and for what
The Bernardo SSHT 2000 D is an industrial double-platform stationary lifting table with a 2.2 kW 400V three-phase electric motor, sized for an industrial capacity of 2,000 kg and a maximum lifting height of 1,780 mm. 'Stationary' characteristic: the table is designed for fixed installation on the floor (with a base plate of 1,220 × 785 mm) and not for movement between workstations. For stationary applications with repetitive lifting cycles. Lifting time 35-45 sec to full height with nominal load: speed is balanced between productivity (high cycle rates) and safety (load control). For production lines with fast cycles, consider industrial electro-hydraulic tables with higher speed. Among Krollit's customers, the Bernardo SSHT 2000 D is chosen by manufacturing plants with variable-height assembly lines, logistics warehouses with repetitive cycles, and industrial workshops that lift heavy components onto high workbenches.
Its place in the Bernardo range
The Bernardo lifting table range is organized into 5 sub-families by application: BS (manual hydraulic, capacities 150-1,000 kg, for standard hobby/light professional use); ES (semi-electric single platform, capacities 300-750 kg, for standard intensive use); ES D (semi-electric double platform for extended height, capacities 300-750 kg); SSHT/FSHT (stationary industrial/U-shaped, capacities 1,000-2,000 kg, for fixed use in plants); HK (tiltable, capacities 400-800 kg, for handling + emptying bulk materials).
The SSHT 2000 D model is in the SSHT industrial family (stationary double platform). Industrial features: capacity 2,000 kg, max height 1,780 mm, 2.2 kW 400V three-phase motor, weight 295 kg. For fixed use in production plants: the machine is fixed to the floor and is not designed for movement. For mobile use, consider the ES or ES D families; for handling pallets, the FSHT family with a U-shaped platform is correctly sized.
Krollit Logistics and Support
Bernardo shipping in 5-9 working days (7 days to Southern Italy). The SSHT 2000 D table, weighing 295 kg, requires a pallet truck or two people for unloading. Integrated wheels (for mobile models) facilitate movement after unloading. Hydraulic oil, valves, manual pumps, spare parts for the electrical system (for ES/SSHT/FSHT models), and original Bernardo accessories are available from stock with 3-5 working day shipping. Customer support available in Italian.
Who is the SSHT 2000 D for
| Profile |
Compatibility |
Reason |
| Industrial production plant |
Recommended |
2,000 kg capacity and 2.2 kW three-phase motor for continuous intensive use. Fixed installation with base plate. |
| Logistics warehouse with industrial cycles |
Recommended |
Balanced lifting time for repetitive cycles. Stationary configuration for stability during loading/unloading operations. |
| Hobbyist / small workshop |
Not suitable |
Stationary industrial machine: exclusively professional application for fixed use. The BS or ES families are correctly sized for non-industrial use. |
Not suitable for: mobile applications with movement between workstations (fixed stationary configuration); applications with capacity under 1,000 kg (BS, ES, ES D families are more economical and adequate); applications with pallet use (the FSHT 1000 U with U-shaped platform is correctly sized); workshops without industrial 400V three-phase power supply (motor requires three-phase line).
Lifting capacity
| Specification |
Value |
| Load capacity |
2,000 kg |
| Min lifting height |
360 mm |
| Max lifting height |
1,780 mm |
| Table dimensions |
1,300 × 850 mm |
Motor
| Specification |
Value |
| Lifting time |
35-45 sec |
| Motor power |
2.2 kW |
| Voltage |
400V three-phase |
Weight
| Specification |
Value |
| Weight |
approx. 295 kg |
Compliance
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery 2006/42/EC |
Standard equipment
- Bernardo SSHT 2000 D lifting table
- 2.2 kW / 400V three-phase electric motor
- Stationary double platform configuration
- Industrial control panel
- Base plate for floor mounting
- User manual in Italian
- CE conformity documentation
Frequently Asked Questions
Is the table truly stationary or can it be moved?
It is stationary: designed for floor mounting using a base plate and anchor bolts. Moving the table after installation would require dismantling the fixings and handling the machine (weight 295 kg) with a pallet truck/crane.
The stationary configuration offers advantages: greater stability during operations with heavy loads (2,000 kg), precise alignment with other machines on the production line, fixed electrical supply without the need for mobile sockets. For mobile applications, consider ES, ES D, or BS tables of the same capacity.
What floor surfaces are compatible?
For mobile models (BS, ES, ES D, HK): smooth industrial floors (polished concrete, industrial tiles, epoxy resins). On rough floors, the wheels may wear out more quickly.
The maximum load capacity of the table applies to vertical loads: for movement on slopes (even slight ones like 2-3%), stability requires attention, especially with heavy loads close to the maximum capacity. For very rough floors (raw concrete, slabs with pronounced joints), the wheels may wear out more quickly: original Bernardo spare parts are available.
Does the hydraulic oil need to be replaced periodically?
Yes. For daily professional use, it is recommended to change the hydraulic oil every 2-3 years or every 1,000 operating hours. For occasional hobby use, replacement can be every 5-7 years.
Recommended hydraulic oil: ISO VG 32 or ISO VG 46 (check the manual for exact specifications). Signs indicating the need for replacement: progressive slowing of lifting, vibrations during the pumping phase (for manual models), slow or uneven descent. Original Bernardo hydraulic oil or commercial equivalents (Shell Tellus, Mobil DTE) are available from standard industrial suppliers.
What is the average lifespan of the SSHT 2000 D table?
For daily standard professional use, the average lifespan is 10-15 years with regular maintenance. For occasional hobby use, the lifespan can extend to 20+ years. The powder-coated steel structure is designed to resist corrosion and standard workshop wear.
Consumable components that may require replacement during the service life: hydraulic pump (for manual models), valves, seals, wheels, joint bearings. For semi-electric/electric models, add: motor (typical lifespan 8-12 years with intensive use), switches, wiring. All original Bernardo spare parts are available from stock with 3-5 working day shipping.
Can I also use the table outdoors?
For occasional outdoor use (loading/unloading trucks, occasional movement between warehouse and yard) yes. For continuous exposure to weather, no: prolonged humidity can cause corrosion of the painted steel frame and degradation of the hydraulic system.
For outdoor applications, covering/sheltering the table after use is recommended, along with more frequent maintenance of the hydraulic system (checking for leaks, lubricating joints), and periodic inspection of the paintwork. For exclusive outdoor use, consider models with reinforced industrial paint or specific rust protection.
