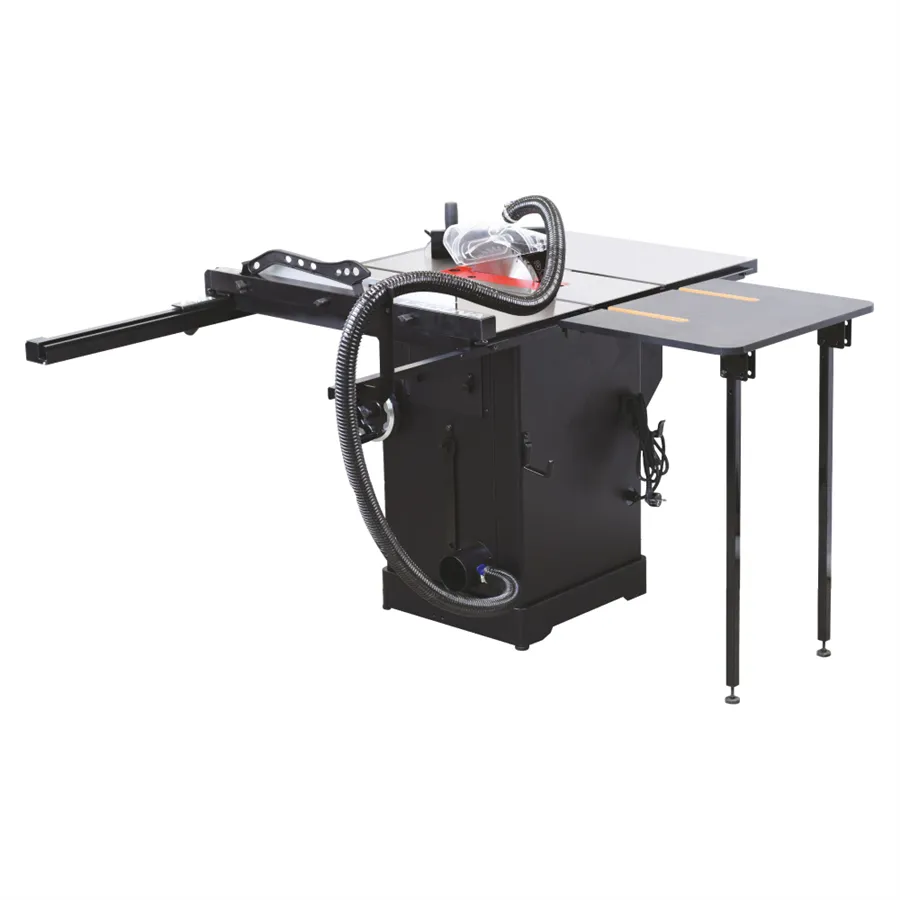

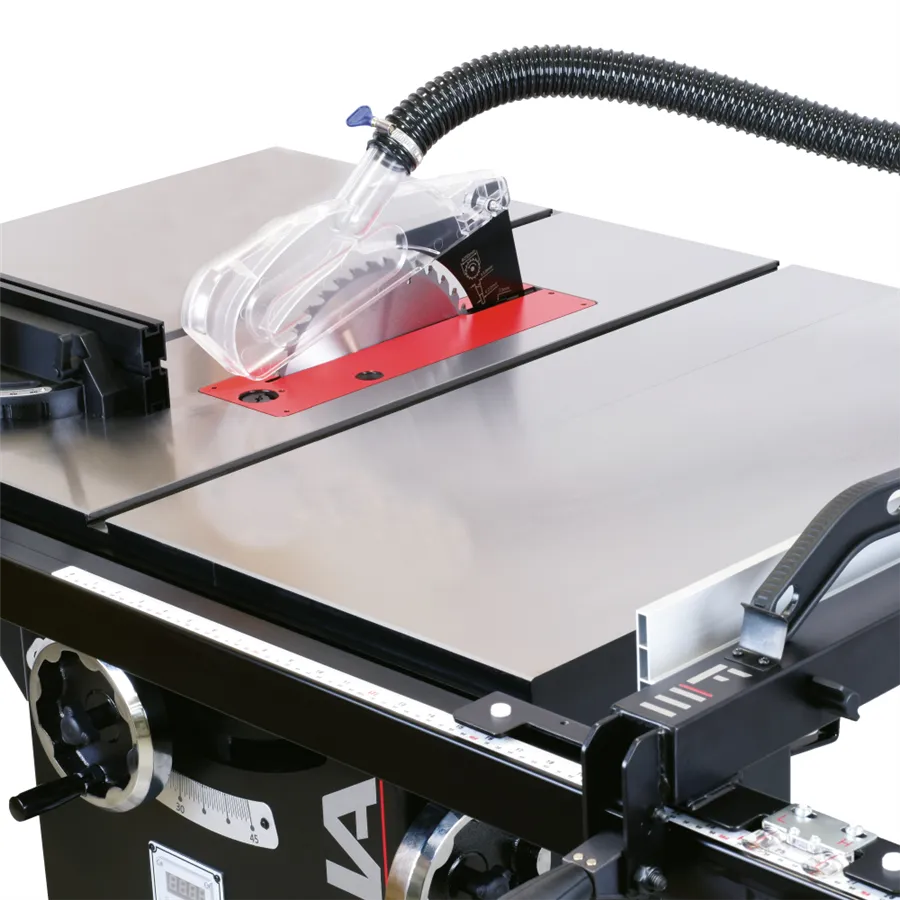

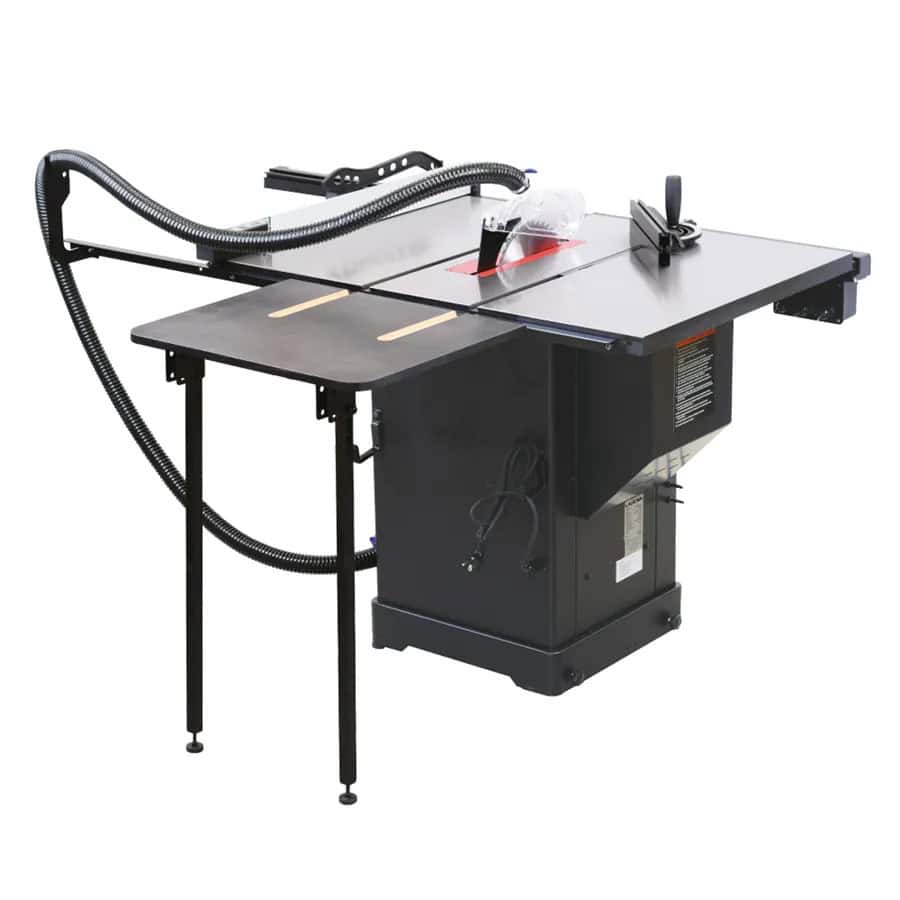

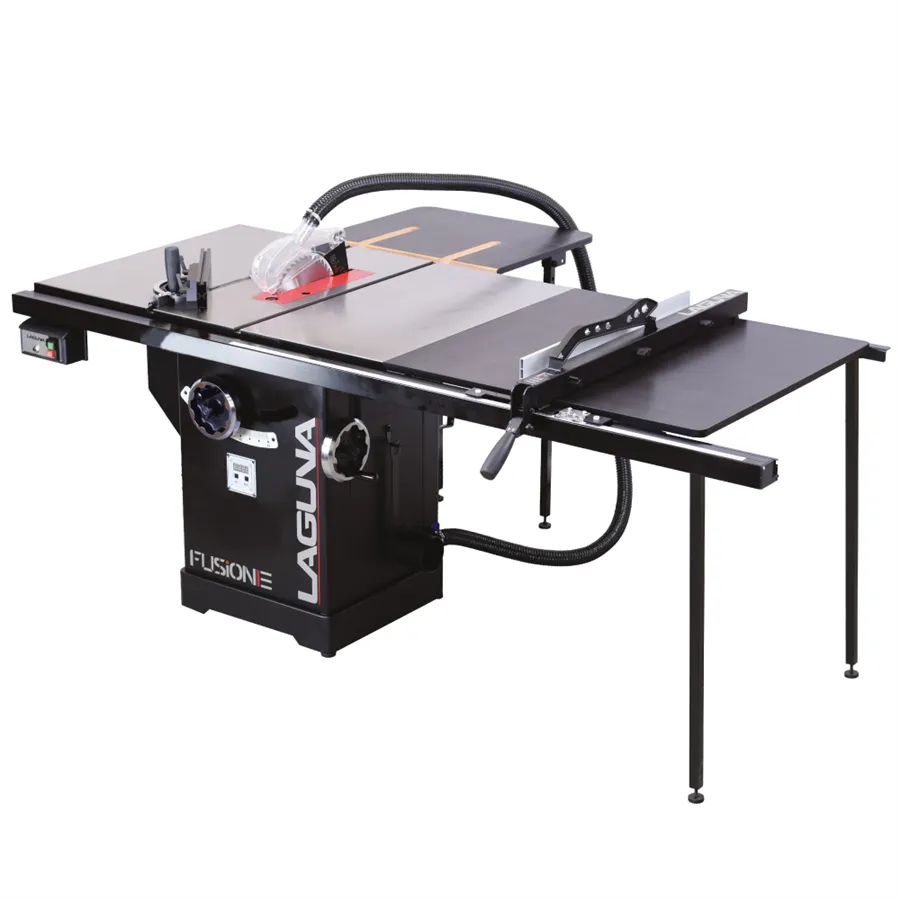

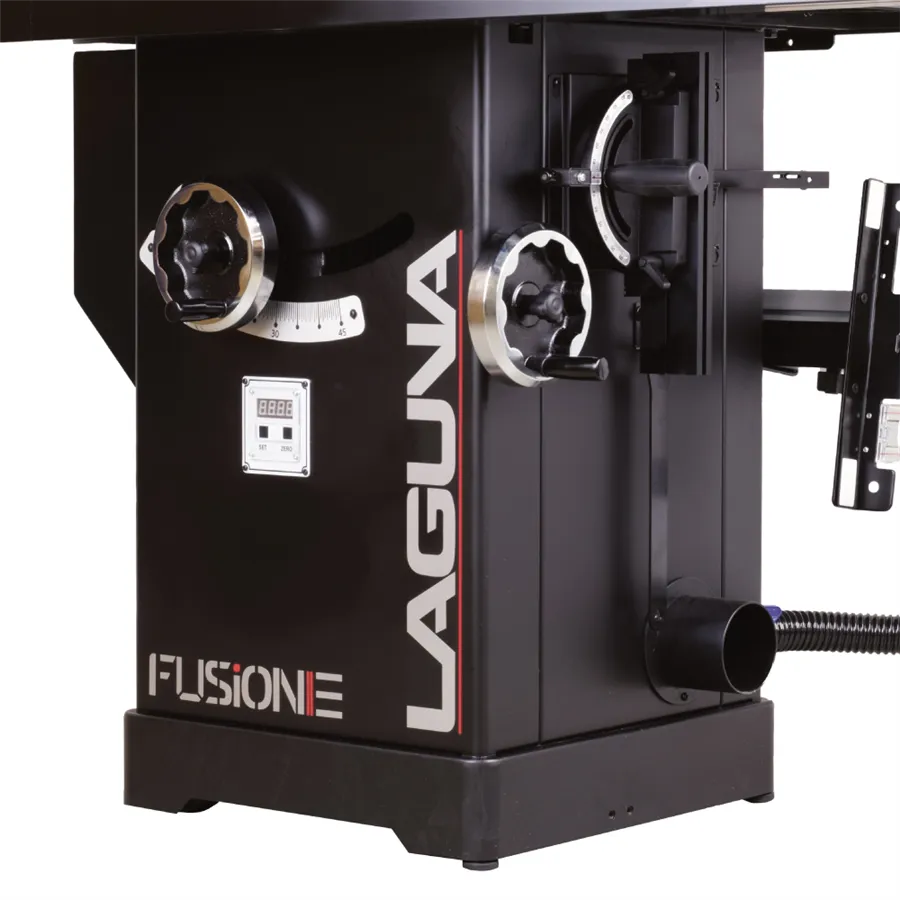

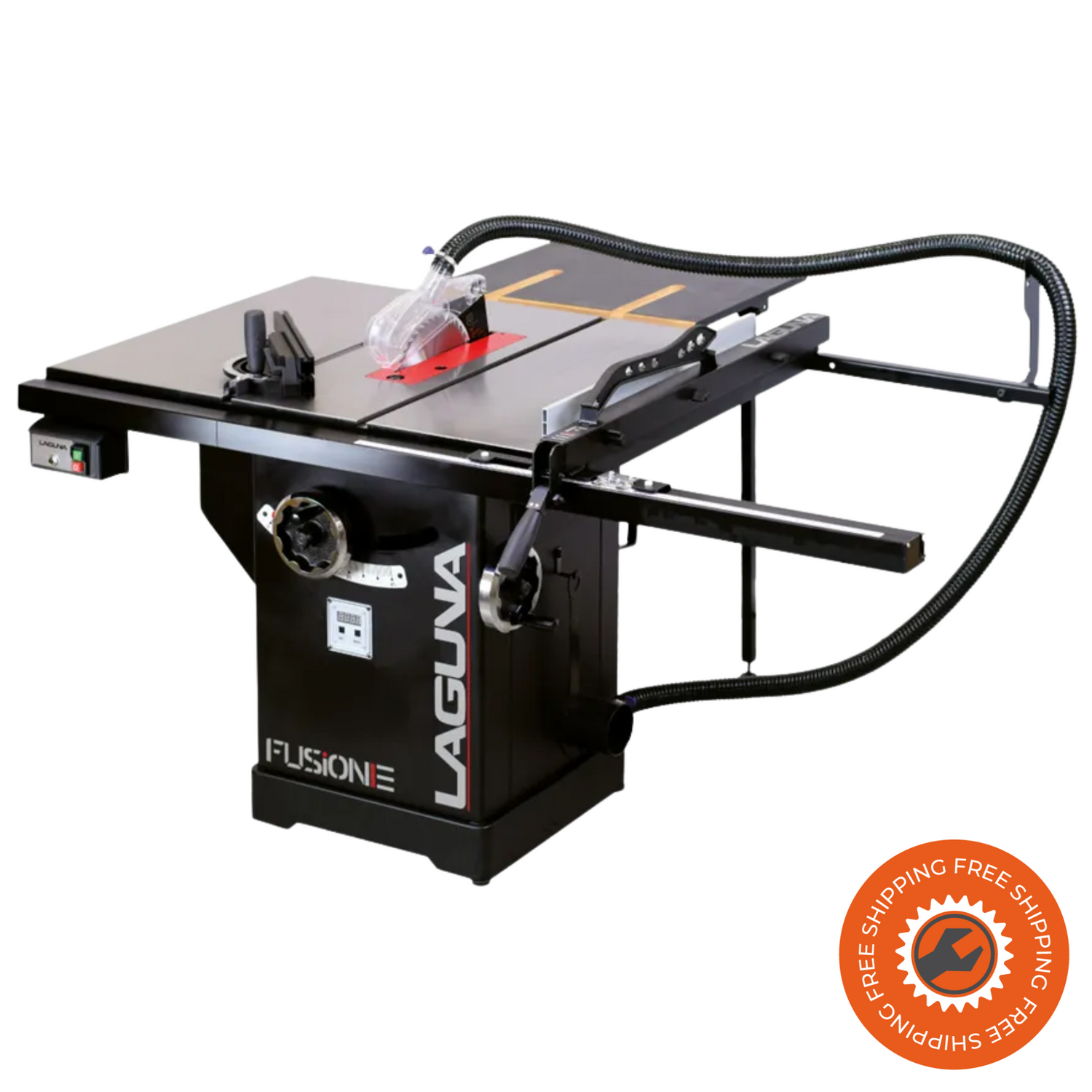

Laguna Fusion 3 is a professional woodworking table saw, with a 250 × 30 mm blade, 2800 W / 2200 W motor, and a weight of 175 kg. Krollit, official Laguna distributor since 2007.
- Type: Fusion 3Dro
- Rating: Artisan / Industrial
- Input / output power (230 V): 2800 W / 2200 W
- Recommended switch: 16 A, C curve
- Blade × bore: 250 × 30 mm
- Arbor speed: 3800 RPM

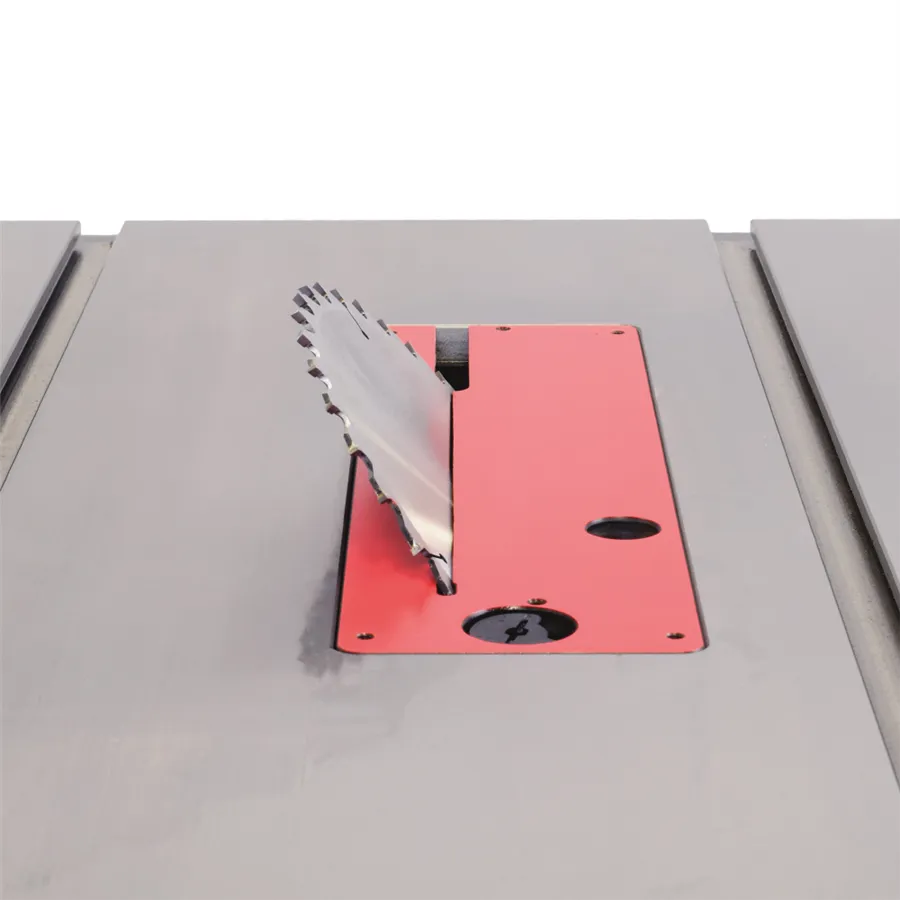

- Blade tilt: 0–45°
- Cutting depth at 90°: 79 mm
Who uses the Fusion 3 and for what

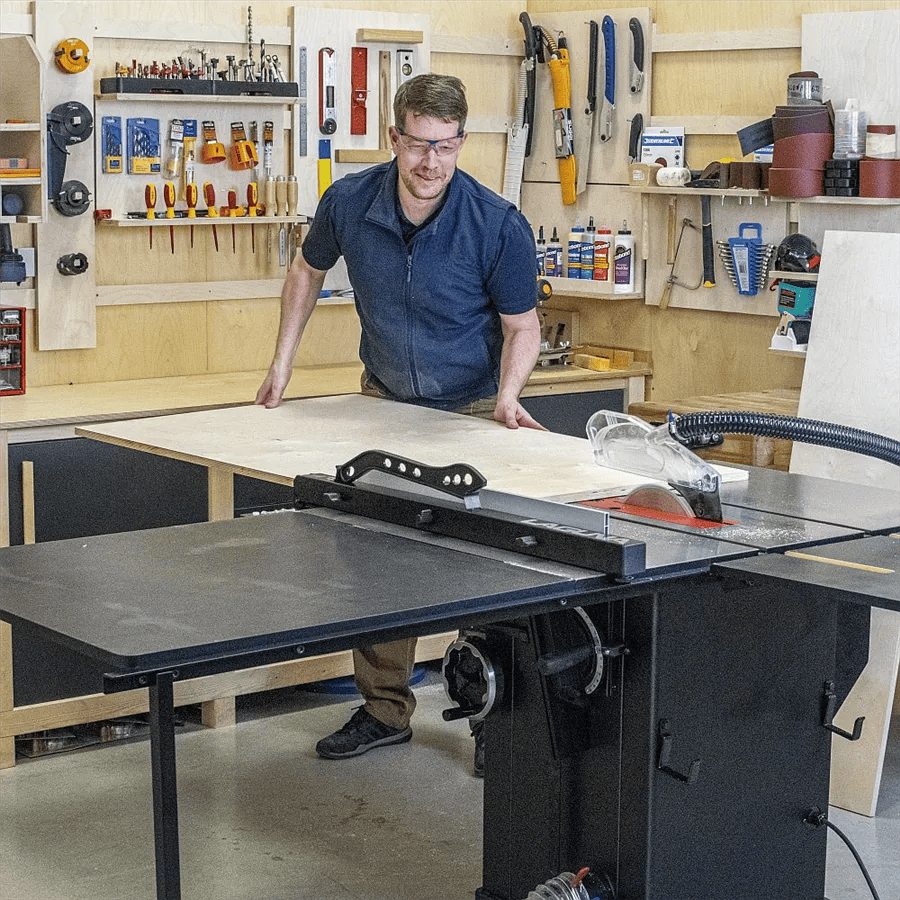

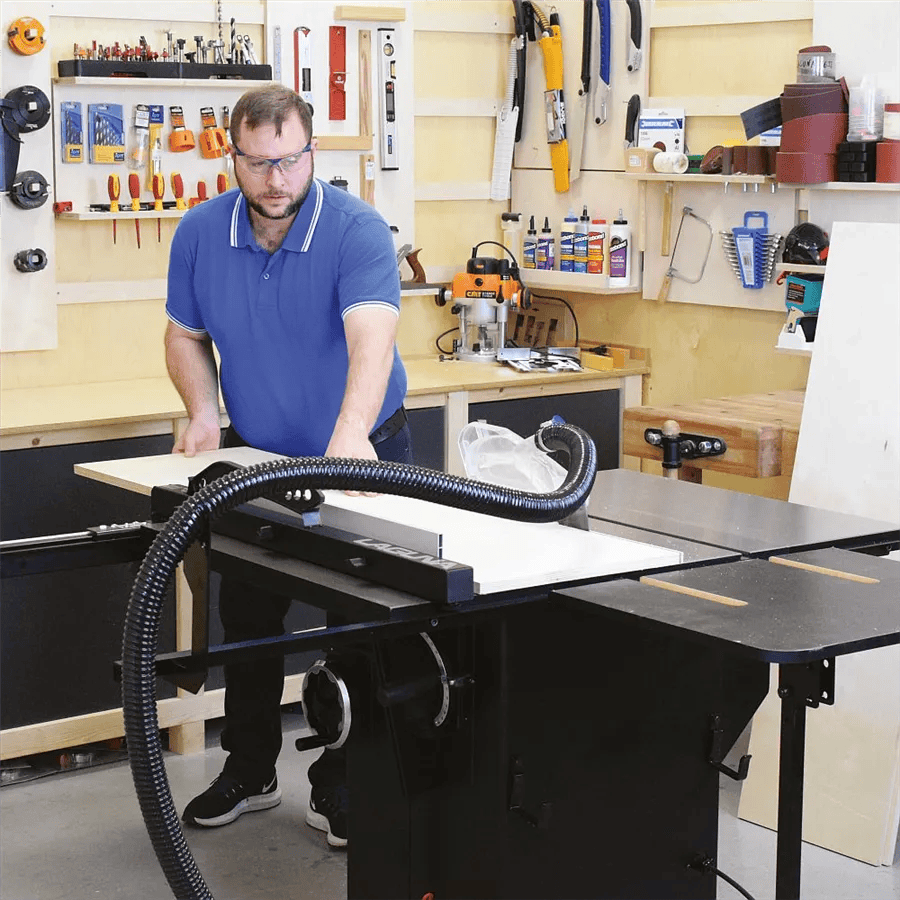

Carpentry shops and woodworking workshops use the Fusion 3 for straight cutting of panels, boards, and strips, with material sizing in series production.
Its place in the Laguna range
The Laguna Fusion 3 is part of the Laguna table saw range, distributed in Italy by Krollit since 2007. The Laguna range includes models of various categories and performance: to choose the right machine for your use case, you can consult the Laguna catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipment in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipment in 3-5 business days from Krollit warehouse. Customer support in Italian is available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Fusion 3 for?
| Profile |
Compatibility |
Reason |
| Carpentry shops and woodworking workshops |
Suitable |
Straight cutting of panels, boards, and strips with a rip fence |
| Furniture and fixture manufacturers |
Suitable |
Material sizing in series production with extended work surfaces |
| Metal cutting |
Not suitable |
Saw designed for wood: dedicated blades and machines are needed for metals |
Not suitable for: metal cutting (saw designed for wood: dedicated blades and machines are needed for metals).
Processing capacity
| Cutting depth at 90° |
79 mm |
| Cutting depth at 45° |
56 mm |
| Rip capacity |
914 mm |

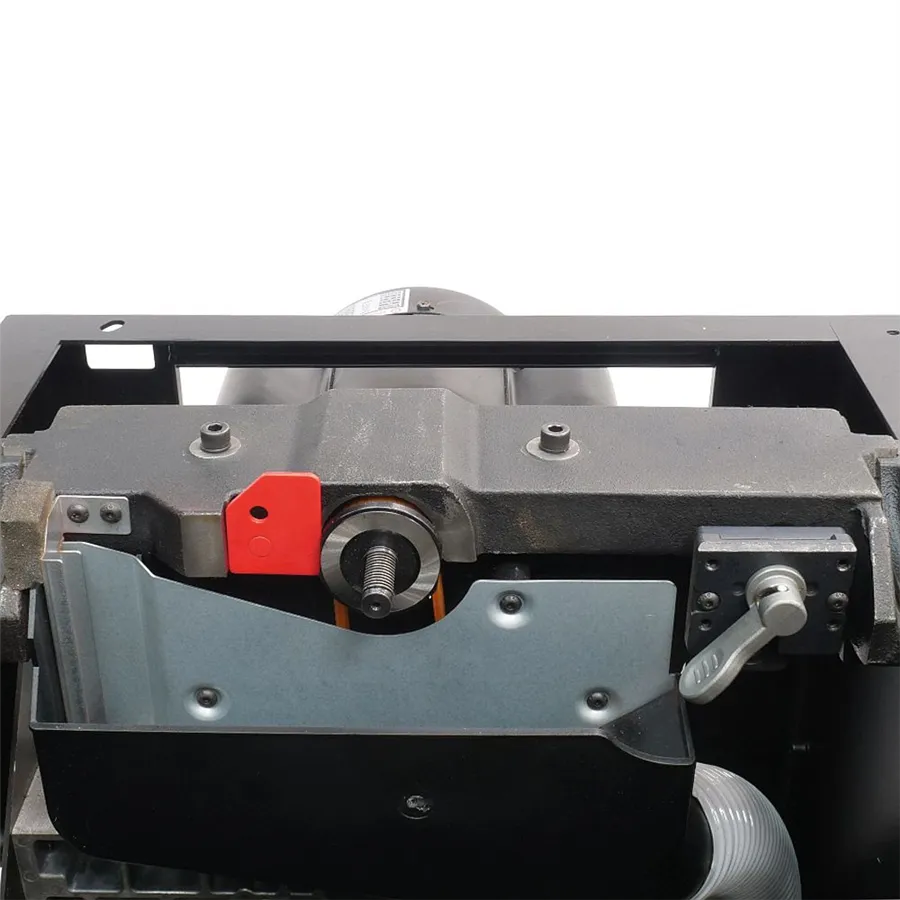

Spindle and speed
Table and dimensions
| Blade tilt |
0–45° |
| Machine dimensions (L×W×H) |
1663 × 1652 × 1081 mm |
| Shipping dimensions (L×W×H) |
1130 × 1200 × 1190 mm |
Motor and power supply
| Input / output power (230 V) |
2800 W / 2200 W |
Other specifications
| Type |
Fusion 3Dro |
| Rating |
Artisan / Industrial |

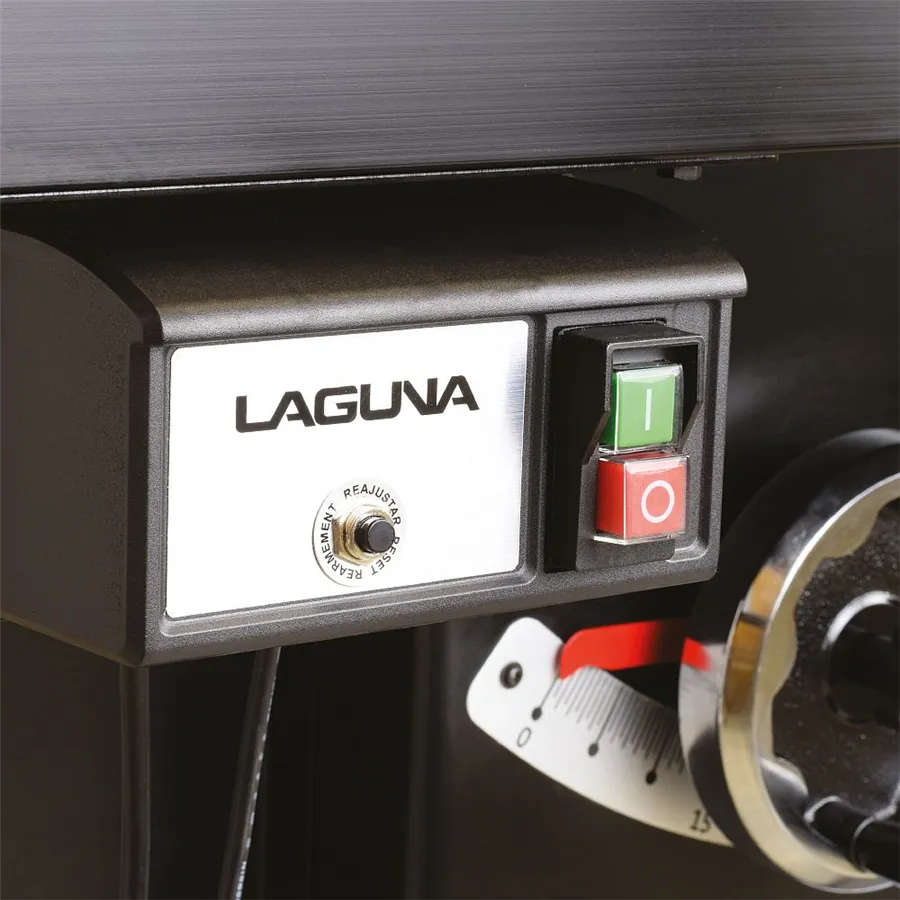

| Recommended switch |
16 A, C curve |
| Blade × bore |
250 × 30 mm |
| Dust port |
Ø 100 mm |
| Cast iron table |
792 × 1118 mm |
| Miter gauge slots |
19 and 23 mm, T-Slot |
| Machine weight |
175 kg |
| Weight with packaging |
202 kg |
Frequently Asked Questions
What cutting height does the Fusion 3 offer?
See "Max cutting height" in the technical table: typically 70-130 mm at 90°.
The height decreases with blade tilt. For angled cuts (45°), check the usable height at that specific angle in the technical data sheet.

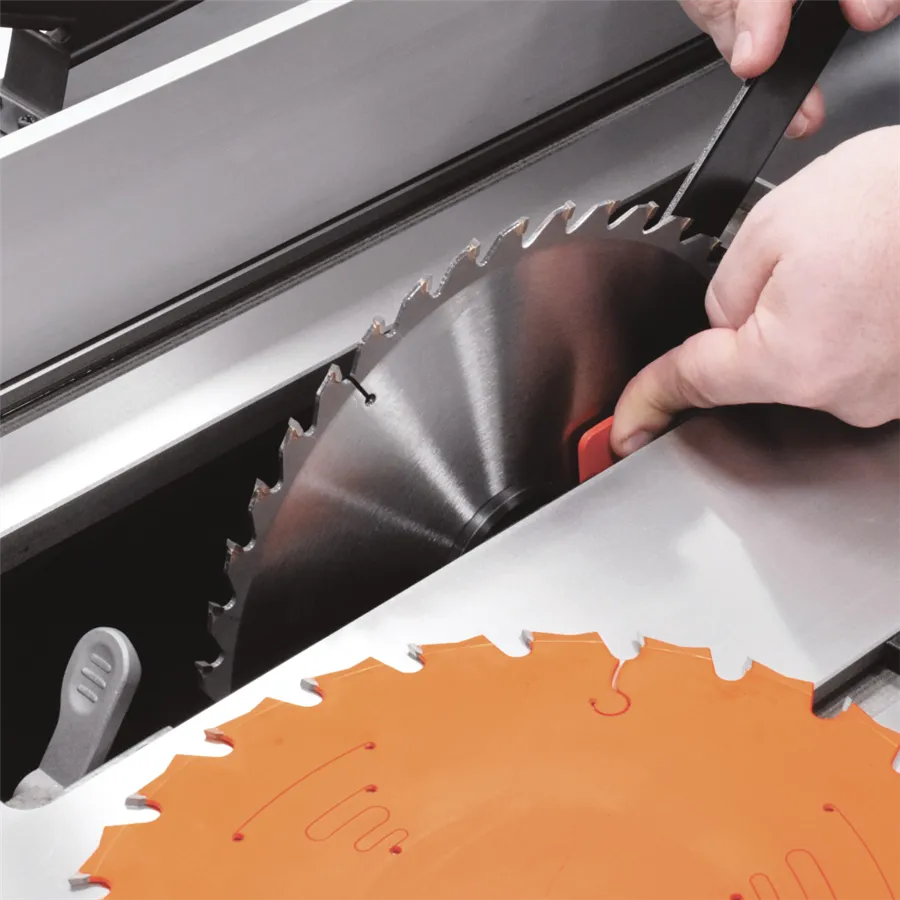

Supported blade diameter?
See "Blade diameter" in the technical table: typically 250-400 mm.
Larger diameter blades offer a higher cutting height but require a motor of adequate power. Check the blade arbor hole standard.

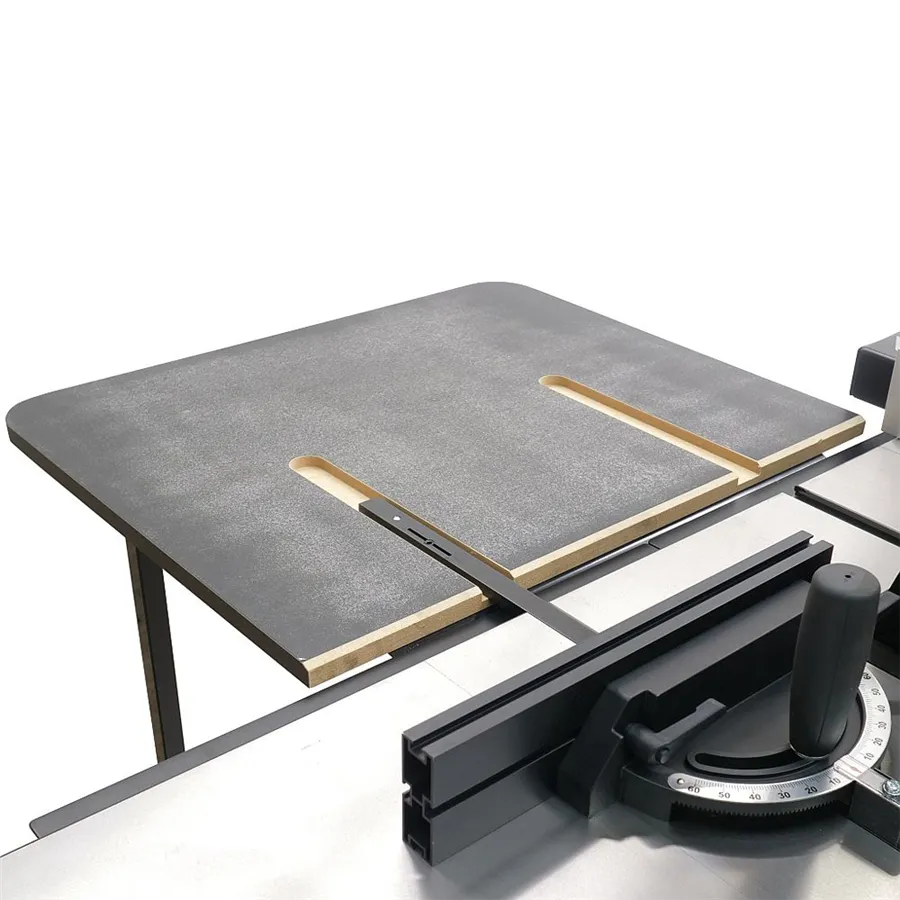

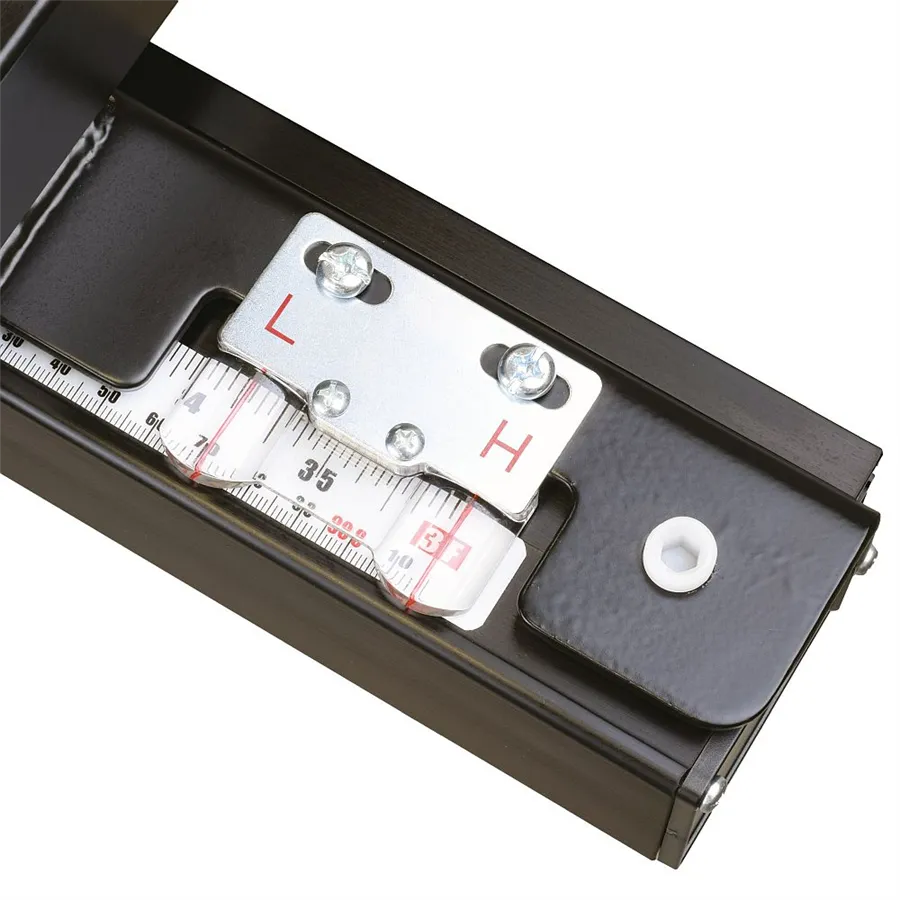

Does it have precision fences and stops?
Professional models are equipped with a rip fence, miter fence, and sliding table on panel saw models.
Panel saws offer a sliding table for precise crosscutting. Standard table saws require accessory fences for series production.

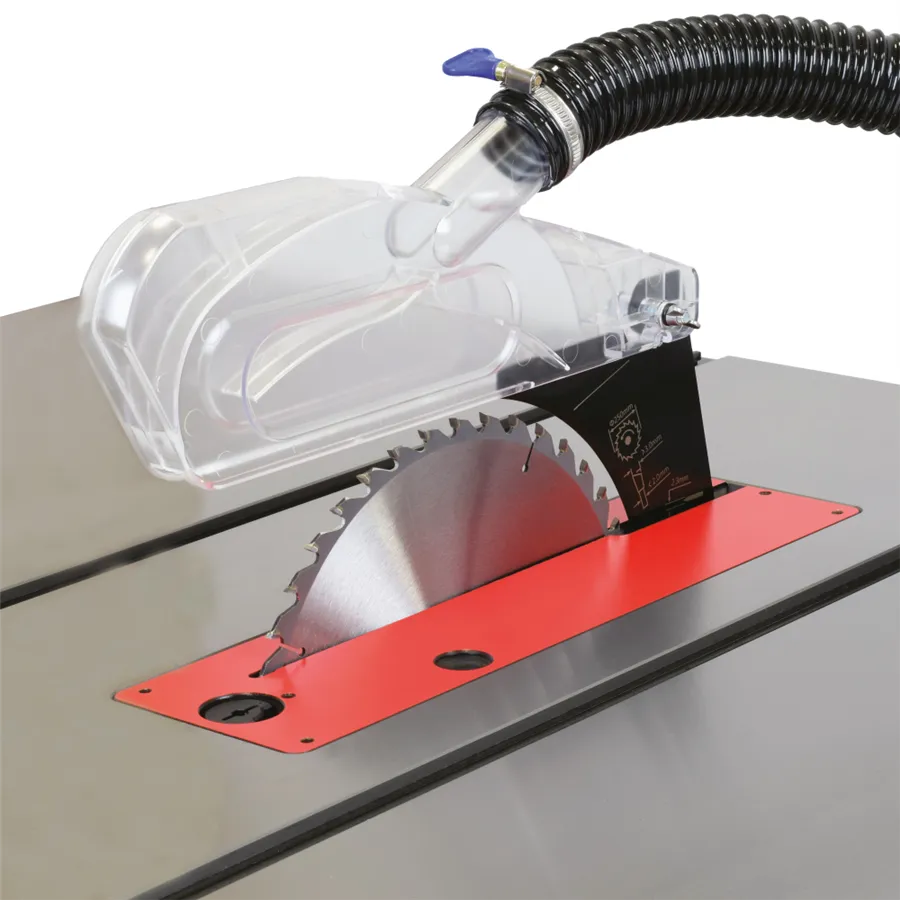

Does it have integrated dust extraction?
Yes, dust extractor connection with standard diameter (typically Ø100 or Ø120 mm).
Dust extraction is essential in woodworking to reduce respirable dust and maintain visibility of the cutting area.
What power supply does it require?
See "Voltage" in the table: 230 V single-phase for compact machines, 400 V three-phase for professional ones.
Models with motors over 2 kW typically require 400 V three-phase. Check availability in the workshop before purchasing.
