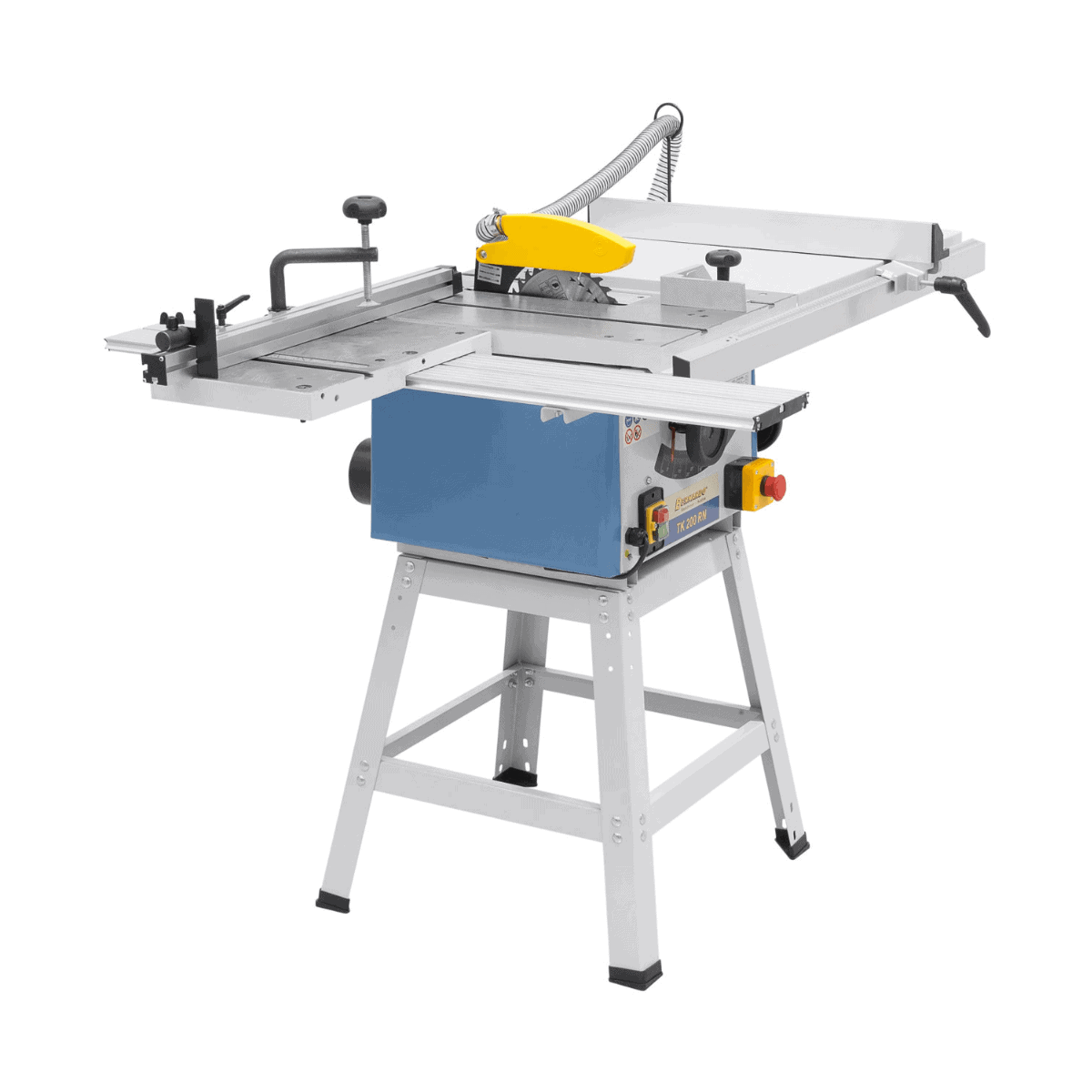

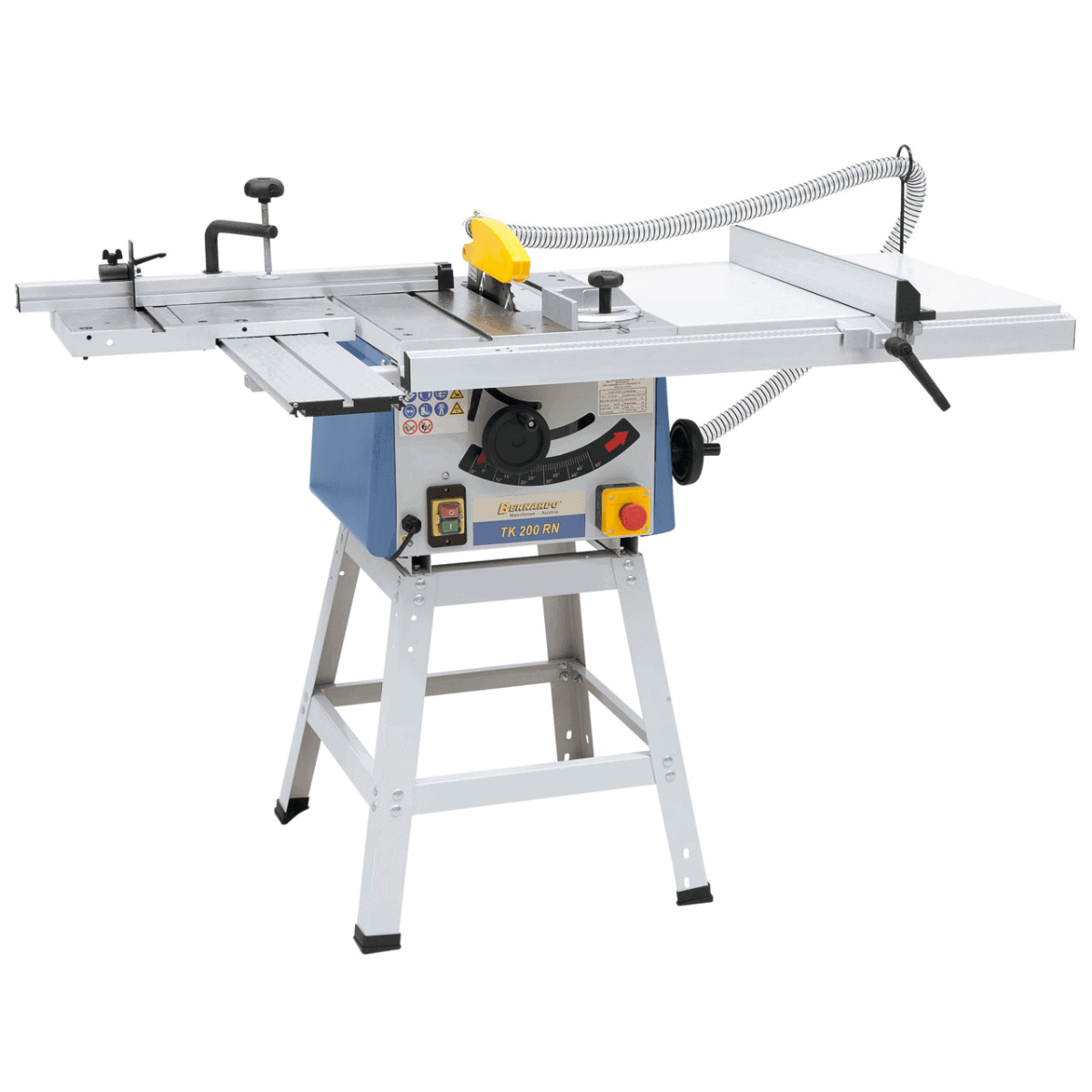

Bernardo TK 200 RN Table Saw – 230 V
The Bernardo TK 200 RN table saw is a woodworking saw for hobbyist-professional use, with a 200 mm HM blade, 4,750 rpm rotation speed, and a cutting capacity of up to 55 mm at 90°. Equipped with a sliding table with a 720 mm stroke and a cutting width of up to 730 mm, it has been distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Blade diameter: 200 mm
- Blade speed: 4,750 rpm
- Max cutting height 90°: 55 mm
- Max cutting height 45°: 42 mm
- Parallel cutting width: 730 mm
- Motor: 1.1 kW (S1) – 1.5 kW (S6)
- Voltage: 230 V
- Dust extraction port: 100 mm
- Sliding table stroke: 720 mm
- Weight: 72 kg
Who uses the TK 200 RN and for what
The TK 200 RN is used by carpenters, installers, and artisan workshops for cutting solid wood, panels, and derivative materials. It is suitable for general carpentry work, furniture making, longitudinal and transverse cuts on medium-sized pieces. The sliding table allows for working on longer pieces with greater control.
Krollit logistics and support
Shipping 5-9 working days (7 days for southern regions). For machines over 200 kg, ground floor delivery with hydraulic tailgate included. Technical assistance in Italian available for the entire life of the product. Original Bernardo spare parts available from Krollit warehouse, Monteforte Irpino (AV).
Who is the TK 200 RN for
| Profile |
Compatibility |
Reason |
| Advanced hobbyists |
Suitable |
55 mm cutting height and extended table for advanced home projects. |
| Artisans and carpenters |
Suitable |
730 mm cutting width and sliding table for working on panels and boards. |
| Continuous industrial production |
Not suitable |
1.1 kW motor designed for intermittent use, not for intensive cycles. |
Not suitable for: large-scale industrial production or continuous processing of high-strength materials.
Working capacity
| Cutting height 90° |
55 mm |
| Cutting height 45° |
42 mm |
| Parallel cutting width |
730 mm |
Table and dimensions
| Main table |
530 × 400 mm |
| Table extension |
530 × 600 mm |
| Sliding table |
400 × 250 mm |
| Sliding table stroke |
720 mm |
| Table height |
890 mm |
Motor and power supply
| Input power (S1) |
1.1 kW |
| Output power (S6) |
1.5 kW |
| Voltage |
230 V |
Structure and components
| Blade speed |
4,750 rpm |
| Dust extraction port |
100 mm |
| Machine dimensions |
1520 × 1000 × 1050 mm |
| Weight |
72 kg |
Standard equipment
- HM blade Ø 200 × 2.2 × 30 mm – Z32

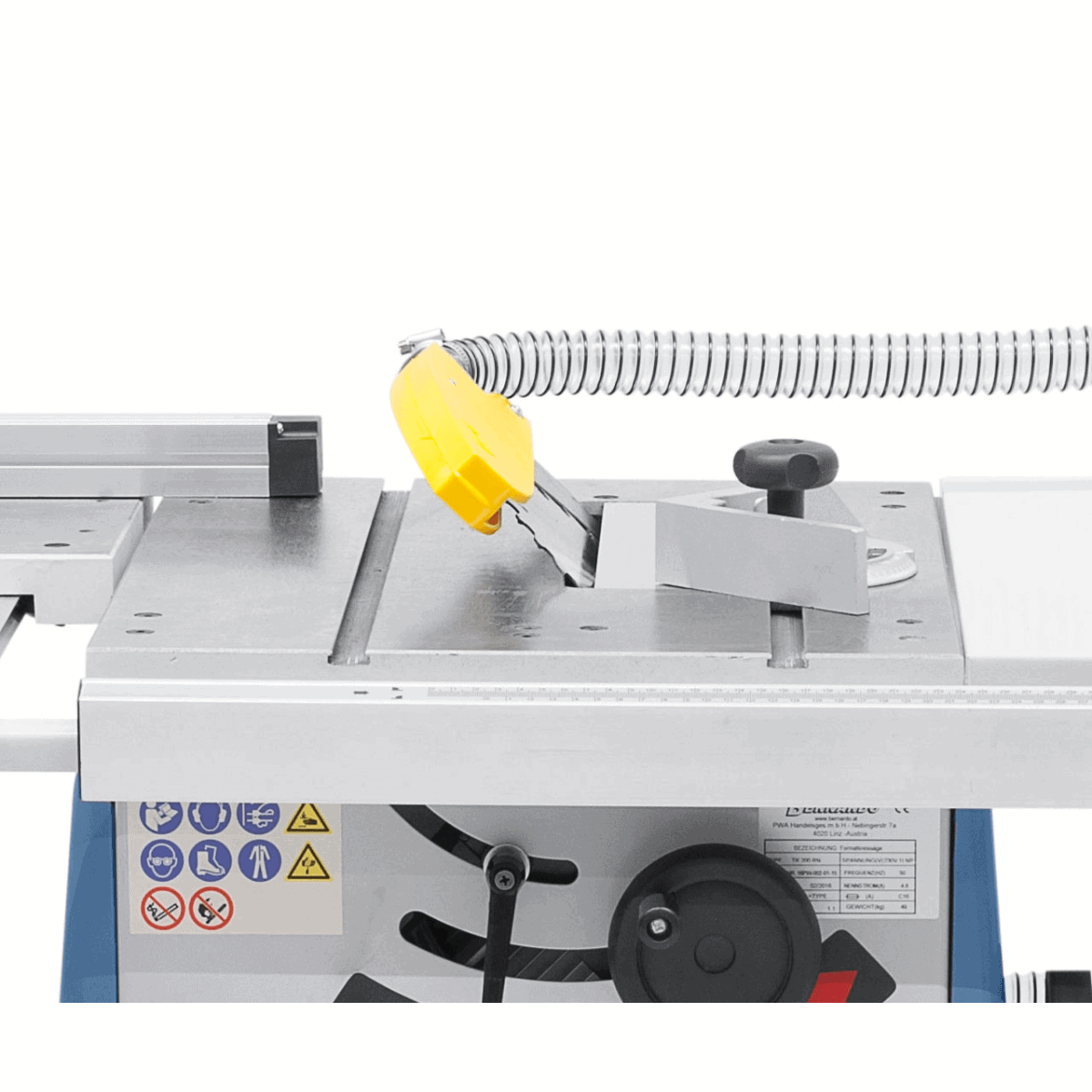

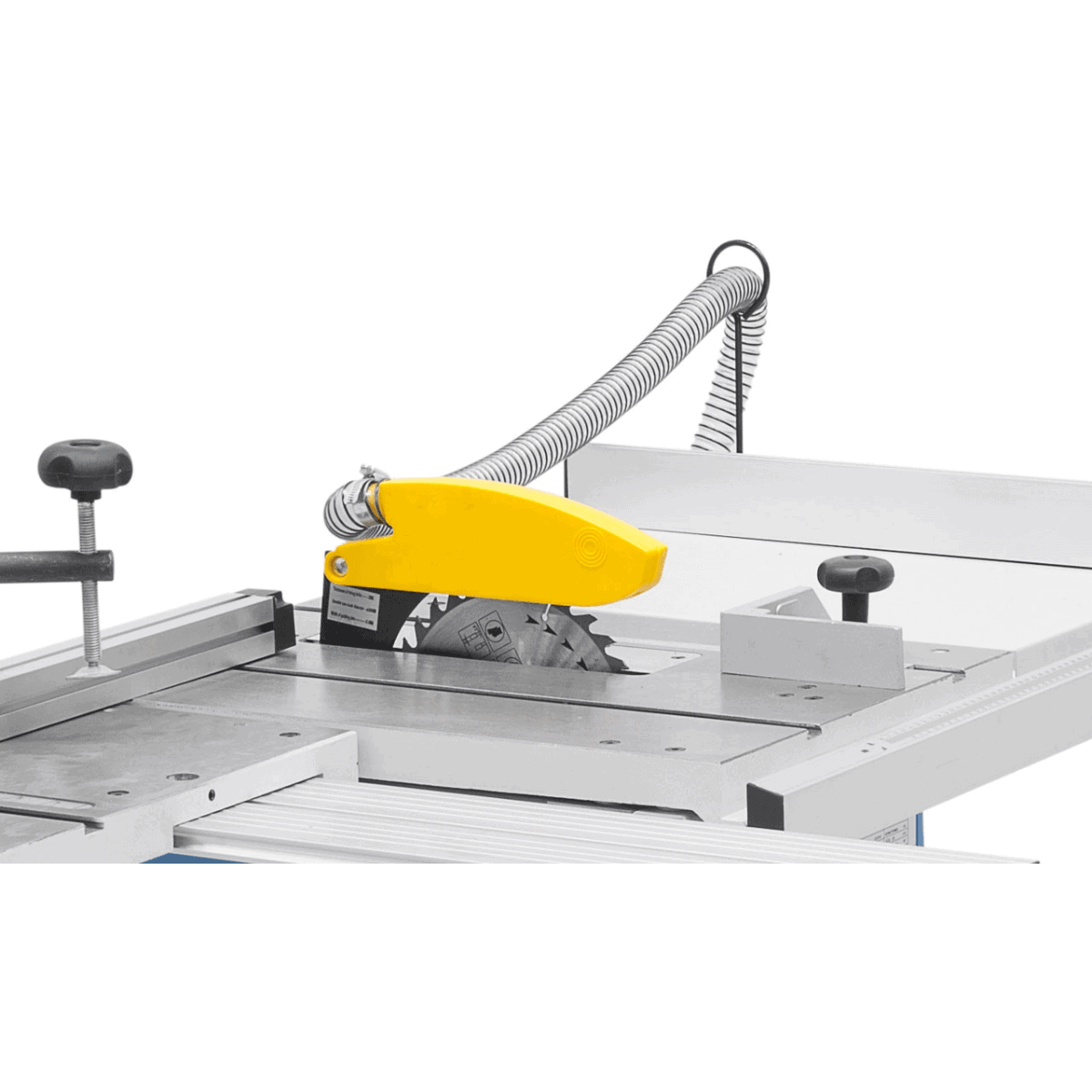

- Blade guard with dust extraction

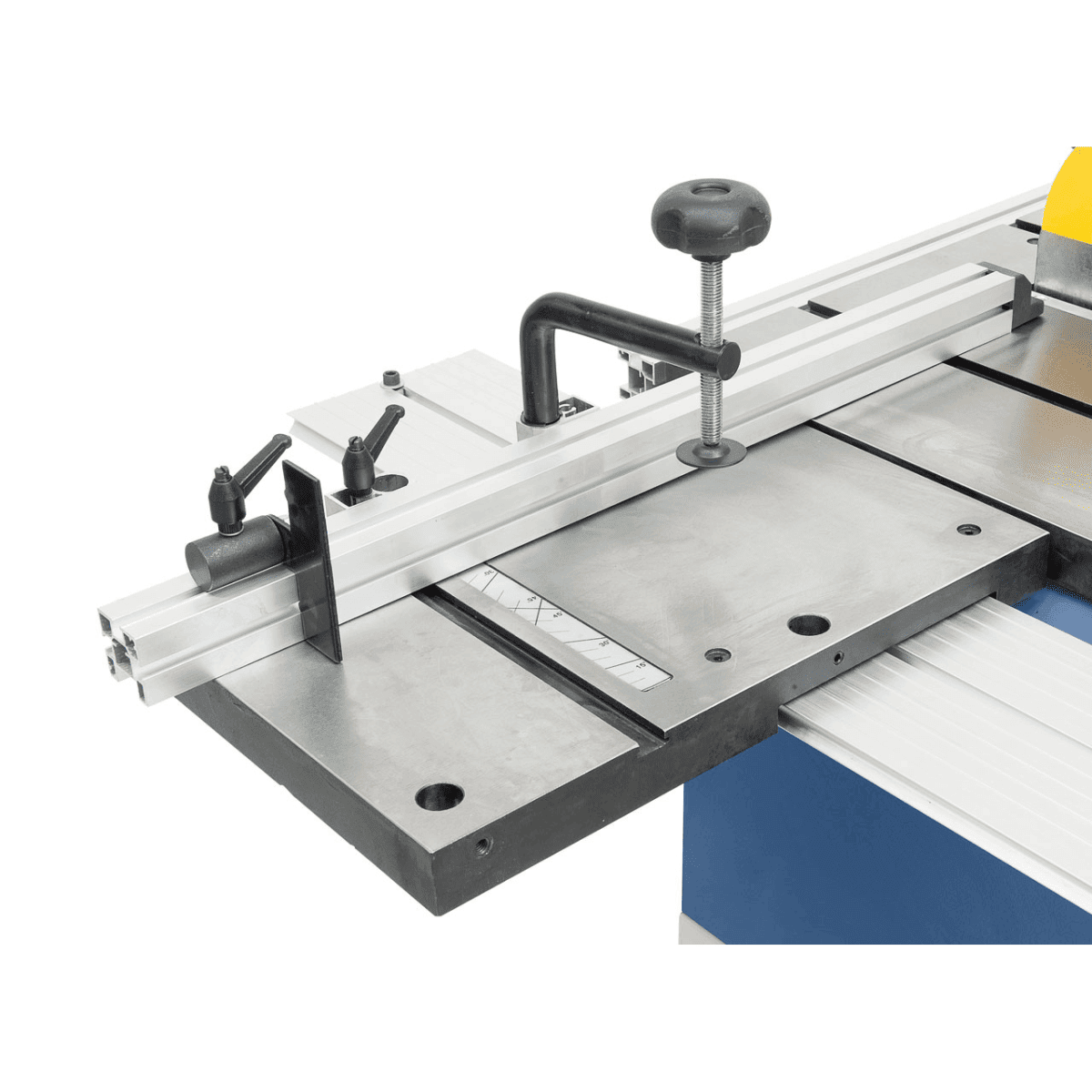

- Double-sided miter fence
- Table extension

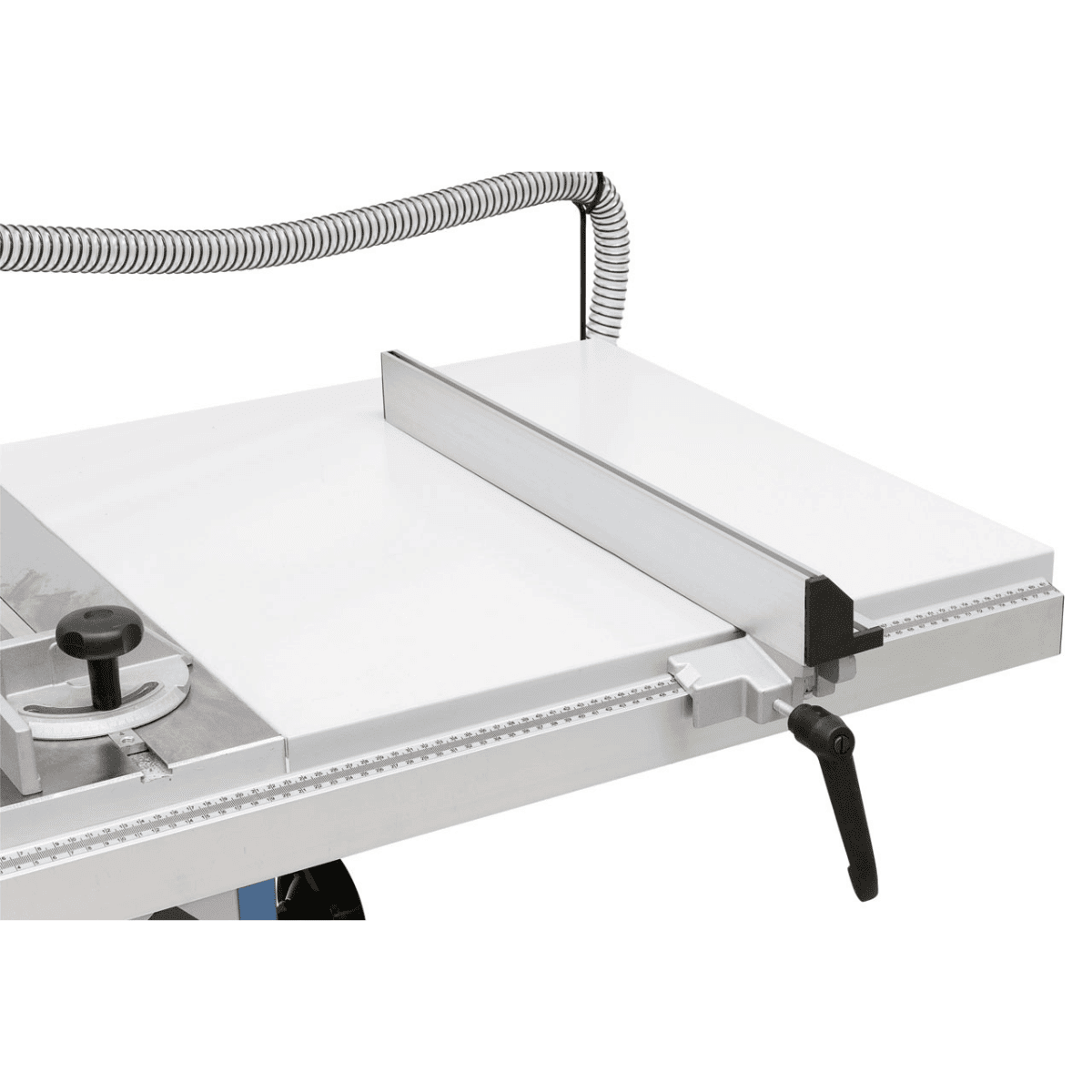

- Aluminum rip fence with stop

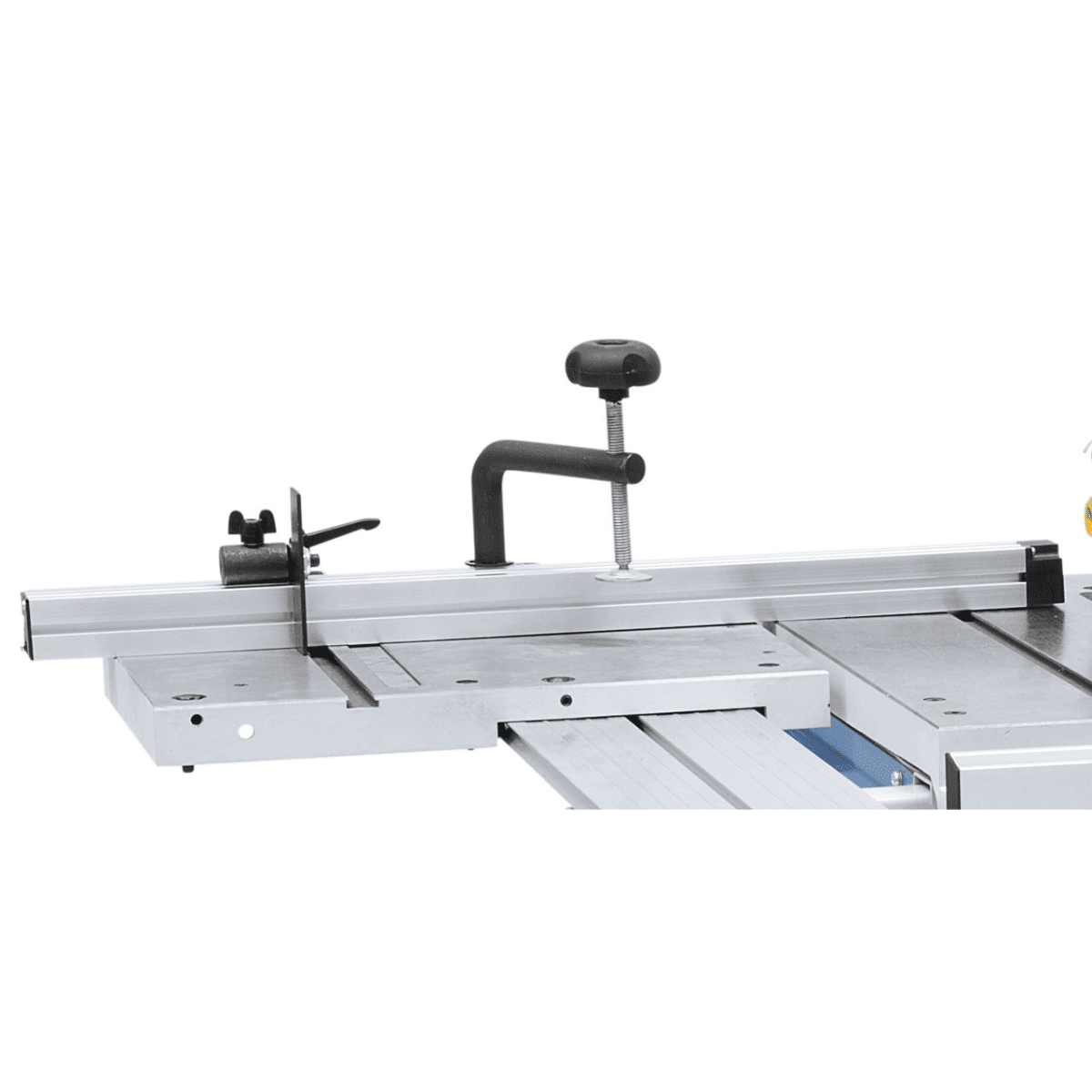

- Sliding table
- Base frame

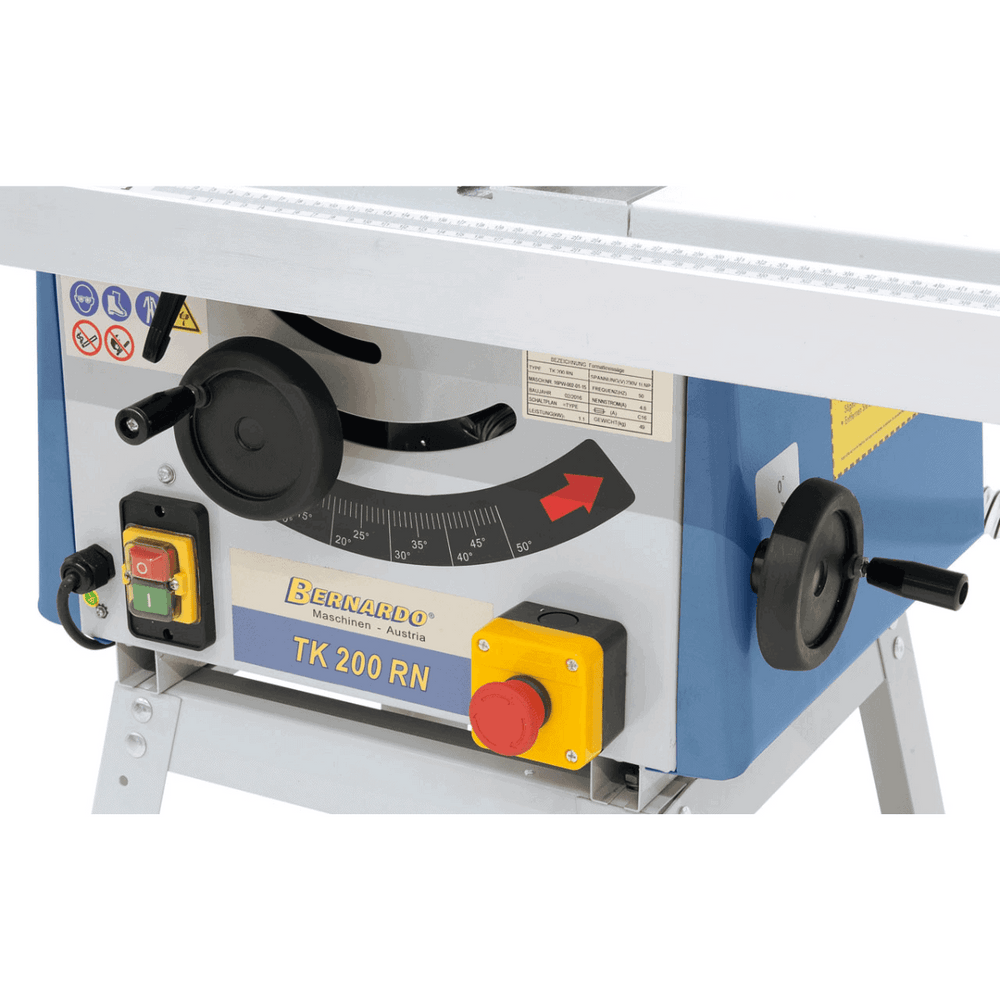

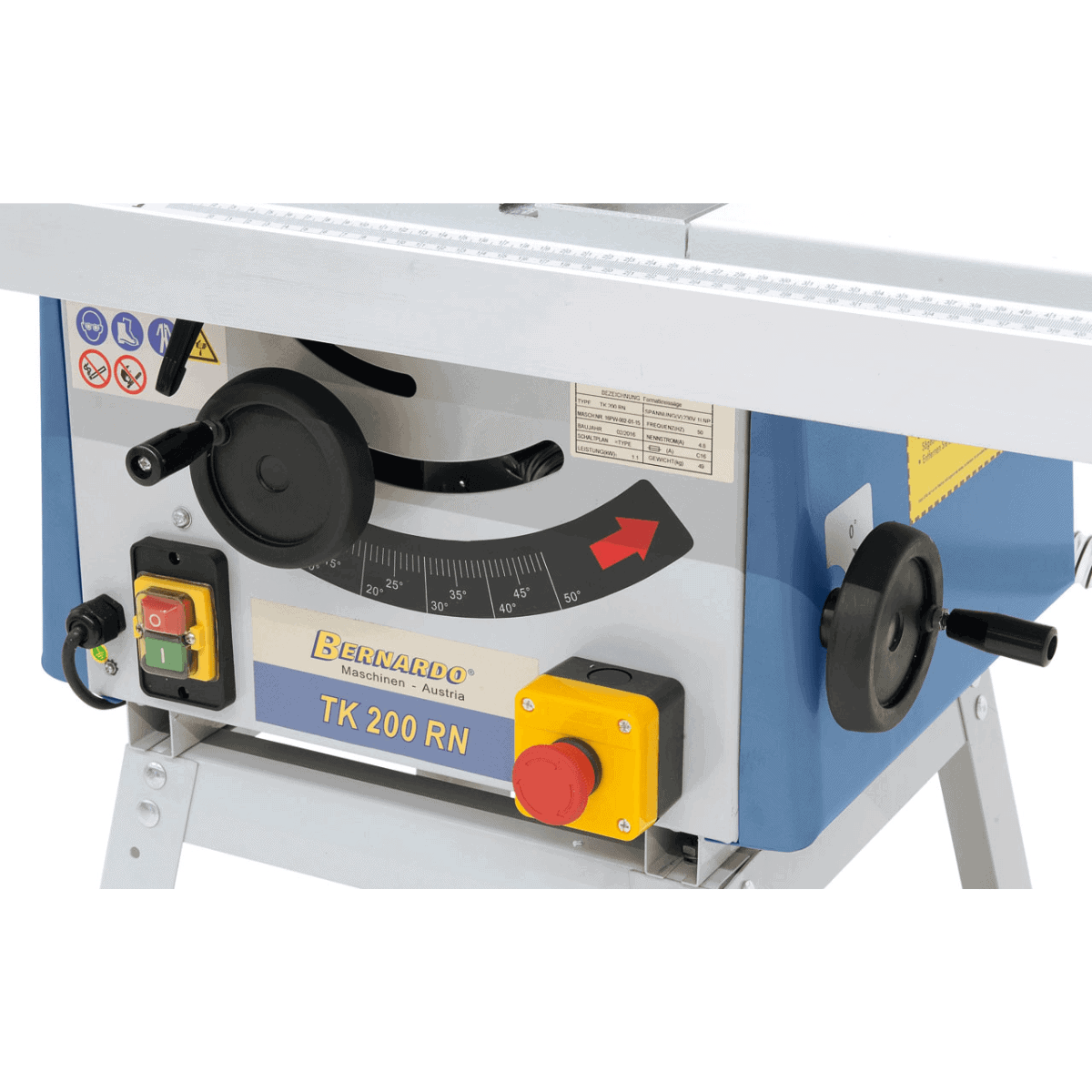

- Control unit
- User manual
Frequently asked questions
What is the cutting capacity of the TK 200 RN?
The machine allows a cutting height of up to 55 mm at 90° and 42 mm at 45°.
This capacity makes it suitable for working on medium-thickness boards, panels, and solid wood. For deeper cuts, models with a larger blade diameter should be considered.
Is the cutting width sufficient for large panels?
Yes, the cutting width reaches up to 730 mm with the rip fence.
This value allows for working on large panels. The sliding table with a 720 mm stroke helps maintain stability when cutting long pieces.
Can a dust extractor be connected?
Yes, the machine has a 100 mm dust extraction port.
Connecting a dust extraction system reduces the dispersion of chips and dust, improving visibility during cutting and keeping the work area clean.
Is it suitable for continuous professional use?
It is suitable for artisan use, but not for continuous industrial cycles.
The 1.1 kW (S1) motor is designed for intermittent use. For intensive production, saws with more powerful motors and industrial construction should be considered.
What maintenance does the table saw require?
It requires regular cleaning and blade inspection.
It is advisable to remove chips from the table and check the alignment of the blade and guides. Periodic maintenance maintains precision and safety during use.
