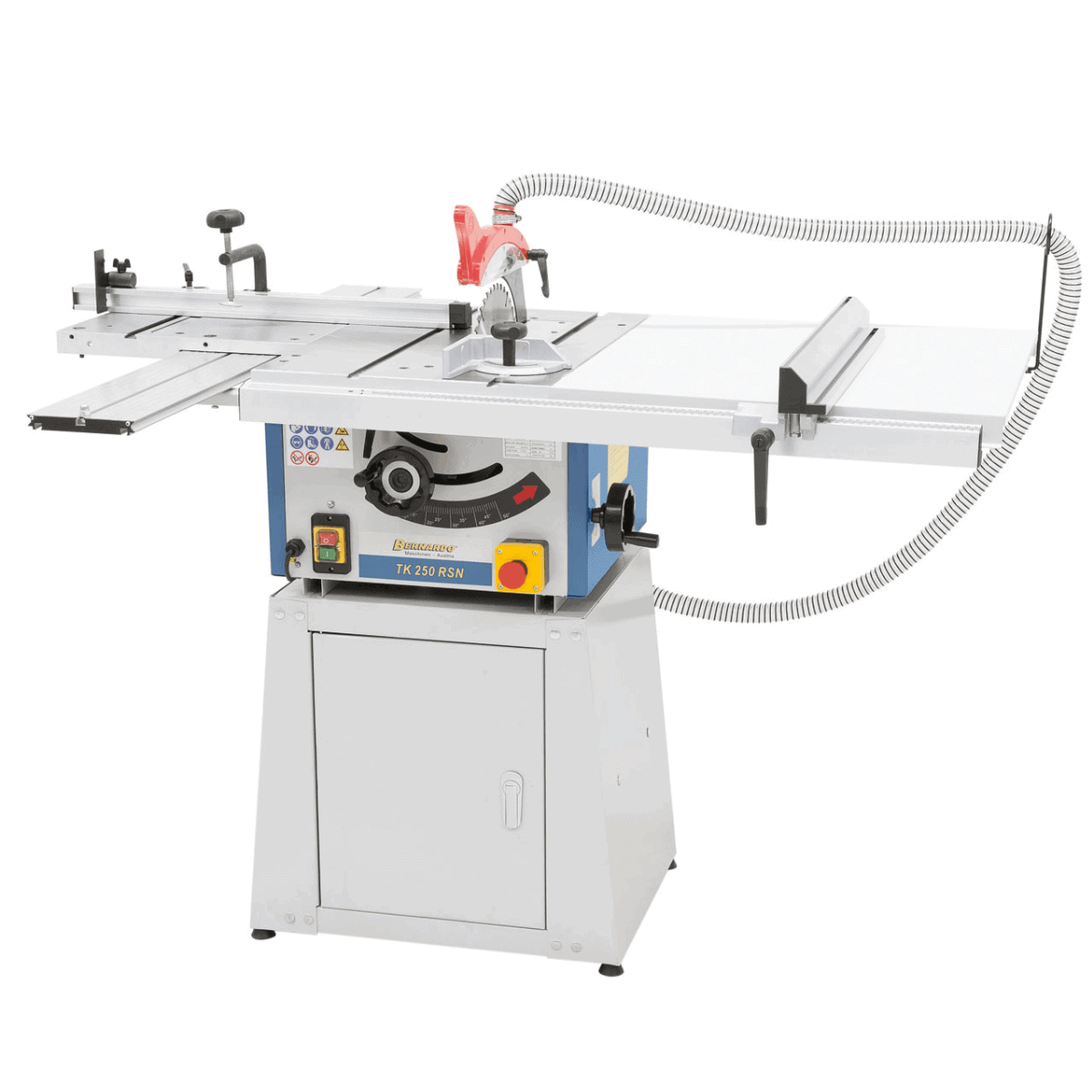

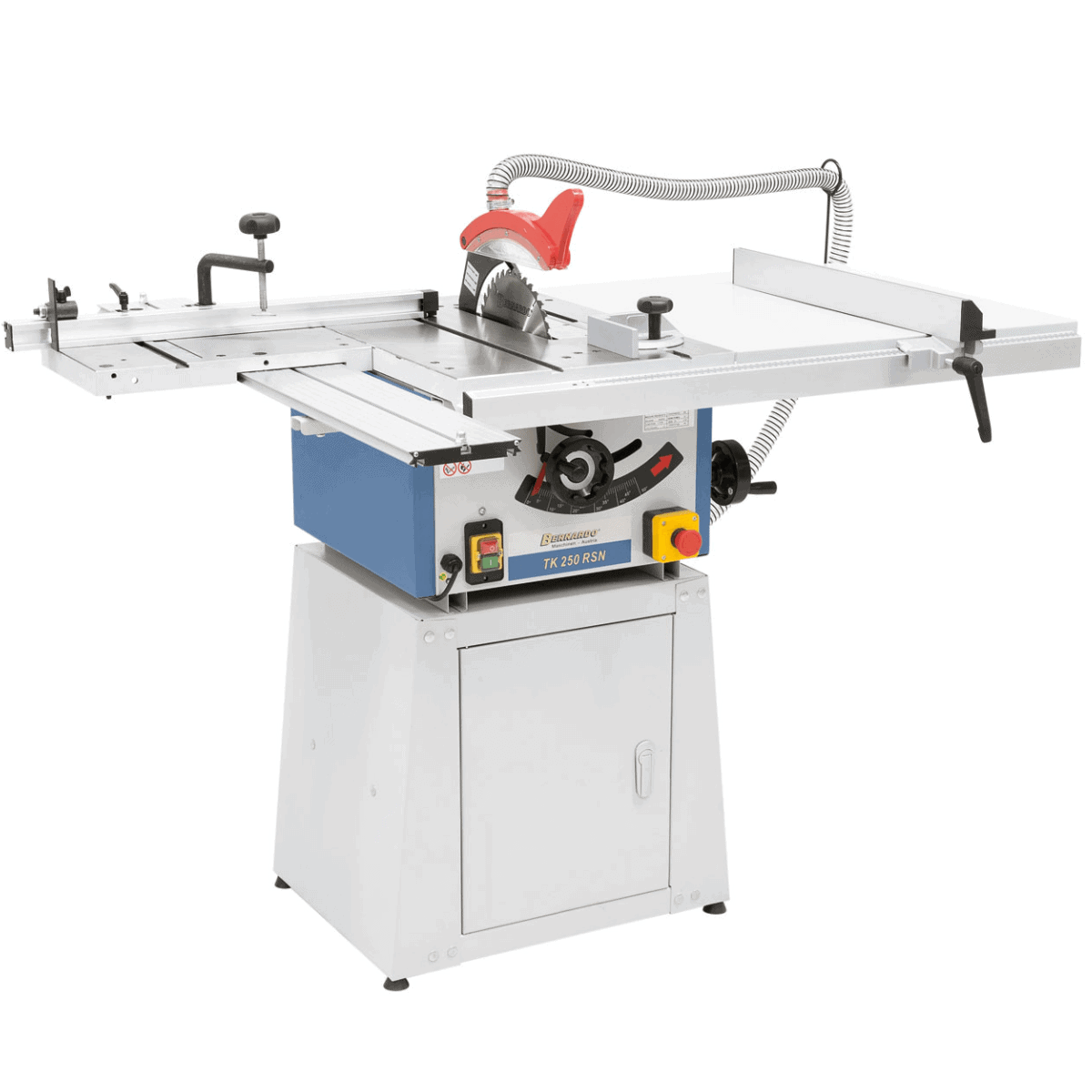

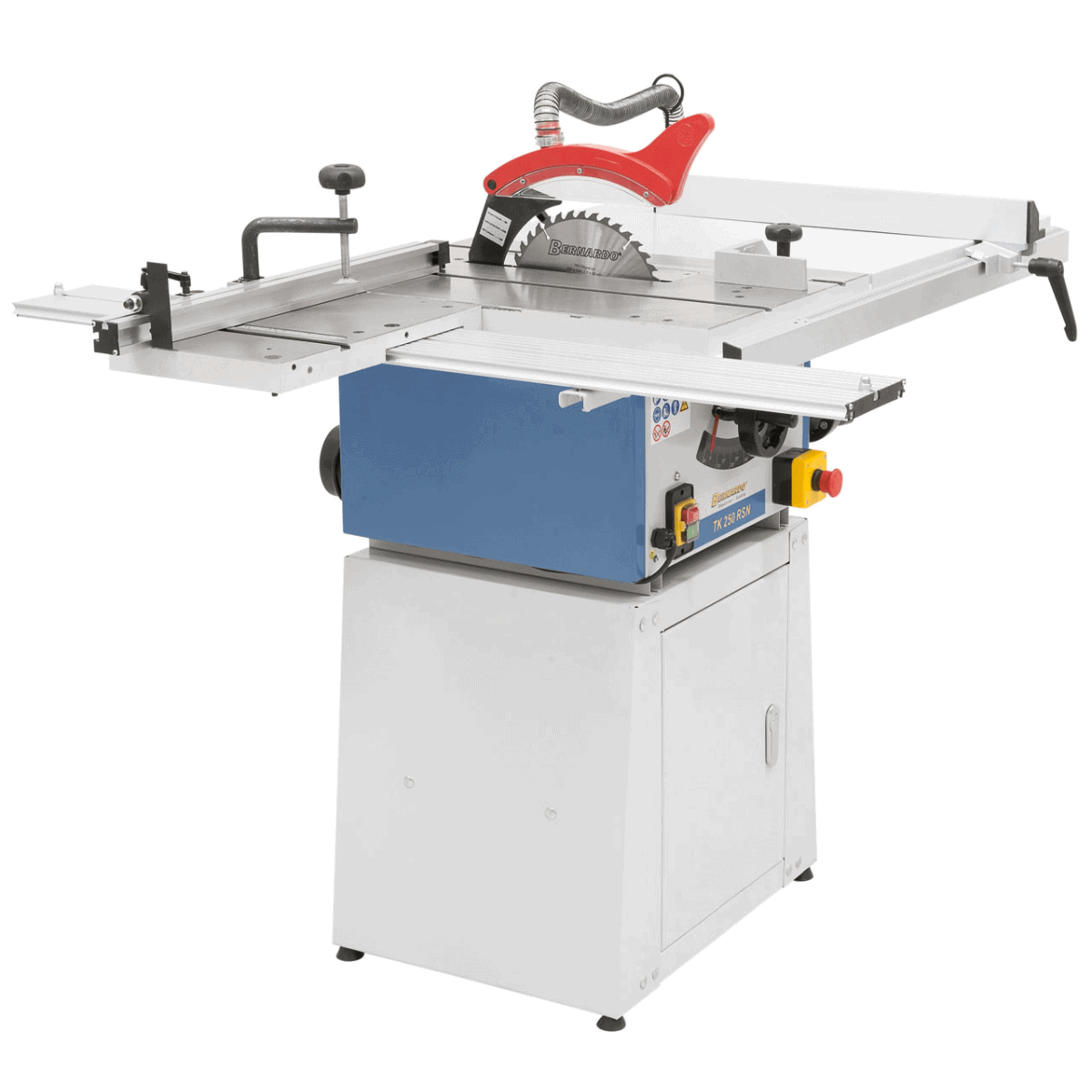

Bernardo TK 250 RSN table saw with closed base
The Bernardo TK 250 RSN is a professional table saw designed for maximum stability and precision in woodworking and advanced DIY projects.
Compared to the TK 250 RN model, this version features a closed base, which improves structural rigidity and reduces vibrations during cutting.
Equipped with a cast iron table with T-slots, an integrated sliding table, and a table extension, it offers a high cutting capacity of up to 80 mm at 90° and up to 60 mm at 45°.
The 1.5 kW (2 HP) motor ensures constant power, while the IP54 switch with undervoltage release and separate emergency stop guarantees maximum safety.
Perfect for cutting panels, solid wood, and composite materials with precision and comfort.
Main features:
Closed base for maximum stability and vibration reduction
Cast iron table with T-slots for precise cuts
Blade tiltable from 90° to 45° with cutting height 80 / 60 mm

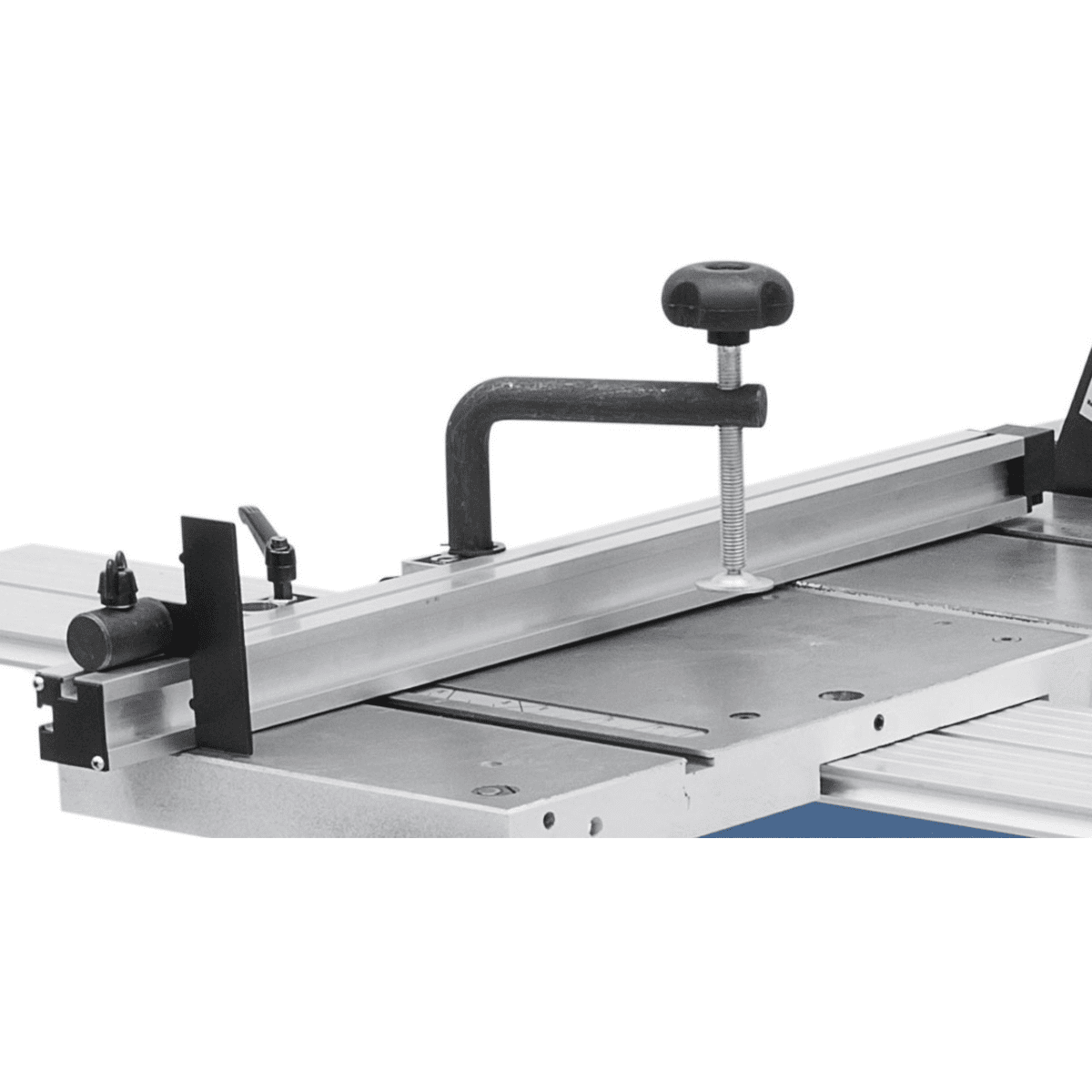

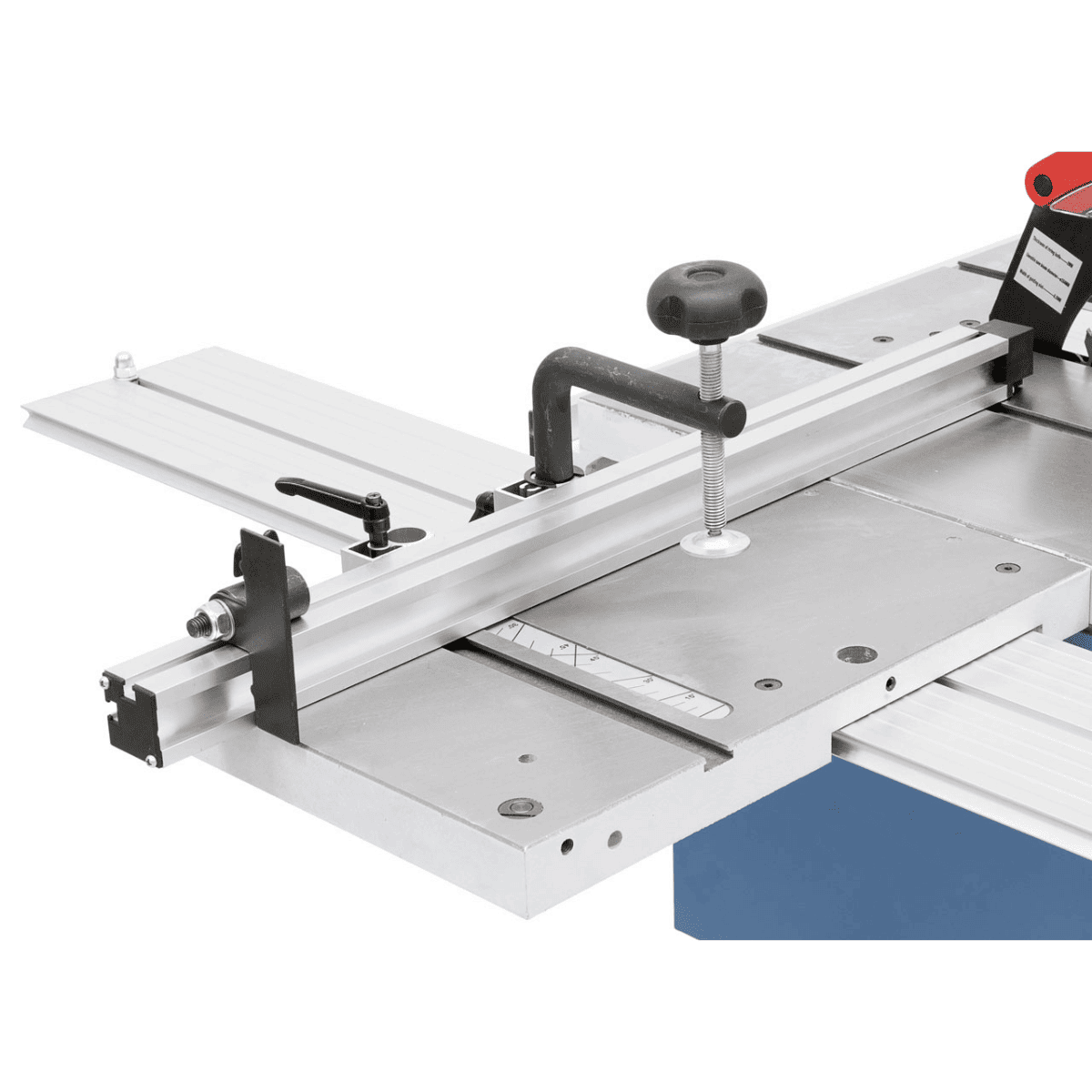

Sliding table with 920 mm travel and aluminum fence included

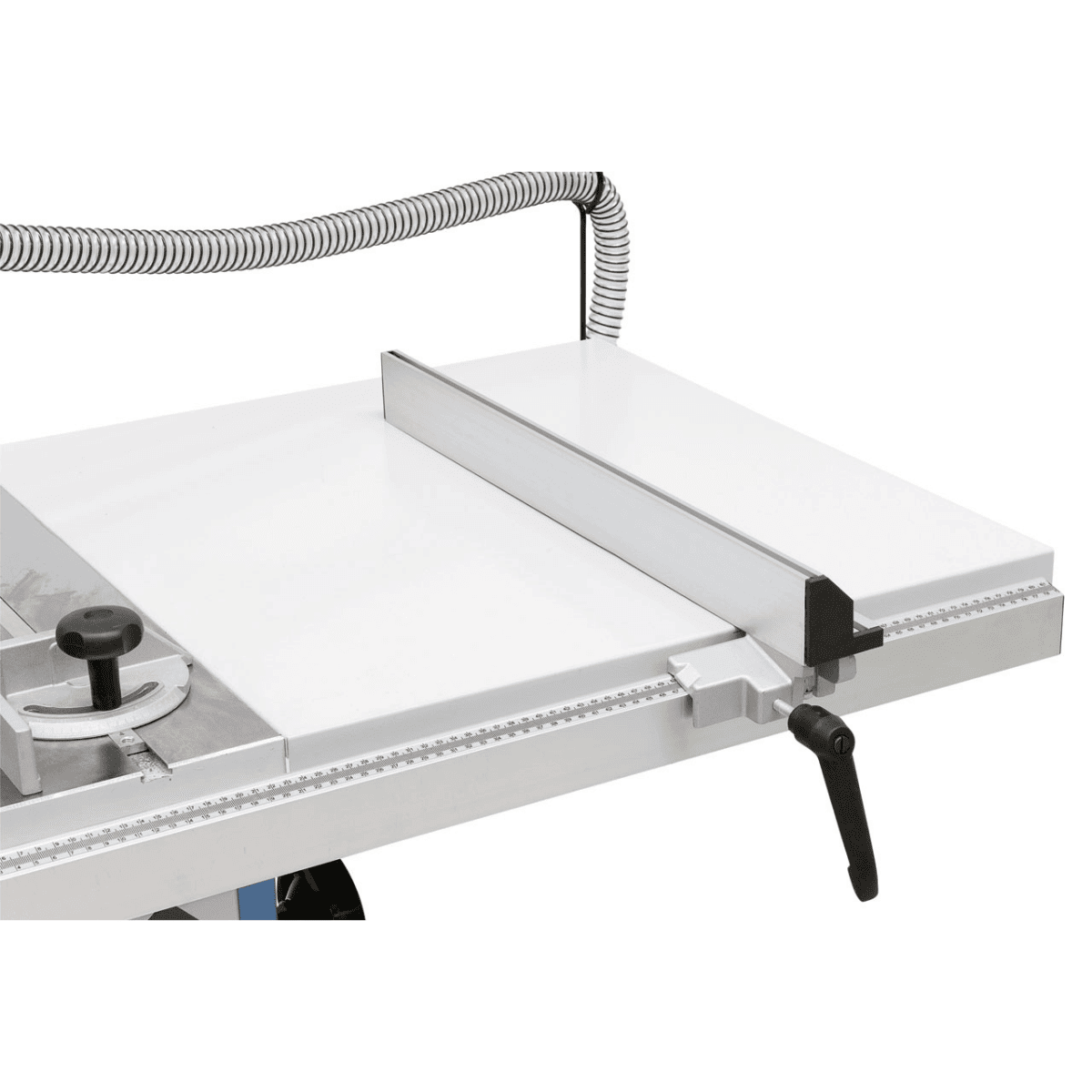

Rear table extension 635 x 600 mm included as standard
1.5 kW (S1) / 2.1 kW (S6) motor with integrated motor brake

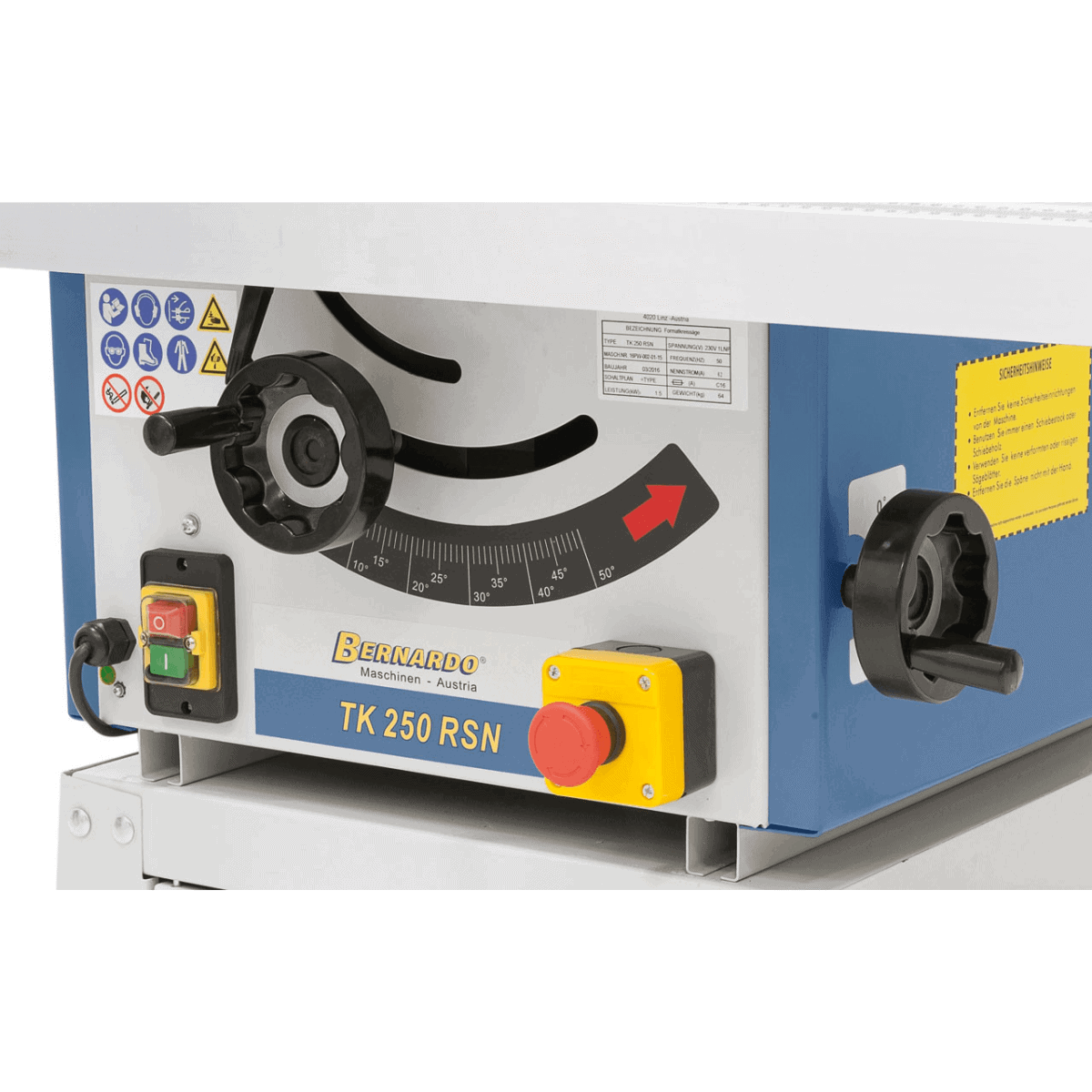

IP54 switch with undervoltage release and emergency stop button
Robust construction (weight 101 kg) for continuous and precise use
Technical specifications
| Specification | Value |
|---|---|
| Brand | Bernardo |
| Model | TK 250 RSN |
| Power supply | 230 V |
| Motor power (S1 100%) | 1.5 kW (2.0 HP) |
| Motor power (S6 40%) | 2.1 kW (2.85 HP) |
| Main table size | 630 x 430 mm |
| Sliding table | 400 x 250 mm |
| Sliding table travel | 920 mm |
| Cutting height 90° / 45° | 80 / 60 mm |
| Max blade diameter | 250 x 30 mm |
| Max cutting width (fence) | 700 mm |
| Table height | 900 mm |
| Table extension | 635 x 600 mm |
| Main blade speed | 4750 rpm |
| Dust extraction port | Ø 100 mm |
| Machine dimensions (L x W x H) | 1500 x 1200 x 1100 mm |
| Weight | 101 kg |
Standard equipment
Bernardo TK 250 RSN 230V table saw
Carbide blade Ø 250 x 2.8 x 30 mm / 40 teeth

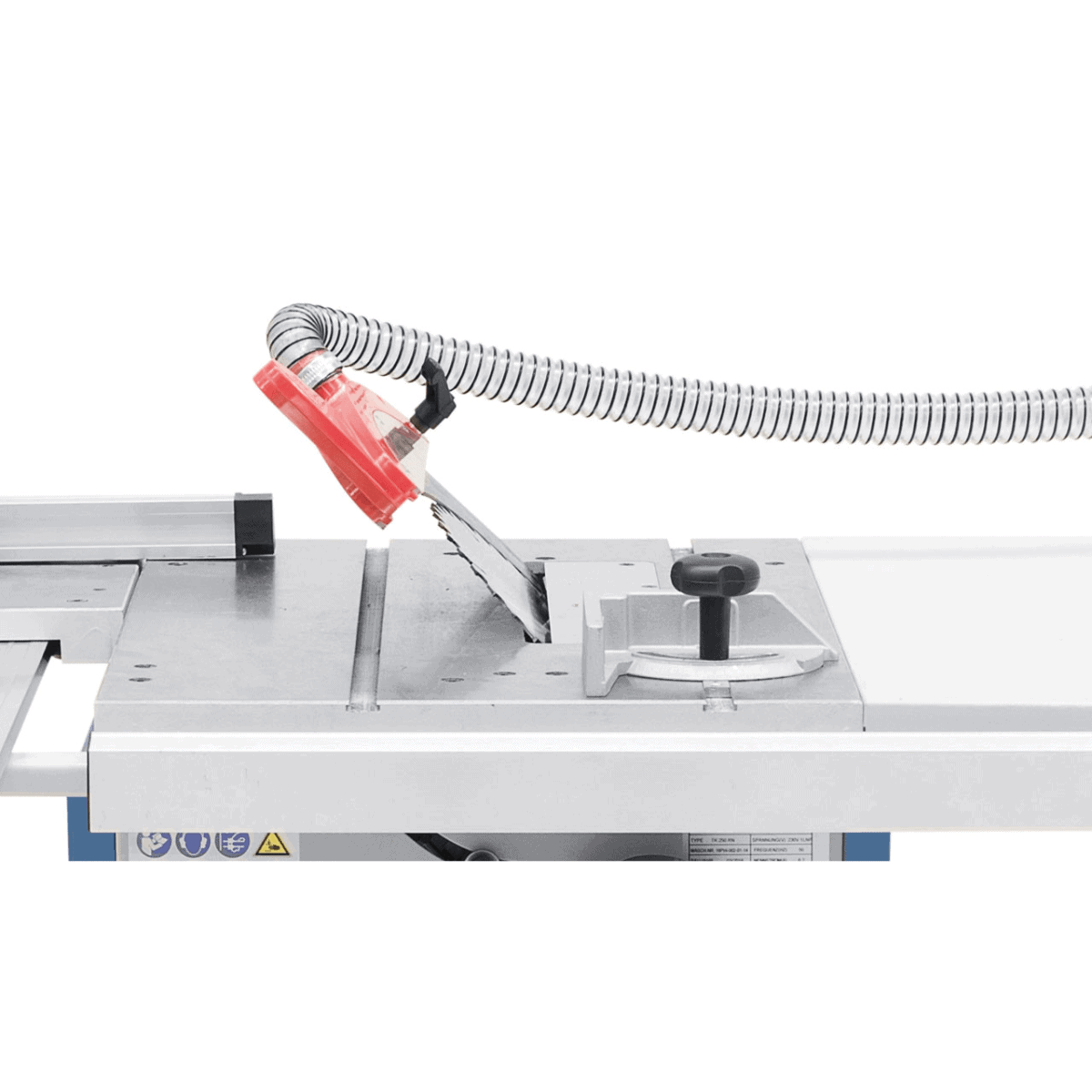

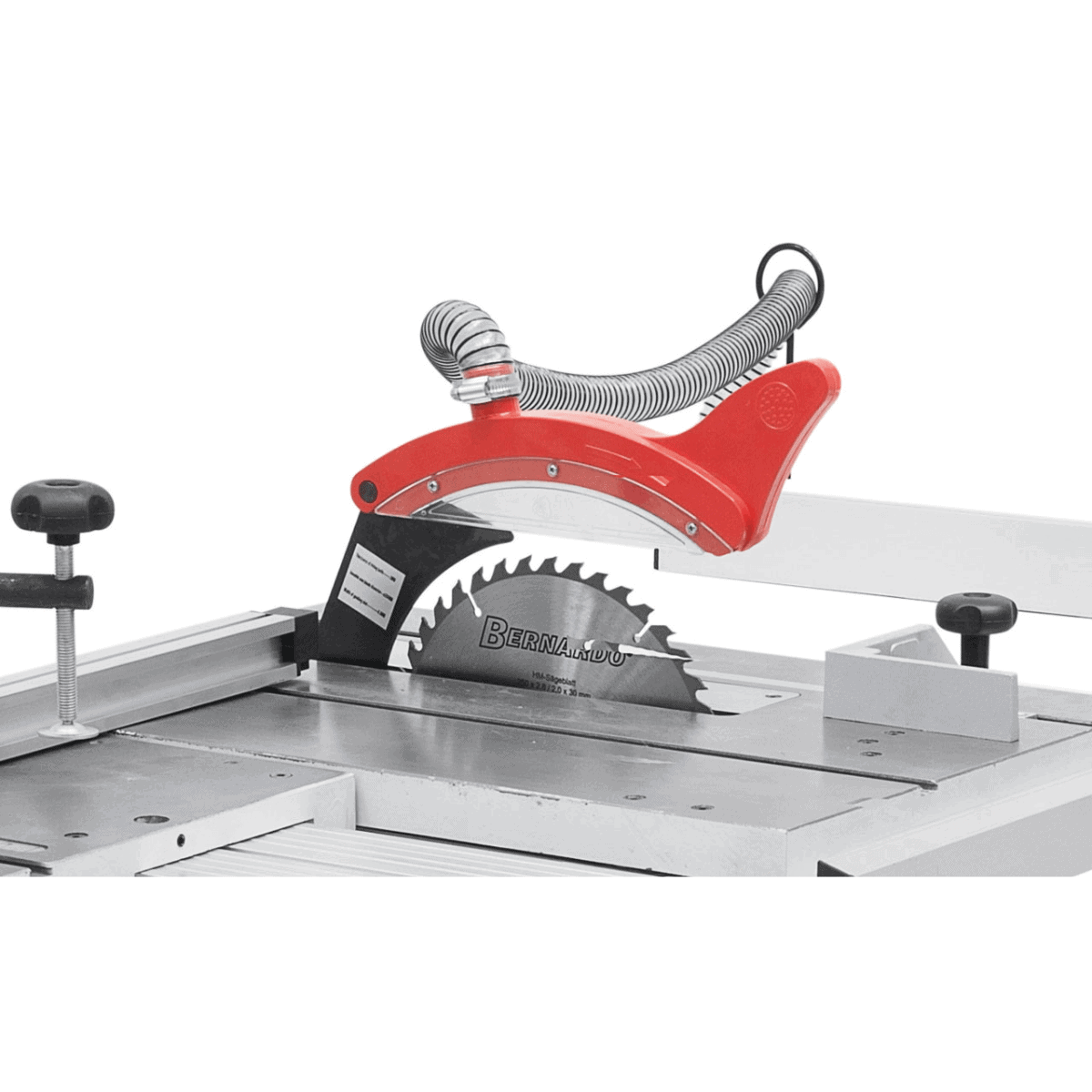

Blade guard with dust extraction connection
Double miter fence (up to 45°)
Aluminum parallel fence with stop
Rear table extension
Integrated sliding table
Closed steel base
Safety motor brake
Assembly tool kit
Why buy the Bernardo TK 250 RSN table saw from Krollit
Buying the Bernardo TK 250 RSN table saw from Krollit means choosing not only a woodworking machine for hobbyists, but also concrete support before and after purchase.
Krollit assists professionals, craftsmen and workshops in choosing the most suitable machine, offering assistance, technical support and spare parts management.
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
Frequently Asked Questions
Which circular saw blade to use for solid wood vs. MDF vs. aluminum?
For solid wood: HW blade with 24–40 teeth, alternating tooth pattern. For MDF and panels: HW blade with 60–80 teeth, flat tooth pattern, to reduce splintering. For aluminum: HW blade with 80–100 teeth, positive hook angle and narrow tooth pitch. The Bernardo TK 250 RSN table saw – mounts Ø 100 mm blades – always check the maximum permissible peripheral speed for each blade.
What is the cutting height at 45°?
The cutting height at 45° is about 70% of the height at 90° (80 mm). The exact value depends on the model – check the table in the manual supplied with the Bernardo TK 250 RSN table saw –.
Does the saw include a sliding carriage or an extendable table?
It depends on the version. The Bernardo TK 250 RSN table saw – may include a sliding carriage or base/extensions depending on the configuration. Check the standard equipment with Krollit. Customer support available in Italian.
Is a dust extractor connection required?
Yes, highly recommended. The circular saw produces a significant amount of sawdust. A dust extractor with a minimum flow rate of 600–800 m³/h is necessary for continuous professional work. Check the diameter of the extraction outlet on the Bernardo TK 250 RSN table saw – with Krollit.
