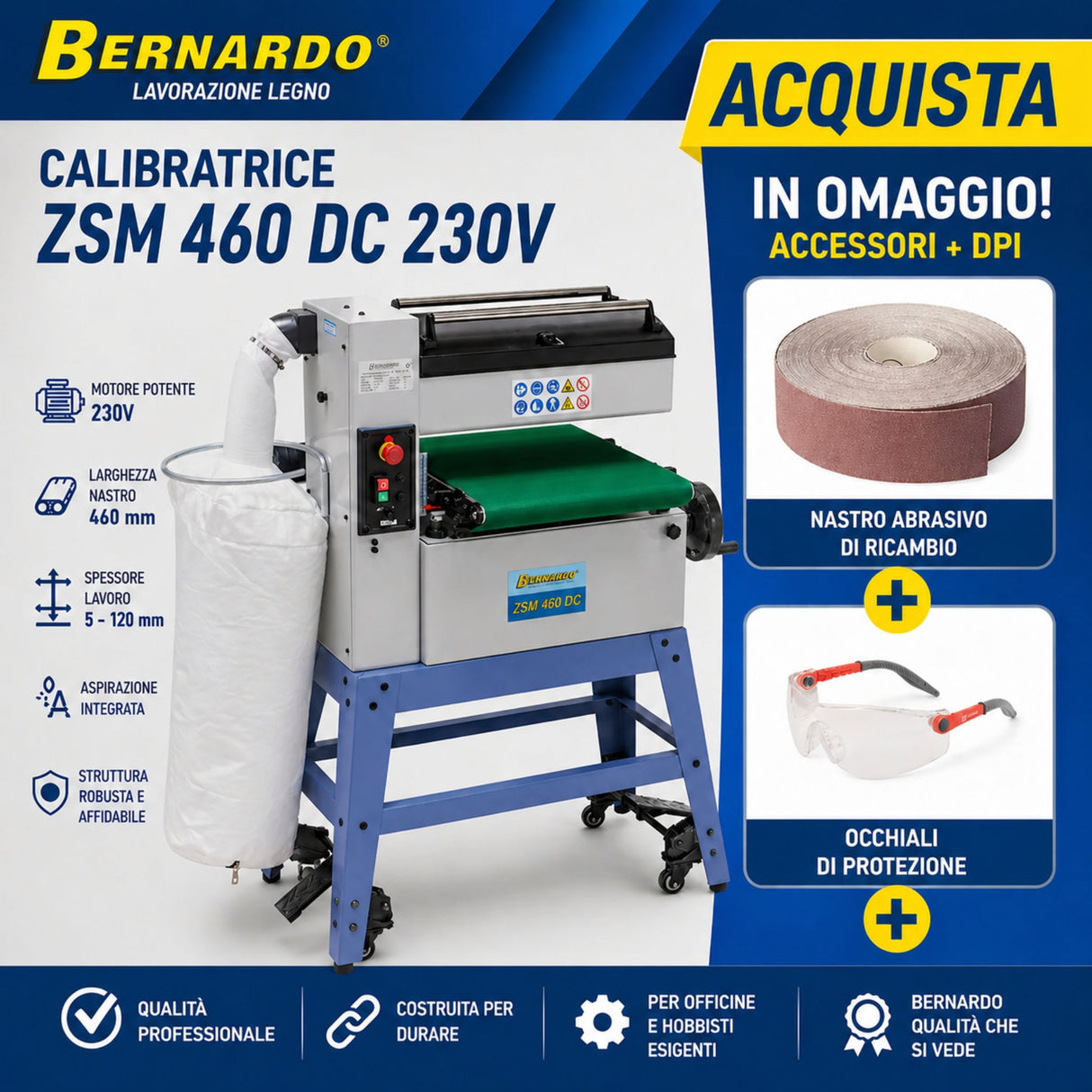

The Bernardo Calibrating Sander ZSM 460 DC 230V + 100 grit abrasive roll is a calibrating sander for professional use, with a sanding width of 460 mm (920 mm open), weight 118 kg. Krollit, official Bernardo distributor since 2007.
- Power supply: 230 V
- Power: 1.8 kW / 2.4 HP
- Max. working width: 460 mm (920 mm open)
- Min. workpiece length: 60 mm
- Workable thickness: 3 – 115 mm
- Table dimensions: 470 x 425 mm
Who uses the Calibrating Sander ZSM 460 DC 230V + 100 grit abrasive roll and for what
Professional woodworking shops and furniture manufacturers use the Calibrating Sander ZSM 460 DC 230V + 100 grit abrasive roll for calibrating solid wood, MDF, and plywood panels, ensuring uniform thickness before finishing.
Its place in the Bernardo range
The Bernardo Calibrating Sander ZSM 460 DC 230V + 100 grit abrasive roll is part of the Bernardo calibrating sander range, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 business days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Calibrating Sander ZSM 460 DC 230V + 100 grit abrasive roll for
The calibrating sander zsm 460 dc 230v + 100 grit abrasive roll is recommended for the following professional profiles:
-
Professional woodworking shops and furniture manufacturers: calibrating solid wood, MDF, and plywood panels to ensure uniform thickness.
-
Restoration workshops and custom production: calibrated sanding of large surfaces before finishing.
Not suitable for: metal or plastic processing (machine dedicated to wood: specific sanders are needed for other materials).
Spindle, tools, and speed
| Feed speed |
0.5 – 4 m/min |
| Roller speed |
1420 rpm |
| Dust extraction connection |
75 mm |
Table, dimensions, and geometry
| Min. workpiece length |
60 mm |
| Table dimensions |
470 x 425 mm |
| Working height |
915 mm |
| Machine dimensions |
1180 x 560 x 1250 mm |
| Weight |
118 kg |
Other specifications
| Calibrating roller |
Ø 100 x 465 mm |
| Abrasive included |
75 mm x 50 m – 100 grit |
| Origin |
Austria |
| Max. working width |
460 mm (920 mm open) |
| Workable thickness |
3 – 115 mm |
| Power supply |
230 V |
| Power |
1.8 kW / 2.4 HP |
Frequently asked questions
What sanding width does it offer?
See "Max. sanding width" in the technical table.
For panels wider than the nominal capacity, sanding in multiple passes with precise alignment is required.
What minimum and maximum thickness does it process?
See "Min.–max. workpiece thickness" in the technical table.
For thin workpieces, the use of anti-vibration supports is recommended to maintain uniform pressure.
Does it have multiple sanding stations?
Professional models offer 2-3 stations with different grits for roughing and finishing in a single pass.
Multiple stations reduce processing times and ensure uniform finish quality.
What power supply does it require?
Typically 400 V three-phase for professional models.
Check the capacity of the electrical line and the presence of a dedicated residual current device.
How much does the machine weigh?
See "Weight" in the technical table: industrial models weigh from 500 to over 1500 kg.
Machines over 800 kg require industrial flooring and forklift handling during installation.
