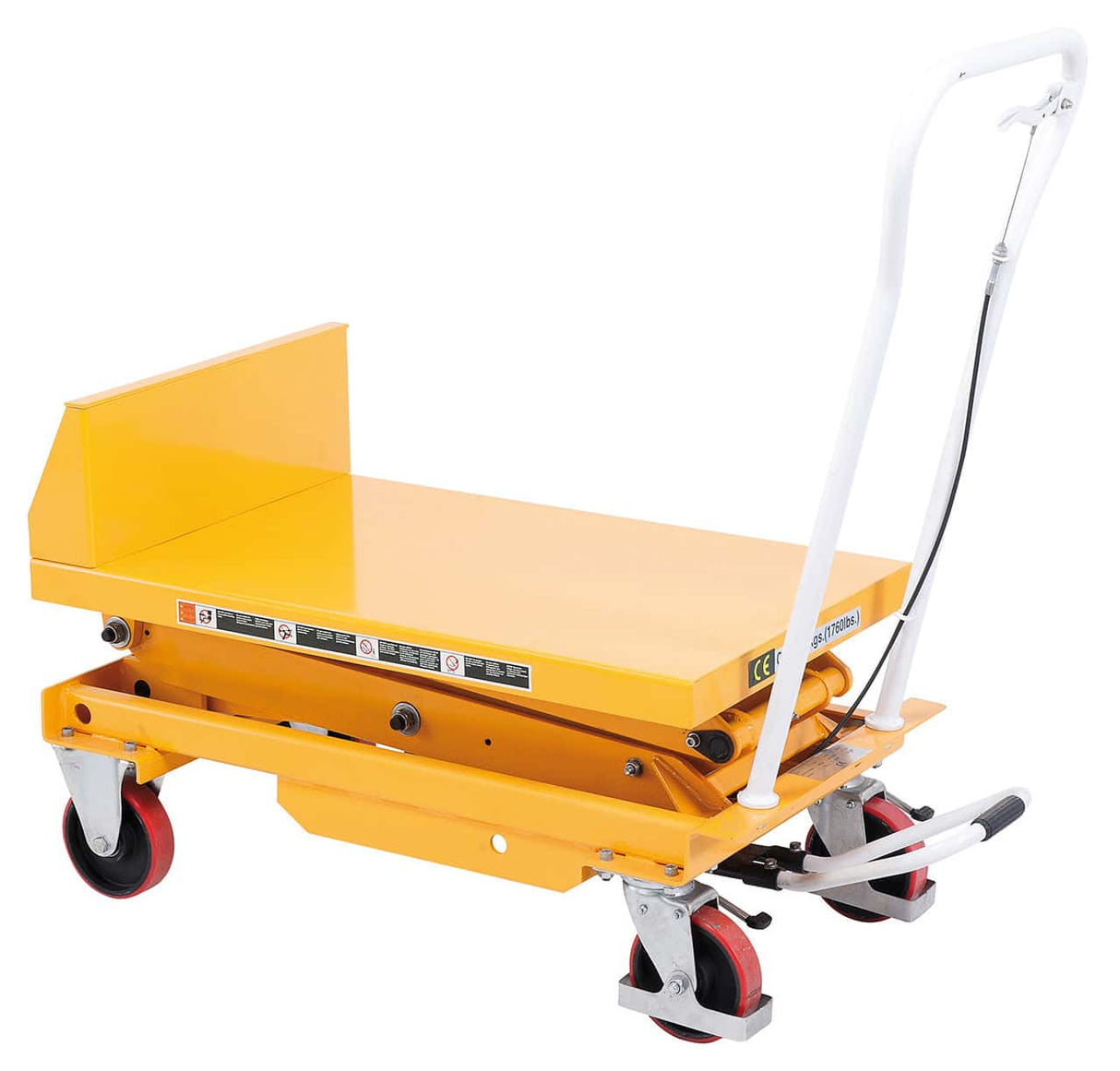

The Bernardo HK 400 lifting and tilting table is a manual lifter with a tilting top function, sized for handling loads up to 400 kg with the possibility of tipping the contents at the end of the cycle. Standard lifting height 435-900 mm, max height in tilted position 1560 mm, table dimensions 830 × 520 mm, weight 123 kg. Configuration with manual pedal hydraulic pump for lifting and a dedicated lever for tilting the top. Suitable for handling containers, crates, bulk materials that require controlled emptying (mechanical workshops, supply warehouses, chemical laboratories). Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Load capacity: 400 kg
-
Standard lifting height (H1 min/max): 435 - 900 mm
-
Tilted position height (H2 max): 1560 mm
-
Table dimensions: 830 × 520 mm
-
Special function: Lifting + table tilting
-
Operation: Manual pedal hydraulic
-
Weight: approx. 123 kg
Who uses the HK 400 and for what
The Bernardo HK 400 is a manual lifting and tilting table, designed for a 400 kg capacity with a dual function: standard lifting and table tilting. Distinctive construction feature: in addition to standard hydraulic lifting (H1 height 435-900 mm), the table can be tilted sideways (H2 height in tilted position up to 1560 mm) to empty the contents in a controlled manner into a collection container. This function is useful for handling bulk materials (chips, processing waste, sand, gravel, fertilizers, feed) or containers that need to be emptied without individually handling the contents. Manual pedal hydraulic pump for lifting, separate tilting actuation lever. Swivel wheels for movement, table dimensions 830 × 520 mm. In Krollit customer contexts, the Bernardo HK 400 is chosen by mechanical workshops with chip/waste collection, agricultural companies handling feed/fertilizers, supply warehouses for bulk raw materials, chemical laboratories for controlled handling of powdered or granular materials.
Its place in the Bernardo range
The Bernardo lifting table range is organized into 5 sub-families by application: BS (manual hydraulic, capacities 150-1,000 kg, for standard hobby/light professional use); ES (semi-electric single platform, capacities 300-750 kg, for standard intensive use); ES D (semi-electric double platform for extended height, capacities 300-750 kg); SSHT/FSHT (industrial stationary/U-shaped, capacities 1,000-2,000 kg, for fixed use in factories); HK (tilting, capacities 400-800 kg, for handling + emptying bulk materials).
The HK 400 model is in the HK (tilting) family. Difference between HK 400 and HK 800: similar capacity and machine dimensions, but doubled load capacity (400 vs 800 kg). Same lifting height (~1,000 mm standard, ~1,570 mm in tilted position) and same table dimensions. For applications without tilting, the BS, ES, or ES D families without a tilting function are significantly more economical.
Krollit logistics and support
Bernardo shipping in 5-9 working days (7 days to the South). The HK 400 table, weighing 123 kg, is handled by two people with care for unloading. The integrated wheels (for mobile models) facilitate movement after unloading. Hydraulic oil, valves, manual pumps, electrical system spare parts (for ES/SSHT/FSHT models), and original Bernardo accessories are available from stock with 3-5 working day shipping. Customer assistance available in Italian.
Who the HK 400 is for
| Profile |
Compatibility |
Reason |
| Workshop with chip/waste collection |
Recommended |
Tilting function for controlled emptying of containers into dedicated collection points. 400 kg capacity for medium-heavy containers. |
| Farm / feed mill |
Recommended |
Handling and emptying bags/containers of feed, fertilizers, seeds. Tilting function reduces physical effort of manual emptying. |
| Workshop without emptying needs |
Not indicated |
The tilting function is not used: choose BS, ES or ES D without tilting function, which are significantly more economical. |
Not indicated for: applications without tilting requirements (BS, ES, ES D families without tilting function are more economical); loads over 400 kg (for HK 400, consider HK 800; for over 800 kg, industrial families are appropriately sized); applications using pallets (the FSHT family with a U-shaped platform is the correct choice); continuous intensive use (for high-cadence industrial applications, consider dedicated electro-hydraulic lifting tables).
Lifting capacity
| Specification |
Value |
| Load capacity |
400 kg |
| Standard height H1 (min/max) |
435 - 900 mm |
| Tilted height H2 (min/max) |
435 - 1560 mm |
| Table dimensions |
830 × 520 mm |
Operation
| Specification |
Value |
| Lifting |
Manual pedal hydraulic |
| Lowering |
Manual (hydraulic valve) |
Mobility
| Specification |
Value |
| Swivel wheels |
Ø 150 × 40 mm |
Overall dimensions
| Specification |
Value |
| Machine dimensions (L × D × H) |
1,355 × 520 × 1,130 mm |
| Weight |
approx. 123 kg |
Compliance
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery 2006/42/EC |
Standard equipment
- Bernardo HK 400 lifting table
- Manual pedal hydraulic pump
- Table tilting system
- Tilting actuation lever
- Swivel wheels for movement
- User manual in Italian
- CE conformity documentation
Frequently Asked Questions
How does the tilting function work?

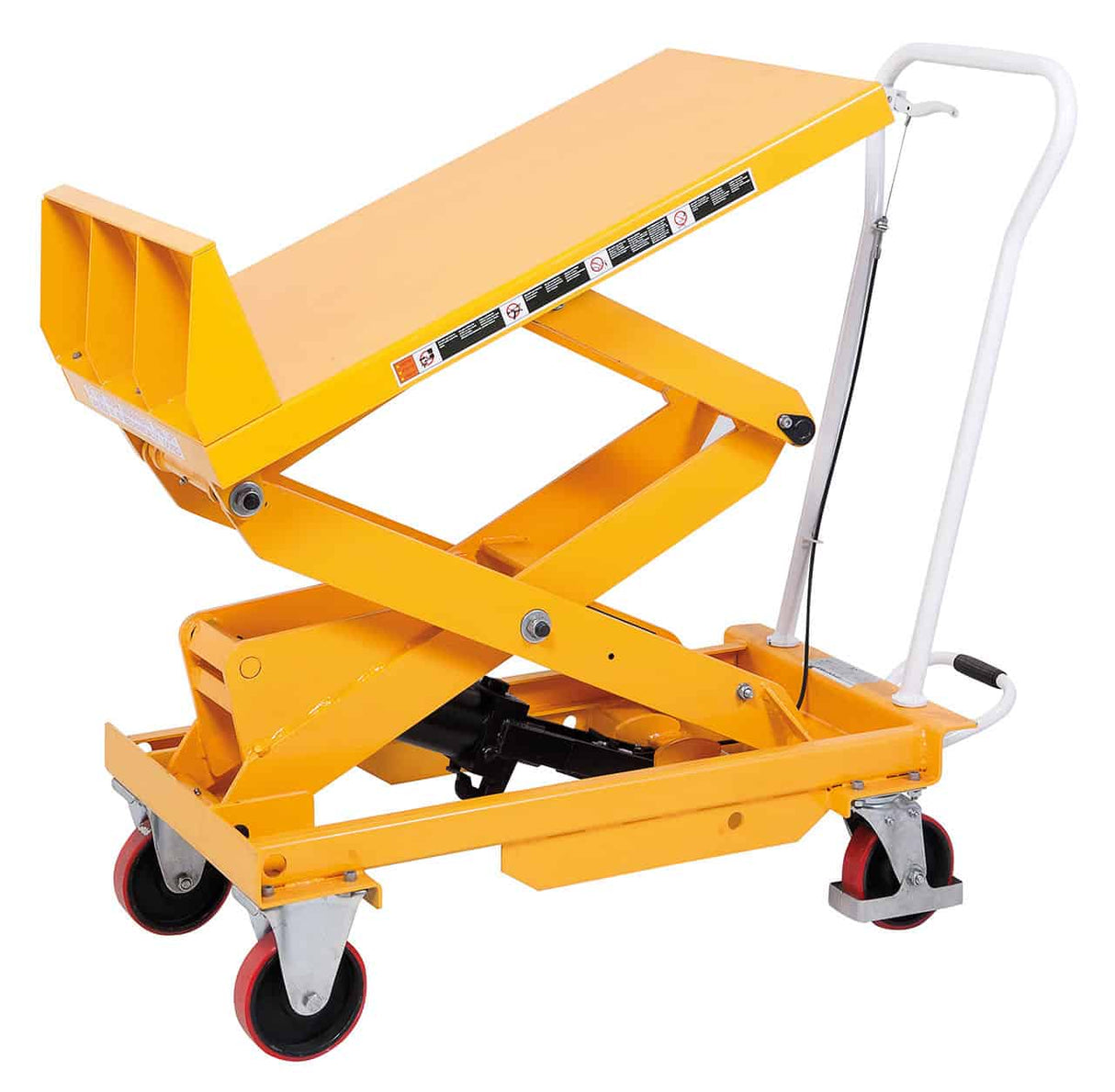

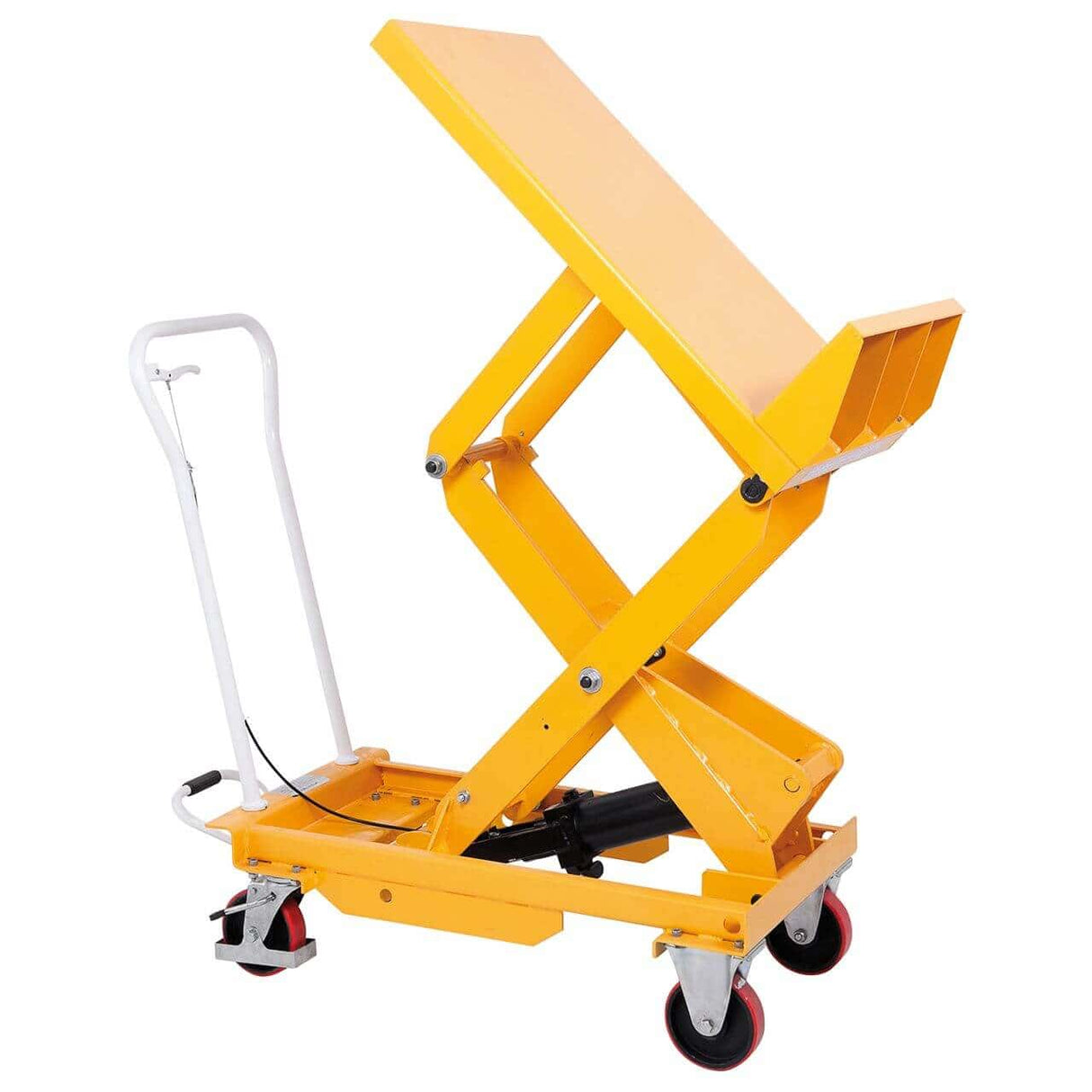

The table top pivots on a side axis: using a dedicated lever, the operator actuates the tilting of the top up to approximately 60-80° from the horizontal, allowing the contents to be emptied into a collection container positioned laterally.
Tilting is manually controlled: the top slowly descends under its own weight once released from the lock. For precise control (e.g., partial emptying), the lever allows for gradual release of the lock. This function is useful for: collecting chips from machine tools, emptying waste containers, unloading bulk materials (gravel, sand, feed) into dedicated collection containers.
What floor surfaces are compatible?
For mobile models (BS, ES, ES D, HK): smooth industrial floors (polished concrete, industrial tiles, epoxy resins). On rough floors, the wheels may wear out more quickly.
The maximum load capacity of the table applies to vertical loads: for movement on slopes (even slight ones like 2-3%), stability requires attention, especially with heavy loads close to the maximum capacity. For very rough floors (raw concrete, slabs with pronounced joints), the wheels may wear out more quickly: original Bernardo spare parts are available.
Does the hydraulic oil need to be replaced periodically?
Yes. For daily professional use, it is recommended to change the hydraulic oil every 2-3 years or every 1,000 working hours. For occasional hobby use, replacement can be every 5-7 years.
Recommended hydraulic oil: ISO VG 32 or ISO VG 46 (check manual for exact specifications). Signs indicating the need for replacement: progressive slowdown of lifting, vibrations during the pumping phase (for manual models), slow or irregular lowering. Original Bernardo hydraulic oil or commercial equivalents (Shell Tellus, Mobil DTE) are available from standard industrial suppliers.
What is the average lifespan of the HK 400 table?
For standard daily professional use, the average lifespan is 10-15 years with regular maintenance. For occasional hobby use, the lifespan can extend to 20+ years. The powder-coated steel structure is designed to resist corrosion and standard workshop wear.
Consumable components that may require replacement during the useful life: hydraulic pump (for manual models), valves, seals, wheels, joint bearings. For semi-electric/electric models, add: motor (typical lifespan 8-12 years with intensive use), switches, wiring. All original Bernardo spare parts are available from stock with 3-5 working day shipping.
Can I use the table outdoors?
For occasional outdoor use (loading/unloading trucks, occasional movement between shed and yard) yes. For continuous exposure to weather no: prolonged humidity can cause corrosion of the painted steel frame and degradation of the hydraulic system.
For outdoor applications, covering/sheltering the table after use is recommended, more frequent maintenance of the hydraulic system (checking for leaks, lubricating joints), and periodic inspection of the paintwork. For exclusive outdoor use, consider models with reinforced industrial paint or specific anti-rust protection.
