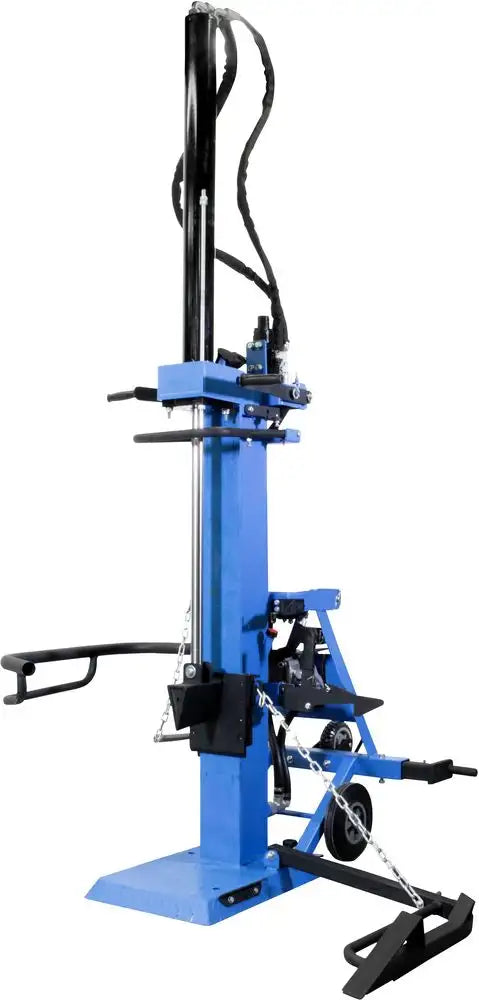

The Güde GHS 1000/14TZ-A Log Splitter is a professional-grade log splitter available from Krollit, an official Güde distributor since 2007.
- PTO speed: 540 rpm
- Minimum tractor power: 18–25 kW / HP
- Hydraulic oil quantity: 10 L
- Hydraulic pressure: 245 bar
- Hydraulic oil: HLP46
- Piston stroke: 960 mm
Who uses the Güde GHS 1000/14TZ-A Log Splitter and for what purpose
The Güde GHS 1000/14TZ-A Log Splitter is a professional-grade log splitter distributed by Krollit.
Its place in the Güde range
The Güde GHS 1000/14TZ-A Log Splitter is part of the Güde log splitter range, distributed in Italy by Krollit since 2007. The Güde range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Güde catalog on Krollit or contact customer support for assistance with selection.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping 3-5 working days from Krollit warehouse. Customer assistance in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Güde GHS 1000/14TZ-A Log Splitter for?
The Güde GHS 1000/14TZ-A log splitter is recommended for the following professional profiles:
-
Farms and firewood production: splitting round logs into standard lengths for stoves and fireplaces.
-
Green space maintenance workers and forest construction sites: on-site or yard work with electric or gasoline engine.
Not suitable for: industrial precision sawing operations (this machine is dedicated to splitting; dedicated swing saws are needed for sawing logs).
Spindle, tools and speed
| PTO speed |
540 rpm |
| Advance speed (PTO) |
0.30 m/s (fast) – 0.057 m/s (slow) |
| Return speed (PTO) |
0.07 m/s |
| Three-point hitch |
CAT 1 |
Other specifications
| Hydraulic oil quantity |
10 L |
| Hydraulic oil |
HLP46 |
| Splitting force |
14 t |
| Log diameter |
max 430 mm |
| Base plate (L × W) |
420 × 535 mm |
| Noise level LWA |
97 dB |
| Piston stroke |
960 mm |
| Log length |
max 1000 mm |
| Dimensions (L × W × H) |
950 × 660 × 2000 mm |
| Minimum tractor power |
18–25 kW / HP |
| Hydraulic pressure |
245 bar |
Frequently Asked Questions
What is the splitting capacity of the Güde GHS 1000/14TZ-A Log Splitter?
See "Splitting force" in the technical table: typically 4 to 20 tons.
Models with code "14TE", "20TEZ" indicate the force in tons. Higher forces are needed for hard wood (oak, beech).
Horizontal or vertical position?
Compact GHS-370/500 models are horizontal; GHS-1000 models are vertical for larger logs.
Vertical models allow working with heavy logs without lifting them; horizontal models are more portable.
What log length does it work with?
See "Log length" in the table: typically 370-1,300 mm.
For standard firewood (50 cm for stoves), check compatibility with the stated length.
Electric power supply?
"TE" models are 400V three-phase; "TZ" have PTO for tractors; "TEZ" are hybrid (both).
Check for the availability of a three-phase line before purchasing. Hybrid models offer maximum flexibility.
Spare parts and assistance available?
Yes, original Güde spare parts available. Customer support in Italian available.
Krollit has been an official Güde distributor since 2007.
