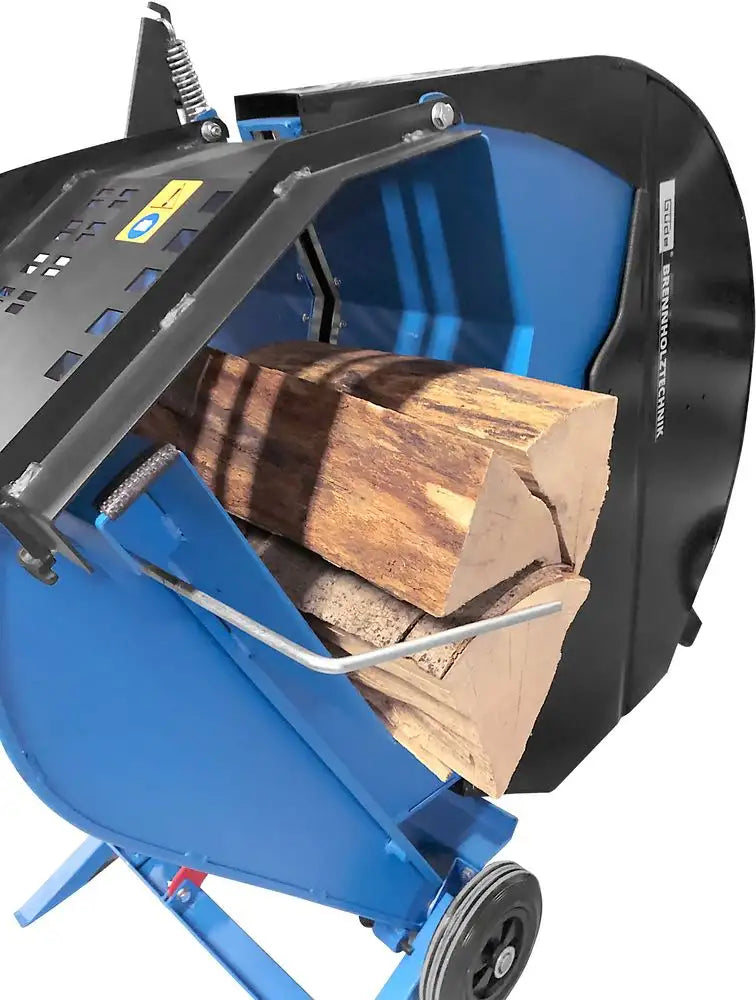

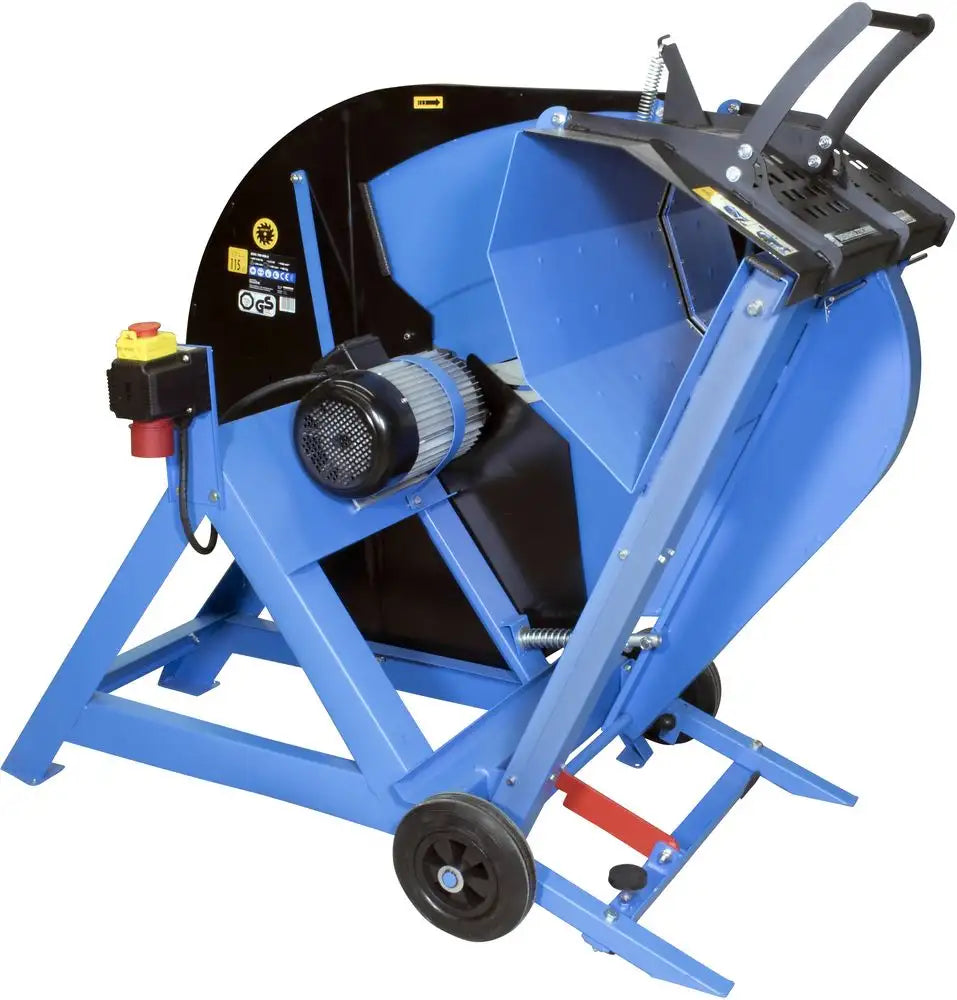

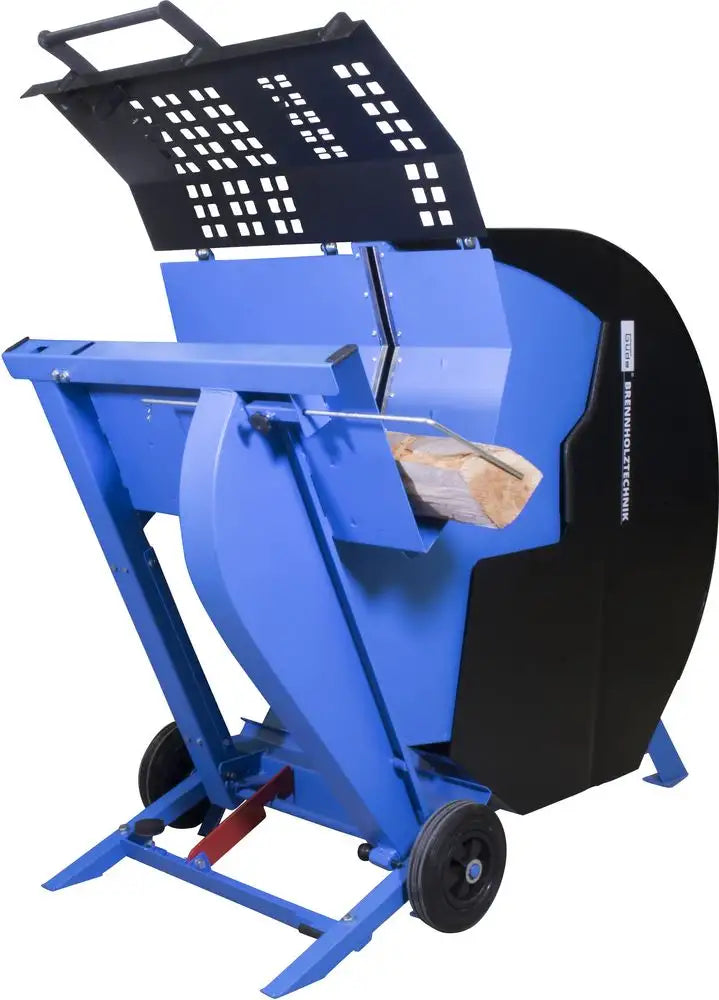

The Güde GWS 700 HM-2 rocking saw is a log rocking saw for professional use, with a 5.2 kW motor. Krollit, official Güde distributor since 2007.
- Power supply voltage: 400 V
- Frequency: 50 Hz
- Operating mode: S6 / 40%
- Protection class: IP54
- Motor power (P1): 5.2 kW
- Motor speed: 1420 rpm
Who uses the Güde GWS 700 HM-2 rocking saw and for what purpose?
The Güde GWS 700 HM-2 rocking saw is a professional log rocking saw distributed by Krollit.
Its place in the Güde range
The Güde GWS 700 HM-2 rocking saw is part of the Güde range of log rocking saws, distributed in Italy by Krollit since 2007. The Güde range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Güde catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipment in 5-9 working days (7 days for the South). For spare parts and accessories, shipment in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the Güde GWS 700 HM-2 rocking saw for?
The Güde GWS 700 HM-2 rocking saw is recommended for the following professional profiles:
-
Agricultural businesses and hobbyist sawmills: cutting logs and firewood with a pendulum rocking system.
-
Wood producers and green area maintenance workers: quick cuts on round logs up to the diameter indicated in the technical sheet.
Not suitable for: precision cuts on boards or panels (rocking saw designed for round logs: for panels, use table saws).
Spindle, tools, and speed
| Motor speed |
1420 rpm |
| Blade speed |
1420 rpm |
| Blade diameter |
700 mm |
| Blade bore |
30 mm |
| Blade brake type |
Electronic |
| Blade type |
HM (tungsten carbide) |
Motor and power supply
| Power supply voltage |
400 V |
| Frequency |
50 Hz |
| Motor power (P1) |
5.2 kW |
Other specifications
| Operating mode |
S6 / 40% |
| Protection class |
IP54 |
| Number of teeth |
42 |
| Noise level LWA |
115 dB |
| Protection class |
I |
| Cutting capacity |
250 mm |
| Blade thickness |
4.2 mm |
| Rocking width |
750 mm |
| Dimensions (L × W × H) |
1350 × 800 × 1155 mm |
Frequently Asked Questions
What log diameter can the Güde GWS 700 HM-2 rocking saw cut?
See "Maximum log diameter" in the technical table: typically 170-260 mm.
For larger diameter logs, consider models with a larger saw blade or log band saws.
Supported blade diameter?
See "Blade diameter" in the table: typically Ø 700 mm with HM teeth.
HM blades offer superior durability compared to standard blades and are suitable for continuous production.
Does it run on an electric motor or PTO?
"ZR" models have PTO for tractors; others have a 400V three-phase electric motor.
PTO models are suitable for field use without electrical power.
Safety system?
Rocking saws have automatic blade protection and spring return to the resting position.
Check the specific safety systems and compliance with European regulations in the technical data sheet.
Spare parts and assistance available?
Yes, original Güde/Bernardo spare parts available. Customer support in Italian available.
Krollit has been an official Güde distributor since 2007.
