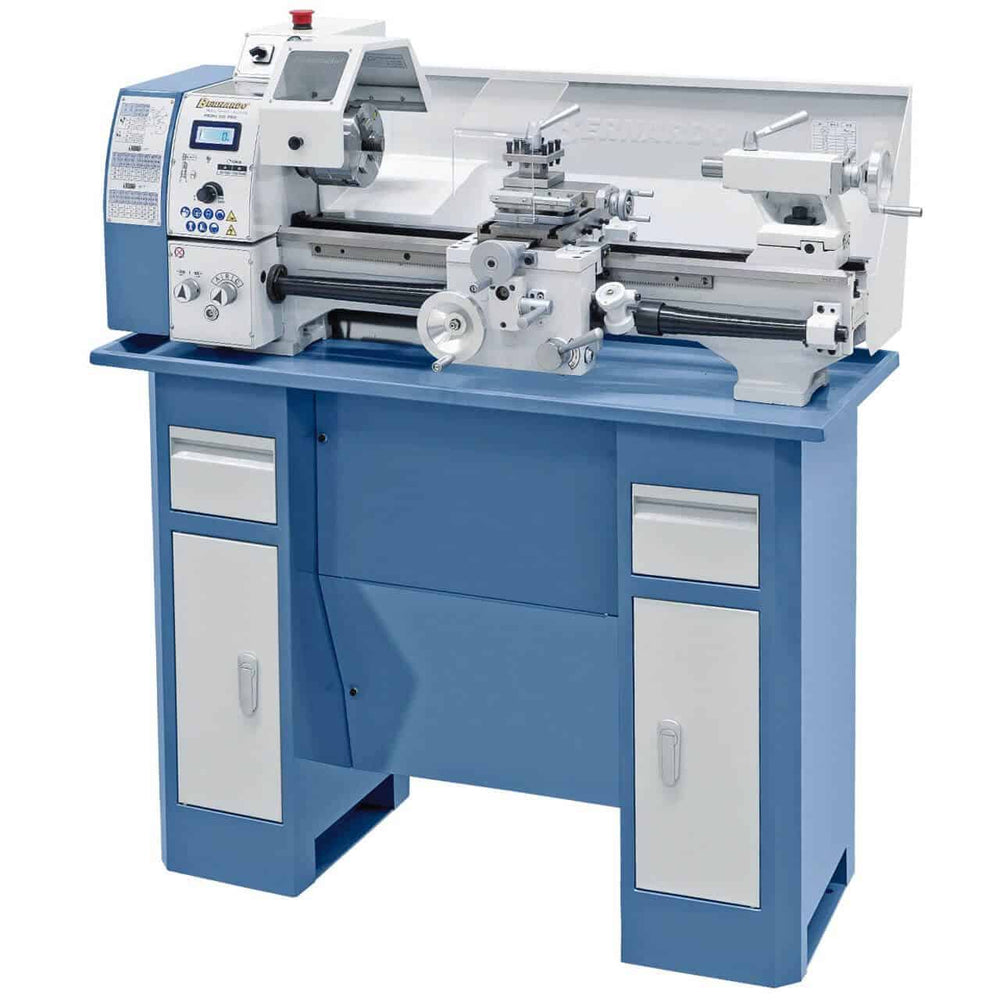

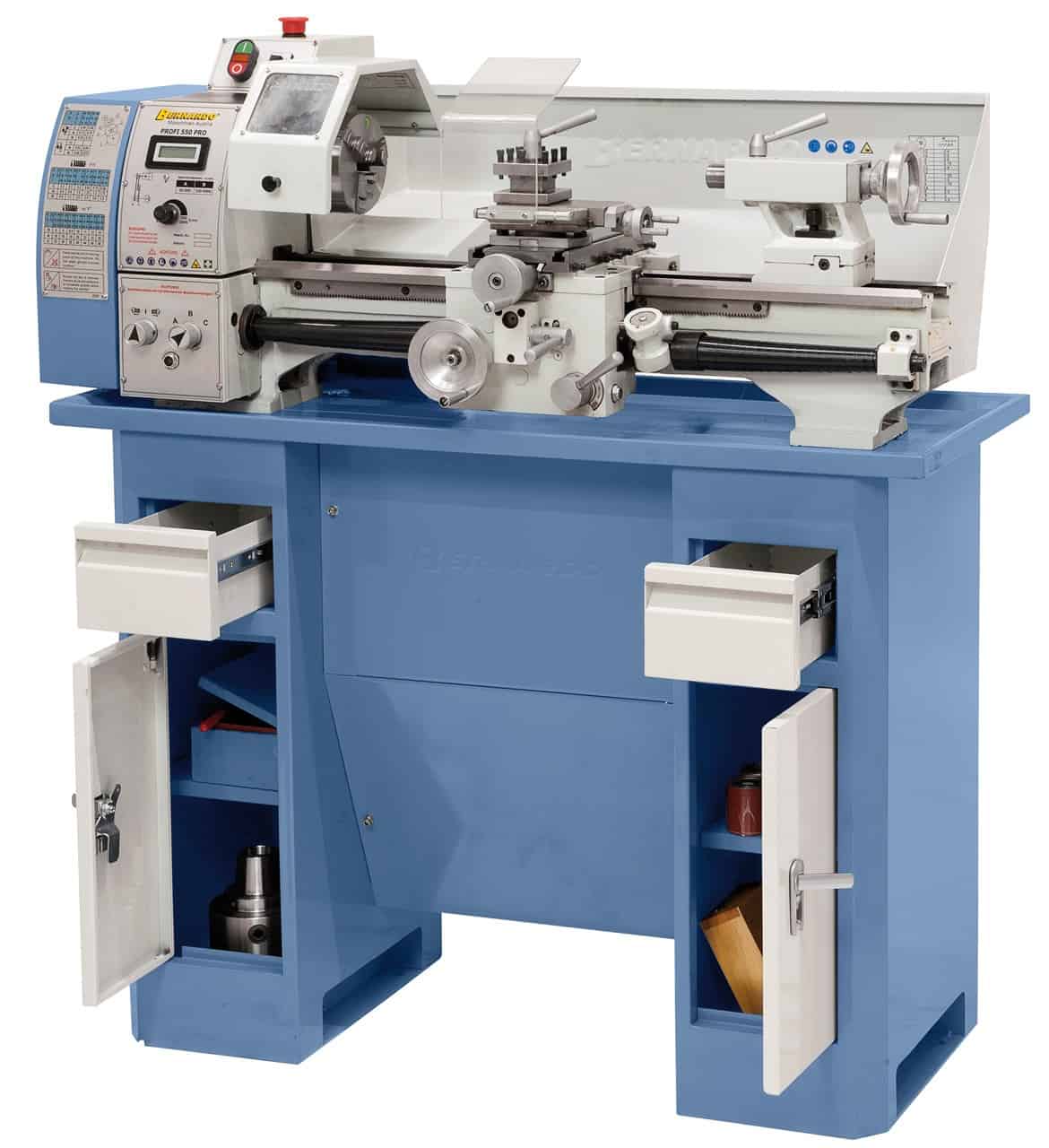

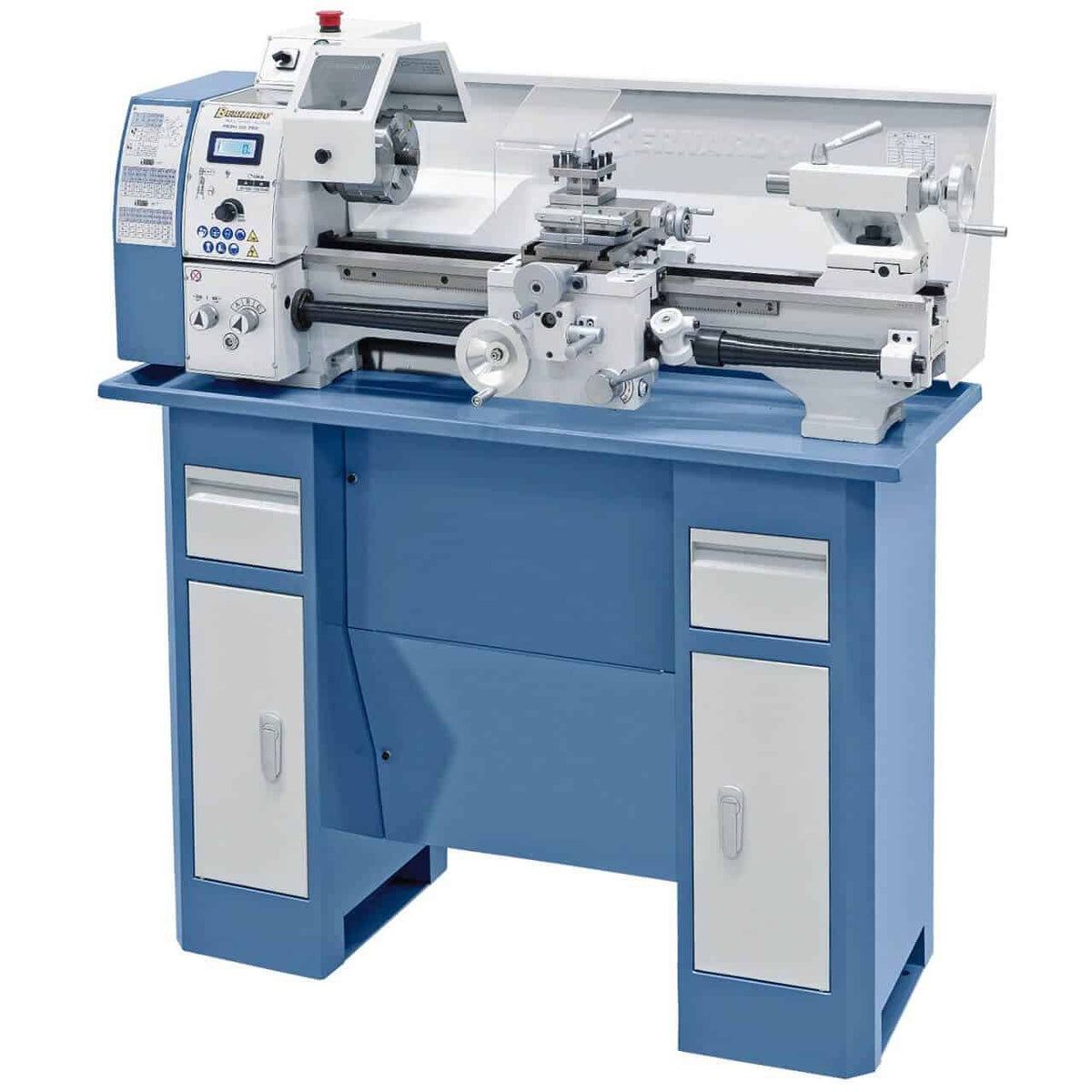

Bernardo Profi 550 PRO Vario Lathe / 230 V
The Bernardo Profi 550 PRO Vario / 230 V lathe is a compact and reliable model, suitable for precision machining of steel, non-ferrous metals, and plastic. With a 26 mm spindle bore, an induction-hardened bed, and ground guides, it offers rigidity and accuracy even in the most demanding operations. The continuous electronic speed control (30–3000 rpm), managed by an inverter, ensures high torque and constant stability, with values readable on the digital display. Automatic longitudinal and cross feeds, together with the ability to cut metric and inch threads, make the machine extremely versatile. Supplied as standard with a self-centering chuck, a tool post, and numerous accessories, it is the compact and professional choice for workshops and laboratories.
Main Specifications
Spindle bore Ø 26 mm with MT4 taper
Induction-hardened and ground bed
Continuous speed 30–3000 rpm with inverter
Automatic longitudinal and cross feeds
Metric threads (0.2–3.5 mm) and inch threads (8–56 TPI)
MT2 tailstock with 70 mm travel
Motor 1.5 kW (S1) – 2.2 kW (S6) at 230 V
Low weight of 137 kg, also ideal for small spaces
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Profi 550 PRO Vario |
| Distance between centers |
550 mm |
| Center height |
125 mm |
| Swing over bed |
250 mm |
| Bed width |
135 mm |
| Spindle bore |
26 mm |
| Spindle taper |
MT4 |
| Variable speed |
30–450 / 150–3000 rpm |
| Longitudinal feed |
0.06 – 0.32 mm/rev (6 steps) |
| Cross feed |
0.03 – 0.075 mm/rev (4 steps) |
| Metric threads |
0.2 – 3.5 mm (18 steps) |
| Inch threads |
8 – 56 TPI (21 steps) |
| Tailstock quill travel |
70 mm |
| Tailstock taper |
MT2 |
| Motor power S1 |
1.5 kW / 230 V |
| Motor power S6 |
2.2 kW / 230 V |
| Machine dimensions |
1210 x 610 x 450 mm |
| Weight |
137 kg (without base) |
Standard Equipment

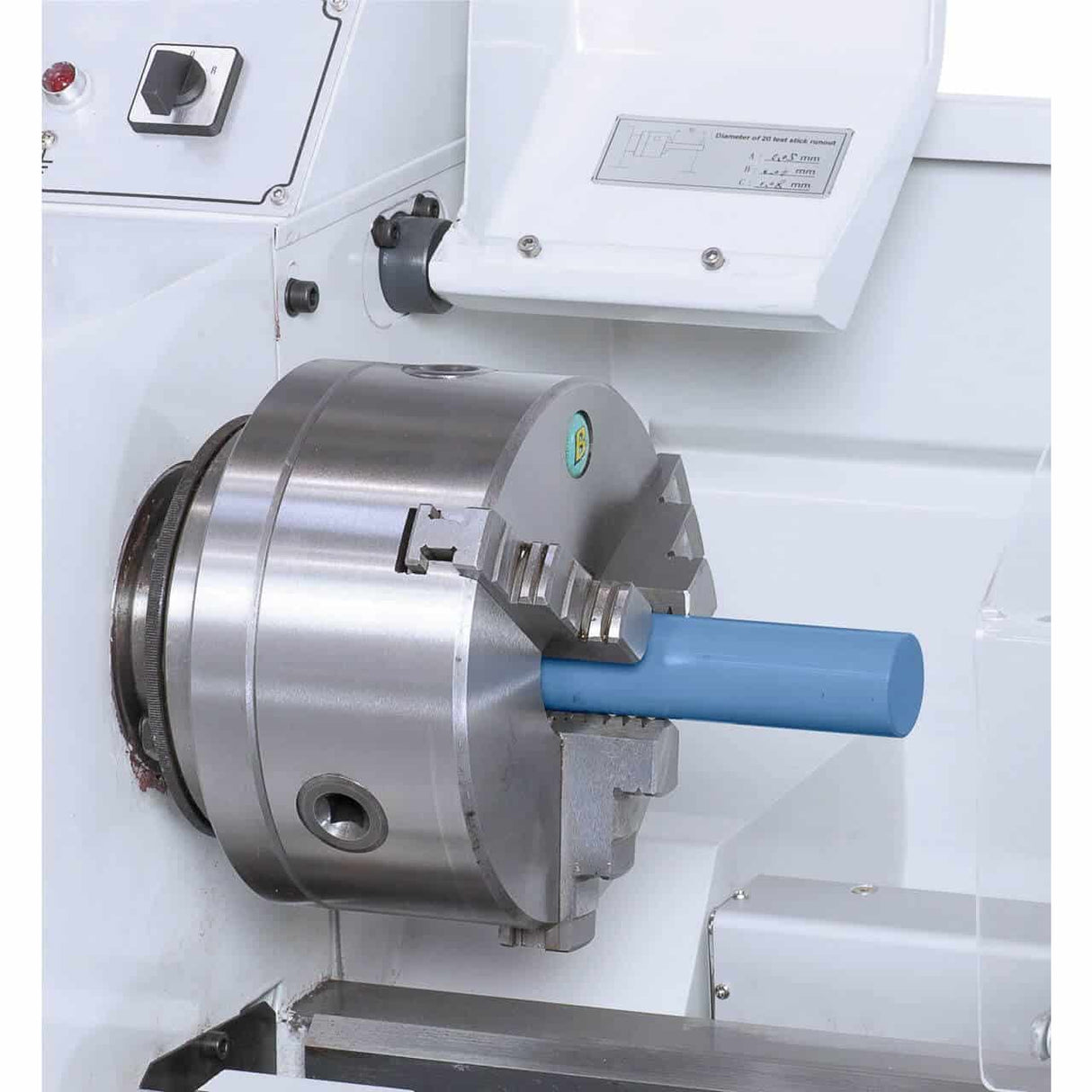

3-jaw self-centering chuck Ø125 mm steel with flange

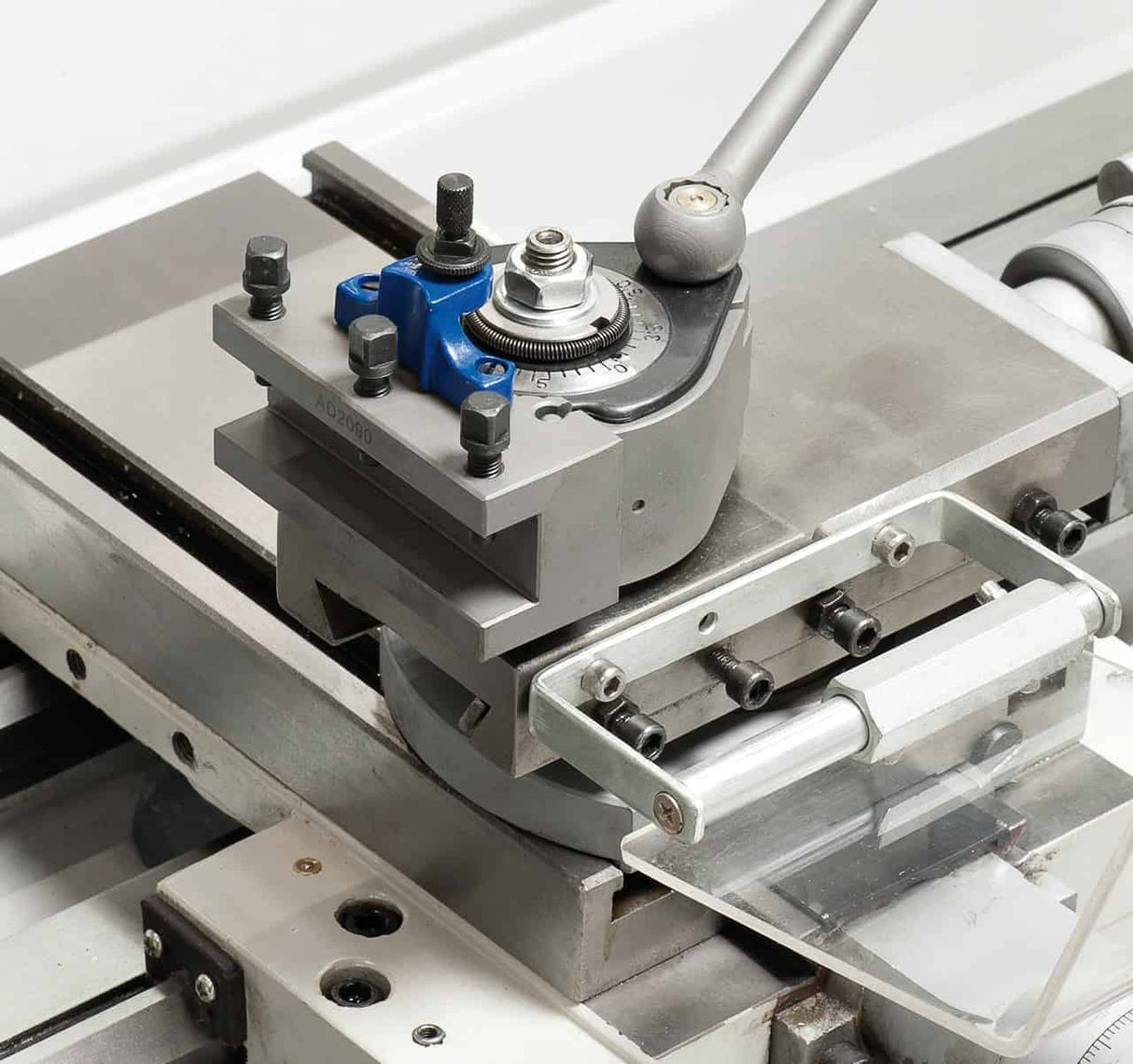

4-way tool post
Fixed centers

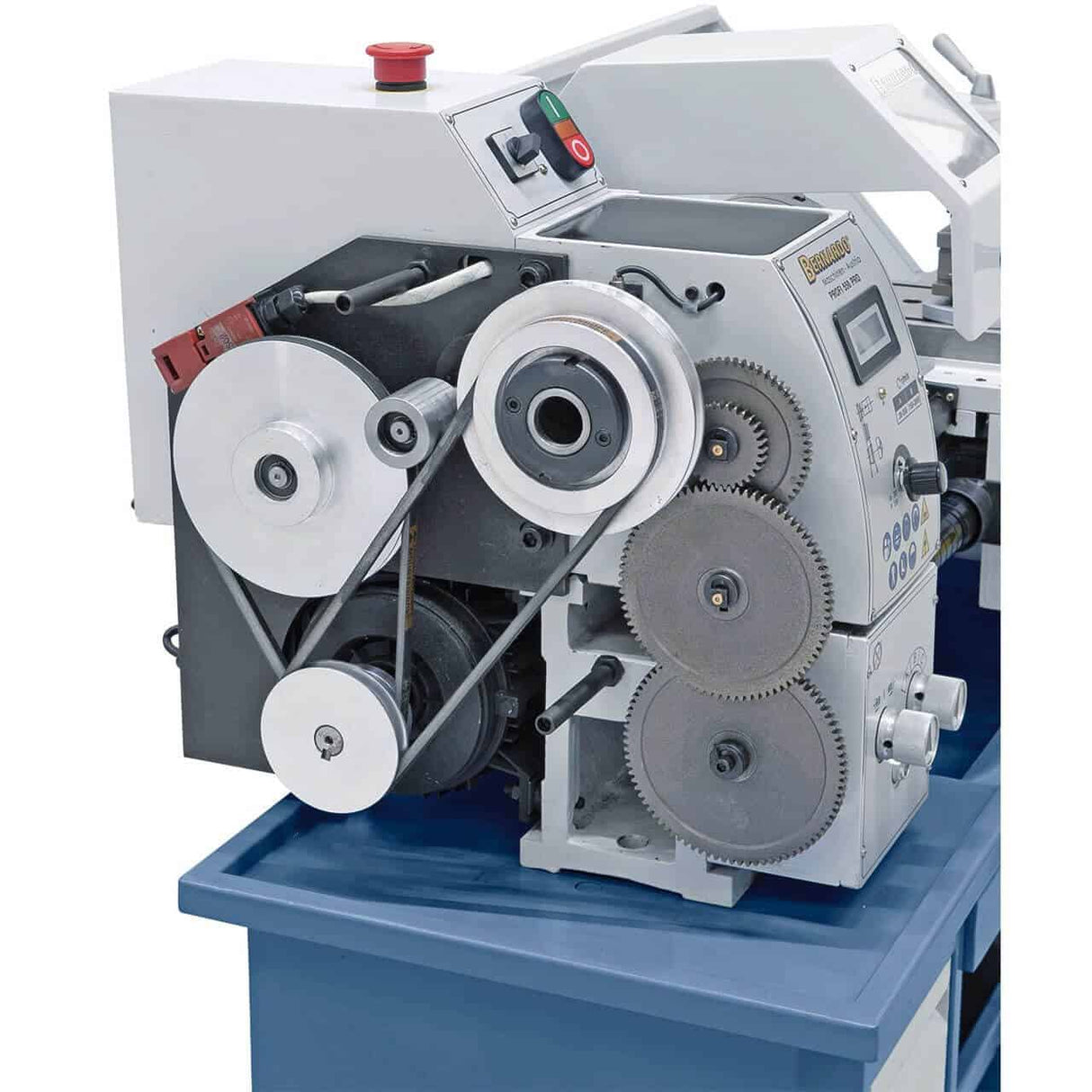

Change gears

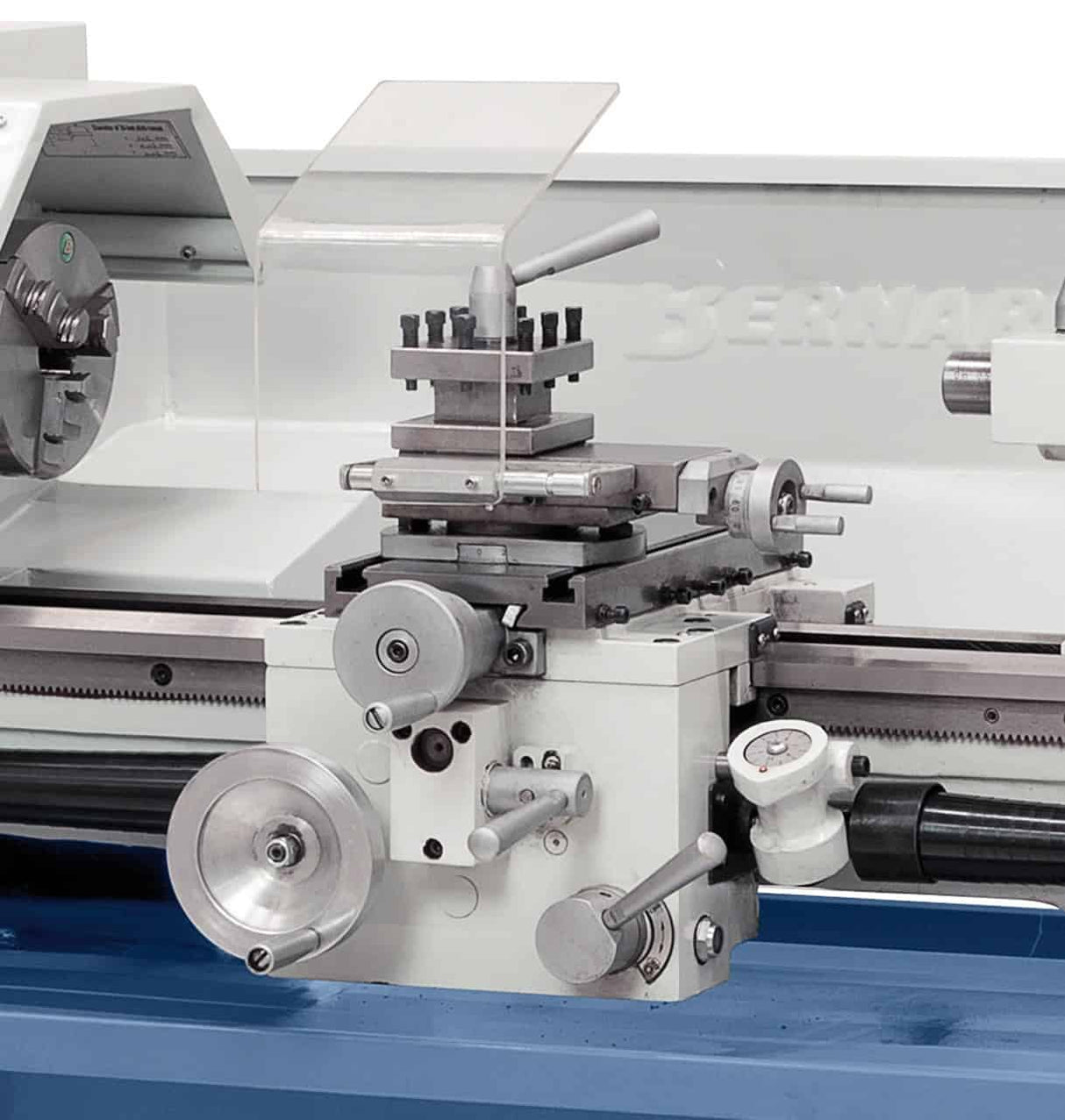

Cross slide with swivel support
Inverter and digital speed display
Thread dial
Spindle guard and splash guard
Leadscrew cover
Set of tools and wrenches
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between the Profi 550 and the Profi 550/700 models in the same series?
The number in the name indicates the distance between centers in mm — the maximum length of the workpiece that can be turned. Profi 550 mm. The 26 mm spindle bore indicates the maximum diameter of the bar that can pass through the spindle bore without turning. The Vario variator adds continuous speed adjustment compared to standard models in the same range.
What changes with the electronic Vario variator?
The electronic variator (Vario) allows continuous speed adjustment without stopping the machine — you can switch from roughing to finishing by turning a knob in 2 seconds. The torque remains high even at low speeds, unlike mechanical belt variators. On the Profi 550, it covers the full range indicated in the table without steps.
230 V power supply: is a transformer needed for the Profi 550?
230 V single-phase — it connects directly to the standard Italian industrial socket (Schuko 16A). No transformer or three-phase panel required. Suitable for private workshops, workshops without a three-phase system, and vocational schools.
Are spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
