Lathe Bernardo Profi 750 Vario / 230 V – Compact with variable speed

Bernardo Profi 750 Vario Lathe / 230 V with Electronic Speed Control

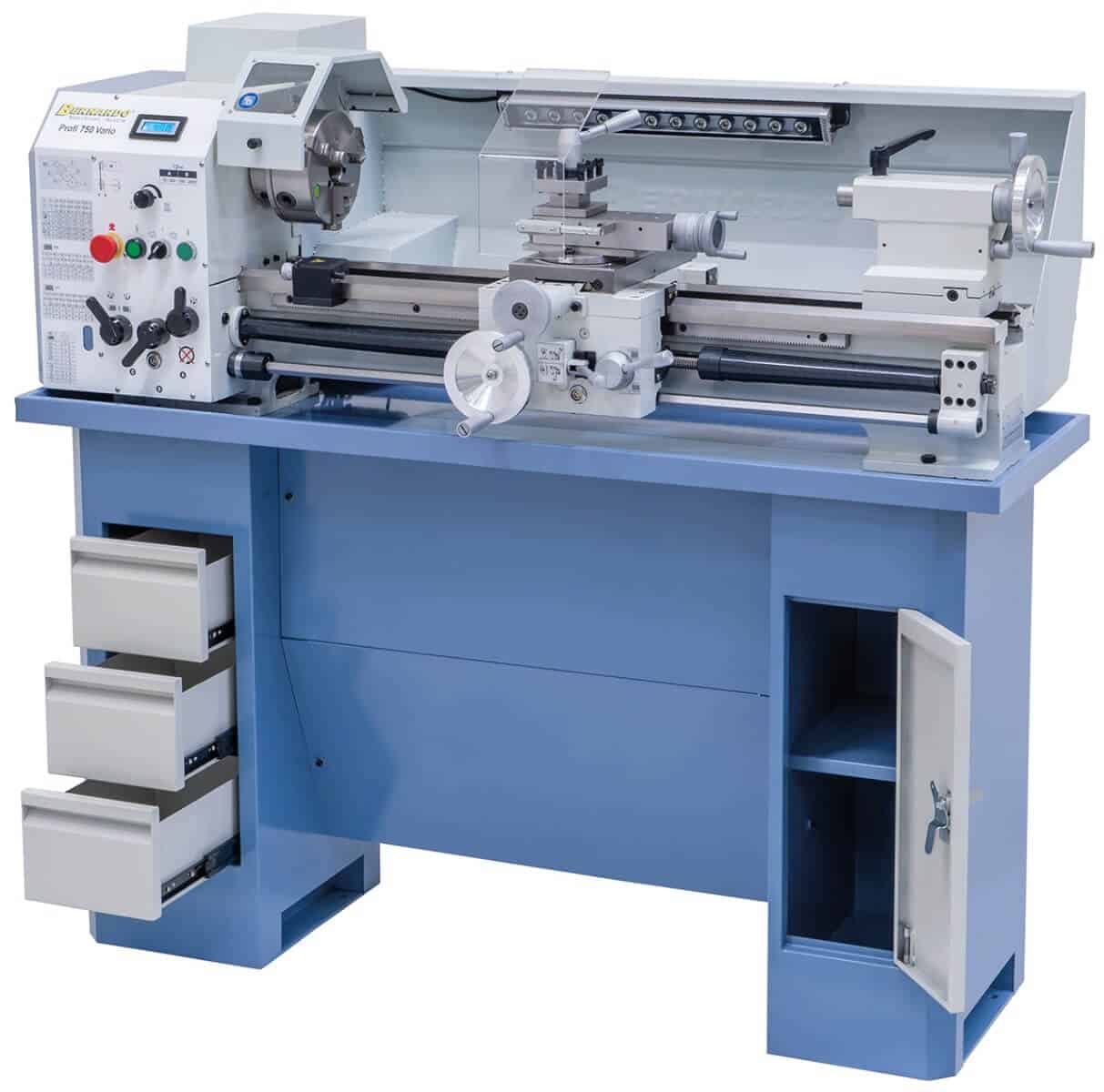

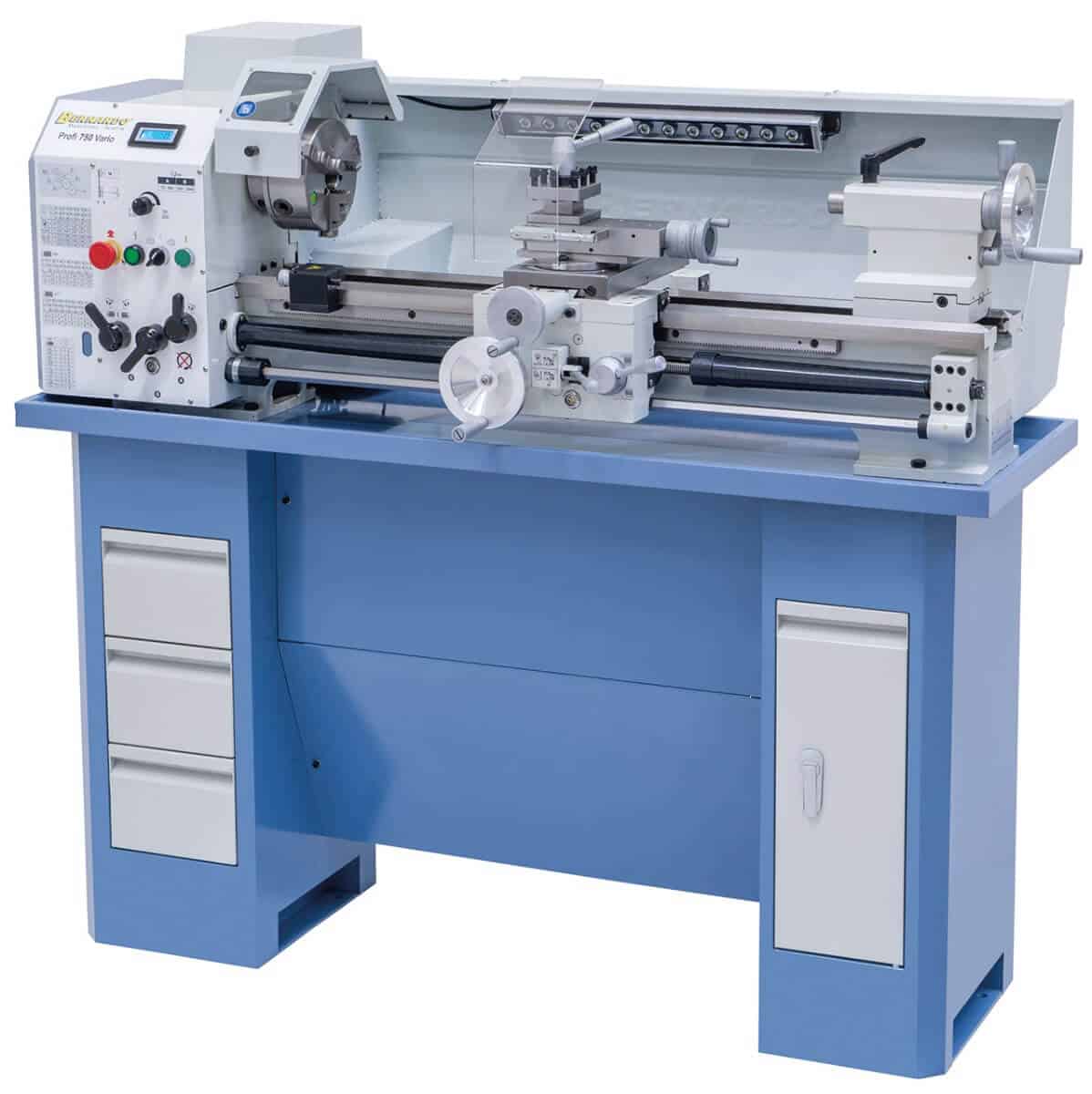

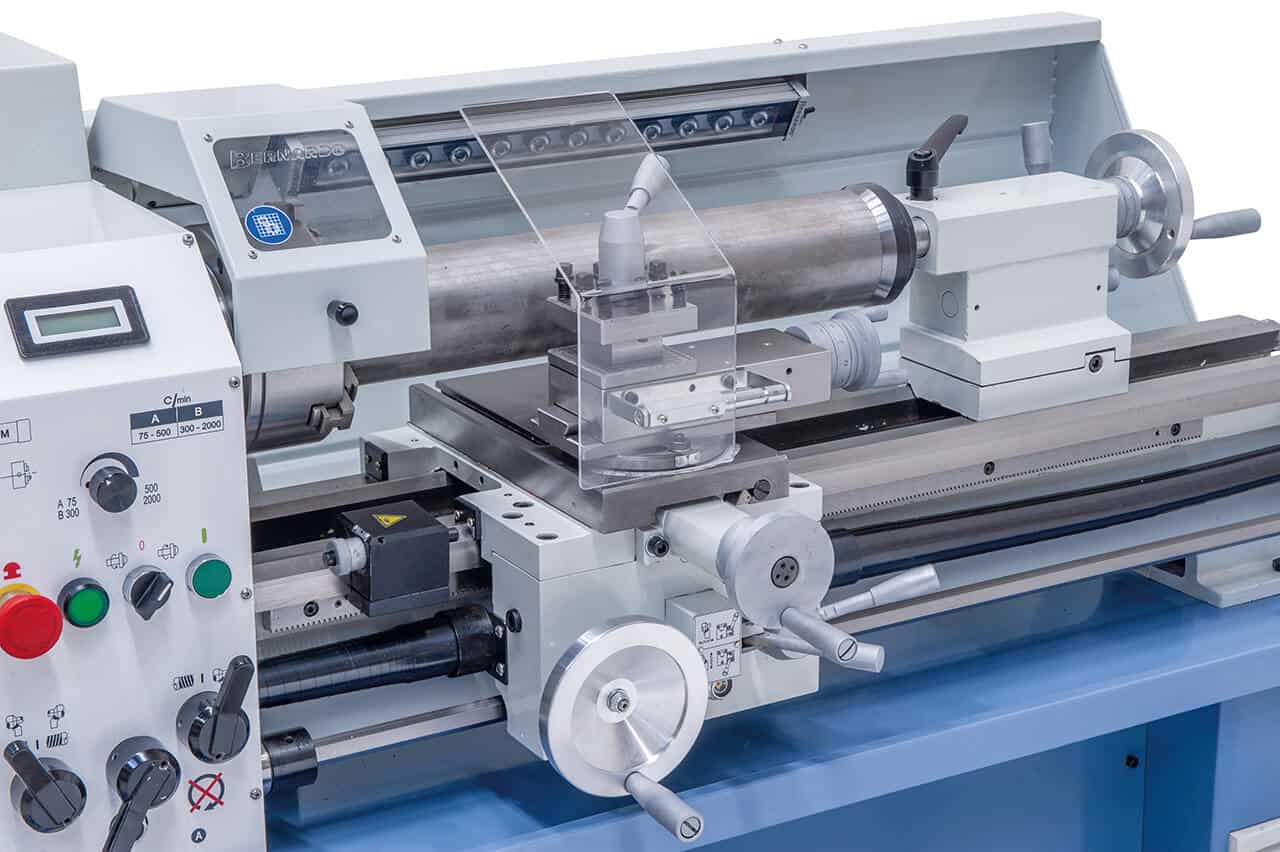

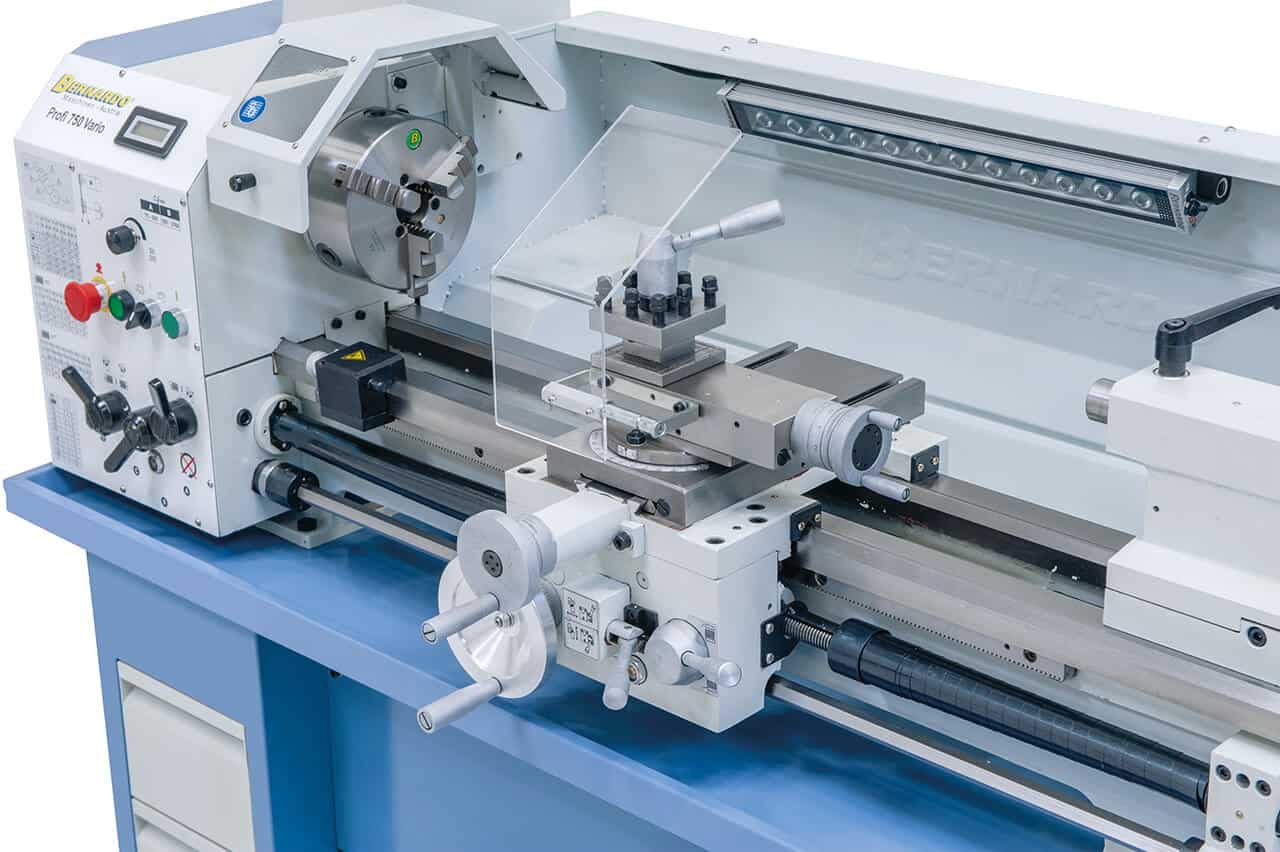

The Bernardo Profi 750 Vario / 230 V lathe is a compact and powerful machine, suitable for advanced hobbyists, schools, and workshops. With a center distance of 750 mm and a swing over bed of 280 mm, it offers extensive possibilities for machining small to medium-sized workpieces. The electronic speed variator, with two ranges (75–500 and 300–2000 rpm), allows for precise and immediate adjustments. The 1.5 kW (S1) – 2.2 kW (S6) single-phase motor ensures constant performance even at full load. Equipped with a frequency inverter and digital speed display, it guarantees maximum practicality and safety. The standard equipment includes a Ø 160 mm self-centering chuck, a 4-position tool post, dead centers, change gears, an LED light, and CE guards. A compact (220 kg) and versatile lathe, perfect for precision machining in small spaces.

---

Main Specifications

Distance between centers: 750 mm
Center height: 140 mm
Swing over bed: 280 mm
Spindle bore: Ø 38 mm
Spindle nose: DIN 55029, D1-4
Speed range: 75 – 500 / 300 – 2000 rpm, continuous variator
Longitudinal feeds: 0.07 – 1.0 mm/rev (15)
Cross feeds: 0.017 – 0.25 mm/rev (15)
Metric threads: 0.2 – 3.5 mm (18 pitches)
Imperial threads: 8 – 56 TPI (21 pitches)

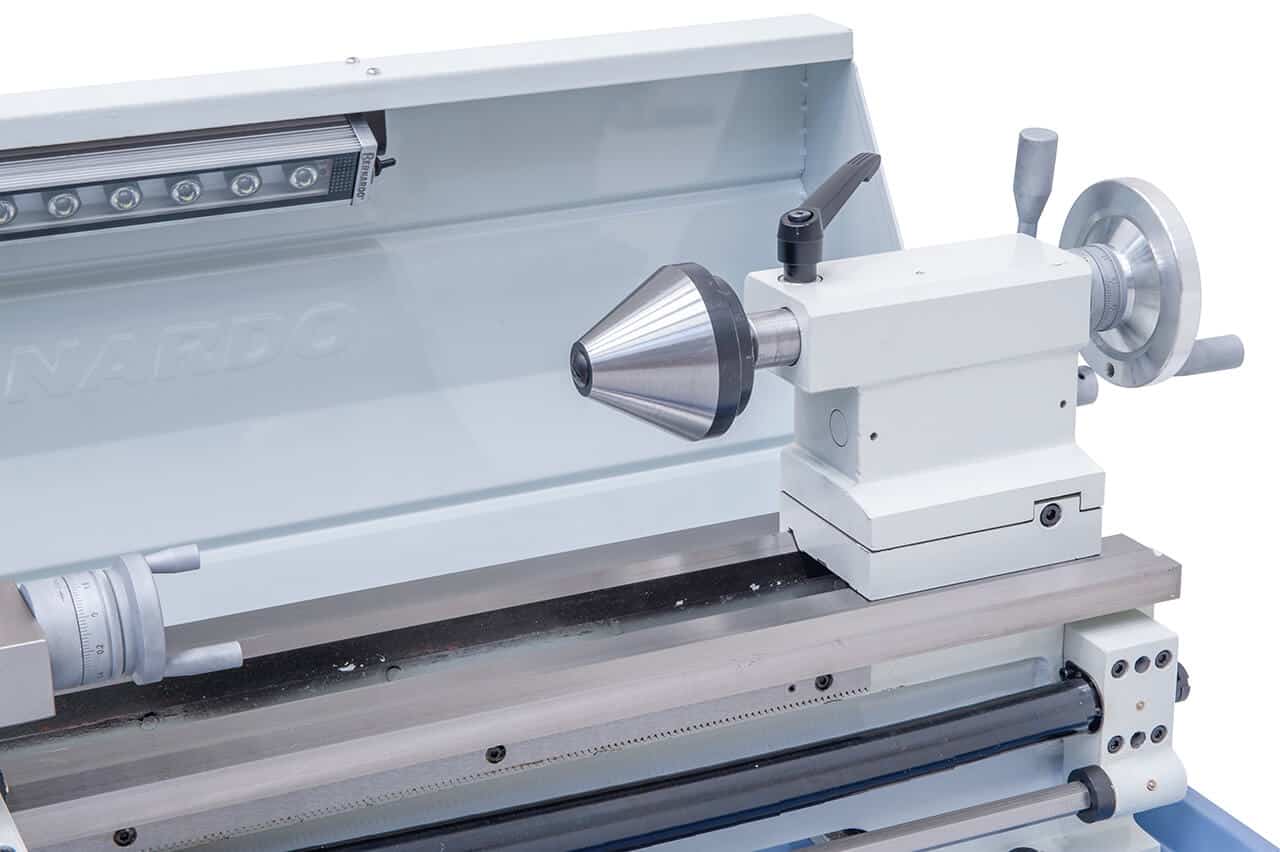

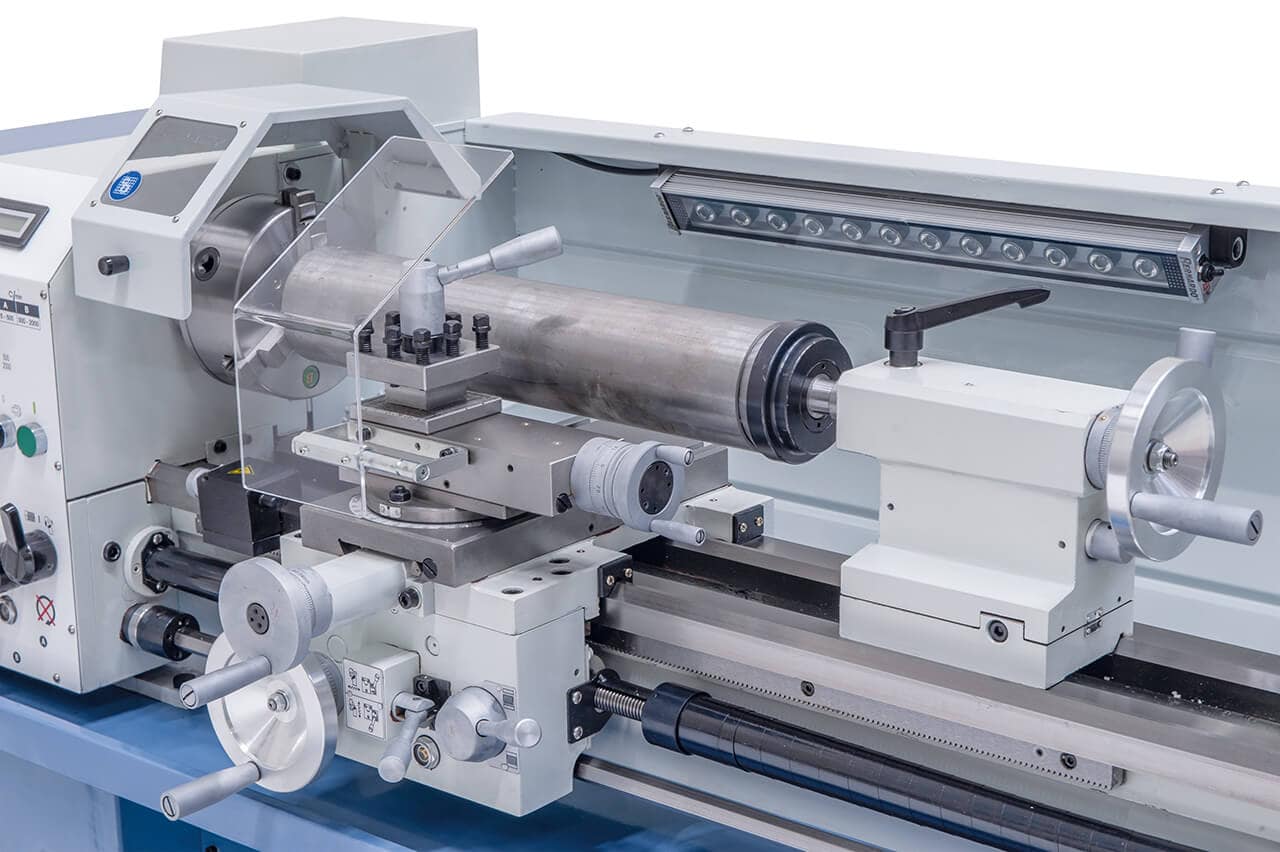

• Tailstock quill travel: 90 mm, MT3 taper
Motor power: 1.5 kW (S1) / 2.2 kW (S6) – 230 V
Dimensions: 1400 x 730 x 520 mm (without stand)
Weight: 220 kg

---

Technical table:

Specification	Value
Brand	Bernardo
Model	Profi 750 Vario / 230 V
Distance between centers	750 mm
Center height	140 mm
Swing over bed	280 mm
Spindle bore	Ø 38 mm
Spindle nose	DIN 55029, D1-4
Speed range	75 – 500 / 300 – 2000 rpm
Longitudinal feeds	0.07 – 1.0 mm/rev (15)
Cross feeds	0.017 – 0.25 mm/rev (15)
Metric threads	0.2 – 3.5 mm (18 pitches)
Imperial threads	8 – 56 TPI (21 pitches)
Tailstock quill travel	90 mm
Tailstock taper	MT3
Motor power	1.5 kW (S1) / 2.2 kW (S6) – 230 V
Machine dimensions	1400 x 730 x 520 mm*
Weight	220 kg
Origin	Europe
*	without stand

---

Package contents:

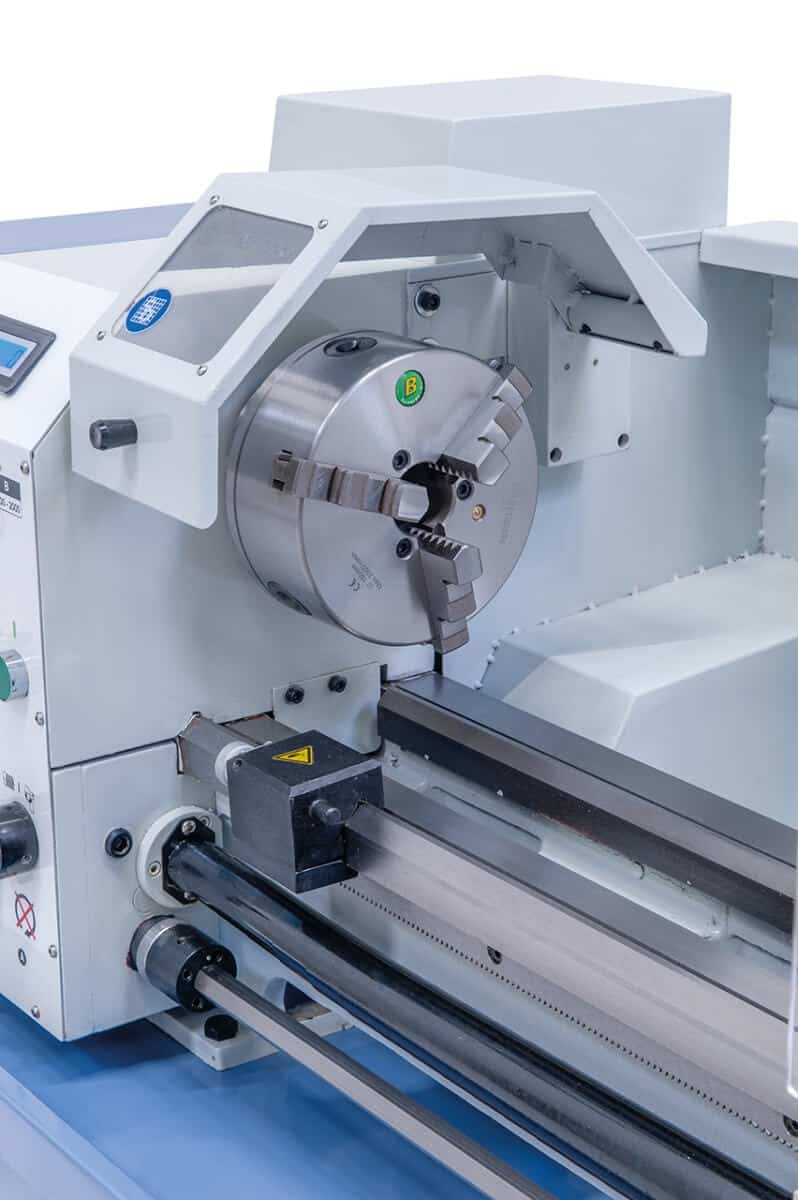

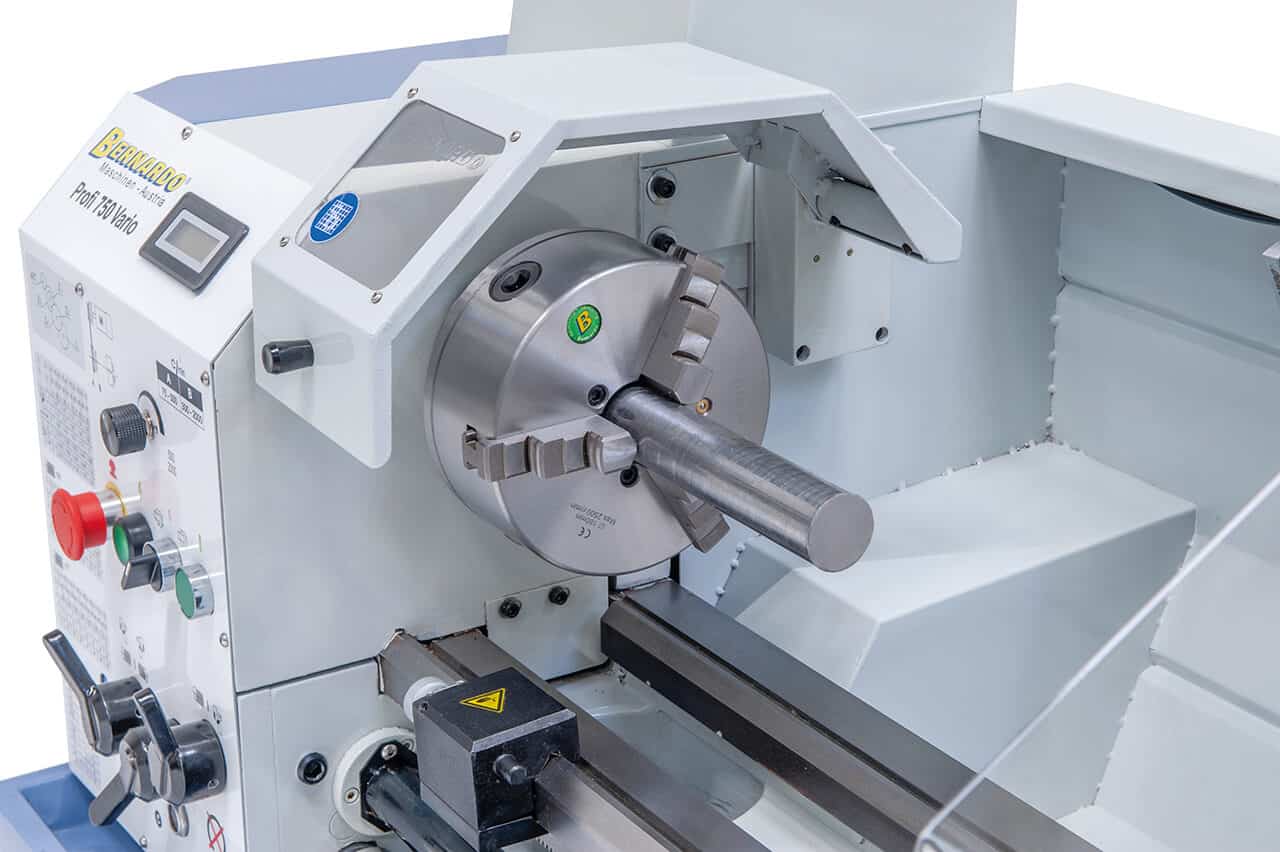

3-jaw self-centering chuck DK11 Ø 160 mm (D4)

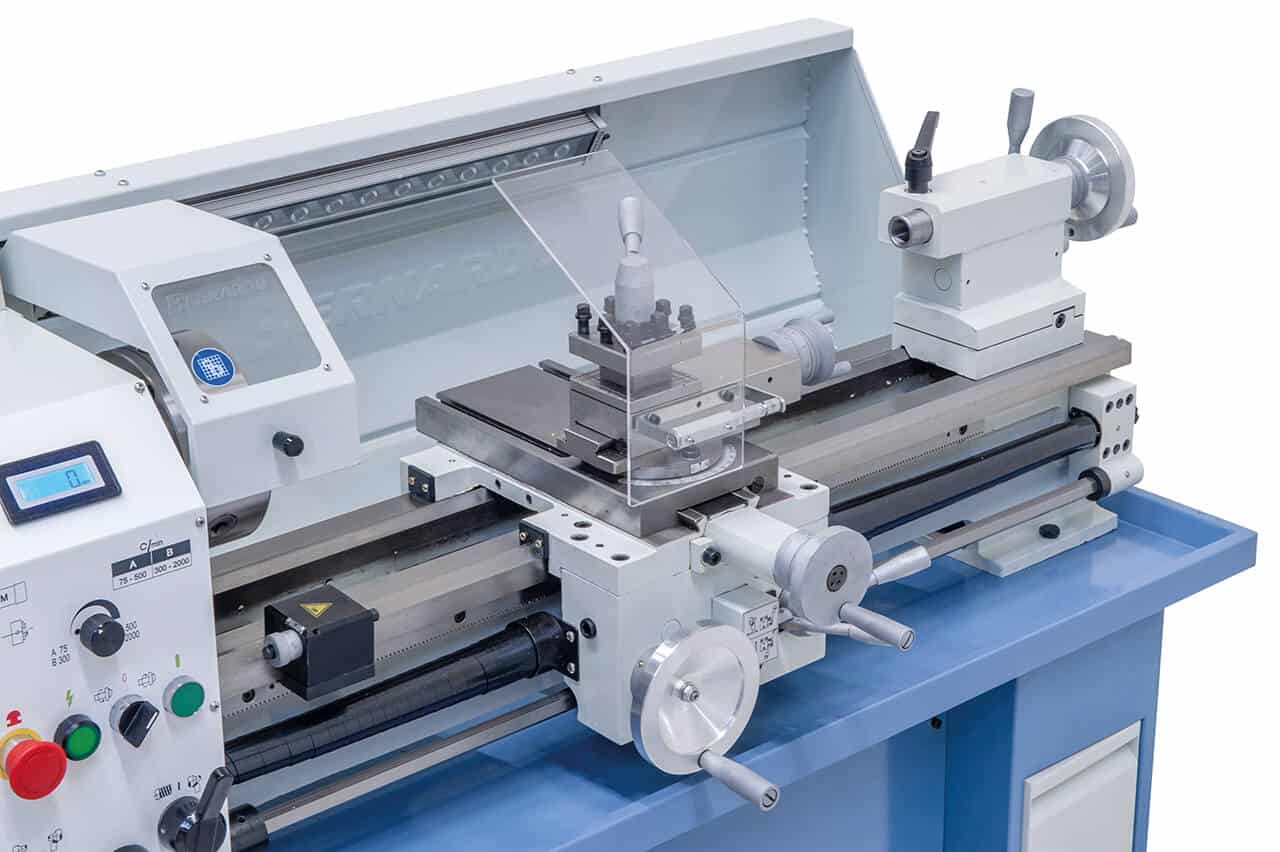

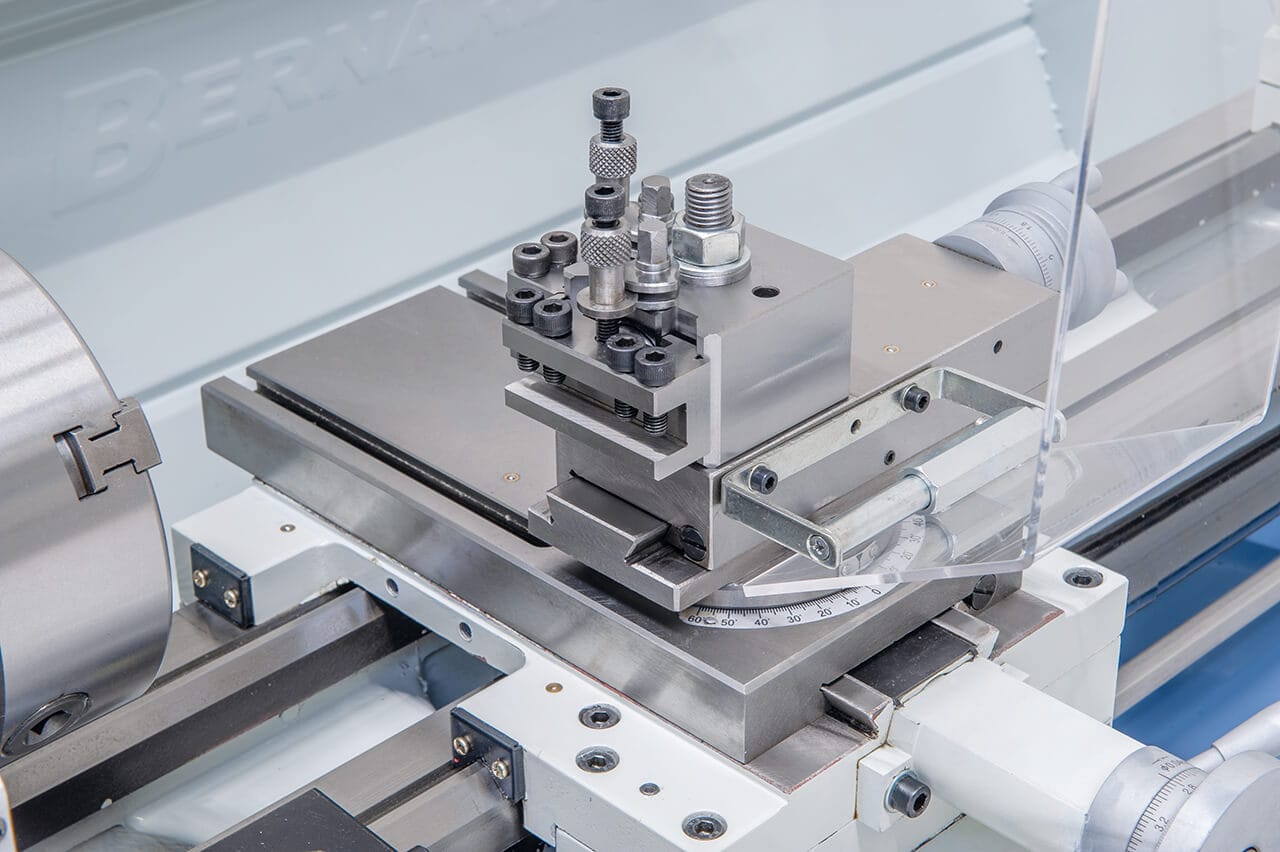

4-position tool post
Cross slide with top slide
Dead centers

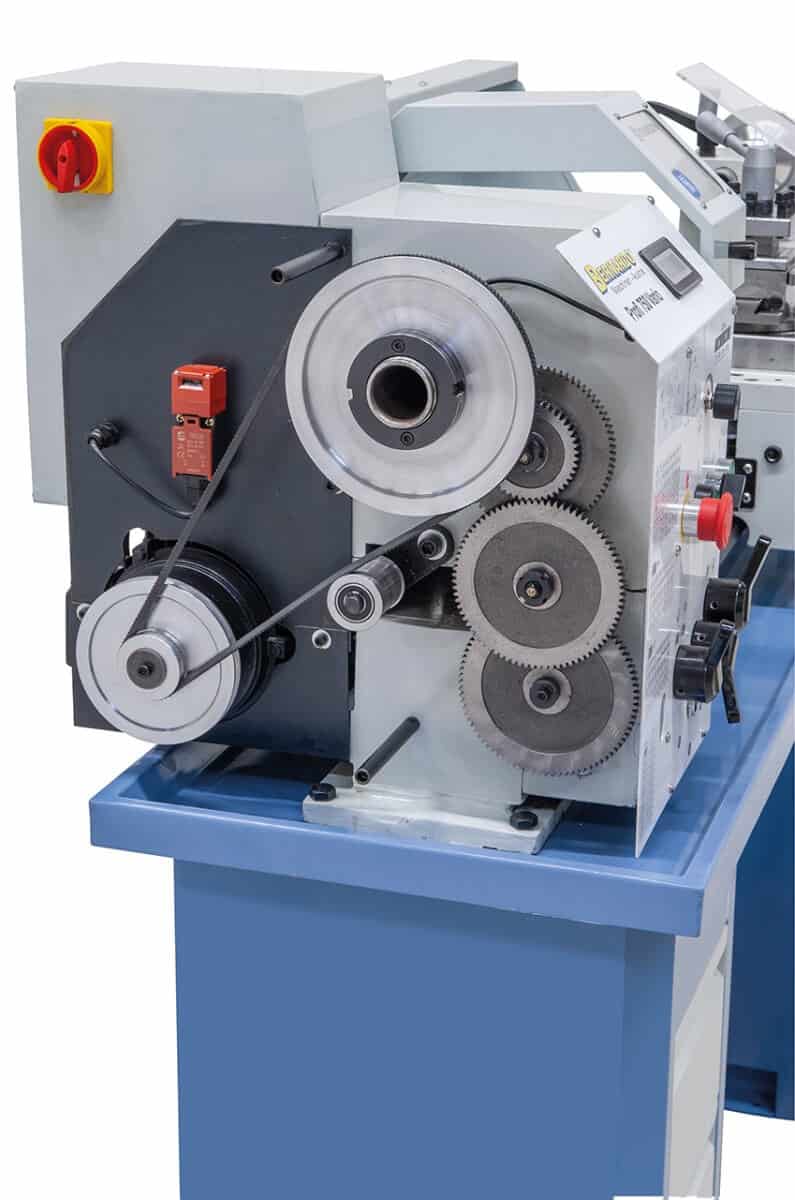

Change gears
Safety clutch

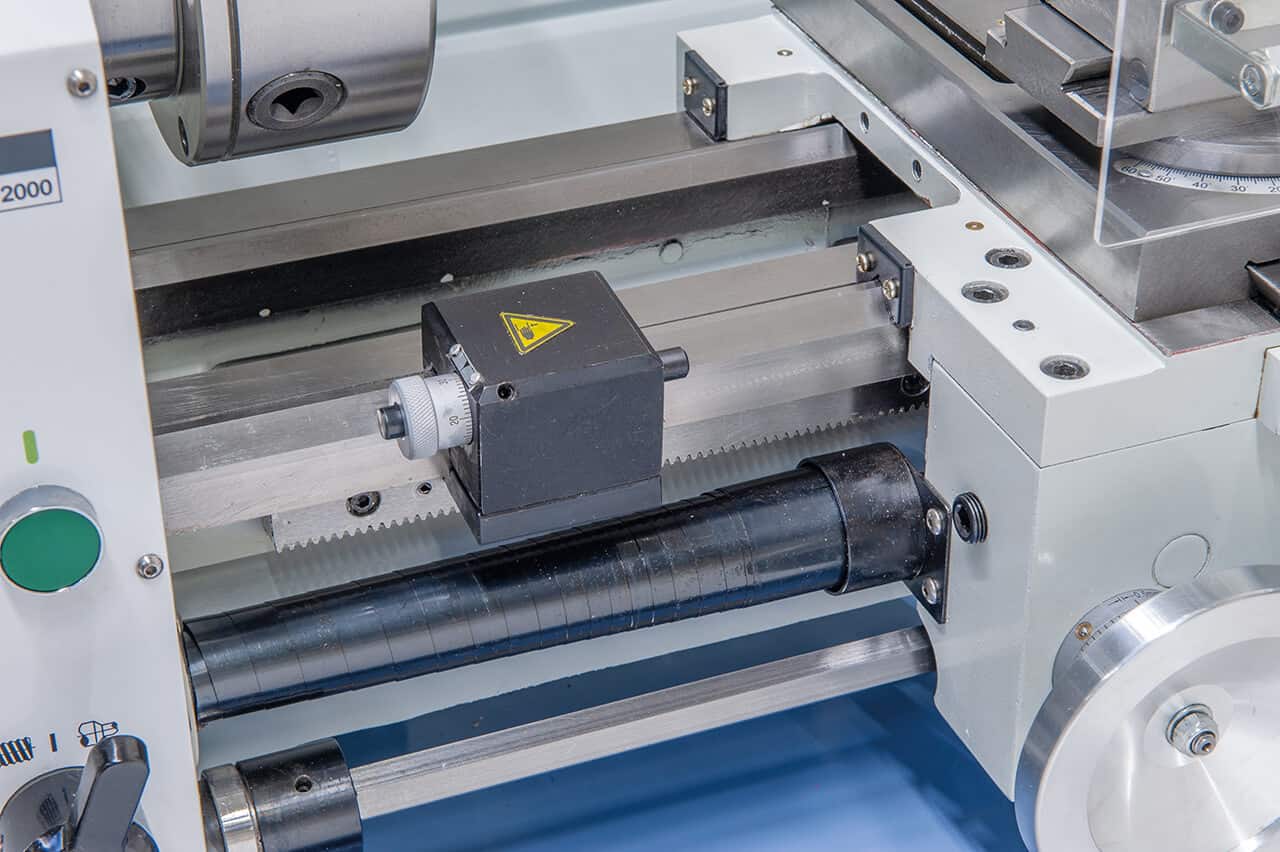

Micrometric longitudinal stop
Frequency inverter

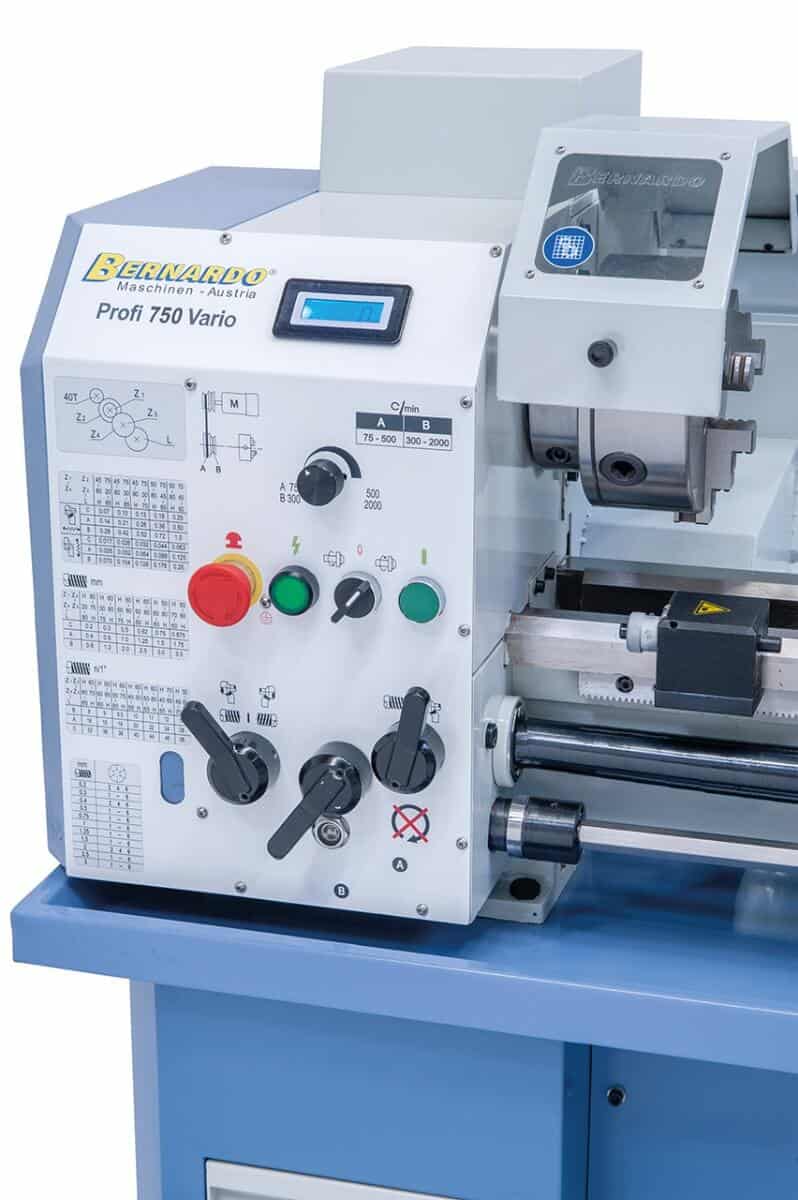

Digital speed display
LED machine light
• Spindle guard, splash guard, leadscrew cover
Tool set and accessories

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

The Profi 750 Vario — what does it add compared to the Profi 550 and Profi 700?

The distance between centers (750 mm) is greater than the Profi 550 (550 mm) and Profi 700 (700 mm) — allowing longer shafts and bars to be machined without external support. The electronic Vario speed control ensures continuous stepless speed adjustment. The 750 series typically has a larger spindle bore than the 550. Choose the 750 when workpiece length frequently exceeds 500 mm.

Does the 230 V single-phase version cover all typical applications?

For advanced hobbyists, schools, and workshops with standard single-phase electrical systems, the 230 V version is sufficient. The Vario variator partially compensates for the lower torque at low speeds compared to three-phase. For intensive continuous production on hard steels, consider the 400 V three-phase version.

Are spare parts and accessories available?

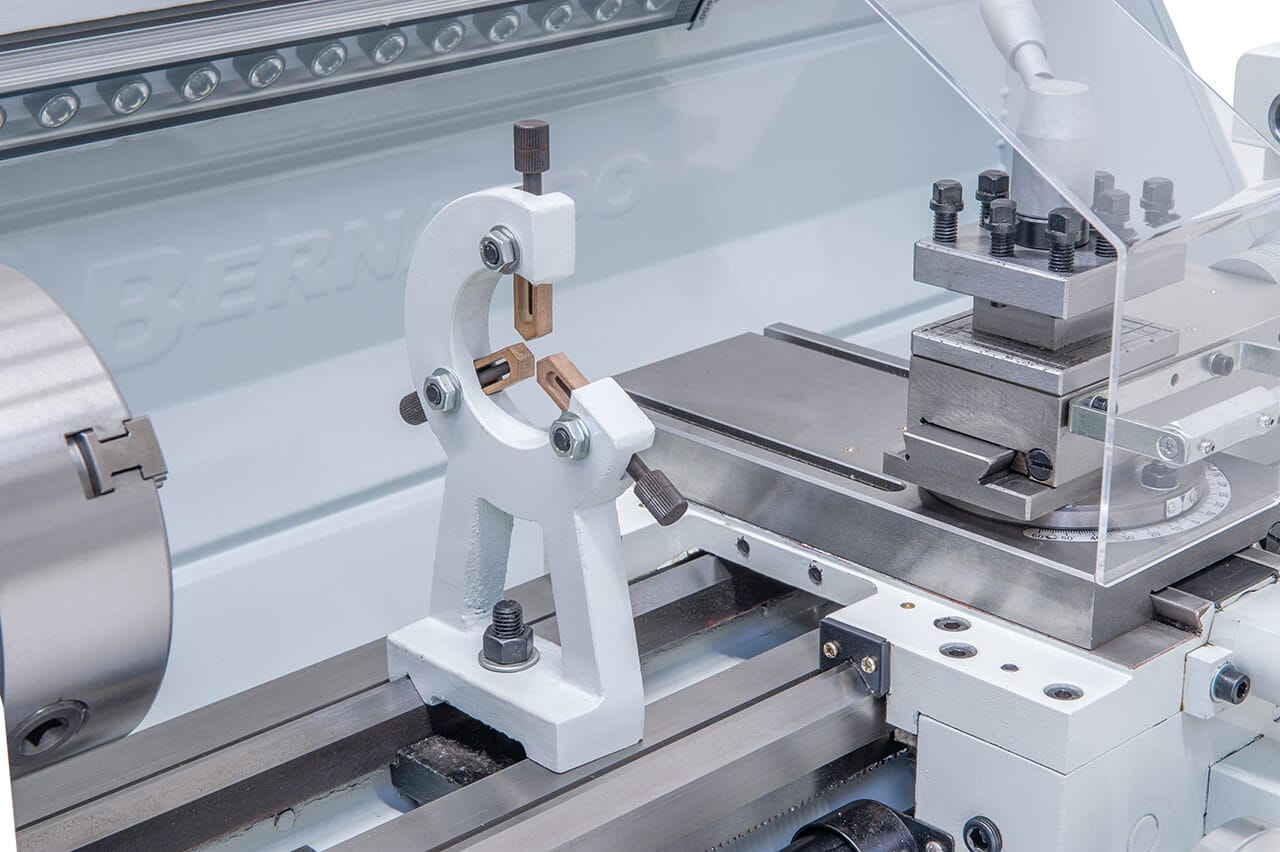

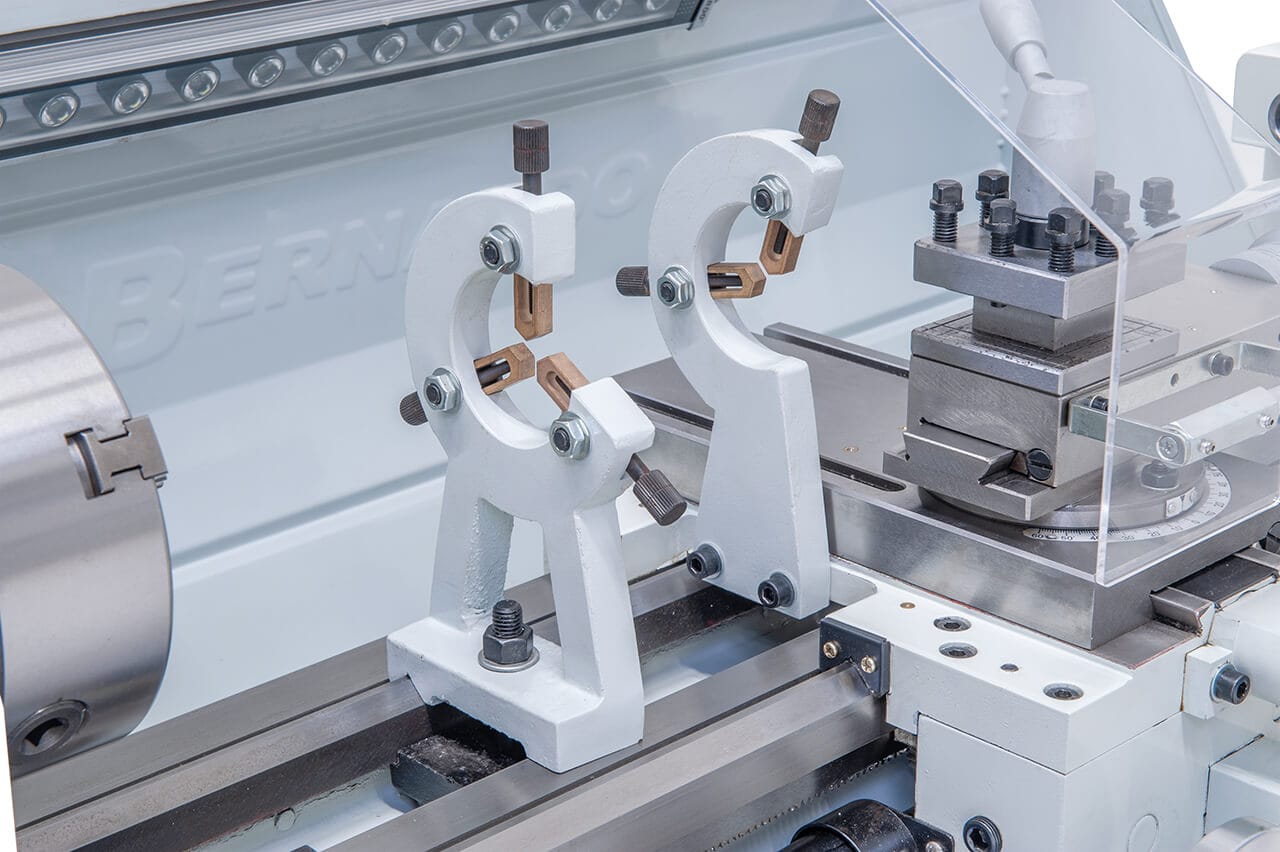

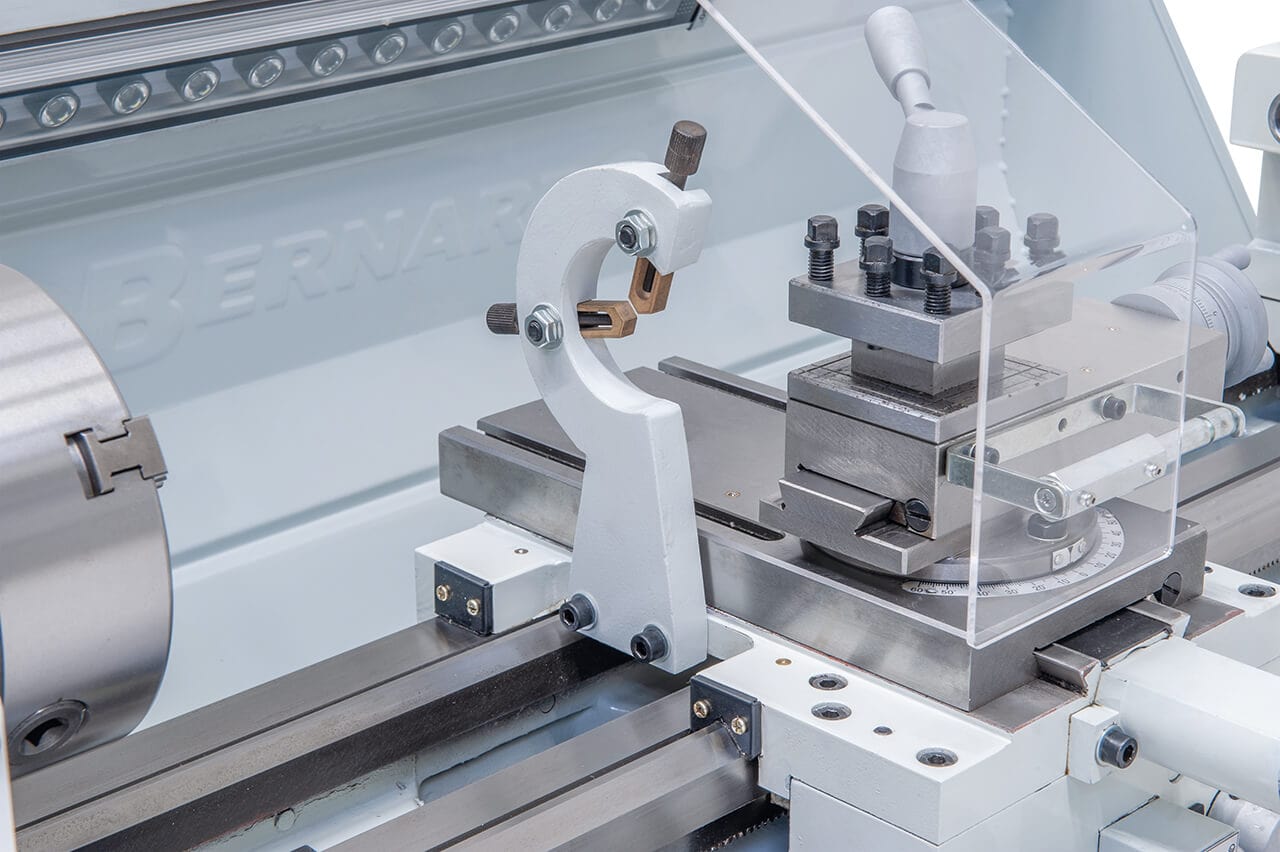

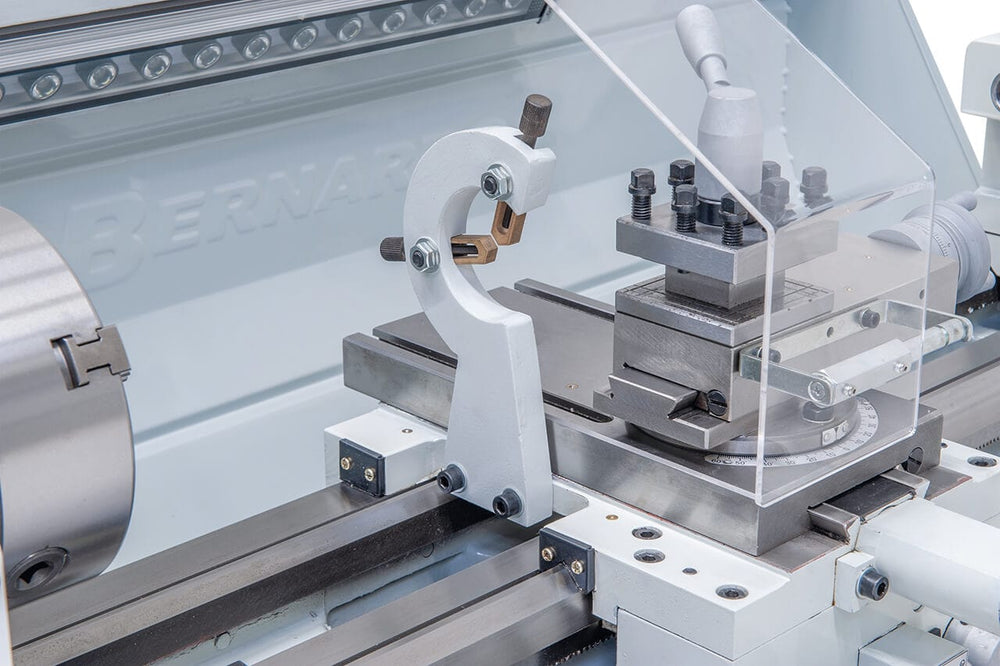

Accessories available: 4-jaw chuck, steady rests, quick-change tool post, additional DRO. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space does the Profi 750 require in the workshop?

Allow at least 750 mm clear space in front of and behind the lathe for workpiece handling, plus 80 cm on each side for safe operation. The weight of over 300 kg requires a solid industrial floor — coordinate with Krollit for necessary unloading equipment.
