Bernardo Standard 150 Basic Lathe – 9 speeds, D1-4

Bernardo Lathe Standard 150 Basic – Compact, robust, and precise

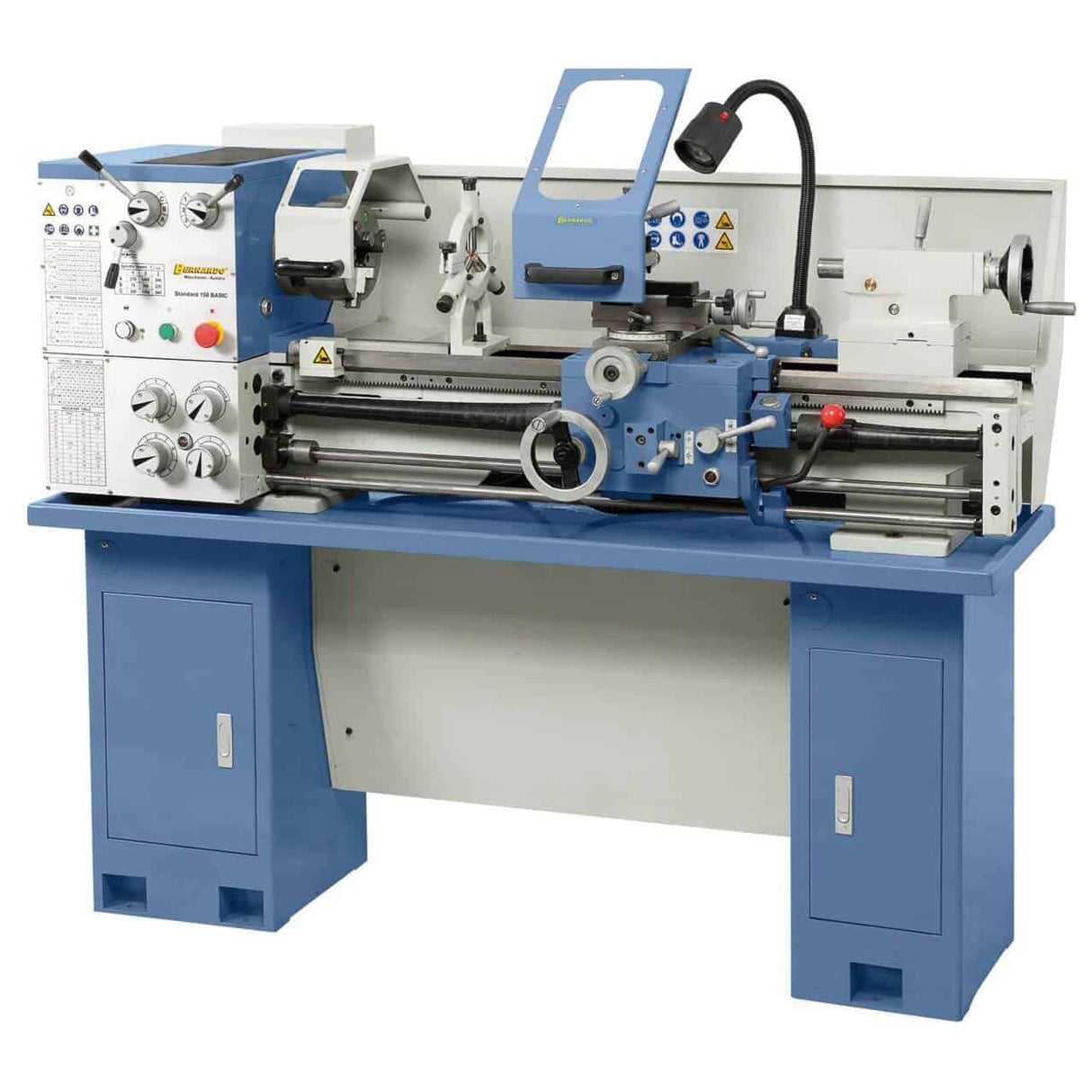

The Bernardo Standard 150 Basic is a professional compact lathe, designed for workshops, schools, and maintenance departments that seek essential reliability and controlled costs. With a distance between centers of 1000 mm and a swing over bed of 330 mm, it precisely machines medium-sized workpieces. The 9-speed mechanical transmission (75–1400 rpm) is simple and robust; a spindle bore of Ø 40 mm with a D1-4 mounting for wide compatibility. The removable gap bed of 220 mm allows for machining in the gap up to Ø 430 mm. The equipment includes a self-centering chuck and an independent chuck, steady rests, a face plate, a 4-way tool post, a safety clutch, a magnetic motor brake and a CE foot brake, LED light, and guards. Motor 1.5 kW (S1) / 2.2 kW (S6) – 400 V, solid construction (bed width 180 mm, 455 kg) for stability, safety, and consistent finish.

---

Main Specifications

Distance between centers: 1000 mm
Center height: 165 mm
Swing over bed: 330 mm (gap up to 430 mm; removable gap bed 220 mm)
Swing over cross slide: 180 mm
Bed width: 180 mm
Spindle bore: Ø 40 mm – DIN 55029 D1-4 mount
Speeds: 75 – 1400 rpm (9 mechanical steps)

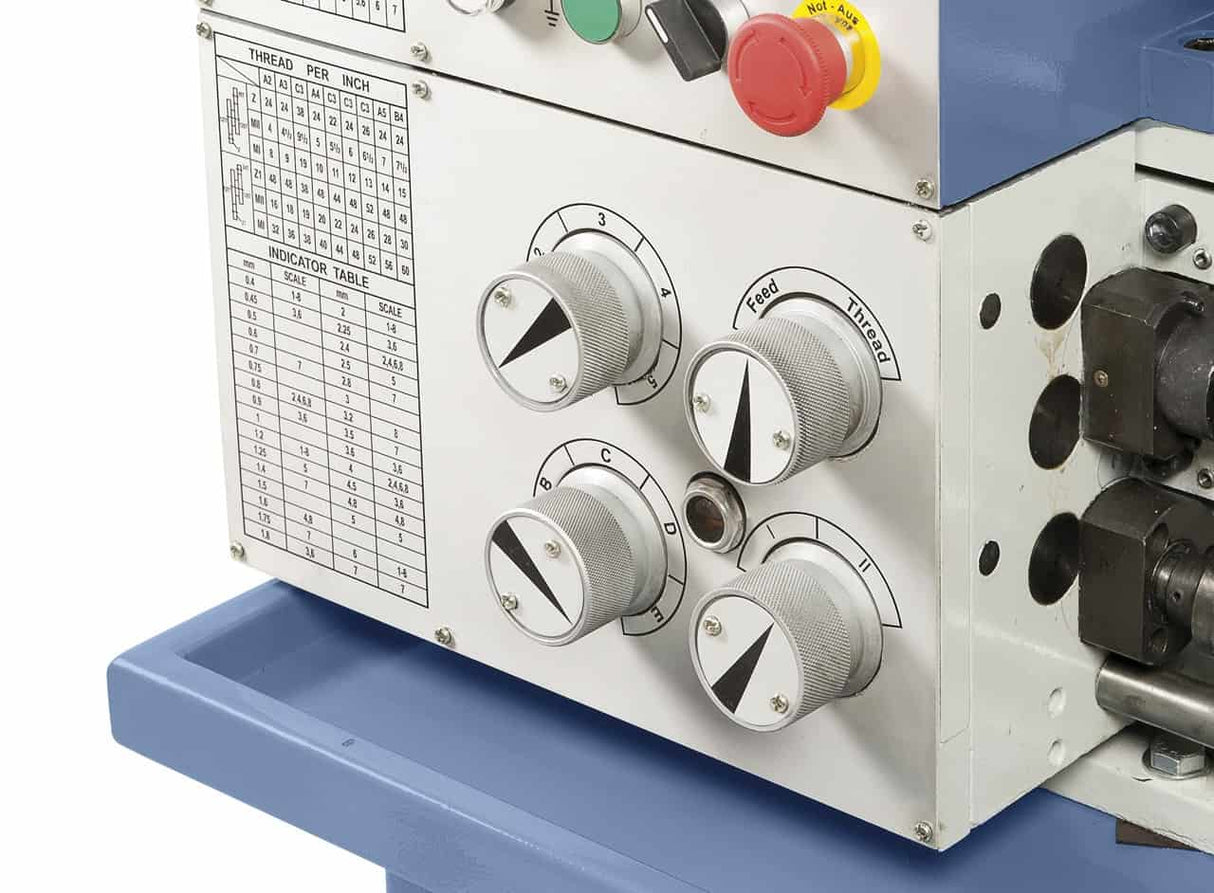

Longitudinal feeds: 0.053 – 1.29 mm/rev (40)
Cross feeds: 0.013 – 0.31 mm/rev (40)
Metric threads: 0.4 – 7 mm (32)
Inch threads: 4 – 60 TPI (36)

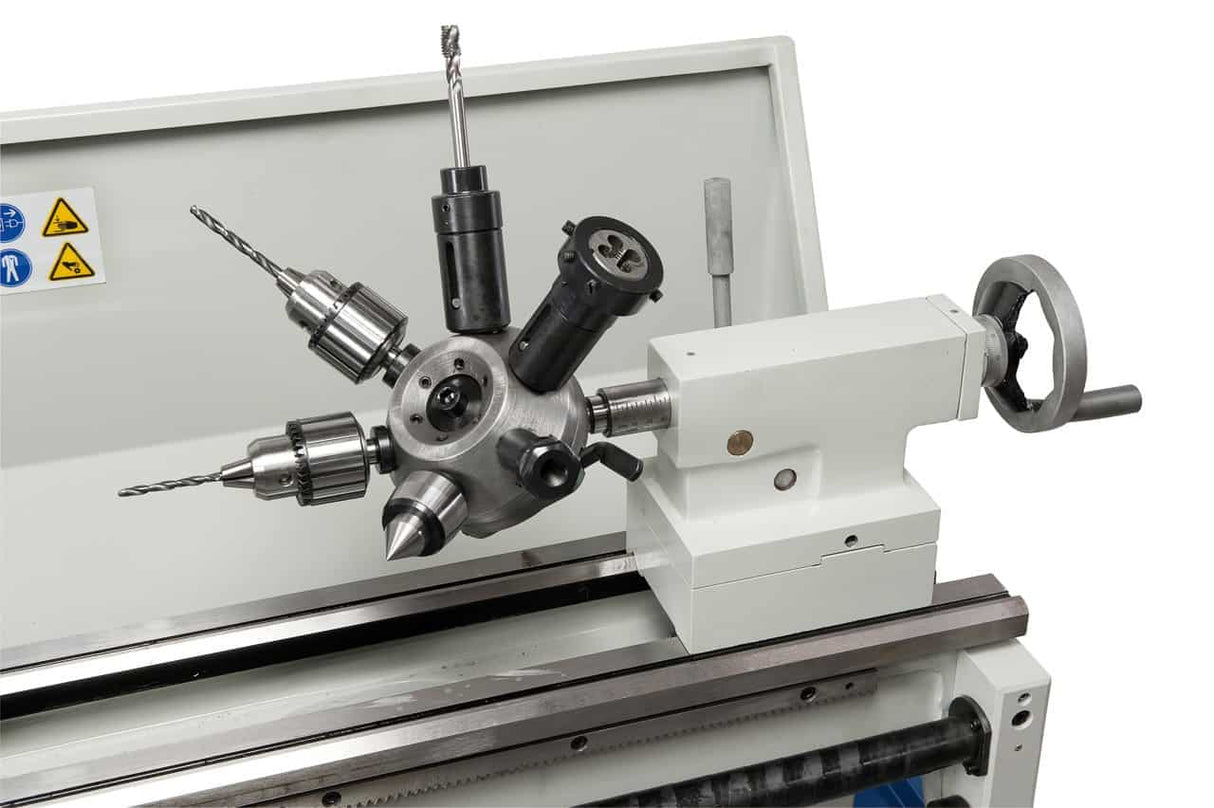

Tailstock: travel 110 mm, taper MK3 (MT3)
Motor: 1.5 kW (S1) / 2.2 kW (S6) – 400 V
Dimensions: 1600 × 700 × 1280 mm — Weight: 455 kg

---

Technical table:

Specification	Value
Brand	Bernardo
Model	Standard 150 Basic
Distance between centers	1000 mm
Center height	165 mm
Swing over bed	330 mm
Swing in gap*	430 mm
Swing over cross slide	180 mm
Bed width	180 mm
Spindle bore	Ø 40 mm
Spindle mount	DIN 55029, D1-4
Speeds	75 – 1400 rpm (9 steps)
Long./cross feeds	0.053–1.29 / 0.013–0.31 mm/rev (40/40)
Metric threads	0.4–7 mm (32)
Inch threads	4–60 TPI (36)
Tailstock quill travel	110 mm
Tailstock taper	MK3 (MT3)
Motor	1.5 kW (S1) / 2.2 kW (S6) – 400 V
Dimensions (L×W×H)	1600 × 700 × 1280 mm
Weight	455 kg
* Removable gap bed	220 mm

---

Package contents:

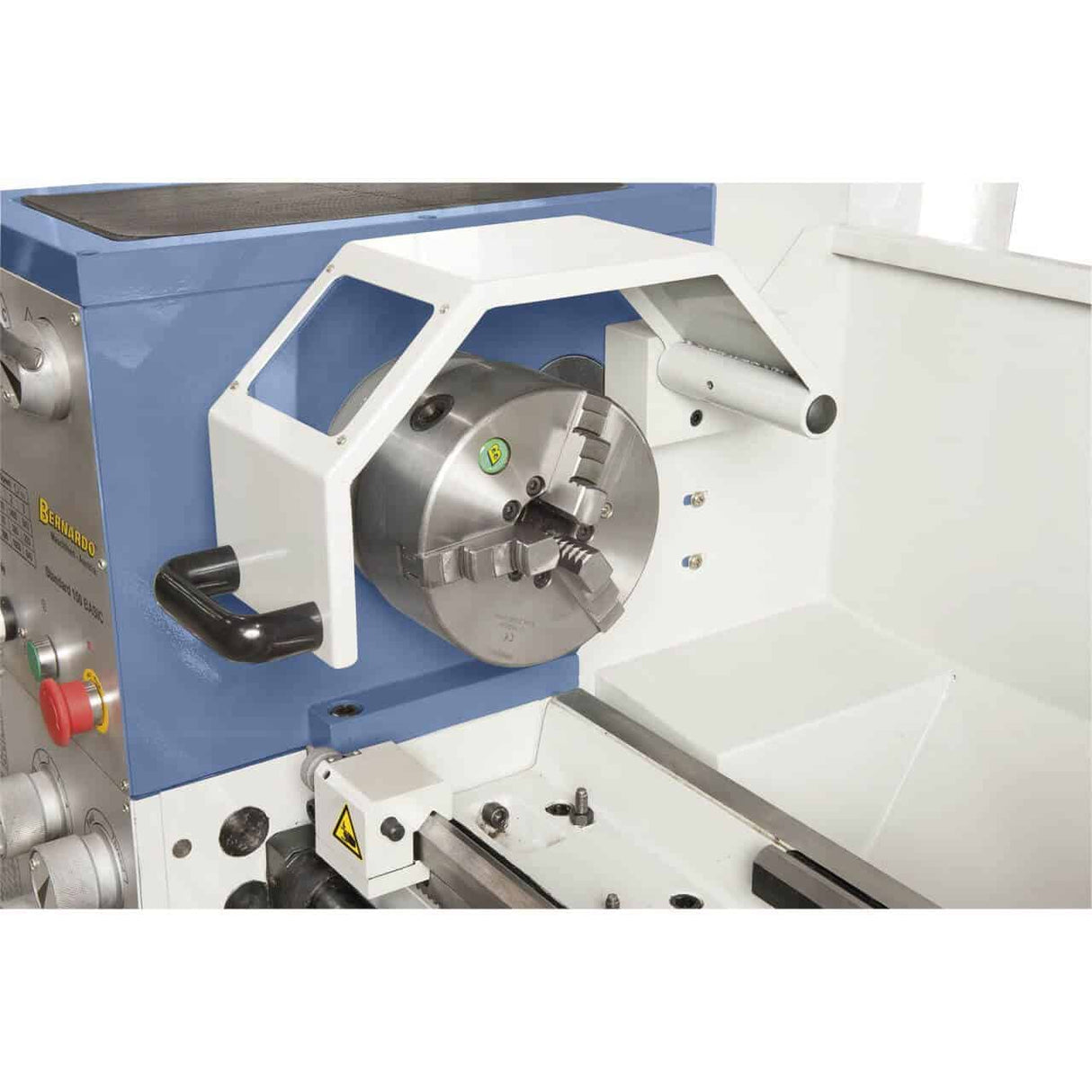

Self-centering chuck DK11 Ø 160 mm (D4)

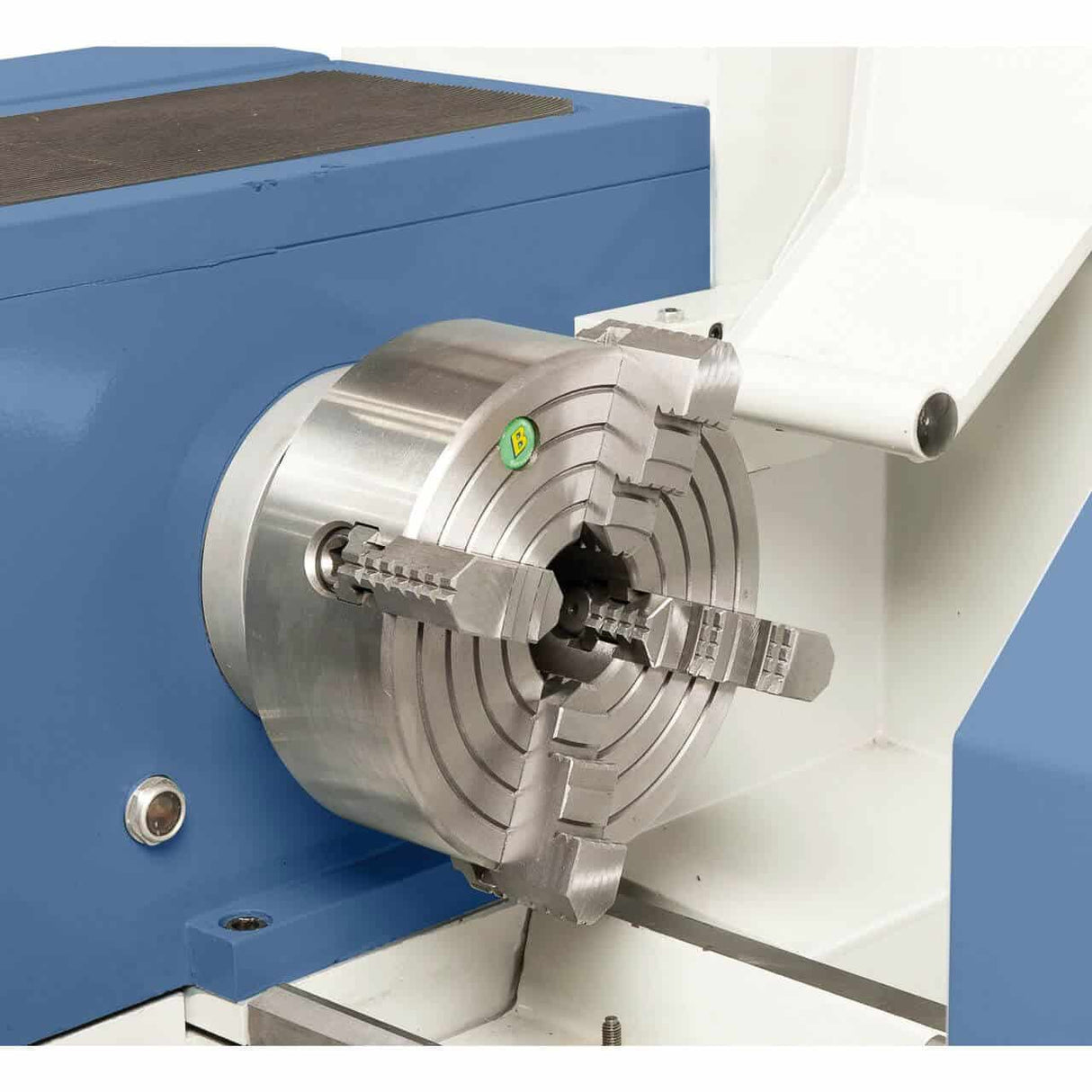

Independent chuck Ø 200 mm (D4) (DIN 55029)
Face plate Ø 250 mm
Fixed steady rest (passage Ø 60 mm) and traveling steady rest (passage Ø 60 mm)

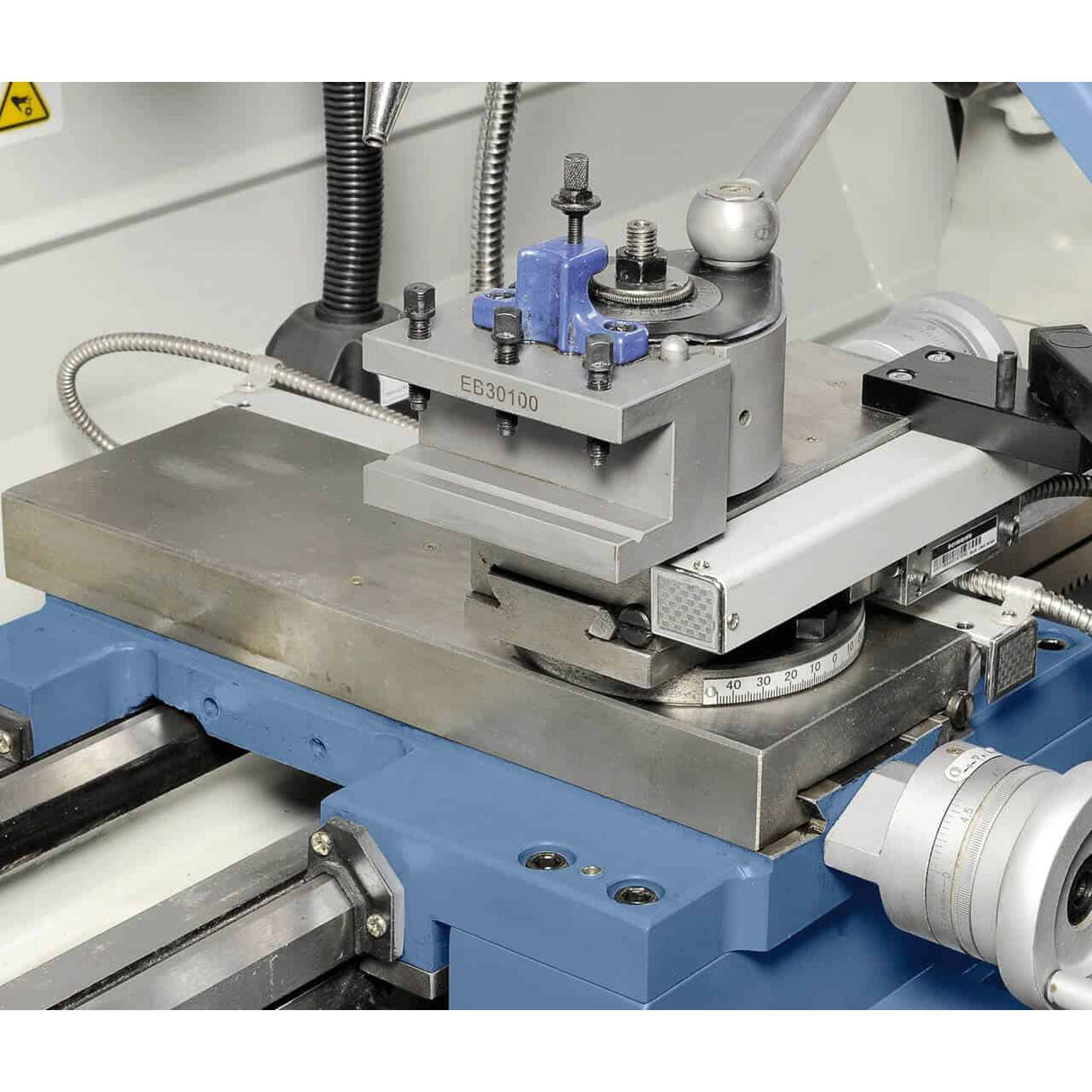

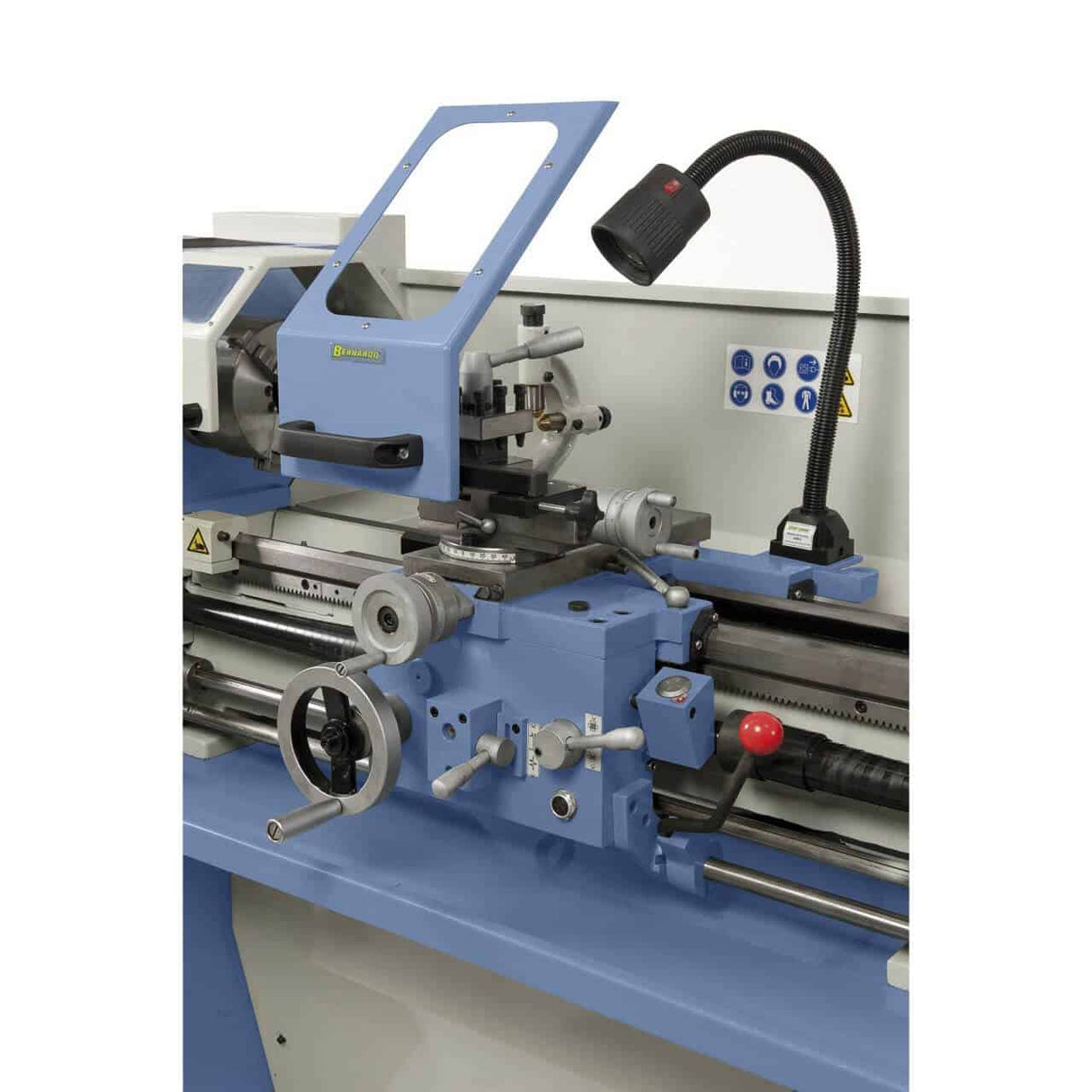

4-way tool post with protection

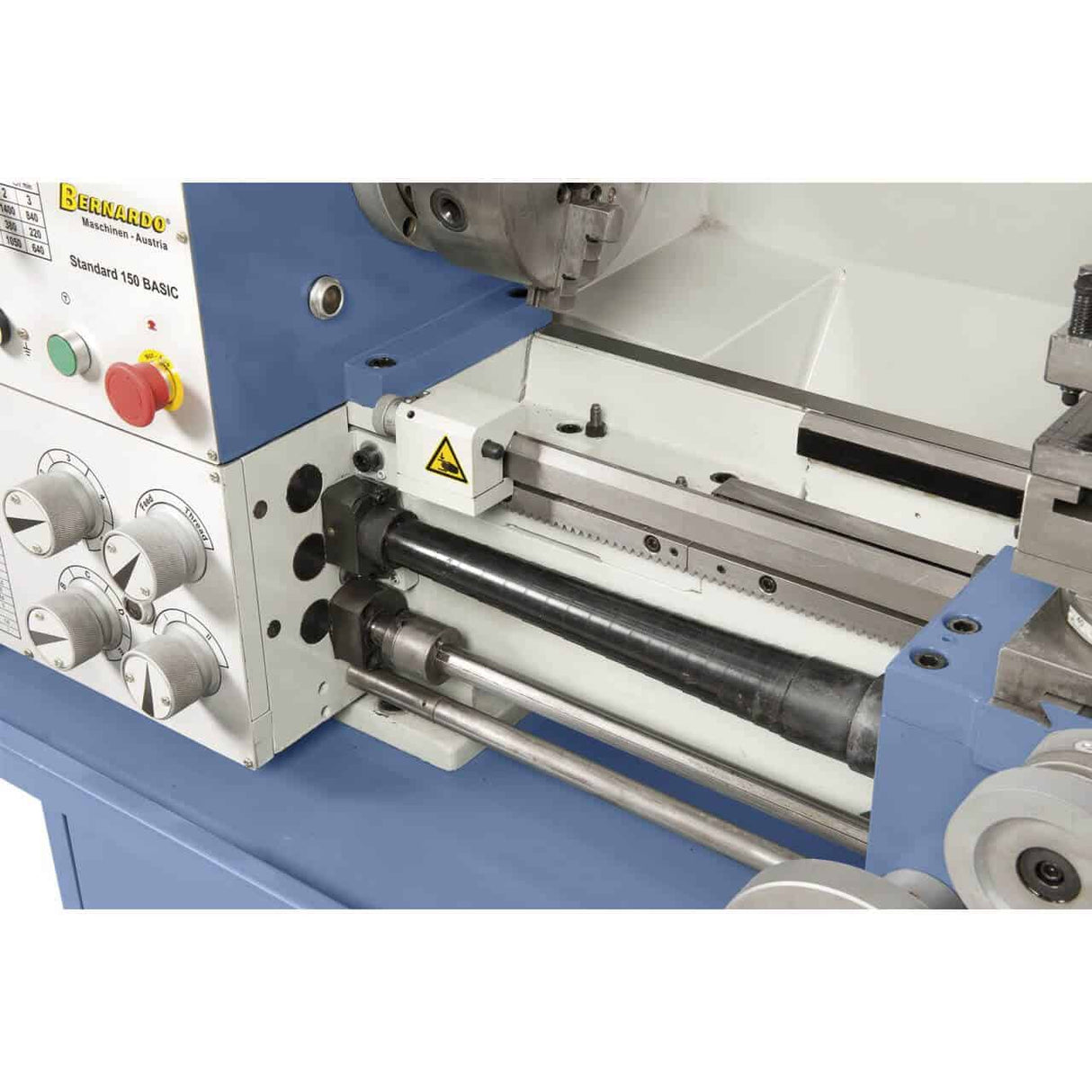

Safety clutch and micrometric longitudinal stop
Chip tray, splash guard and guards

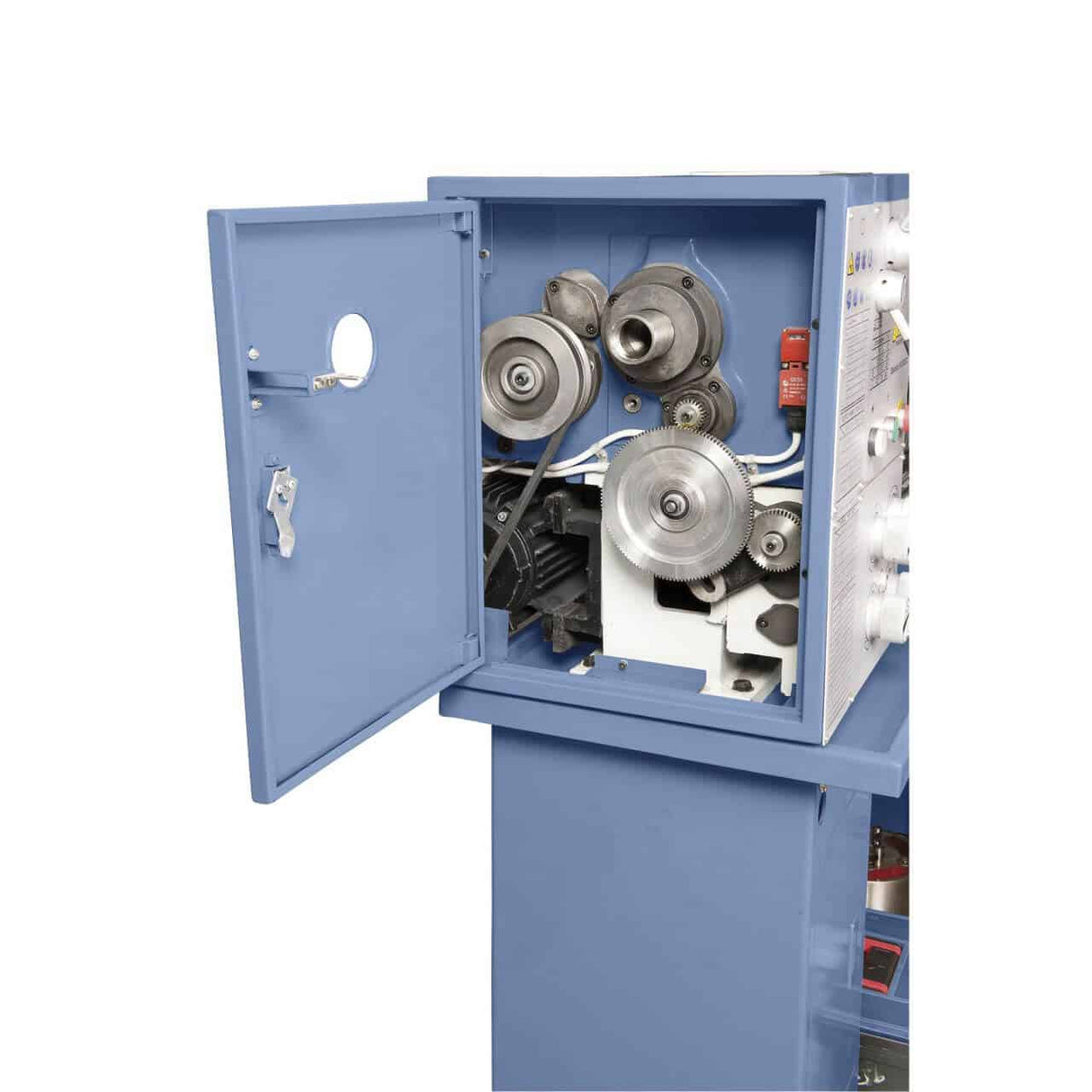

Thread dial, Morse sleeve, change gears, 2 dead centers
LED machine light
CE magnetic motor brake
Stand and tool set

Note: Basic version – coolant device not included in the equipment.

Logistics

Bernardo shipping: 5–9 business days (7 days to the South of Italy). Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the Standard series and the Profi series in Bernardo lathes?

The Standard series (like the Standard 150) has a monobloc structure with a prismatic bed: more rigid and quiet for continuous precision machining, with an international standard D1-4 or D1-6 spindle mount. The Profi series has a gap bed that facilitates access to the cutting area and lower weights — suitable for workshops with limited space. Standard 150: swing over bed 330 mm, distance between centers 1000 mm — intermediate dimensions between hobbyist and light industrial.

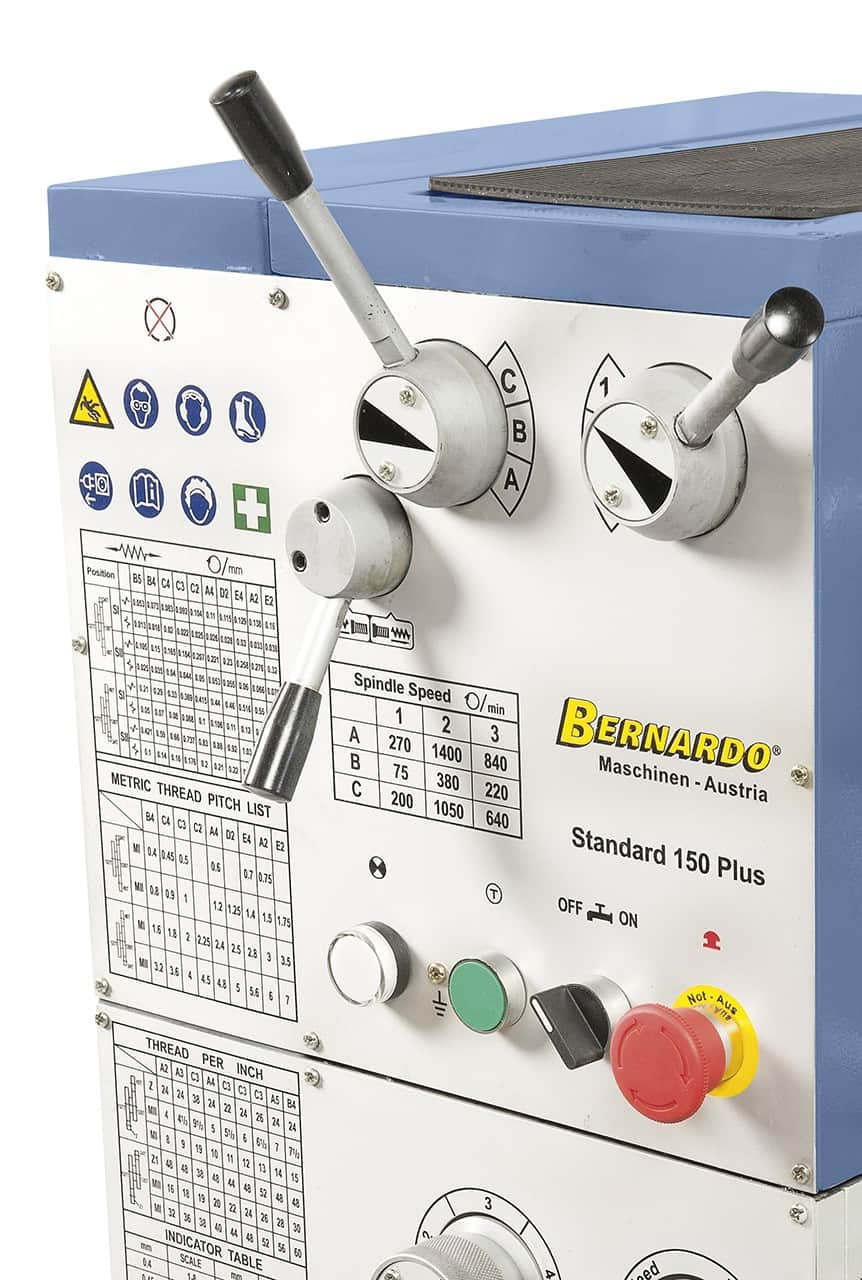

Does the 9-speed gearbox cover all typical machining operations?

The 9-speed gearbox covers the main needs: low speeds for hard steel and large sections (50–100 rpm), medium for standard steel (200–600 rpm), high for aluminum and finishing (800–2000 rpm). Selection requires stopping the machine and switching the lever.

Are spare parts and accessories available?

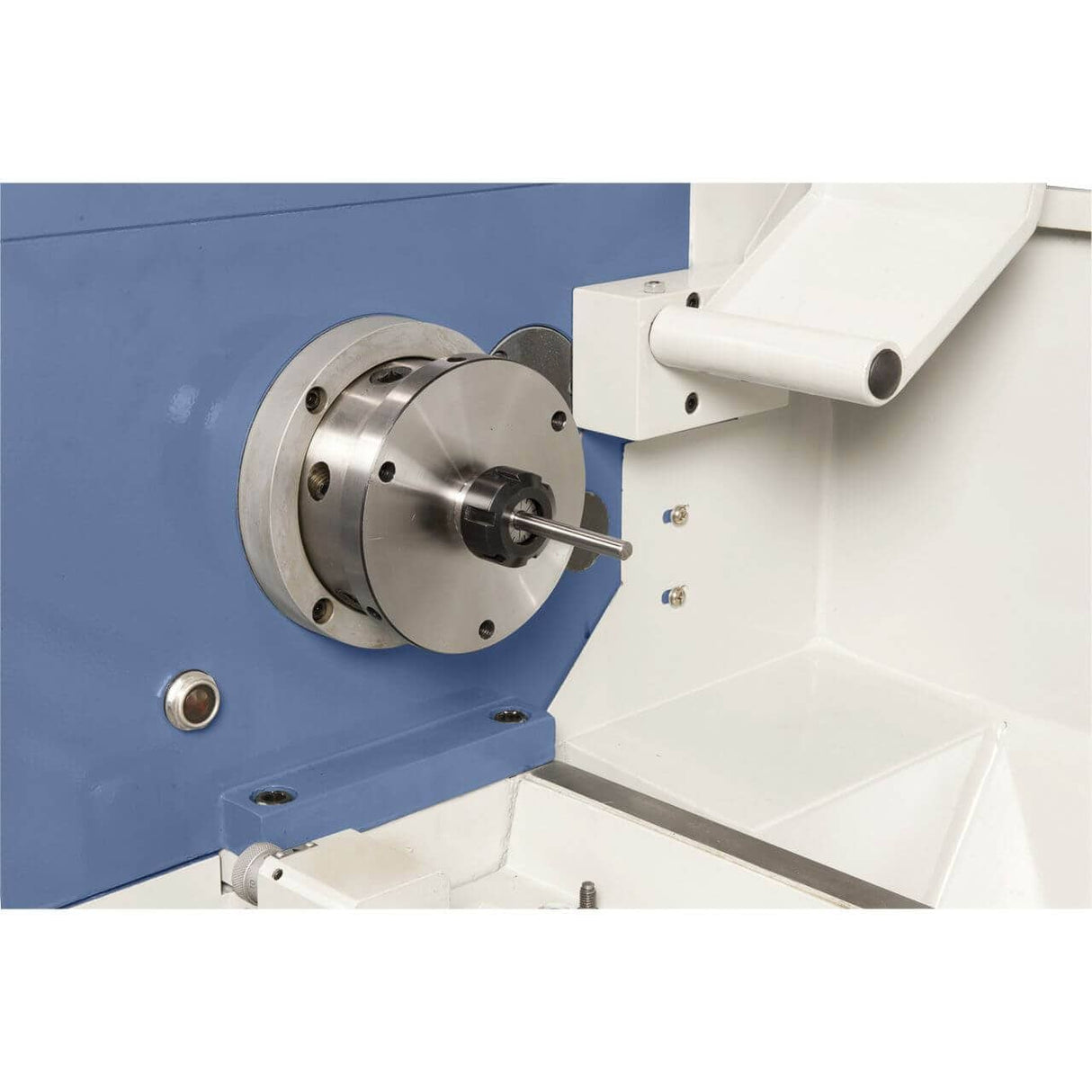

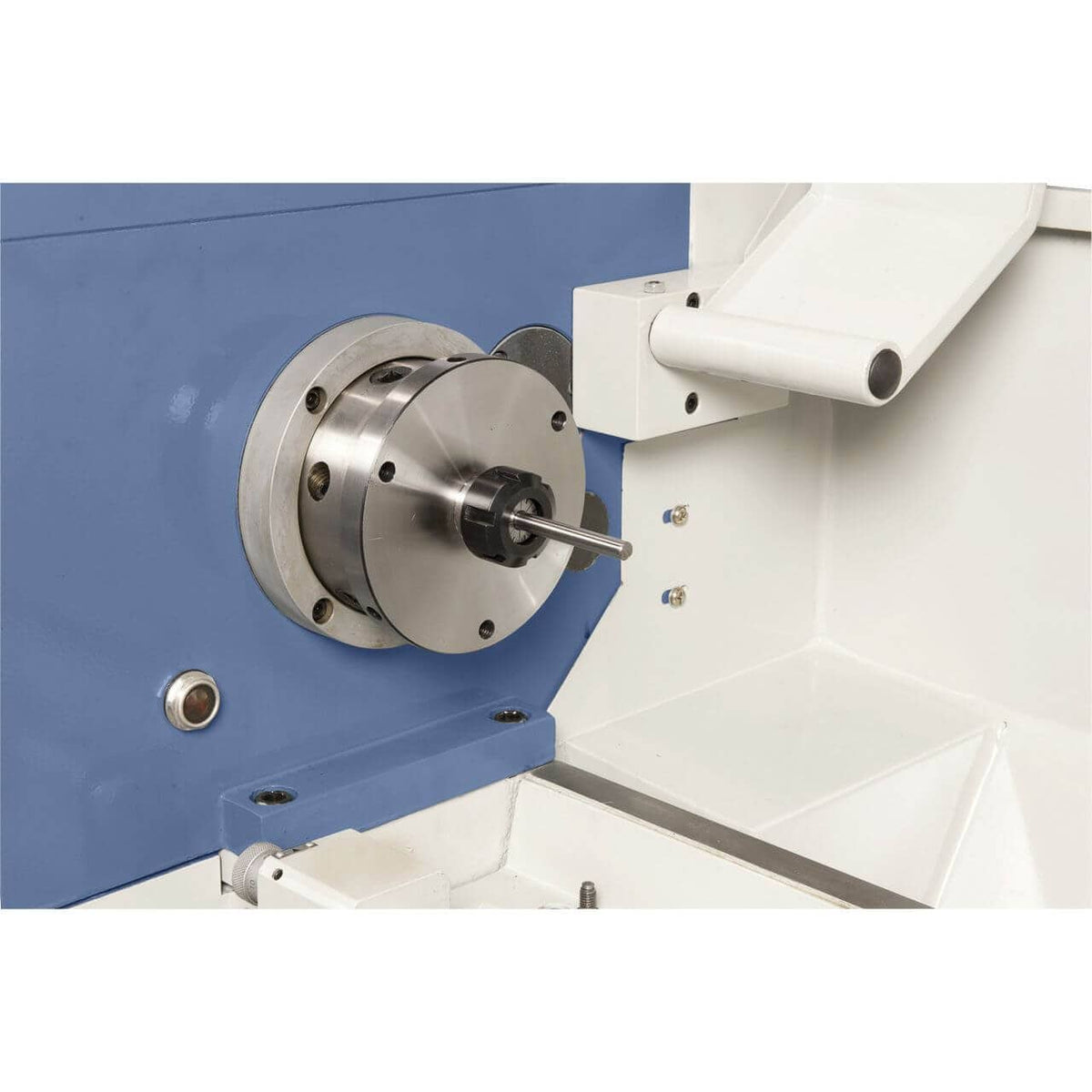

Standard accessories available: 4-jaw chuck, fixed and traveling steady rest, clamping plate, collet chuck. Original spare parts available with 3–5 business days shipping. Customer support available in Italian.

How much space does the Standard 150 require in the workshop?

Consider at least the distance between centers (1000 mm) clear in front of and behind the machine for workpiece handling, plus 80 cm on each side for safe operation. For machines over 300 kg, coordinate with Krollit for unloading equipment.
