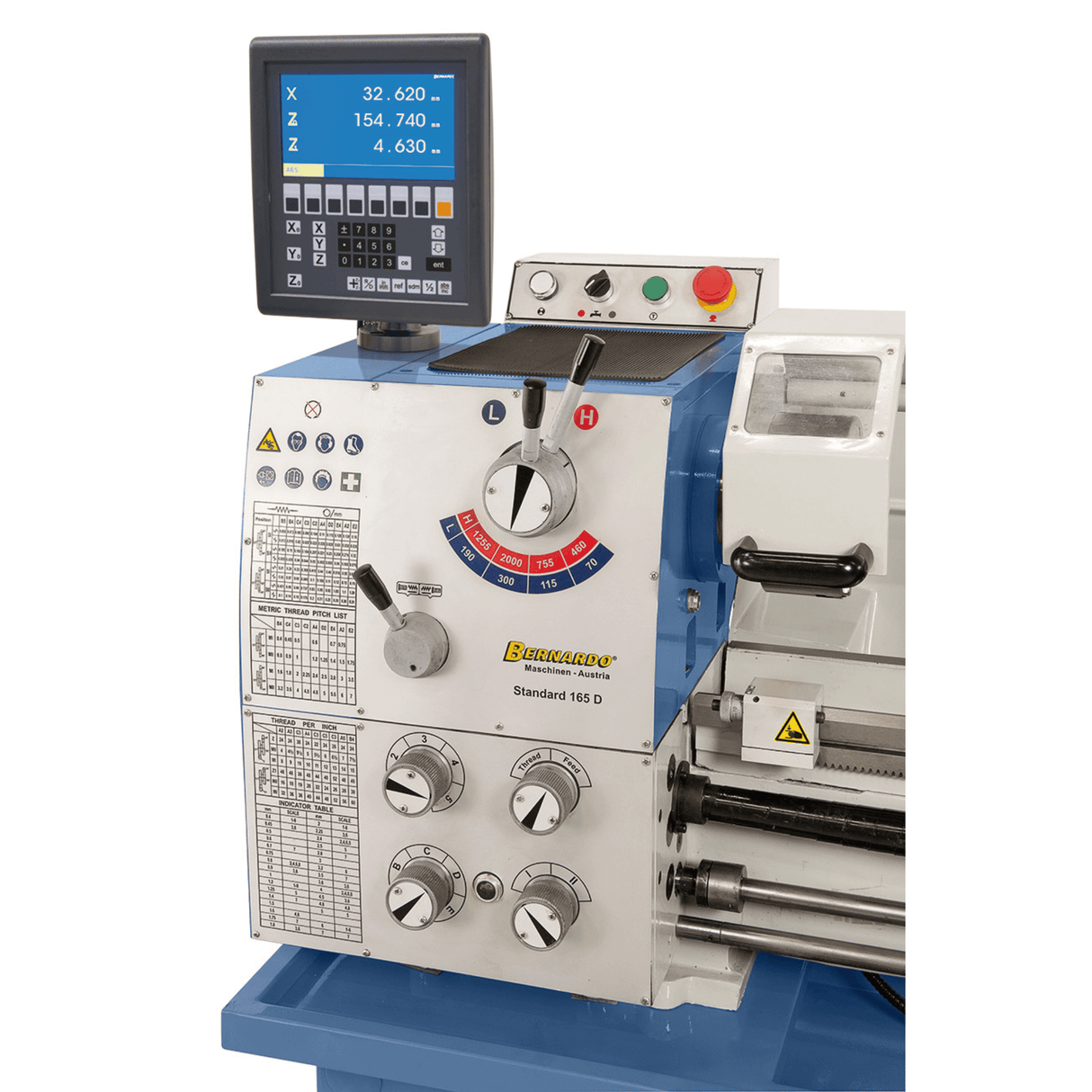

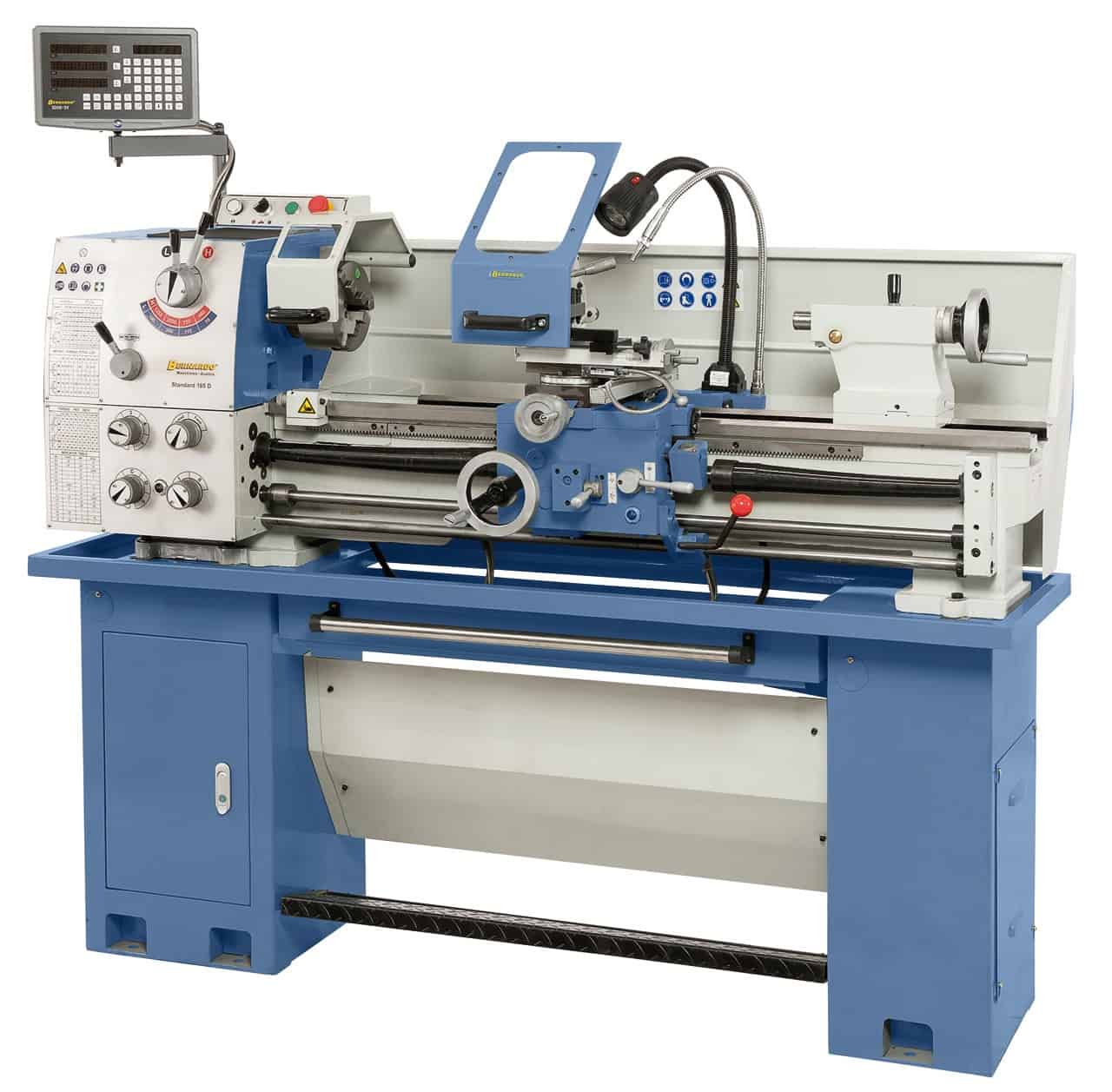

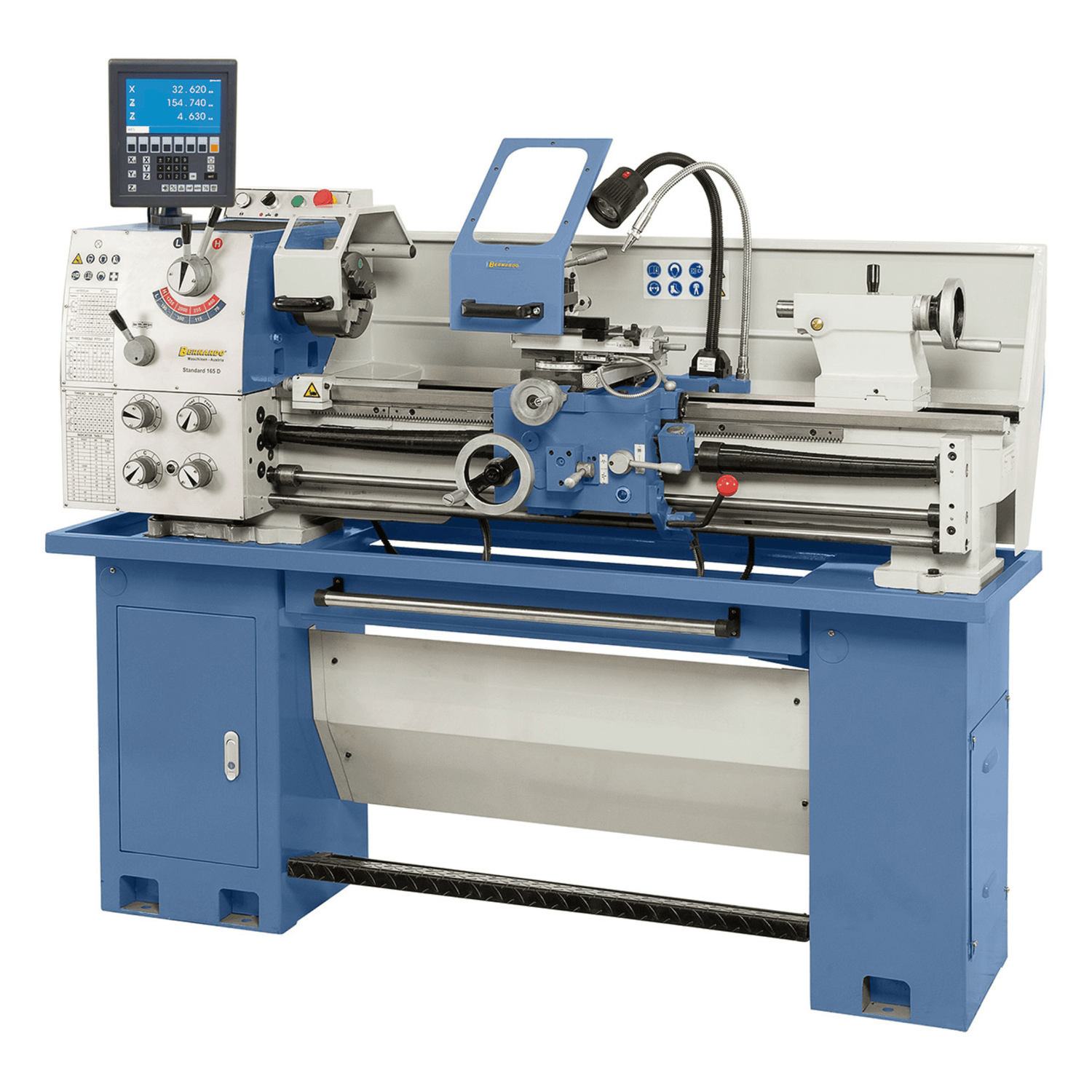

Bernardo Standard 165 D Lathe with ES-12 V 3-axis DRO

Bernardo Standard 165 D Lathe with 3-axis digital readout

The Bernardo Standard 165 D lathe is a robust and versatile machine, designed for mechanical workshops, maintenance, and vocational schools. With a turning diameter over the bed of 350 mm and a distance between centers of 1000 mm, it allows for machining of medium-sized workpieces. The 1.5 kW (S1) – 2.2 kW (S6) motor with magnetic brake and the 8-step speed range from 70 to 2000 rpm ensure reliable and safe performance. The ES-12 V 3-axis digital readout with LCD increases precision and simplifies operational control. Standard equipment includes a Ø 160 mm self-centering chuck, a Ø 200 mm independent chuck, steady rests, a tool turret, a coolant device, a CE brake pedal, LED light, and numerous accessories. A complete machine for those seeking reliability, precision, and safety.

---

Main Specifications

Distance between centers: 1000 mm
Center height: 175 mm
Turning diameter over bed: 350 mm
Turning diameter over gap: 450 mm (removable bed 220 mm)
Turning diameter over cross slide: 190 mm
Bed width: 180 mm
Spindle bore: Ø 40 mm
Spindle nose: DIN 55029, D1-4
Speed range: 70 – 2000 rpm (8 steps)
Longitudinal feeds: 0.053 – 1.29 mm/rev (40)
Cross feeds: 0.013 – 0.31 mm/rev (40)
Metric threads: 0.4 – 7 mm (32 pitches)
Inch threads: 4 – 60 TPI (36 pitches)
Tailstock quill: travel 110 mm, MT3 taper
Motor power: 1.5 kW (S1) / 2.2 kW (S6) – 400 V
Dimensions: 1730 x 700 x 1340 mm
Weight: 514 kg

---

Technical table:

Specification	Value
Brand	Bernardo
Model	Standard 165 D
Distance between centers	1000 mm
Center height	175 mm
Turning diameter over bed	350 mm
Turning diameter over gap	450 mm (removable bed 220 mm)
Turning diameter over cross slide	190 mm
Bed width	180 mm
Spindle bore	Ø 40 mm
Spindle nose	DIN 55029, D1-4
Speed range	70 – 2000 rpm (8 steps)
Longitudinal feeds	0.053 – 1.29 mm/rev (40)
Cross feeds	0.013 – 0.31 mm/rev (40)
Metric threads	0.4 – 7 mm (32)
Inch threads	4 – 60 TPI (36)
Tailstock quill Ø	42 mm
Quill travel	110 mm
Tailstock taper	MT3
Motor power	1.5 kW (S1) / 2.2 kW (S6) – 400 V
Machine dimensions	1730 x 700 x 1340 mm
Weight	514 kg
Origin	Europe

---

Package contents:
ES-12 V 3-axis digital readout with LCD
3-jaw self-centering chuck Ø 160 mm (BC3)

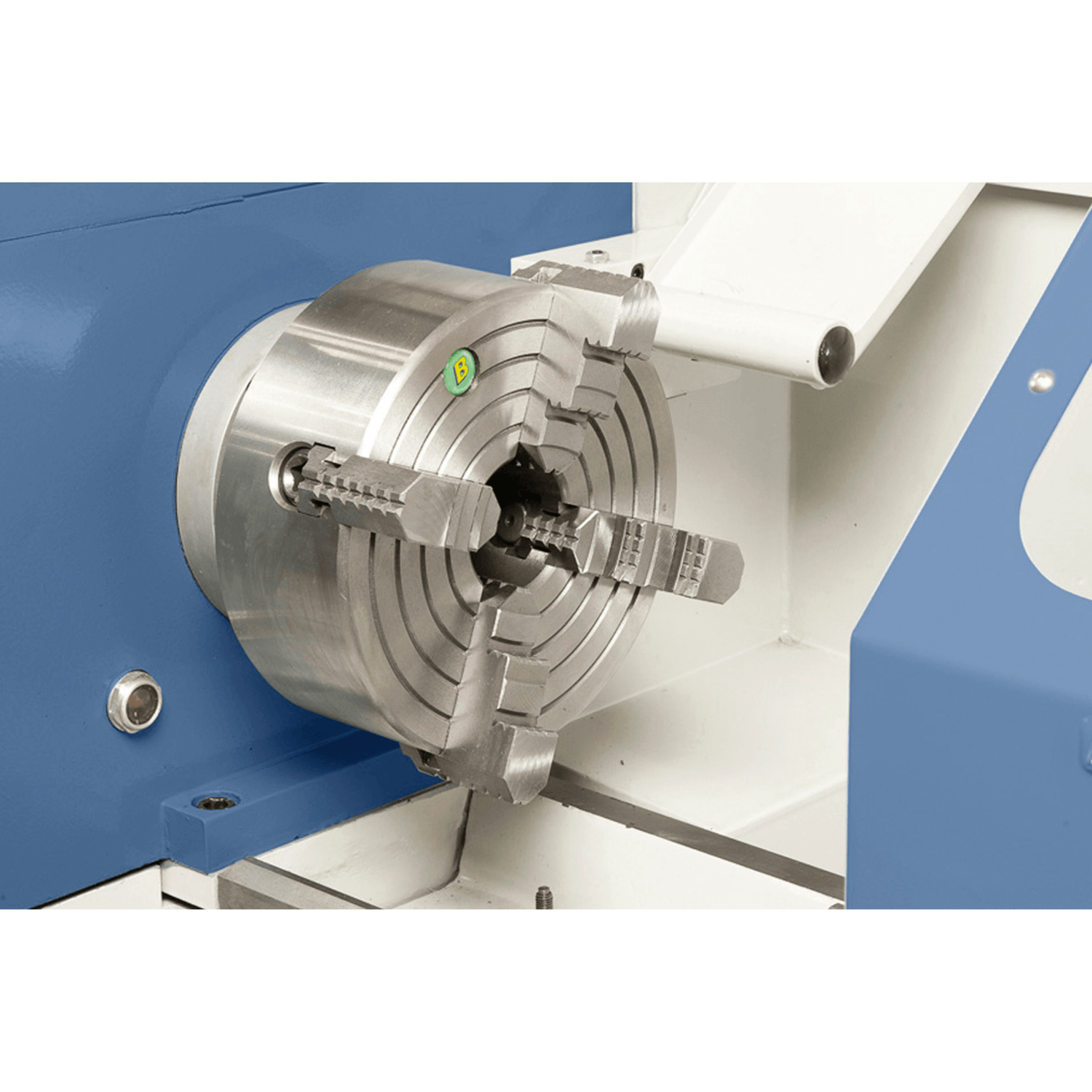

Independent chuck Ø 200 mm (D4)
Faceplate Ø 250 mm

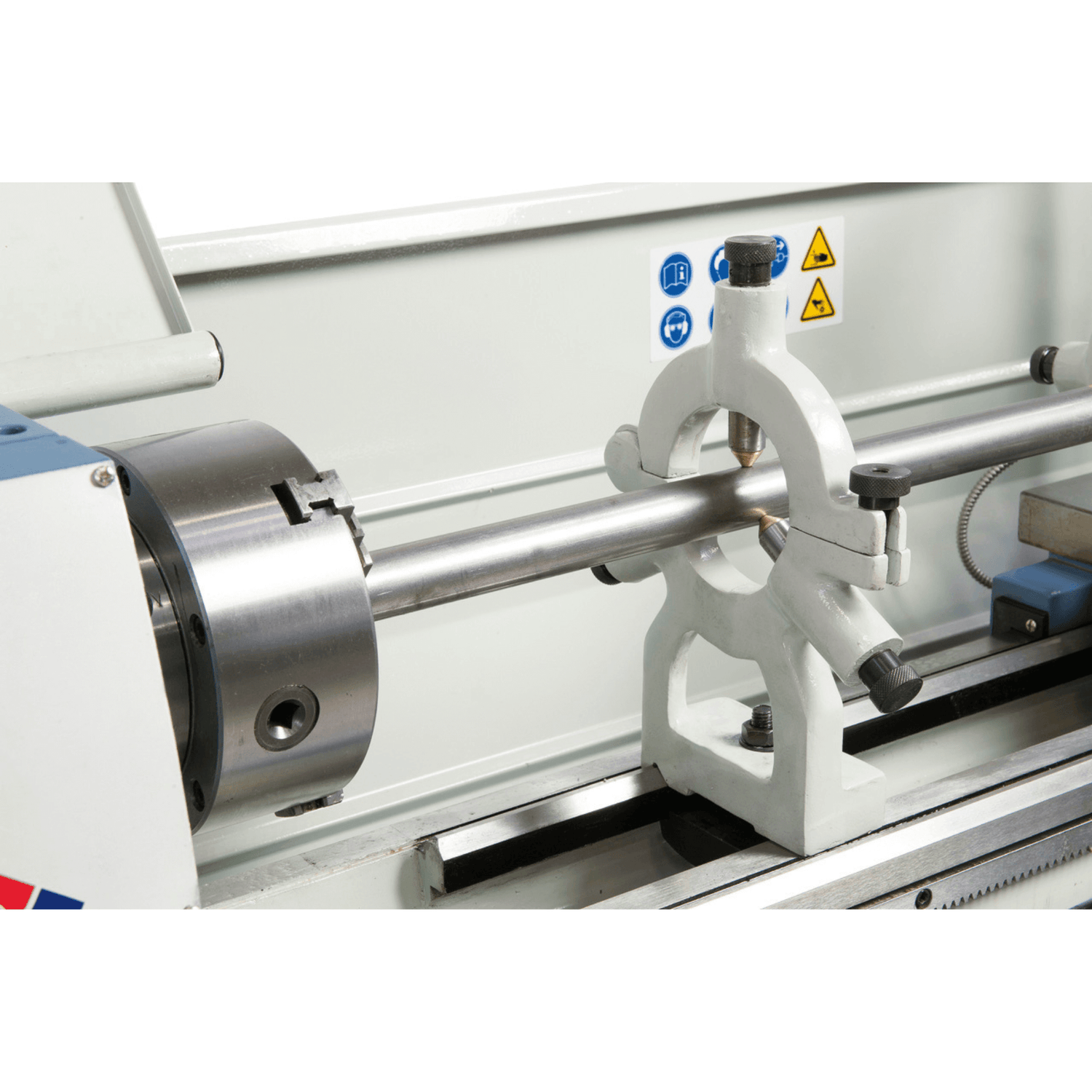

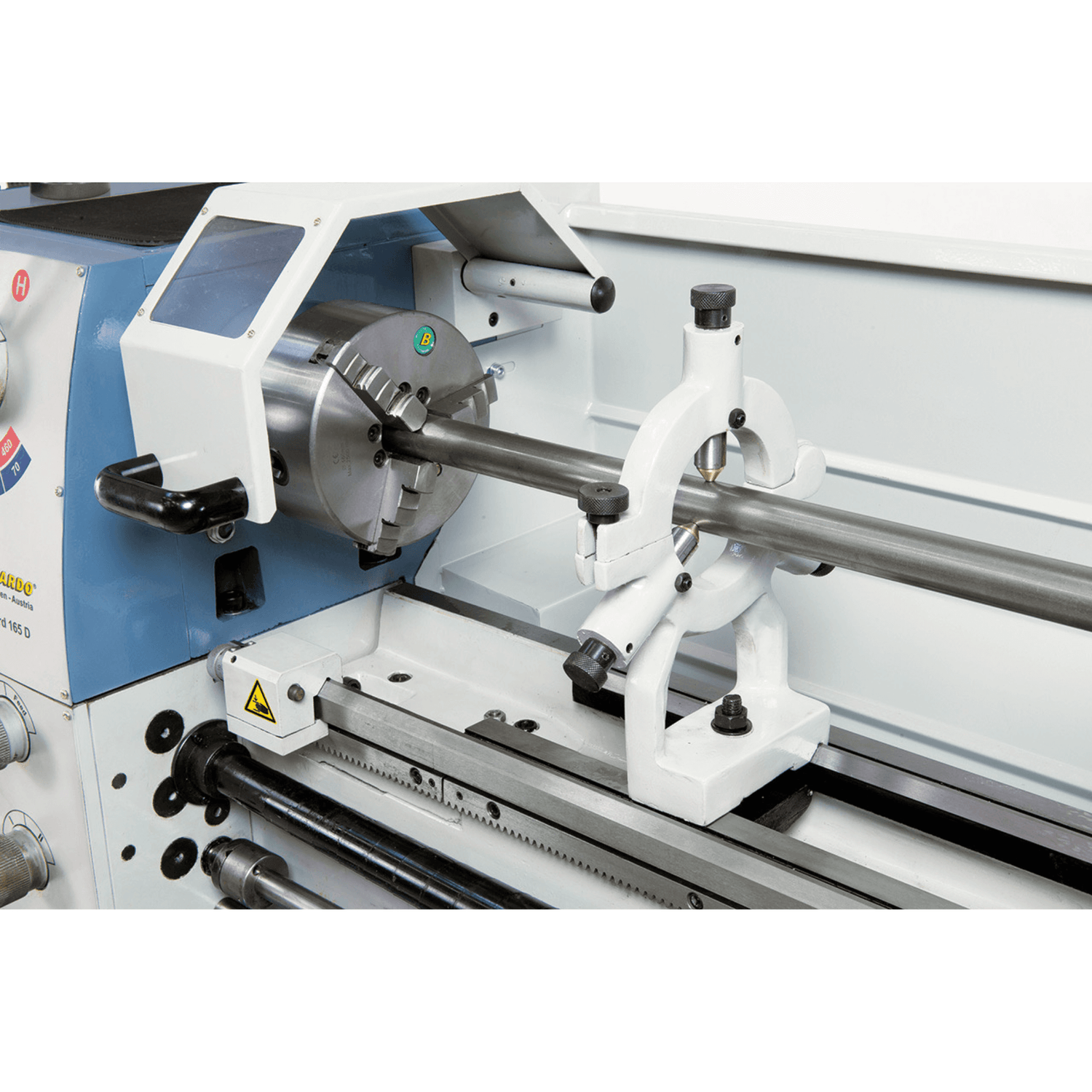

Fixed steady rest (Ø passage 60 mm)
Follow rest (Ø passage 60 mm)
4-position tool post with guard
Coolant device
Foot pedal with CE brake
Motor with CE magnetic brake

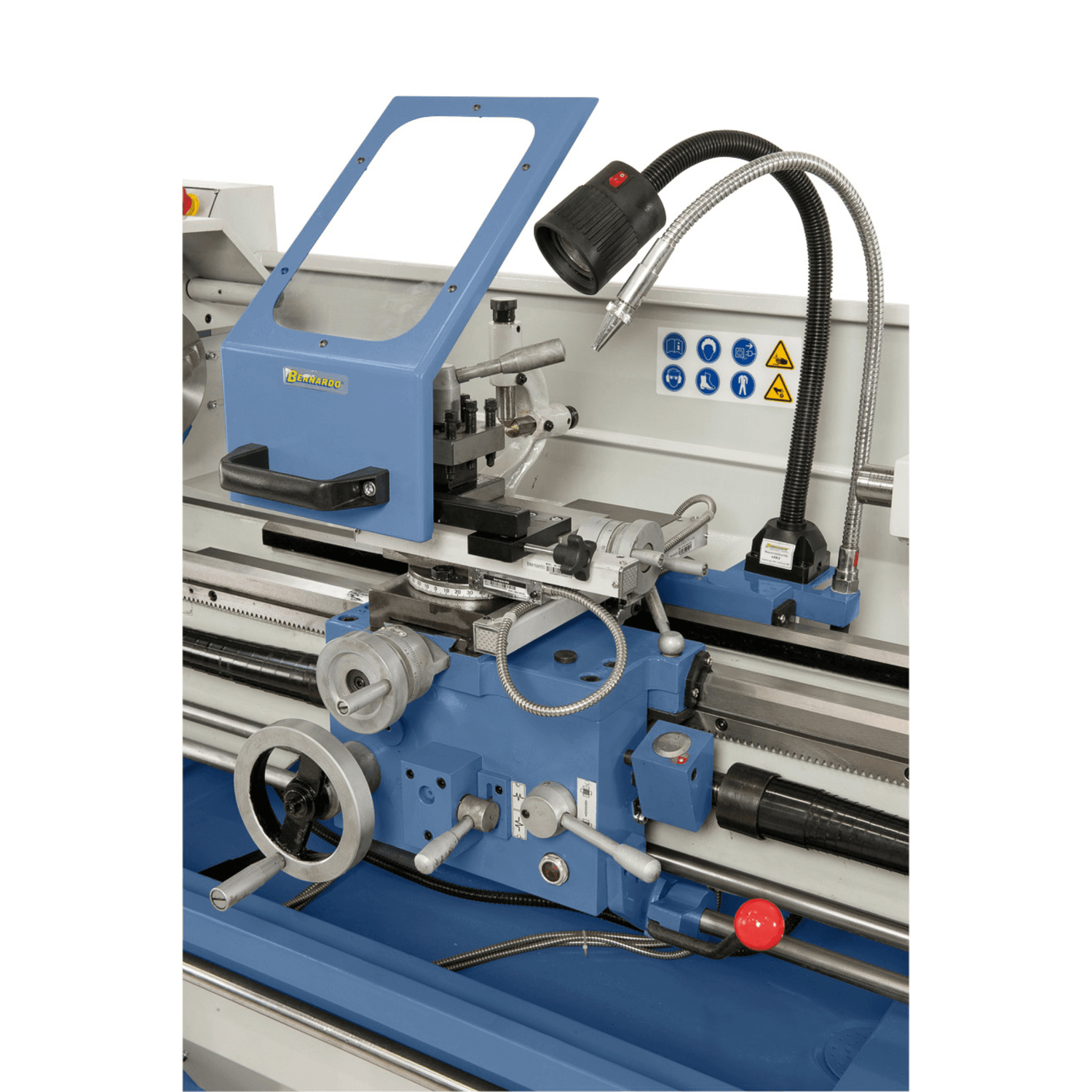

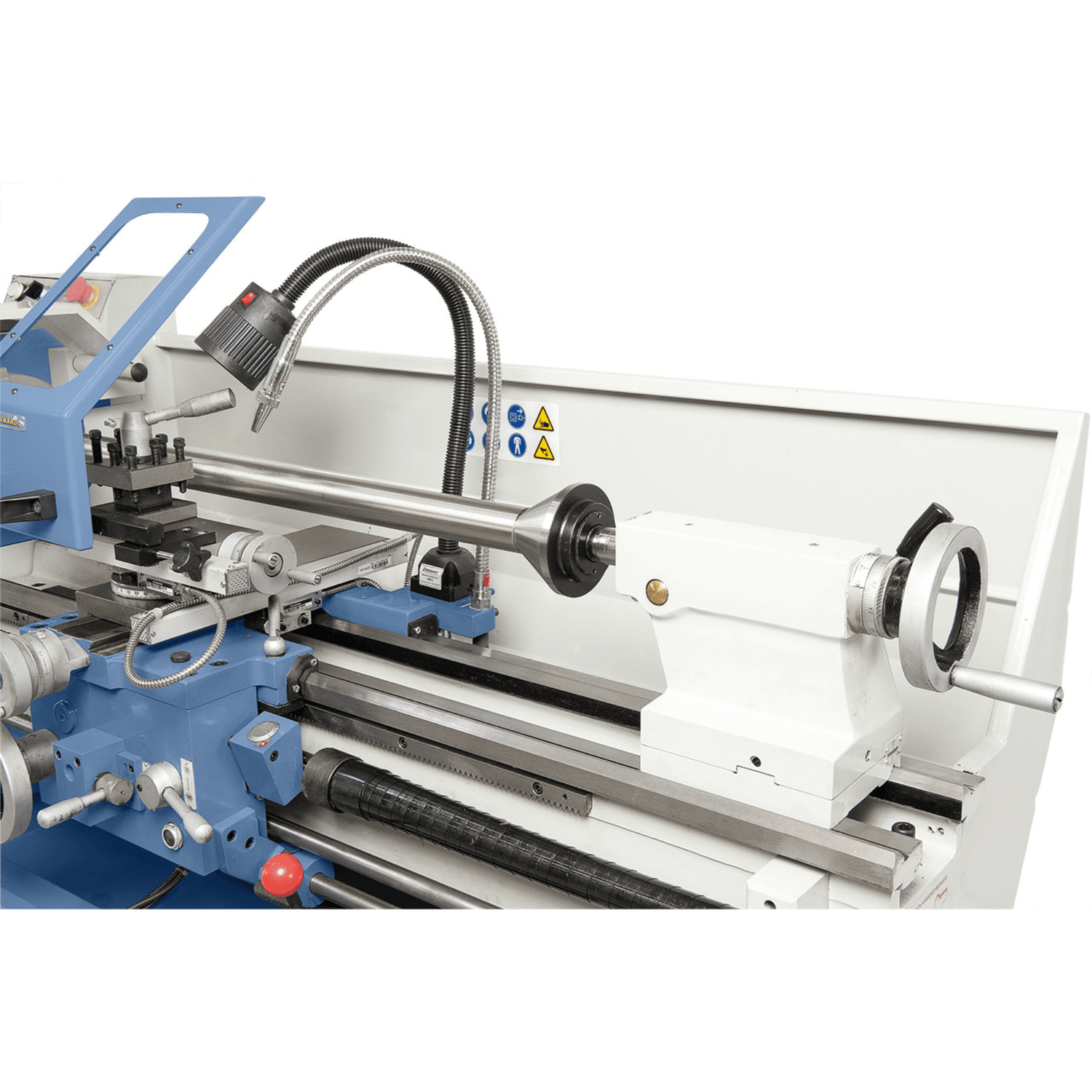

LED machine light
Micrometric longitudinal stop
Thread dial
Morse bushing
2 dead centers

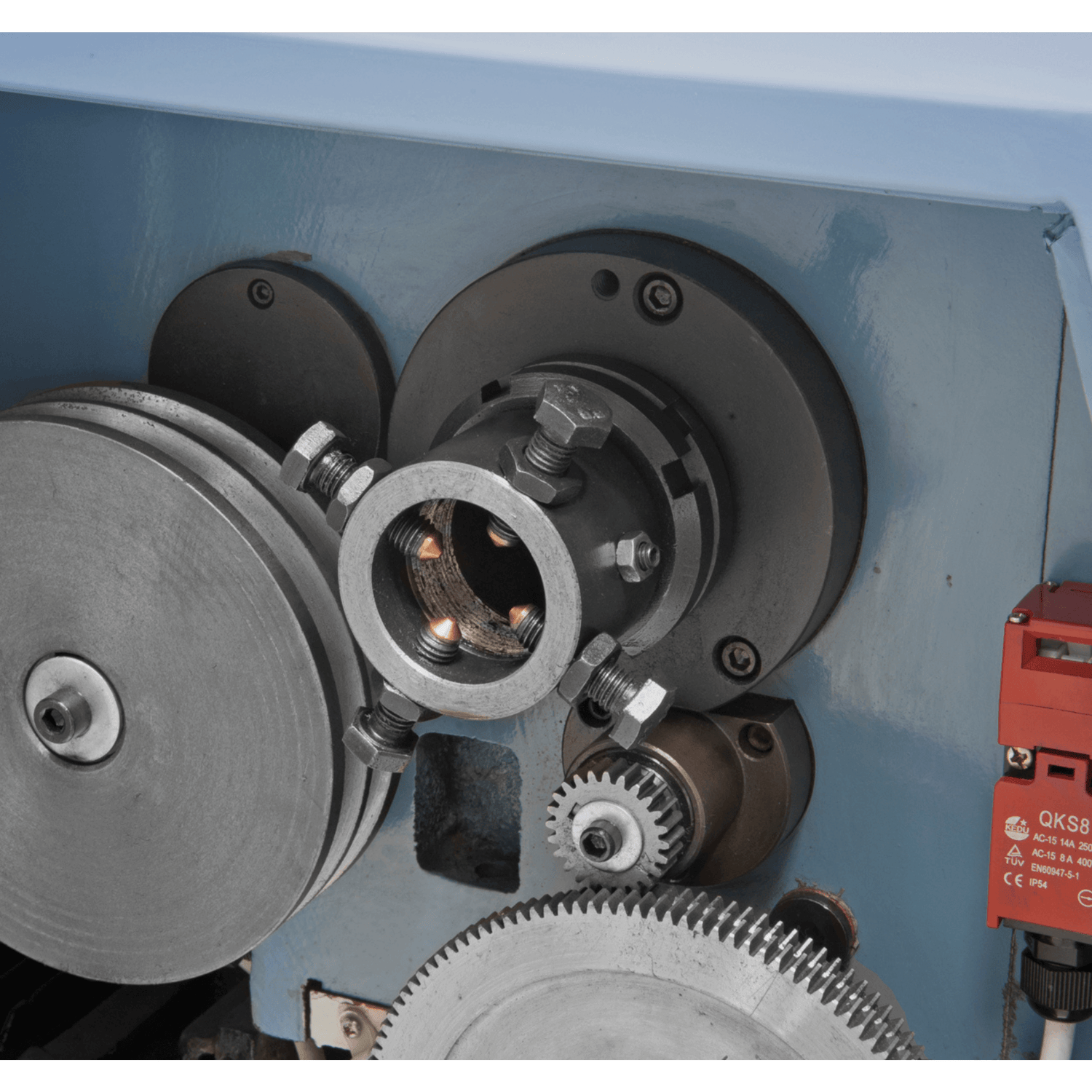

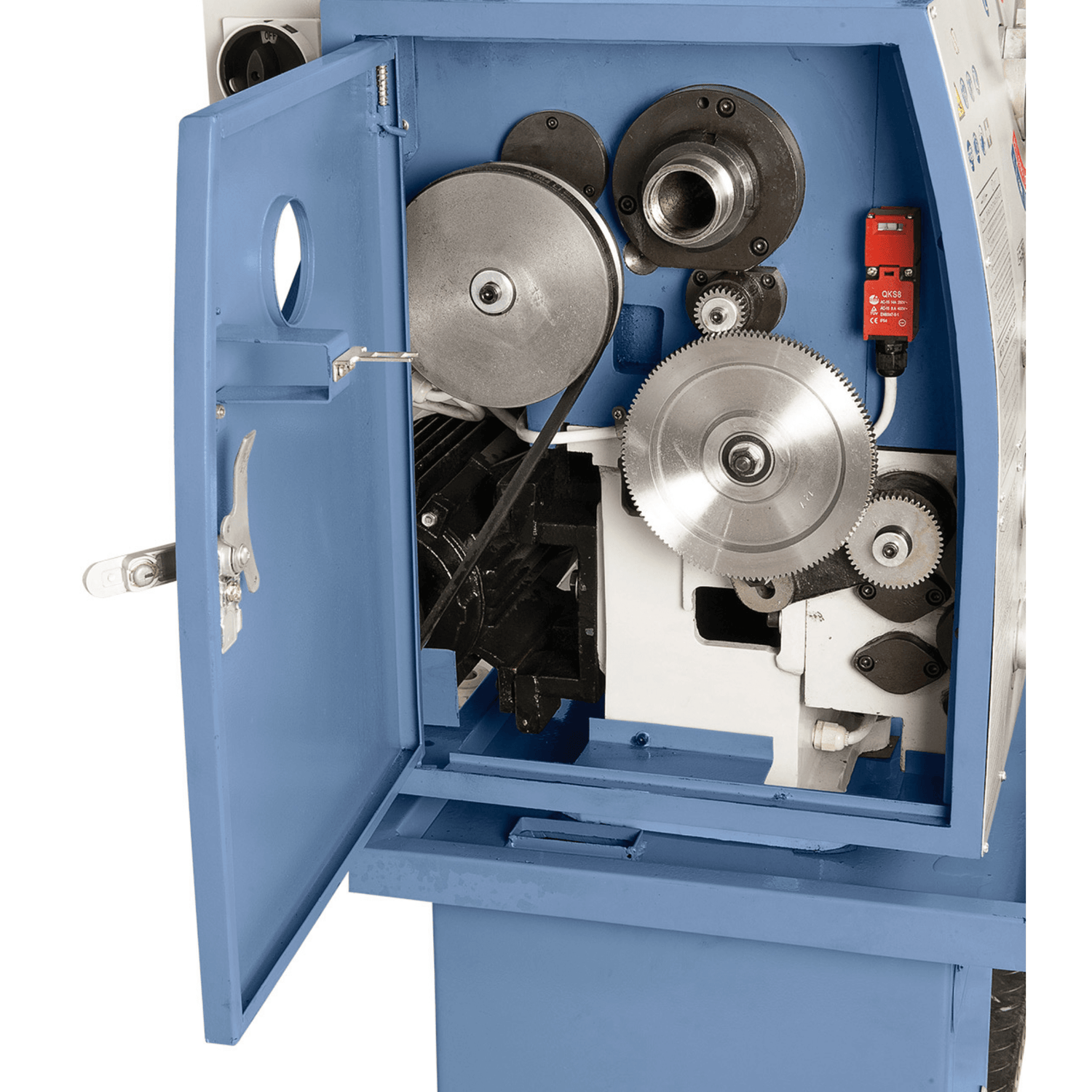

Change gears

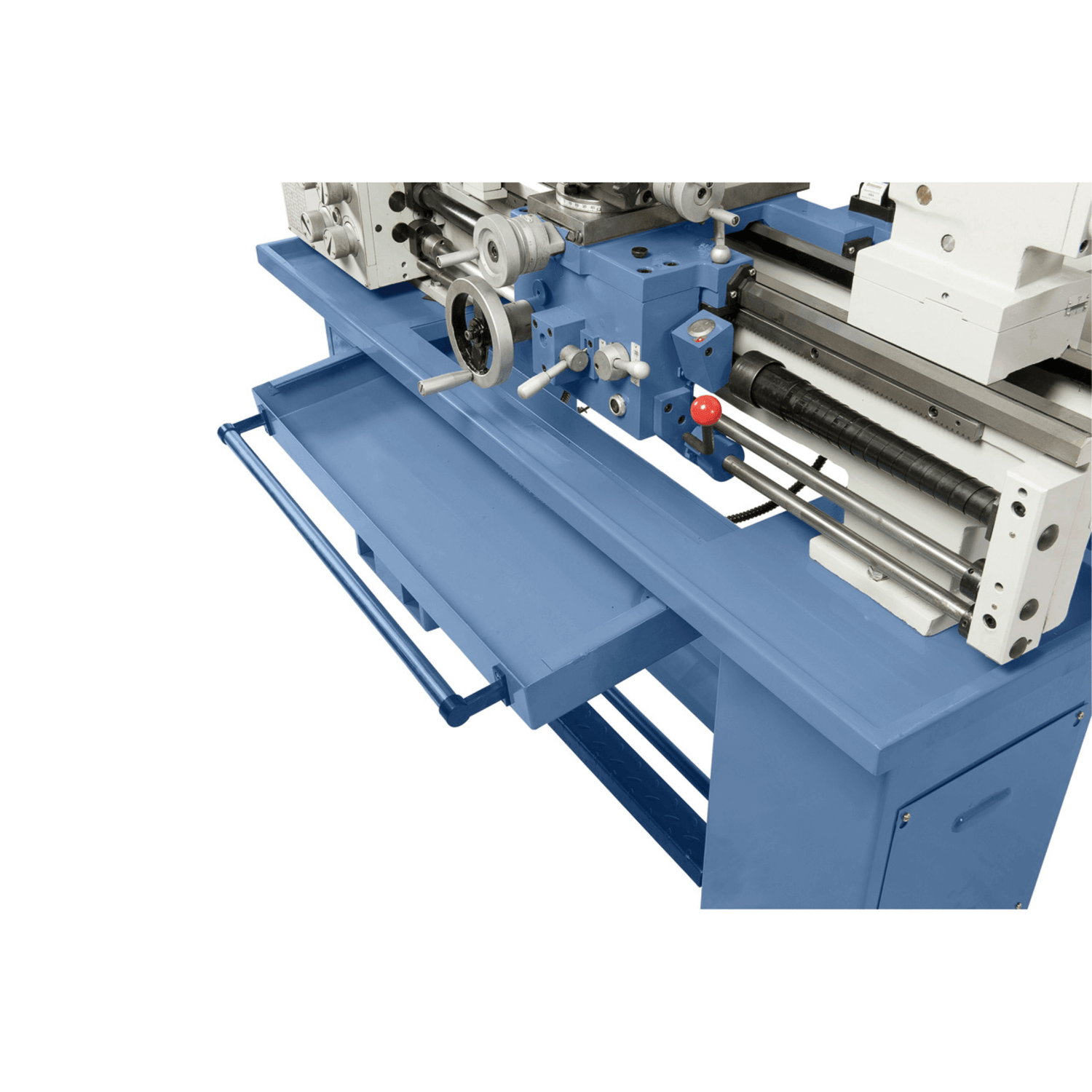

Splash guard and removable chip tray
Safety clutch
Stand included
Tool set and accessories

Logistics

Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

Frequently Asked Questions

What is the difference between the Standard and Profi series in Bernardo lathes?

The Standard series (like the Standard 165) has a monoblock structure with a prismatic bed: more rigid and quieter for continuous precision machining, with an international standard D1-4 or D1-6 spindle nose. The Profi series has a gap bed that facilitates access to the cutting area and lower weight — suitable for workshops with limited space. Standard 150: Ø bed 350 mm, distance between centers 1000 mm — intermediate dimensions between hobbyist and light industrial.

Does the 8-speed gearbox cover all typical machining operations?

The 8-speed gearbox covers the main requirements: low speeds for hard steel and large sections (50–100 rpm), medium for standard steel (200–600 rpm), high for aluminum and finishing (800–2000 rpm). Selection requires stopping the machine and shifting the lever.

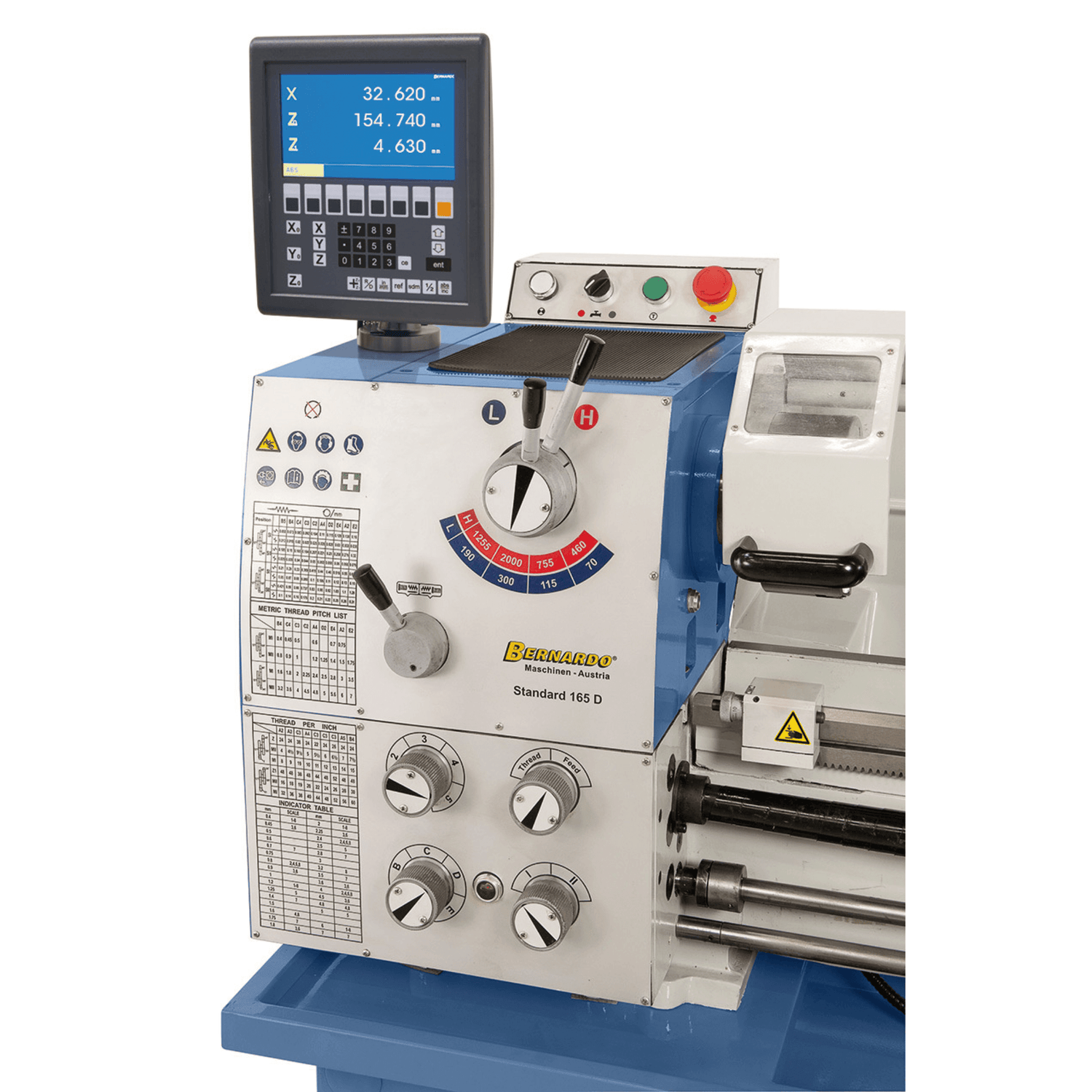

The ES-12 V 3-axis DRO — what does it measure and how is it used?

The 3-axis DRO simultaneously measures the X-axis (cross slide), Z-axis (longitudinal), and W-axis (compound slide). 0.001 mm resolution — eliminates reading verniers and reduces dimension errors in repeated setups. The "diameter" function automatically displays the turned diameter calculated from the X position without needing to measure. Immediate setup without programming.

Are spare parts and accessories available?

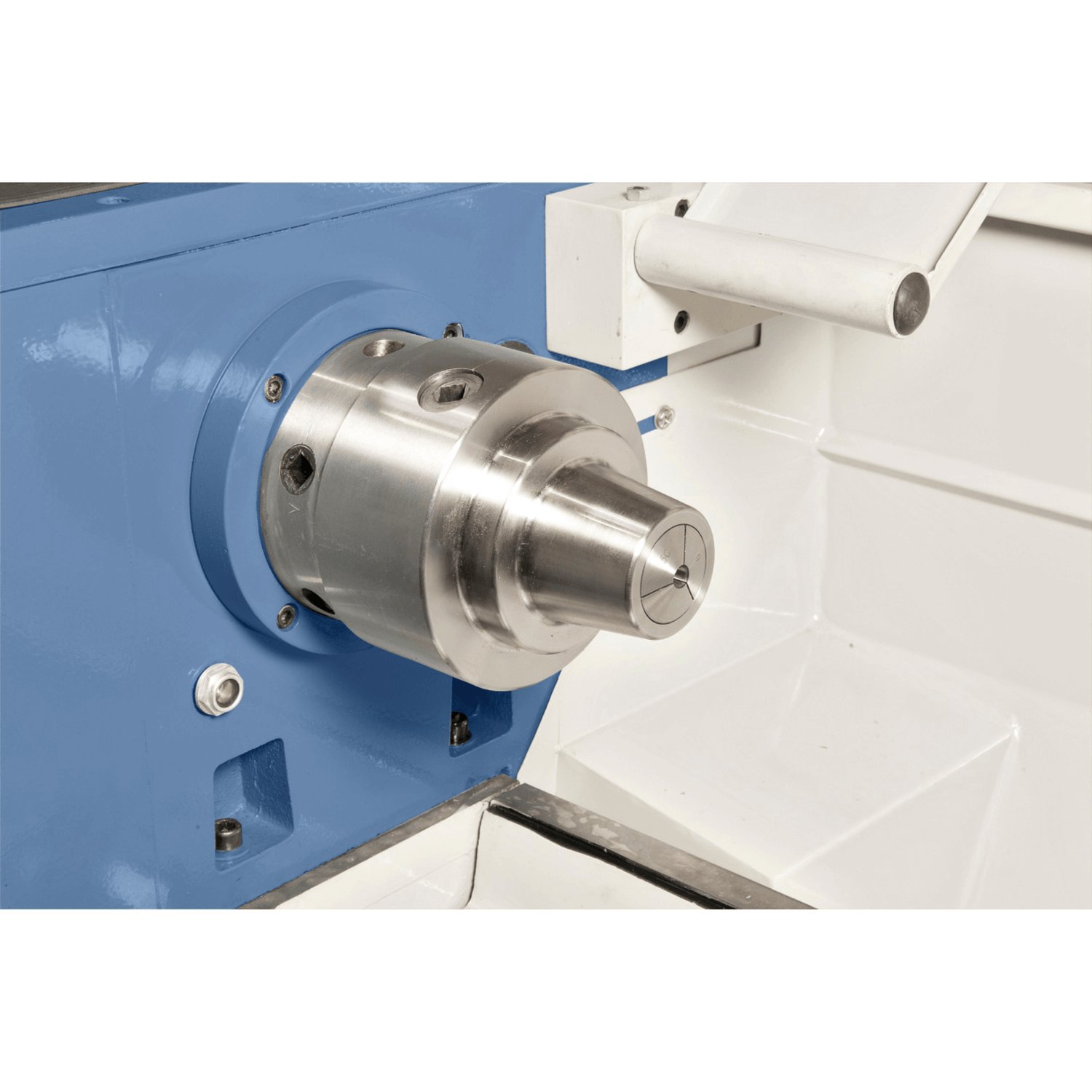

Standard accessories available: 4-jaw chuck, fixed and follow rest, clamping plate, collet chuck. Original spare parts available with 3–5 working days shipping. Customer support available in Italian.

How much space does the Standard 165 require in the workshop?

Consider at least the distance between centers (1000 mm) clear in front and behind the machine for workpiece handling, plus 80 cm on each side for safe working. For machines over 300 kg, coordinate with Krollit for unloading equipment.
