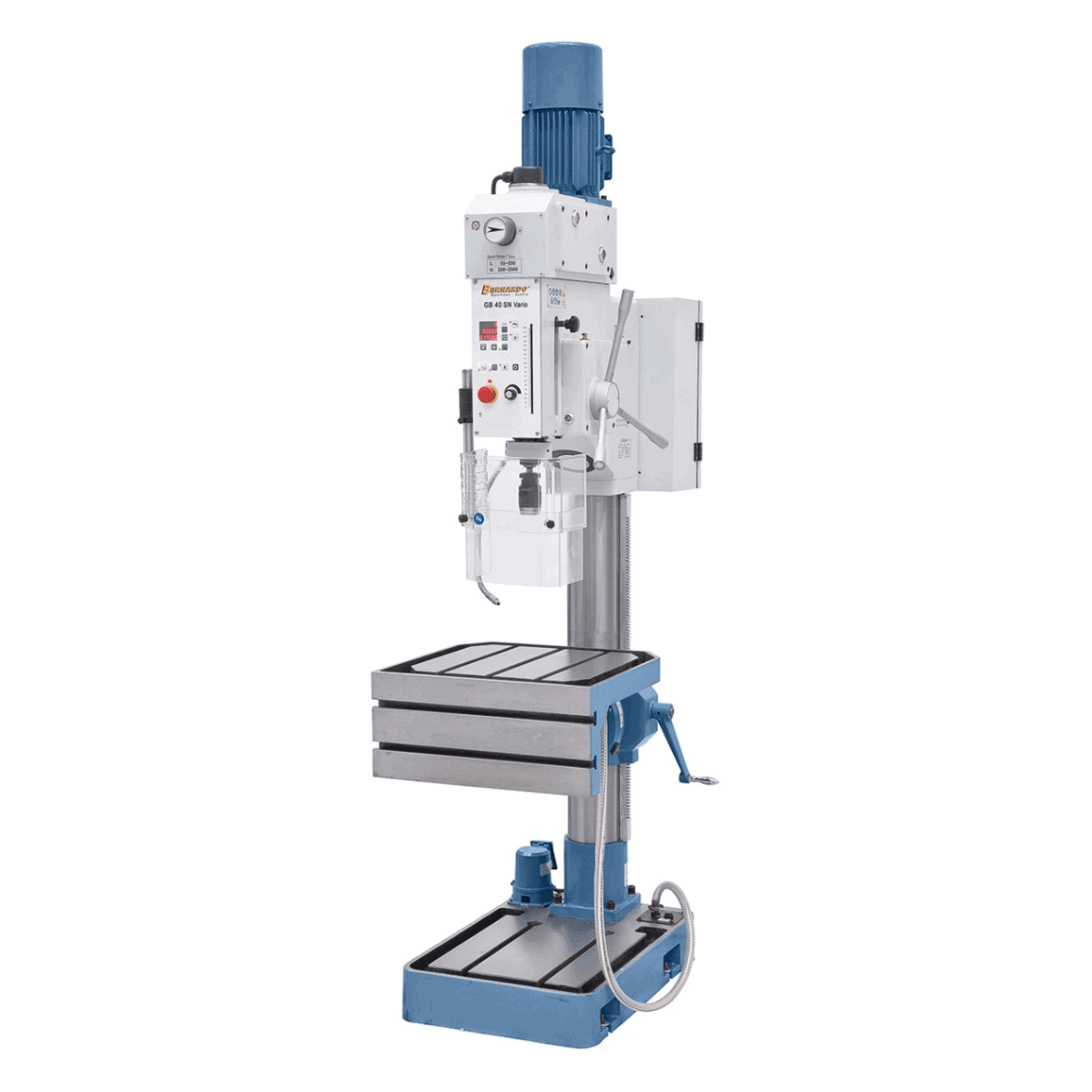

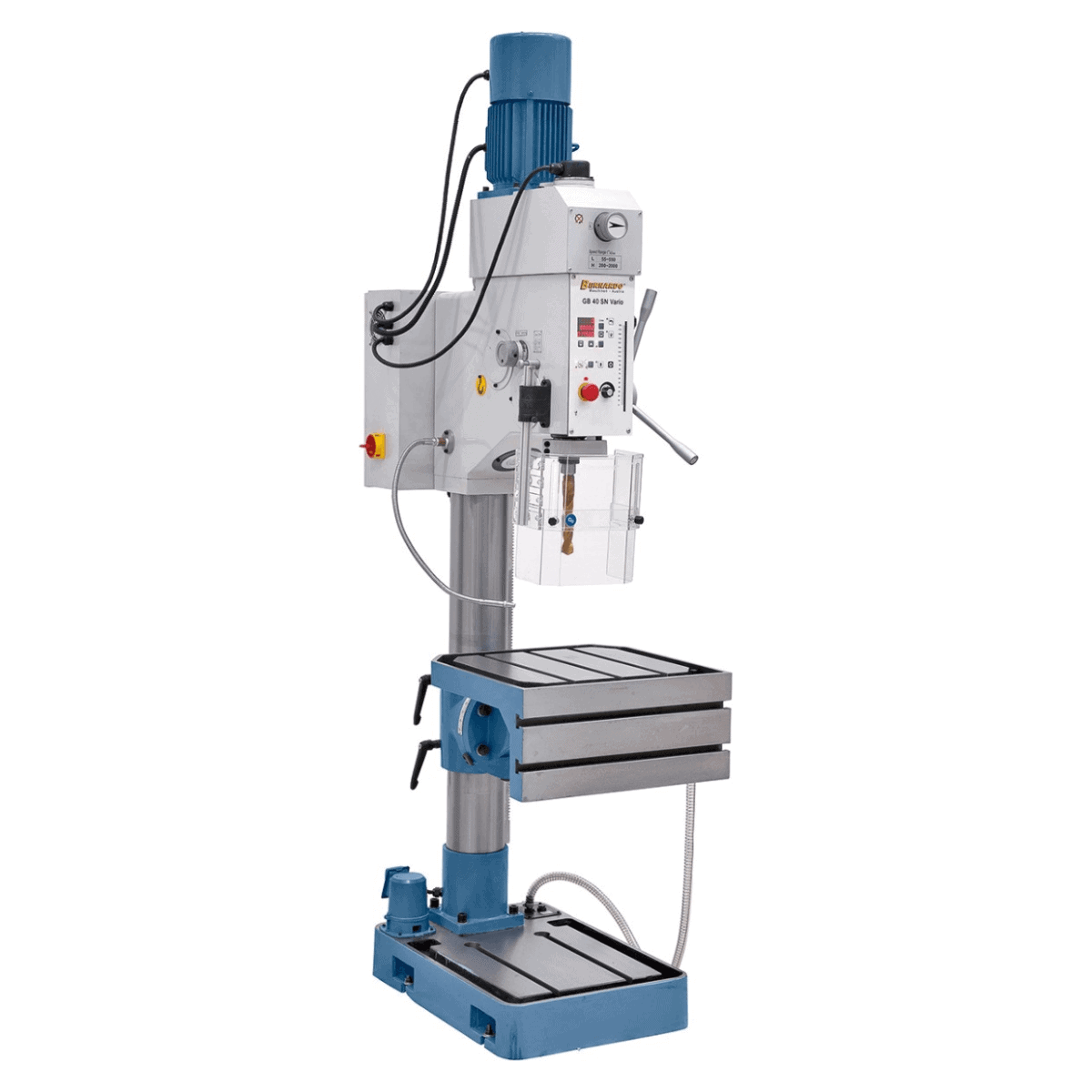

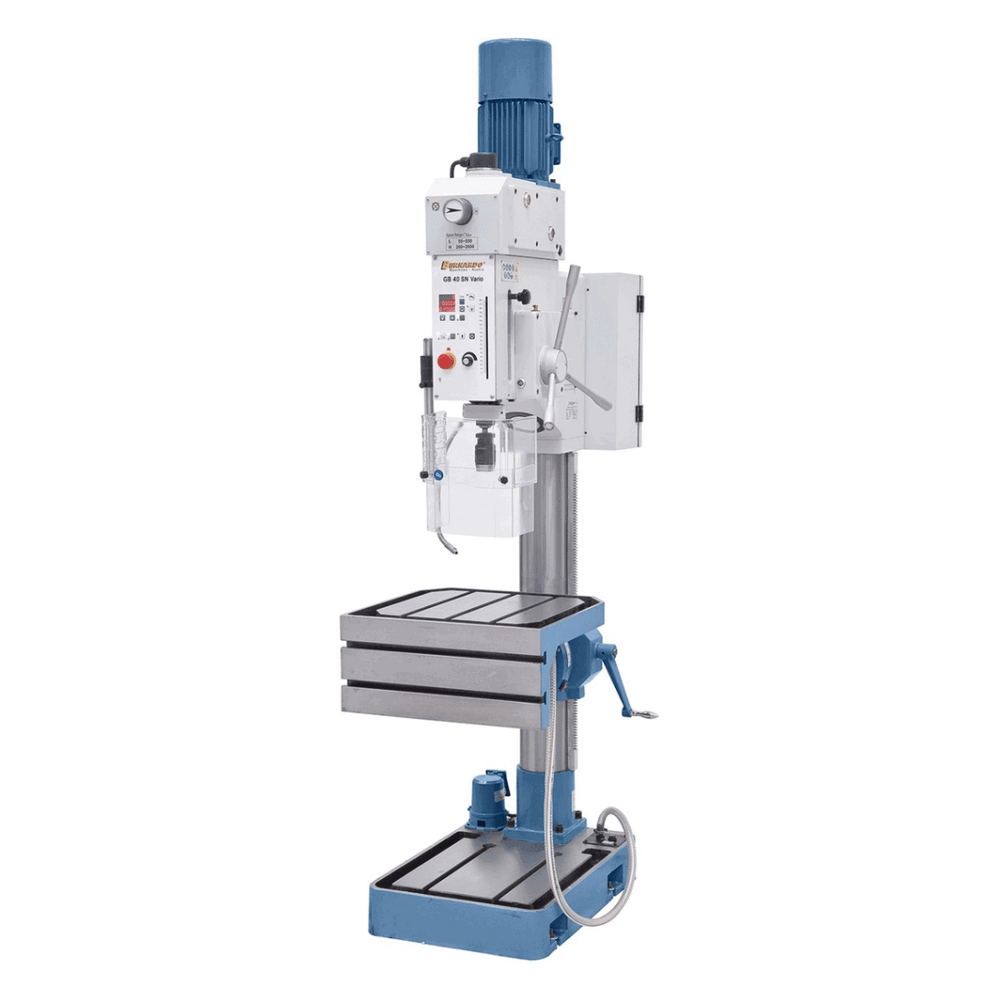

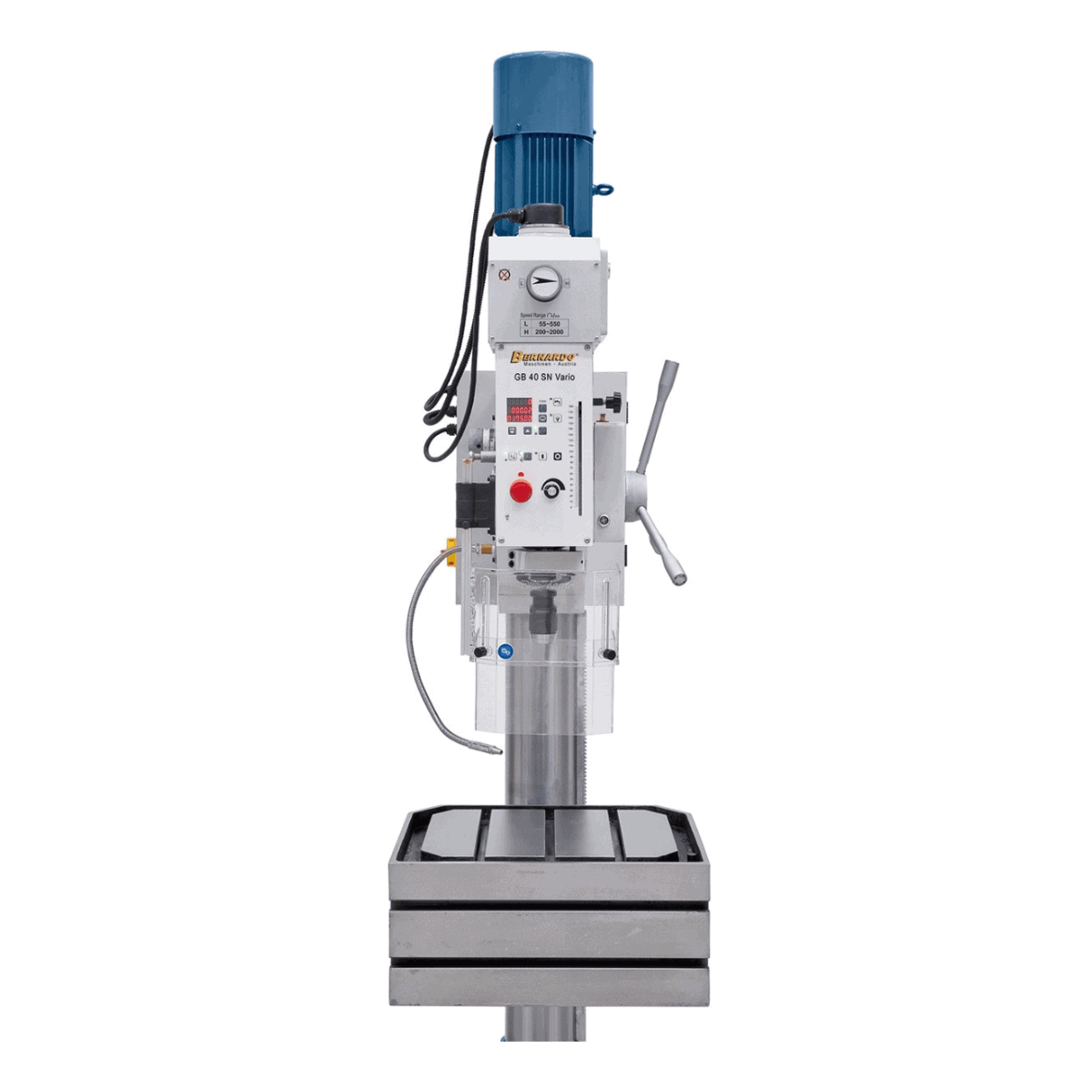

Bernardo Pillar Drilling Machine GB 40 SN Vario with Tilting Table – Power and Precision for Professional Workshops
The Bernardo GB 40 SN Vario pillar drilling machine is a versatile and precise machine, suitable for drilling, reaming, and tapping up to M24. Thanks to the continuous speed adjustment, displayed on the digital screen, it allows easy setting of the optimal cutting speed based on the material and tool used.
The machine is equipped with 2 electromagnetically adjustable automatic spindle feeds, a tapping device, and automatic tool release included as standard. The table rotates around the column and tilts ±45°, increasing flexibility in machining, while the professional-grade base with T-slots allows secure clamping of even very long workpieces.
With hardened and ground gears, guaranteed concentricity ≤0.02 mm, and a 2.2 kW (3.0 kW S6) motor, the GB 40 SN Vario offers reliable and long-lasting performance, suitable for industrial and professional applications.
Key Specifications
Continuous speed adjustment with inverter and digital display
Two electromagnetically adjustable automatic spindle feeds
Tapping device and automatic tool release included as standard
Table rotates 360° around the column and tilts ±45°
Robust base with T-slots for clamping large workpieces
Hardened and ground gears for smooth and quiet operation
Guaranteed concentricity ≤0.02 mm, measured at the spindle
Membrane keyboard for simple and intuitive operation
Integrated coolant pump and LED light
Robust structure with 150 mm column for high stability
Technical Specifications
| Specification |
Value |
| Max. drilling capacity |
40 mm |
| Max. tapping capacity |
M24 |
| Drill chuck |
1 – 16 mm / B16 |
| Spindle taper |
MT 4 |
| Spindle speeds |
55 – 550 / 200 – 2000 rpm |
| Automatic feeds |
0.1 / 0.2 mm/revolution |
| Spindle to column distance |
340 mm |
| Max. spindle to table distance |
675 mm |
| Spindle to base distance |
1195 mm |
| Spindle stroke |
190 mm |
| Column diameter |
150 mm |
| Table dimensions / T-slots |
560 x 520 mm / 18 mm |
| Vertical clamping area / T-slots |
560 x 250 mm / 18 mm |
| Usable base plate |
535 x 505 mm |
| Motor power S1 100% |
2.2 kW / 400 V |
| Motor power S6 40% |
3.0 kW / 400 V |
| Machine dimensions (L x W x H) |
620 x 1000 x 2300 mm |
| Weight |
approx. 505 kg |
Standard equipment
Keyless drill chuck 1–16 mm / B16
Spindle arbor MT 4 / B16
Morse taper sleeves MT 4/3, MT 3/2
Delta VFD inverter
Automatic tool release device
Coolant device
Electromagnetic spindle feed

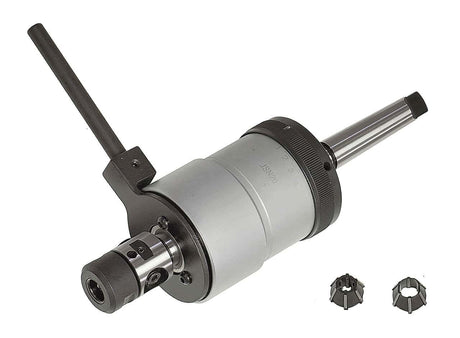

Tapping device
LED work lamp
Digital speed display
Digital drilling depth display
Height-adjustable protection
Why buy the GB 40 SN Vario Pillar Drilling Machine from Krollit
Buying the GB 40 SN Vario Pillar Drilling Machine from Krollit means choosing not only a professional metalworking machine, but also concrete support before and after the purchase.
Krollit assists professionals, craftsmen, and workshops in choosing the most suitable machine, offering assistance, technical support, and spare parts management.
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
Gear-driven vs. belt-driven drill presses: why choose the GB 40 SN Vario?
The GB 40 SN Vario uses gear transmission: higher torque at low speeds compared to belt-driven drills of the same power — essential for deep reaming, tapping up to M24, drilling cast iron and hard steels, and counterboring operations. The Vario adds continuous speed adjustment without stopping the machine — switching from roughing to finishing in 2 seconds.
What is the maximum drilling diameter in steel with the GB 40 SN Vario?
Nominal capacity Ø 40 mm in S235 steel with HSS drill bit. For large diameter holes (over Ø 25 mm), always use the lowest speed, slow feed, and coolant — heat is the main enemy of the cutting edge. For AISI 304 stainless steel, reduce the capacity by 30–40%. For core drilling, consult Krollit for specific capacity. Customer support available in Italian.
How do the automatic feeds work?
The automatic feeds of the GB 40 SN Vario motorize the spindle's descent at a constant and programmable speed — essential for serial drilling of identical parts (repeatable depth) and for reaming where feed consistency affects hole finish. Select the mm/revolution value from the table and engage the lever.
Is the tilting table genuinely useful?

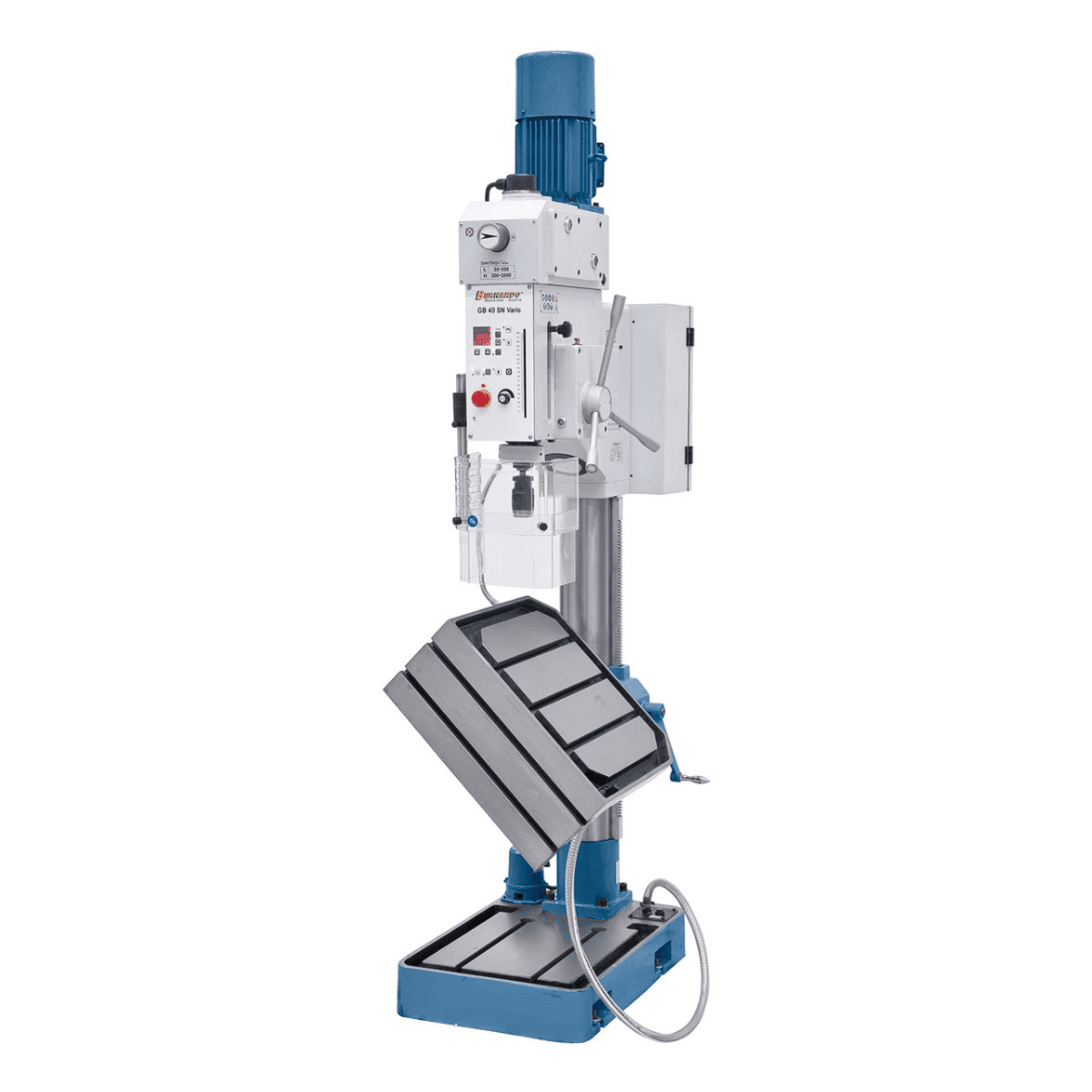

Yes — the table of the GB 40 SN Vario tilts up to ±45° and rotates 360°: it allows angled drilling on workpieces that cannot be manually tilted, such as large flanges or parts with complex geometries. For standard 90° drilling, the table remains in a vertical position.
Are spare parts available?
Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
