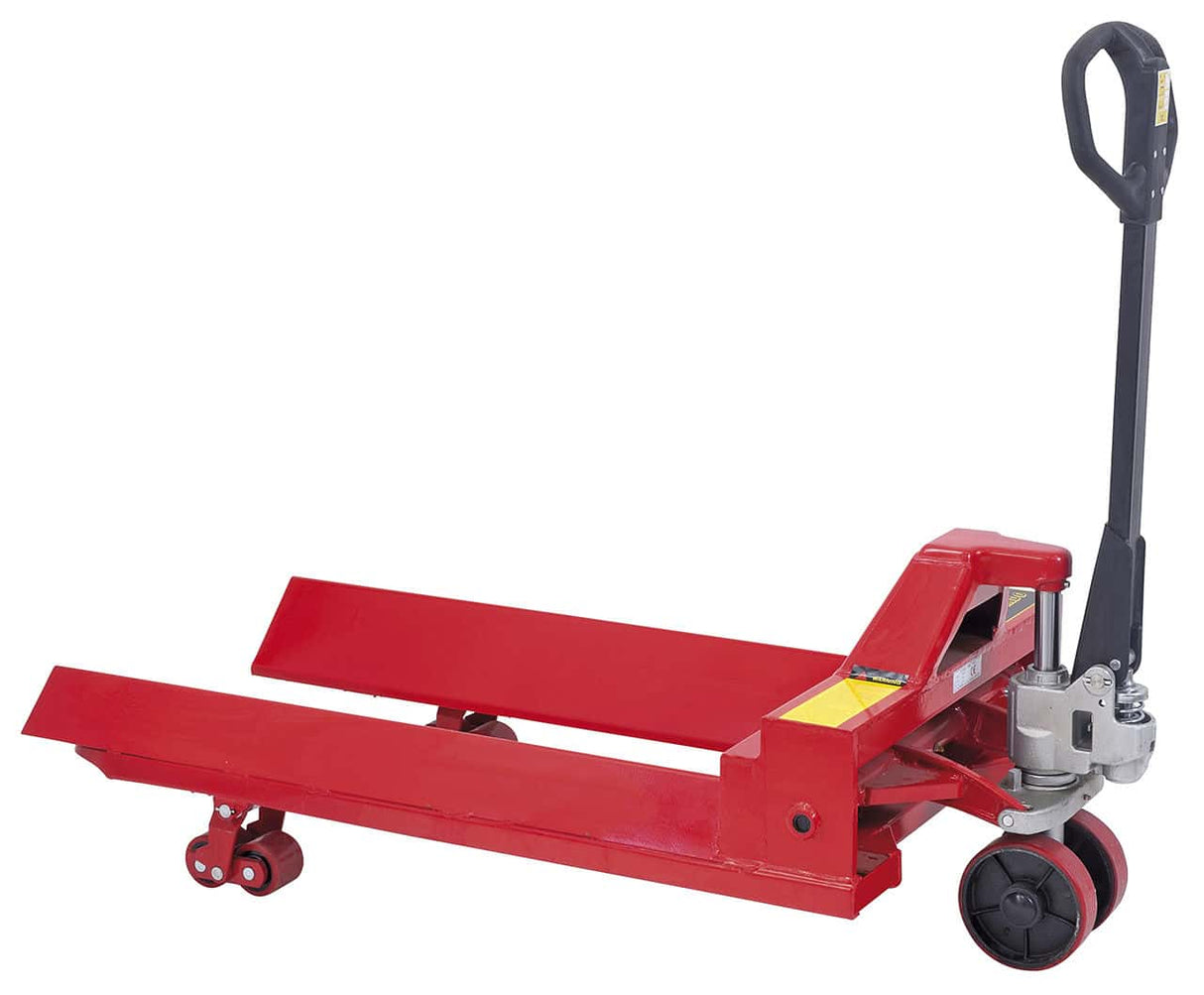

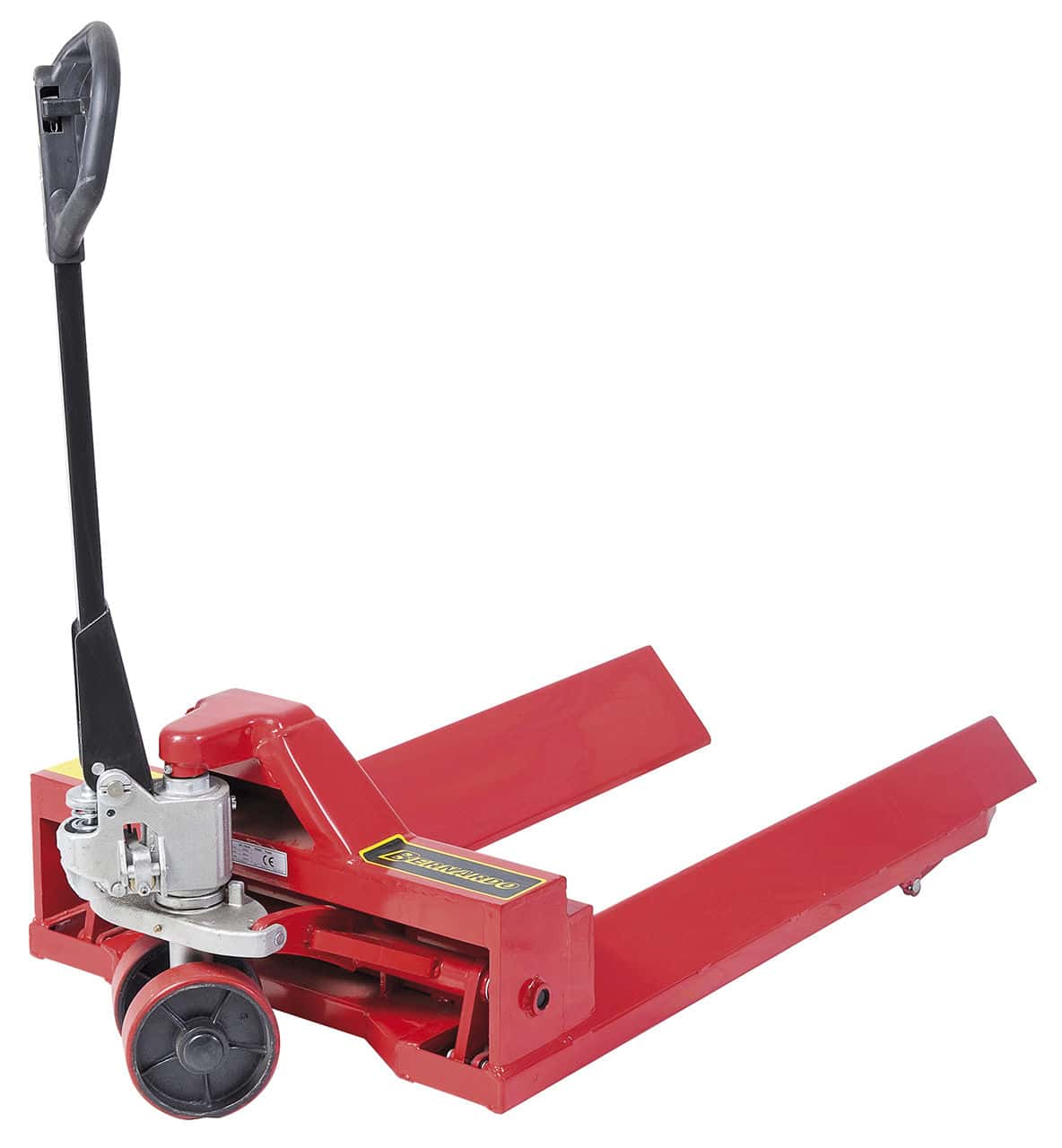

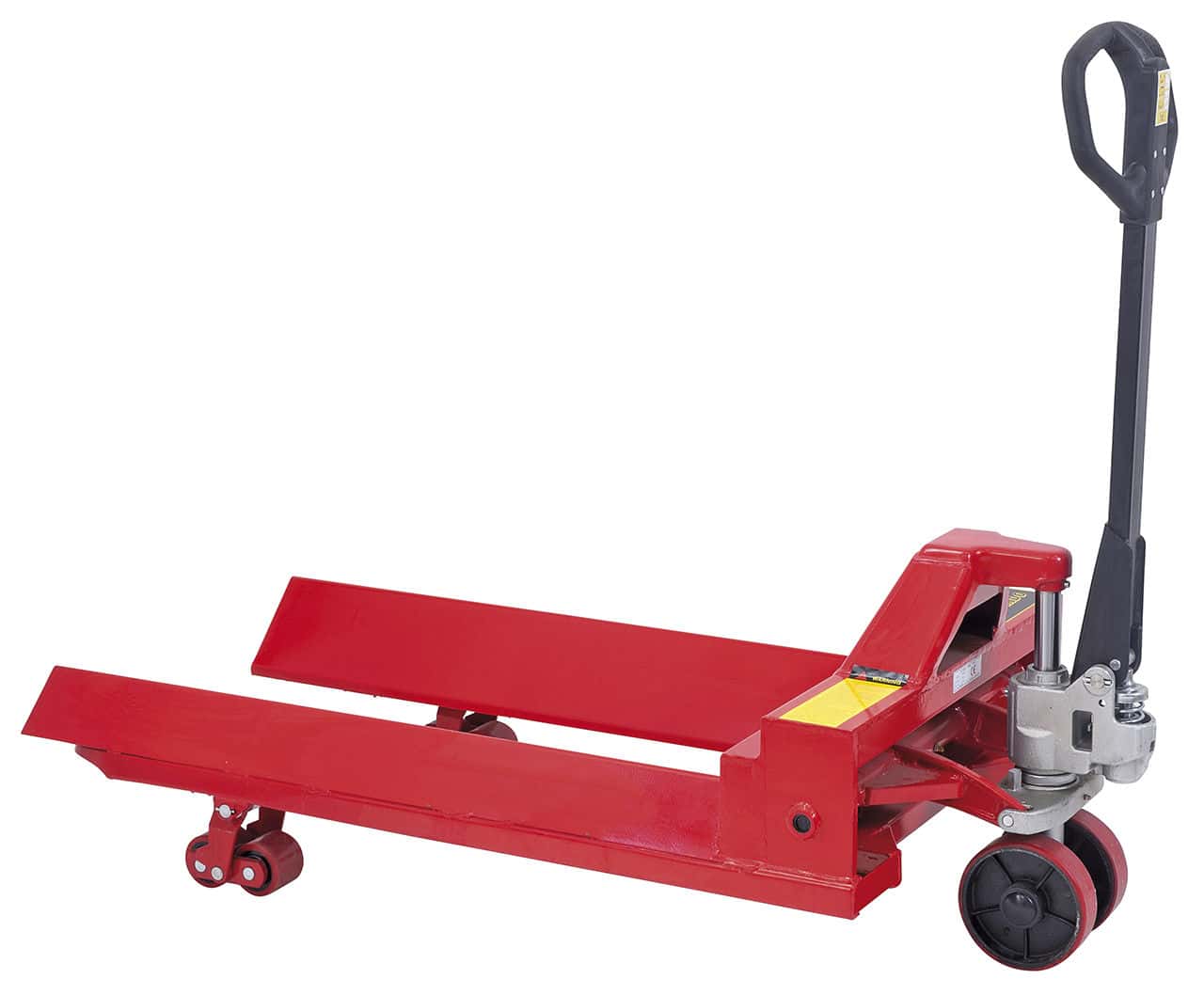

Bernardo RHW 1500 Coil Pallet Truck – capacity 2,000 kg, coil Ø 1200-1600 mm, lift 115 mm
Bernardo RHW 1500 Coil Pallet Truck – capacity 2,000 kg, coil Ø 1200-1600 mm, lift 115 mm is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description
The Bernardo RHW 1500 special fork pallet truck for coils is designed for handling industrial cylindrical coils with a diameter of 1200-1600 mm. It offers a maximum capacity of 2,000 kg, fork length of 1150 mm, fork width of 180 mm, overall width of 1150 mm, minimum fork height of 190 mm, maximum lifting height of 115 mm, steering angle of 90°, turning radius of 1340 mm, and overall dimensions of 1,600 × 1,150 × 1,230 mm. Suitable for warehouses, paper mills, steel mills, and factories that regularly handle standard cylindrical coils. Distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Maximum capacity: 2,000 kg
- Compatible coil diameter: 1200 - 1600 mm
- Fork length: 1150 mm
- Fork width: 180 mm
- Overall width: 1150 mm
- Maximum lifting height: 115 mm
- Turning radius: 1340 mm
Who uses the RHW 1500 and for what

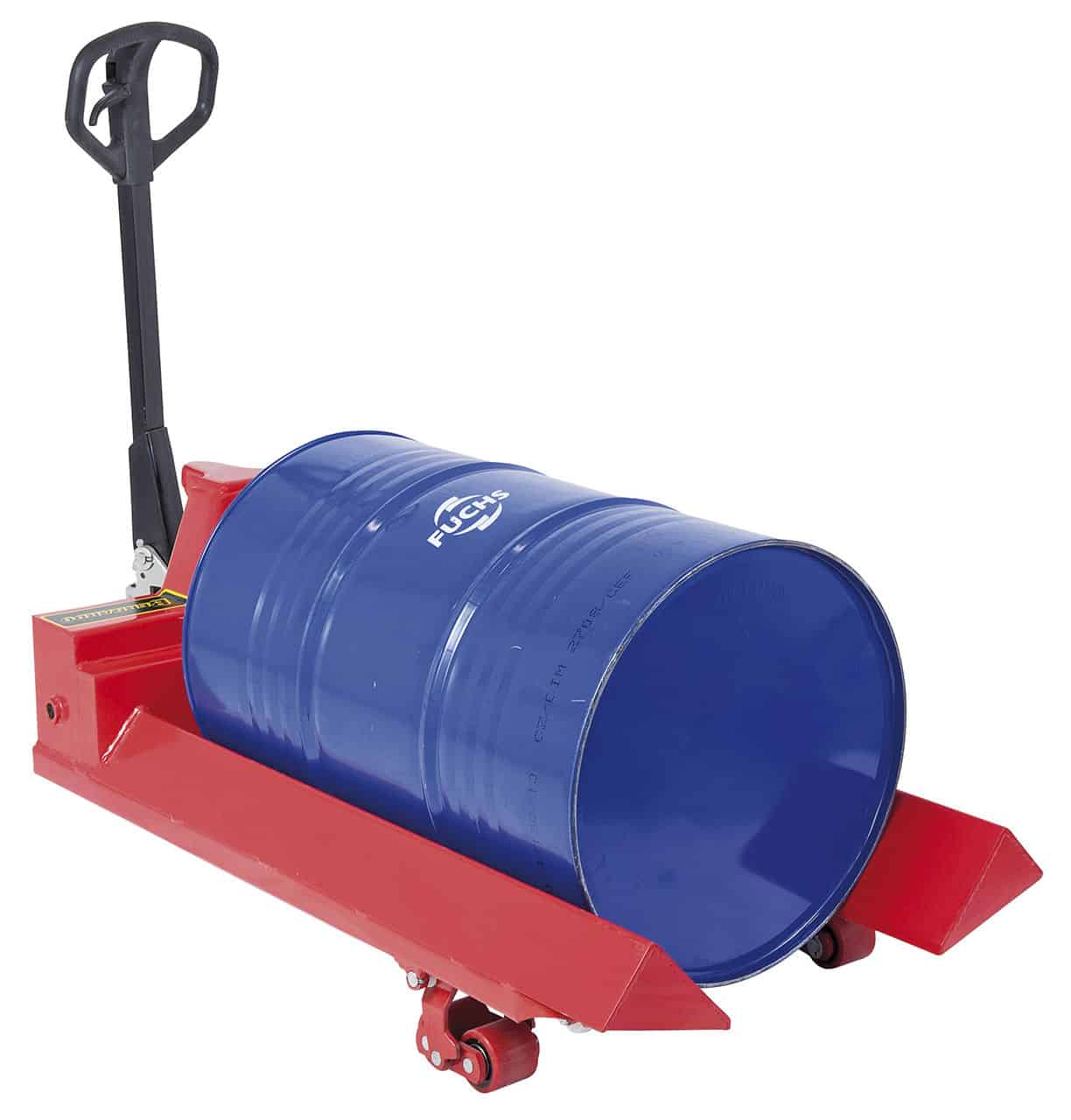

The Bernardo RHW 1500 is a special fork pallet truck designed for handling industrial cylindrical coils with a diameter between 1200 and 1600 mm. The forks have a specific geometry (180 mm width) to accommodate the coil diameter without damaging the roll during lifting. Construction feature: the 2,000 kg capacity is the same for all RHW models; the difference between the models is only in the dimensions of the forks (width, total machine width) to accommodate coils of different diameters. The maximum lifting height of 115 mm is dimensioned for lifting from the ground to a standard level (e.g., loading onto a truck, positioning on a low shelf). For high-level storage on multiple shelves, EHS stackers or dedicated forklifts are needed. In Krollit customer laboratories, the RHW 1500 pallet truck is chosen by paper mills for handling paper rolls, steel mills for managing sheet metal coils, cable factories for industrial cable reels, textile factories for fabric rolls, and logistics warehouses with standard coils.
Its place in the Bernardo range
The Bernardo RHW range of pallet trucks for cylindrical coils is organized into 4 models by coil diameter: RHW 500 (400-600 mm coils), RHW 700 (600-800 mm), RHW 1000 (800-1,200 mm), RHW 1500 (1,200-1,600 mm). All models share the 2,000 kg capacity and 115 mm lifting height: the difference is exclusively the size of the forks to adapt to the diameter of the coil being handled. For the RHW 1500 model (1200-1600 mm coils), check the typical diameter of the coils in stock: a coil that is too small on the forks of a large model risks slipping during handling; a coil that is too large will not fit into the forks of a small model. Choosing the correct model is essential for safety and functionality. Difference from the Bernardo EHS series: RHW are manual pallet trucks for horizontal handling of coils (maximum lift 115 mm); EHS are electric stackers for high-level storage of pallets (lift up to 3,500 mm). They are products for completely different applications even though both are forklifts.
Krollit logistics and support
Bernardo shipping in 5-9 business days (7 days to the South). The RHW 1500 pallet truck is shipped on a protective pallet. Dimensions 1,600 × 1,150 × 1,230 mm: check warehouse access for unloading. Original Bernardo spare parts (rollers, wheels, handles) available from stock with 3-5 business day shipping. Customer support in Italian available.
Who the RHW 1500 is for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Not recommended | The RHW pallet truck is an industrial tool for coil handling: exclusively professional application. |
| Paper mill / cable factory / steel mill with 1200-1600 mm coils | Recommended | Forks specifically dimensioned for the typical diameter. 2,000 kg capacity sufficient for most standard industrial coils. |
| Logistics warehouse with standard coil handling | Recommended | Overall width 1150 mm and turning radius 1,340 mm for maneuverability in standard warehouse aisles. |
Not recommended for: handling coils with diameters outside the 1200-1600 mm range (check the model with the correct range: RHW 500, 700, 1000 or 1500); storing pallets on multi-level shelving (EHS stackers are correctly dimensioned); handling loads exceeding 2,000 kg (lifting limited to 115 mm and max capacity 2,000 kg); applications requiring horizontal handling of standard pallets (use standard manual pallet trucks for pallets, not for coils).
Capacity
| Specification | Value |
|---|---|
| Maximum capacity | 2,000 kg |
| Compatible coil diameter | 1200 - 1600 mm |
| Maximum lifting height | 115 mm |
| Minimum fork height | 190 mm |
Forks
| Specification | Value |
|---|---|
| Fork length | 1150 mm |
| Fork width | 180 mm |
Maneuverability and dimensions
| Specification | Value |
|---|---|
| Overall width | 1150 mm |
| Steering angle | 90° |
| Turning radius | 1340 mm |
| Steering roller dimensions (Ø × L) | 200 × 50 mm |
| Load roller dimensions (Ø × L) | 82 × 70 mm |
| Overall dimensions (l1 × b5 × h14) | 1,600 × 1,150 × 1,230 mm |
Compliance
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/CE |
Standard equipment
- Bernardo RHW 1500 special fork pallet truck for coils
- Forks dimensioned for the specific coil diameter range
- Manual hydraulic lifting system
- Ergonomic swivel wheels
- User manual in Italian
Frequently asked questions
Can I also use the RHW 1500 for standard pallets?
No. The forks of the RHW pallet truck are specifically dimensioned to accommodate cylindrical coils with the indicated diameter. The fork geometry is not compatible with standard EUR pallets (1,200 × 800 mm).
For handling standard pallets, manual pallet trucks with standard forks are needed, dimensioned for the openings under the pallet (typically 95-110 mm open fork height). Krollit also supplies standard pallet trucks in its catalog. For mixed applications, consider a standard pallet truck + separate coil handling system.
Is the 115 mm lifting height really sufficient?
For coil handling, yes. The RHW pallet truck lifts the coil from the floor by 115 mm, which is sufficient to move it horizontally without dragging. It is not correctly dimensioned for high-level storage on shelving.
The 115 mm height is standard for manual pallet trucks: it is the lift value sufficient to overcome floor imperfections (joints, slight slopes, steps up to 50 mm) during horizontal transport. To place the coil on shelving above the ground, a forklift with higher lift is required.
Can I handle empty coils smaller than the minimum 1200 mm?
Not recommended. Coils below the minimum diameter of 1200 mm risk slipping sideways in the forks during lifting or adopting unstable positions that can cause falls.
For smaller diameter coils, consider the RHW model with a smaller range (e.g., RHW 500 for 400-600 mm, RHW 700 for 600-800 mm) or different handling systems such as rotating clamps or scoop hooks. The correct dimensioning of the pallet truck relative to the coil diameter is essential for safety.
Is the 2,000 kg capacity the same for all RHW models?
Yes. The mechanical structure of the frame and the hydraulic system is the same for RHW 500, 700, 1000, and 1500: maximum capacity 2,000 kg for all. The difference between the models is exclusively the size of the forks to accommodate coils of different diameters.
The 2,000 kg capacity limit applies to vertical static load with the coil centered on the forks. For eccentric or decentralized coils, the effective capacity is reduced. Always check the actual weight of the coil before lifting. For coils over 2,000 kg, dedicated heavy industrial handling systems are required.
Are the wheels suitable for industrial floors?
Yes. The Ø 200 × 50 mm steering roller and the Ø 82 × 70 mm load rollers are made of high-strength polyurethane, dimensioned for standard industrial floors (smooth concrete, industrial tiles, epoxy resins).
For very rough or damaged floors, the wheels may wear out more quickly. For environments with oil, solvents, or metal shavings, consider periodic replacement of the wheels. Original Bernardo replacement wheels are available from stock with 3-5 business day shipping.
